Automatic Transmission Controls Schematics 3.8L VIN K

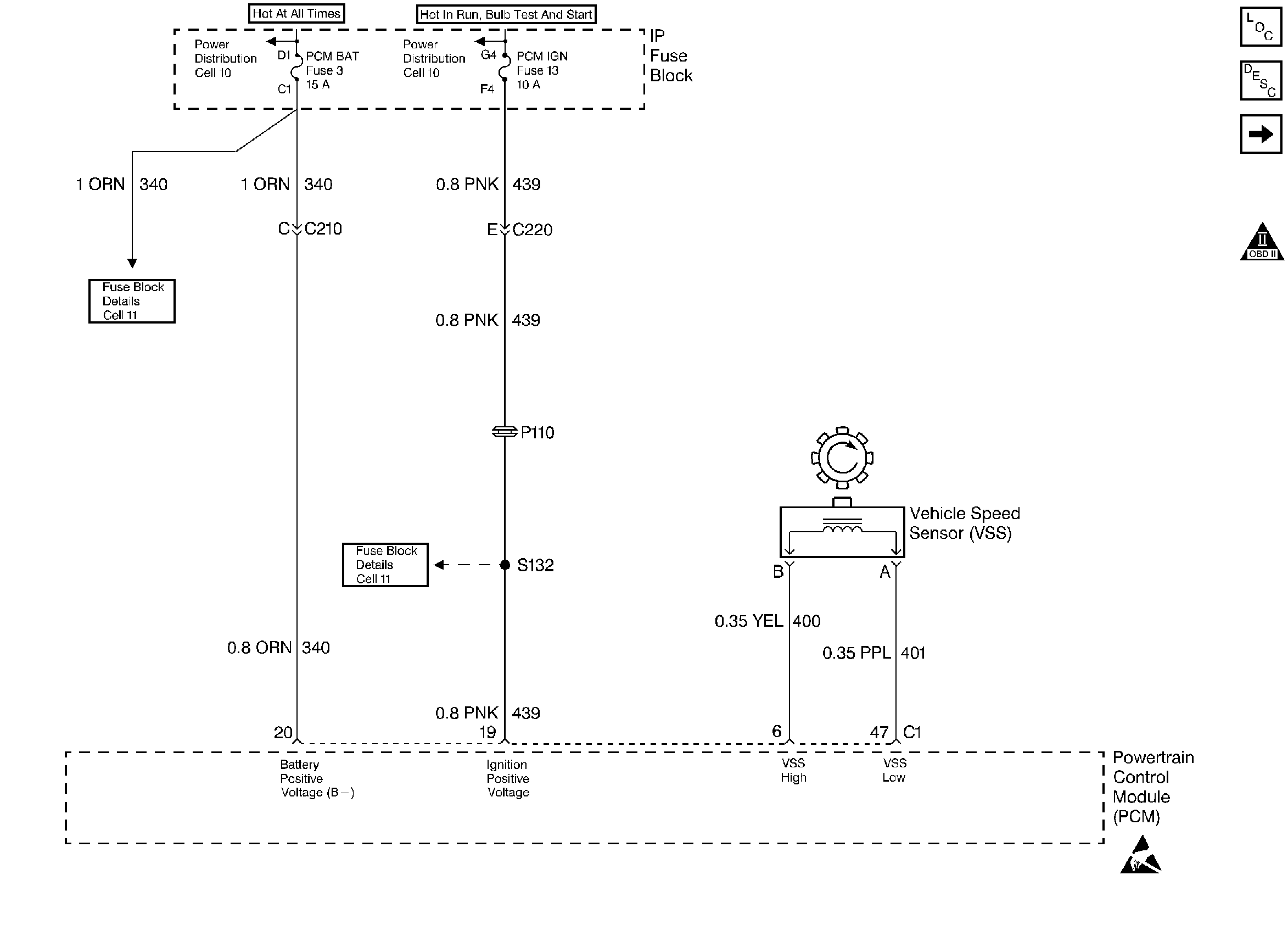

Figure 1:

PCM Power and VSS
Object Number: 26705 Size: FS

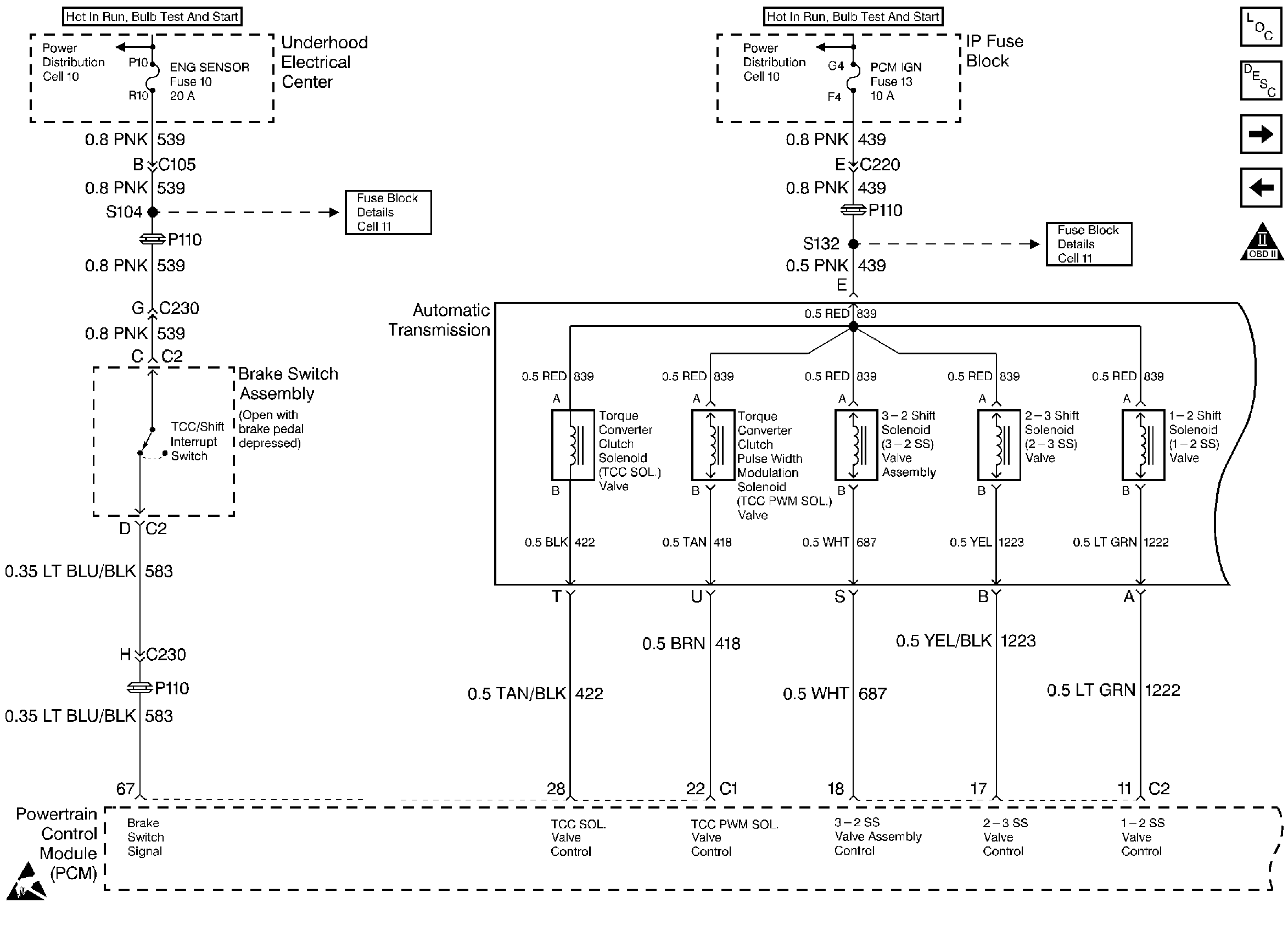

Figure 2:

Brake Switch and Solenoids
Object Number: 26711 Size: FS

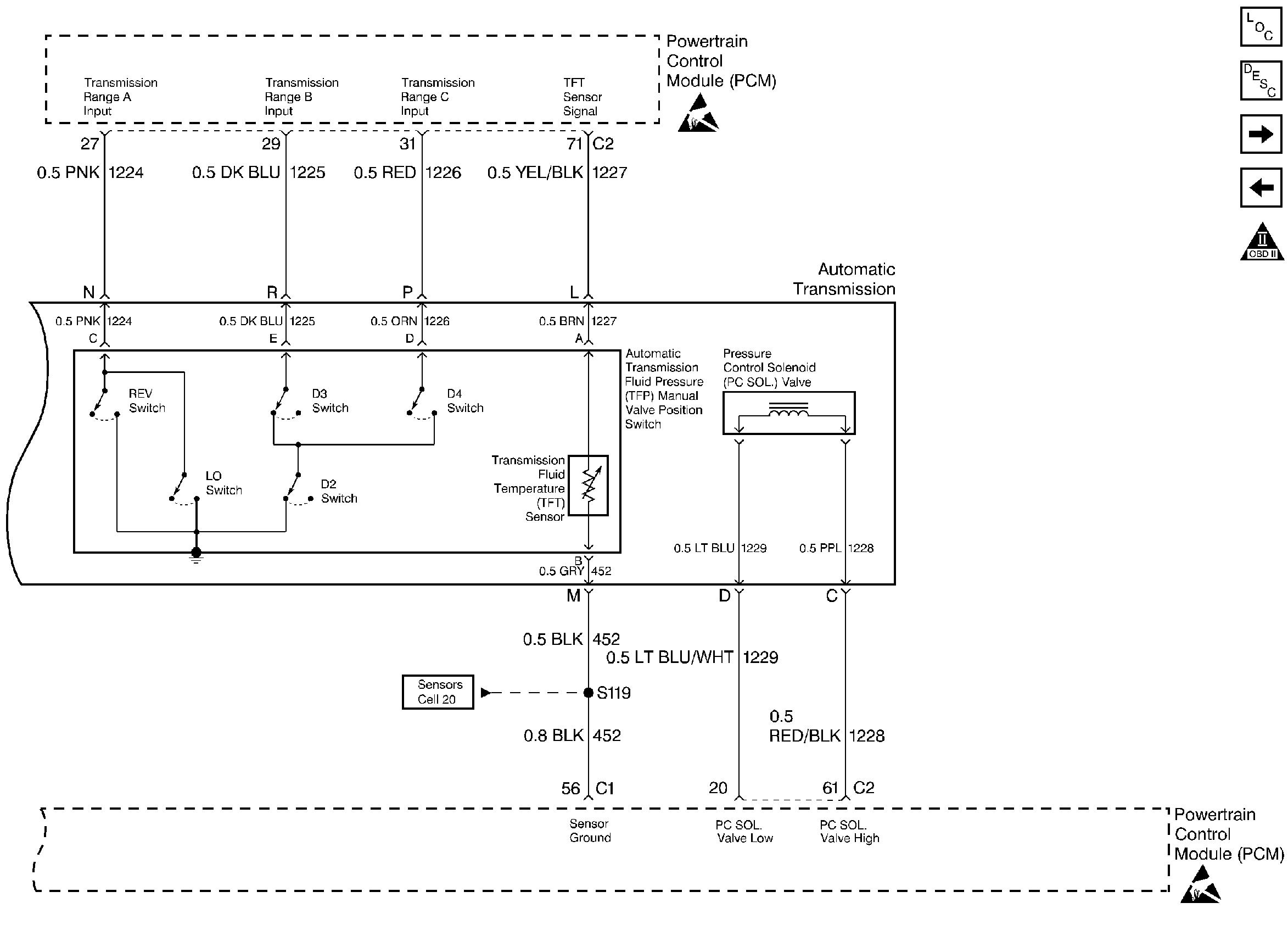

Figure 3:

TFP Valve Position Switch and PC Sol. Valve
Object Number: 26706 Size: FS
Figure 4:

2nd Gear Start Switch
Object Number: 26712 Size: FS

Automatic Transmission Controls Schematics 5.7L VIN P

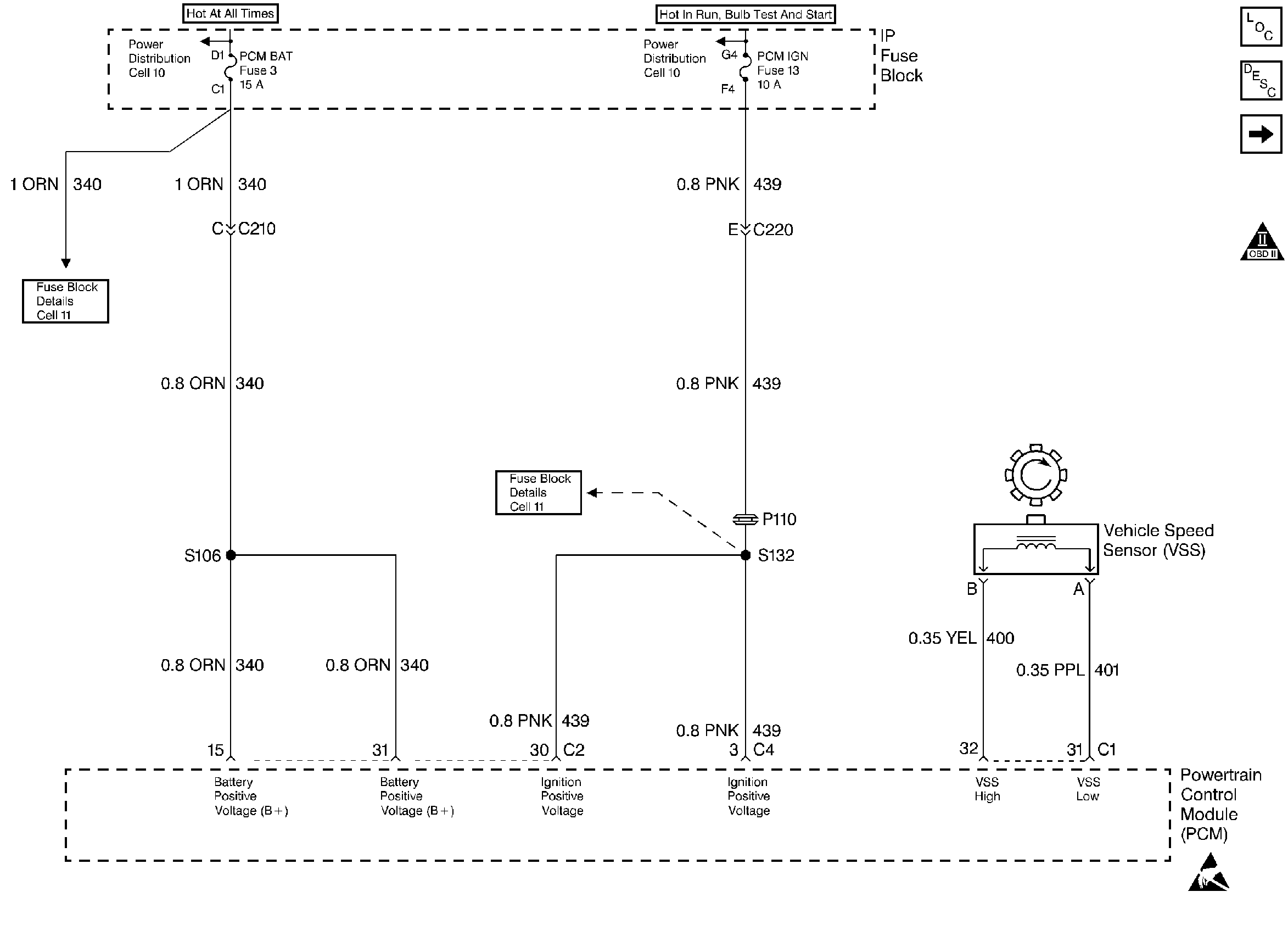

Figure 1:

PCM Power and VSS
Object Number: 26714 Size: FS
Figure 2:

Brake Switch and Solenoids
Object Number: 26719 Size: FS

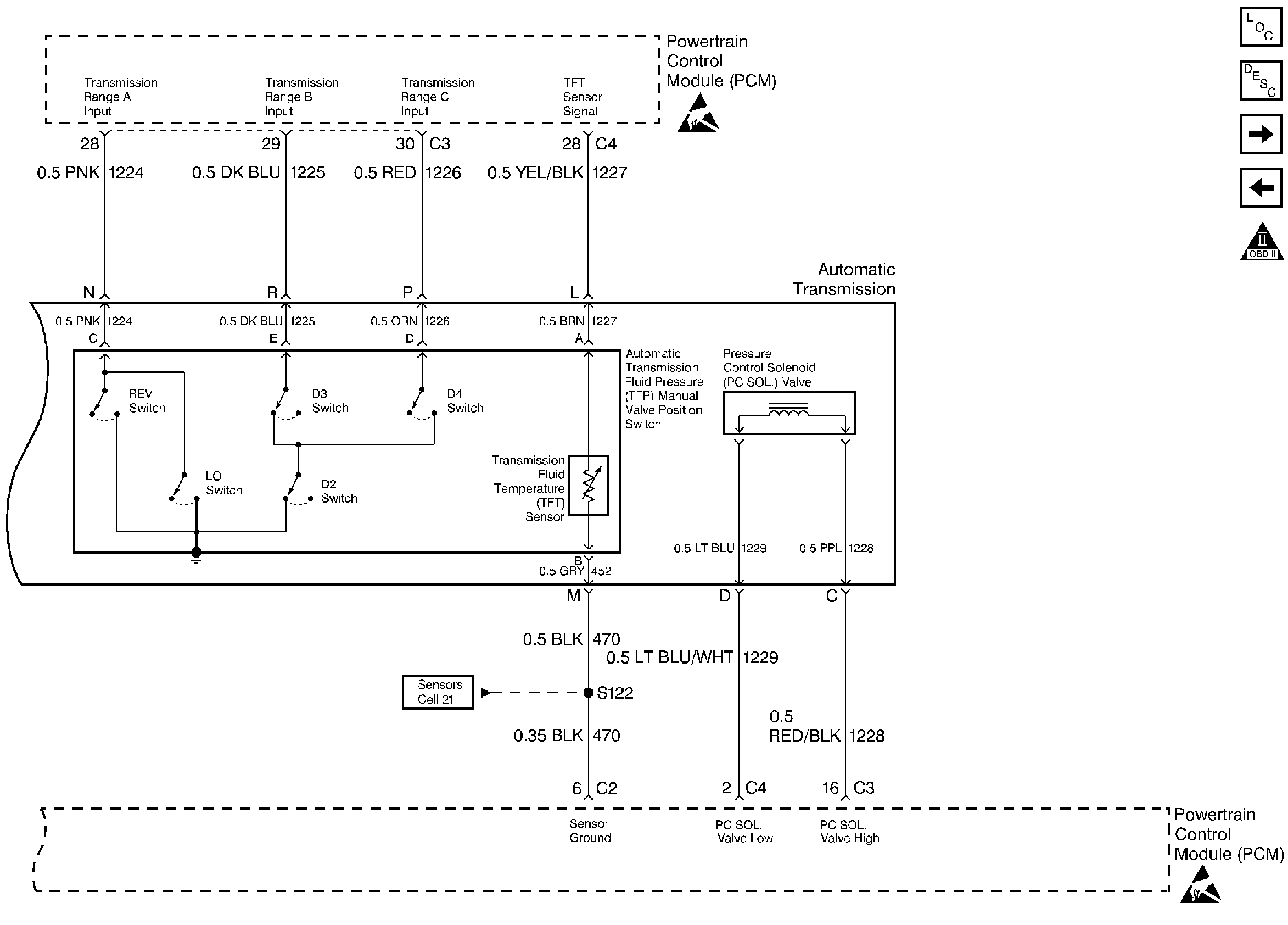

Figure 3:

TFP Valve Position Switch and PC Sol. Valve
Object Number: 26720 Size: FS
Figure 4:

Traction Control System
Object Number: 26721 Size: FS
