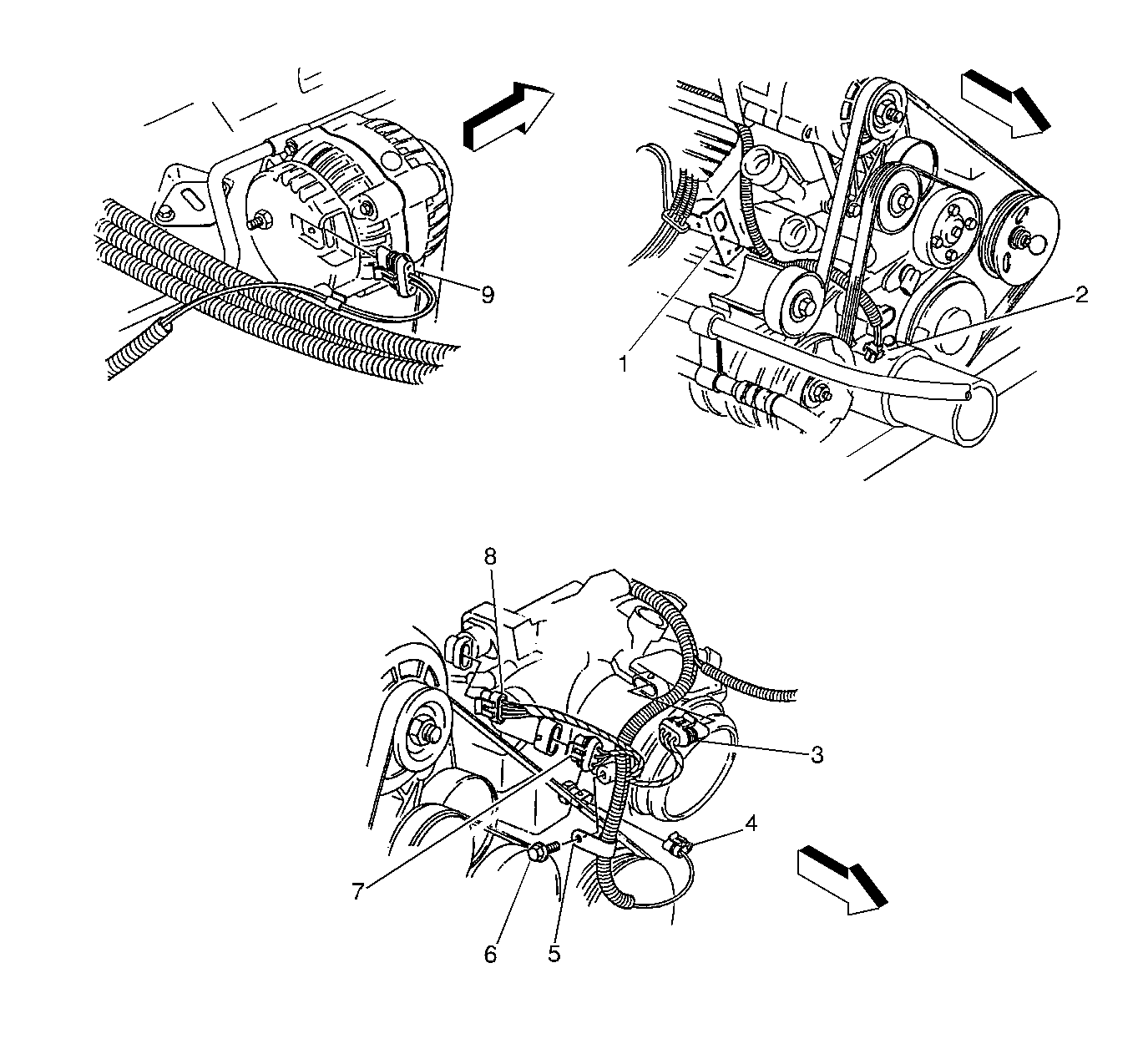

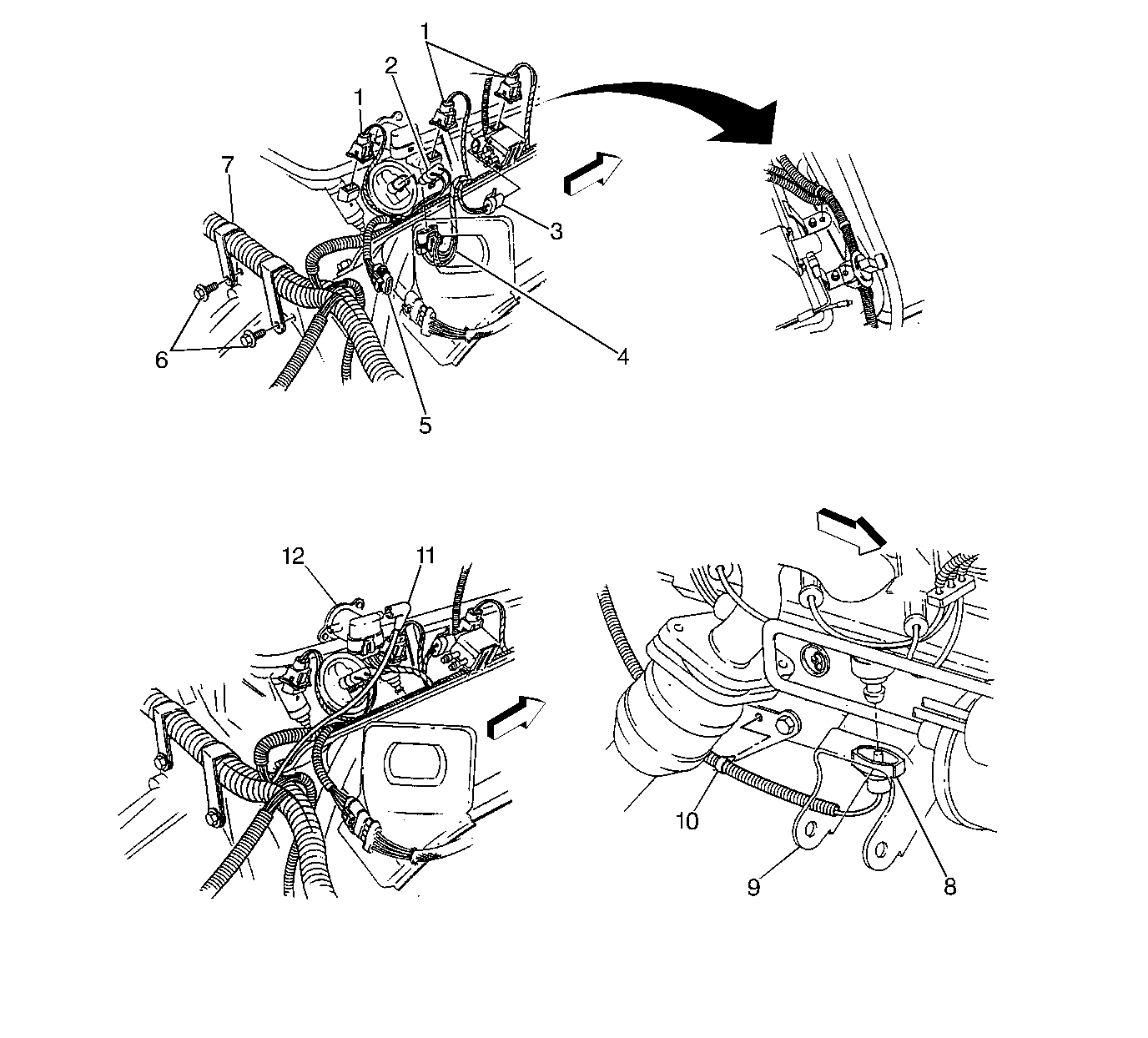

| (1) | Canister Purge Solenoid Valve Electrical Connector |
| (2) | Injector Electrical Connector |
| (3) | Manifold Absolute
Pressure Sensor Electrical Connector |
| (4) | Generator Electrical Connector |
| (5) | A/C Compressor Clutch
Electrical Connector |
| (6) | Vacuum Tube |
| (7) | Engine Ground Terminal |
| (8) | Engine Wiring Harness Ground Nut |
| (9) | Knock Sensor Electrical
Connector |
| (10) | Engine Wiring Harness Clamp Bolt |
| (11) | Engine Wiring Harness |
| (12) | Ignition Distributor Electrical Connector |
| (13) | Engine Wiring
Harness Start Lead Nut |
| (14) | Engine Wiring Harness Start Lead |
| (15) | Engine Wiring Harness Start Lead Washer |
| (16) | Oxygen Sensor
Electrical Connector |
| (17) | Manifold Absolute Pressure Sensor |
| (18) | Manifold Absolute Pressure Connector |
| (19) | Engine
Wiring Harness |
| (20) | Throttle Position Sensor Electrical Connector |
| (21) | Idle Air Control Stepper
Motor Electrical Connector |
