Name
| Location
| Locator View
| Connector End View
|
Automatic Transmission (V6 VIN K)
| Behind the engine
| ABS Component Viewsin ABS Traction Control
| --
|
Cruise Control/Clutch
Anticipate Switch (V6 VIN K )
| Mounted in the clutch pedal bracket
| Cruise Control Component Views in Cruise Control
| Cruise Control Connector End Views in Cruise Control
|
Cruise Control
(Clutch) Switch (V8 VIN G Manual)
| Mounted in the clutch pedal bracket
| Harness Routing Views in Wiring Systems
| Cruise Control Connector End Views in Cruise Control
|
Park Neutral
Position Switch
| Under the center console, on the base of the shift control lever
| --
| Engine Electrical Connector End Viewsin Starting
and Charging
|
Powertrain Control Module (PCM) (V6 VIN K)
| On the right side of the engine compartment,
rear of the wheelhouse
| Harness Routing Views in Wiring Systems
| |
Powertrain Control Module (PCM) (V8 VIN G)
| On the right side of the engine compartment,
rear of the wheelhouse
| Engine Controls Component Views in Engine Controls 5.8L
| |
Second Gear Start Switch (V6 VIN K) (Chevrolet)
| In the center of the IP, above
the HVAC control
| ABS Component Viewsin ABS Traction Control
| |
Stop Lamp Switch
| Mounted on the brake pedal bracket
| Cruise Control Component Views in Cruise Control
| |
Stop Lamp/TCC Switch (Automatic)
| Mounted on the brake pedal bracket
| --
| Lighting Systems Connector End Viewsin Lighting Systems
|
Underhood Electrical Center 2
| In the left front corner of the engine
compartment
| Engine Controls Component Views in Wiring Systems
| |
Vehicle Speed Sensor (Manual)
| On the rear left side of the transmission
| ABS Component Viewsin ABS Traction
Control
|
Engine Controls Connector End Views in
Engine Controls
|
Vehicle Speed Sensor (Automatic)
| On the rear right side of the
transmission
| ABS Component Viewsin ABS Traction Control
|
Engine Controls Connector End Views in Engine Controls
|
C100 (10 cavities)
| Engine to forward
lamp harness, in the engine compartment, above the right wheelhouse
| Harness Routing Views in Wiring Systems
| Inline Harness Connector End Viewsin Wiring Systems
|
C105 (8 cavities)
| Engine to forward lamp harness, in the engine compartment,
above the right wheelhouse
| Harness Routing Views in Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C200A (17
cavities)
| Forward lamp to IP harness, between the left kick panel and the steering column
| Harness Routing Views in
Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C200B (18 cavities)
| Forward lamp to IP harness,
between the left kick panel and the steering column
| Harness Routing Views in Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C200D (48
cavities)
| Part of the IP harness, between the left kick panel and the steering column
| Harness Routing Views in
Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C210 (10 cavities)
| IP to engine harness, under
the right side of the IP, behind the knee bolster
| Harness Routing Views in Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C220 (10
cavities)
| IP to engine harness, under the right side of the IP, behind the knee bolster
| Harness Routing Views in
Wiring Systems
| Inline Harness Connector End Views in Wiring Systems
|
C270 (2 cavities)
| IP harness of the cruise control
harness, near the brake/clutch pedal bracket
| Harness Routing Views in Wiring Systems
| --
|
G110 (V8 VIN G)
| Attached
to the rear of the left cylinder head
| Harness Routing Views in Wiring Systems
| --
|

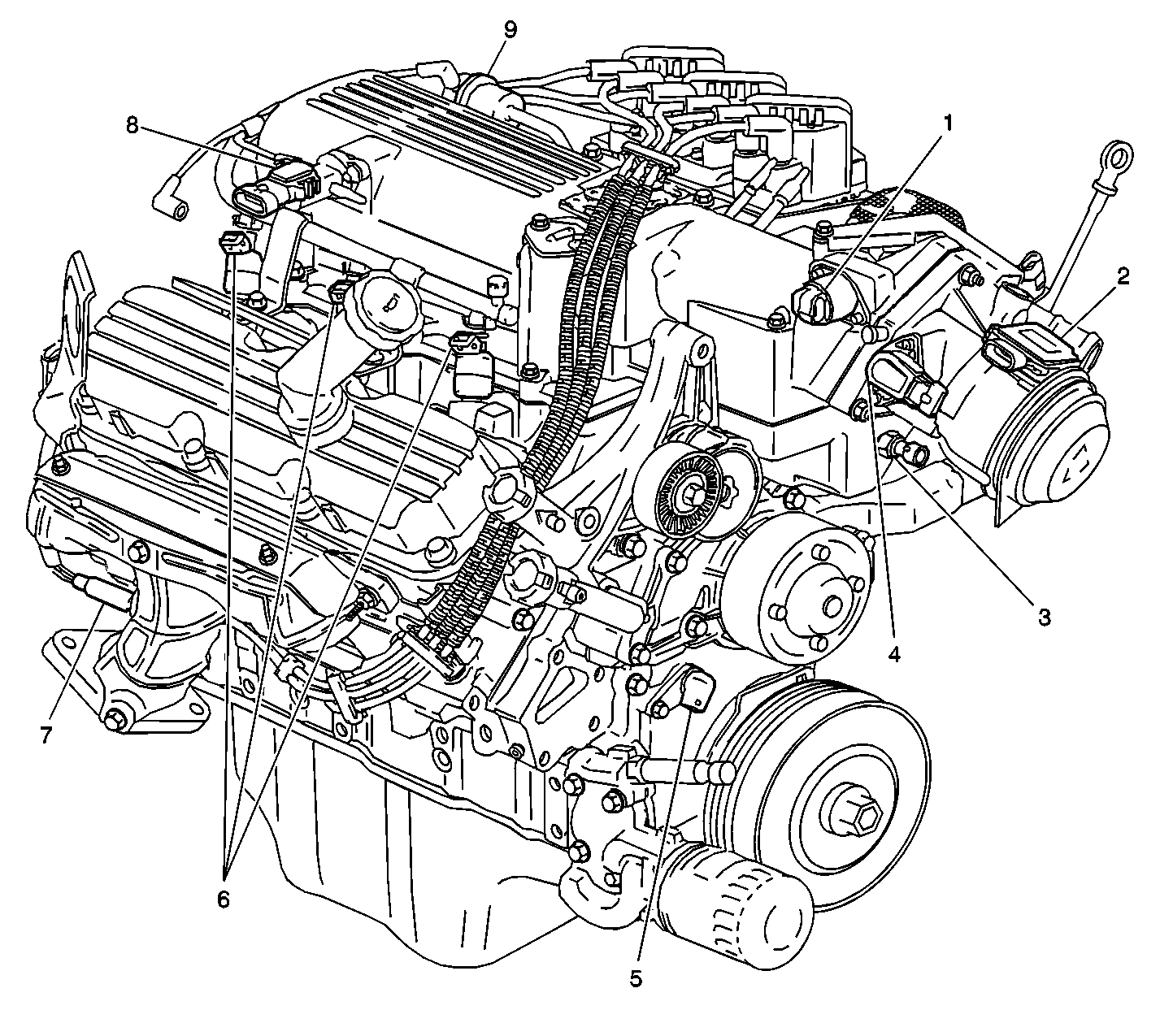

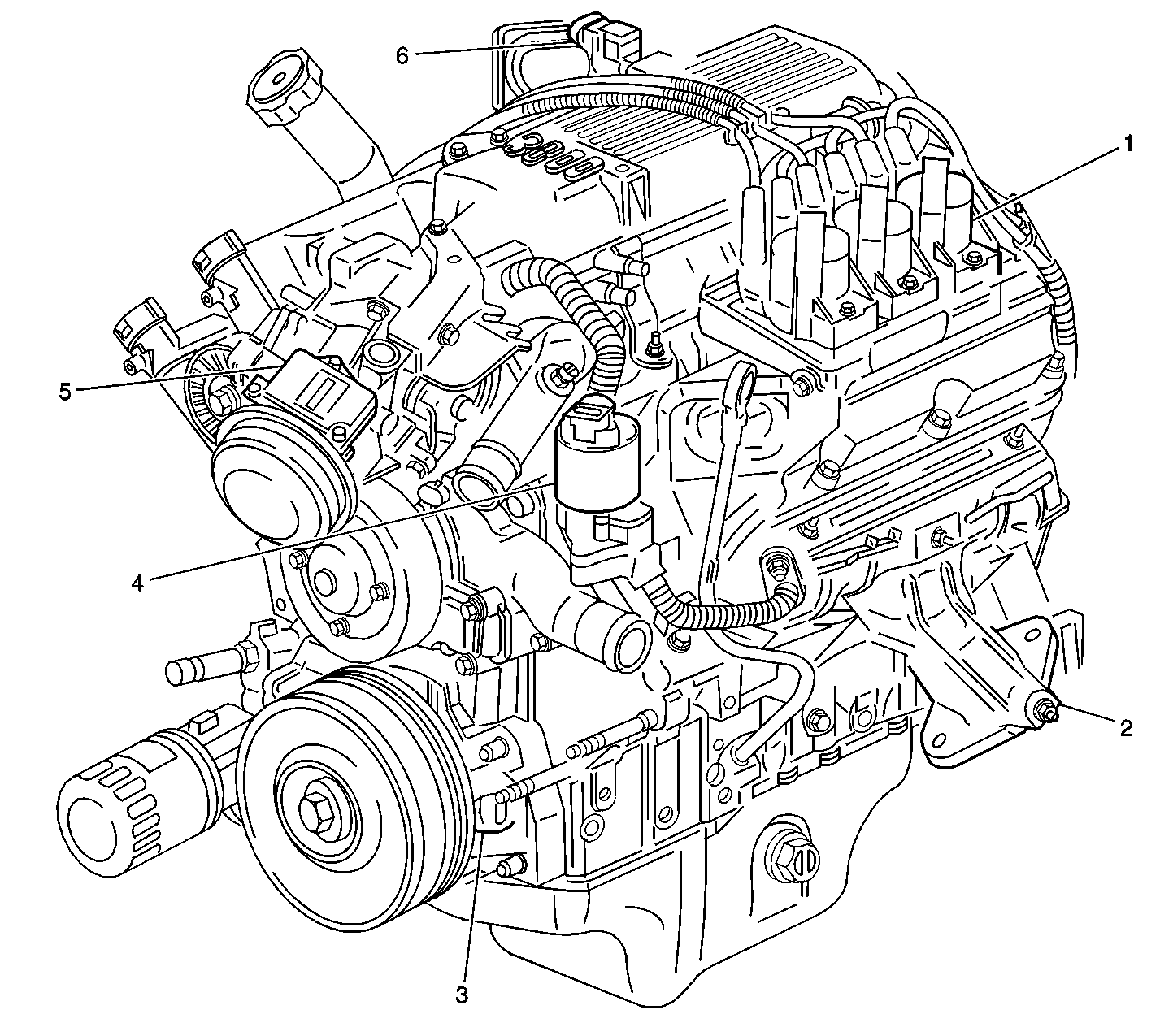

G110 (V6 VIN K)
| In the front of the engine,
bolted to the pulley above the A/C clutch connector
| Harness Routing Views in Wiring Systems
| --
|
P100
| Left side in the dash
panel, engine to the passenger compartment
| Harness Routing Views in Wiring Systems
| --
|
P110
| Right side in the dash
panel, engine to the passenger compartment
| Harness Routing Views in Wiring Systems
| --
|
S104 (V8 VIN G)
| in the
engine harness, approximately 14 cm (5.5 in) from the powertrain
control module (PCM) breakout
| --
| --
|
S104 (V6 VIN K)
| In the engine harness, approximately 7 cm (2.3 in)
from the right knock sensor breakout
| --
| --
|
S107 (V8 VIN G)
| In the engine harness, main branch, approximately 7 cm
(2.8 in) from the powertrain control module (PCM) breakout
| --
| --
|
S107 (V6
VIN K)
| In the engine harness, main branch, approximately 21 cm (8.3 in)
from the powertrain control module (PCM) breakout
| --
| --
|
S110 (V8 VIN G)
| In the engine harness,
main branch, approximately 20 cm (7.9 in) from the powertrain
control module (PCM) breakout
| --
| --
|
S110 (V6 VIN K)
| In the engine harness, approximately 4 cm (1.6 in)
from the powertrain control module (PCM) breakout
| --
| --
|
S121 (V6 VIN K)
| In the engine harness,
main branch, approximately 8 cm (3.1 in) from the powertrain
control module (PCM) breakout
| --
| --
|
S182
| In the forward lamp harness, approximately 15 cm
(6 in) from the UH electrical center 1 breakout
| --
| --
|
S207
| In the IP harness, main
branch, approximately 4 cm (1.6 in) from the data link connector
(DLC) breakout
| --
| --
|
S215
| In the IP harness, main branch, approximately 11 cm (4 in) from
the antenna cable breakout
| --
| --
|
S234 (Automatic)
| In the IP harness, main branch, approximately 5 cm
(2 in) from the body control module (BCM) breakout
| --
| --
|
