Circuit Description

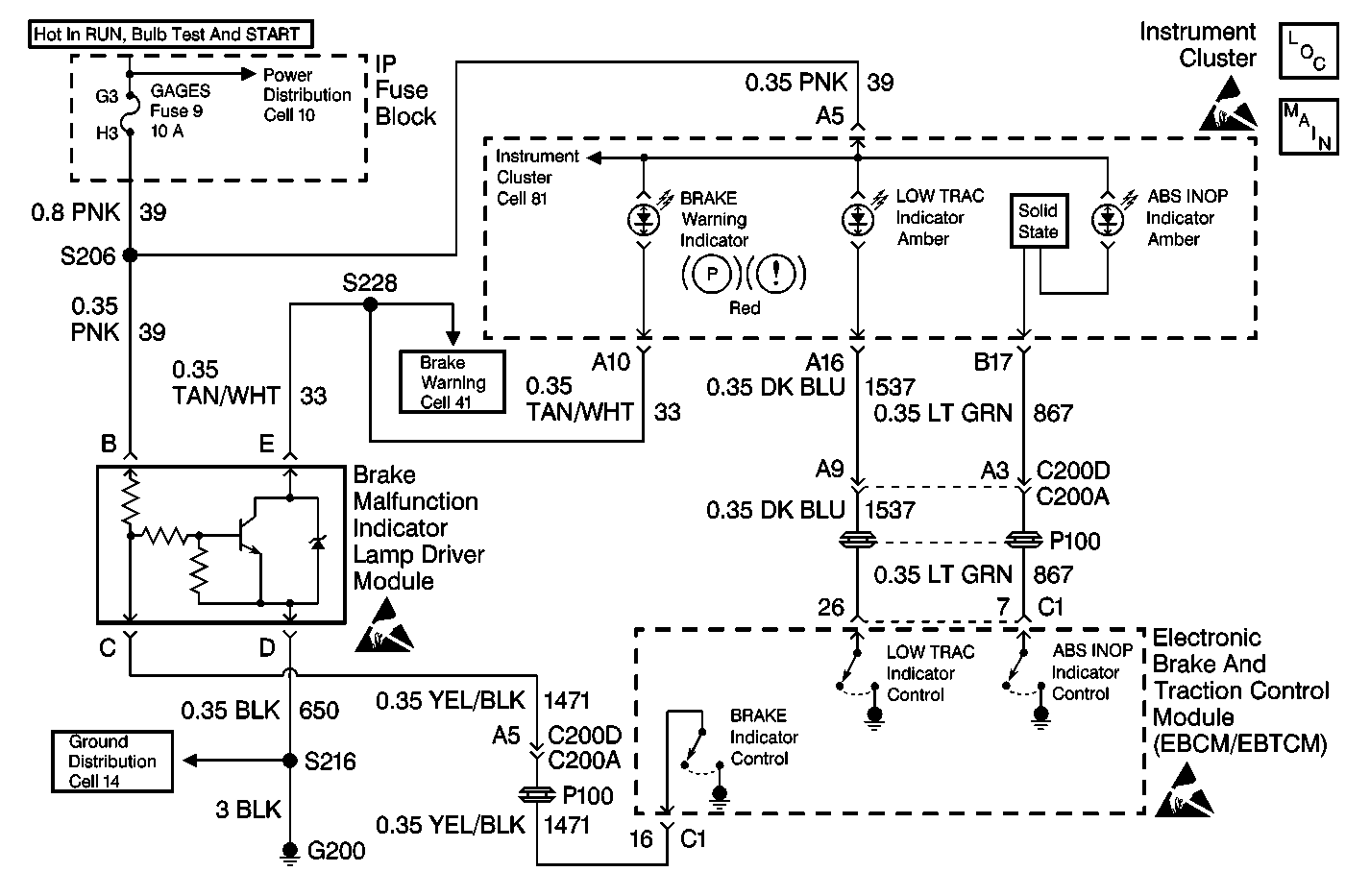

The LOW TRAC Indicator is controlled by the EBCM/EBTCM. When the EBCM/EBTCM detects a low traction condition it supplies a ground for CKT 1537 turning on the LOW TRAC Indicator.
Diagnostic Aids
| • | It is very important that a thorough inspection of the wiring and connectors be performed. Failure to carefully and fully inspect wiring and connectors may result in misdiagnosis, causing part replacement with reappearance of the malfunction. |
| • | Thoroughly inspect any circuitry that may be causing the complaint for the following conditions: |
| - | Backed out terminals |
| - | Improper mating |
| - | Broken locks |
| - | Improperly formed or damaged terminals |
| - | Poor terminal-to-wiring connections |
| - | Physical damage to the wiring harness |
| • | The following conditions may cause an intermittent malfunction: |
| - | A poor connection |
| - | Rubbed-through wire insulation |
| - | A broken wire inside the insulation |
| • | If an intermittent malfunction exists refer to Troubleshooting Procedures Cell 4 in Electrical Diagnosis for further diagnosis. |
Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
-
This step checks for an internal EBCM/EBTCM short.
-
This step checks for a short to ground in CKT 1537.
Step | Action | Value(s) | Yes | No |
|---|---|---|---|---|
DEFINITION: LOW TRAC Indicator On without a low traction condition. | ||||
1 | Was the Diagnostic System Check performed? | -- | Go to Diagnostic System Check | |
Is the LOW TRAC Indicator off? | -- | |||
3 | Replace the EBCM/EBTCM. Refer to Electronic Brake Control Module Replacement . Is the replacement complete? | -- | Go to Diagnostic System Check | -- |
Is the resistance within the range specified in the value(s) column? | OL (infinite) | |||
5 | Repair CKT 1537 for a short to ground. Refer to Repair Procedures Cell 5 in Electrical Diagnosis. Is the repair complete? | -- | Go to Diagnostic System Check | -- |
6 | Suspect the Instrument Panel. Refer to Instrument Panel in Instrument Panel, Gauges and Console. Is the repair complete? | -- | Go to Diagnostic System Check | -- |
