Antilock Brake System Component Views. Pontiac Firebird 1998

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 1998 🢒 Firebird 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Antilock Brake System Component Views

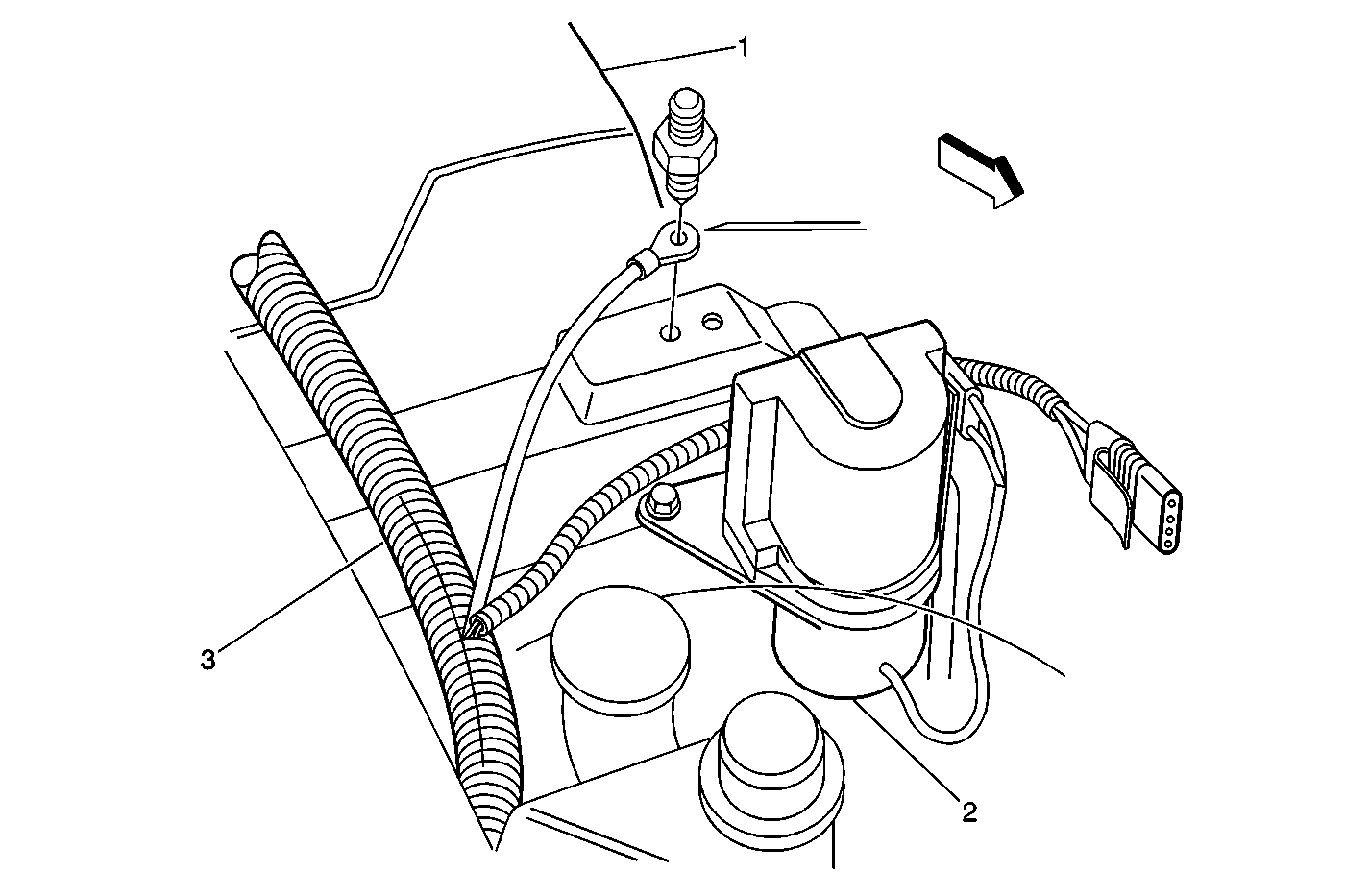

Figure 1:


(1)	Right Front Wheelhouse
(2)	Accelerator Control and Adjuster
(3)	Forward Lamp Harness

Figure 2:


(1)	Front Wheel
(2)	Left Front Wheel Speed Sensor (Right side similar)
(3)	Lower Control Arm
(4)	Brake Line

Figure 3:


(1)	Console
(1)	Traction Control or Second Gear Start Switch (Pontiac Only)
(3)	Folding Top Switch
(4)	Cigar Lighter

Figure 4:


(1)	Brake Pressure Modulator Valve (BPMV)
(2)	Electronic Brake Control Module (EBCM)
(3)	Left Front Frame Rail

Figure 5:


(1)	Right Rear Wheel Speed Sensor
(2)	Right Rear Wheel Speed Sensor
(3)	Left Rear Wheel Speed Sensor Connector
(4)	Rear Axle
