Makes 🢒 Pontiac 🢒 1998 🢒 Firebird 🢒 Body and Accessories 🢒 Body Control System 🢒 Power Door Systems Component Views

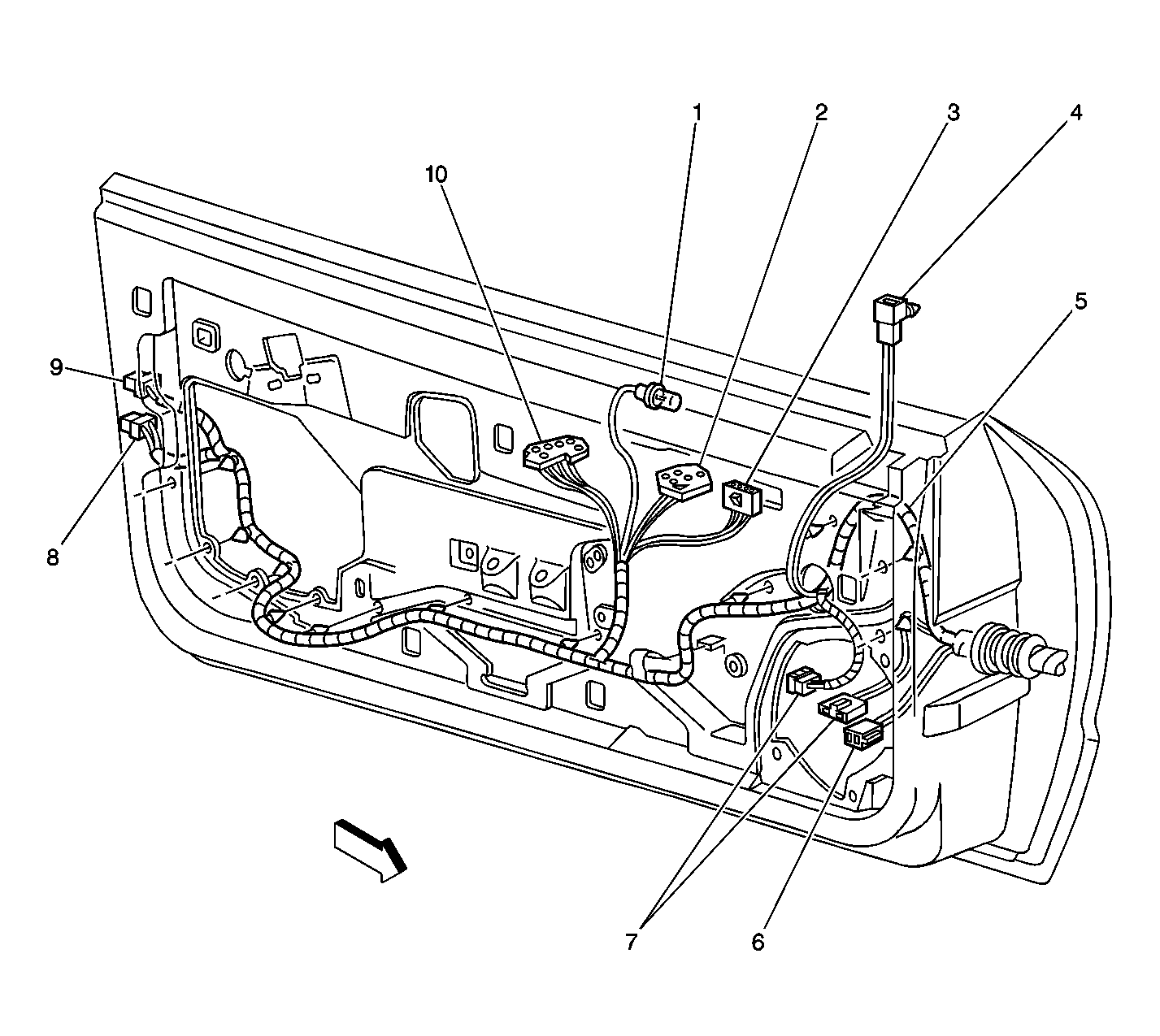

Figure 1:

Left Side Door (Right Door Similar)
Object Number: 483368 Size: LF
(1)Door Illumination Lamp
(2)Door Lock Switch Connector
(3)Outside Rearview Mirror Select Switch Connector
(4)Outside Rearview Mirror Connector
(5)Cross Car Harness
(6)Front Side Door Window Regulator Motor Connector
(7)Speaker Connectors (Base UQ0 and UZ7: One Connector Used) (W54, W55, W59, W73: Two Connectors Used
(8)Front Side Door Lock Actuator Connector
(9)Front Side Door Lock Connector
(10)Side Window Switch Connector
Figure 2:

Left Door Armrest (Chevrolet)
Object Number: 483545 Size: MF
(1)Outside Rearview Mirror Switch
(2)Cross Car Harness
(3)Side Window Switch, Left
(4)Door Trim Panel
(5)Door Lock Switch, Left
Figure 3:

Left Door Armrest (Pontiac)
Object Number: 483547 Size: MF
(1)Outside Rearview Mirror Switch
(2)Door Lock Switch
(3)Cross Car Harness
(4)Side Window Switch
(5)Door Trim Panel
Figure 4:

Center of Dash Mat Above Floor Tunnel
Object Number: 483548 Size: LF
(1)Dash Mat
(2)Floor Tunnel
(3)Power Window Control Module
