Headlights/Daytime Running Lights (DRL) Schematics. Pontiac Firebird 2002

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2002 🢒 Firebird 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Headlights/Daytime Running Lights (DRL) Schematics

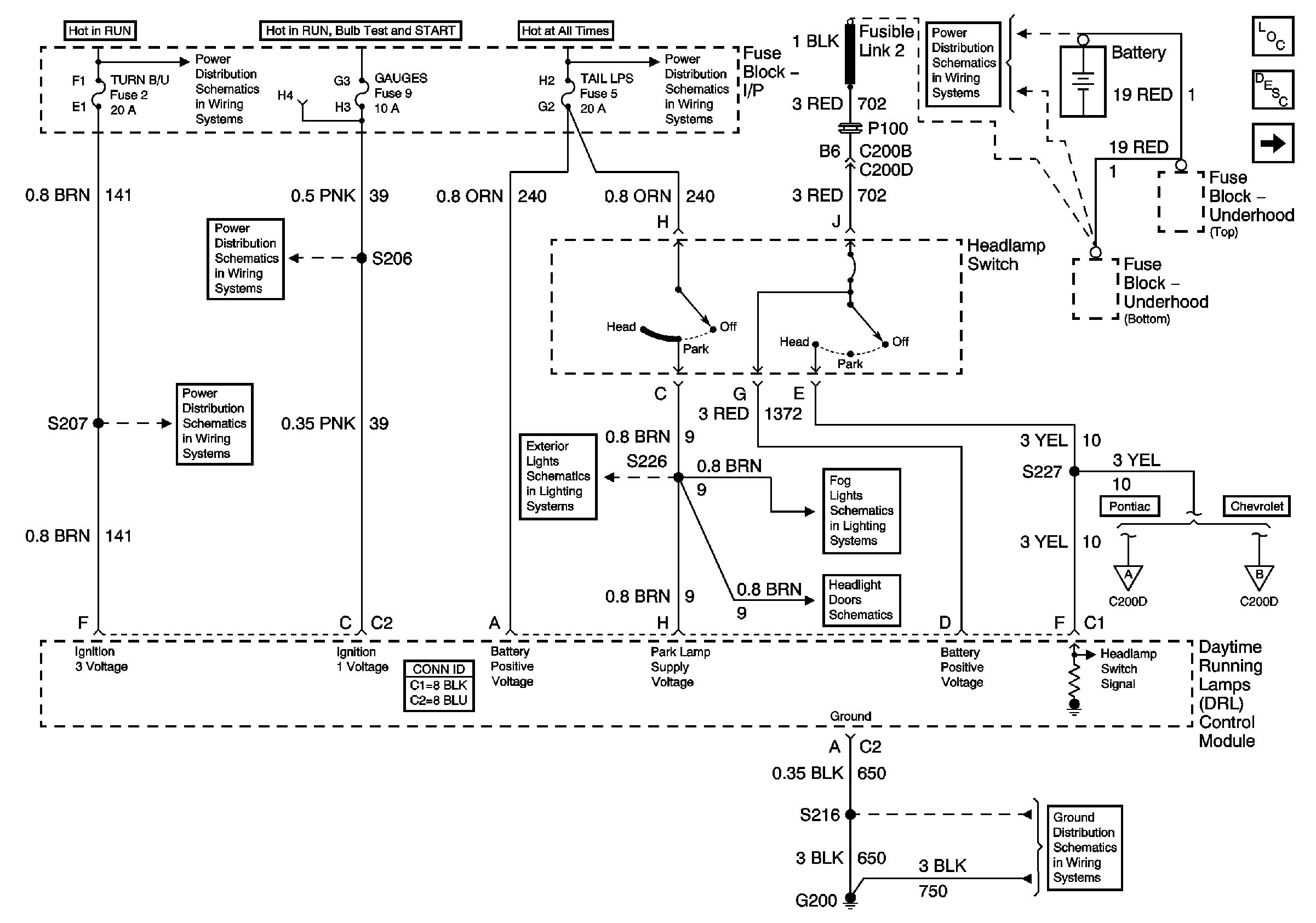

Figure 1:	Power, Ground and Headlight Switch Control - Pontiac, Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation DRL Controls HVAC and TURN B/U Fuses I/P-2,TAIL LPS, STOP/HAZARD,PWR ACCY and CIG/ACCY Fuses Battery Positive Voltage Bussing AIR BAG and GAUGES Fuses HVAC and TURN B/U Fuses Front Parklamps Chevrolet Domestic and Gulf Foglights Chevrolet Domestic and Gulf Headlight Doors Schematic Headlights Pontiac Headlights Chevrolet Domestic and Gulf G200 Page 1 of 3

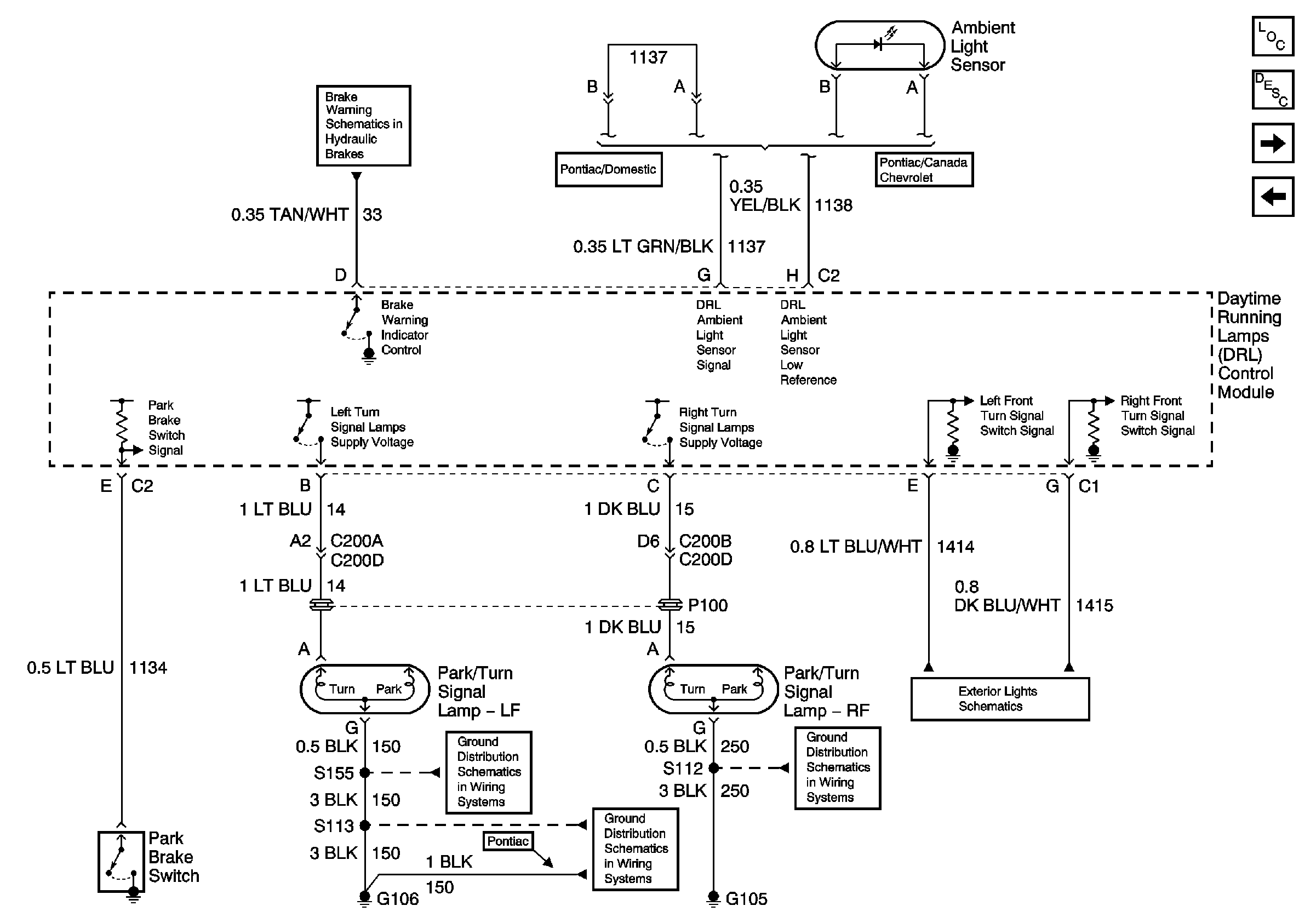

Figure 2:	DRL Controls Master Electrical Component List Exterior Lighting Systems Description and Operation Headlights Pontiac Power,Ground and Switch Control Brake Warning System Schematics G106 G106 G105 Turn Signal Lamps Chevrolet Domestic and Gulf

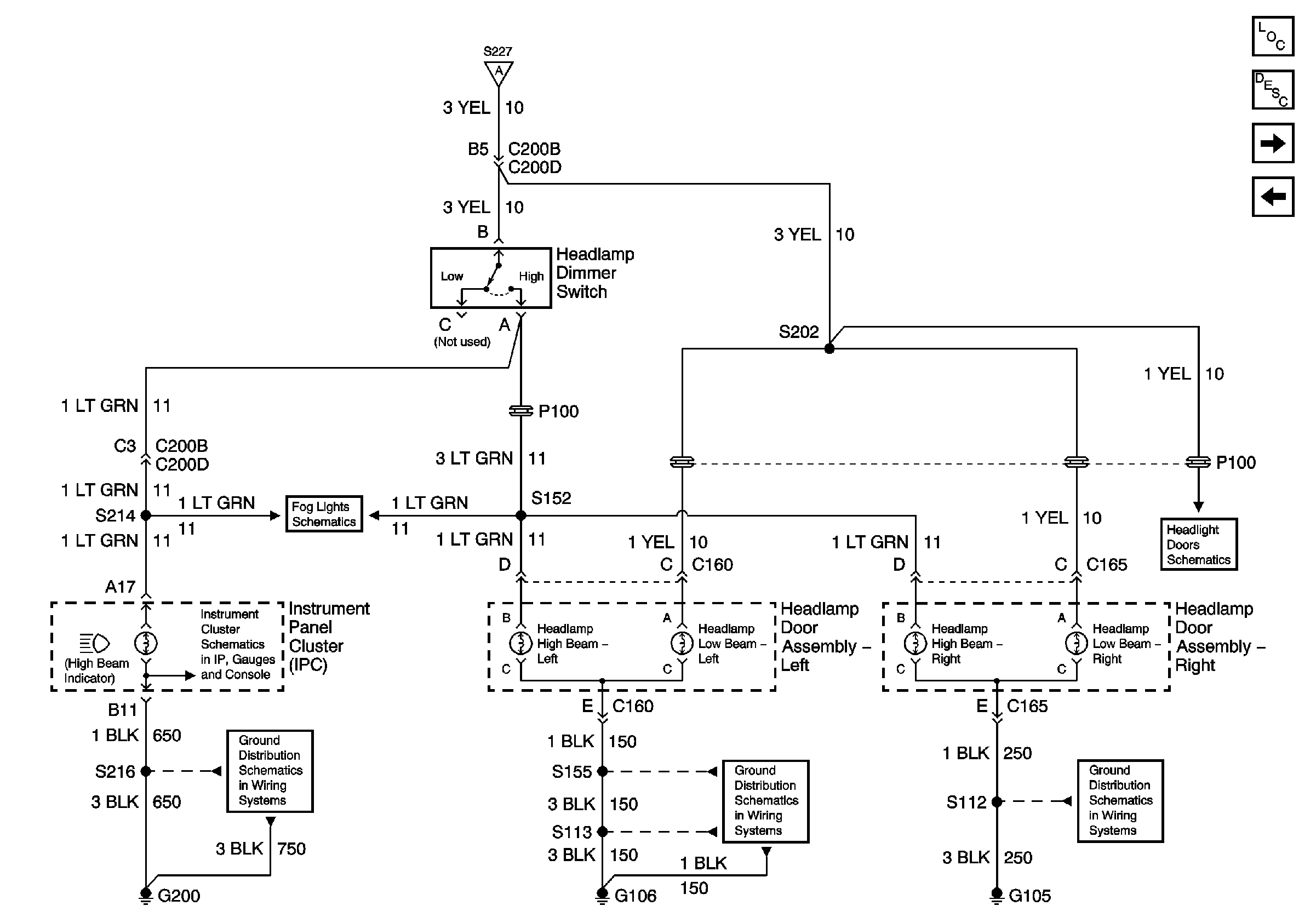

Figure 3:	Headlights - Pontiac Master Electrical Component List Exterior Lighting Systems Description and Operation Headlights Chevrolet Domestic and Gulf DRL Controls Power,Ground and Switch Control Foglights Pontiac Lamp Indicators G200 Page 1 of 3 G106 G105 Headlight Doors Schematic

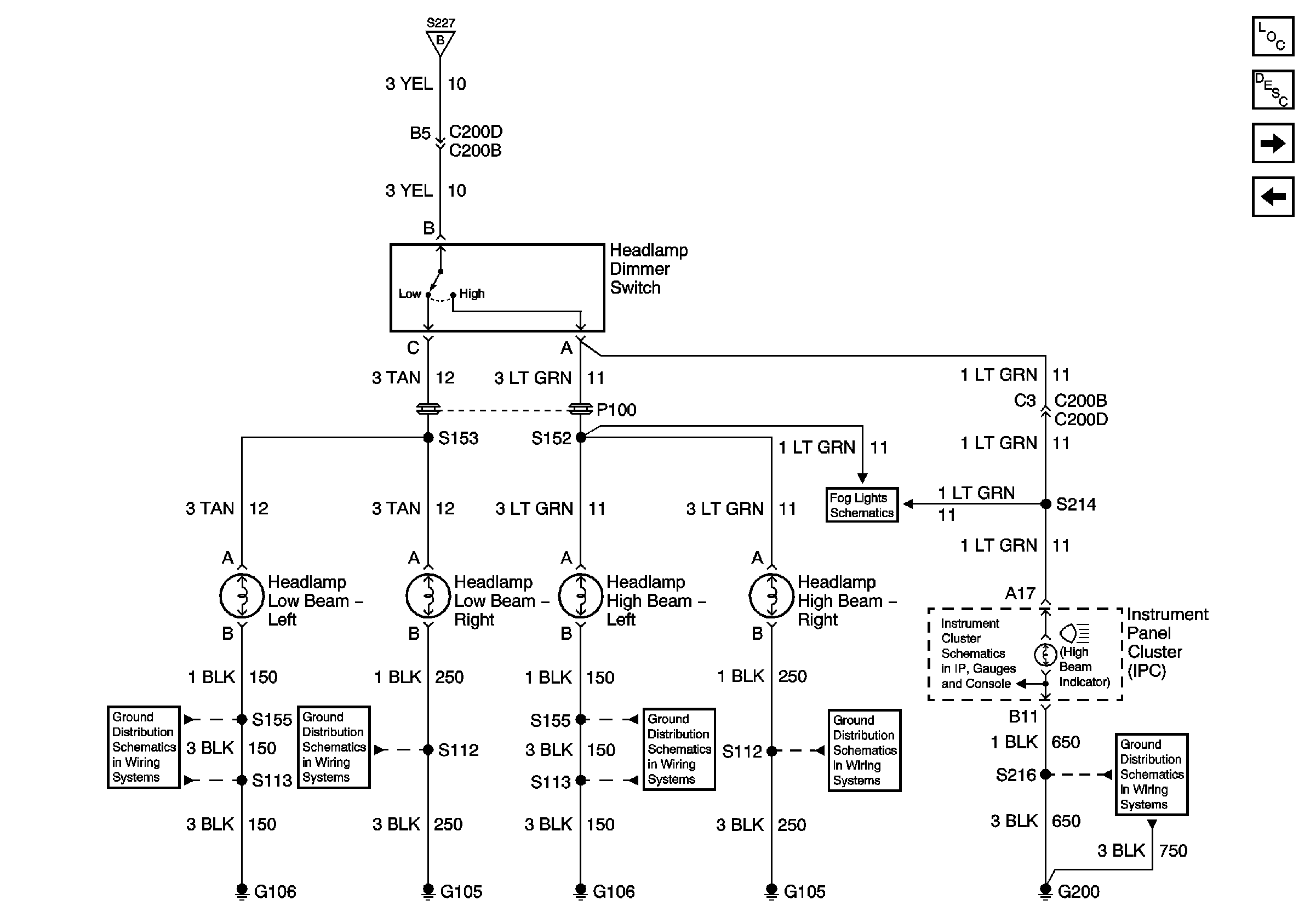

Figure 4:	Headlights - Chevrolet - Domestic and Gulf Master Electrical Component List Exterior Lighting Systems Description and Operation Power,Ground and Headlight Switch Control Chevrolet Scandanavia Headlights Pontiac Power,Ground and Switch Control G106 G105 G106 G105 Foglights Chevrolet Domestic and Gulf Lamp Indicators G200 Page 1 of 3

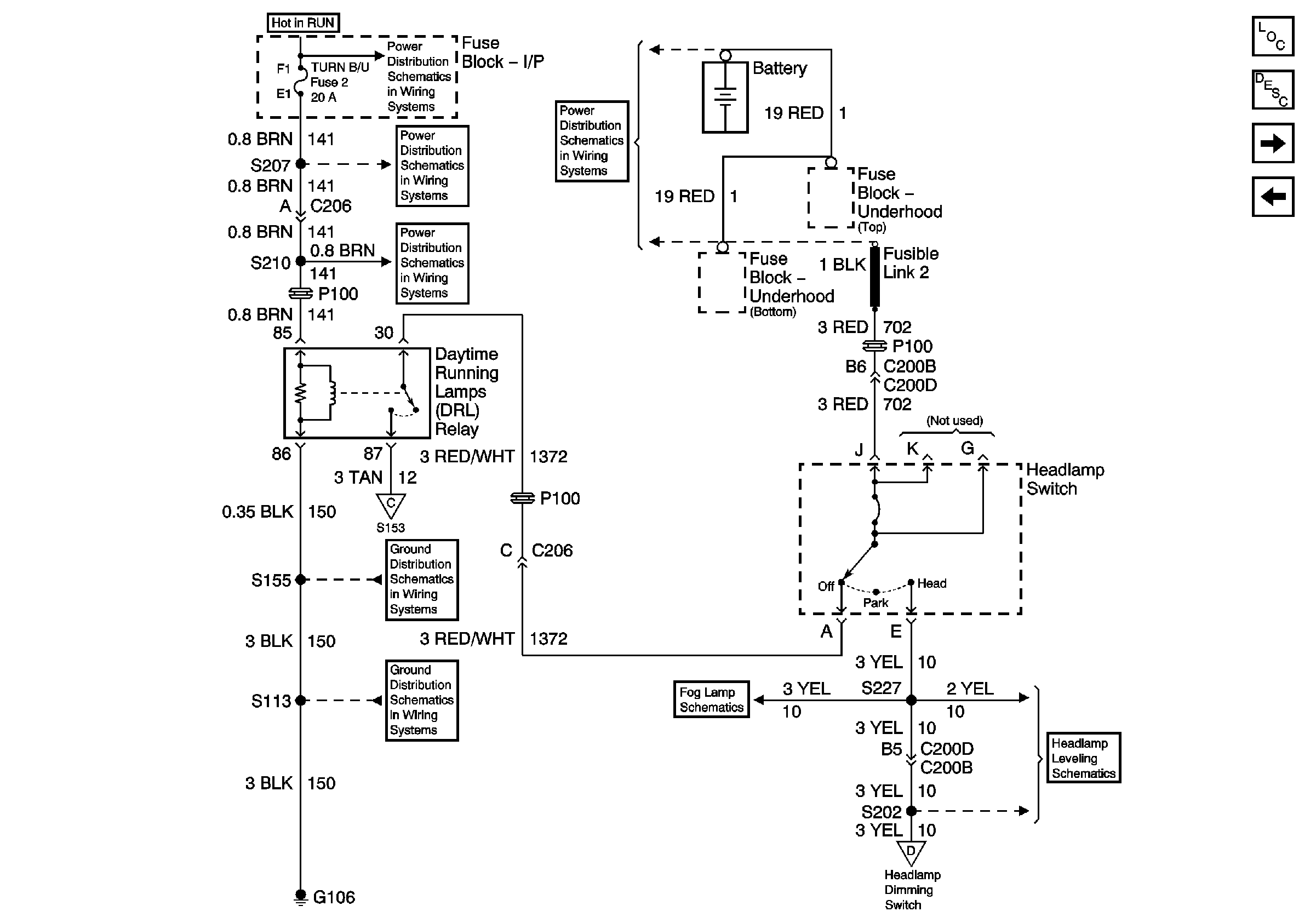

Figure 5:	Power,Ground and Headlight Switch Control - Chevrolet - Scandanavia Master Electrical Component List Exterior Lighting Systems Description and Operation Headlights Chevrolet Scandinavia Headlights Chevrolet Domestic and Gulf HVAC and TURN B/U Fuses HVAC and TURN B/U Fuses HVAC and TURN B/U Fuses Headlights Chevrolet Scandinavia G106 G106 Battery Positive Voltage Bussing Rear Fog Lights Chevrolet Europe Headlight Leveling Schematic Headlights Chevrolet Scandinavia

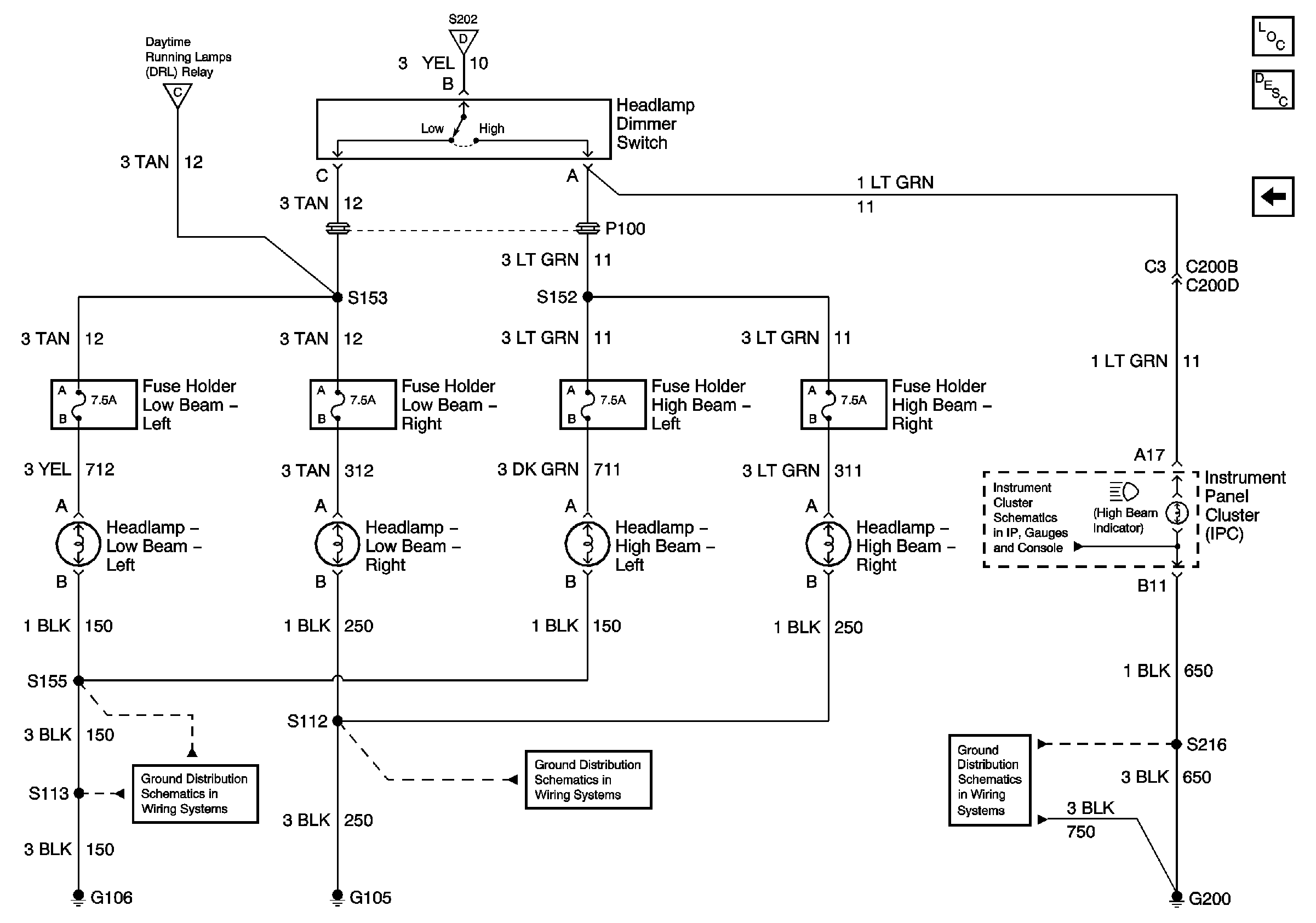

Figure 6:	Headlights - Chevrolet - Scandanavia Master Electrical Component List Exterior Lighting Systems Description and Operation Power,Ground and Headlight Switch Control Chevrolet Scandanavia Power,Ground and Headlight Switch Control Chevrolet Scandanavia Power,Ground and Headlight Switch Control Chevrolet Scandanavia G106 G105 Lamp Indicators G200 Page 1 of 3
