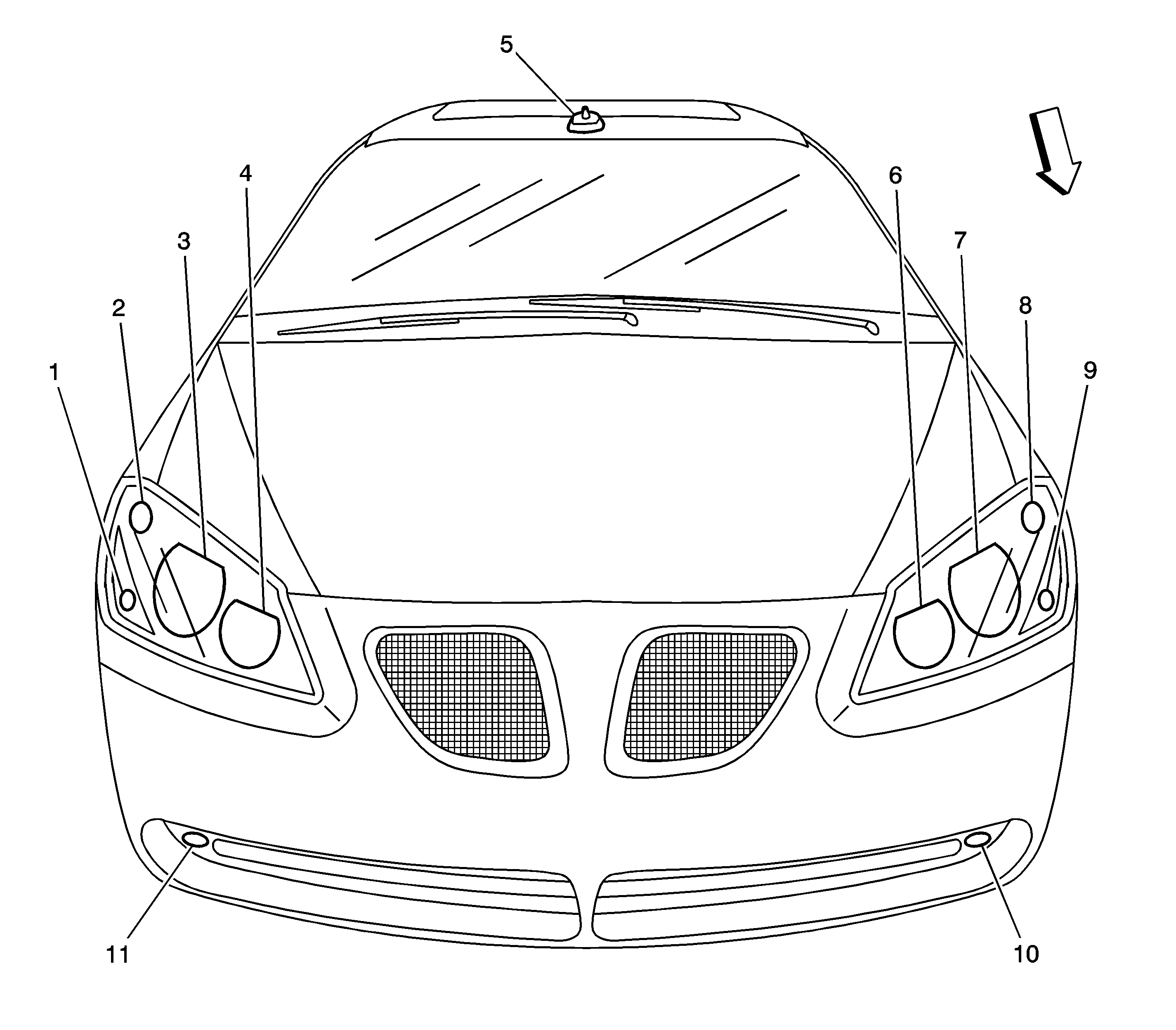

Figure 1:

Front of the Vehicle
Object Number: 1716672 Size: LF
(1)Marker Lamp - RF
(2)Park/Turn Signal Lamp - RF
(3)Headlamp - Low Beam - Right
(4)Headlamp - High Beam - Right
(5)Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
(6)Headlamp - High Beam - Left
(7)Headlamp - Low Beam - Left
(8)Park/Turn Signal Lamp - LF
(9)Marker Lamp - LF
(10)Fog Lamp - LF
(11)Fog Lamp - RF
Figure 2:

Forward Overhead
Object Number: 1508891 Size: LF
(1)Courtesy/Reading Lamp - LF
(2)Cellular Microphone (UE1)
(3)Sunroof Switch (CF5/C3Y)
(4)Courtesy/Reading Lamp - RF
(5)Dome/Reading Lamp (w/o C3Y)
(6)Sunroof (CF5/C3Y)
(7)Vanity Mirror Lamp - Right (DH6)
(8)Inside Rearview Mirror
(9)OnStar Keypad (UE1)
(10)Vanity Mirror Lamp - Left (DH6)
Figure 3:

Instrument Panel
Object Number: 1506738 Size: LF
(1)Turn Signal/Multifunction Switch
(2)Steering Wheel Controls - Left
(3)Instrument Panel Cluster (IPC)
(4)Steering Wheel Controls - Right
(5)Windshield Wiper/Washer Switch
(6)Ignition Switch
(7)Ambient Light Sensor
(8)Hazard Switch
(9)Radio
(10)Inflatable Restraint I/P Module
(11)Rear Window Defogger Switch
(12)Traction Control Switch (NW7/NW9)
(13)Cigar Lighter
(14)A/C Request Switch
(15)HVAC Control Module
(16)Inflatable Restraint Steering Wheel Module
(17)Fog Lamp Switch
(18)I/P Dimmer Switch
(19)Adjustable Pedals Position Switch

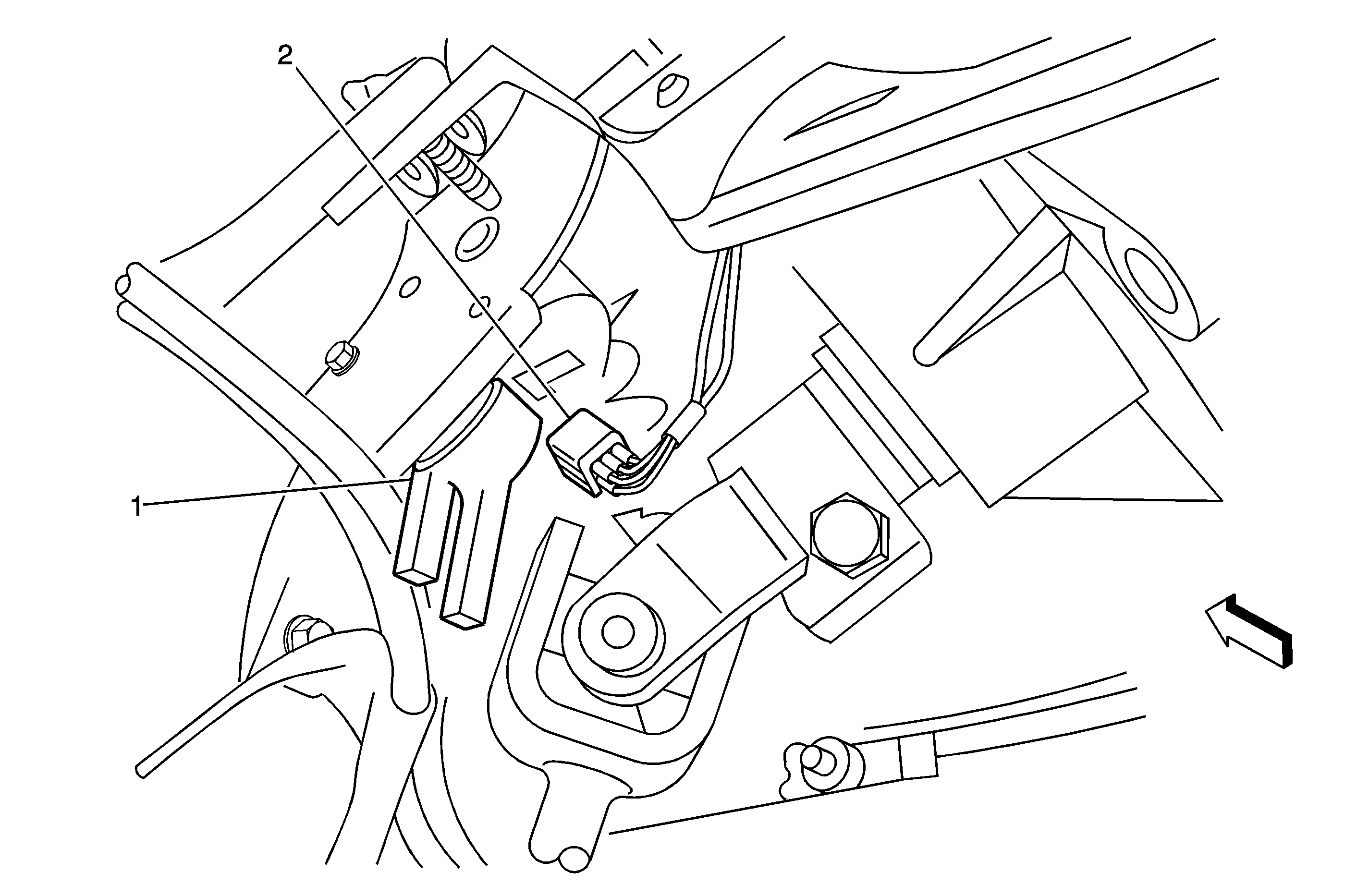

Figure 4:

Above Brake Pedal
Object Number: 1394527 Size: MF
(1)Brake Pedal Position Sensor
(2)Adjustable Pedals Position Sensor

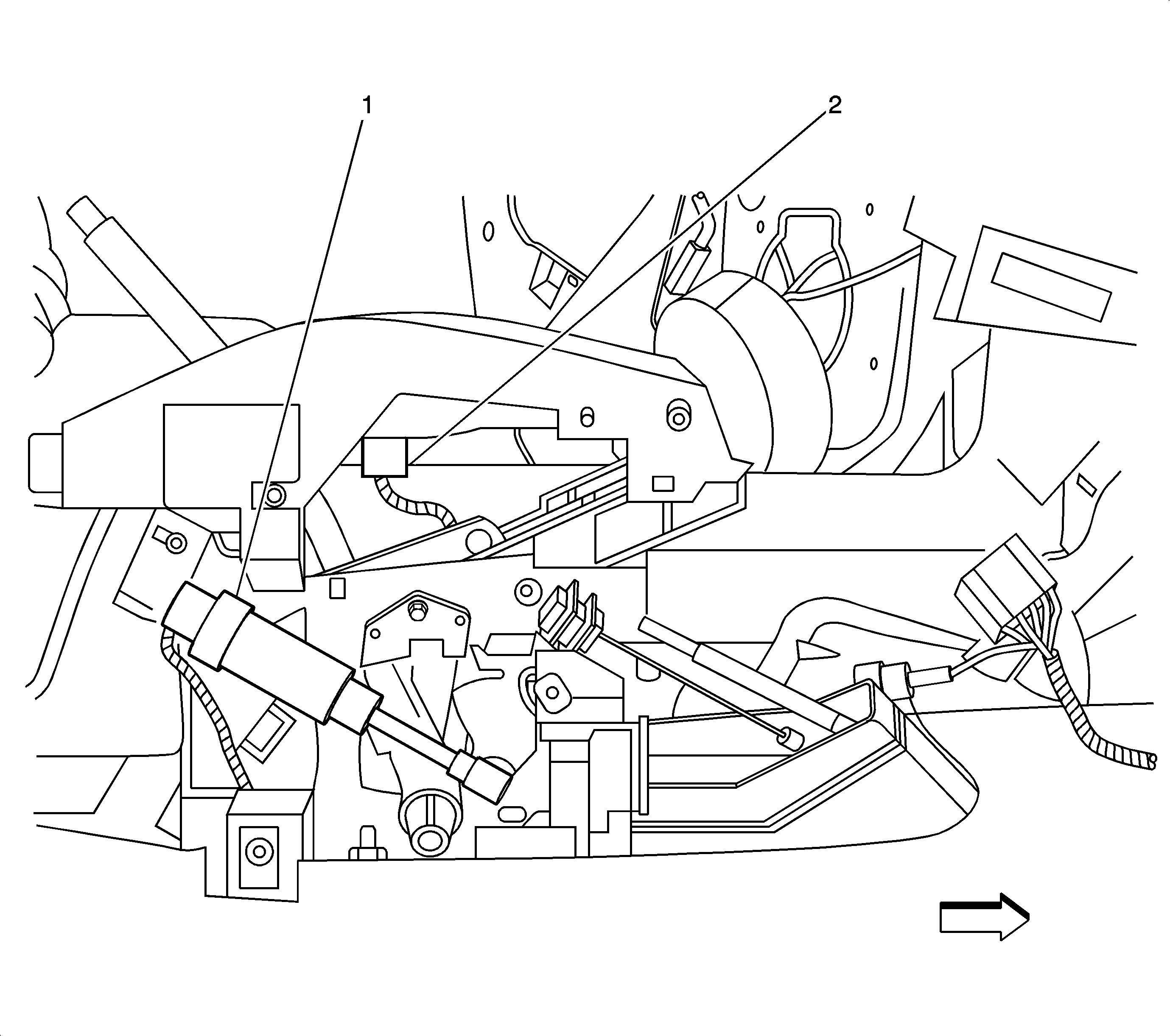

Figure 5:

Inside Center Console
Object Number: 1511753 Size: LF
(1)A/T Shift Lock Control Solenoid
(2)Transmission Range Indicator Lamp

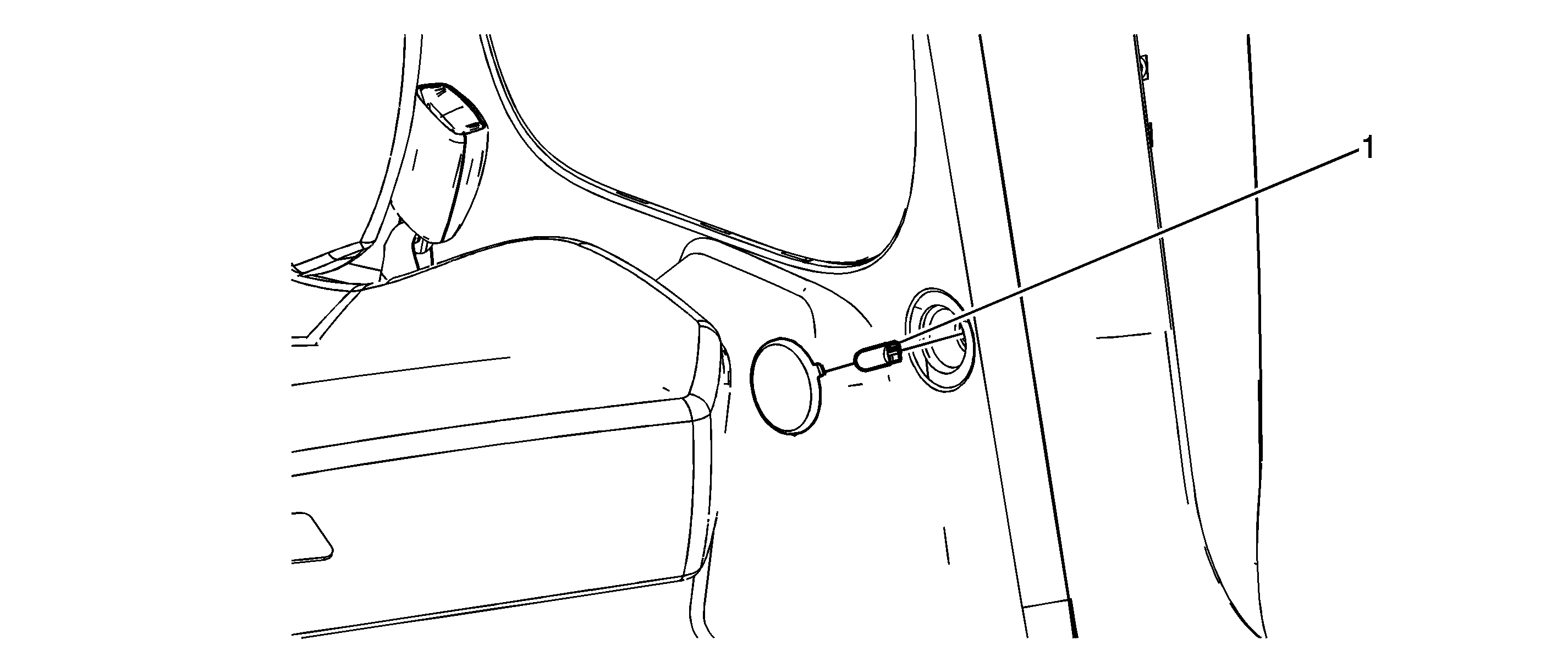

Figure 6:

Left Rear Quarter Panel (Convertible)
Object Number: 1827098 Size: SF
(1)Courtesy Lamp - LR

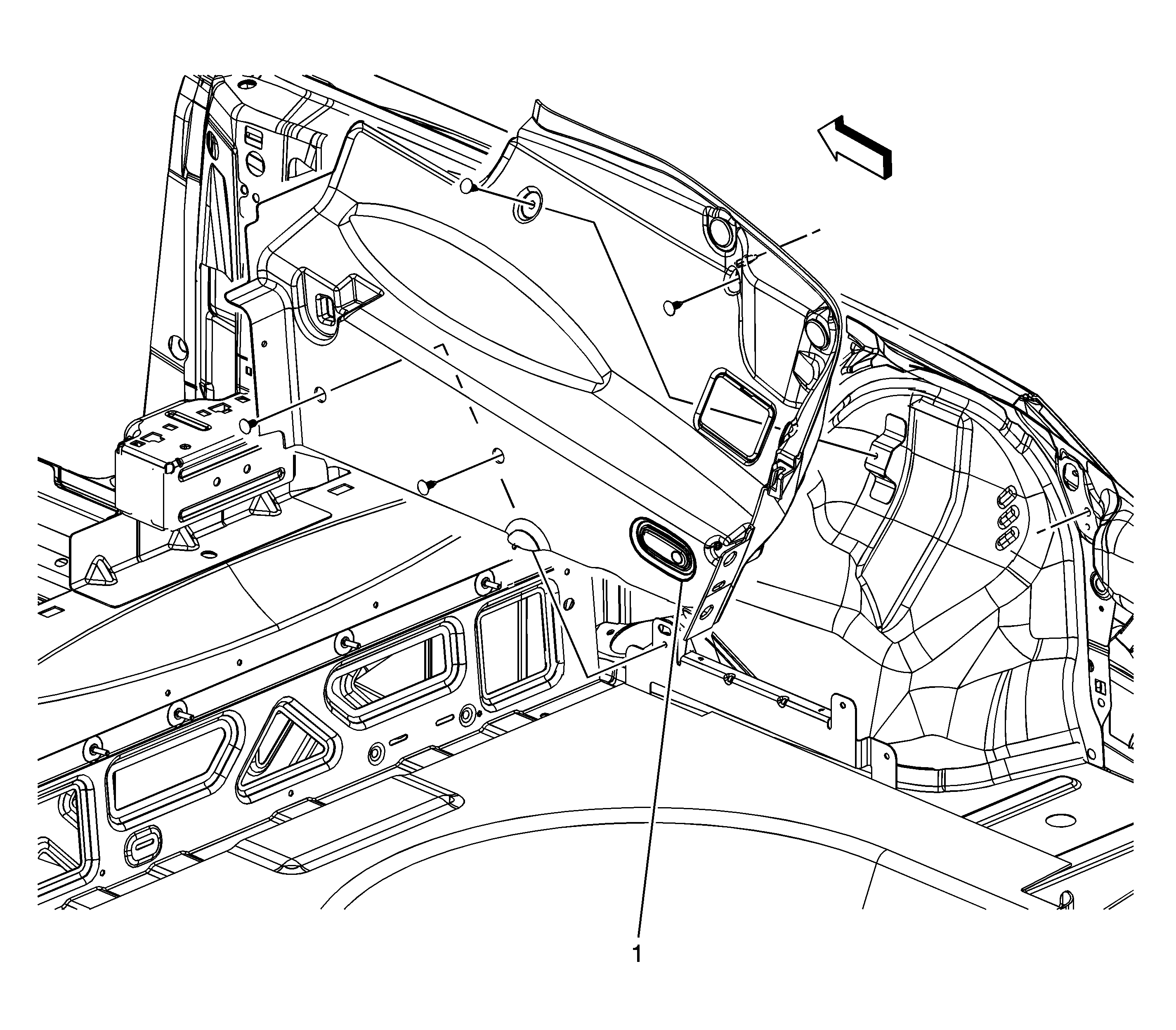

Figure 7:

Right Side of Rear Compartment (Convertible)
Object Number: 1827096 Size: LF
(1)Rear Compartment Courtesy Lamp

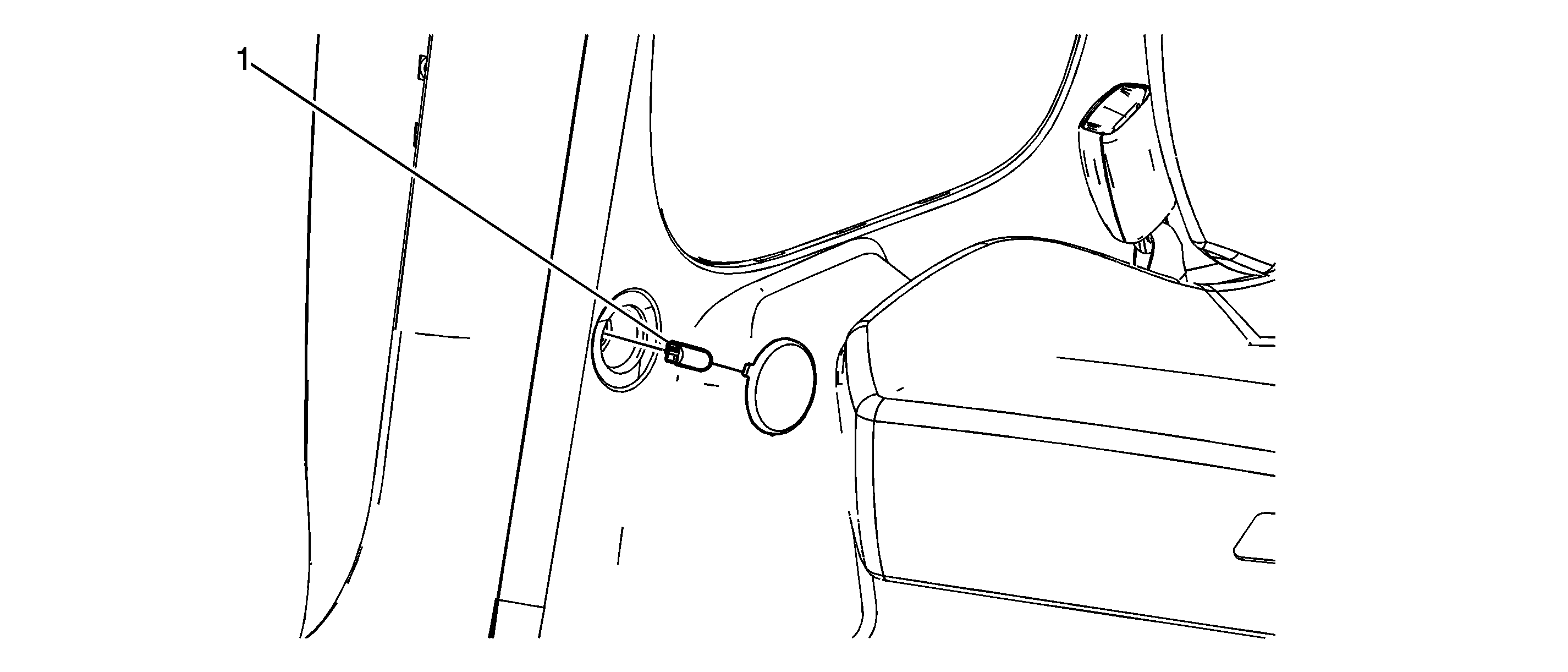

Figure 8:

Right Rear Quarter Panel (Convertible)
Object Number: 1827100 Size: SF
(1)Courtesy Lamp - RR

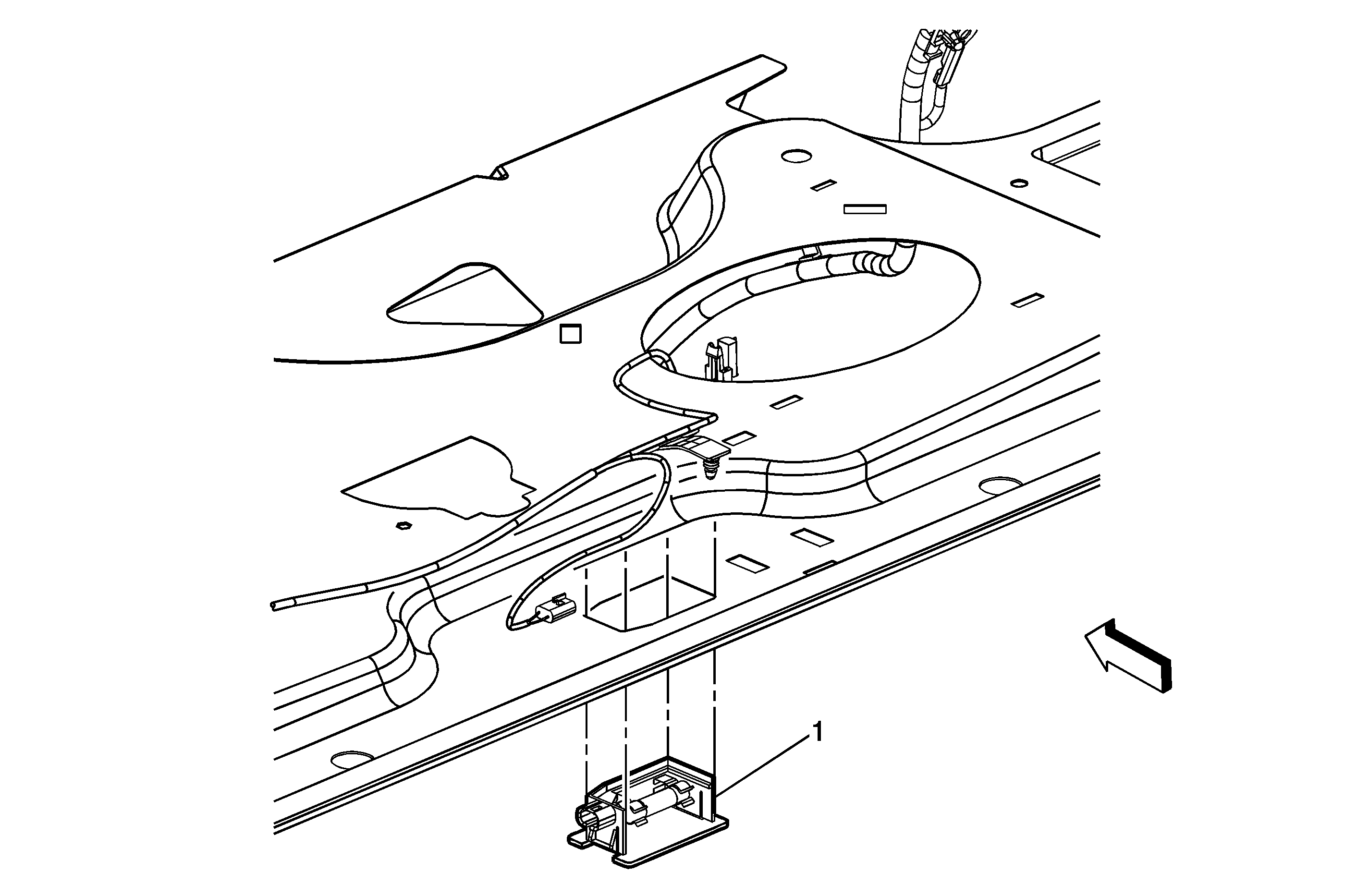

Figure 9:

Under the Rear Package Shelf
Object Number: 1266768 Size: MF
(1)Rear Compartment Courtesy Lamp

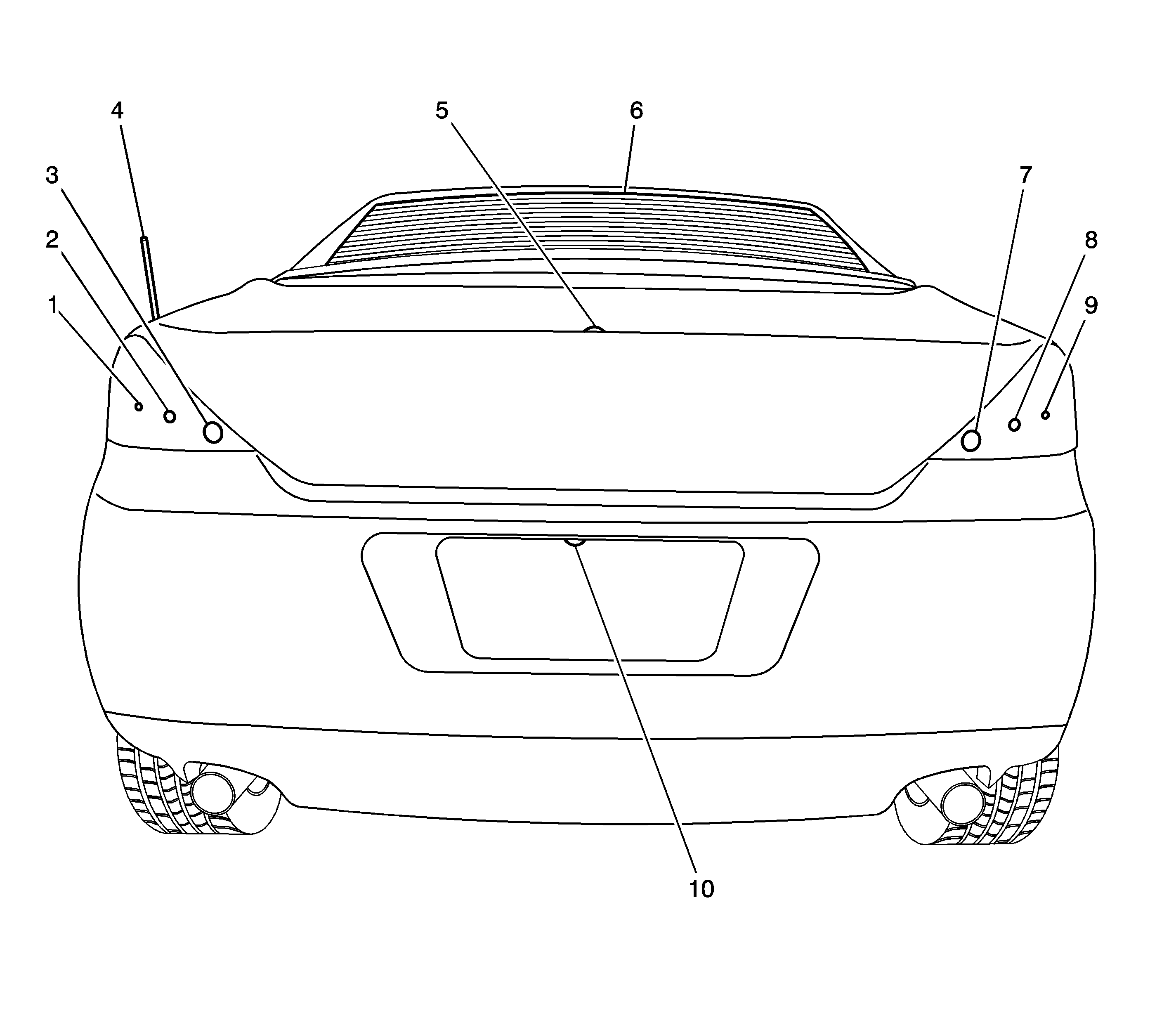

Figure 10:

Rear of Vehicle (Coupe/Convertible)
Object Number: 1825330 Size: LF
(1)Marker Lamp - Left
(2)Tail/Stop and Turn Signal Lamp - Left
(3)Backup Lamp - Left
(4)Antenna
(5)Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
(6)Rear Window Defogger Grid
(7)Backup Lamp - Right
(8)Tail/Stop and Turn Signal Lamp - Right
(9)Marker Lamp - Right
(10)License Lamp

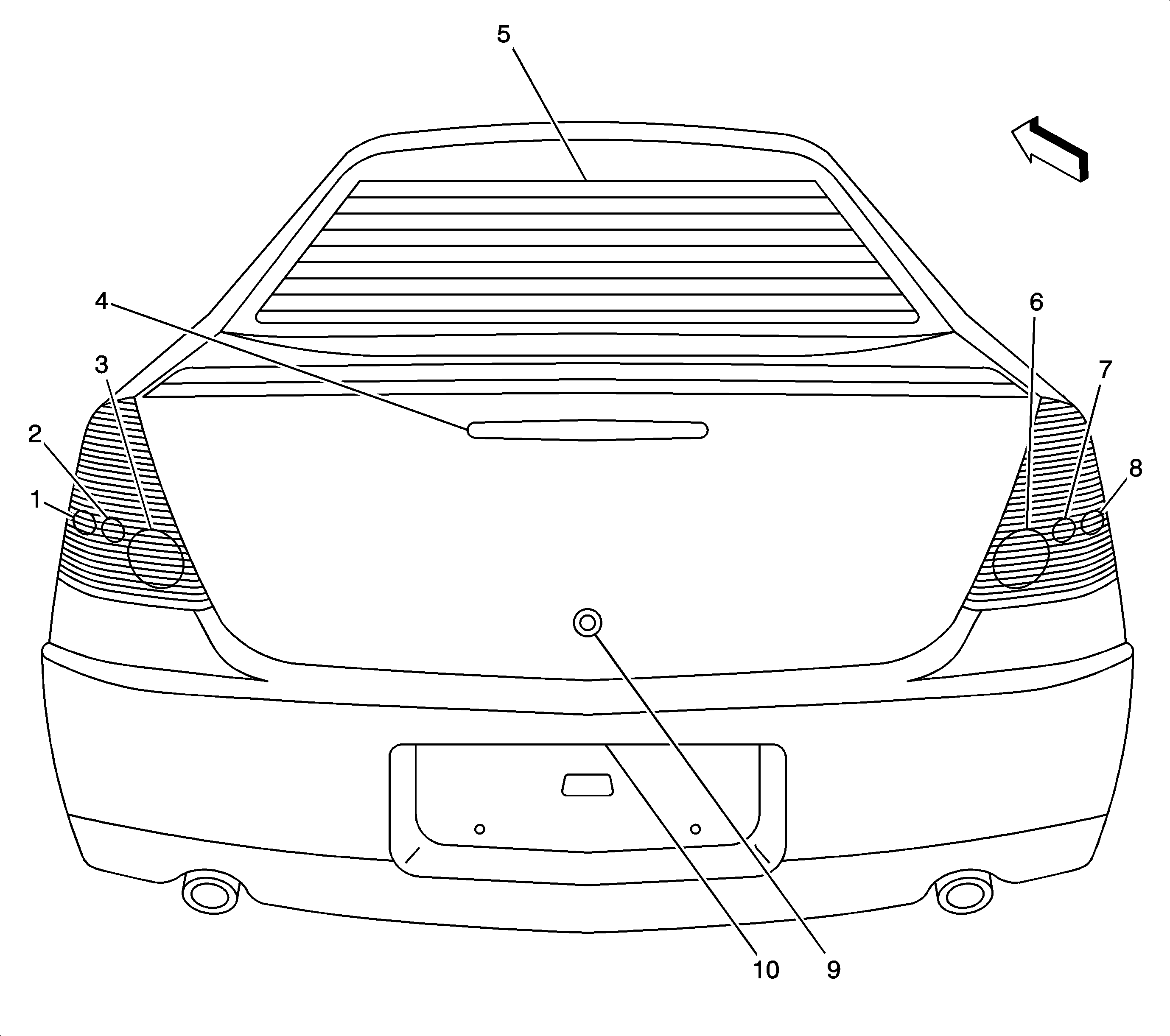

Figure 11:

Rear of Vehicle (Sedan)
Object Number: 1511182 Size: LF
(1)Marker Lamp - Left
(2)Tail/Stop and Turn Signal Lamp - Right
(3)Backup Lamp - Left
(4)Center High Mounted Stop Lamp (CHMSL)
(5)Rear Window Defogger Grid
(6)Backup Lamp - Right
(7)Tail/Stop and Turn Signal Lamp - Right
(8)Marker Lamp - Right
(9)Rear Compartment Lid Release Switch - Exterior
(10)License Lamp
