Coolant Heater Cord Replacement LE5

1. Disconnect the engine coolant heater cord.



2. Disconnect the clip from the air conditioning (A/C) line.
3. Disconnect the clip from the front compartment inner side upper rail.
4. Remove the heater cord.

1. Install the heater cord.
2. Connect the clip to the front compartment inner side upper rail.
3. Connect the clip to the A/C line.



4. Connect the engine coolant heater cord.

Coolant Heater Cord Replacement LZ9

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Disconnect the engine coolant heater cord from the engine coolant heater.

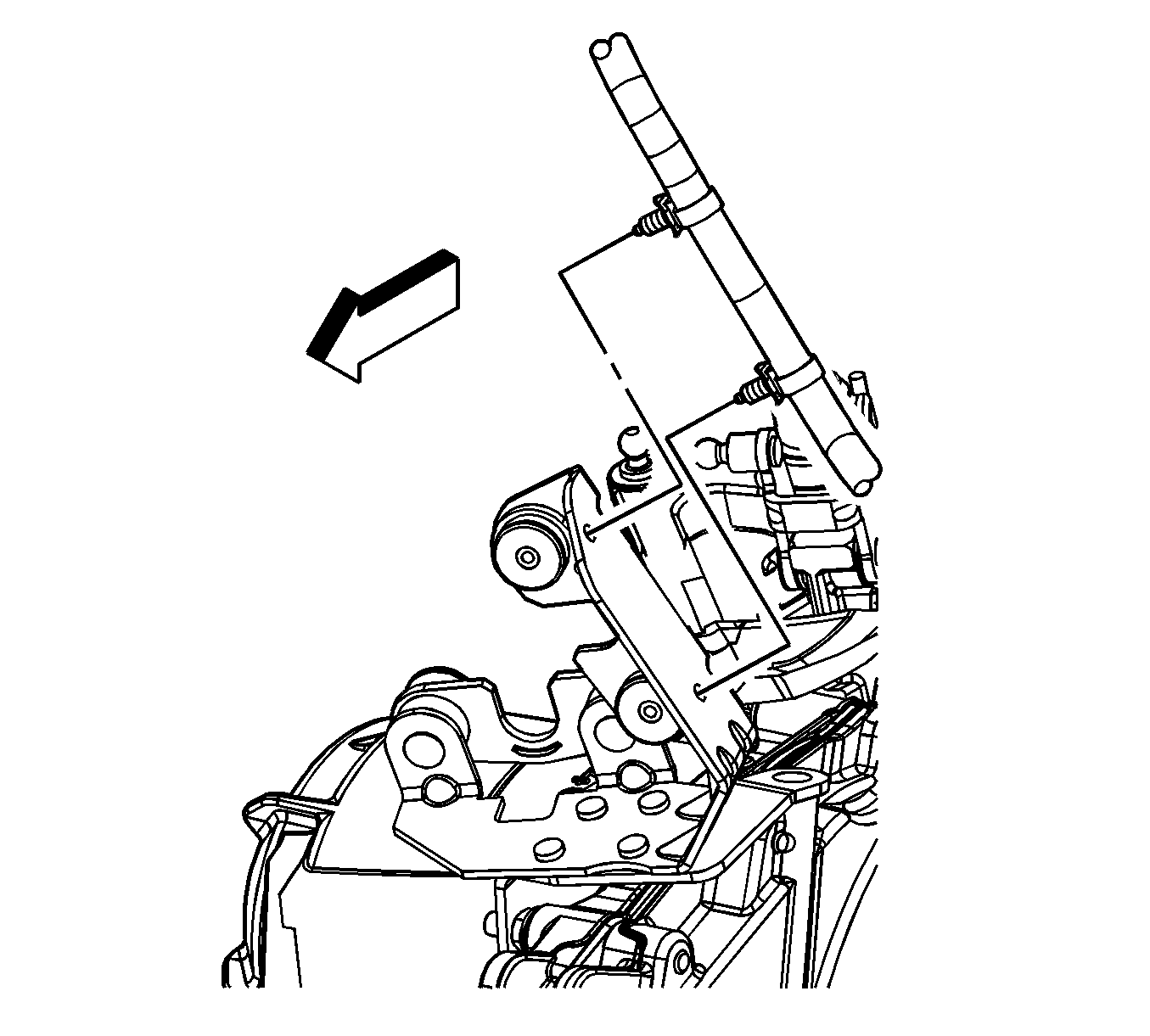

3. If equipped with the manual transmission, remove the coolant heater cord clips from the transmission range selector lever cable bracket.

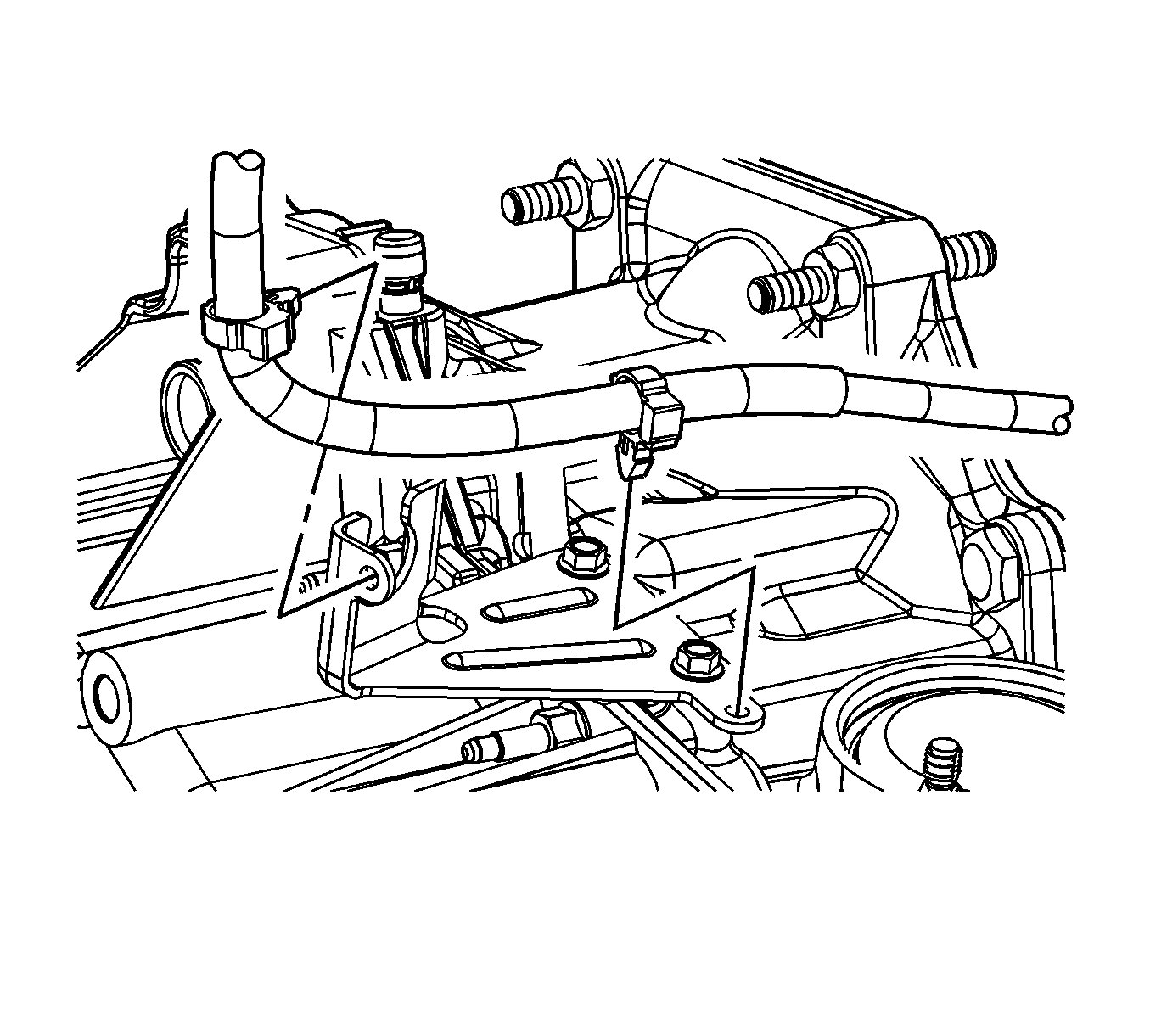

4. If equipped with the automatic transmission, remove the coolant heater cord clips from the transmission range selector lever cable bracket.
5. Lower the vehicle.



6. Remove the coolant heater cord from between the shock tower and side rail.

1. Install the coolant heater cord between the shock tower and side rail.
2. Raise and support the vehicle.



3. If equipped with the automatic transmission, install the coolant heater cord clips to the transmission range selector lever cable bracket.



4. If equipped with the manual transmission, Install the coolant heater cord clips to the transmission range selector lever cable bracket.



5. Connect the engine coolant heater cord to the engine coolant heater.
6. Lower the vehicle.

Coolant Heater Cord Replacement LZ4

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
2. Disconnect the engine coolant heater cord from the engine coolant heater.



3. Remove the coolant heater cord clip from the automatic transmission range selector lever cable bracket.
4. Lower the vehicle.



5. Remove the coolant heater cord from between the shock tower and side rail.

1. Install the coolant heater cord between the shock tower and side rail.
2. Raise and support the vehicle.



3. Install the coolant heater cord clip to the automatic transmission range selector lever cable bracket.



4. Connect the engine coolant heater cord to the engine coolant heater.
5. Lower the vehicle.
