Body Control System Schematics. Pontiac G6 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 G6 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Body Control System Schematics

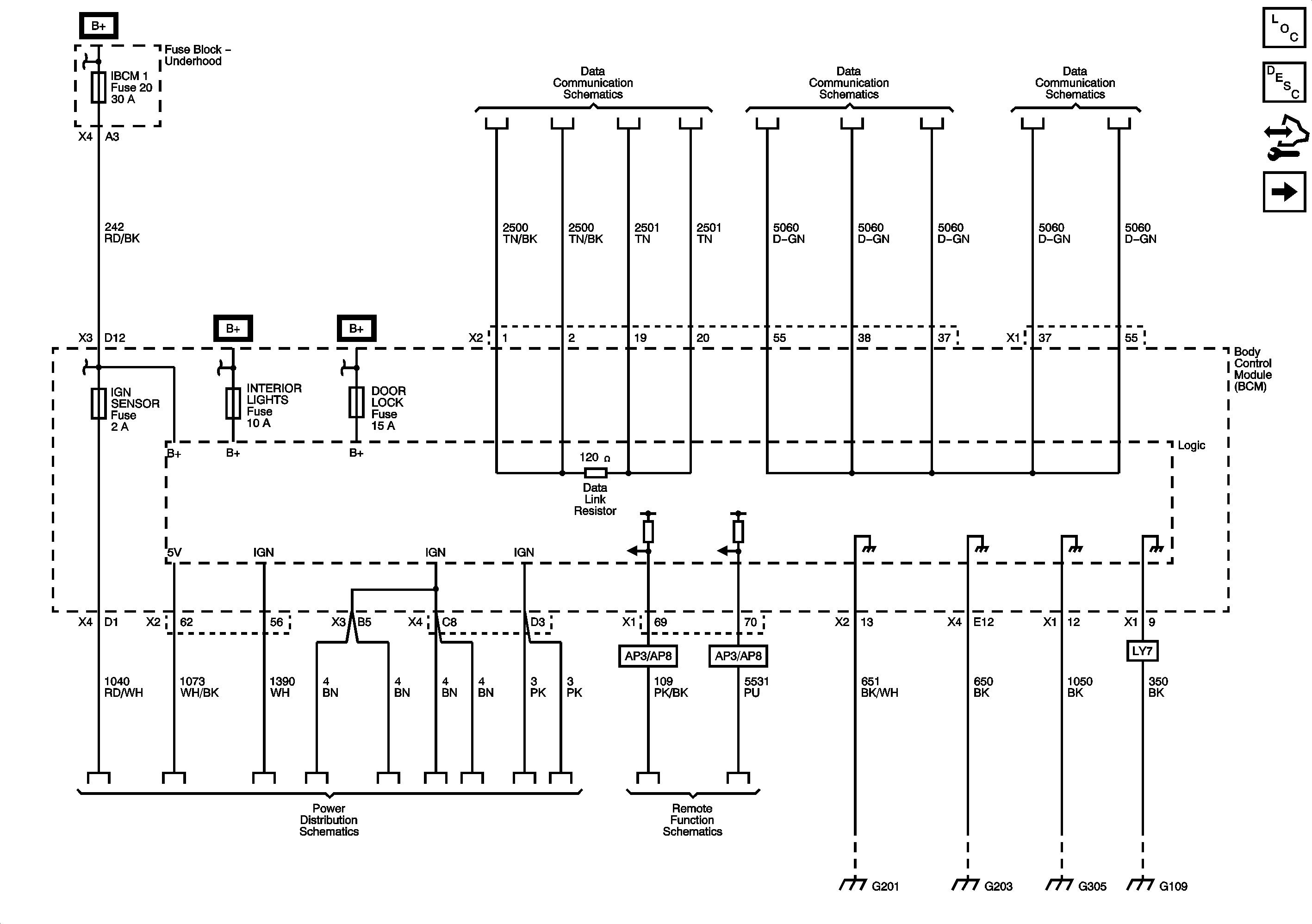

Figure 1:	Power, Ground, and DLC Master Electrical Component List Body Control System Description and Operation Control Module References Accessory, HVAC Blower High and Run Relay

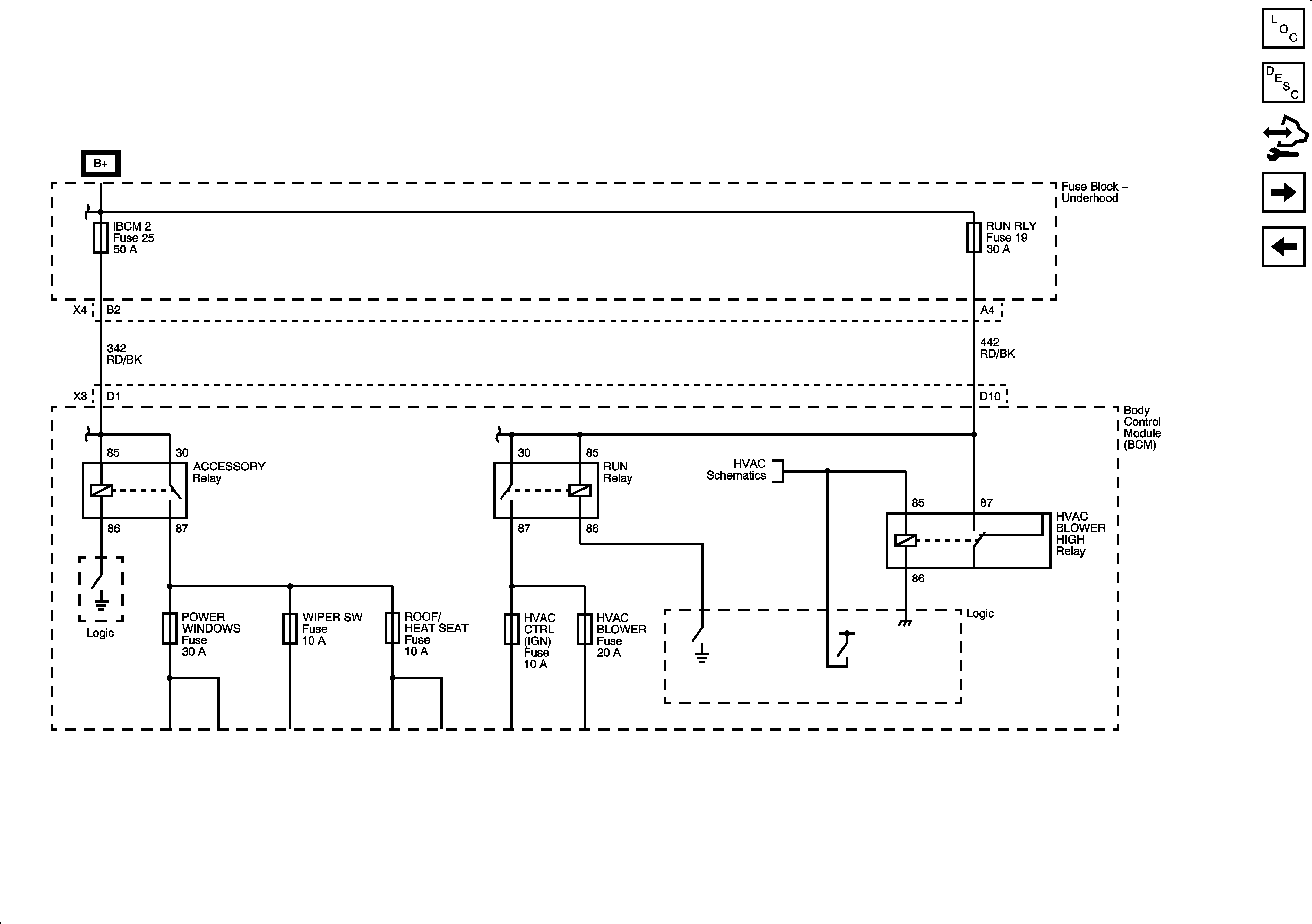

Figure 2:	ACCESSORY, HVAC BLOWER HIGH and RUN Relays Master Electrical Component List Body Control System Description and Operation Control Module References Controlled/Monitored Subsystem References 1 of 3 Power, Ground and DLC

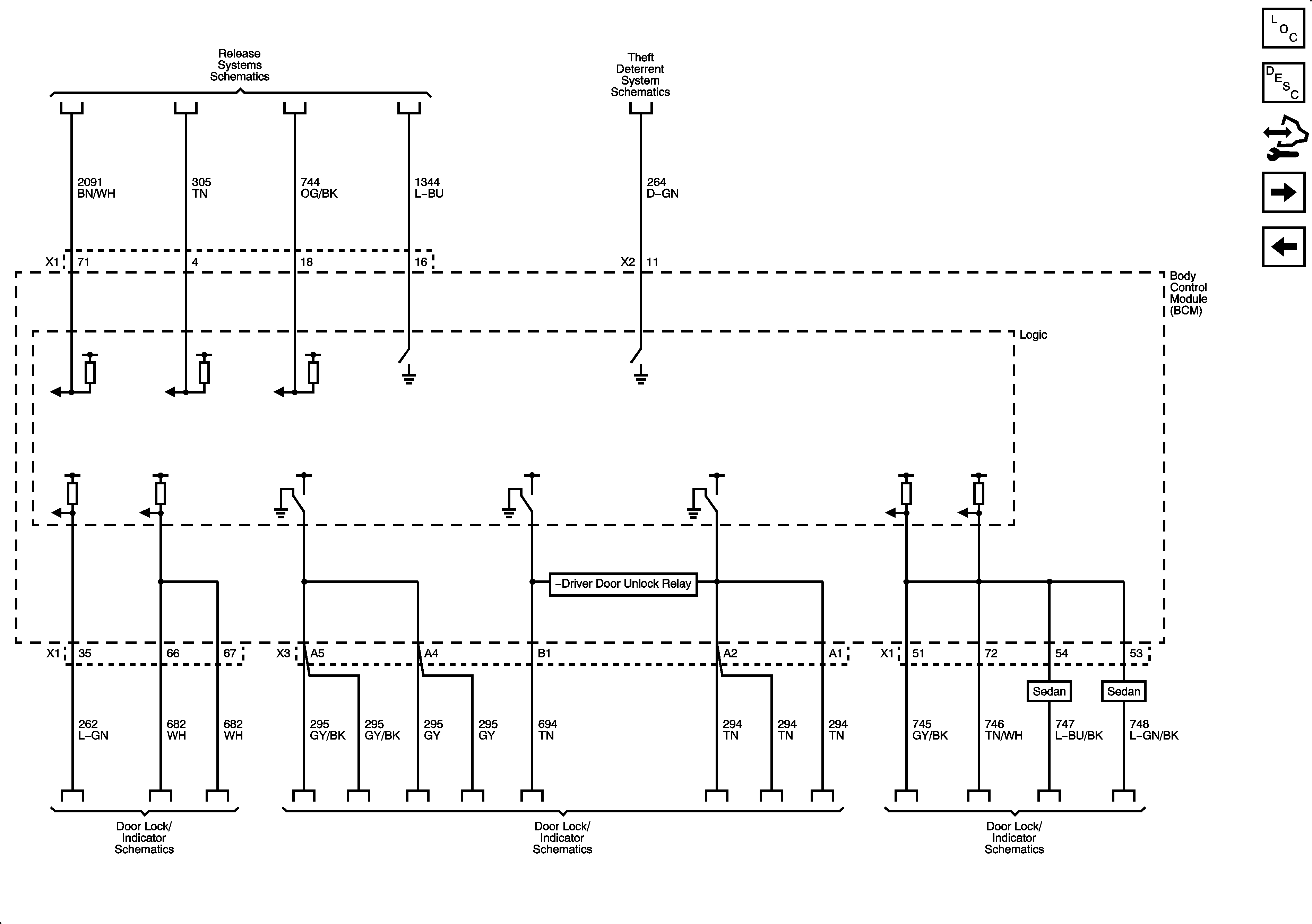

Figure 3:	Controlled/Monitored Subsystem References (1 of 3) Master Electrical Component List Body Control System Description and Operation Control Module References Controlled/Monitored Subsystem References 2 of 3 Accessory, HVAC Blower High and Run Relay

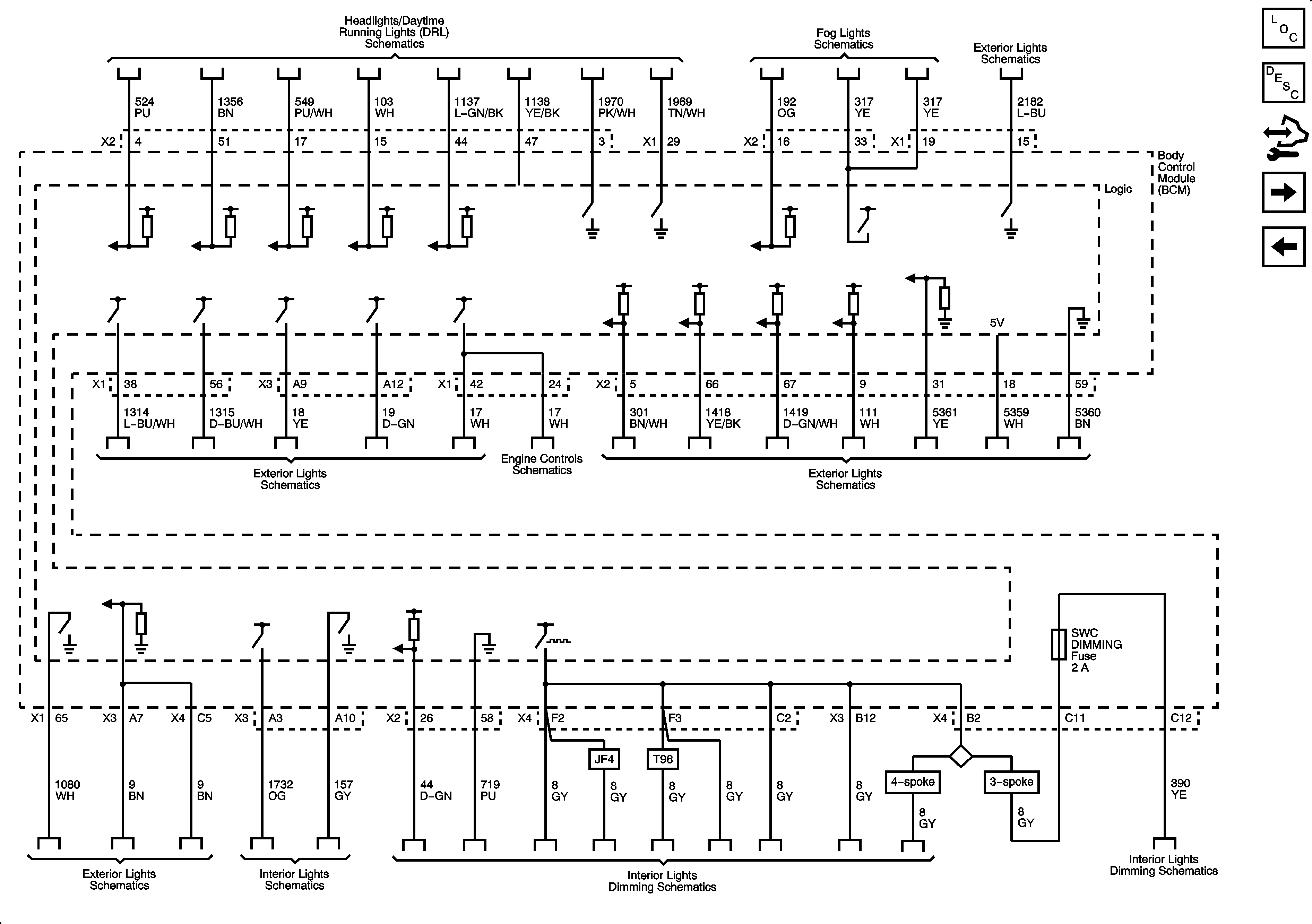

Figure 4:	Controlled/Monitored Subsystem References (2 of 3) Master Electrical Component List Body Control System Description and Operation Control Module References Controlled/Monitored Subsystem References 3 of 3 Controlled/Monitored Subsystem References 1 of 3

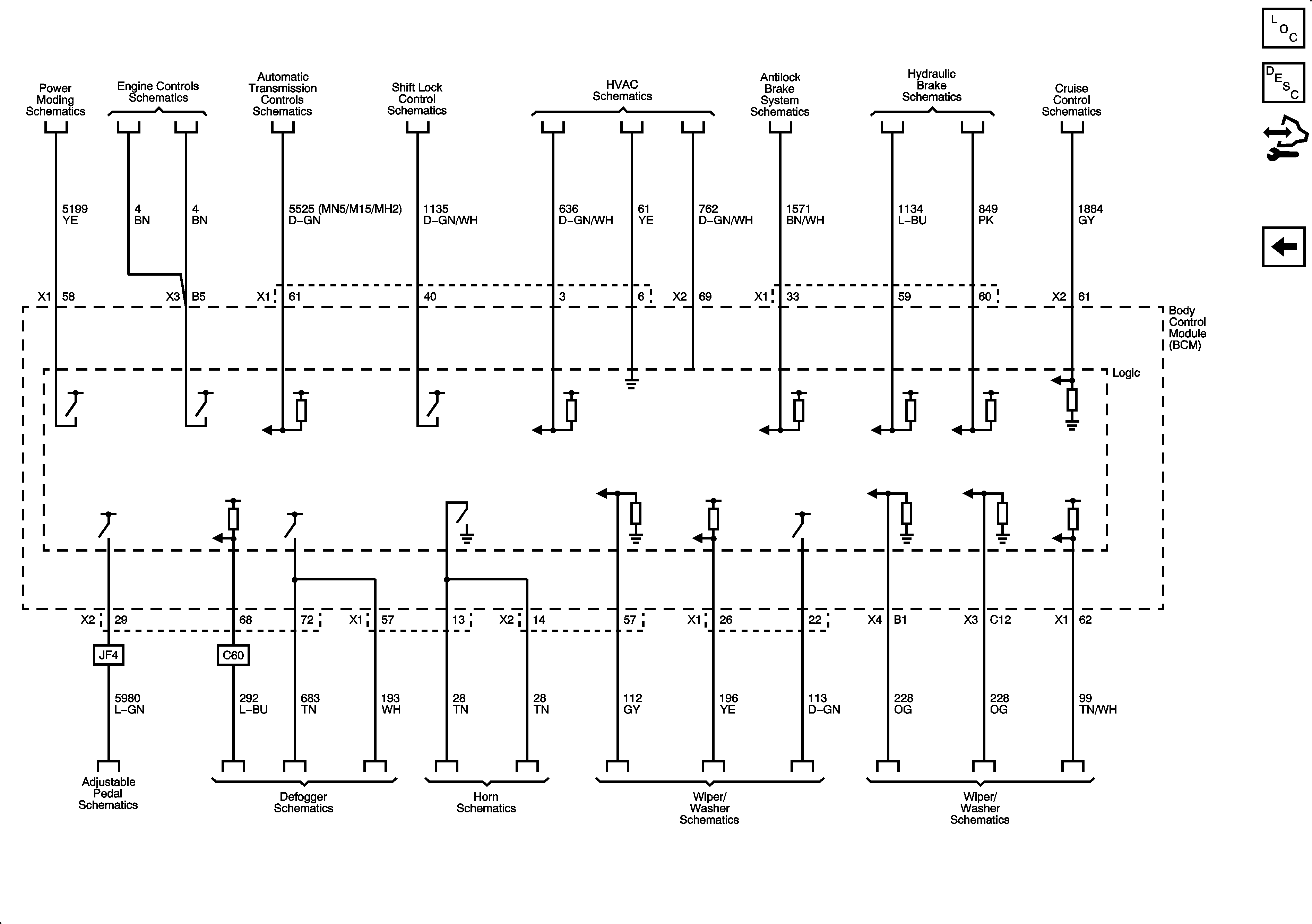

Figure 5:	Controlled/Monitored Subsystem References (3 of 3) Master Electrical Component List Body Control System Description and Operation Control Module References Controlled/Monitored Subsystem References 2 of 3
