Front of Vehicle/Engine Compartment Component Views. Pontiac G6 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 G6 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views

Figure 1:

Front of Vehicle Components


(1)	Marker Lamp - Right Front
(2)	Park/Turn Signal Lamp - Right
(3)	Headlamp - Right Low Beam
(4)	Headlamp - Right High Beam
(5)	Cellular, Navigation and Digital Radio Antenna (UE1/U2K)
(6)	Headlamp - Left High Beam
(7)	Headlamp -Left Low Beam
(8)	Park/Turn Signal Lamp - Left
(9)	Marker Lamp - Left Front
(10)	Fog Lamp - Left Front (T96)
(11)	Fog Lamp - Right Front (T96)

Figure 2:

Core Support Components 1 of 2


(1)	Hood Ajar Switch (AP3/AP8)

Figure 3:

Core Support Components 2 of 2


(1)	Inflatable Restraint Front End Sensor - Right
(2)	Inflatable Restraint Front End Sensor - Left

Figure 4:

Front Fascia Components


(1)	G101
(2)	Horn Assembly Connector
(3)	Hood Ajar Switch Connector (AP3/AP8)
(4)	Ambient Air Temperature Sensor
(5)	G102
(6)	X110
(7)	Fog Lamp - Right Front (T96)
(8)	Fog Lamp - Left Front (T96)
(9)	Windshield Washer Fluid Pump
(10)	Windshield Washer Fluid Level Switch Connector
(11)	Fuse Block - Underhood X3 Connector
(12)	X109

Figure 5:

Cooling System Components


(1)	Engine Cooling Fan - Left
(2)	Engine Cooling Fan - Right

Figure 6:

Left Front of Engine Compartment Components


(1)	Windshield Washer Fluid Level Switch
(2)	Windshield Washer Fluid Pump
(3)	Horn Assembly

Figure 7:

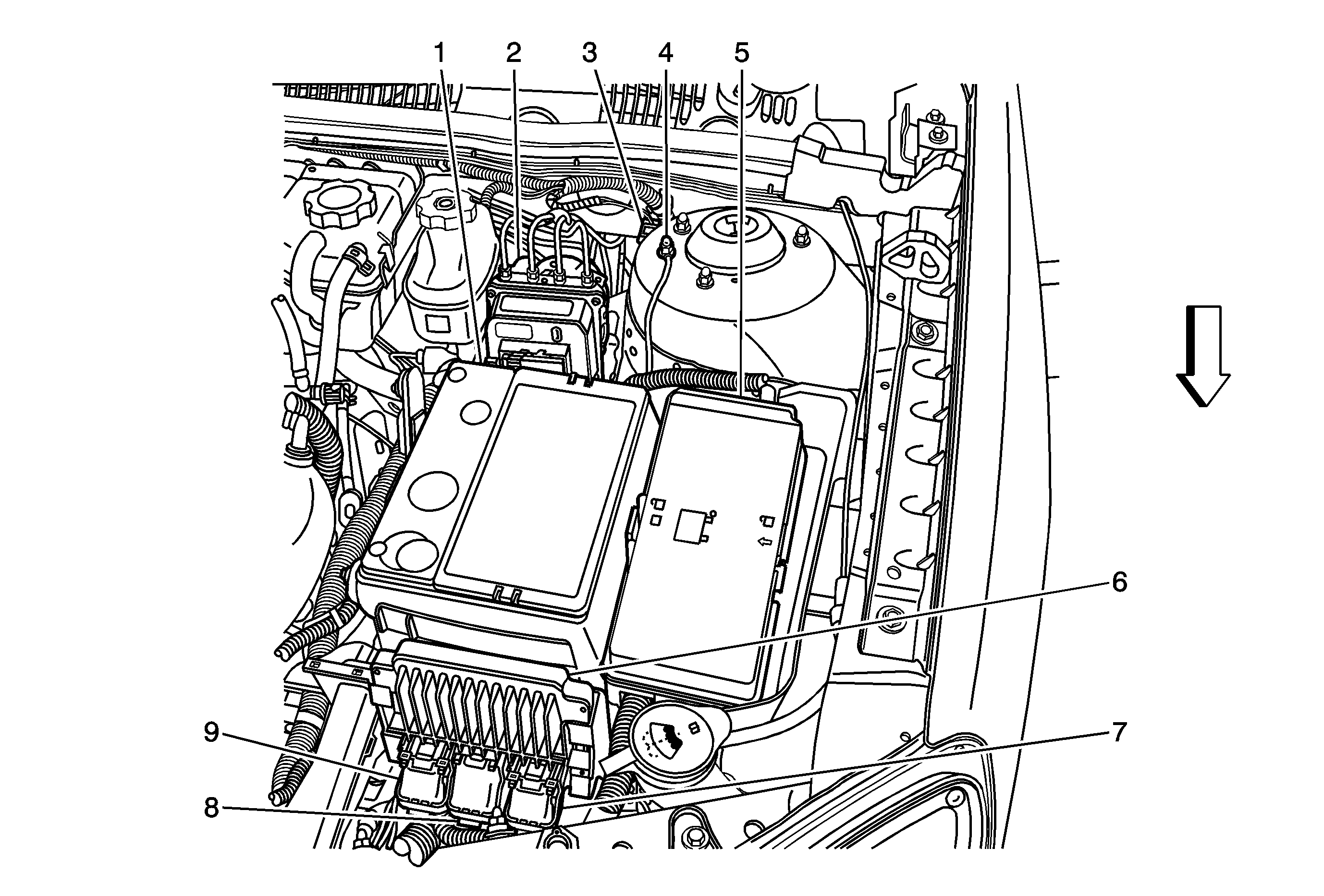

Left Rear of Engine Compartment Components


(1)	Battery
(2)	Electronic Brake Control Module (EBCM)
(3)	X101
(4)	G103
(5)	Fuse Block - Underhood
(6)	Engine Control Module (ECM)
(7)	Engine Control Module (ECM) X3
(8)	Engine Control Module (ECM) X2
(9)	Engine Control Module (ECM) X1

Figure 8:

Upper Left Rear of Engine Compartment Component


(1)	Brake Fluid Level Switch

Figure 9:

Left Rear of Engine Compartment Components (LZ9)


(1)	Brake Fluid Pressure Sensor (FX3)
(2)	X104 (FX3)

Figure 10:

Rear Center of Engine Compartment Components


(1)	Windshield Wiper Motor

Figure 11:

Right Rear of Engine Compartment Components


(1)	X102
(2)	A/C Refrigerant Pressure Sensor (C60)
