Door Component Views. Pontiac G6 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 G6 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Door Component Views

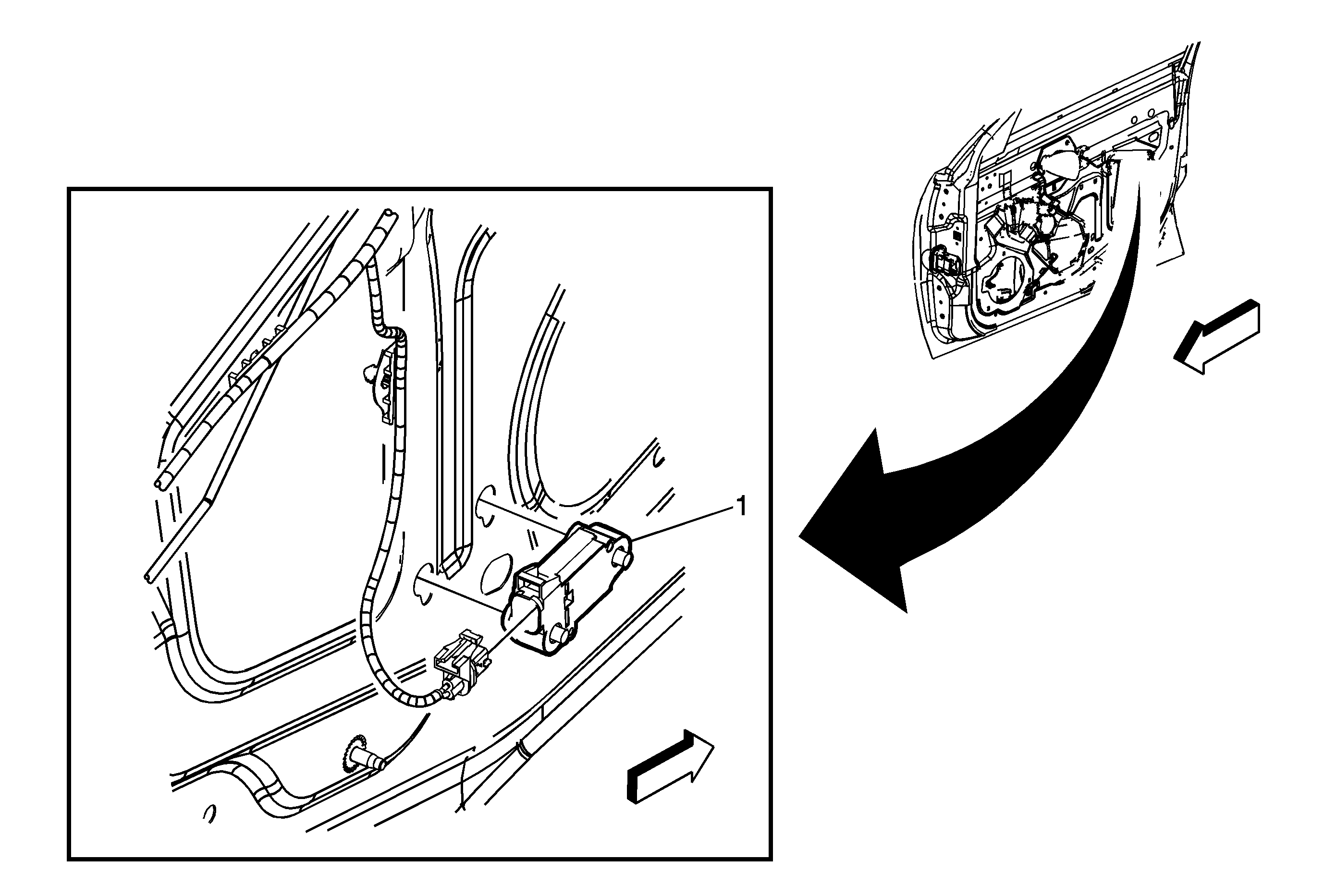

Figure 1:


(1)	Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7 or AY0)

Figure 2:


(1)	Door Lock Switch - Driver
(2)	Outside Rearview Mirror - Driver
(3)	Outside Rearview Mirror Switch
(4)	Speaker - Left Front Tweeter
(5)	Window Switch - Driver
(6)	Speaker - Left Front Door
(7)	Rear Compartment Lid Release Switch - Interior
(8)	Window Motor - Driver
(9)	Door Latch - Driver

Figure 3:


(1)	Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7 or AY0)

Figure 4:


(1)	Speaker - Right Front Tweeter
(2)	Outside Rearview Mirror - Passenger
(3)	Door Lock Switch - Passenger
(4)	Window Switch - Passenger
(5)	Door Latch - Passenger
(6)	Window Motor - Passenger
(7)	Speaker - Right Front Door

Figure 5:

Figure 6:
