Air Cleaner Element Replacement NU6

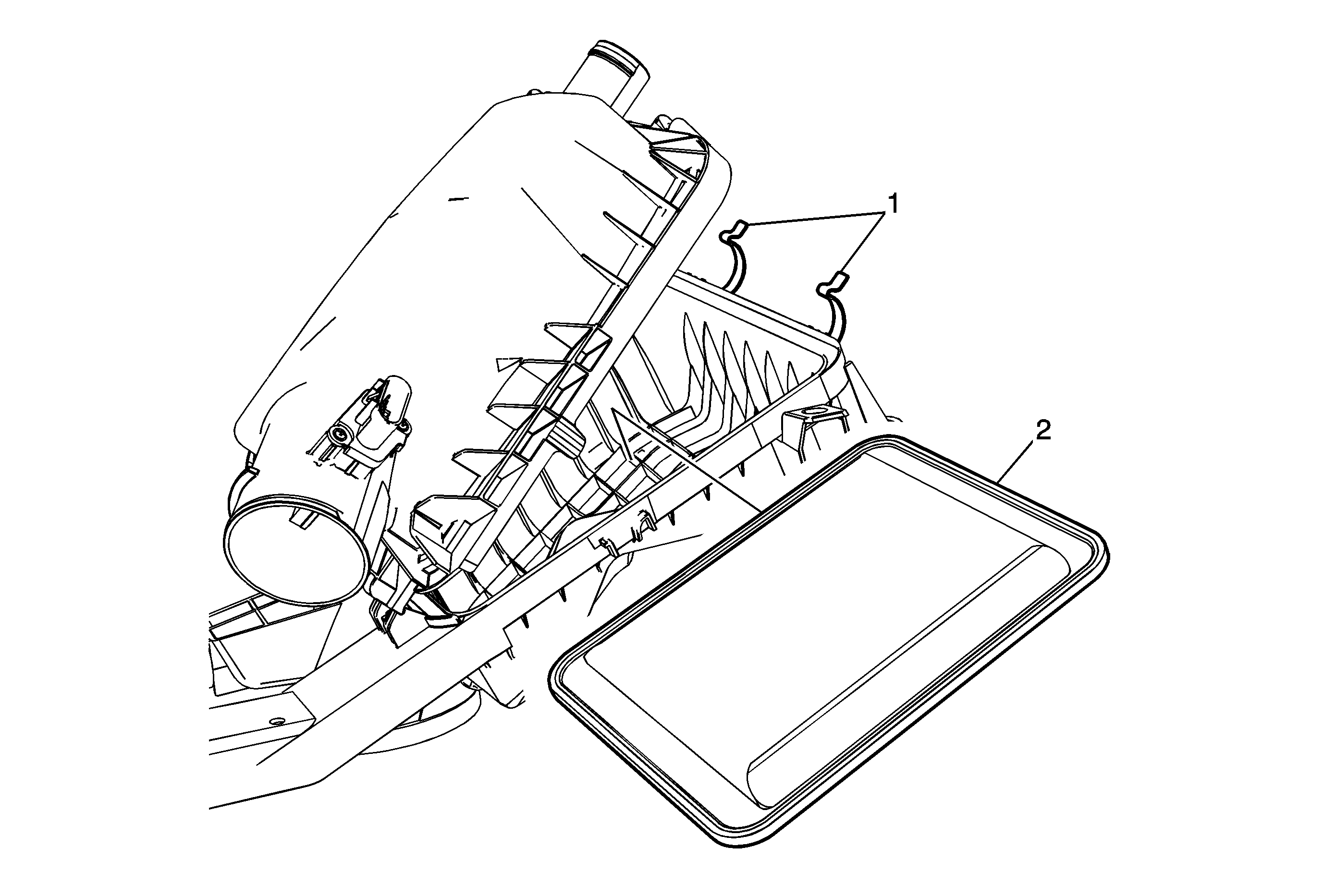

Object Number: 2138286 Size: MF

Callout

Component Name

Preliminary Procedure

  1. Disconnect the secondary air injection inlet hose from the air cleaner. Refer to Secondary Air Injection Pump Inlet Hose Replacement
  2. Disconnect the mass airflow electrical connector.

1

Unlatch the hook retainers (Qty: 2)

2

Air Cleaner Element

Air Cleaner Element Replacement NT7

Removal Procedure

    Object Number: 1236158 Size: SH
  1. Disconnect the mass air flow (MAF) sensor harness connector.
  2. Remove the upper air cleaner cover screws.
  3. Remove the upper air cleaner cover.
  4. Remove the air cleaner filter from the lower air cleaner housing.
  5. Inspect the air cleaner filter for dust, dirt and water contamination.
  6. Replace as necessary. Refer to Maintenance Schedule.

Installation Procedure

    Object Number: 851250 Size: SH
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.

    3. Caution: Refer to Fastener Caution in the Preface section.

  3. Secure the air cleaner housing cover.

    4. Tighten
    Tighten the air cleaner cover screws to 5 N·m (44 lb in).

  4. Connect the MAF sensor harness connector.
