Makes 🢒 Pontiac 🢒 2009 🢒 G6 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Body Control System Schematics

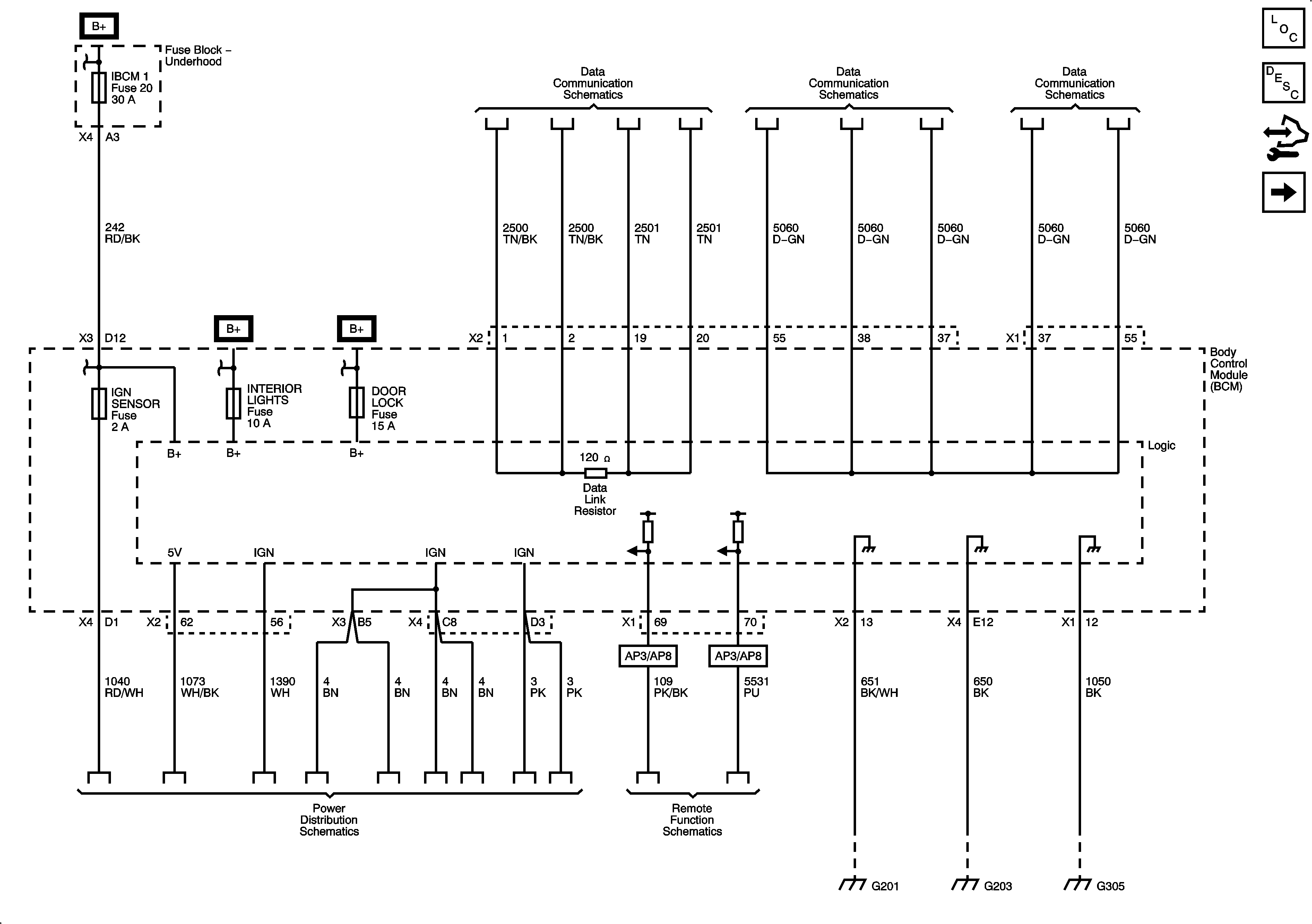

Figure 1:

Power, Ground, and DLC
Object Number: 2079062 Size: FS
Figure 2:

Accessory, HVAC Blower High and Run Relays
Object Number: 2079067 Size: FS
Figure 3:

Controlled/Monitored Subsystem References (1 of 3)
Object Number: 2079072 Size: FS

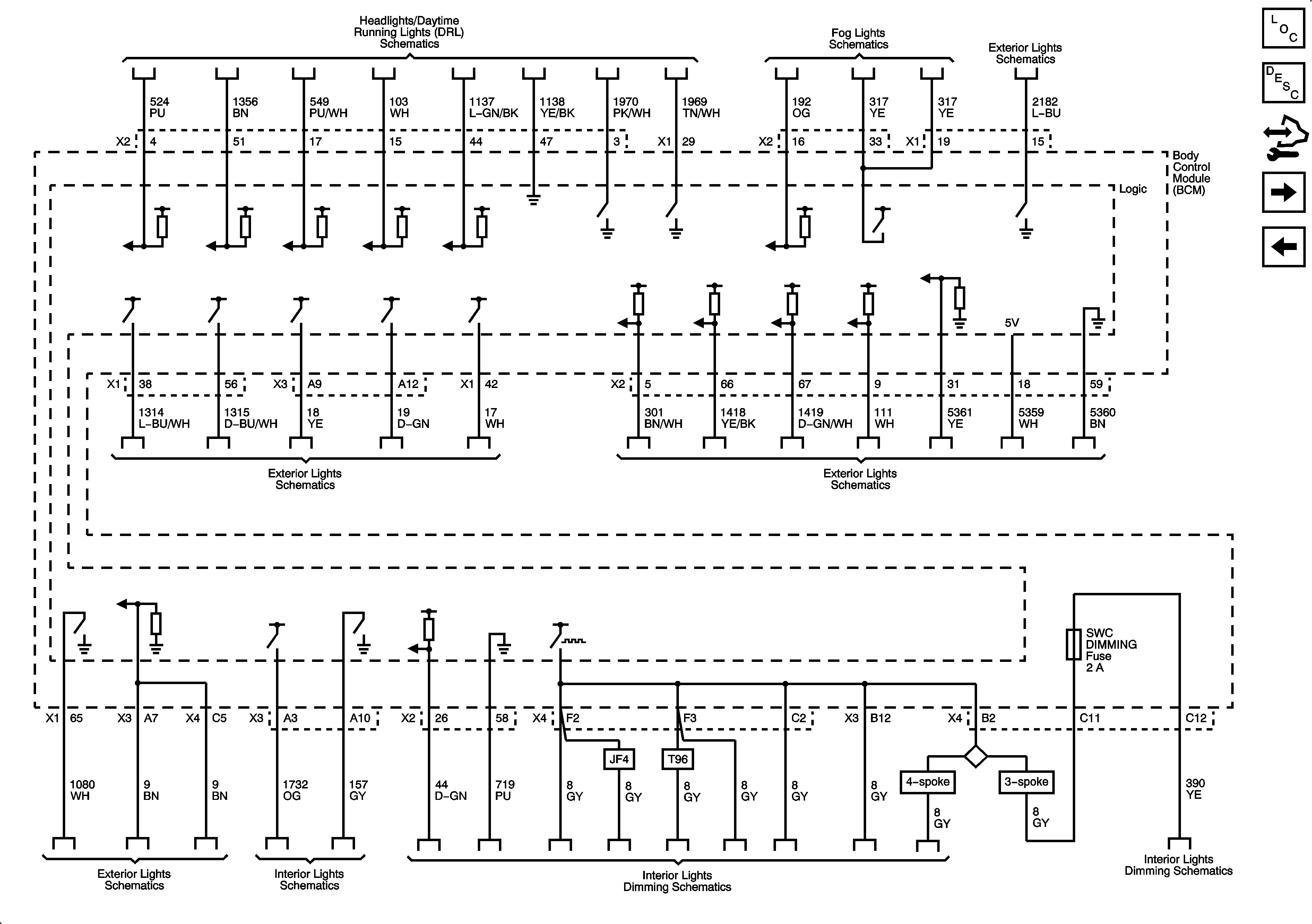

Figure 4:

Controlled/Monitored Subsystem References (2 of 3)
Object Number: 2079083 Size: FS

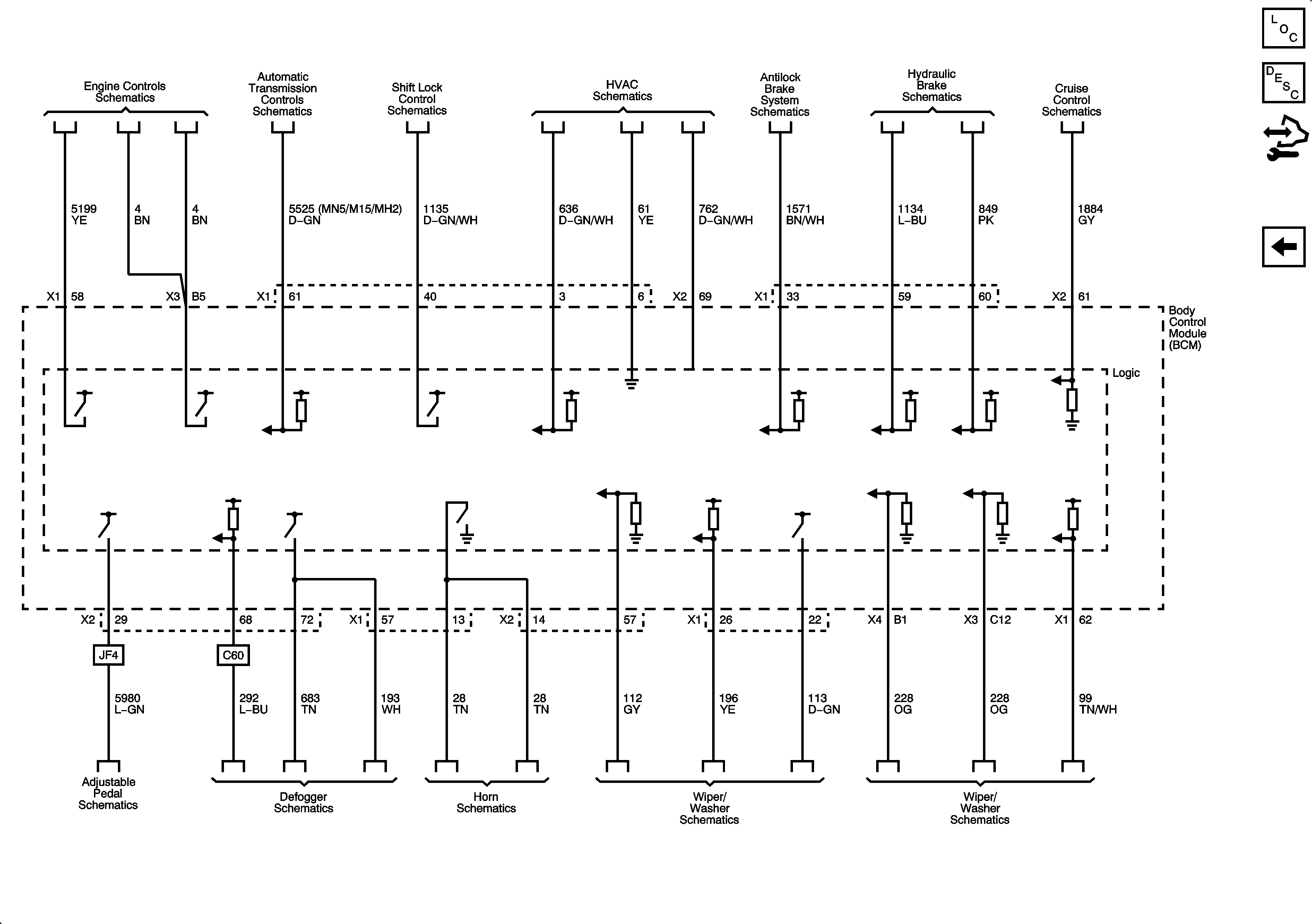

Figure 5:

Controlled/Monitored Subsystem References (3 of 3)
Object Number: 2079086 Size: FS
