Makes 🢒 Pontiac 🢒 2009 🢒 G6 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Moveable Window Schematics
Figure 1:

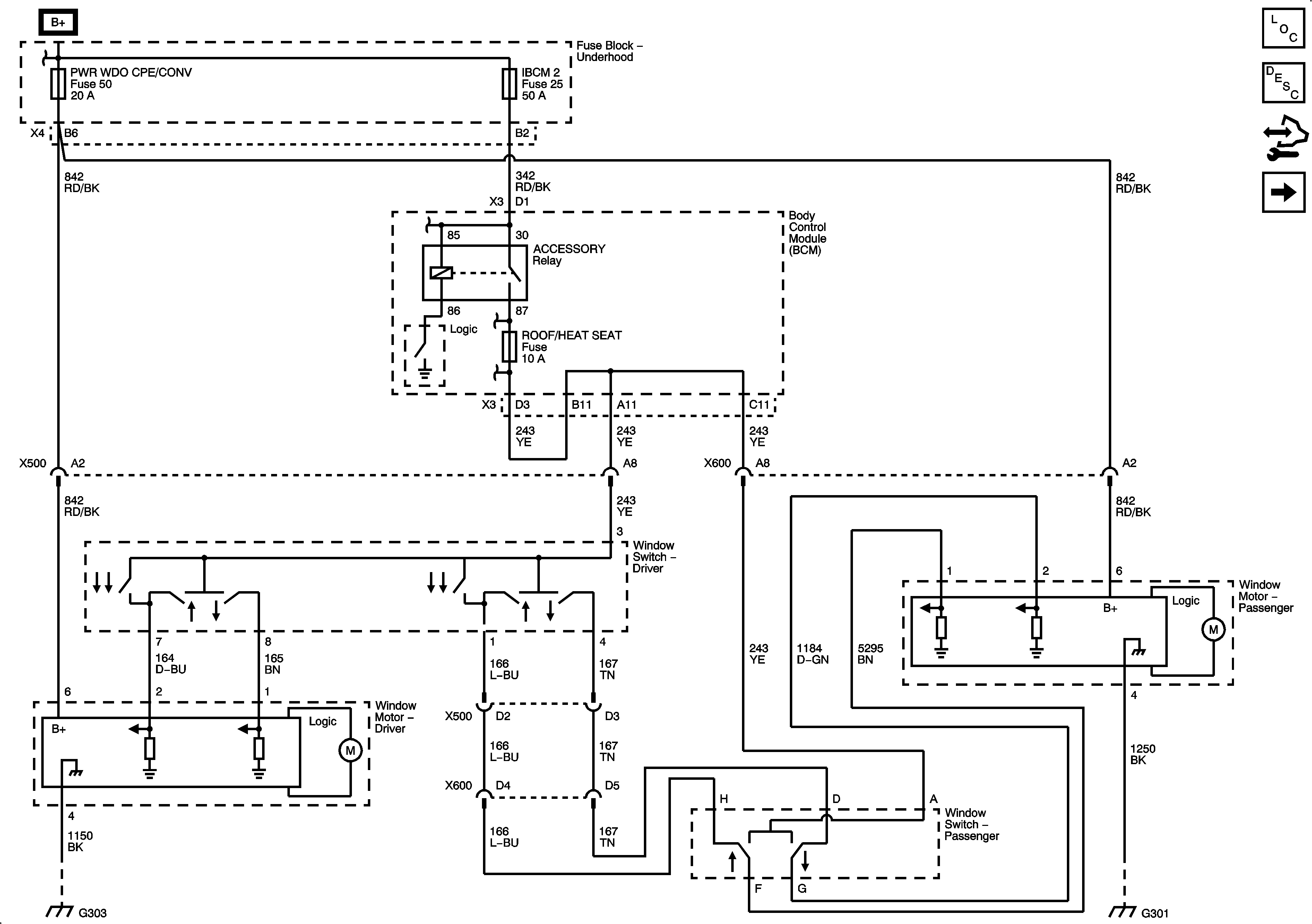

Window Motors - Coupe
Object Number: 2078398 Size: FS
Figure 2:

Ajar Switches - Coupe
Object Number: 2078321 Size: FS
Figure 3:

Sedan
Object Number: 2078413 Size: FS
Figure 4:

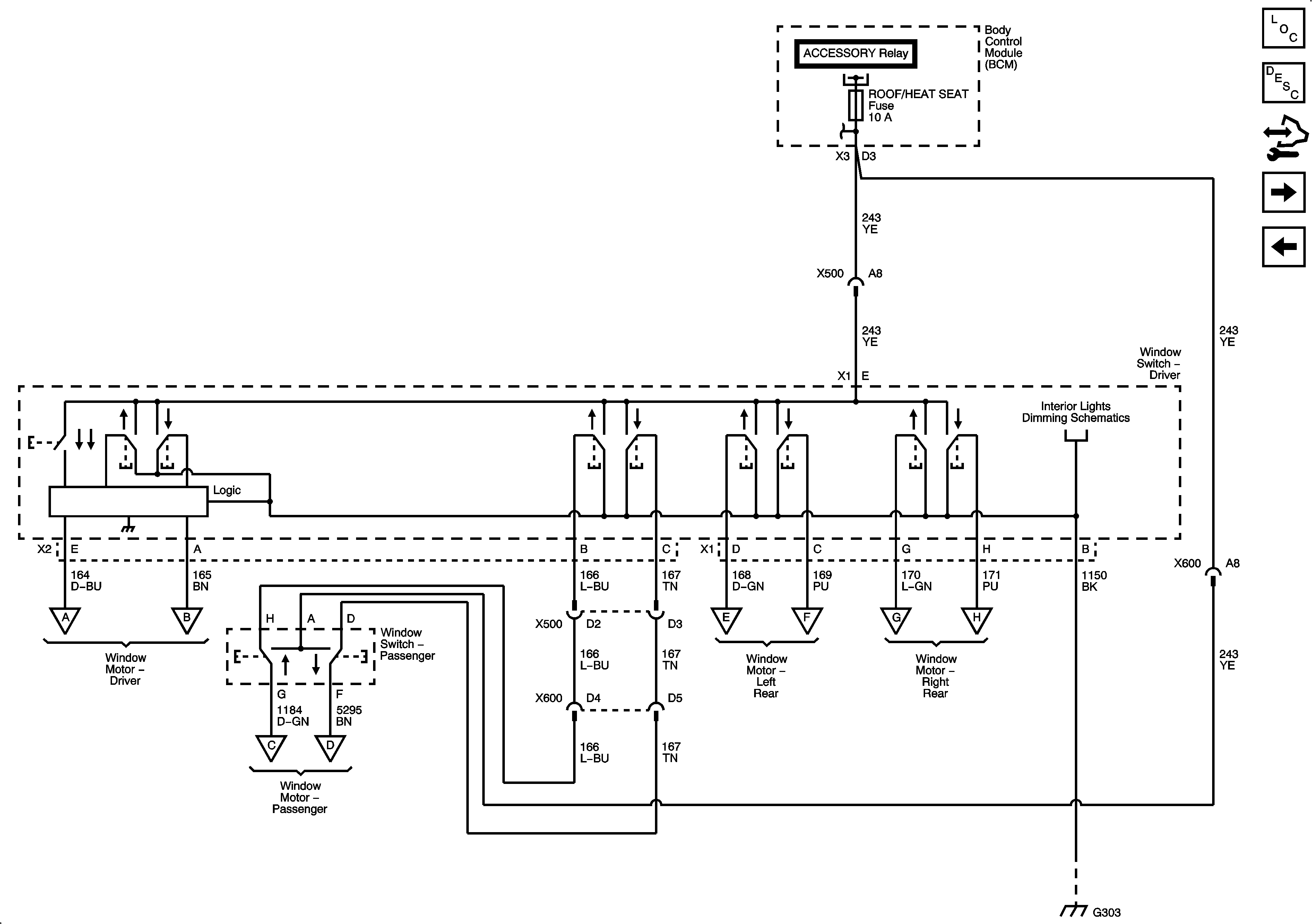

Window Switches - Convertible
Object Number: 2078421 Size: FS
Figure 5:

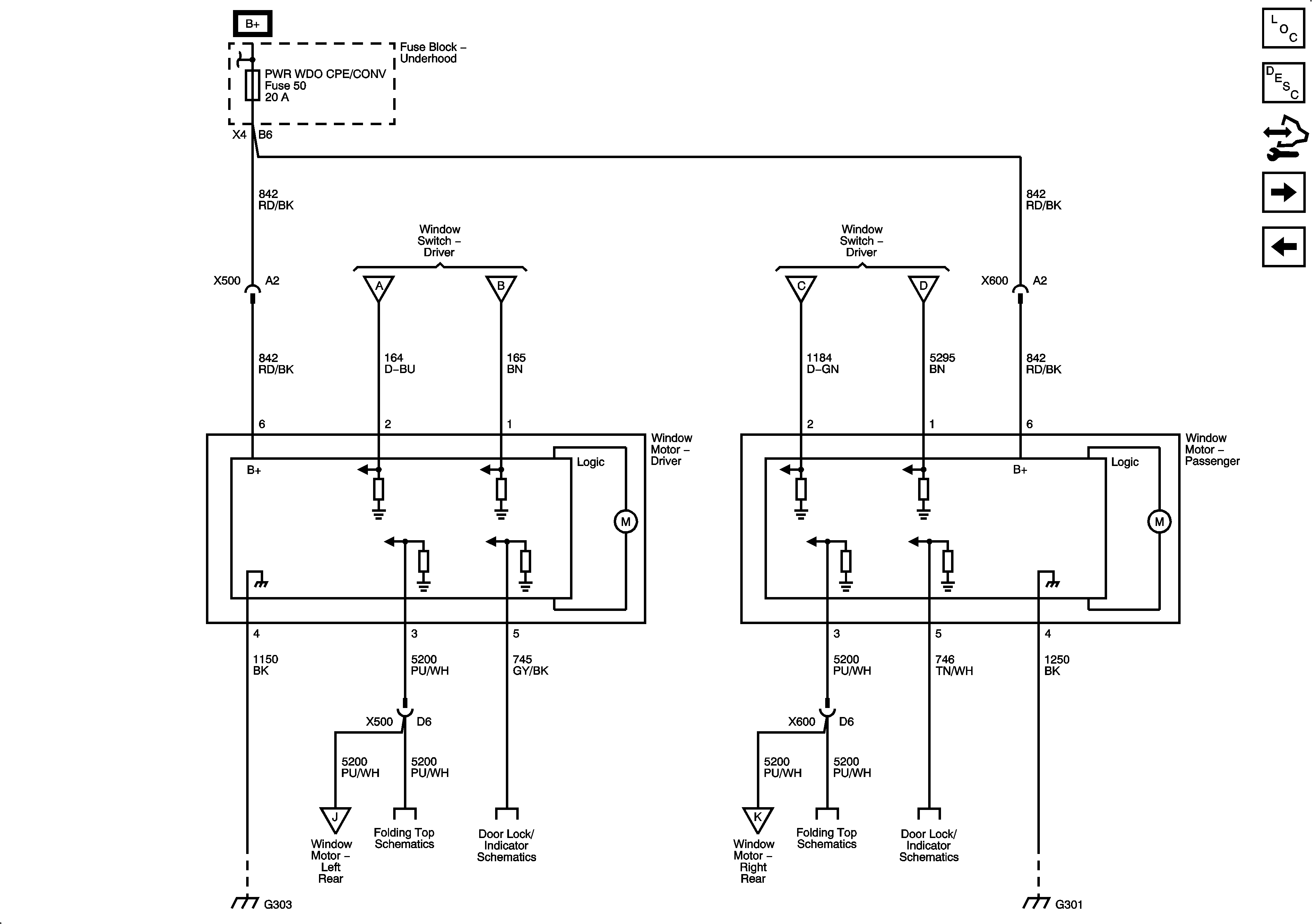

Front Window Motors - Convertible
Object Number: 2078429 Size: FS
Figure 6:

Rear Window Motors - Convertible
Object Number: 2078457 Size: FS
