Makes 🢒 Pontiac 🢒 2008 🢒 G8 🢒 Body Systems 🢒 Lighting 🢒 Reading Lamp Bulb Replacement

Removal Procedure
  1. Remove the rear dome lamp assembly. Refer to Dome Lamp Replacement.

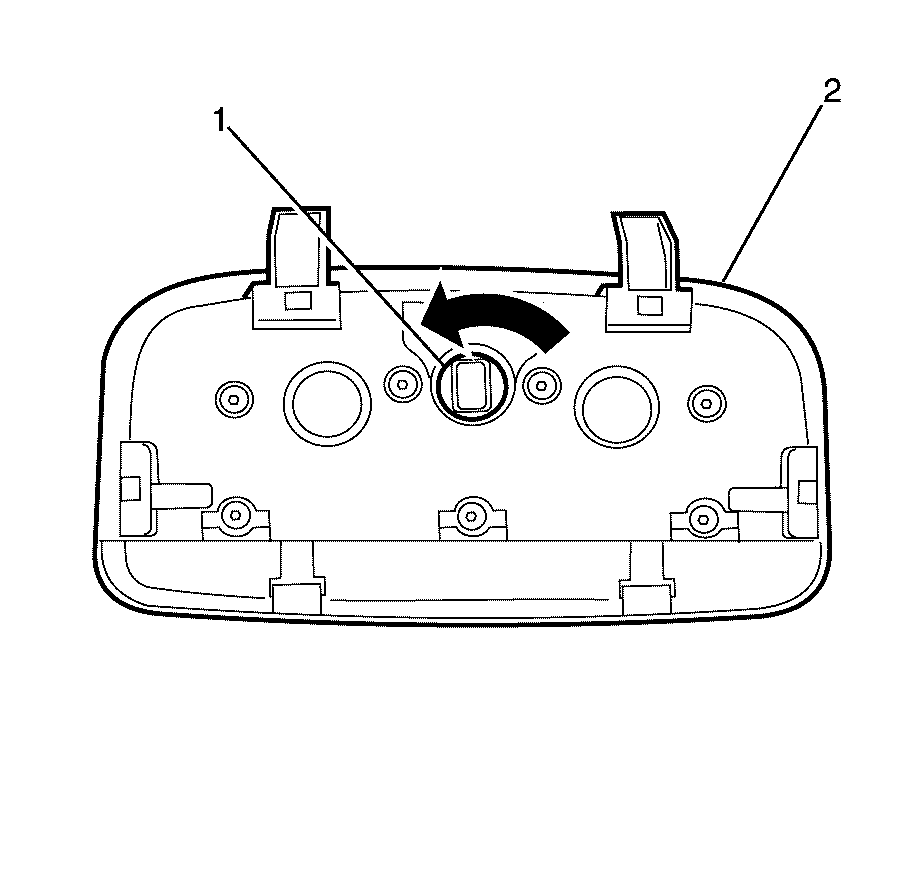

    2. Object Number: 2048217 Size: SH
  2. Twist the dome lamp bulb socket (1) counter clockwise and remove from the dome lamp assembly (2).

    3. Object Number: 1946890 Size: SH
  3. Remove the dome lamp bulb (1) by gently pulling from the dome lamp bulb socket (2).

Installation Procedure

    Object Number: 1946892 Size: SH
  1. Install a new dome lamp bulb (1) to the dome lamp bulb socket (2).

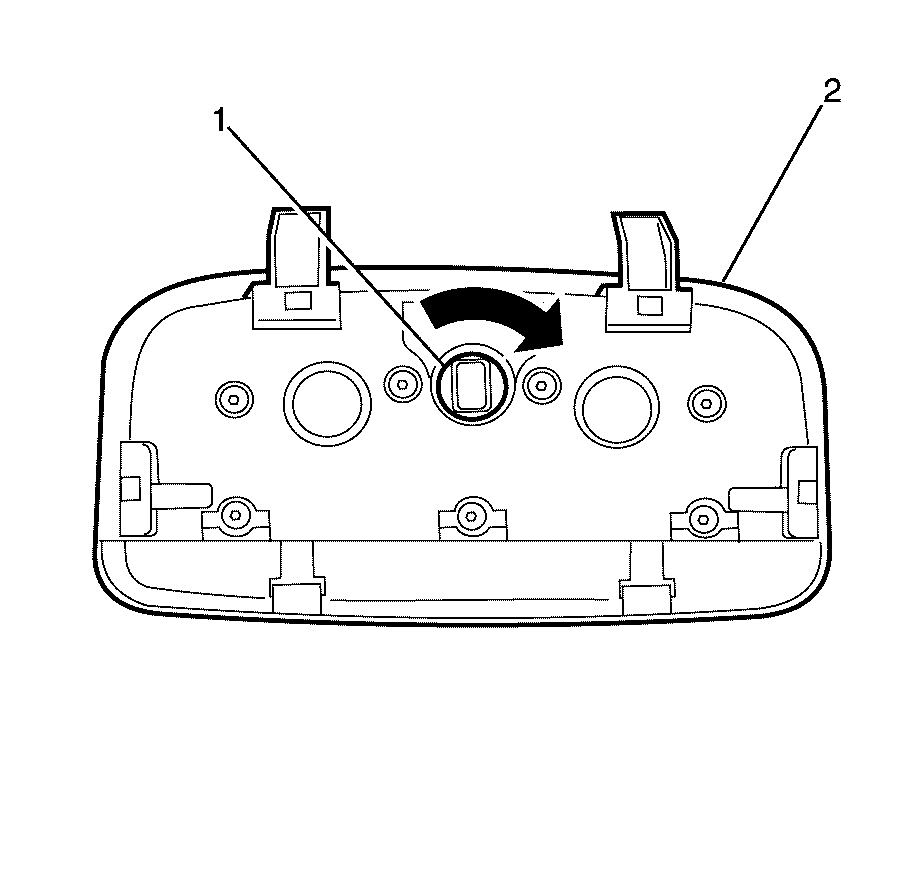

    2. Object Number: 2048218 Size: SH
  2. Install the dome lamp bulb socket (1) into the dome lamp assembly (2) and twist the dome lamp bulb socket clockwise to secure.
  3. Install the rear dome lamp assembly. Refer to Dome Lamp Replacement.
  4. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection.
  5. Test the rear dome lamp for correct operation.
