Front of Vehicle/Engine Compartment Component Views. Pontiac G8 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 G8 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views

Figure 1:

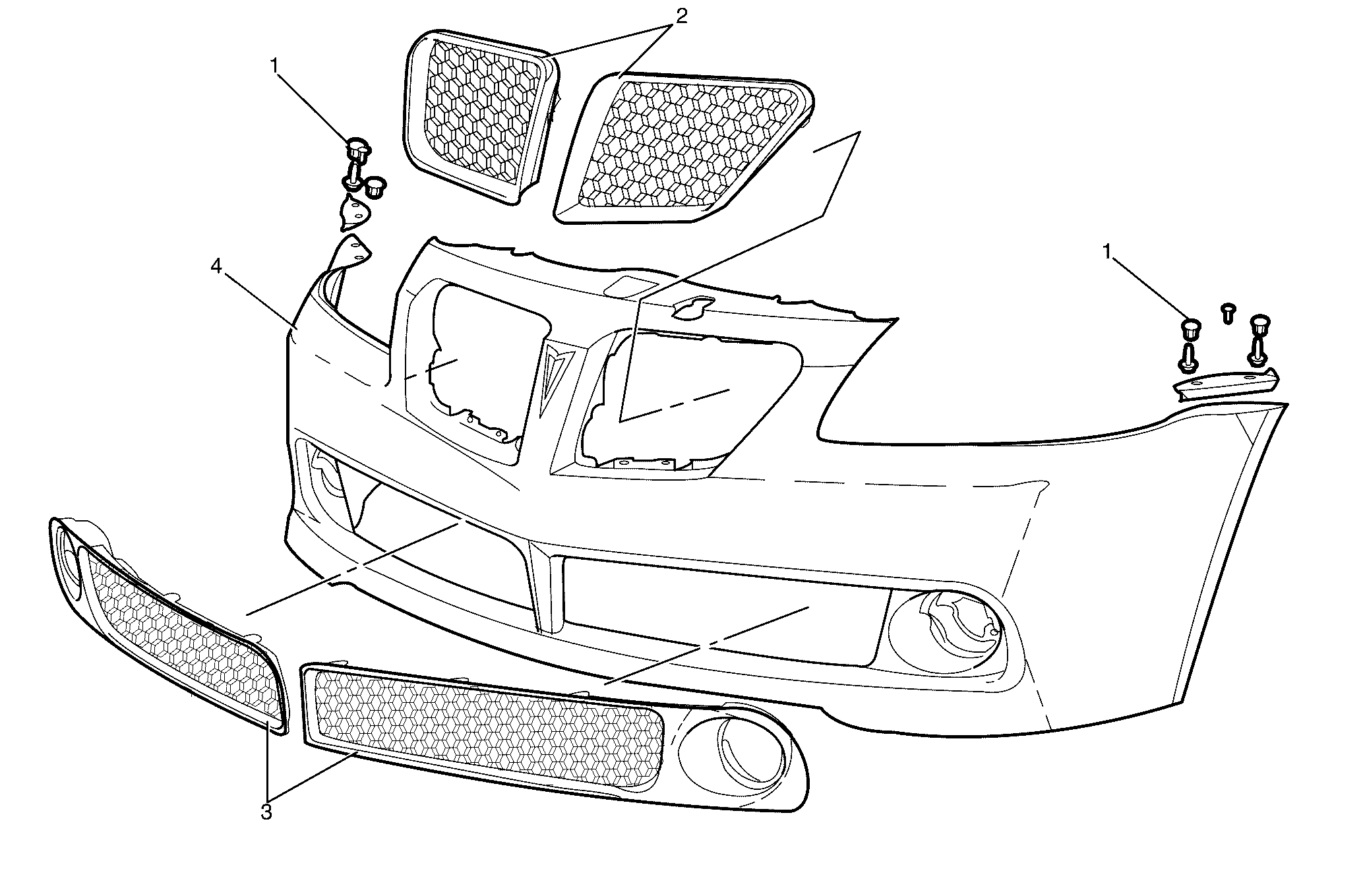

G8 Front Bumper Fascia Locator


(1)	Front Bumper Fascia Reinforcement
(2)	Radiator Grille
(3)	Front Bumper Fascia Lower Grille
(4)	Front Bumper Fascia

Figure 2:

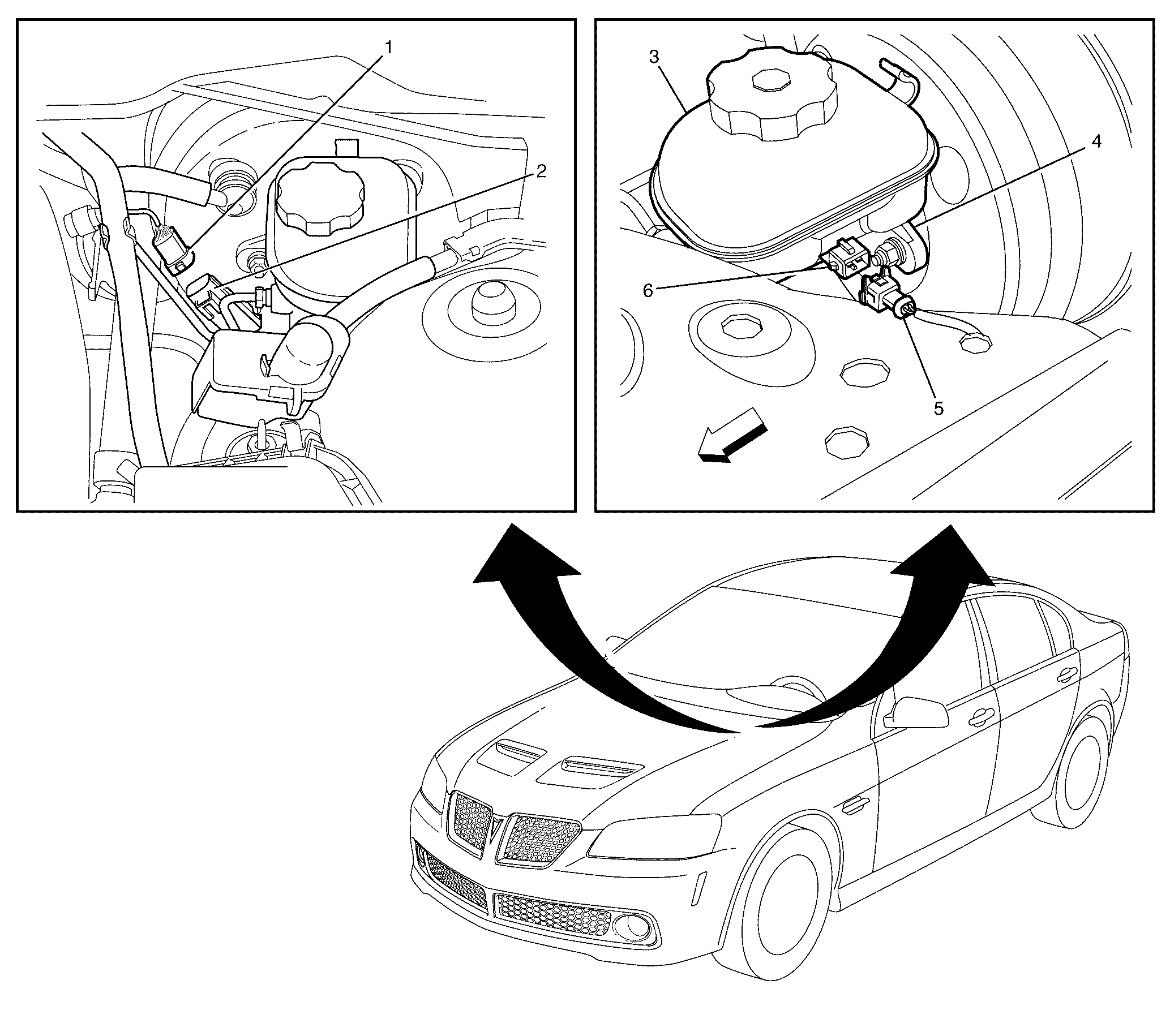

Brake Fluid Level Switch


(1)	Power Brake Booster Vacuum Sensor Electrical Connector
(2)	Power Brake Booster Vacuum Sensor
(3)	Master Cylinder Reservoir
(4)	Master Cylinder Assembly
(5)	Brake Fluid level Switch Electrical Connector
(6)	Brake Fluid level Switch

Figure 3:

Wiper and Washer Switch


(1)	Wiper/Washer Switch
(2)	Steering Wheel
(3)	Wiper Motor

Figure 4:

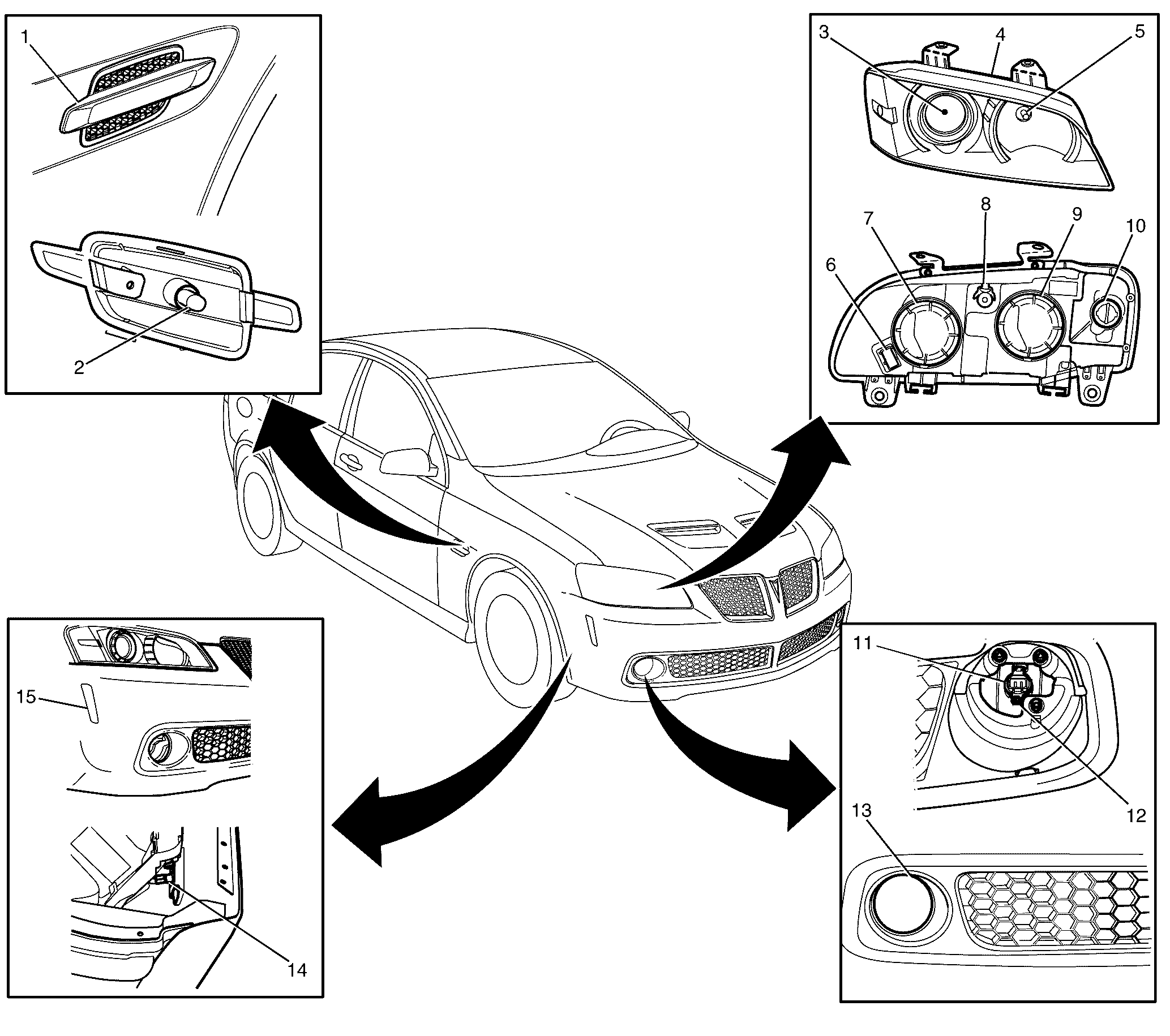

Exterior Lamps - Front View


(1)	Repeater Lamp Assembly
(2)	Repeater Lamp Bulb
(3)	Low Beam/Daytime Running Lamp Bulb
(4)	Headlamp Assembly
(5)	High Beam Bulb
(6)	Headlamp Assembly Electrical Connector
(7)	High Beam Bulb Dust Cover
(8)	Headlamp Adjuster
(9)	Low Beam Bulb Dust Cover
(10)	Front Indicator and Park Lamp Bulb
(11)	Fog Lamp Bulb
(12)	Fog Lamp Adjuster
(13)	Fog Lamp Assembly
(14)	Front Side Marker Bulb
(15)	Front Side Marker Assembly

Figure 5:

Horn System


(1)	Horn Switch
(2)	Theft Deterrent Alarm Siren
(3)	Horn - Left
(4)	Horn - Right

Figure 6:

Power Steering Components


(1)	Right Tie Rod End
(2)	Intermediate Steering Shaft
(3)	Power Steering Rack
(4)	Left Tie Rod End
(5)	Power Steering Pump
(6)	Fluid Reservoir Outlet Pipe/Hose
(7)	Fluid Reservoir Inlet Pipe/Hose
(8)	Fluid Reservoir
(9)	Power Steering Gear Outlet Pipe/Hose

Figure 7:

Component locator (LY7)


(1)	Fuse Block - Underhood
(2)	Battery
(3)	Battery Remote Positive Post
(4)	Starter Motor
(5)	Alternator

Figure 8:

Component locator (L76)


(1)	Fuse Block - Underhood
(2)	Battery
(3)	Battery Remote Positive Post
(4)	Alternator
(5)	Starter Motor
