For 1990-2009 cars only

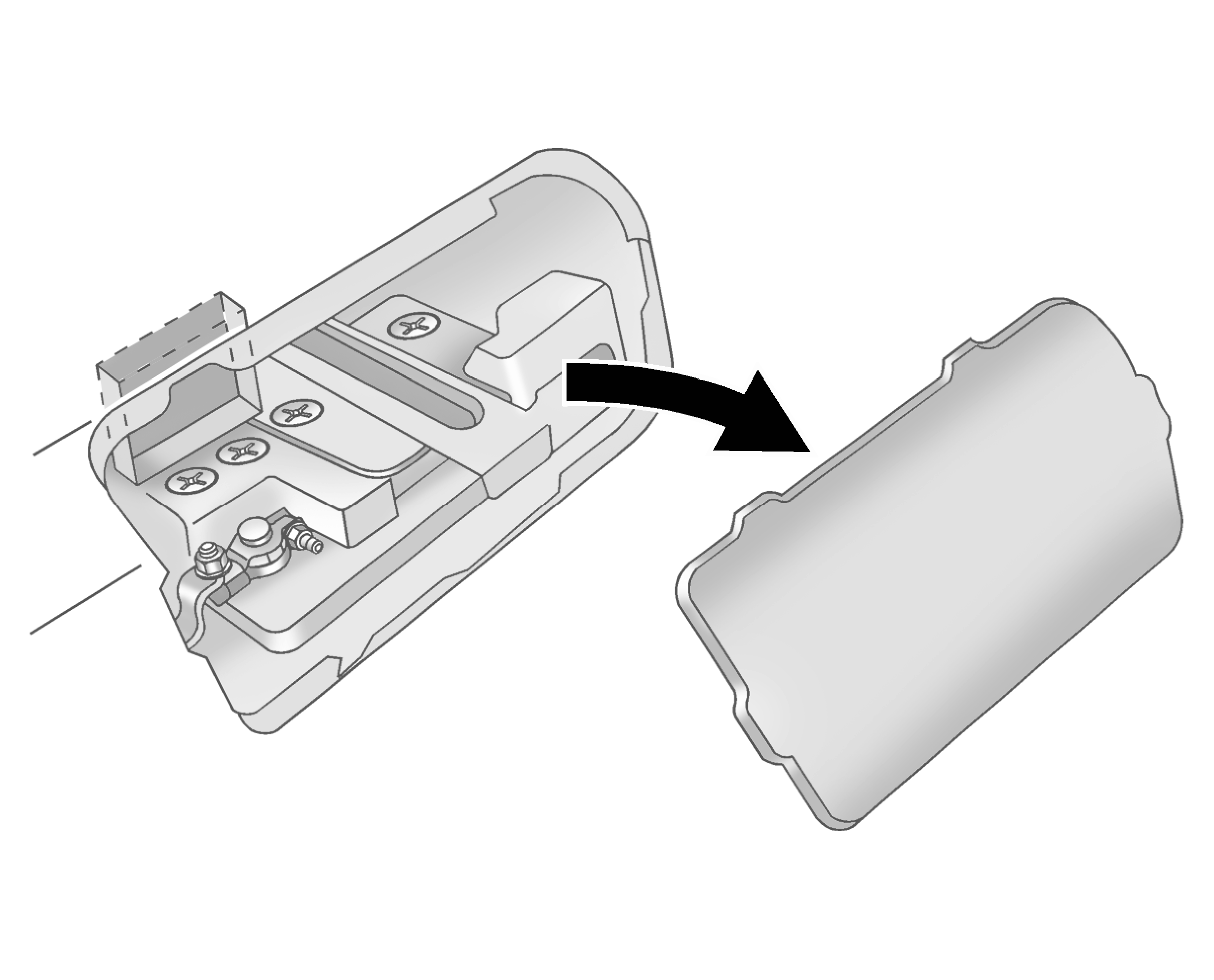

The rear compartment fuse block is located on the left side of the trunk behind a cover.
Use the fuse puller, to remove and replace fuses.

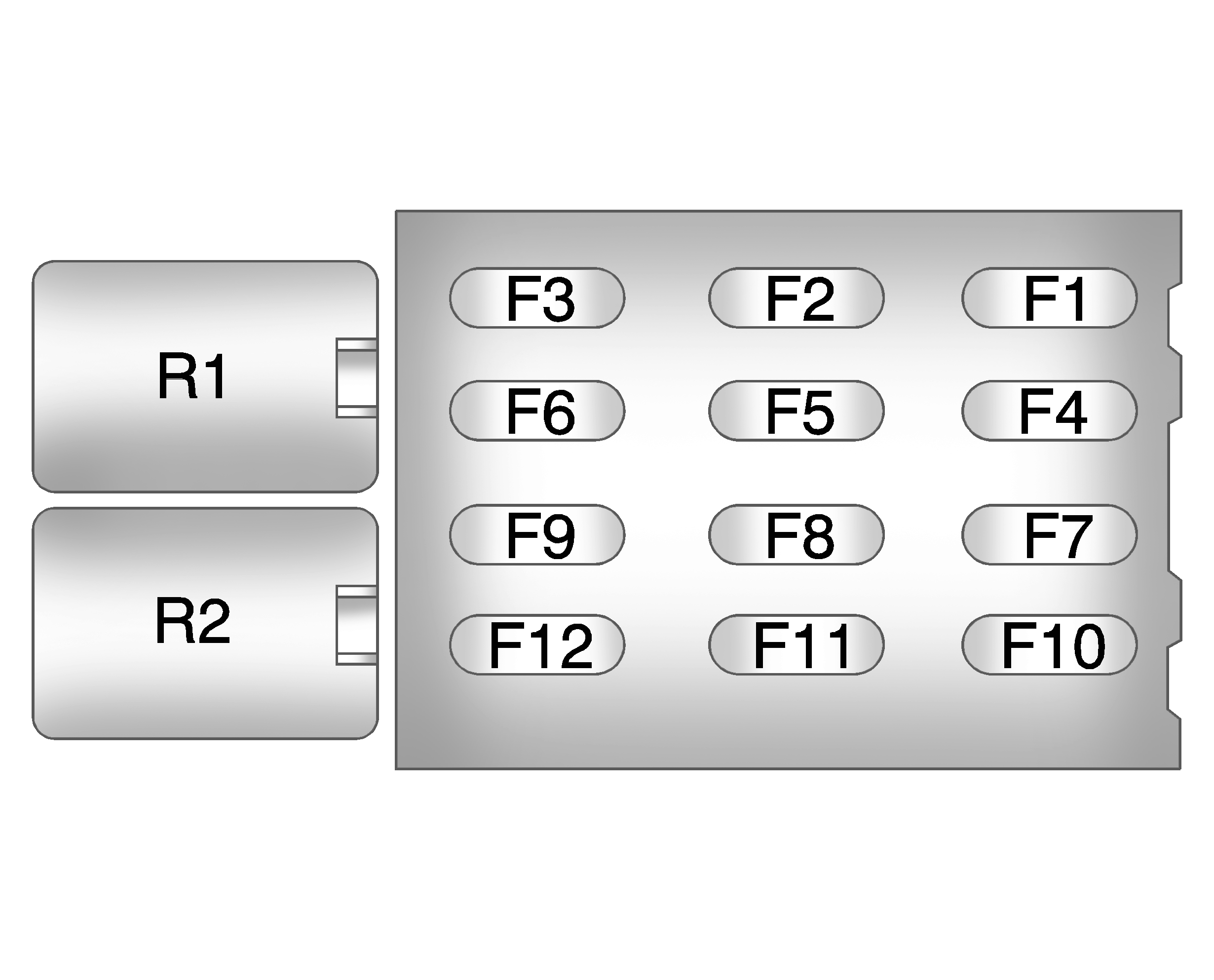

Fuses | Usage |
|---|---|
F1 | Spare |
F2 | Amplifier |
F3 | XM Radio™ |
F4 | Radio |
F5 | Instrument/Display/Remote Function Actuator/Data Link Connection |
F6 | Spare |
F7 | Spare |
F8 | OnStar™ |
F9 | Spare |
F10 | ECM Battery |
F11 | Regulated Voltage Control Sensor |
F12 | Fuel Pump |
Relays | Usage |
|---|---|
R1 | Spare |
R2 | Spare |
