Engine Controls Component Views. Pontiac GTO 2004

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2004 🢒 GTO 🢒 Engine 🢒 Engine Controls - 5.7L 🢒 Engine Controls Component Views

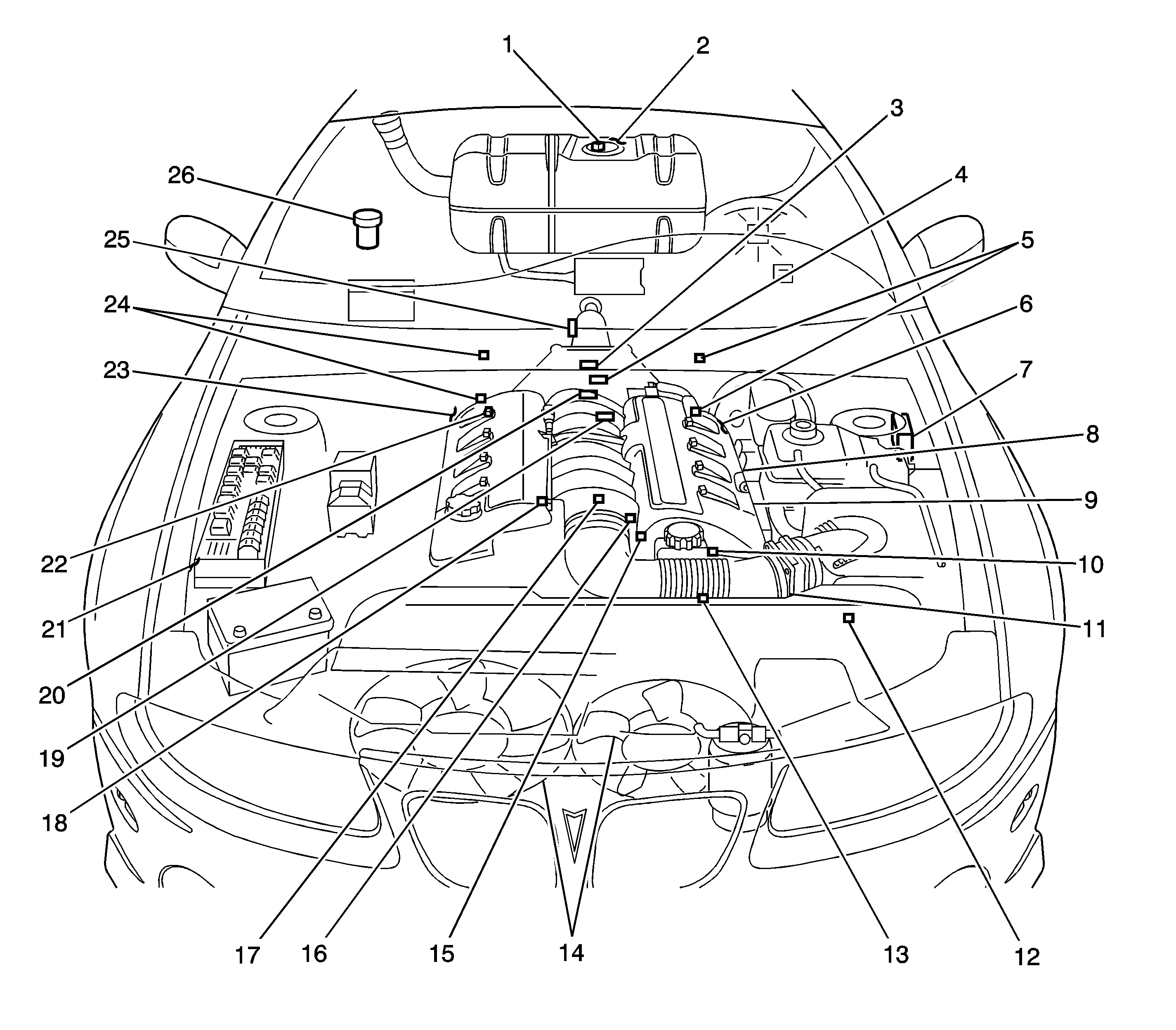

Figure 1:


(1)	Fuel Tank Pressure Sensor
(2)	Modular Fuel Pump and Sender Assembly
(3)	Manifold Absolute Pressure (MAP) Sensor
(4)	Oil Pressure Sensor
(5)	Heated Oxygen Sensors Bank 2
(6)	Ignition Coil Module Bank 2
(7)	Powertrain Interface Module
(8)	EVAP Canister Purge Solenoid
(9)	Powertrain Control Module (PCM)
(10)	Engine Coolant Temperature (ECT) Sensor
(11)	Mass Air Flow (MAF) Sensor
(12)	A/C Refrigerant Pressure Sensor
(13)	Intake Air Temperature (IAT) Sensor
(14)	Engine Cooling Fans
(15)	Throttle Position (TP) Sensor
(16)	Idle Air Control (IAC) Valve
(17)	Knock Sensor (KS)
(18)	Crankshaft Position (CKP) Sensor
(19)	Knock Sensor (KS)
(20)	Camshaft Position (CMP) Sensor
(21)	Under Hood Fuse Block
(22)	Fuel Injectors
(23)	Ignition Coil Module Bank 1
(24)	Heated Oxygen Sensors Bank 1
(25)	Vehicle Speed Sensor (VSS)
(26)	Evaporative Canister Vent Solenoid

Figure 2:


(1)	Ignition Coils/Modules Bank 2
(2)	Evaporative Emission (EVAP) Canister Purge Solenoid
(3)	Fuel Pulse Dampener
(4)	Fuel Rail
(5)	PCV Crossover Hose
(6)	Ignition Coils/Modules Bank 1
(7)	Heated Oxygen Sensor (H02S) Bank 1 Sensor 1 Mounting Flange
(8)	Engine Coolant Temperature (ECT) Sensor
(9)	Fuel Pressure Gauge Test Connector
(10)	Throttle Position (TP) Sensor
(11)	Idle Air Control (IAC) Valve
(12)	Throttle Body

Figure 3:

Figure 4:


(1)	Manifold Absolute Pressure (MAP) Sensor
(2)	Camshaft Position (CMP) Sensor
(3)	Engine Oil Pressure (EOP) Switch
(4)	Knock Sensor (KS) Jumper Harness

Figure 5:


(1)	Knock Sensor (KS) 1
(2)	Knock Sensor (KS) 2

Figure 6:


(1)	CKP Mounting Bolt
(2)	CKP Mounting Location
(3)	Crankshaft Position (CKP) Sensor

Figure 7:


(1)	Heated Oxygen Sensor Bank Two Sensor One
(2)	Heated Oxygen Sensor Bank One Sensor One
(3)	Heated Oxygen Sensor Bank One Sensor Two
(4)	Heated Oxygen Sensor Bank Two Sensor Two

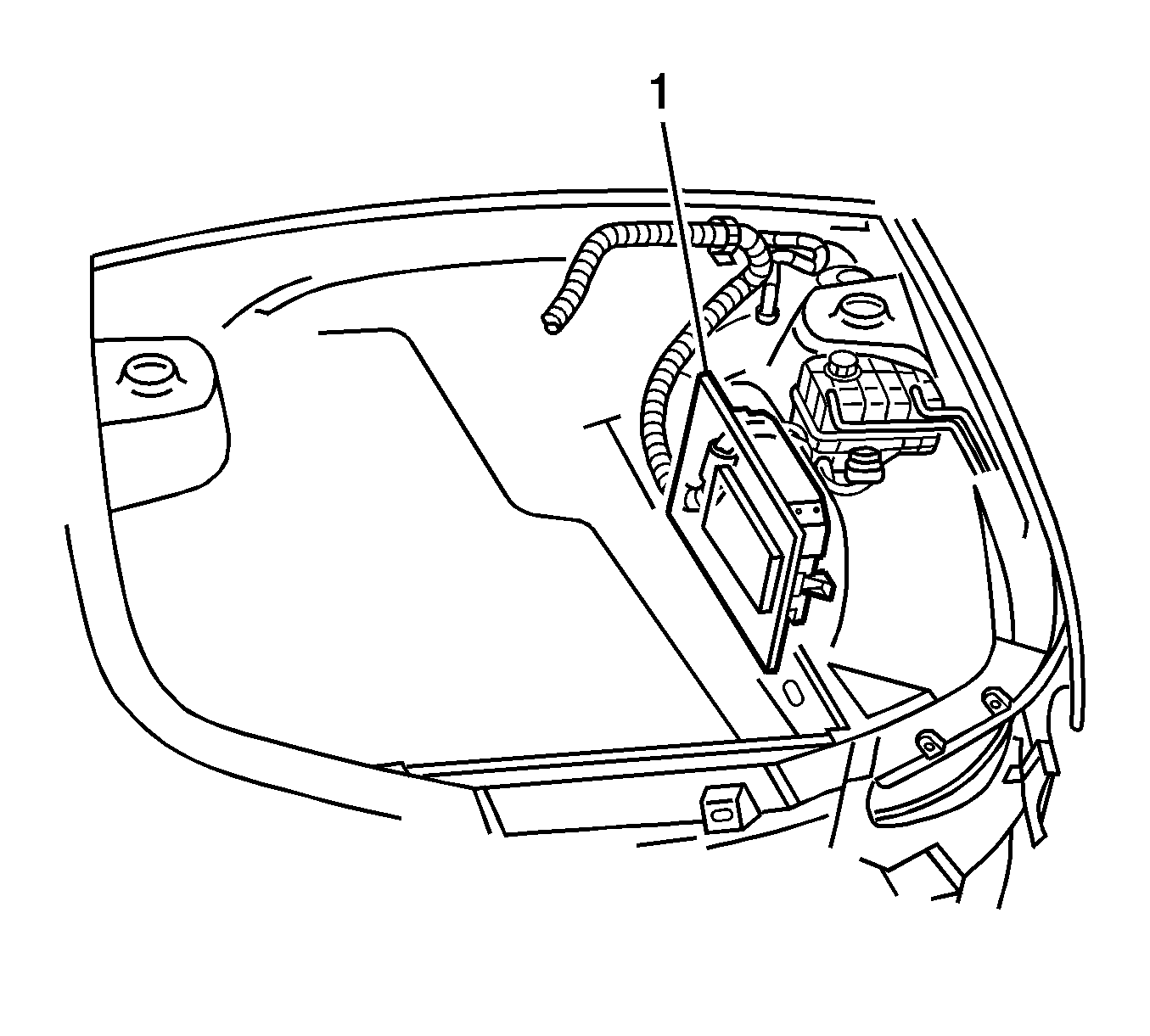

Figure 8:


(1)	Powertrain Control Module (PCM)

Figure 9:


(1)	Mass Air Flow (MAF) Sensor
(2)	Intake Air Temperature (IAT) Sensor
(3)	Air Intake Duct to Throttle Body
(4)	Air Cleaner Housing

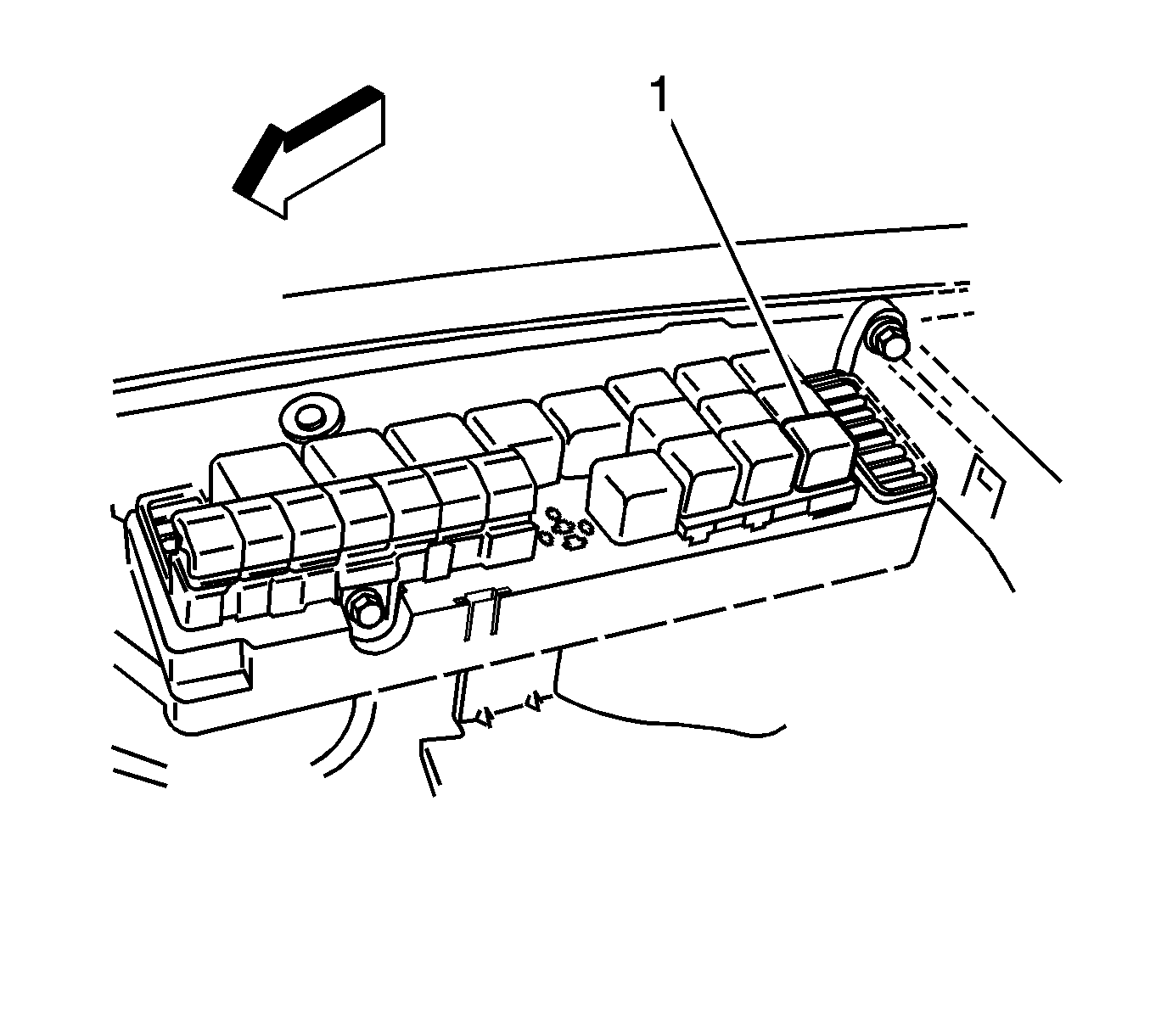

Figure 10:


(1)	Fuel Pump Relay
