Ground Distribution Schematics. Pontiac GTO 2004

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2004 🢒 GTO 🢒 Brakes 🢒 Hydraulic Brakes 🢒 Ground Distribution Schematics

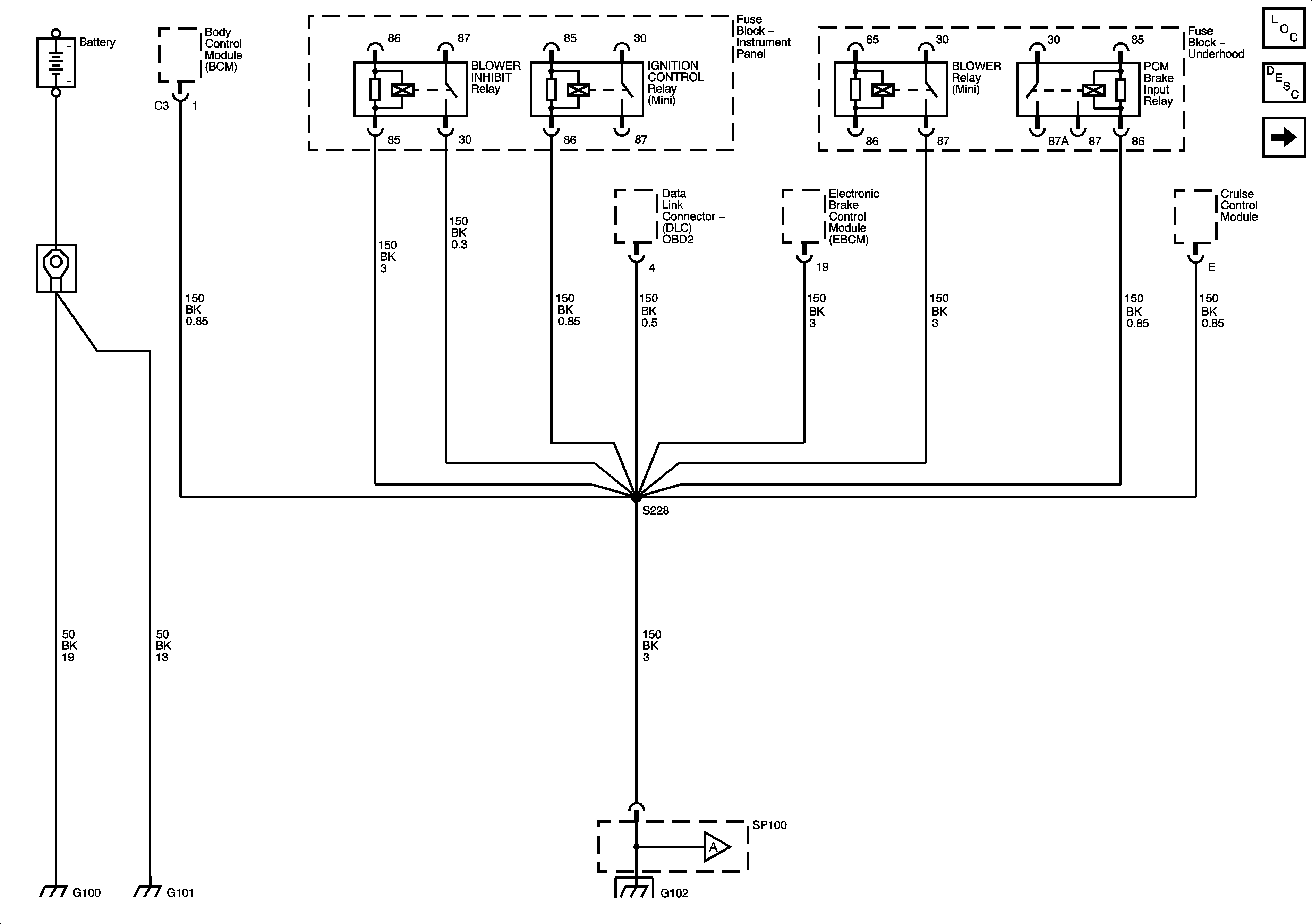

Figure 1:	G100, G101, SP100 and G102 Master Electrical Component List SP100 and G102

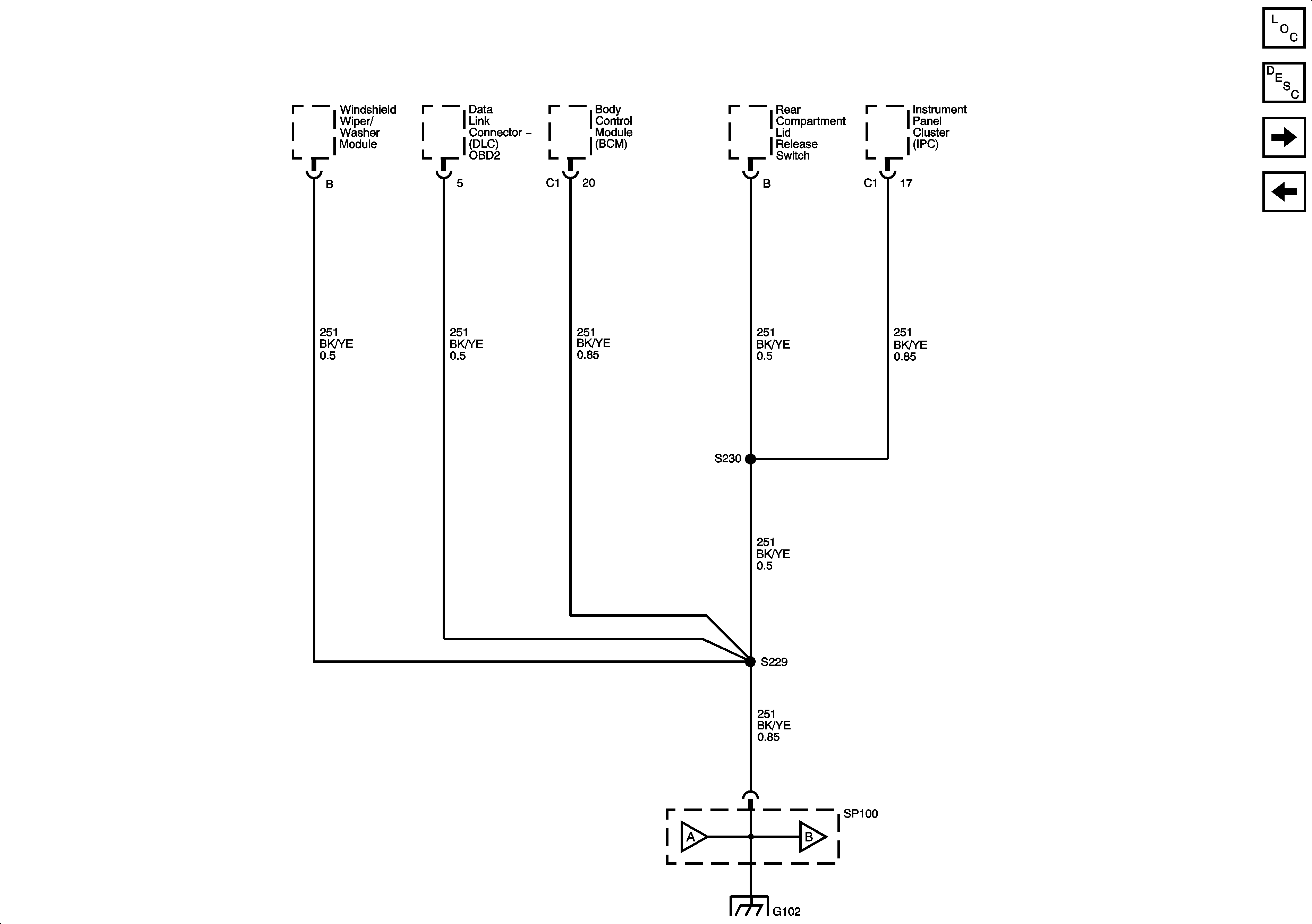

Figure 2:	SP100 and G102 Master Electrical Component List SP100 and G102 G100, G101, SP100 and G102

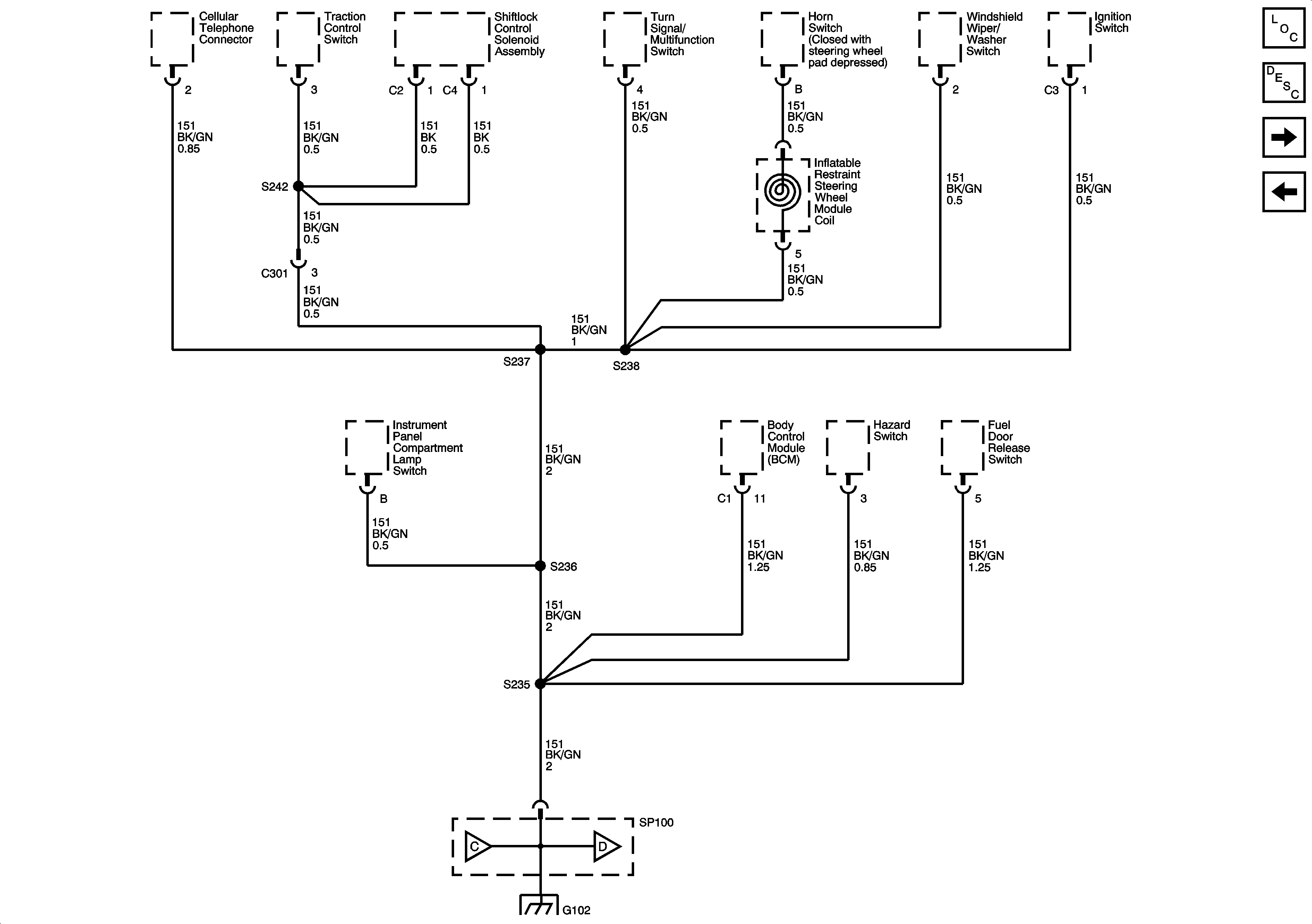

Figure 3:	SP100 and G102 Master Electrical Component List SP100 and G102 SP100 and G102

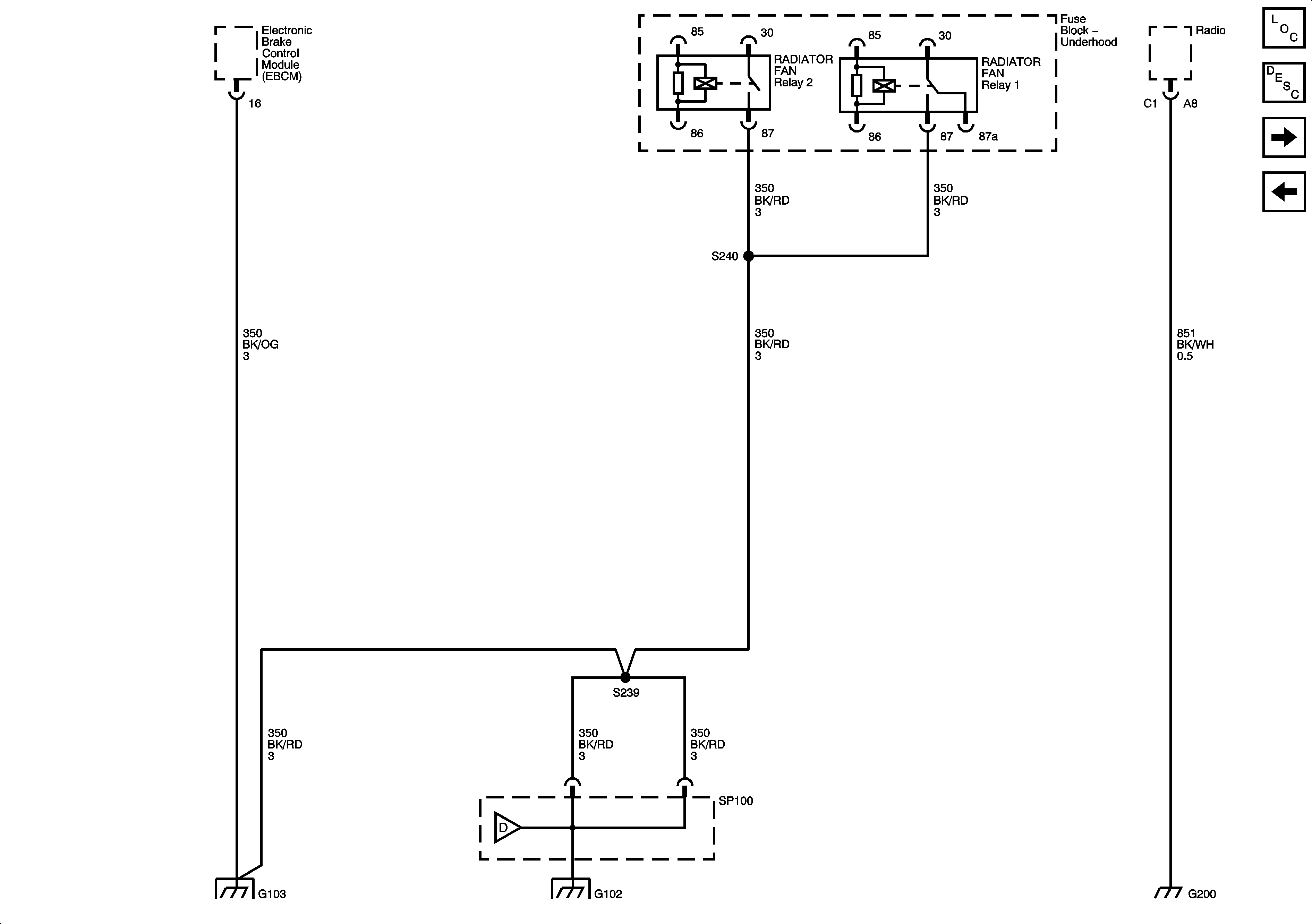

Figure 4:	SP100 and G102 Master Electrical Component List SP100 and G102, G103, G200 SP100 and G102

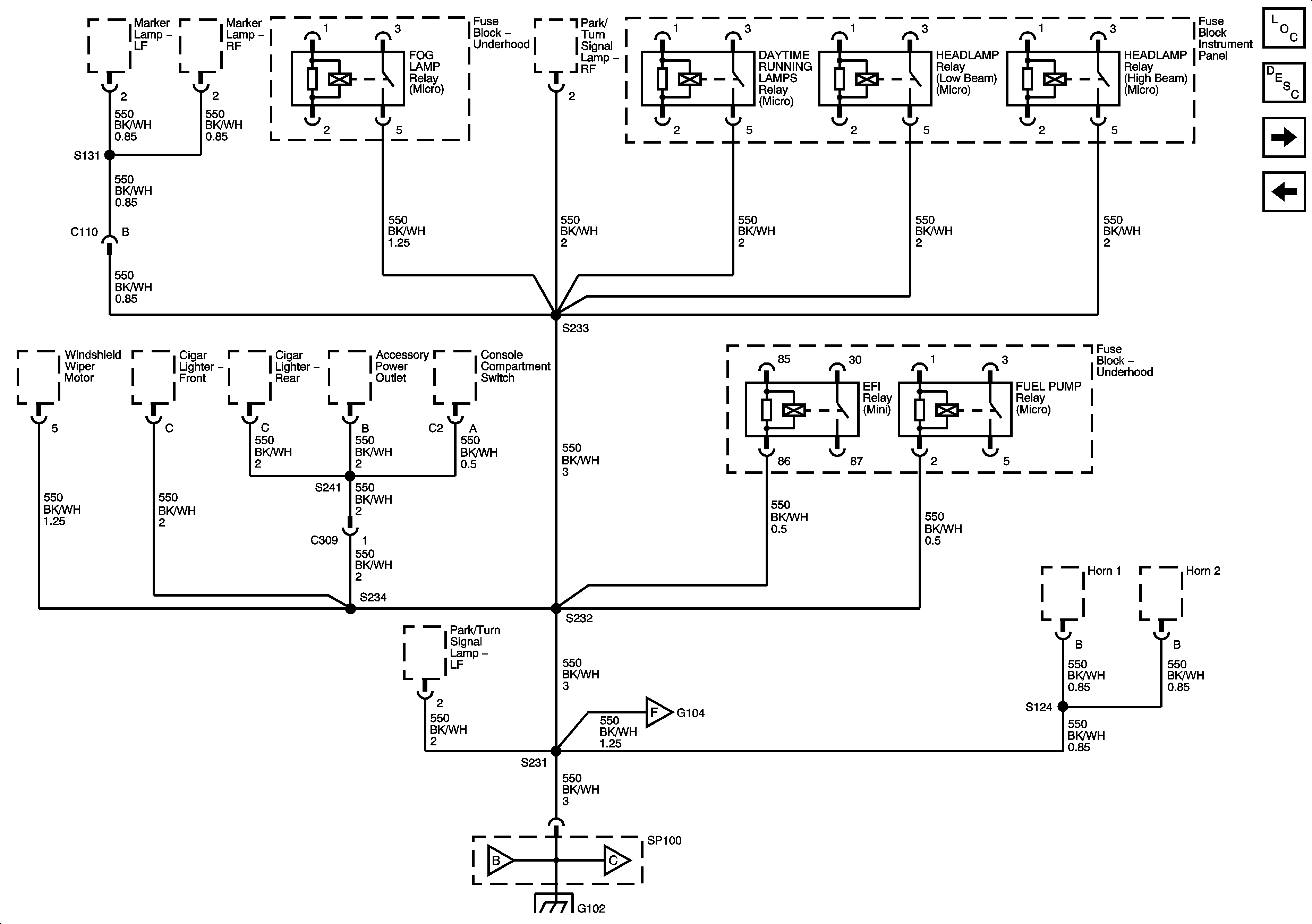

Figure 5:	SP100 and G102, G103, G200 Master Electrical Component List G104 and G105 SP100 and G102

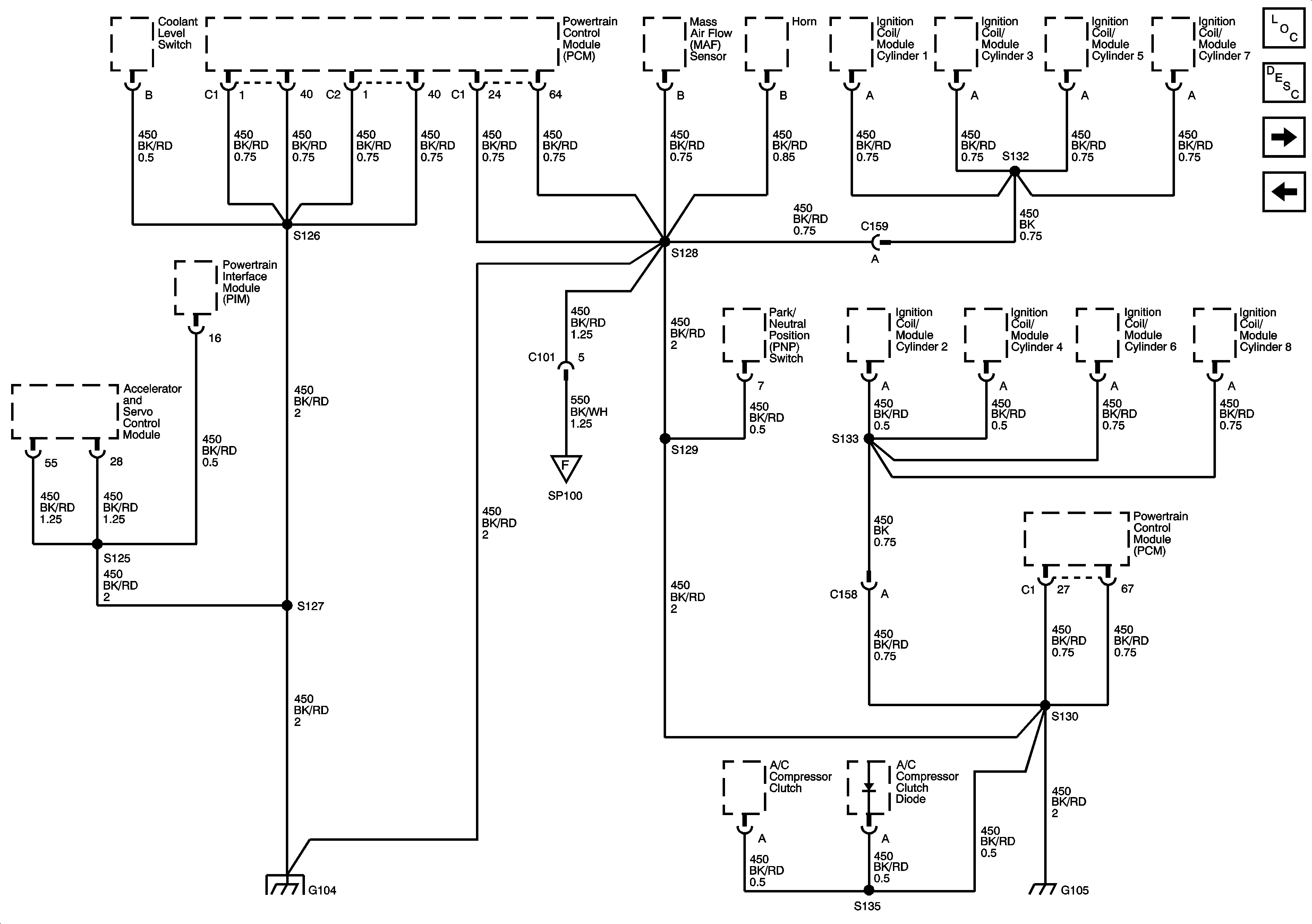

Figure 6:	G104 and G105 Master Electrical Component List G300, G301, G400 SP100 and G102, G103, G200

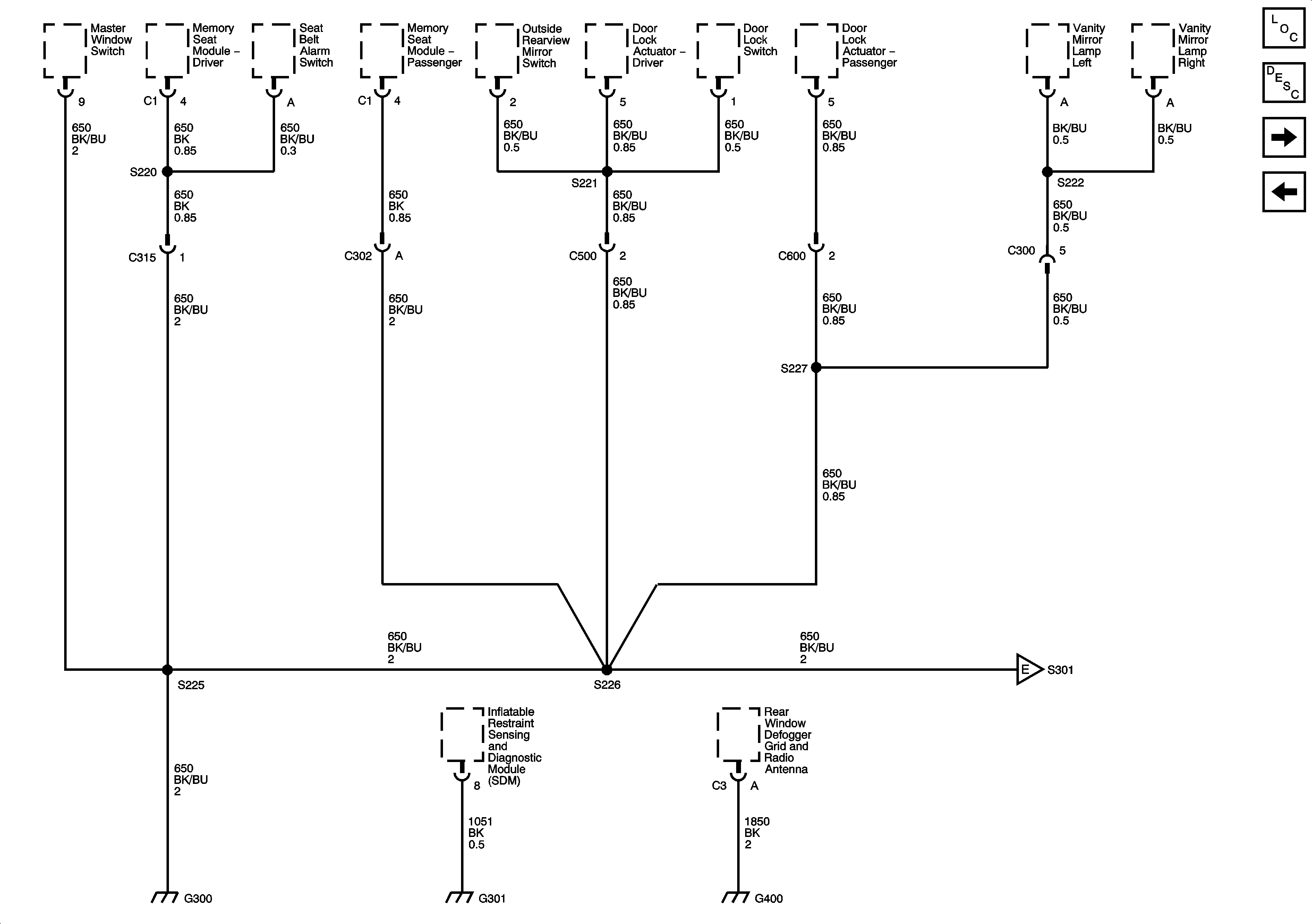

Figure 7:	G300, G301 and G400 Master Electrical Component List G900 and G901 G104 and G105

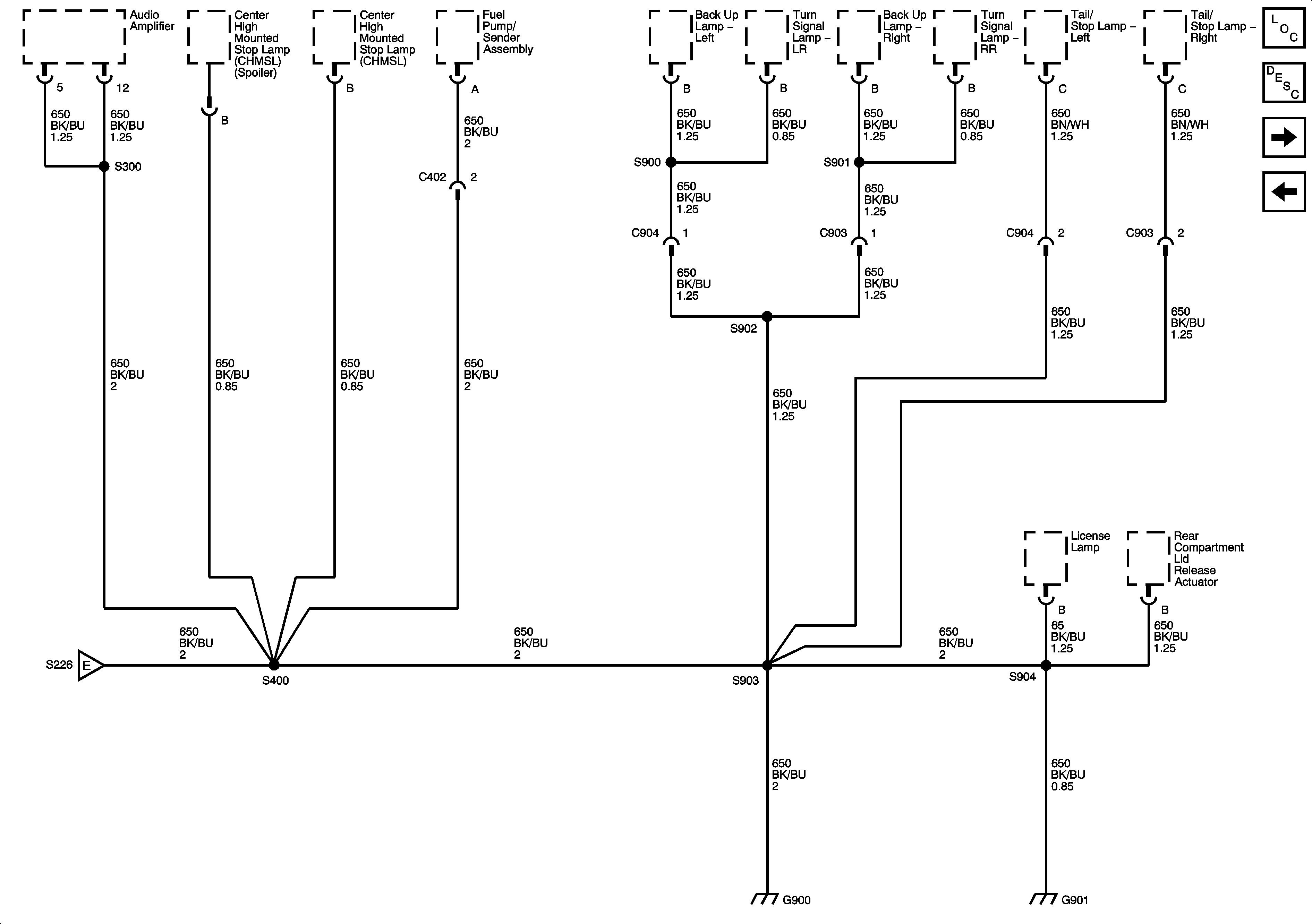

Figure 8:	G900 and G901 Master Electrical Component List G300, G301, G400
