Exterior Lights Schematics. Pontiac GTO 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2005 🢒 GTO 🢒 Body 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Figure 1:	Front Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Rear Marker Lamps PARK LAMPS, STOP LAMPS, INTERIOR ILLUMINATION, HAZARD LAMPS Fuses Interior Dimming Lights SP100 and G102 3 of 5

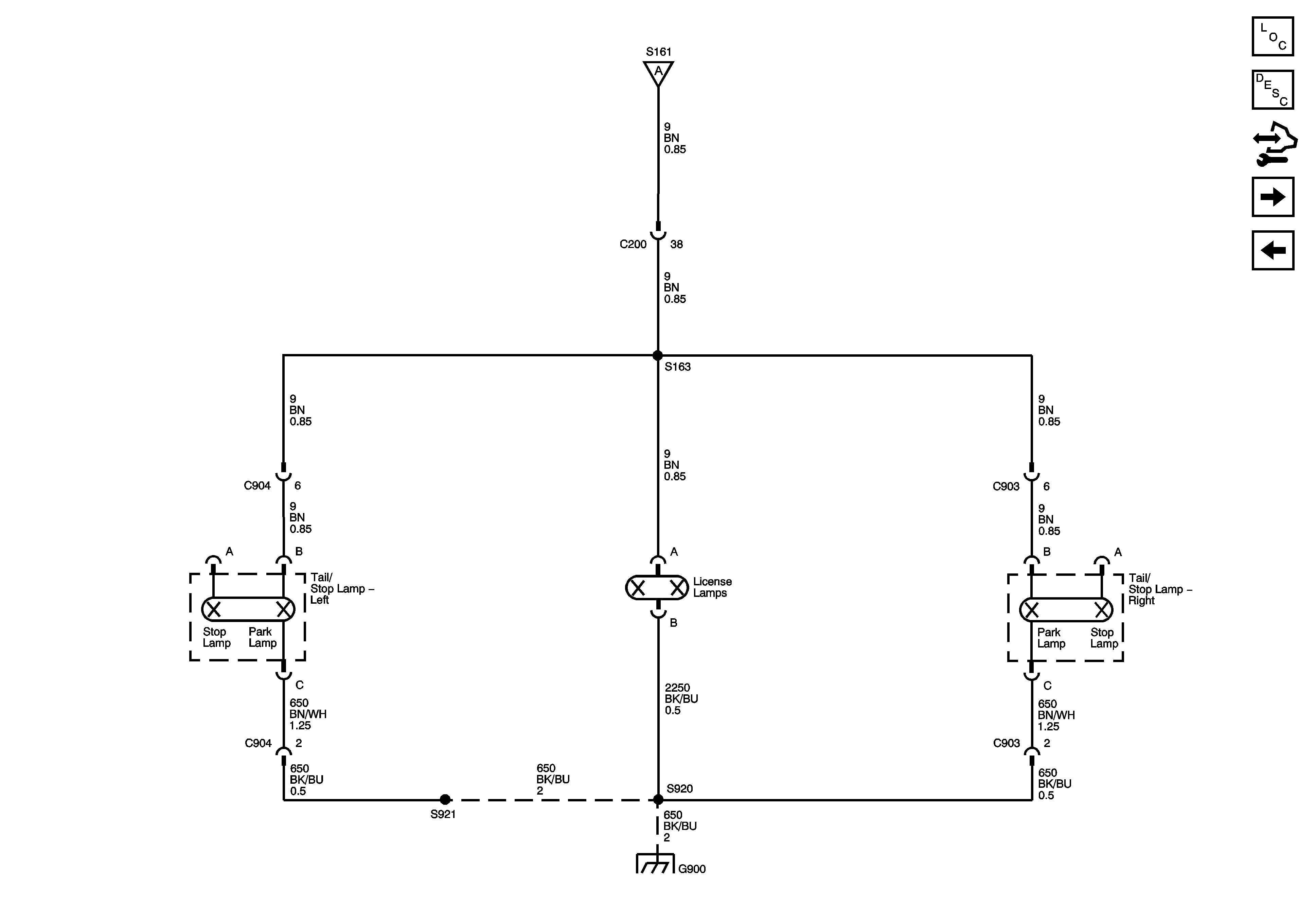

Figure 2:	Rear Marker Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Headlamp Switch, Hazard Switch and Flasher Front Marker Lamps G900 and G901

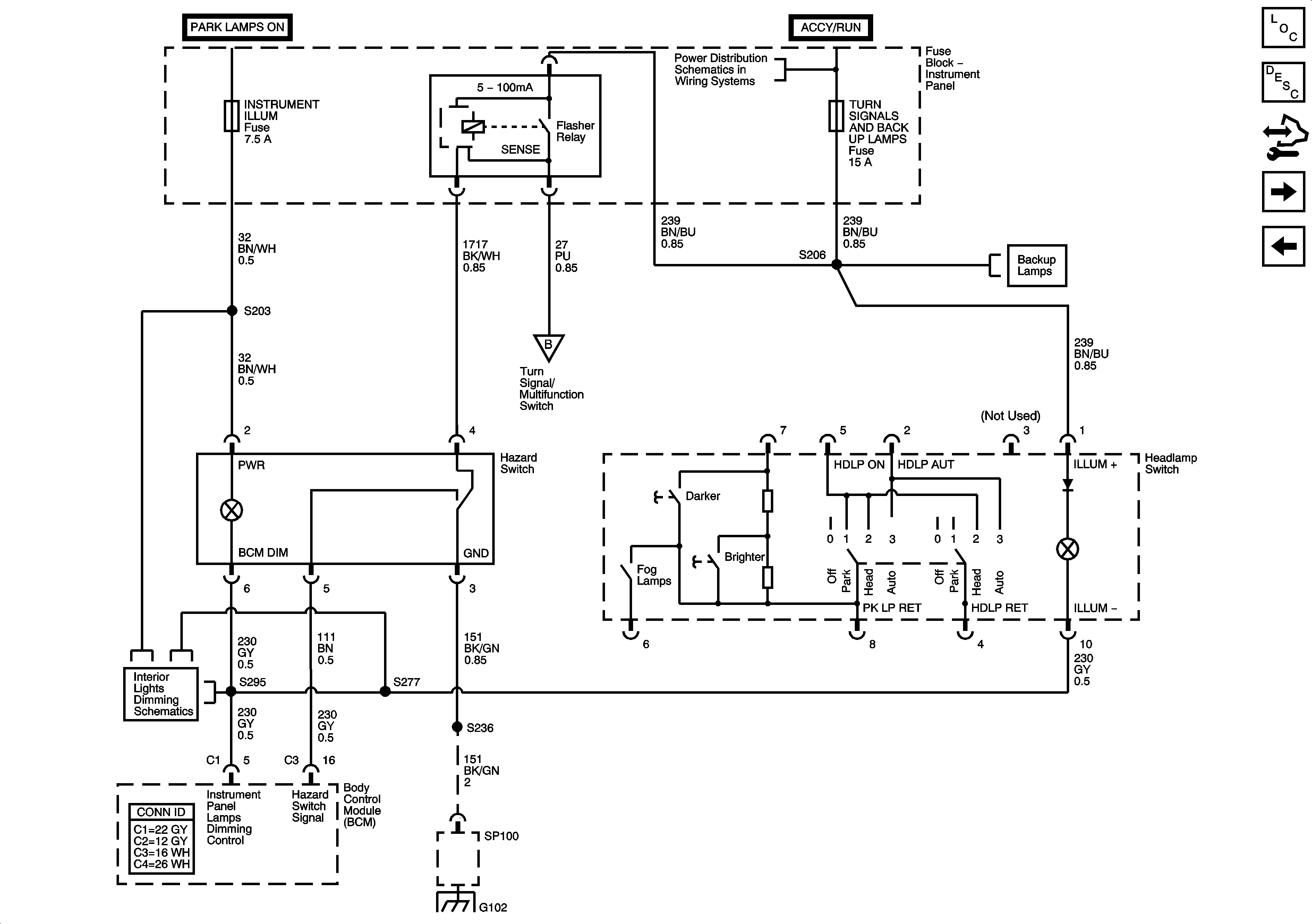

Figure 3:	Headlamp Switch, Hazard Switch and Flasher Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Signal Switch and Lamps Rear Marker Lamps Interior Dimming Lights TURN SIGNALS and BACKUP LAMPS, HEATED REAR WINDOW, HVAC, and INSTRUMENT Fuses Backup Lamps SP100 and G102 4 of 5

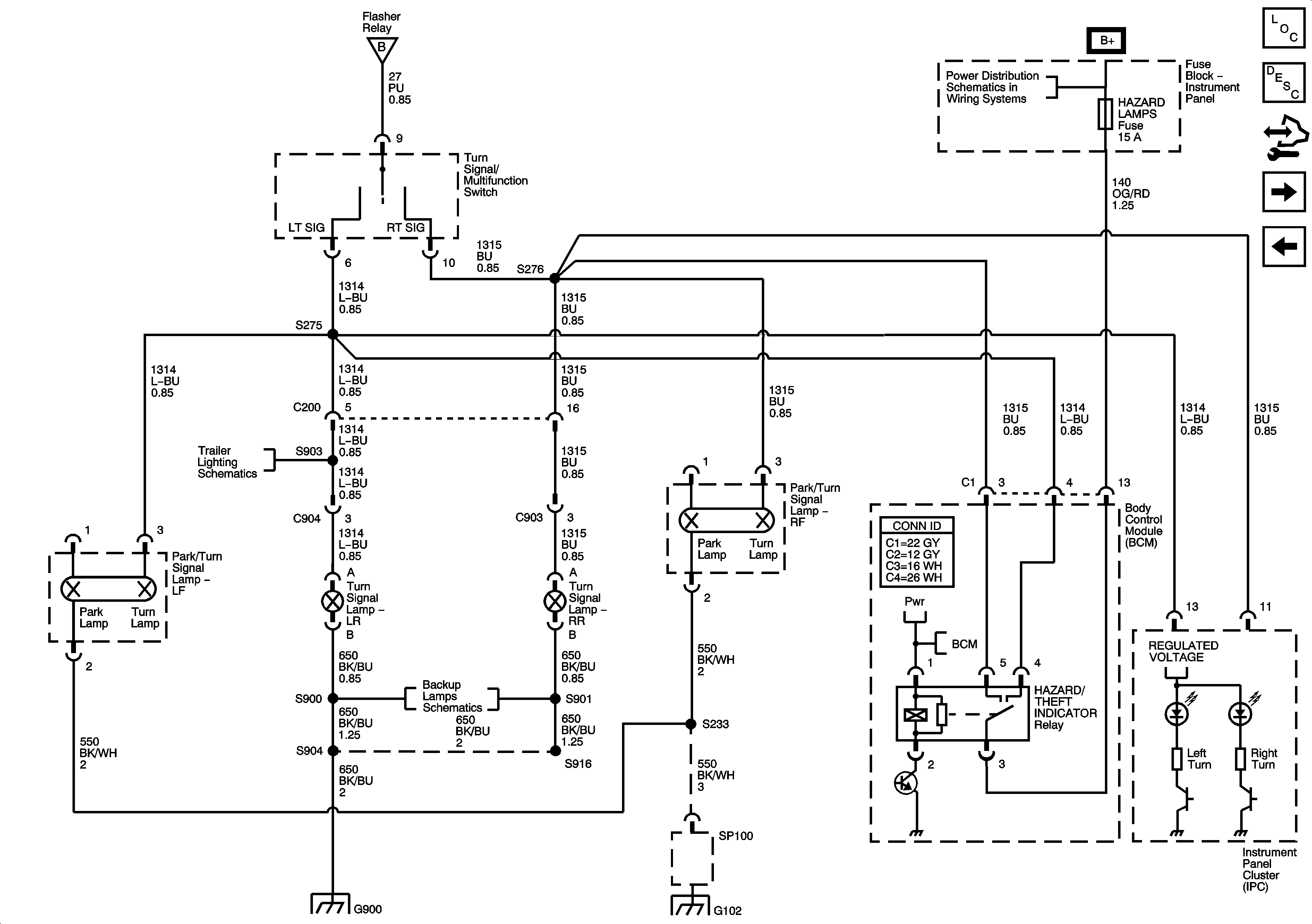

Figure 4:	Turn Signal Switch and Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Stop Lamps Headlamp Switch, Hazard Switch and Flasher Trailer Lighting G900 and G901 Backup Lamps SP100 and G102 3 of 5 PARK LAMPS, STOP LAMPS, INTERIOR ILLUMINATION, HAZARD LAMPS Fuses

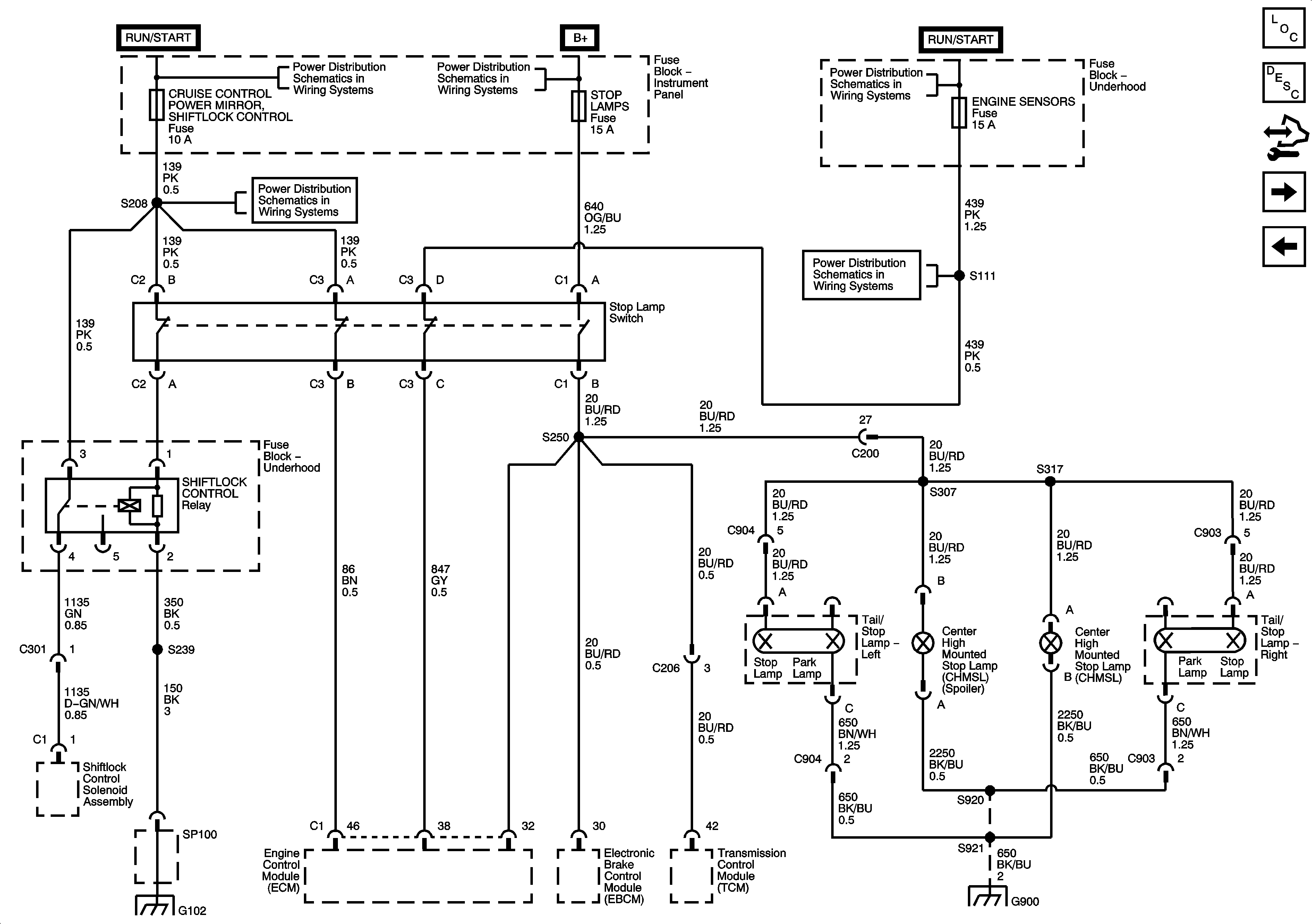

Figure 5:	Stop Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Turn Signal Switch and Lamps Ignition Control Relay, ABS and TCS, SRS, CIGAR LIGHTER, CRUISE CONTROL, POWER MIRROR and SHIFTLOCK CONTROL Fuses Ignition Control Relay, ABS and TCS, SRS, CIGAR LIGHTER, CRUISE CONTROL, POWER MIRROR and SHIFTLOCK CONTROL Fuses SP100 and G102 - 5 of 5, G103 and G200 PARK LAMPS, STOP LAMPS, INTERIOR ILLUMINATION, HAZARD LAMPS Fuses EFI Relay, AUTO TRANS and ENGINE SENSORS Fuses EFI Relay, AUTO TRANS and ENGINE SENSORS Fuses G900 and G901

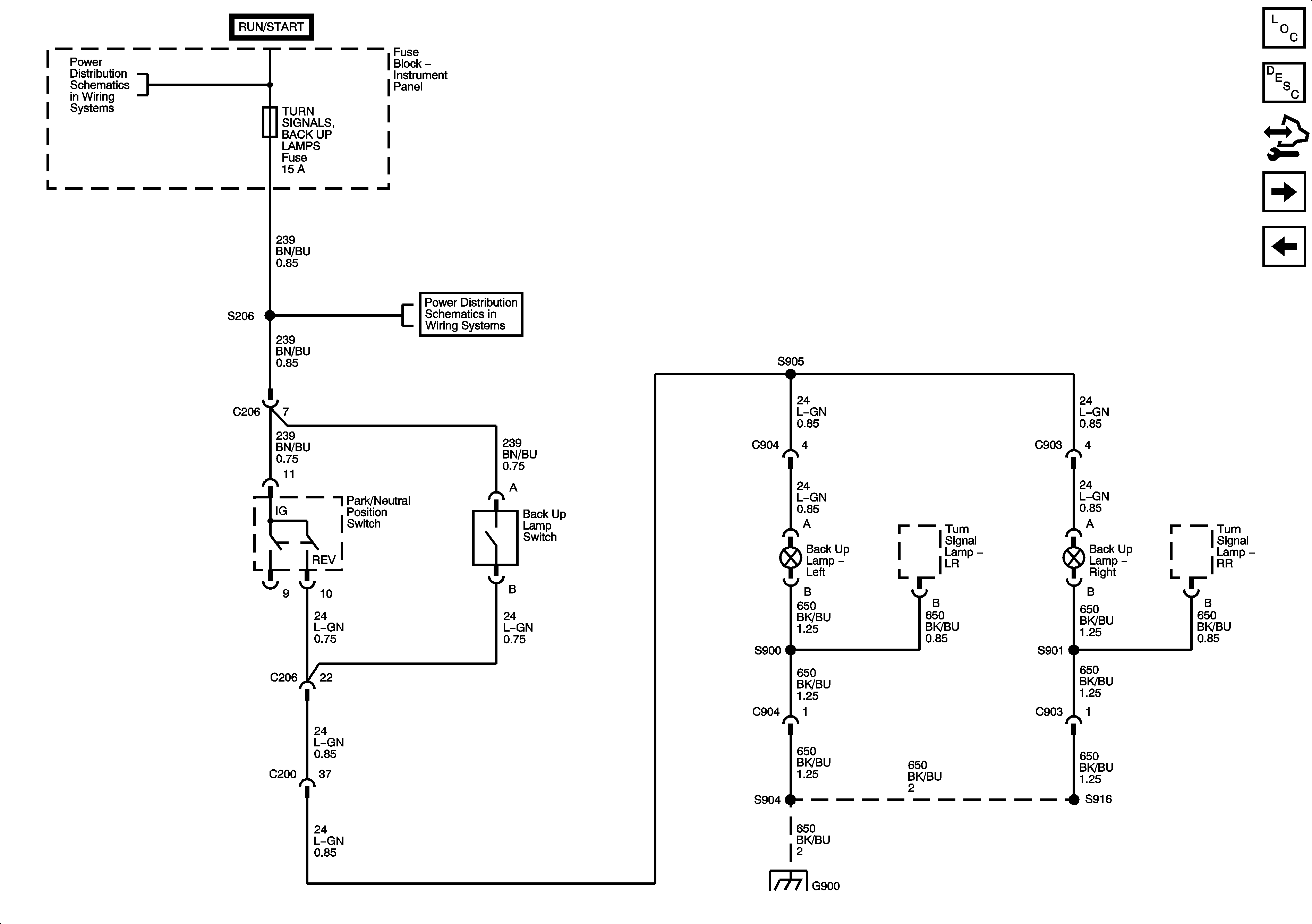

Figure 6:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Trailer Lighting Stop Lamps TURN SIGNALS and BACKUP LAMPS, HEATED REAR WINDOW, HVAC, and INSTRUMENT Fuses TURN SIGNALS and BACKUP LAMPS, HEATED REAR WINDOW, HVAC, and INSTRUMENT Fuses G900 and G901

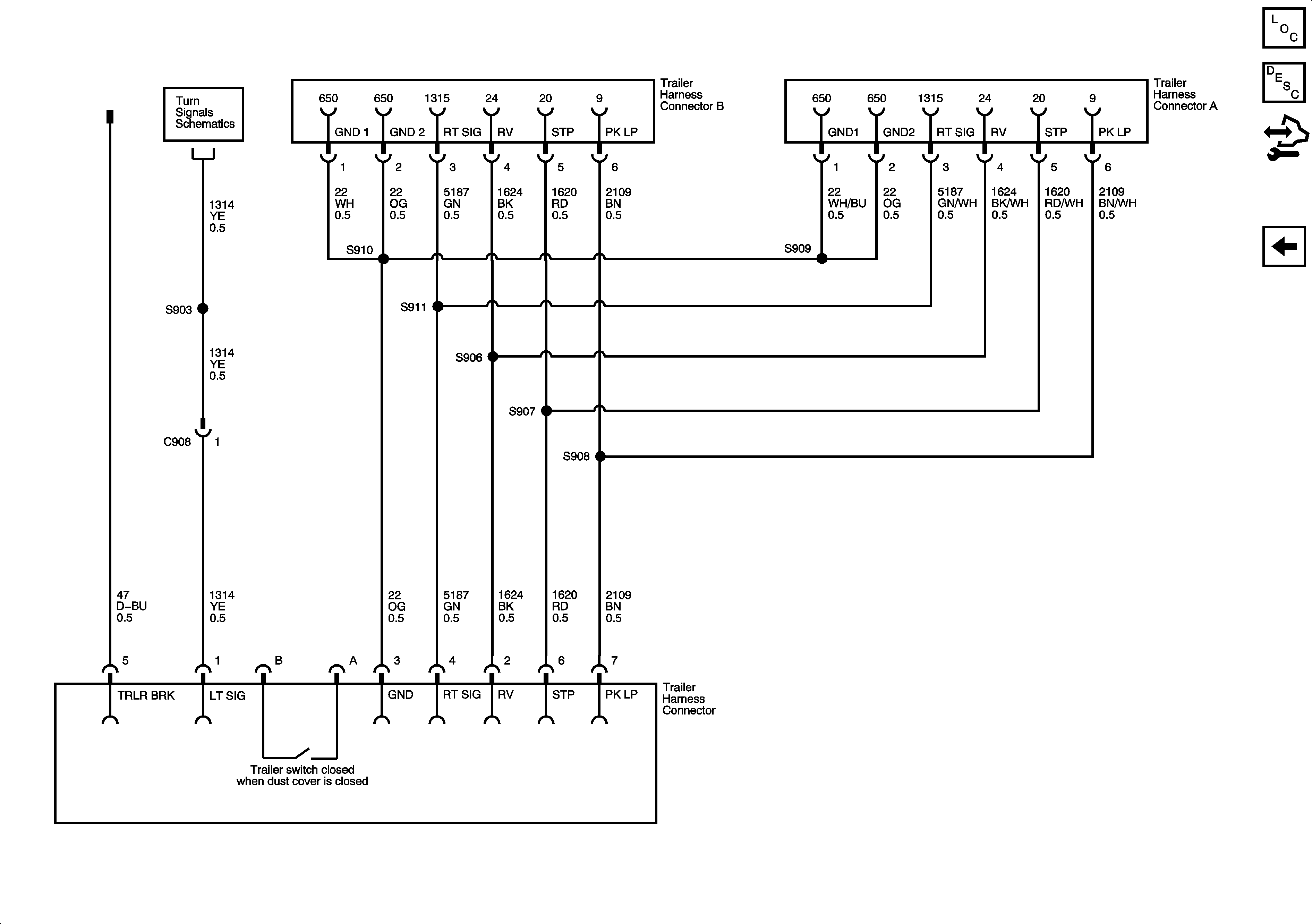

Figure 7:	Trailer Lighting Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Turn Signal Switch and Lamps
