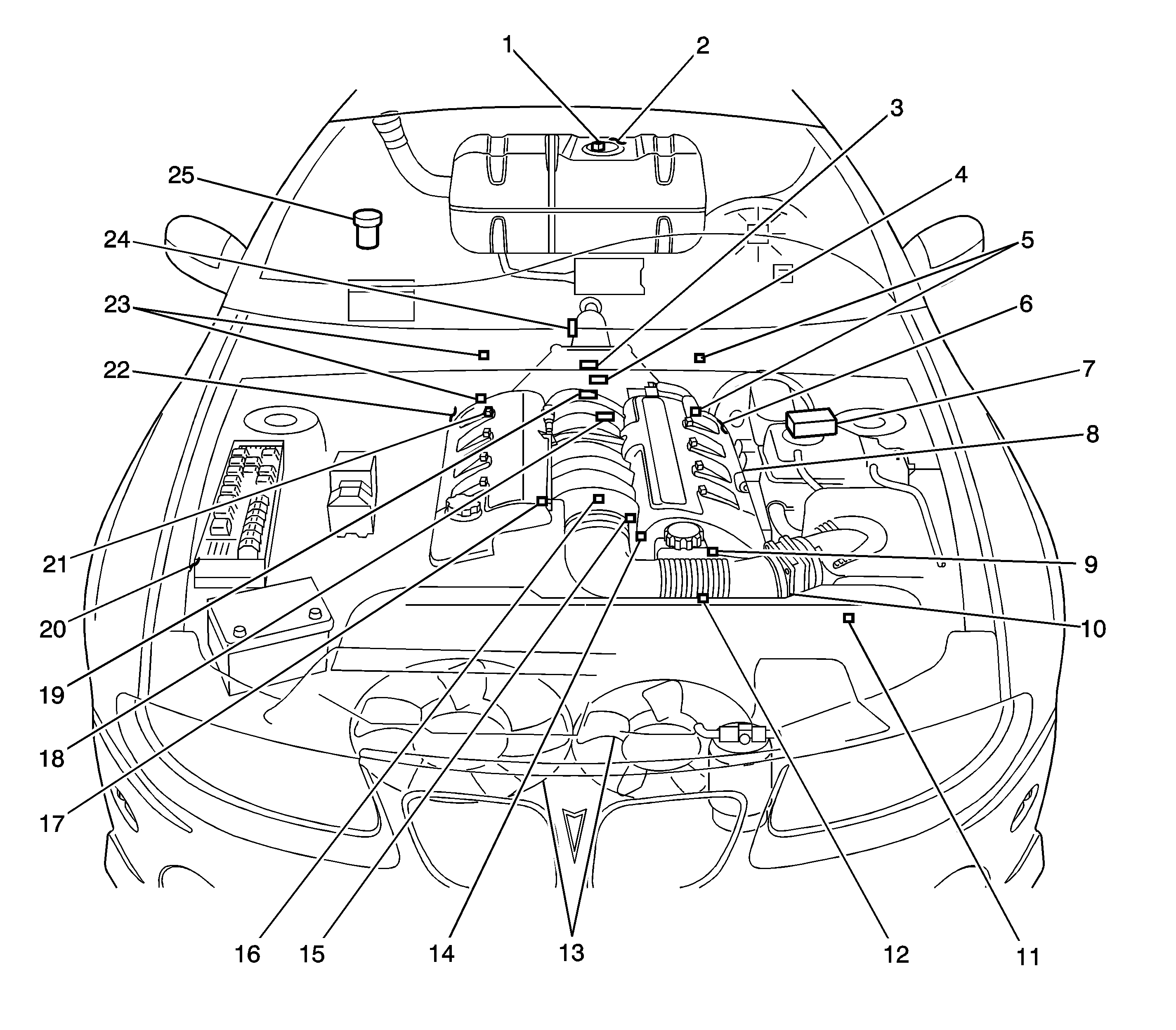

| (1) | Fuel Tank Pressure Sensor |
| (2) | Modular Fuel Pump and Sender Assembly |
| (3) | Manifold Absolute Pressure Sender Assembly |
| (4) | Oil Pressure Sensor |
| (5) | Heated Oxygen Sensor Bank 2 |
| (6) | Ignition Coil Module Bank 2 |
| (7) | Powertrain Interface Module |
| (8) | EVAP Canister Purge Solenoid |
| (9) | Engine Coolant Temperature (ECT) Sensor |
| (10) | Mass Air Flow (MAF) Sensor |
| (11) | A/C Refridgerant Pressure Sensor |
| (12) | Intake Air Temperature (IAT) Sensor |
| (13) | Engine Cooling Fans |
| (14) | Throttle Position (TP) Sensor |
| (15) | Idle Air Control (IAC) Valve |
| (16) | Knock Sensor (KS) |
| (17) | Crankshaft Position (CKP) Sensor |
| (18) | Knock Sensor (KS) |
| (19) | Camshaft Position (CMP) Sensor |
| (20) | Underhood Fuse Block |
| (21) | Fuel Injectors |
| (22) | Ignition Coil Module Bank 1 |
| (23) | Heated Oxygen Sensors Bank 1 |
| (24) | Vehicle Speed Sensor (VSS) |
| (25) | Evaporative Canister Vent Solenoid |
