Engine Controls Schematics. Pontiac Grand Prix 1998

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 1998 🢒 Grand Prix 🢒 Engine 🢒 Engine Controls - 3.1L 🢒 Engine Controls Schematics

Figure 1:	Power/Grounds, Serial Data Engine Controls Components Powertrain Control Module Description Input Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice ABS/TCS Schematics Fuse Block Schematics Fuse Block Schematics Power Distribution Schematics Power Distribution Schematics Fuse Block Schematics Power Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Instrument Cluster: Analog Schematics Data Link Connector Schematics
Figure 2:	Input Sensors Engine Controls Components Powertrain Control Module Description Fuel Pump Control Power/Grounds, Serial Data OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Instrument Cluster: Analog Schematics
Figure 3:	Fuel Pump Control Engine Controls Components Powertrain Control Module Description Inputs and Outputs Input Sensors OBD II Symbol Description Notice Ground Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Handling ESD Sensitive Parts Notice Power Distribution Schematics Ground Distribution Schematics

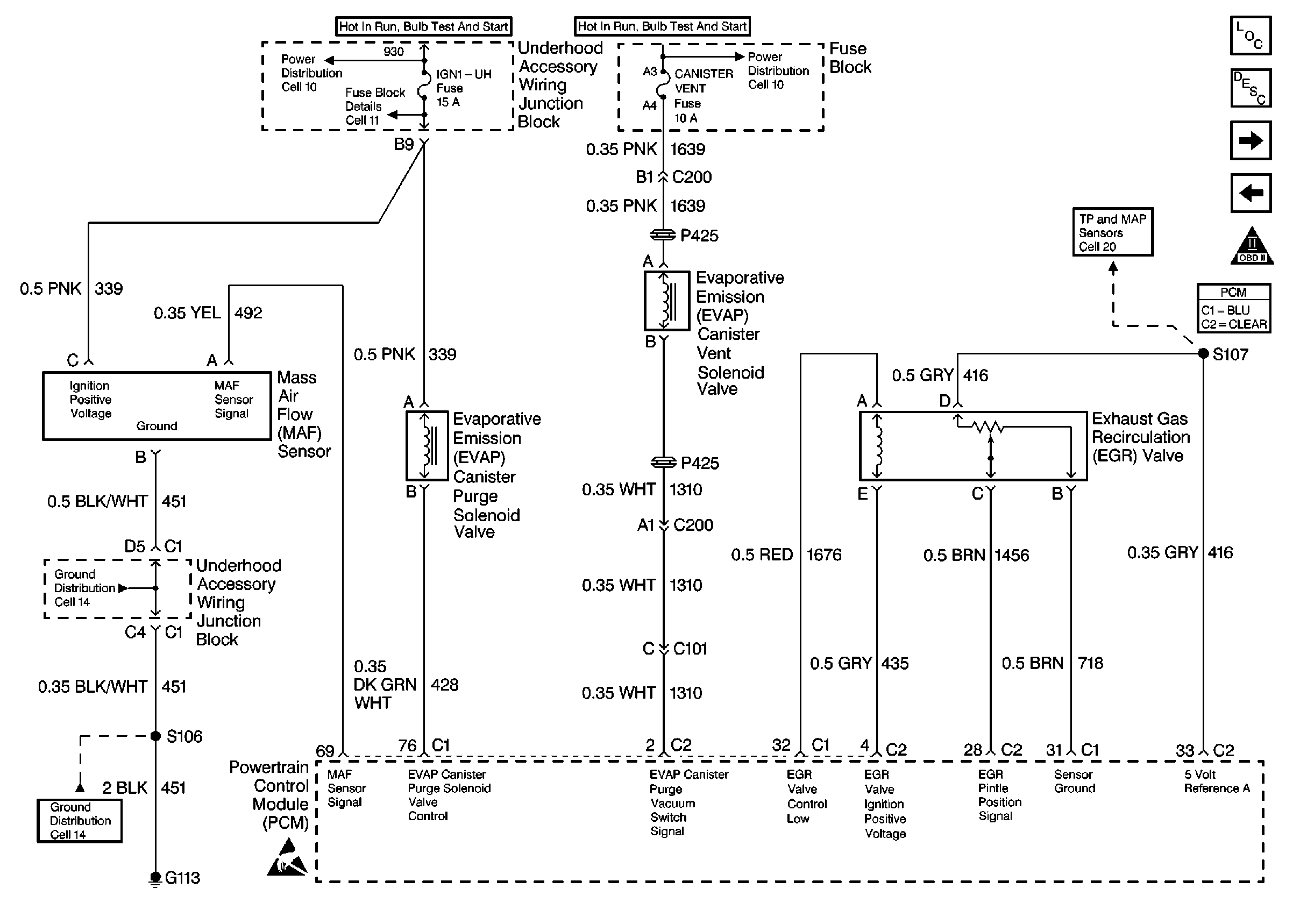

Figure 4:	Inputs and Outputs Engine Controls Components Powertrain Control Module Description Inputs and Ignition Control Fuel Pump Control OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Ground Distribution Schematics Power Distribution Schematics Fuse Block Schematics Power Distribution Schematics
Figure 5:	Inputs and Ignition Control Engine Controls Components Powertrain Control Module Description A/C Control Inputs and Outputs OBD II Symbol Description Notice Power Distribution Schematics Handling ESD Sensitive Parts Notice
Figure 6:	A/C Control Engine Controls Components Powertrain Control Module Description Inputs and Outputs, Continued Inputs and Ignition Control OBD II Symbol Description Notice Power Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice Power Distribution Schematics Fuse Block Schematics
Figure 7:	Inputs and Outputs, Continued Engine Controls Components Powertrain Control Module Description Gauges and Indicators A/C Control OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Shift Lock Control Schematics
Figure 8:	Gauges and Indicators Engine Controls Components Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice OBD II Symbol Description Notice Ground Distribution Schematics ABS/TCS Schematics Head Up Display Schematics Driver Information System Schematics Instrument Cluster: Analog Schematics Power Distribution Schematics Power Distribution Schematics Vehicle Speed Signal Inputs and Outputs, Continued Powertrain Control Module Description
Figure 9:	Vehicle Speed Signal Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice OBD II Symbol Description Notice Transaxle Shifting Controls Gauges and Indicators Engine Controls Components Powertrain Control Module Description
Figure 10:	Transaxle Shifting Controls Power Distribution Schematics OBD II Symbol Description Notice Engine Controls Components Injector Control Vehicle Speed Signal Handling ESD Sensitive Parts Notice Powertrain Control Module Description
Figure 11:	Injector Control Engine Controls Components Powertrain Control Module Description HO2S Inputs Transaxle Shifting Controls OBD II Symbol Description Notice Power Distribution Schematics Handling ESD Sensitive Parts Notice
Figure 12:	HO2S Inputs Engine Controls Components Powertrain Control Module Description Cooling Fans Injector Control OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Ground Distribution Schematics Fuse Block Schematics Power Distribution Schematics
Figure 13:	Cooling Fans Engine Controls Components Powertrain Control Module Description HO2S Inputs OBD II Symbol Description Notice Power Distribution Schematics Ground Distribution Schematics Ground Distribution Schematics Handling ESD Sensitive Parts Notice
