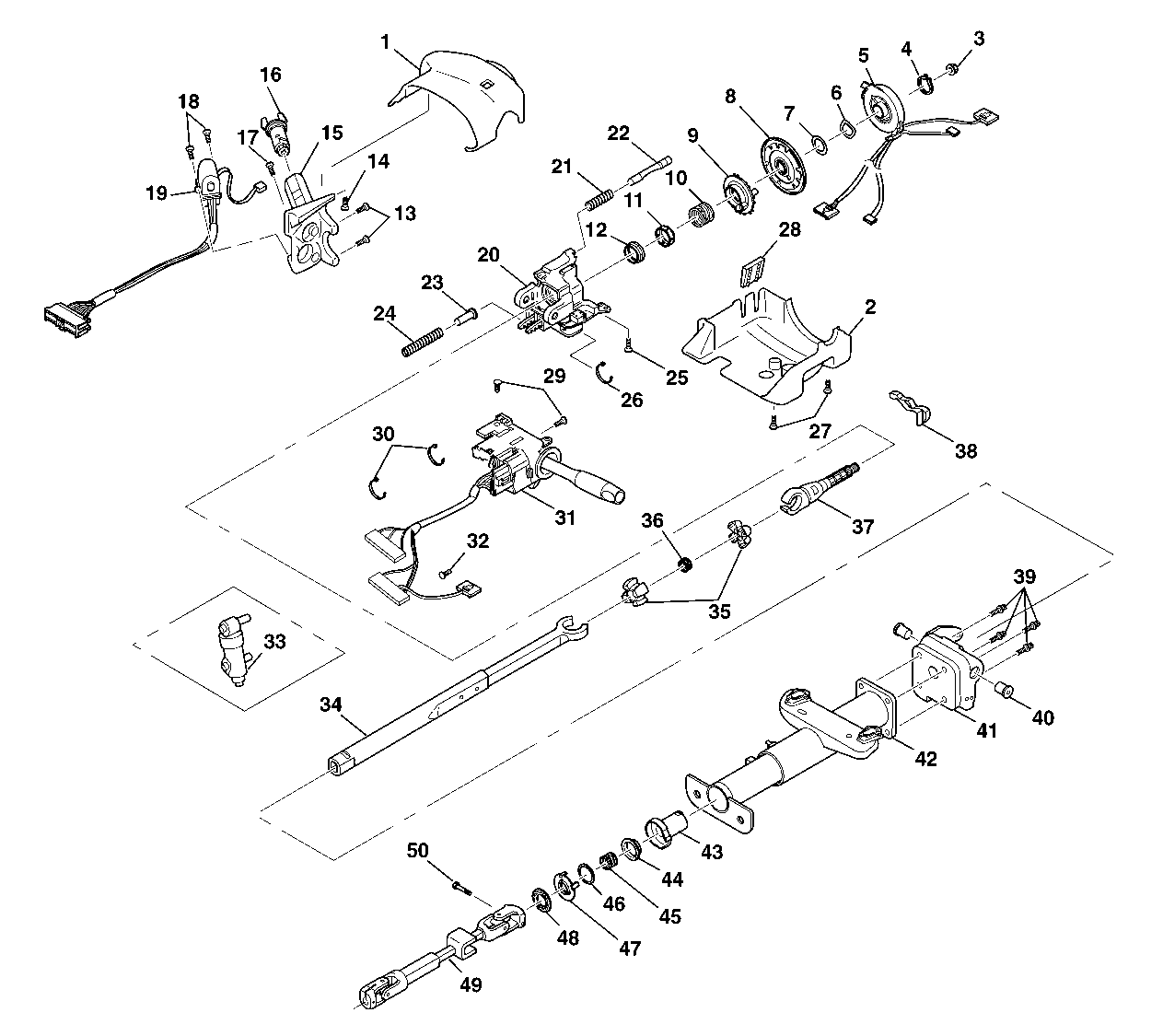

| (1) | Upper Shroud |
| (2) | Lower Shroud |
| (3) | Automatic Transmission Control Lever
Assembly |
| (4) | Shift Lever Screw |
| (5) | Shift Lever Seal |
| (6) | Flanged Prevailing Torque Nut |
| (7) | Retaining
Ring |
| (8) | SIR Coil Assembly |
| (9) | Wave Washer |
| (10) | Bearing Retainer |
| (11) | Shaft Lock Shield
Assembly |
| (12) | Turn Signal Cancel Cam Assembly |
| (13) | Upper Bearing Spring |
| (14) | Upper Bearing
Inner Race Seat |
| (15) | Inner Race |
| (16) | Shaft Lock Shield Assembly |
| (17) | TORX® Head
Screw |
| (18) | Lock Module Assembly |
| (19) | Steering Column Lock Cylinder Set |
| (20) | Pan
Head Tapping Screw |
| (21) | Tapping Screw |
| (22) | Ignition and Key Alarm Switch Assembly |
| (23) | Steering Column Tilt Head Assembly |
| (24) | Lock Bolt Spring |
| (25) | Lock Bolt Assembly |
| (26) | Spring Guide |
| (27) | Tilt Spring |
| (28) | TORX® Head Screw |
| (29) | Wire Harness Strap |
| (30) | Pan Head
Tapping Screw |
| (31) | Tilt Lever Assembly |
| (32) | Shroud Protector |
| (33) | Pan Head Tapping
Screw |
| (34) | Wire Harness Strap |
| (35) | Axial Position Assur Connector |
| (36) | Turn Signal
and Multifunction Switch Assembly |
| (37) | Lower Steering Shaft Assembly |
| (38) | Centering
Sphere |
| (39) | Joint Preload Spring |
| (40) | Race and Upper Shaft Assembly |
| (41) | Shift Lever
Clevis |
| (42) | Flathead 6-Lobed Soc Tap Screw |
| (43) | Cam Bushing |
| (44) | Cable Shift Cam Assembly |
| (45) | Ball
and Actuator Assembly |
| (46) | Hex Flange Head Bolt |
| (47) | Oval Head 6-Lobed Soc Tap Screw |
| (48) | Park Lock Cable Assembly |
| (49) | Linear Shift Assembly |
| (50) | Gear Shift Lever Assembly Support
Bracket |
| (51) | TORX® Head Screw |
| (52) | Pivot Pin |
| (53) | Steering Column Support Assembly |
| (54) | Steering Column Jacket Assembly |
| (55) | Adapter and Bearing Assembly |
| (56) | Lower Bearing Seat |
| (57) | Lower Bearing Spring |
| (58) | Lower Spring Retainer |
| (59) | Sensor Retainer |
| (60) | Steering Shaft Seal |
| (61) | Inter Steering Shaft Assembly |
| (62) | Pinch Bolt |
| (63) | Electrical (BTSI) Actuator |
