Lighting Systems Component Views. Pontiac Grand Prix 2000

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2000 🢒 Grand Prix 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 Lighting Systems Component Views

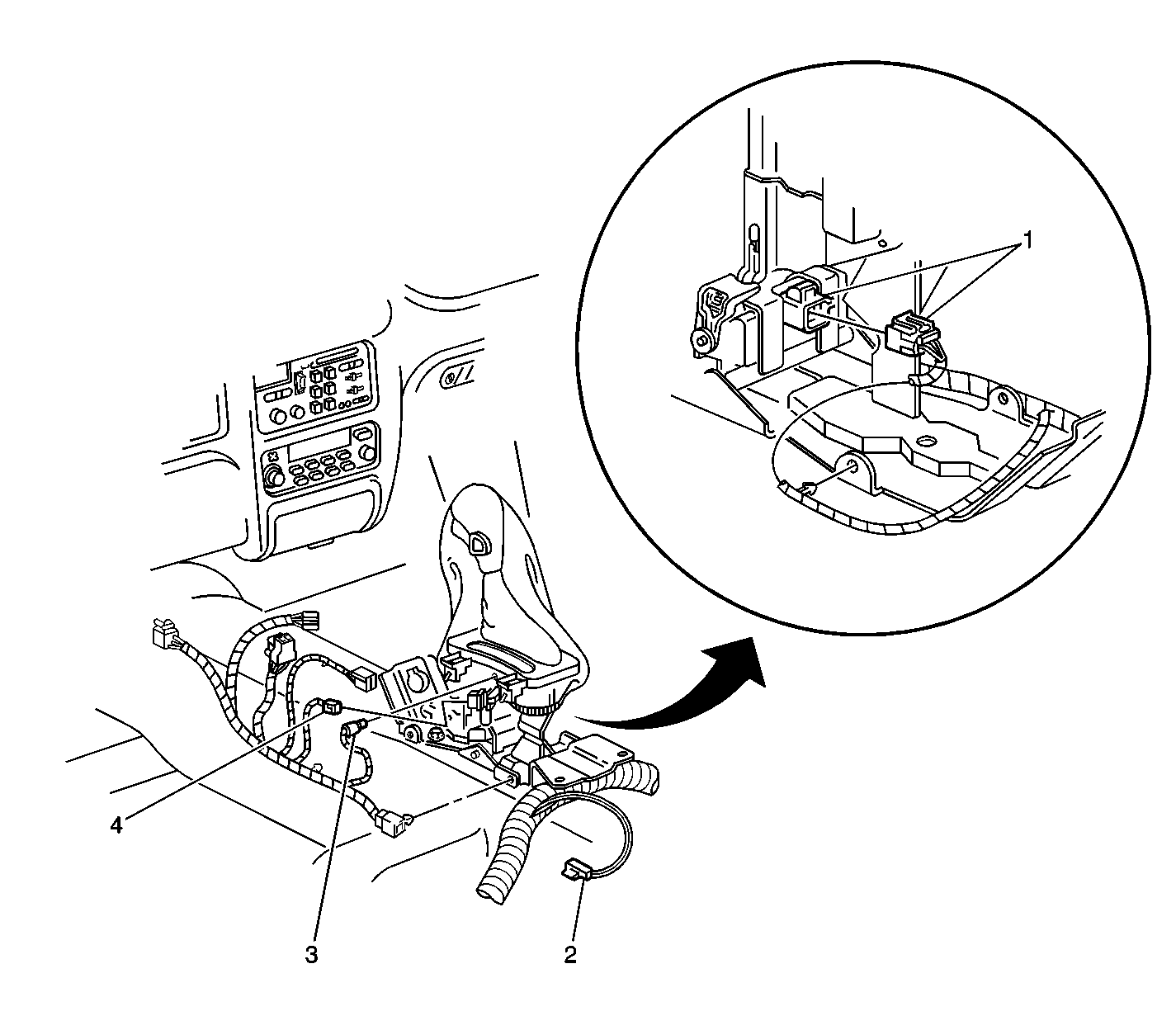

Figure 1:

Center Console


(1)	BTSI Actuator
(2)	Driver Seat Heater Switch Harness Connector
(3)	PRNDL Illumination Bulb
(4)	Performance Shift Switch Harness Connector

Figure 2:

Tail Lamp Assembly


(1)	Backup Lamp
(2)	Tail Lamp Assembly
(3)	Tail/Stop/Turn Lamp
(4)	Side Marker Lamp

Figure 3:

LH Side of I/P


(1)	DRL Control Module
(2)	DRL Control Module Harness Connector C1
(3)	DRL Harness Connector C2

Figure 4:

Inside I/P Compartment


(1)	I/P Compartment Courtesy Lamp Switch

Figure 5:

RH Side of I/P


(1)	I/P Compartment Courtesy Lamp

Figure 6:

LH Side of I/P


(1)	Rear Compartment Lid Release Relay Harness Connector
(2)	Theft Deterrent Relay Harness Connector
(3)	I/P Courtesy Lamp (LH)
(4)	Theft Deterrent Relay
(5)	Rear Compartment Lid Release Relay
(6)	Headlamp/Turn Signal Lamp Flasher Harness Connector
(7)	Headlamp/Turn Signal Lamp Flasher

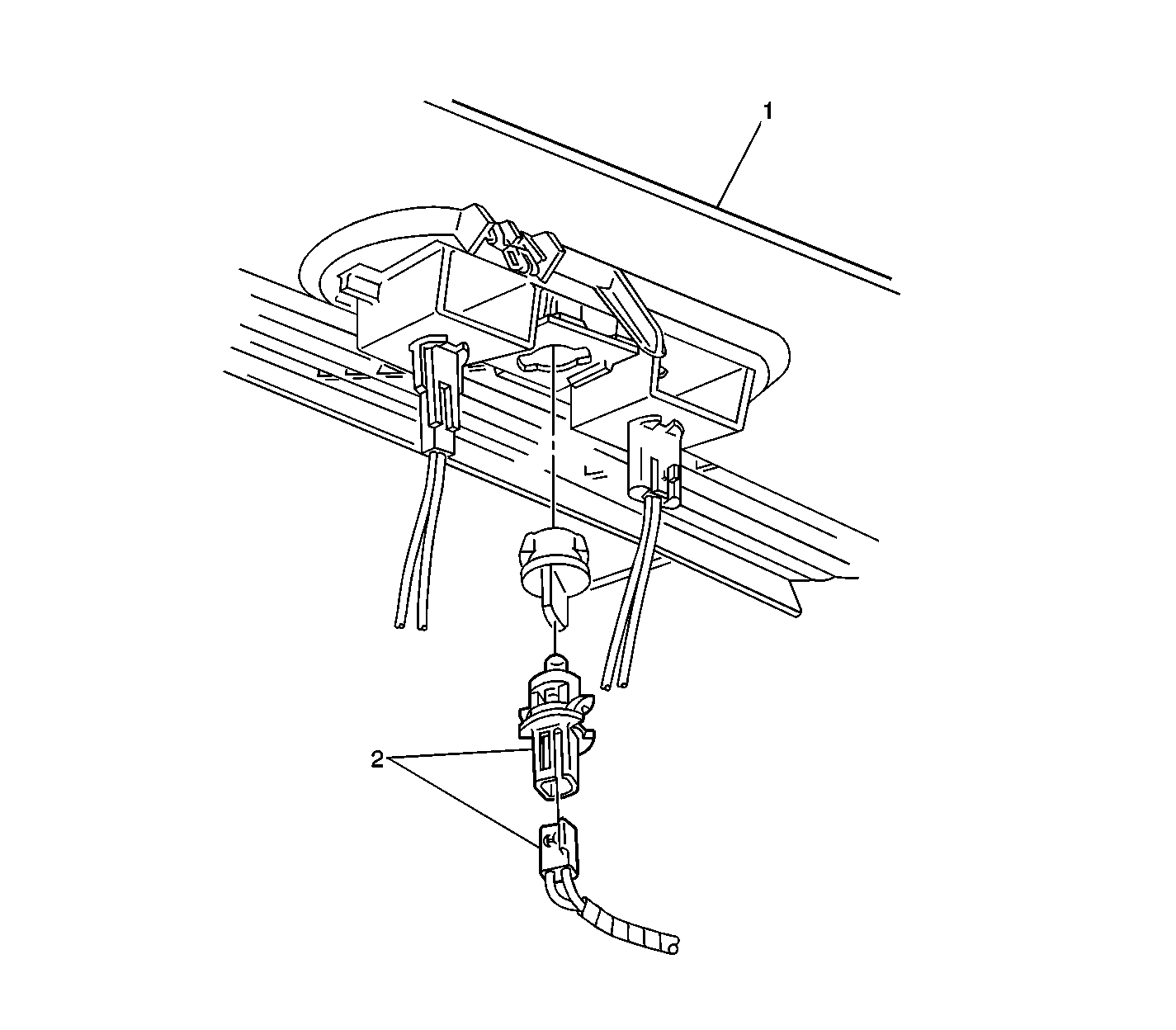

Figure 7:

Top of Rear Compartment Lid


(1)	Center High Mounted Stoplamp
(2)	Center High Mounted Stoplamp Connectors

Figure 8:

Center of Package Shelf


(1)	Center High Mounted Stop Lamp(CHMSL)

Figure 9:

Center Top of I/P


(1)	Defroster Grill
(2)	DRL Ambient Lamp Sensor

Figure 10:

LH Side of I/P


(1)	DRL Diode

Figure 11:

Inside Left Door


(1)	Door Lock Ajar Indicator Switch, C2
(2)	Door Lock Actuator Motor, C1

Figure 12:

Right Rear Door (Left Similar)


(1)	Door Lock (Ajar Indicator Switch) Connector C1
(2)	Door Lock (Actuator Motor) Connector C2
(3)	Window Regulator Motor Connector
(4)	Rear Window Switch Connector

Figure 13:

Front Fascia


(1)	Fog Lamp Assembly

Figure 14:

LH Upper Side of I/P


(1)	Fog Lamp Switch
(2)	Instrument Panel Cluster (IPC), C1
(3)	Instrument Panel Cluster (IPC), C2
(4)	Headlamp Switch

Figure 15:

Front LH Side of Vehicle


(1)	Headlamp Harness Connector
(2)	Turn Signal Lamp Assembly
(3)	Headlamp Assembly

Figure 16:

LH Side of I/P


(1)	Headlamp Switch

Figure 17:

Right Bottom of Instrument Panel


(1)	Instrument Panel Courtesy Lamp (RH)

Figure 18:

Bottom of Instrument Panel Left Side


(1)	Instrument Panel Courtesy Lamp (LH)

Figure 19:

Forward Center of Interior Compartment


(1)	Inside Rearview Mirror (Lighted) Connector
(2)	Inside Rearview Mirror (Lighted)

Figure 20:

Inside Rear Compartment, Under Package Shelf


(1)	Rear Compartment Courtesy Lamp

Figure 21:

Inside Rear Compartment


(1)	Rear Compartment Courtesy Lamp Switch Connector
(2)	S416
(3)	Rear Compartment Lid Lock Release Actuator

Figure 22:

RH Side of Headliner (2-Door)


(1)	Roof Rail Courtesy/Reading Lamp

Figure 23:

RH Side of Headliner (4-Door)


(1)	Roof Rail Reading/Courtesy Lamp

Figure 24:

RH Side of Headliner


(1)	Roof Rail Reading/Courtesy Lamp Harness Connector
(2)	Roof Rail Reading/Courtesy Lamp

Figure 25:

Above Brake Pedal


(1)	Cruise Control Release Switch
(2)	Stop Lamp Switch C2
(3)	Stop Lamp Switch C1
(4)	Stop Lamp Switch

Figure 26:

Interior Roof


(1)	Sunshade Illuminated Mirror Connector

Figure 27:

Steering Wheel Component Views


(1)	Windshield Wiper/Washer/Turn Signal Switch
(2)	Ignition Switch
(3)	Radio Steering Wheel Controls Connector
(4)	SIR Connector
(5)	Inflatable Restraint Steering Wheel Module Coil

Figure 28:

Right Side of Roof


(1)	Overhead Console w/ Sunroof Switch
(2)	w/Overhead Console, w/o Sunroof
(3)	w/o Overhead Console, w/o Sunroof

Figure 29:

Rear Fascia


(1)	License Plate Lamp
