| Table 1: | Fuse Block - Underhood C1 |
| Table 2: | Fuse Block - Underhood C2 |
| Table 3: | Fuse Block - Underhood C3 |
| Table 4: | Fuse Block - Underhood C4 |
| Table 5: | Fuse Block - I/P - Application Table |
| Table 6: | Fuse Block - I/P C1 |
| Table 7: | Fuse Block - I/P C2 |

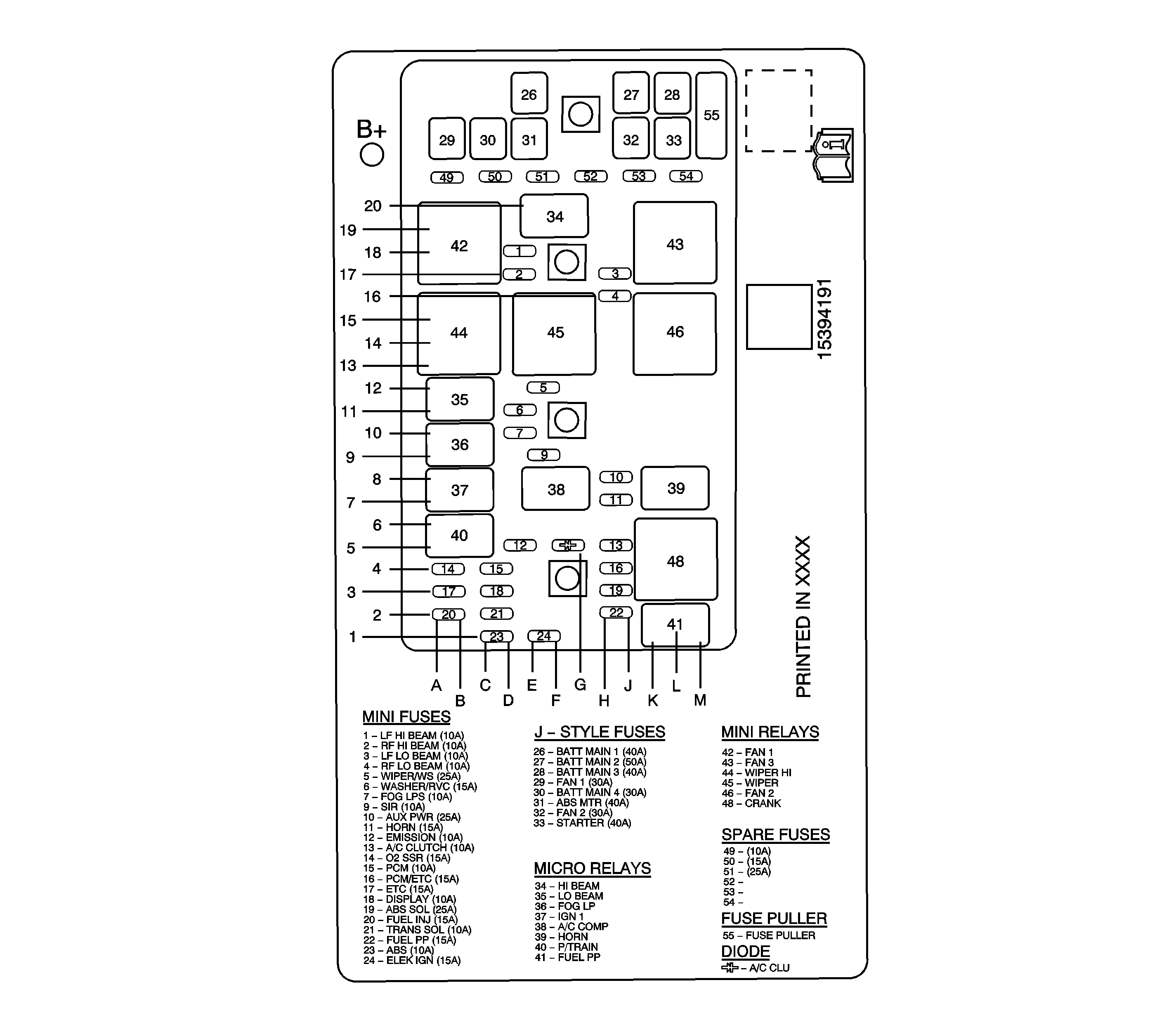

Fuse Block - Underhood - Label
No. | Fuse | Rating | Description |
|---|---|---|---|
1 | LF HI BEAM Fuse | 10A | Headlamp - High Beam - Left |
2 | RF HI BEAM Fuse | 10A | Headlamp - High Beam - Right |
3 | LF LO BEAM Fuse | 10A | Headlamp - Low Beam - Left |
4 | RF LO BEAM Fuse | 10A | Headlamp - Low Beam - Right |
5 | WIPER/WS Fuse | 25A | WIPER Relay |
6 | WASHER/RVC Fuse | 15A | Body Control Module (BCM) |
7 | FOG LPS Fuse | 10A | FOG LP Relay |
9 | SIR Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
10 | AUX PWR Fuse | 25A | Accessory Power Outlet - Rear, Accessory Power Outlet - Front and Auxiliary Power Drop Connector |
11 | HORN Fuse | 15A | HORN Relay |
12 | EMISSION Fuse | 10A | Evaporative Emission (EVAP) Canister Purge Solenoid, Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor and Supercharger Boost Control Solenoid (L32) |
13 | A/C CLUTCH Fuse | 10A | A/C COMP Relay |
14 | 02 SSR Fuse | 15A | Heated Oxygen Sensor (HO2S) Sensor 1 and Heated Oxygen Sensor (HO2S) Sensor 2 |
15 | PCM Fuse | 10A | CRANK Relay and Powertrain Control Module (PCM) |
16 | PCM/ETC Fuse | 15A | Powertrain Control Module (PCM) and Generator |
17 | ETC Fuse | 15A | Throttle Actuator Control (TAC) Module |
18 | DISPLAY Fuse | 10A | Electronic Compass Module, CRUISE SW Fuse, Auxiliary Power Drop Connector and HVAC Control Module |
19 | ABS SOL Fuse | 25A | Electronic Brake Control Module (EBCM) |
20 | FUEL INJ Fuse | 15A | Fuel Injector 1, Fuel Injector 2, Fuel Injector 3, Fuel Injector 4, Fuel Injector 5 and Fuel Injector 6 |
21 | TRANS SOL Fuse | 10A | Torque Converter Clutch (TCC) Solenoid Valve, 1-2 Shift Solenoid (1-2 SS) Valve and 2-3 Shift Solenoid (2-3 SS) Valve |
22 | FUEL PP | 15A | FUEL PP Relay |
23 | ABS Fuse | 10A | Steering Angle Sensor (JL4), Yaw and Lateral Acceleration Sensor (JL4) and Electronic Brake Control Module (EBCM) |
24 | ELEK IGN Fuse | 15A | Ignition Control Module (ICM) |
26 | BATT MAIN 1 Fuse | 40A | PK LAMPS, DISPLAYS, CHMSL/BKUP, INT LIGHT, RFA/MOD, RADIO/AMP, ONSTAR/ALDL, HVAC and CANISTER Fuses |
27 | BATT MAIN 2 Fuse | 50A | HTD SEAT, PWR MIRS, TURN/HAZ and DR LK/TRUNK Fuses, PWR SEAT Circuit Breaker and RAP Relay |
28 | BATT MAIN 3 Fuse | 40A | RR DEFOG Relay |
29 | FAN 1 Fuse | 30A | FAN 1 Relay |
30 | BATT MAIN 4 Fuse | 30A | Blower Motor Control Processor |
31 | ABS MTR Fuse | 40A | Electronic Brake Control Module (EBCM) |
32 | FAN 2 Fuse | 30A | FAN 2 and FAN 3 Relays |
33 | STARTER Fuse | 40A | CRANK Relay |
34 | HI BEAM Relay | -- | LF HI BEAM and RF HI BEAM Fuses |
35 | LO BEAM Relay | -- | LF LO BEAM and RF LO BEAM Fuses |
36 | FOG LP Relay | -- | Fog Lamp - LF and Fog Lamp - RF |
37 | IGN 1 Relay | -- | ABS, TRANS SOL, PCM, SIR and DISPLAY Fuses, and A/C COMP Relay |
38 | A/C COMP Relay | -- | A/C Compressor Clutch and A/C CLU Diode |
39 | HORN Relay | -- | Horn Assembly |
40 | P/TRAIN Relay | -- | ETC, ELEK IGN, FUEL INJ, O2 SSR and EMISSION Fuses |
41 | FUEL PP Relay | -- | Fuel Pump and Sender Assembly |
42 | FAN 1 Relay | -- | Cooling Fan - Left |
43 | FAN 3 Relay | -- | Cooling Fan - Right |
44 | WIPER HI Relay | -- | Windshield Wiper Motor |
45 | WIPER Relay | -- | WIPER HI Relay |
46 | FAN 2 Relay | -- | Cooling Fan - Right |
48 | CRANK Relay | -- | Starter |
49 | SPARE Fuse | 10A | -- |
50 | SPARE Fuse | 15A | -- |
51 | SPARE Fuse | 25A | -- |
52 | Empty | -- | -- |
53 | Empty | -- | -- |
54 | Empty | -- | -- |
55 | FUSE PULLER | -- | -- |
Fuse Block - Underhood - (Top View)
Fuse Block - Underhood - (Bottom View)
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | D-GN/WH | 465 | Fuel Pump Relay Control | ||||
A2-A6 | -- | -- | Not Used | ||||
A7 | PK | 239 | Ignition 1 Voltage | ||||
A8 | -- | -- | Not Used | ||||
A9 | PK | 1039 | Ignition 1 Voltage (ABS) | ||||
A10 | -- | -- | Not Used | ||||
A11 | PK | 639 | Ignition 1 Voltage | ||||
A12 | -- | -- | Not Used | ||||
B1-B2 | -- | -- | Not Used | ||||
B3 | BK/WH | 451 | Ground | ||||
B4-B5 | -- | -- | Not Used | ||||
B6 | YE | 1996 | Remote Shift Selector Signal (L32) | ||||
B7-B8 | -- | -- | Not Used | ||||
B9 | PK | 1339 | Ignition 1 Voltage | ||||
B10-B12 | -- | -- | Not Used | ||||
C1 | D-GN | 335 | Low Speed Cooling Fan Relay Control | ||||
C2 | -- | -- | Not Used | ||||
C3 | BK | 2759 | Low Reference | ||||
C4 | -- | -- | Not Used | ||||
C5 | OG | 1740 | Battery Positive Voltage (ABS) | ||||
C6-C10 | -- | -- | Not Used | ||||
C11 | PK | 39 | Ignition 1 Voltage | ||||
C12 | -- | -- | Not Used | ||||
D1 | PK | 439 | Ignition 1 Voltage | ||||
D2-D4 | -- | -- | Not Used | ||||
D5 | OG | 540 | Battery Positive Voltage | ||||
OG | 540 | Battery Positive Voltage | |||||
D6-D7 | -- | -- | Not Used | ||||
D8 | GY | 2709 | 5 Volt Reference | ||||
D9 | PK | 439 | Ignition 1 Voltage | ||||
PK | 439 | Ignition 1 Voltage | |||||
D10 | -- | -- | Not Used | ||||
D11 | PK | 839 | Ignition 1 Voltage | ||||
PK | 839 | Ignition 1 Voltage | |||||
D12 | -- | -- | Not Used | ||||
E1 | PU | 6 | Starter Solenoid Crank Voltage | ||||
E2 | WH | 17 | Stop Lamp Switch Signal | ||||
WH | 17 | Stop Lamp Switch Signal | |||||
E3 | YE/BK | 625 | Starter Enable Relay Control | ||||
E4-E5 | -- | -- | Not Used | ||||
E6 | D-GN | 59 | A/C Compressor Clutch Supply Voltage | ||||
E7 | BK | 1050 | Ground | ||||
E8 | PK | 339 | Ignition 1 Voltage | ||||
PK | 339 | Ignition 1 Voltage | |||||
E9-E10 | -- | -- | Not Used | ||||
E11 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | ||||
E12 | -- | -- | Not Used | ||||
F1 | D-BU | 473 | High Speed Cooling Fan Relay Control | ||||
F2 | WH | 17 | Stop Lamp Switch Signal | ||||
F3 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal | ||||
F4 | WH | 1310 | EVAP Canister Vent Solenoid Control | ||||
F5 | PU | 1589 | Fuel Level Sensor Signal | ||||
F6 | D-GN/WH | 459 | A/C Compressor Clutch Relay Control | ||||
F7 | -- | -- | Not Used | ||||
F8 | PK | 339 | Ignition 1 Voltage (L32) | ||||
F9 | BN | 1141 | Ignition 3 Voltage | ||||
F10-F11 | -- | -- | Not Used | ||||
F12 | BN | 5069 | P/Train Relay Control | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | -- | -- | Not Used | ||||
A2 | WH | 17 | Stop Lamp Switch Signal | ||||
A3-A4 | -- | -- | Not Used | ||||
A5 | OG | 2540 | Battery Positive Voltage | ||||
A6 | -- | -- | Not Used | ||||
A7 | GY | 2709 | 5 Volt Reference | ||||
A8 | -- | -- | Not Used | ||||
A9 | PK | 739 | Ignition 1 Voltage | ||||
A10 | -- | -- | Not Used | ||||
A11 | PK | 1039 | Ignition 1 Voltage (JL4) | ||||
PK | 1039 | Ignition 1 Voltage (JL4) | |||||
A12 | PK | 1439 | Ignition 1 Voltage | ||||
B1 | -- | -- | Not Used | ||||
B2 | GY | 120 | Fuel Pump Supply Voltage | ||||
B3 | BK | 2759 | Low Reference | ||||
B4 | YE | 1996 | Remote Shift Selector Signal (L32) | ||||
B5 | OG | 2540 | Battery Positive Voltage | ||||
B6 | -- | -- | Not Used | ||||
B7 | YE | 1139 | Ignition 1 Voltage | ||||
B8 | -- | -- | Not Used | ||||
B9 | PK | 739 | Ignition 1 Voltage | ||||
B10-B12 | -- | -- | Not Used | ||||
C1-C11 | -- | -- | Not Used | ||||
C12 | D-GN/WH | 1317 | Fog Lamp Relay Control | ||||
D1-D4 | -- | -- | Not Used | ||||
D5 | WH | 1310 | EVAP Canister Vent Solenoid Control | ||||
D6-D8 | -- | -- | Not Used | ||||
D9 | OG | 2440 | Battery Positive Voltage | ||||
D10 | PK/WH | 1970 | Headlamp Low Beam Relay Control | ||||
D11 | BN | 1141 | Ignition 3 Voltage | ||||
D12 | -- | -- | Not Used | ||||
E1 | -- | -- | Not Used | ||||
E2 | RD | 228 | Windshield Washer Pump Control | ||||
E3 | GY | 1884 | Cruise Control Set/Coast and Resume/Accelerate Switch Signal | ||||
E4 | L-BU/WH | 1314 | Left Front Turn Signal Lamp Supply Voltage | ||||
E5 | PU | 1589 | Fuel Level Sensor Signal | ||||
E6-E10 | -- | -- | Not Used | ||||
E11 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | ||||
E12 | -- | -- | Not Used | ||||
F1 | -- | -- | Not Used | ||||
F2 | BK | 28 | Horn Relay Control | ||||
F3 | BN | 9 | Park Lamp Supply Voltage | ||||
F4 | TN | 185 | Low Washer Fluid Indicator Signal | ||||
F5 | BK/WH | 1969 | Headlamp High Beam Relay Control | ||||
F6 | GY | 91 | Windshield Wiper Switch Signal 2 | ||||
F7 | BK | 1650 | Ground | ||||
F8 | -- | -- | Not Used | ||||
F9 | D-BU/WH | 1315 | Right Front Turn Signal Lamp Supply Voltage | ||||
F10 | BK | 860 | Front Windshield Wiper Switch High Signal | ||||
F11 | D-GN | 95 | Windshield Washer Switch Signal | ||||
F12 | PU | 92 | Windshield Wiper Motor High Speed | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | GY | 532 | Cooling Fan Low Reference | ||||
A2 | D-GN | 29 | Horn Control | ||||
A3 | -- | -- | Not Used | ||||
A4 | BK | 250 | Ground | ||||
A5 | BK | 250 | Ground | ||||
A6-A8 | -- | -- | Not Used | ||||
A9 | D-BU/WH | 1315 | Right Front Turn Signal Lamp Supply Voltage | ||||
A10 | -- | -- | Not Used | ||||
A11 | PU | 34 | Fog Lamps Supply Voltage | ||||
PU | 34 | Fog Lamps Supply Voltage | |||||
A12 | -- | -- | Not Used | ||||
B1 | -- | -- | Not Used | ||||
B2 | RD | 228 | Windshield Washer Pump Control | ||||
B3 | BN | 9 | Park Lamp Supply Voltage | ||||
BN | 9 | Park Lamp Supply Voltage | |||||
B4 | TN/WH | 312 | Right Headlamp Low Beam Supply Voltage | ||||
B5-B12 | -- | -- | Not Used | ||||
C1-C2 | -- | -- | Not Used | ||||
C3 | BN | 9 | Park Lamp Supply Voltage | ||||
BN | 9 | Park Lamp Supply Voltage | |||||
C4 | YE | 712 | Left Headlamp Low Beam Supply Voltage | ||||
C5-C8 | -- | -- | Not Used | ||||
C9 | L-GN/BK | 311 | Right Headlamp High Beam Supply Voltage | ||||
C10-12 | -- | -- | Not Used | ||||
D1-D4 | -- | -- | Not Used | ||||
D5 | TN | 185 | Low Washer Fluid Indicator Signal | ||||
D6 | -- | -- | Not Used | ||||
D9 | D-GN/WH | 711 | Left Headlamp High Beam Supply Voltage | ||||
D10-D12 | -- | -- | Not Used | ||||
E1-E9 | -- | -- | Not Used | ||||
E10 | WH | 504 | Cooling Fan Motor Supply Voltage | ||||
E11-E12 | -- | -- | Not Used | ||||
F1 | L-BU | 409 | Cooling Fan Motor Supply Voltage | ||||
F2 | -- | -- | Not Used | ||||
F3 | L-BU/WH | 1314 | Left Front Turn Signal Lamp Supply Voltage | ||||
F4-F12 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | RD | 742 | Battery Positive Voltage | ||||
A2 | -- | -- | Not Used | ||||
B1 | RD | 642 | Battery Positive Voltage | ||||
RD | 642 | Battery Positive Voltage | |||||
B2 | -- | -- | Not Used | ||||
C1 | RD | 242 | Battery Positive Voltage | ||||
C2 | RD | 1442 | Battery Positive Voltage | ||||
D1 | -- | -- | Not Used | ||||
D2 | RD | 442 | Battery Positive Voltage | ||||
Fuse Block - I/P - Label
Fuse | Rating | Description |
|---|---|---|
CANISTER Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid |
CHMSL/BKUP Fuse | 15A | Body Control Module (BCM) |
CRUISE SW Fuse | 2A | Cruise Control Switch, TAP Shift Switch - Left (UK3) and TAP Shift Switch - Right (UK3) |
DISPLAYS Fuse | 10A | Head Up Display (HUD)(UV6), Instrument Panel Cluster (IPC) and Driver Information Center (DIC) |
DR LK/TRUNK Fuse | 15A | Body Control Module (BCM) |
HTD SEAT Fuse | 20A | Heated Seat Relay - Driver (KA1) and Heated Seat Relay - Front Passenger (KA1) |
HVAC Fuse | 10A | HVAC Control Module |
INT LIGHT Fuse | 10A | Body Control Module (BCM) |
ONSTAR/ALDL Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) and Data Link Connector (DLC) |
PK LAMPS Fuse | 10A | PK LP Relay |
PK LP Relay | -- | Marker Lamp - LF, Marker Lamp - RF, Park/Turn Signal Lamp - LF, Park/Turn Signal Lamp - RF, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right, Marker Lamp - LR, Marker Lamp - RR, Tail Lamp - Left, Tail Lamp - Right, License Lamp - Left and License Lamp - Right |
PWR MIRS Fuse | 10A | Outside Rearview Mirror Switch |
PWR SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Driver (AG1) and Seat Lumbar Switch - Driver (AL9) |
PWR WDO Circuit Breaker | 25A | Window Switch - Driver, and Window Switch - Front Passenger |
RADIO/AMP Fuse | 25A | Radio and Audio Amplifier (U87) |
RAP Relay | -- | SUN ROOF Fuse and PWR WDO Circuit Breaker |
RFA/MOD Fuse | 10A | Remote Control Door Lock Receiver (RCDLR) and Digital Radio Receiver (U2K) |
RR DEFOG Relay | -- | Rear Window Defogger Grid |
SPRING COIL 2 Fuse | 2A | Steering Wheel Controls - Left (UK3), and Steering Wheel Controls - Right (UK3) |
SUN ROOF Fuse | 20A | Sunroof Module (CF5) |
TURN/HAZ Fuse | 20A | Body Control Module (BCM) |
Fuse Block - I/P (Top View)
Fuse Block - I/P (Bottom View)
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | PU | 1589 | Fuel Level Sensor Signal | ||||
A2 | YE | 1860 | Front Center Speaker Output (+) (U87) | ||||
A3 | GY/BK | 2334 | Amplifier Present Signal (U87) | ||||
A4 | PU | 2232 | Radio On Signal | ||||
A5 | TN | 927 | Amplifier Control (U87) | ||||
A6 | YE | 1139 | Ignition 1 Voltage | ||||
A7 | WH | 1310 | EVAP Canister Vent Solenoid Control | ||||
A8 | -- | -- | Not Used | ||||
A9 | BK/WH | 351 | Ground | ||||
BK/WH | 351 | Ground (UE1) | |||||
A10 | -- | -- | Not Used | ||||
A11 | BN/WH | 599 | Left Rear Low Level Audio Signal (+) (U87) (Late Production) | ||||
A12 | GY | 118 | Left Front Speaker Output (-) (UW6) | ||||
D-GN | 1947 | Left Front Low Level Audio Signal (-) (U87) | |||||
B1 | BK | 2759 | Low Reference | ||||
B2 | L-BU | 1960 | Front Center Speaker Output (-) (U87) | ||||
B3 | D-BU | 1778 | Compass Clock Signal | ||||
B4 | -- | -- | Not Used | ||||
B5 | GY | 120 | Fuel Pump Supply Voltage | ||||
B6 | BN | 1779 | Compass Data Signal | ||||
B7 | BN | 199 | Left Rear Speaker Output (+) (UW6) | ||||
BN/WH | 599 | Left Rear Low Level Audio Signal (+) (U87) (Early Production) | |||||
B8 | D-BU | 46 | Right Rear Speaker Output (+) (UW6) | ||||
D-BU | 546 | Right Rear Low Level Audio Signal (+) (U87) | |||||
B9 | TN | 201 | Left Front Speaker Output (+) (UW6) | ||||
TN | 511 | Left Front Low Level Audio Signal (+) (U87) | |||||
B10 | OG | 2340 | Battery Positive Voltage | ||||
OG | 2340 | Battery Positive Voltage (UE1) | |||||
B11 | -- | -- | Not Used | ||||
B12 | L-GN | 200 | Right Front Speaker Output (+) (UW6) | ||||
L-GN/WH | 512 | Right Front Low Level Audio Signal (+) (U87) | |||||
C1 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | ||||
C2 | WH | 1080 | Park Lamp Relay Control | ||||
C3 | -- | -- | Not Used | ||||
C4 | GY | 8 | Instrument Panel Lamp Supply Voltage | ||||
C5 | OG | 1240 | Battery Positive Voltage | ||||
C6-C7 | -- | -- | Not Used | ||||
C8 | L-BU | 115 | Right Rear Speaker Output (-) (UW6) | ||||
BK | 1946 | Right Rear Low Level Audio Signal (-) (U87) | |||||
C9 | GY/BK | 690 | Courtesy Lamp Supply Voltage | ||||
GY/BK | 690 | Courtesy Lamp Supply Voltage | |||||
C10 | D-GN | 117 | Right Front Speaker Output (-) (UW6) | ||||
L-GN | 1948 | Right Front Low Level Audio Signal (-) (U87) | |||||
C11 | -- | -- | Not Used | ||||
C12 | BN | 1999 | Left Rear Low Level Audio Signal (-) (U87) (Late Production) | ||||
D1 | GY | 2709 | 5 Volt Reference | ||||
D2-D3 | -- | -- | Not Used | ||||
D4 | D-BU | 1128 | SDM Class 2 Serial Data | ||||
D5 | YE | 116 | Left Rear Speaker Output (-) (UW6) | ||||
BN | 1999 | Left Rear Low Level Audio Signal (-) (U87) (Early Production) | |||||
D6-D7 | -- | -- | Not Used | ||||
D8 | OG | 5240 | Battery Positive Voltage (UV6) | ||||
D9 | GY/BK | 690 | Courtesy Lamp Supply Voltage | ||||
D10 | OG | 1732 | Inadvertant Power Courtesy Lamp | ||||
OG | 1732 | Inadvertant Power Courtesy Lamp | |||||
D11 | PK | 739 | Ignition 1 Voltage | ||||
PK | 739 | Ignition 1 Voltage | |||||
D12 | BK | 707 | RAP Relay Control | ||||
E1 | -- | -- | Not Used | ||||
E2 | BN | 9 | Park Lamp Supply Voltage | ||||
E3 | GY/BK | 1458 | Instrument Panel Lamp Supply Voltage (UK3) | ||||
E4 | -- | -- | Not Used | ||||
E5 | OG | 340 | Battery Positive Voltage | ||||
E6 | OG | 240 | Battery Positive Voltage | ||||
E7 | -- | -- | Not Used | ||||
E8 | OG | 5240 | Battery Positive Voltage | ||||
OG | 5240 | Battery Positive Voltage | |||||
E9-E11 | -- | -- | Not Used | ||||
E12 | PK | 1539 | Ignition 1 Voltage | ||||
F1-F2 | -- | -- | Not Used | ||||
F3 | RD | 742 | Battery Positive Voltage | ||||
F4 | -- | -- | Not Used | ||||
F5 | RD | 642 | Battery Positive Voltage | ||||
F6 | OG | 1040 | Battery Positive Voltage | ||||
F7 | RD | 242 | Battery Positive Voltage | ||||
F8 | OG | 640 | Battery Positive Voltage | ||||
F9 | OG | 2040 | Battery Positive Voltage | ||||
F10 | RD | 642 | Battery Positive Voltage | ||||
F11-F12 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit Number | Function | ||||
A1 | GY | 118 | Left Front Speaker Output (-) (UW6) | ||||
GY | 118 | Left Front Speaker Output (-) (UW6) | |||||
D-GN | 1947 | Left Front Low Level Audio Signal (-) (U87) | |||||
A2 | BN/WH | 599 | Left Rear Low Level Audio Signal (+) (U87) (Late Production) | ||||
A3 | OG | 2840 | Battery Positive Voltage | ||||
A4 | BK/WH | 351 | Ground (U87) | ||||
BK/WH | 351 | Ground (U2K) | |||||
A5 | OG | 440 | Battery Positive Voltage | ||||
A6 | WH | 1310 | EVAP Canister Vent Solenoid Control | ||||
A7 | YE | 1139 | Ignition 1 Voltage | ||||
A8 | TN | 927 | Amplifier Control | ||||
A9 | PU | 2232 | Radio On Signal | ||||
PU | 2232 | Radio On Signal (U87) | |||||
A10 | GY/BK | 2334 | Amplifier Present Signal (U87) | ||||
A11 | YE | 1860 | Front Center Speaker Output (+) (U87) | ||||
A12 | PU/WH | 1589 | Fuel Level Sensor Signal | ||||
B1 | L-GN | 200 | Right Front Speaker Output (+) (UW6) | ||||
L-GN | 200 | Right Front Speaker Output (+) (UW6) | |||||
L-GN/WH | 512 | Right Front Low Level Audio Signal (+) (U87) | |||||
B2-B3 | -- | -- | Not Used | ||||
B4 | TN | 201 | Left Front Speaker Output (+) (UW6) | ||||
TN | 201 | Left Front Speaker Output (+) (UW6) | |||||
TN | 511 | Left Front Low Level Audio Signal (+) (U87) | |||||
B5 | D-BU | 46 | Right Rear Speaker Output (+) (UW6) | ||||
D-BU | 546 | Right Rear Low Level Audio Signal (+) (U87) | |||||
B6 | BN | 199 | Left Rear Speaker Output (+) (UW6) | ||||
BN/WH | 599 | Left Rear Low Level Audio Signal (+) (U87) (Early Production) | |||||
B7 | BN | 1779 | Compass Data Signal | ||||
B8 | GY | 120 | Fuel Pump Supply Voltage | ||||
B9 | -- | -- | Not Used | ||||
B10 | D-BU | 1778 | Compass Clock Signal | ||||
B11 | L-BU | 1960 | Front Center Speaker Output (-) (U87) | ||||
B12 | BK | 2759 | Low Reference | ||||
C1 | BN | 1999 | Left Rear Low Level Audio Signal (-) (U87) (Late Production) | ||||
C2 | -- | -- | Not Used | ||||
C3 | D-GN | 117 | Right Front Speaker Output (-) (UW6) | ||||
D-GN | 117 | Right Front Speaker Output (-) (UW6) | |||||
L-GN | 1948 | Right Front Low Level Audio Signal (-) (U87) | |||||
C4 | GY/BK | 690 | Courtesy Lamp Supply Voltage | ||||
C5 | L-BU | 115 | Right Rear Speaker Output (-) (UW6) | ||||
BK | 1946 | Right Rear Low Level Audio Signal (-) (U87) | |||||
C6-C8 | -- | -- | Not Used | ||||
C9 | GY | 8 | Instrument Panel Lamp Supply Voltage | ||||
C10-C11 | -- | -- | Not Used | ||||
C12 | D-GN | 890 | Fuel Tank Pressure Sensor Signal | ||||
D1 | -- | -- | Not Used | ||||
D2 | PK | 739 | Ignition 1 Voltage | ||||
D3 | OG | 1732 | Inadvertant Power Courtesy Lamp | ||||
OG | 1732 | Inadvertant Power Courtesy Lamp | |||||
D4-D7 | -- | -- | Not Used | ||||
D8 | YE | 116 | Left Rear Speaker Output (-) (UW6) | ||||
BN | 1999 | Left Rear Low Level Audio Signal (-) (U87) (Early Production) | |||||
D9 | D-BU | 1128 | SDM Class 2 Serial Data | ||||
D-BU | 1128 | Class 2 Serial Data (U2K) | |||||
D10 | OG | 1140 | Battery Positive Voltage | ||||
D11 | WH | 193 | Rear Defog Relay Control | ||||
WH | 193 | Rear Defog Relay Control | |||||
D12 | GY | 2709 | 5 Volt Reference | ||||
E1 | -- | -- | Not Used | ||||
E2 | YE | 143 | Accessory Voltage | ||||
E3 | -- | -- | Not Used | ||||
E4 | OG | 2040 | Battery Positive Voltage (U87) | ||||
E5-E8 | -- | -- | Not Used | ||||
E9 | OG | 1440 | Battery Positive Voltage | ||||
E10 | -- | -- | Not Used | ||||
E11 | BN | 9 | Park Lamp Supply Voltage | ||||
E12 | OG | 840 | Battery Positive Voltage | ||||
F1 | YE | 643 | Accessory Voltage | ||||
F2 | YE | 143 | Accessory Voltage | ||||
F3-F4 | -- | -- | Not Used | ||||
F5 | OG | 640 | Battery Positive Voltage (U2K) | ||||
F6-F8 | -- | -- | Not Used | ||||
F9 | OG | 1440 | Battery Positive Voltage | ||||
F10 | -- | -- | Not Used | ||||
F11 | BK/D-GN | 1927 | Rear Window Defog Control Module Supply Voltage | ||||
F12 | -- | -- | Not Used | ||||
