Makes 🢒 Pontiac 🢒 2004 🢒 Grand Prix 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - 4T65-E 🢒 SIR Component Views
Figure 1:

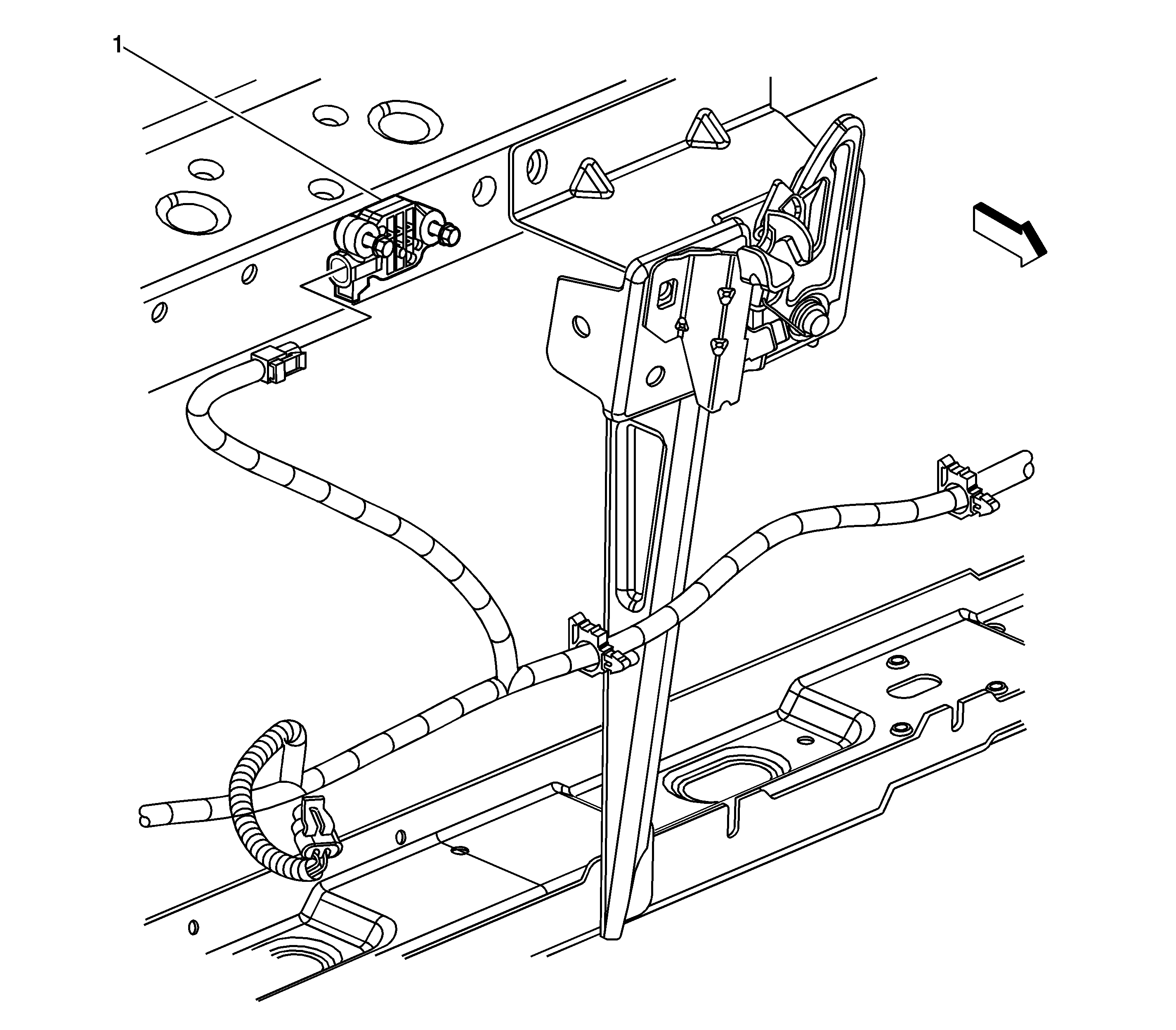

Front of the Engine Compartment
Object Number: 1205632 Size: LF
(1)Inflatable Restraint Front End Sensor
Figure 2:

Steering Column
Object Number: 1246913 Size: LF
(1)Windshield Wiper/Washer Switch
(2)Inflatable Restraint Steering Wheel Module Coil
(3)Inflatable Restraint Steering Wheel Module Coil, C3
(4)Inflatable Restraint Steering Wheel Module Coil, C2
(5)Inflatable Restraint Steering Wheel Module Coil, C5
(6)Inflatable Restraint Steering Wheel Module Coil, C4
(7)Inflatable Restraint Steering Wheel Module Coil, C1
(8)Multifunction Turn Signal Lever
(9)Body Control Module, C3
(10)Windshield Wiper/Washer Switch, Connector
(11)Multifunction Turn Signal Lever, C1
(12)Multifunction Turn Signal Lever, C2
(13)Multifunction Turn Signal Lever, C3
(14)Inflatable Restraint Steering Wheel Module Coil, C4
(15)C201
(16)Steering Angle Sensor (JL4)
Figure 3:

Left Side of the I/P
Object Number: 1206068 Size: LF
(1)Multifunction Turn Signal Lever
(2)TAP Shift Switch - Left
(3)Hazard Warning Switch
(4)Instrument Panel Cluster (IPC)
(5)TAP Shift Switch - Right
(6)Windshield Wiper/Washer Switch
(7)Ignition Switch
(8)Driver Information Center (DIC)
(9)Radio
(10)HVAC Control Module
(11)Heated Seat Switch - Front Passenger
(12)Rear Defogger Switch
(13)Heated Seat Switch - Driver
(14)Steering Wheel Controls - Right
(15)Cruise Control Switch
(16)Inflatable Restraint Steering Wheel Module
(17)Tilt Steering Wheel Lever
(18)Steering Wheel Controls - Left
(19)Interior Lamp Switch
Figure 4:

Right Side of the I/P
Object Number: 1205636 Size: LF
(1)Inflatable Restraint I/P Module
Figure 5:

Driver Door
Object Number: 1205638 Size: LF
(1)Inflatable Restraint Side Impact Sensor - Left (AY1)
Figure 6:

Front Passenger Door
Object Number: 1205639 Size: LF
(1)Inflatable Restraint Side Impact Sensor - Right (AY1)
Figure 7:

Under Front of Driver Seat
Object Number: 1320394 Size: LF
(1)Seat Belt Pretensioner - Left (Seat Belt Pretensioner - Right, Similar)
(2)Heated Seat Relay - Driver (Heated Seat Relay - Front Passenger, Similar)
Figure 8:

Right Front of the Passenger Compartment
Object Number: 1205640 Size: LF
(1)Inflatable Restraint Sensing and Diagnostic Module (SDM)
Figure 9:

Left Rear of the Passenger Compartment
Object Number: 1205643 Size: LF
(1)Roof Rail Module - Left (AY1)
Figure 10:

Right Rear of the Passenger Compartment
Object Number: 1205645 Size: LF
(1)Roof Rail Module - Right (AY1)
(2)Rear Window Defogger Grid
