Power Distribution Schematics. Pontiac Grand Prix 2006

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2006 🢒 Grand Prix 🢒 Body 🢒 Wiring Systems 🢒 Power Distribution Schematics

Figure 1:	Fuse Block - Underhood Bussing (L26, L32) Master Electrical Component List Control Module References Fuse Block - Underhood Bussing

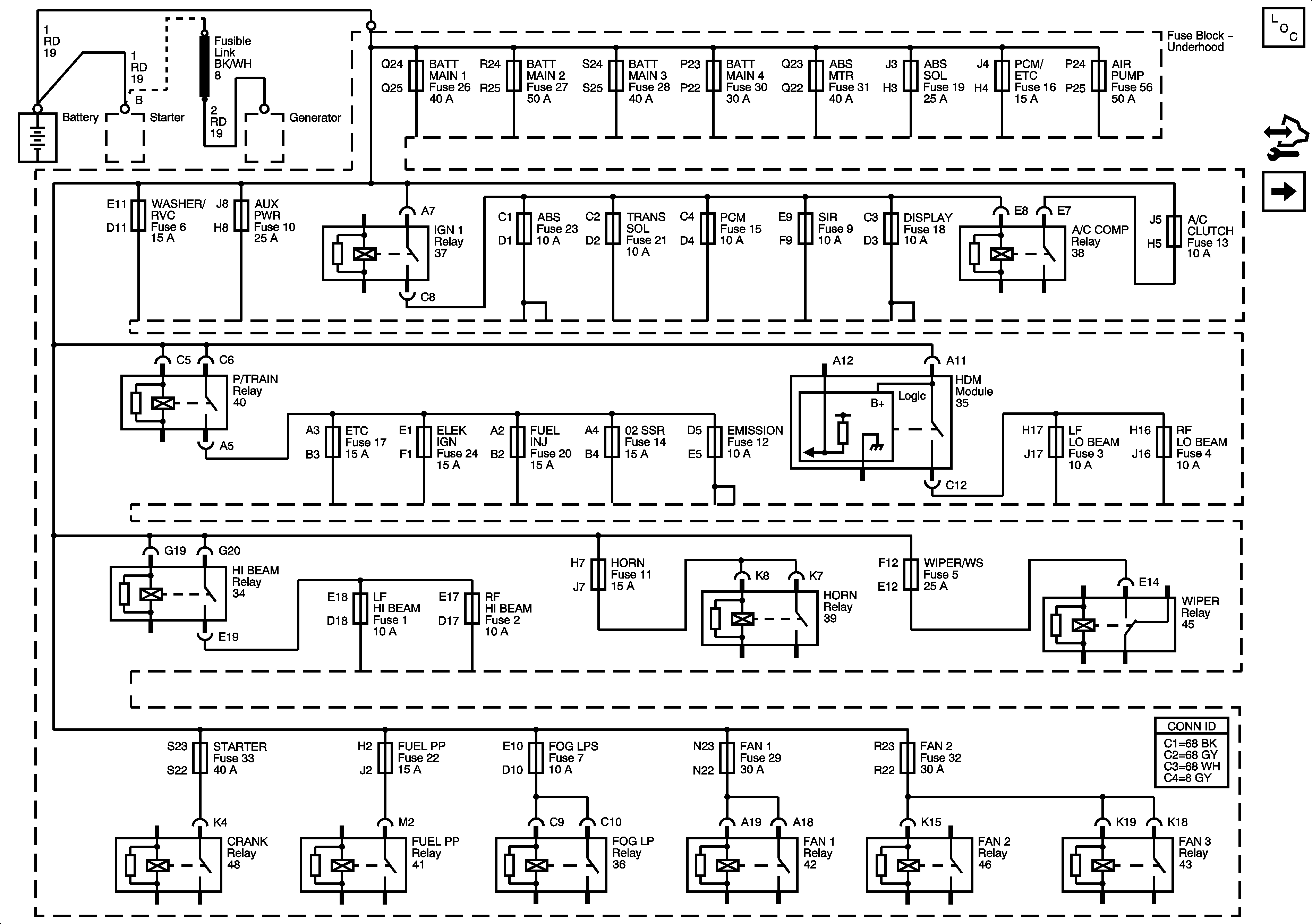

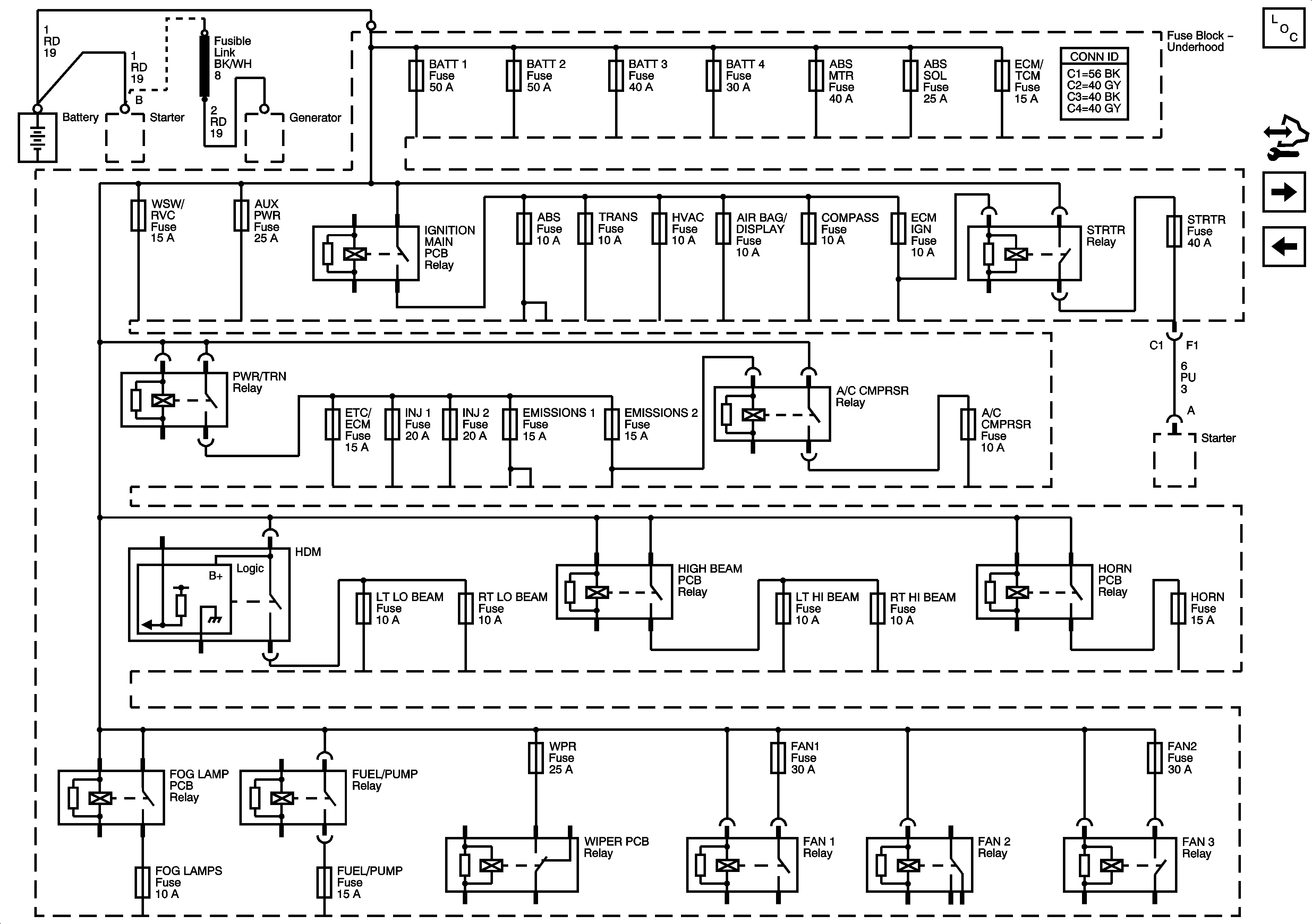

Figure 2:	Fuse Block - Underhood Bussing (LS4) Master Electrical Component List Control Module References Ignition Switch Fuse Block Underhood Bussing

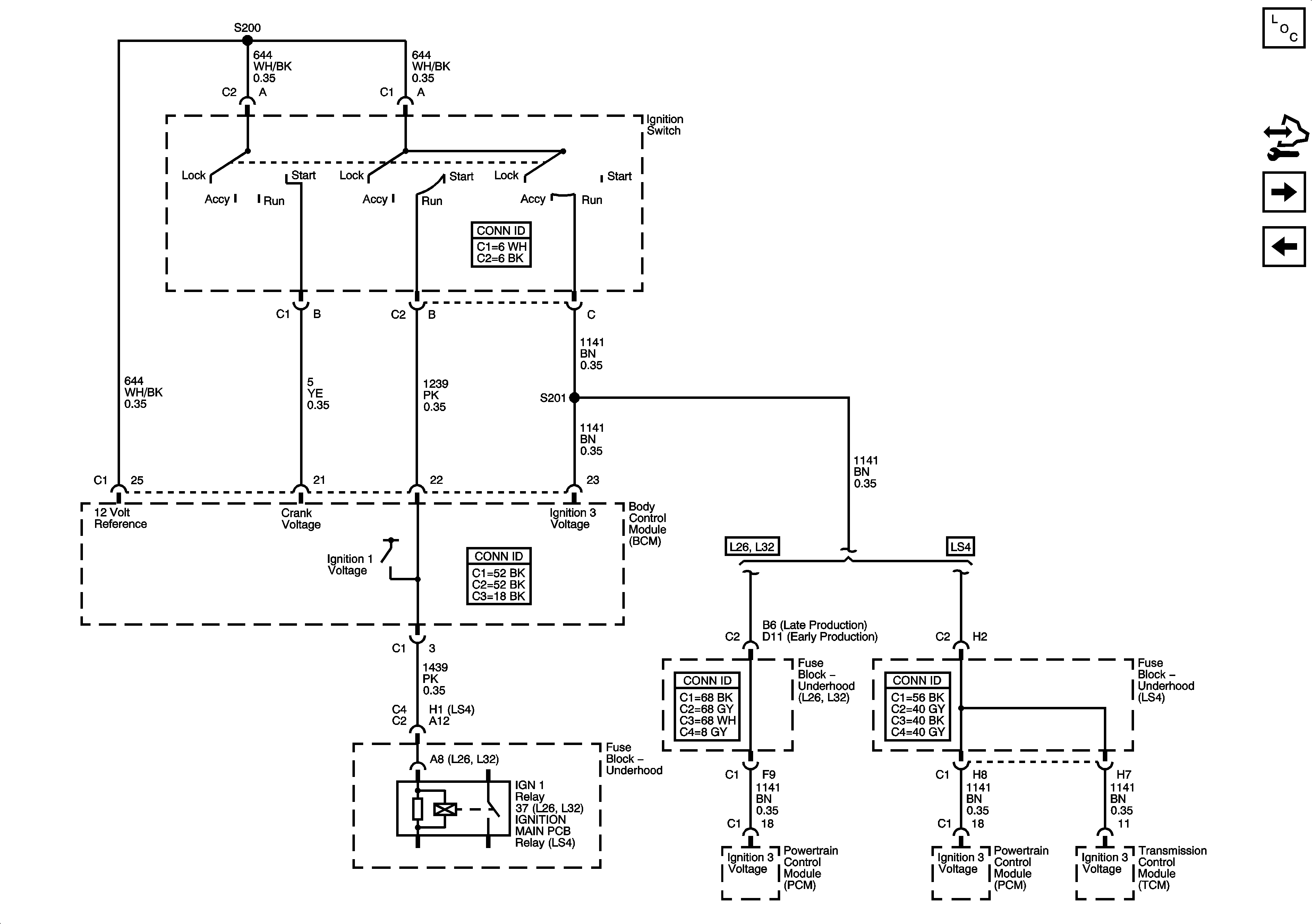

Figure 3:	Ignition Switch Master Electrical Component List Control Module References BATT MAIN 1, PK LAMPS, DISPLAS, CHMSL/BKUP, INT LIGHT, RFA MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses AND PKLP RELAY Fuse Block - Underhood Bussing
Figure 4:	BATT MAIN 1, BATT 1, PK LAMPS, DISPLAYS, CHMSL/BKUP, INT LIGHT, RFA/MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses, and PK LP Relay Master Electrical Component List Control Module References BATT MAIN 2, HDT SEAT, PWR MIRS, TURN/HAZ, DR LK/TRUN, SUNROOF Fuses, PWR SEAT, PWR WDO Circuit Breakers, and RAP Relay Ignition Switch Fuse Block Underhood Bussing Fuse Block - Underhood Bussing
Figure 5:	BATT MAIN 2, BATT 2, HTD SEAT, PWR MIRS, TURN/HAZ, DR LK/TRUNK, SUNROOF Fuses, PWR SEAT, PWR WDO Circuit Breakers, and RAP Relay Master Electrical Component List Control Module References BATT MAIN 3, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, AIR PUMP, WASHER RVC, and AUX PWR Fuses BATT MAIN 1, PK LAMPS, DISPLAS, CHMSL/BKUP, INT LIGHT, RFA MOD, RADIO/AMP, ONSTAR/ALDL, HVAC, CANISTER Fuses AND PKLP RELAY Fuse Block Underhood Bussing Fuse Block Underhood Bussing Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing

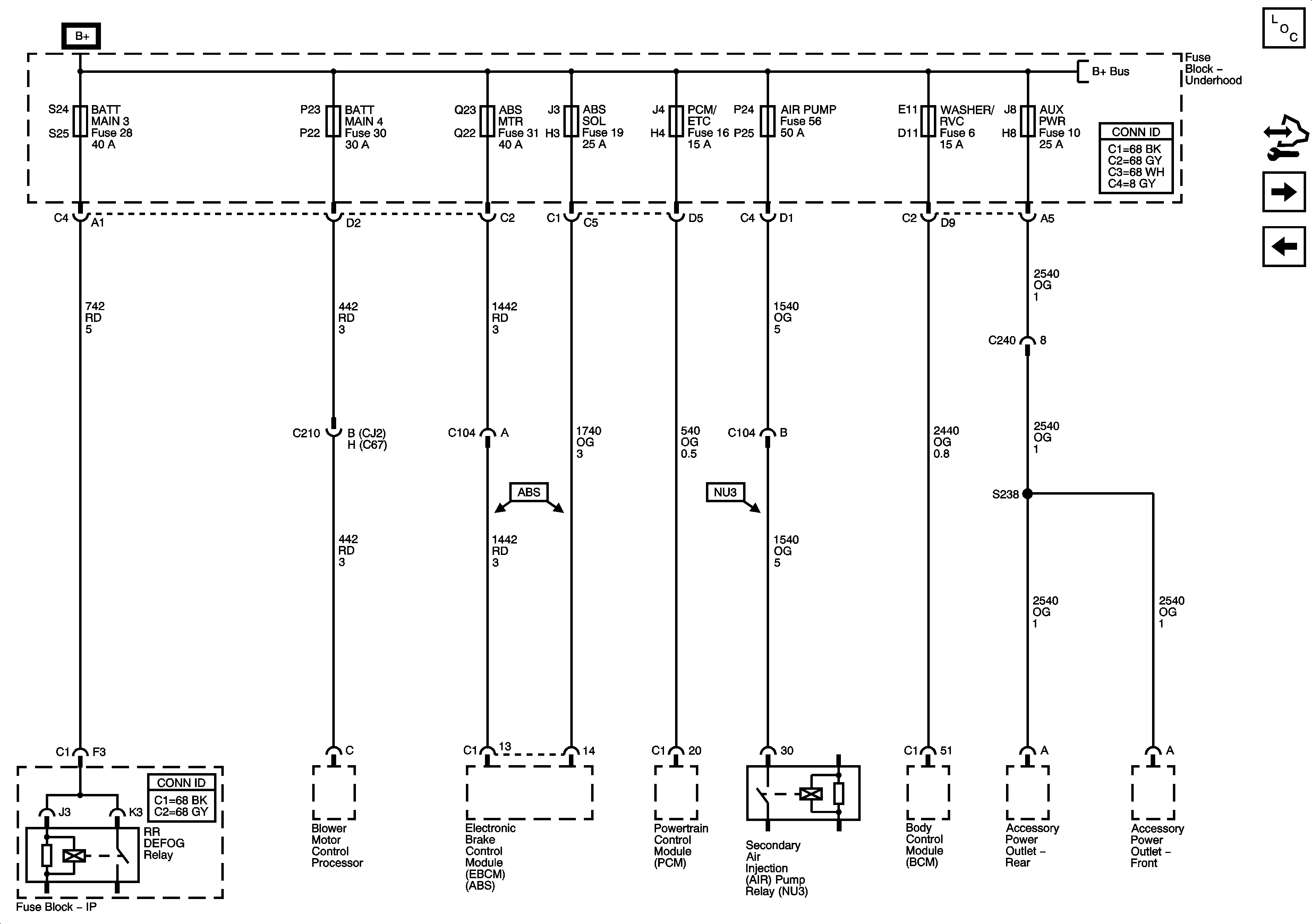

Figure 6:	BATT MAIN 3, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, AIR PUMP, WASHER/RVC, and AUX PWR Fuses (L26, L32) Master Electrical Component List Control Module References BATT 3, BATT 4, ABS MTR, ABS SOL, ECM/TCM/WSW/RVC, and AUX PWR Fuses BATT MAIN 2, HDT SEAT, PWR MIRS, TURN/HAZ, DR LK/TRUN, SUNROOF Fuses, PWR SEAT, PWR WDO Circuit Breakers, and RAP Relay Fuse Block Underhood Bussing Fuse Block Underhood Bussing
Figure 7:	BATT 3, BATT 4, ABS MTR, ABS SOL, ECM/TCM, WSW/RVC, and AUX PWR Fuses (LS4) Master Electrical Component List Control Module References ABS, TRANS SOL, PCM, SIR, DISPLAY, CRUISE SW Fuses, and CRANK Relay BATT MAIN 3, BATT MAIN 4, ABS MTR, ABS SOL, PCM/ETC, AIR PUMP, WASHER RVC, and AUX PWR Fuses Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing

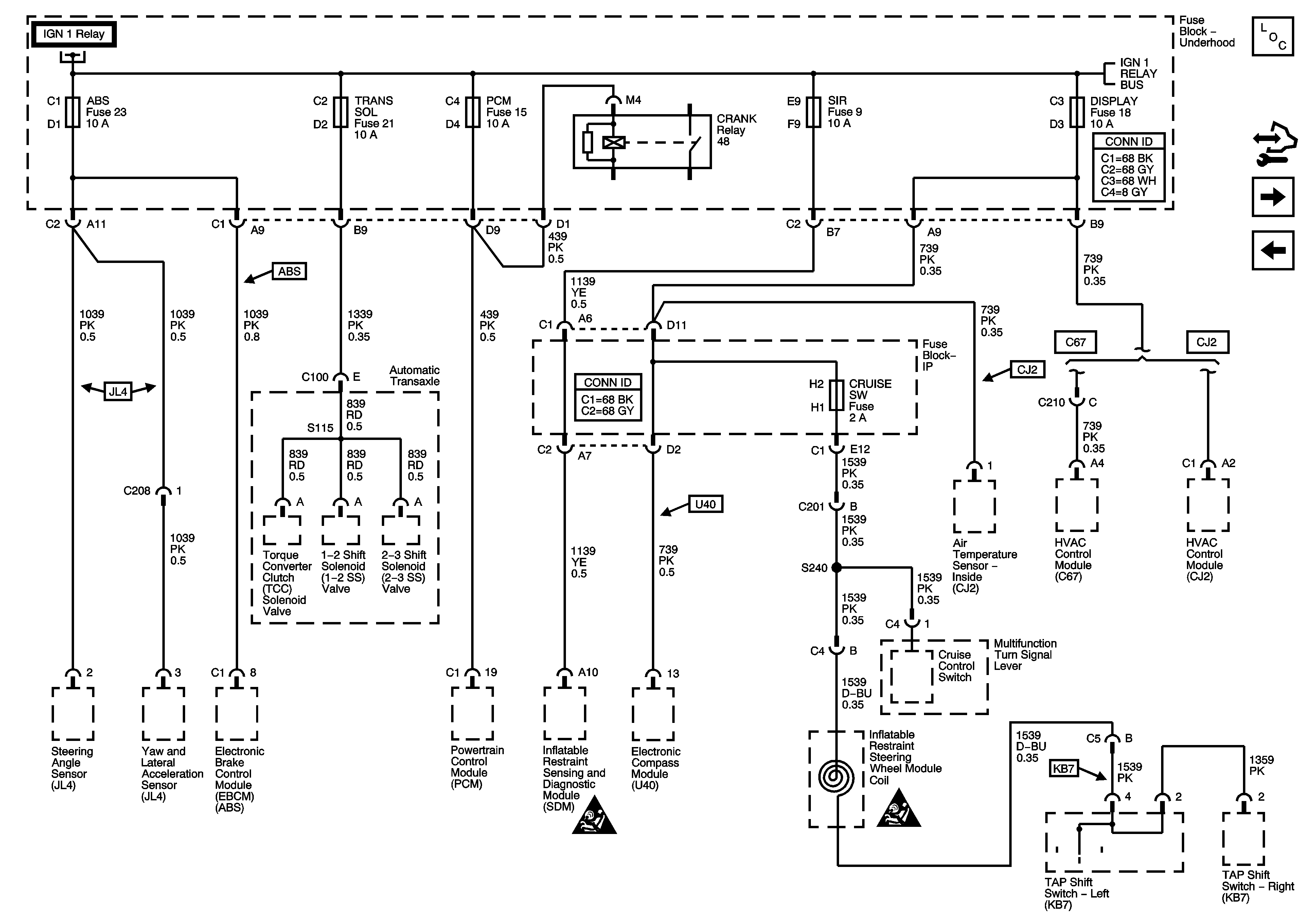

Figure 8:	ABS, TRANS SOL, PCM, SIR, DISPLAY, CRUISE SW Fuses, and CRANK Relay (L26, L32) Master Electrical Component List Control Module References ABS, TRANS, ECM IGN, AIRBAG/DISPLAY, COMPASS, HVAC Fuses and STRTR Relay BATT 3, BATT 4, ABS MTR, ABS SOL, ECM/TCM/WSW/RVC, and AUX PWR Fuses Fuse Block Underhood Bussing Fuse Block Underhood Bussing Power and Grounding Schematic Icons Power and Grounding Schematic Icons

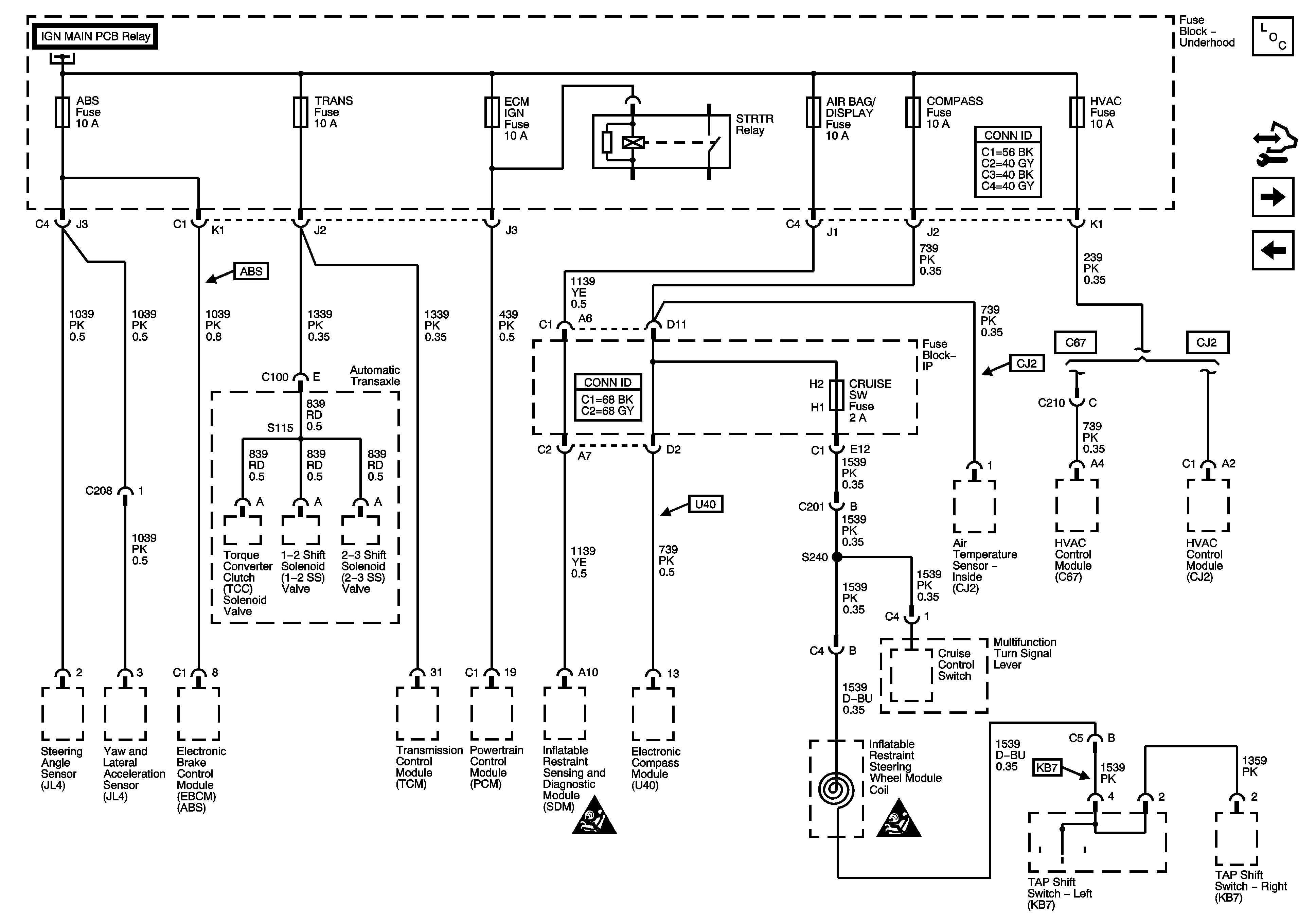

Figure 9:	ABS, TRANS, ECM IGM, AIR BAG/DISPLAY, COMPASS, HVAC Fuses, and STRTR Relay (LS4) Master Electrical Component List Control Module References ETC, ELEC IGN, FUEL INJ, O2 SSR, and EMISSION Fuses ABS, TRANS SOL, PCM, SIR, DISPLAY, CRUISE SW Fuses, and CRANK Relay Fuse Block - Underhood Bussing Power and Grounding Schematic Icons Power and Grounding Schematic Icons

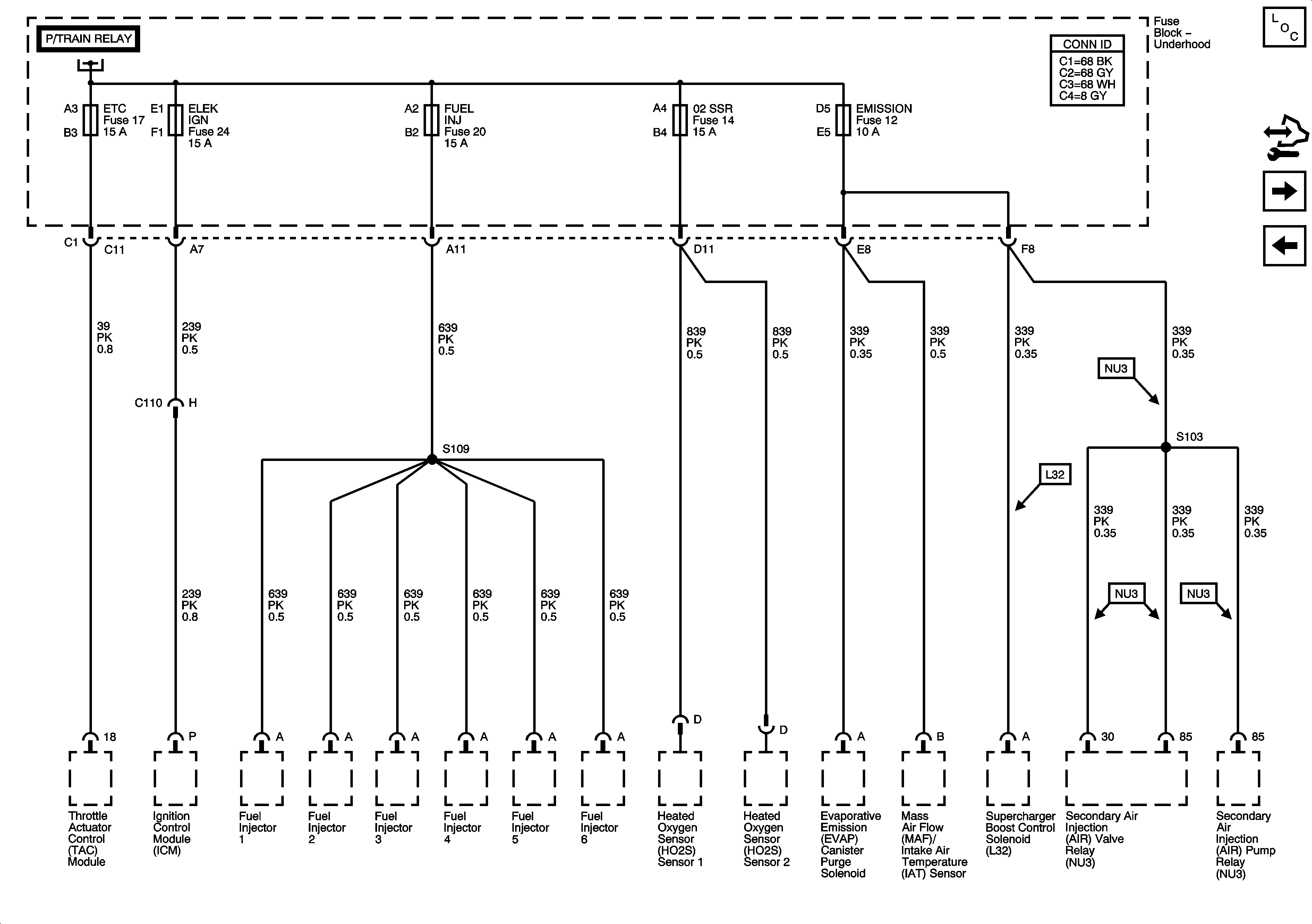

Figure 10:	ETC, ELEK IGN, FUEL INJ, 02 SSR, and EMISSION Fuses (L26, L32) Master Electrical Component List Control Module References , INJ 2, EMISSION1, EMISSION2 Fuses, and COMPRSR Relay ABS, TRANS, ECM IGN, AIRBAG/DISPLAY, COMPASS, HVAC Fuses and STRTR Relay Fuse Block Underhood Bussing

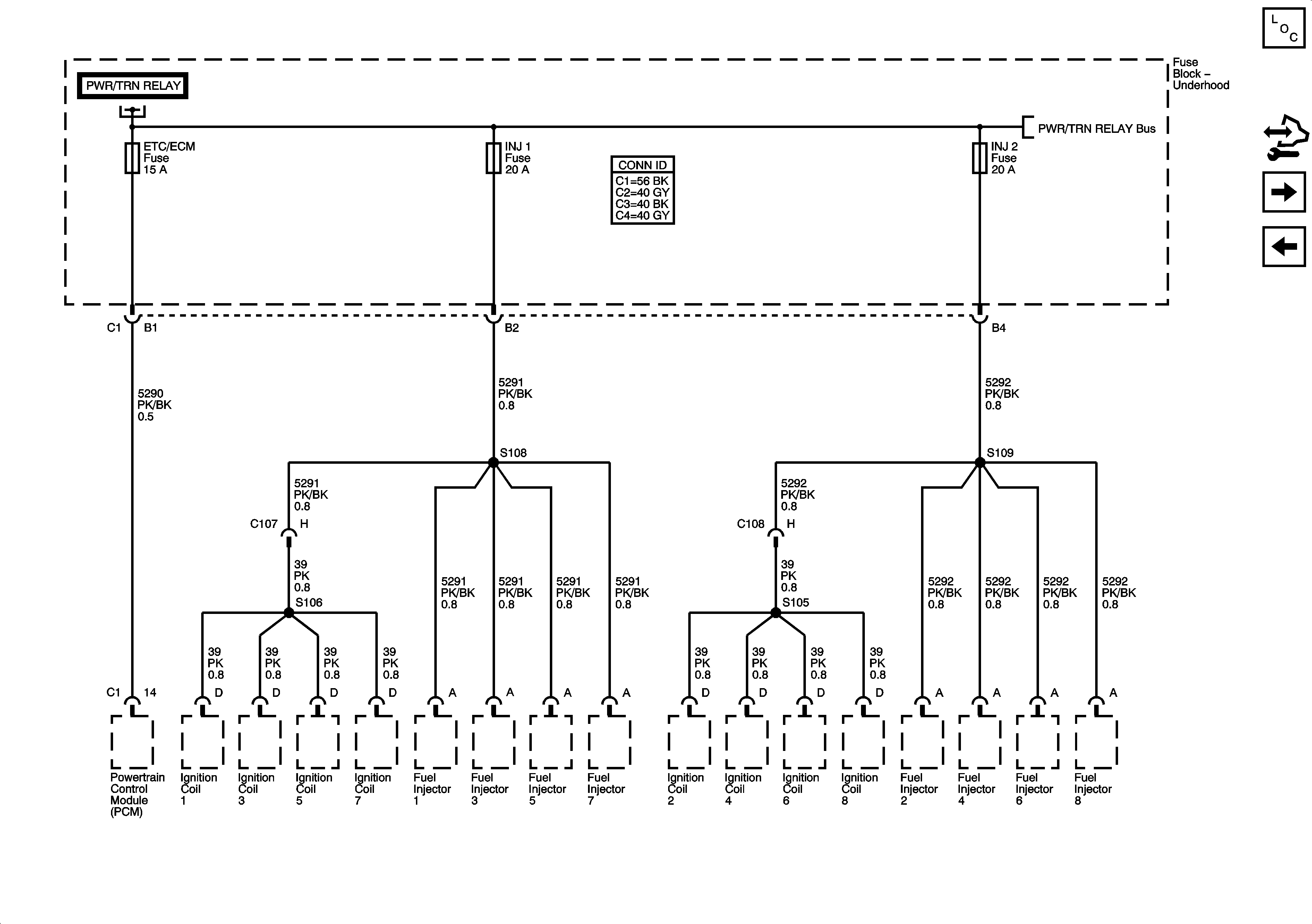

Figure 11:	ETC/ECM, INJ 1 and INJ 2 Fuses (LS4) Master Electrical Component List Control Module References EMISSIONS1, EMISSIONS2, A/C COMPRSR Fuses, and A/C CMPRSR Relay ETC, ELEC IGN, FUEL INJ, O2 SSR, and EMISSION Fuses Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing

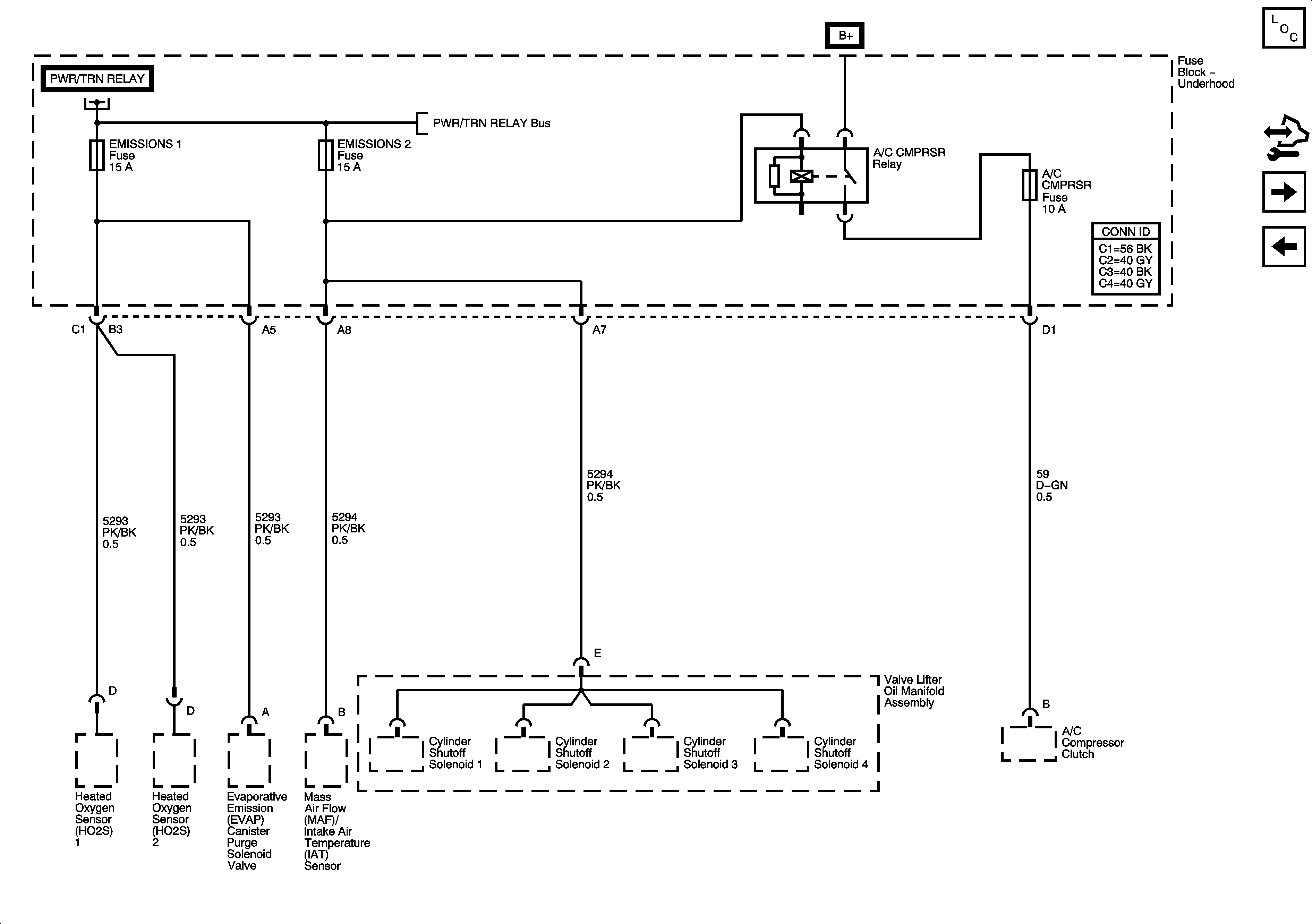

Figure 12:	EMISSIONS1, EMISSIONS2, A/C CMPRSR Fuses and A/C CMPRSR Relay (LS4) Master Electrical Component List Control Module References LF LOW BEAM RF LOW BEAM, LF HIGH BEAM, RF HIGH BEAM, and SPRING COIL 2 Fuses , INJ 2, EMISSION1, EMISSION2 Fuses, and COMPRSR Relay Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing

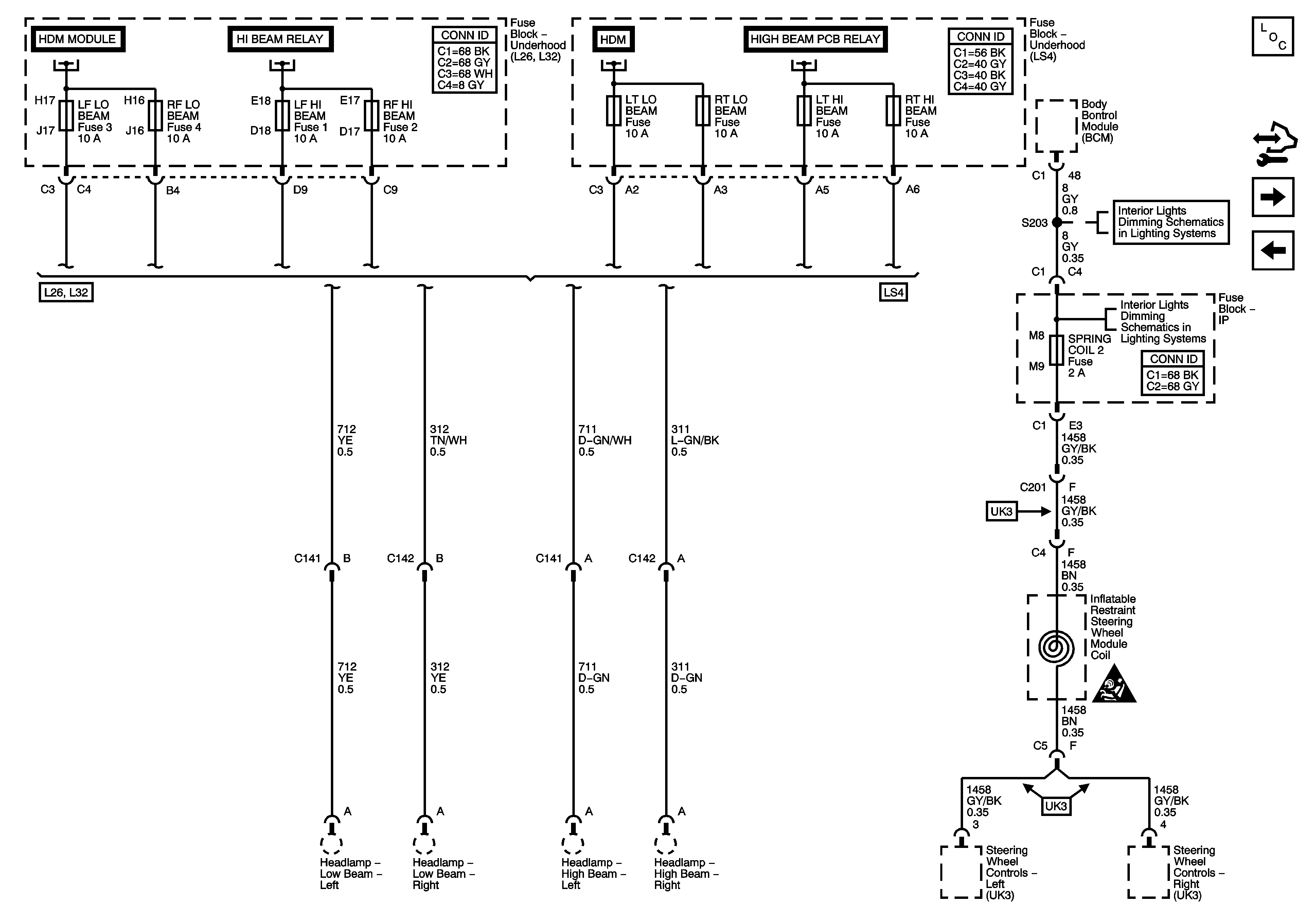

Figure 13:	LF LOW BEAM, RF LOW BEAM, LF HI BEAM, RF HI BEAM, LT LOW BEAM, RT LOW BEAM, LT HI BEAM, RT HI BEAM and SPRING COIL 2 Fuses Master Electrical Component List Control Module References HORN, FOG LAMPS, FUEL PUMP Fuses, HORN PCB, FOG LAMP PCB and FUEL PUMP Relays EMISSIONS1, EMISSIONS2, A/C COMPRSR Fuses, and A/C CMPRSR Relay Fuse Block Underhood Bussing Fuse Block Underhood Bussing Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing Interior Lamp Switch, I/P and Driver Door Lighting Interior Lamp Switch, I/P and Driver Door Lighting Power and Grounding Schematic Icons

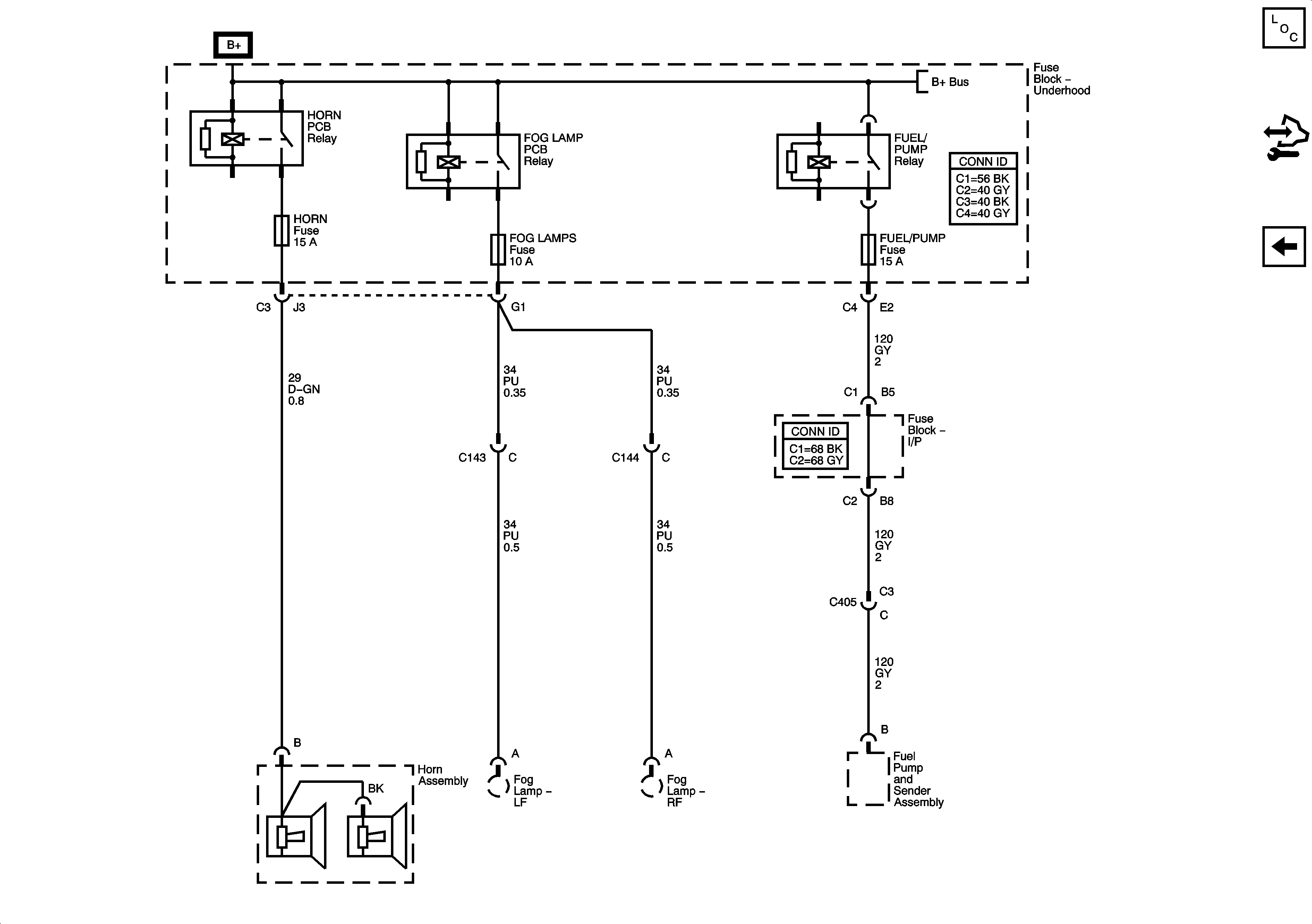

Figure 14:	HORN, FOG LAMPS, FUEL PUMP Fuses, HORN PCB, FOG LAMP PCB and FUEL PUMP Relays (LS4) Master Electrical Component List Control Module References LF LOW BEAM RF LOW BEAM, LF HIGH BEAM, RF HIGH BEAM, and SPRING COIL 2 Fuses Fuse Block - Underhood Bussing Fuse Block - Underhood Bussing
