Radio/Navigation System Schematics. Pontiac Grand Prix 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 Grand Prix 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Radio/Navigation System Schematics

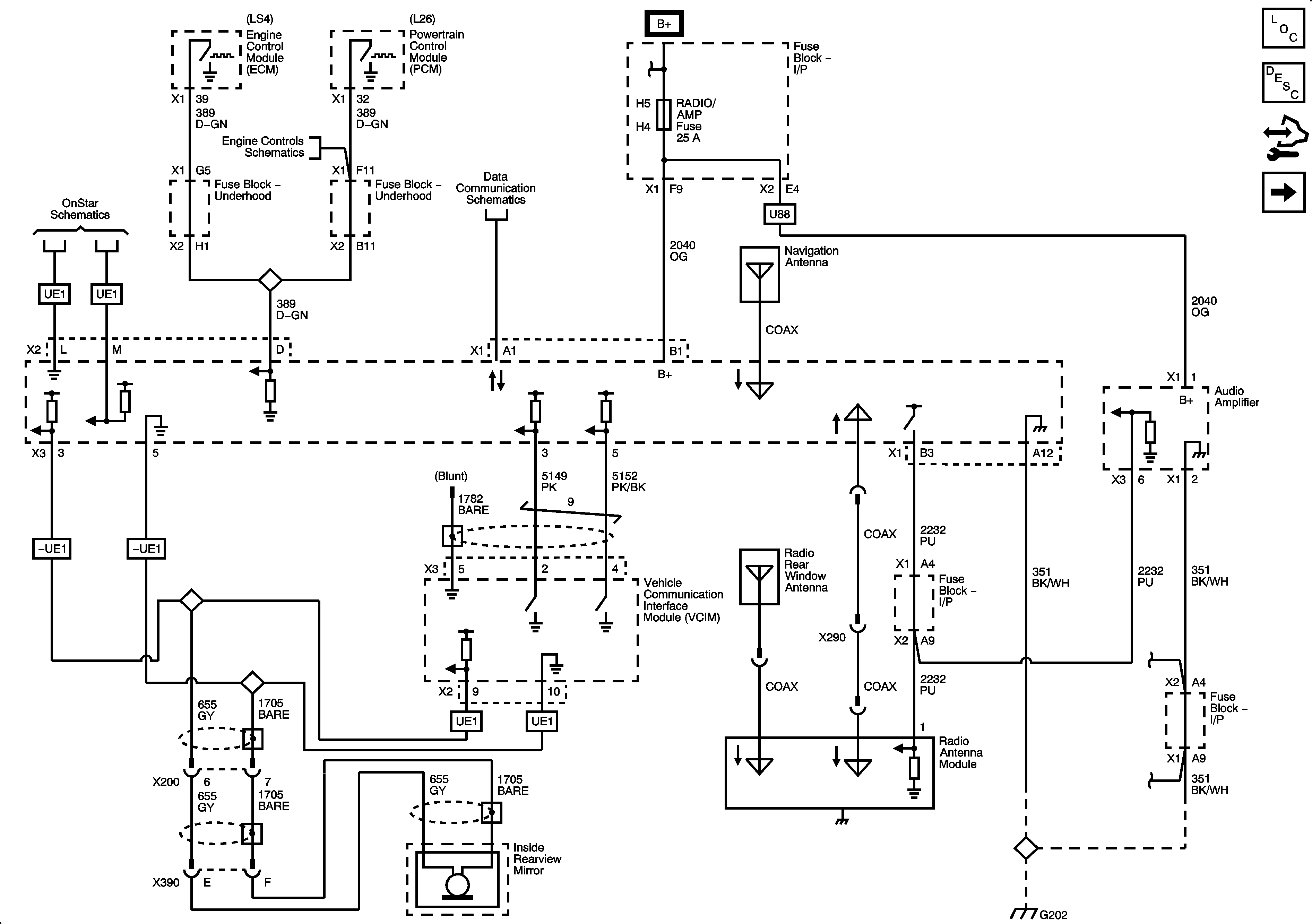

Figure 1:	Power, Ground, and References Master Electrical Component List Radio/Audio System Description and Operation Control Module References Radio to Speakers (UW6)

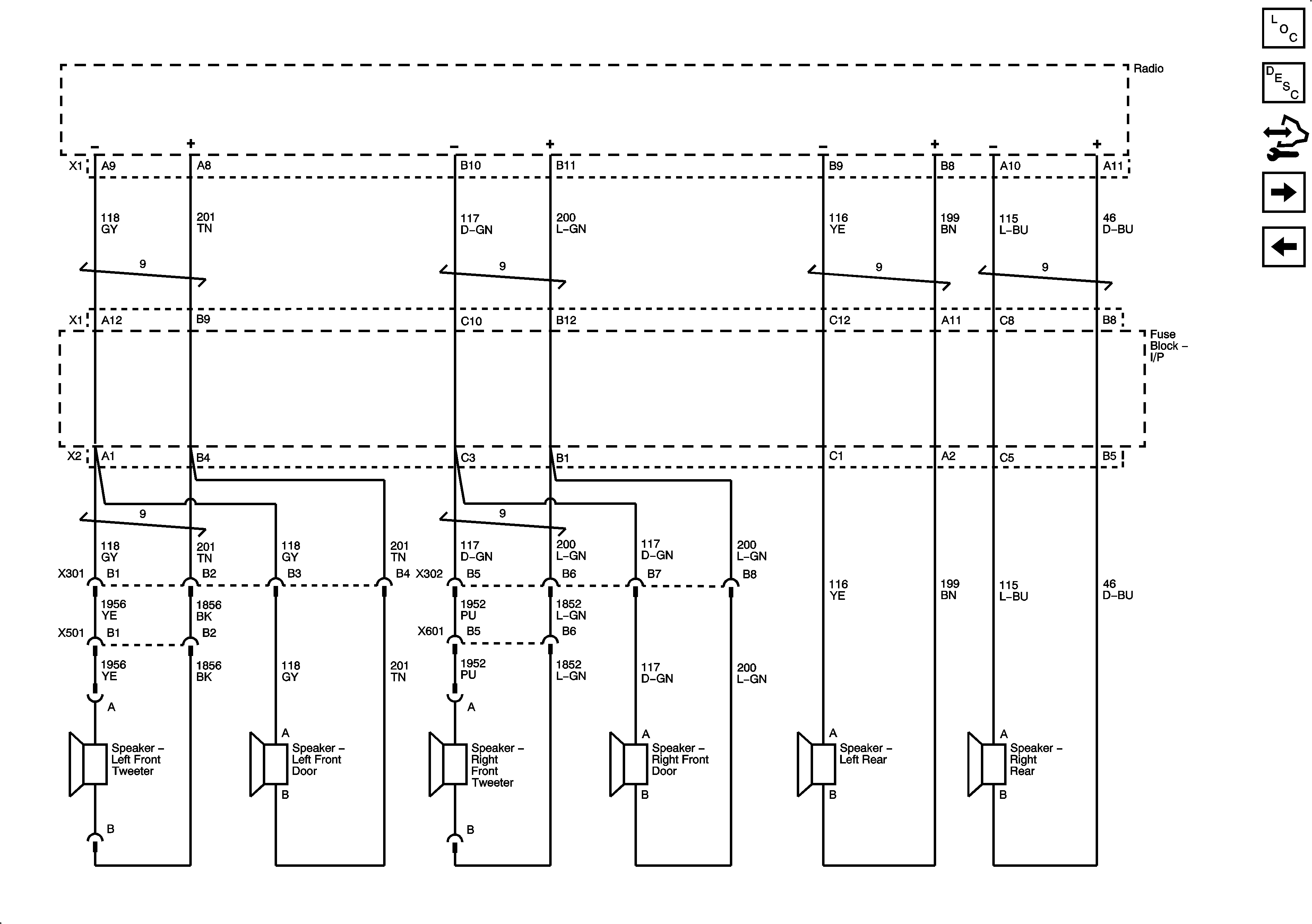

Figure 2:	Radio to Speakers - UW6 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Audio Signal Communication - U88 Power, Ground, and References

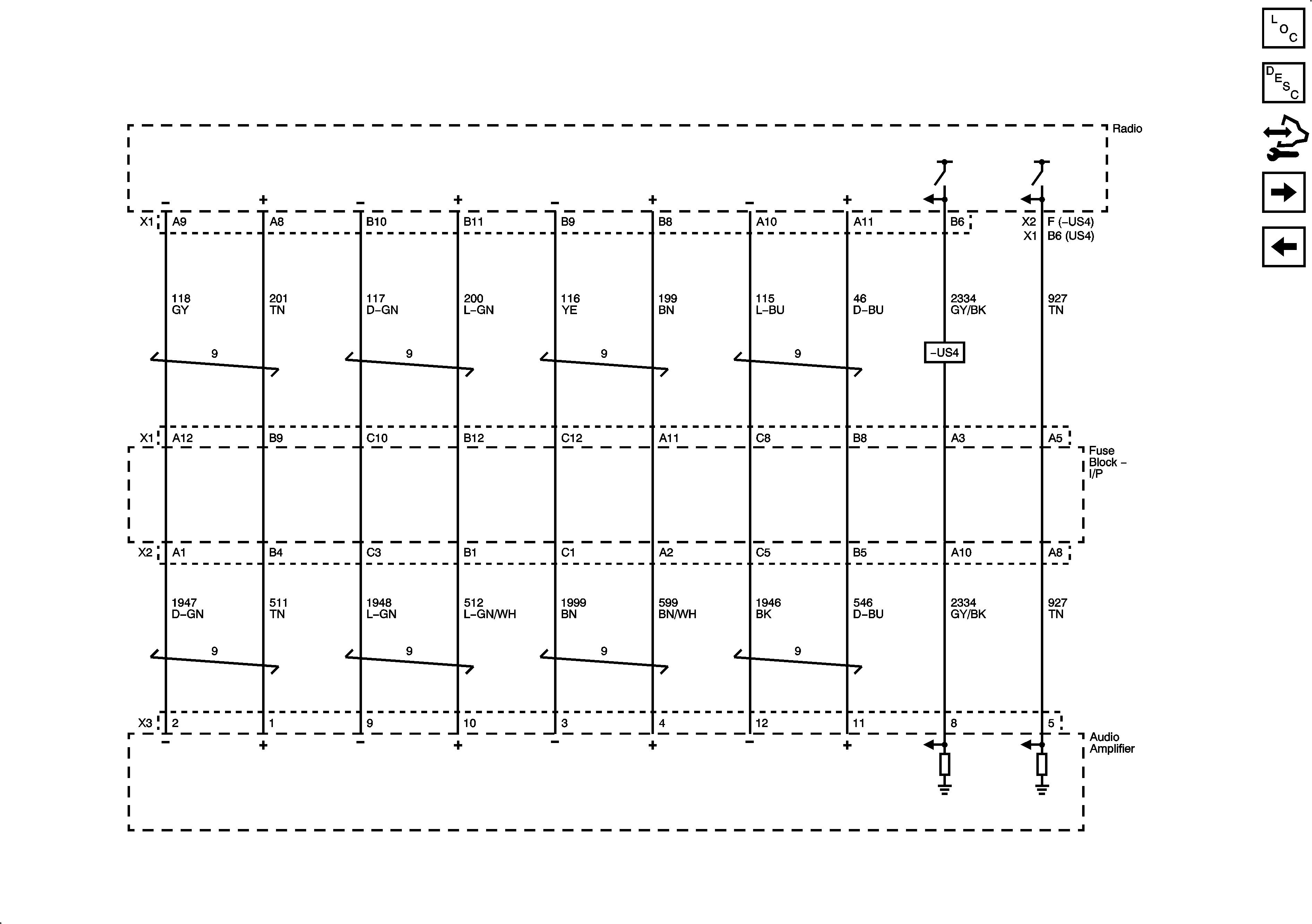

Figure 3:	Audio Signal Communication - U88 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speakers Front - U88 Radio to Speakers (UW6)

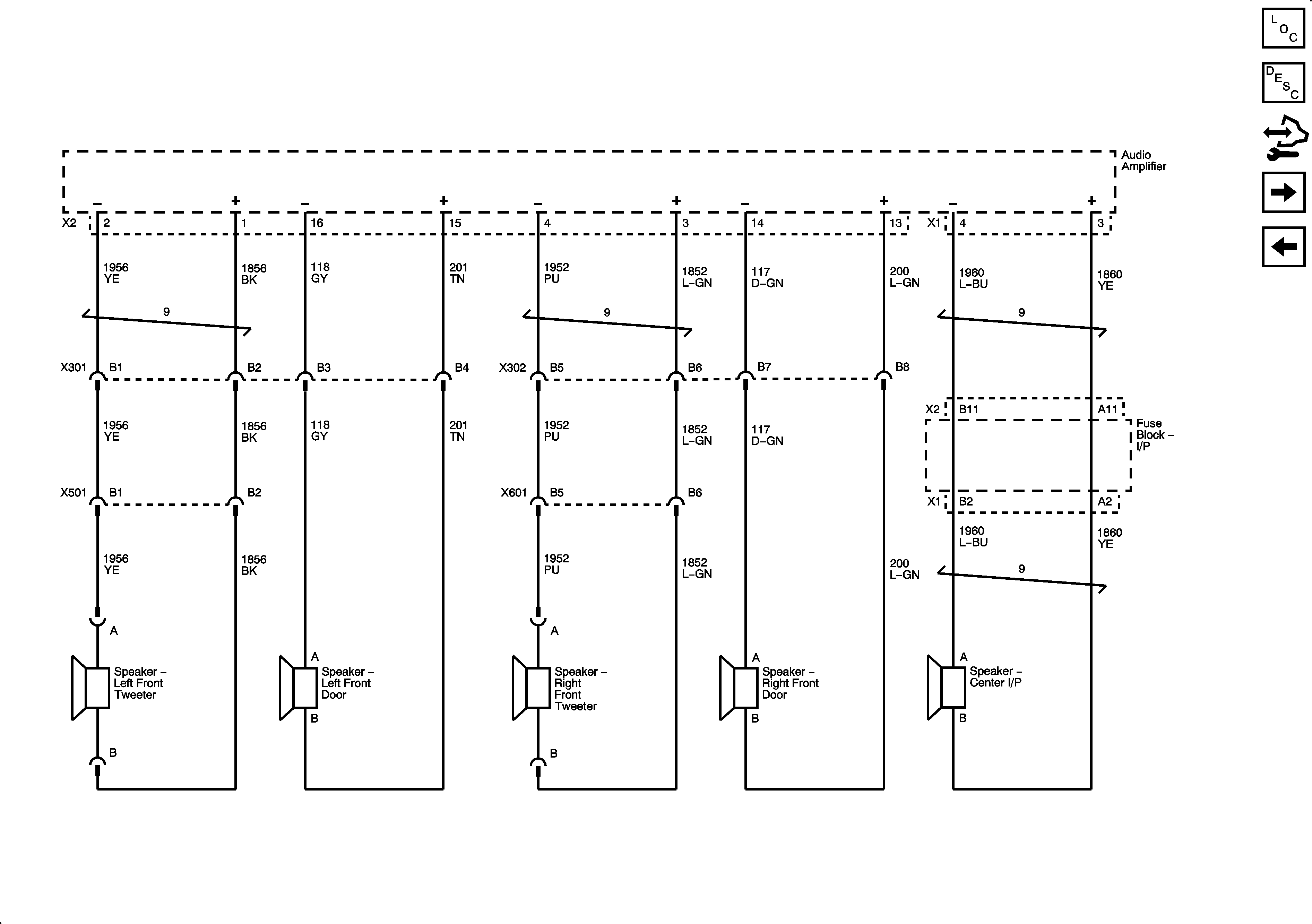

Figure 4:	Speakers - Front - U88 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Speakers Rear - U88 Audio Signal Communication - U88

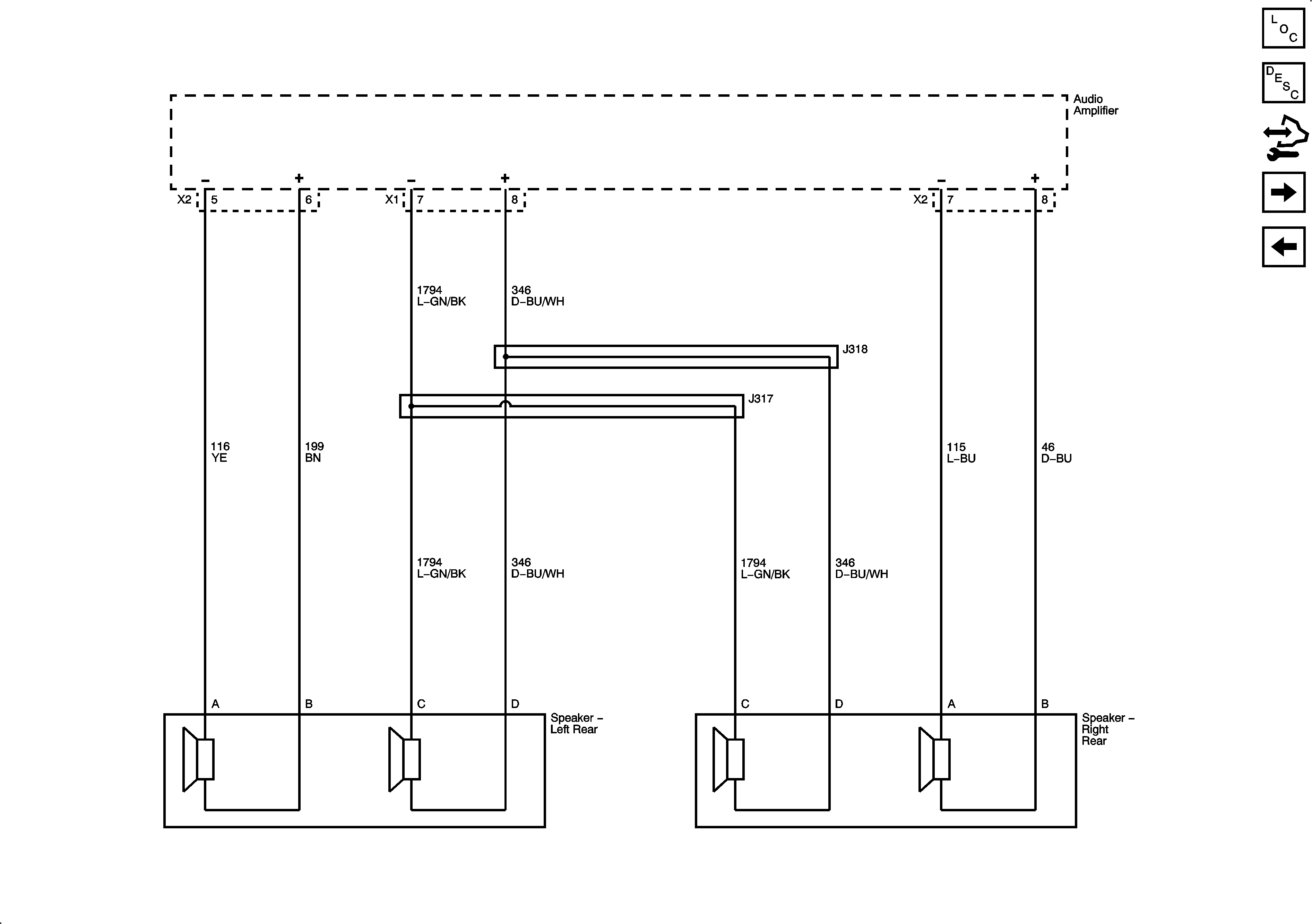

Figure 5:	Speakers - Rear - U88 Master Electrical Component List Radio/Audio System Description and Operation Control Module References Satellite Radio (U2K) Speakers Front - U88

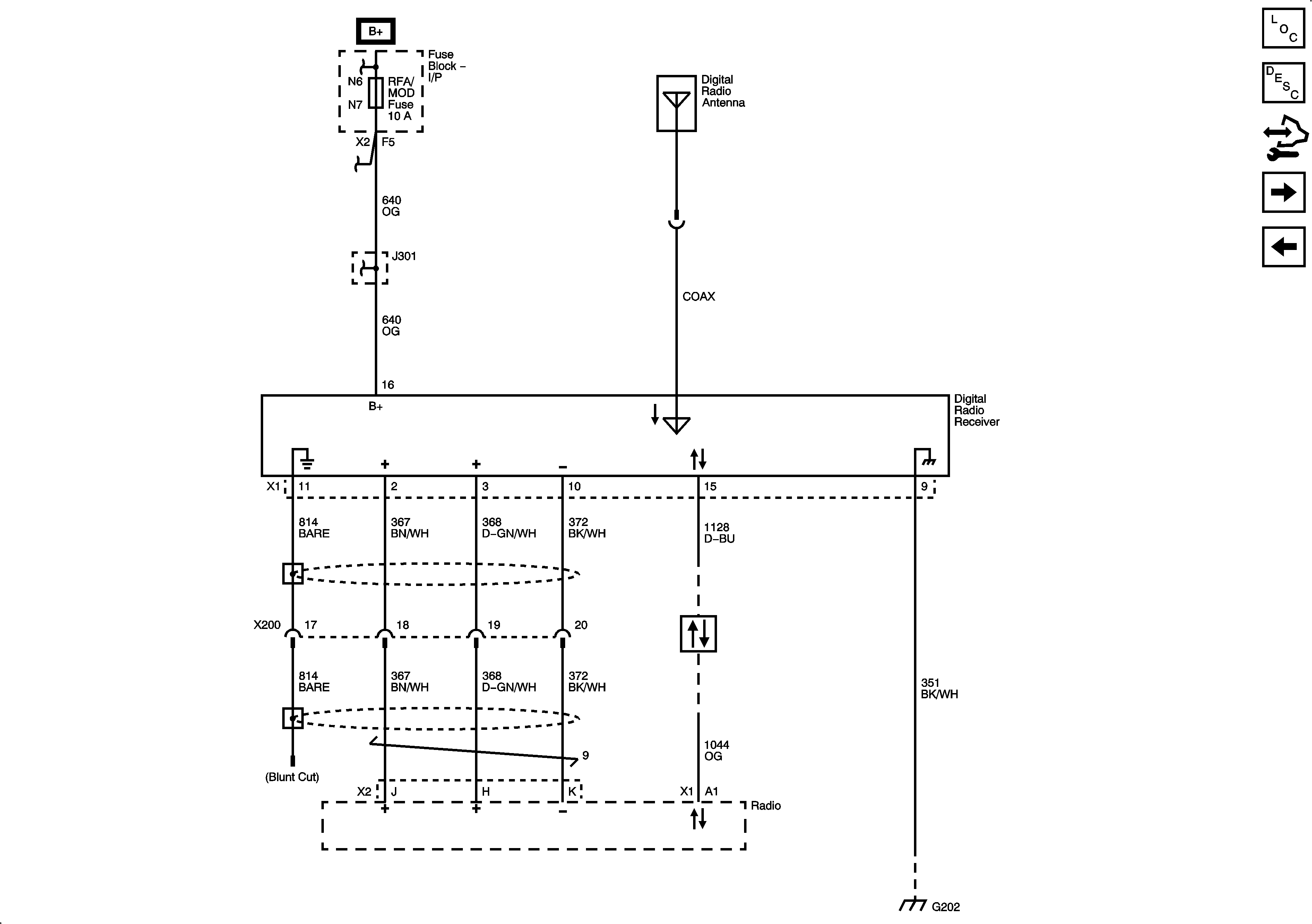

Figure 6:	Satellite Radio - U2K Master Electrical Component List Radio/Audio System Description and Operation Control Module References Steering Wheel Controls Speakers Rear - U88

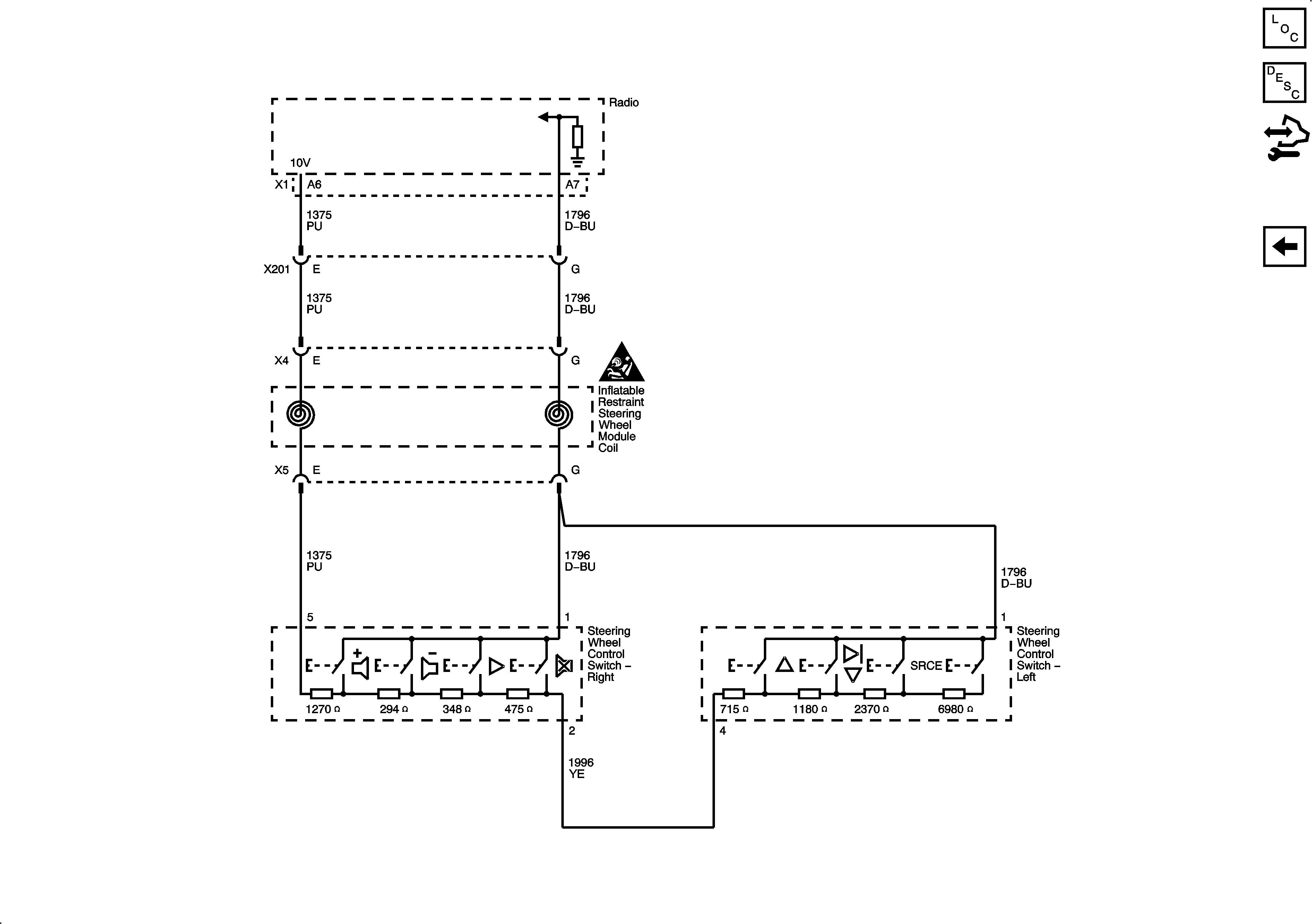

Figure 7:	Steering Wheel Controls Master Electrical Component List Radio/Audio System Description and Operation Control Module References Satellite Radio (U2K)
