Radiator Outlet Hose Replacement 2.4L LE5 Early

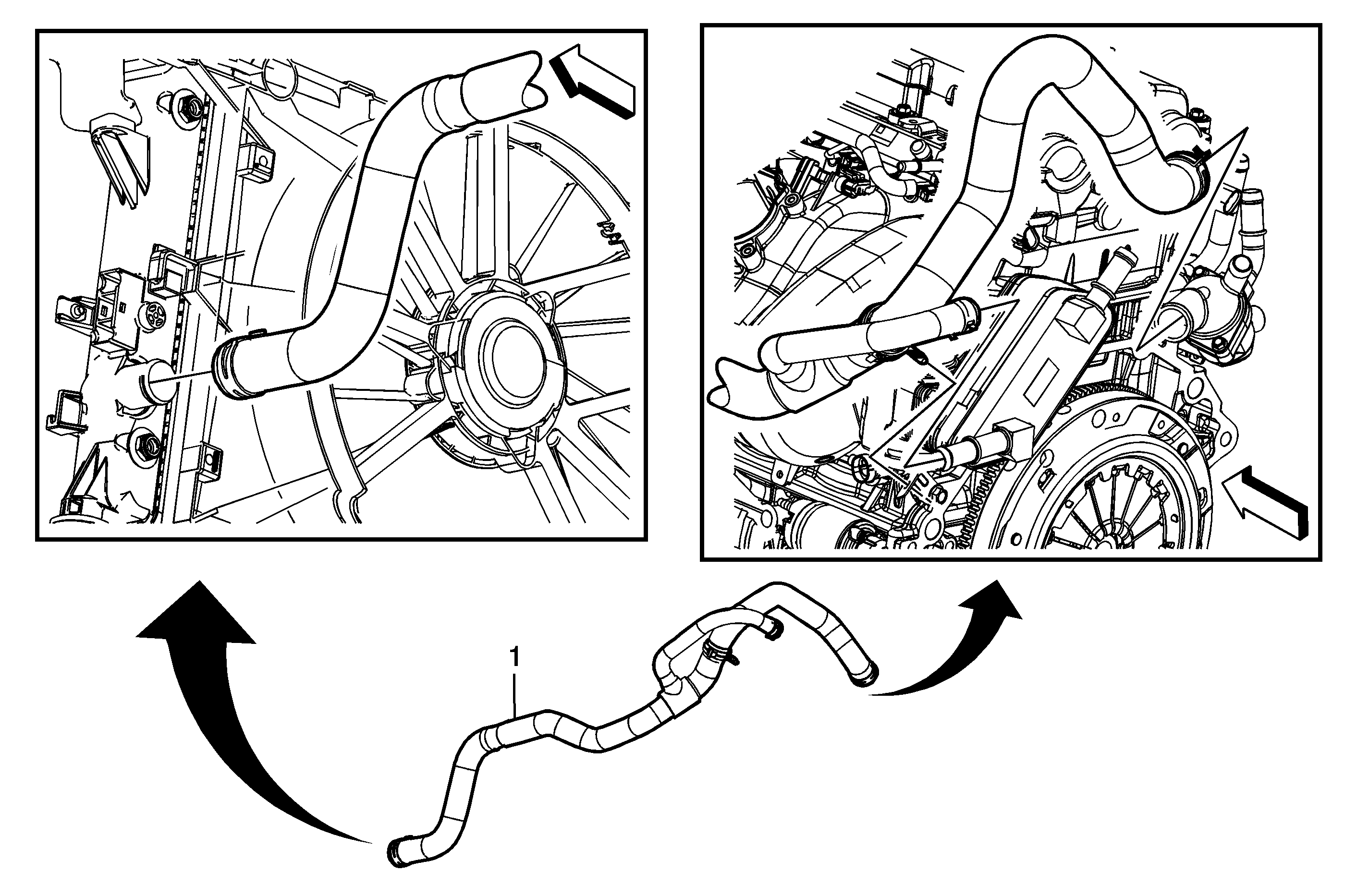

Object Number: 1586056 Size: MF

Callout

Component Name

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
  4. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

1

Hose Assembly, Radiator Outlet

Tip

    • Using J 38185 position radiator outlet hose clamps aside and remove hose from the fittings.
    • Note routing of the radiator outlet hose to ensure proper insulation.

Radiator Outlet Hose Replacement 2.4L LE5 Late


Object Number: 1709236 Size: MF

Callout

Component Name

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling .
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  3. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement in Engine Controls -- 2.4 L.
  4. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls -- 2.4 L.

1

Radiator Outlet Hose Assembly

Tip

    • Using J 38185 hose clamp pliers position radiator outlet hose clamps aside and remove hose from the fittings.
    • Remove radiator outlet hose push in retainer from the engine bracket and cradle.
    • Note routing of the radiator outlet hose to ensure proper insulation.
