Ground Distribution Schematics. Pontiac Solstice 2007

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2007 🢒 Solstice 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

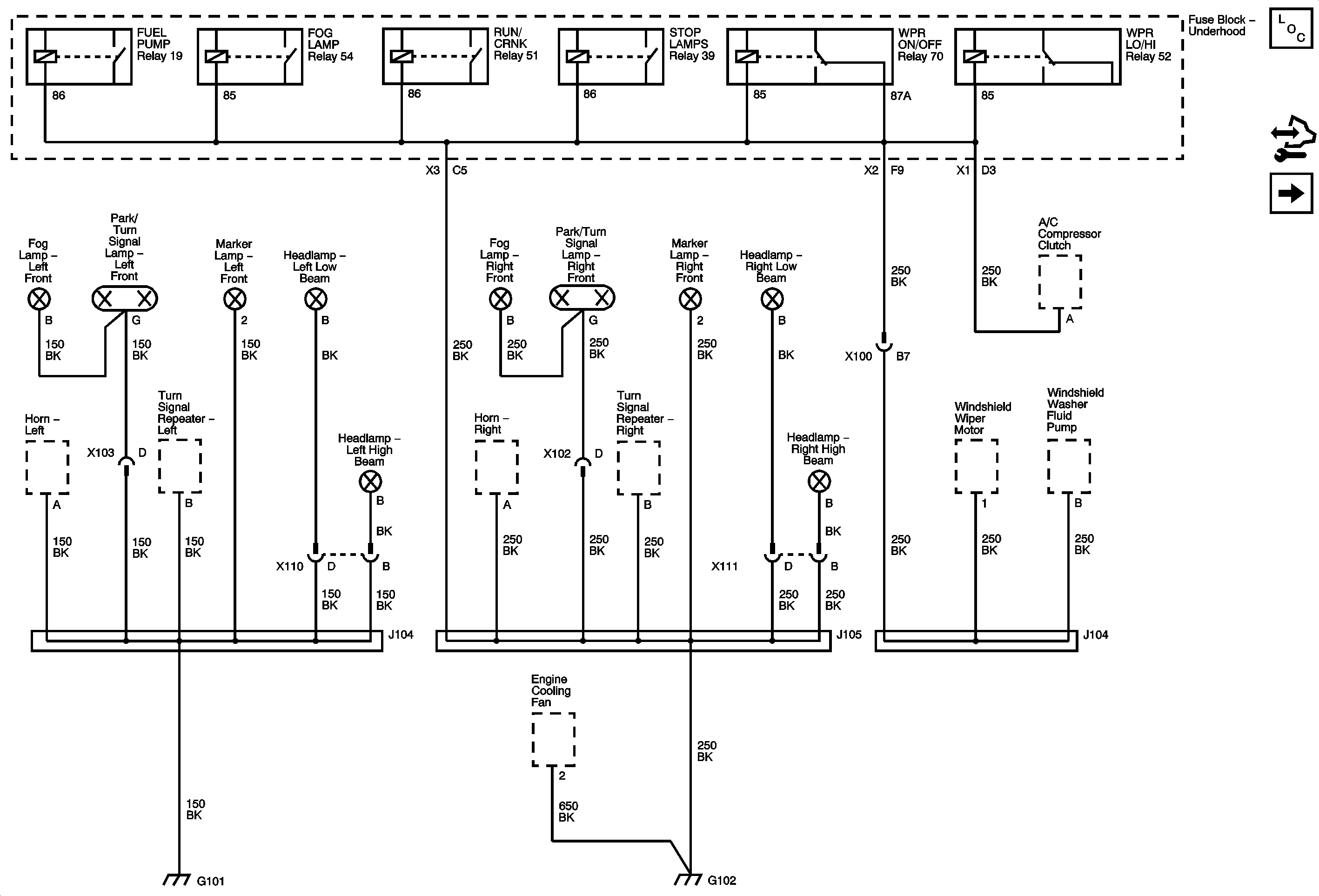

Figure 1:	G101 and G102 Master Electrical Component List Control Module References G103, G304, G105, G104, and G106

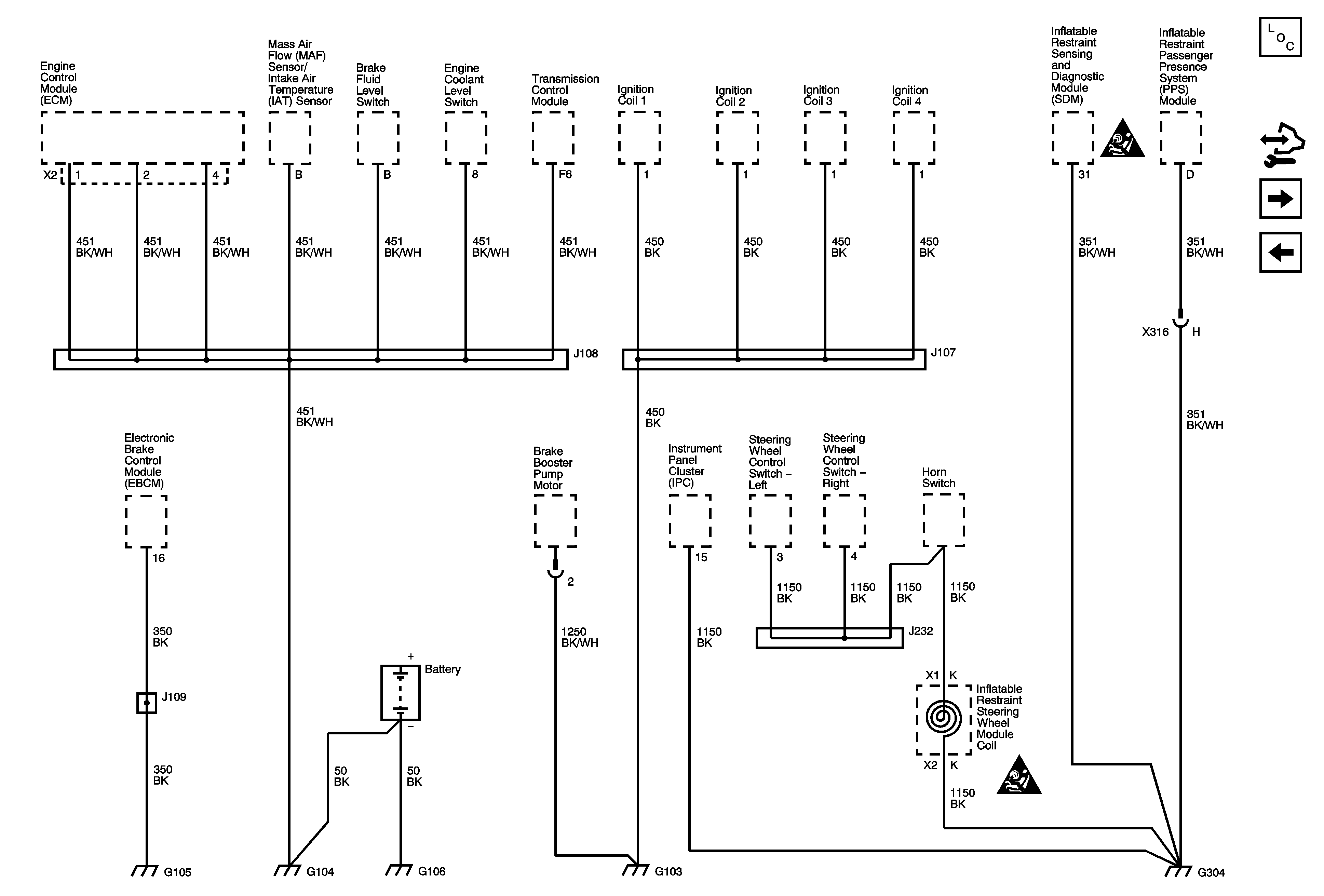

Figure 2:	G103, G304, G105, G104, and G106 Master Electrical Component List Control Module References G300 - 1 of 2 G101 and G102 Power and Grounding Schematic Icons Power and Grounding Schematic Icons

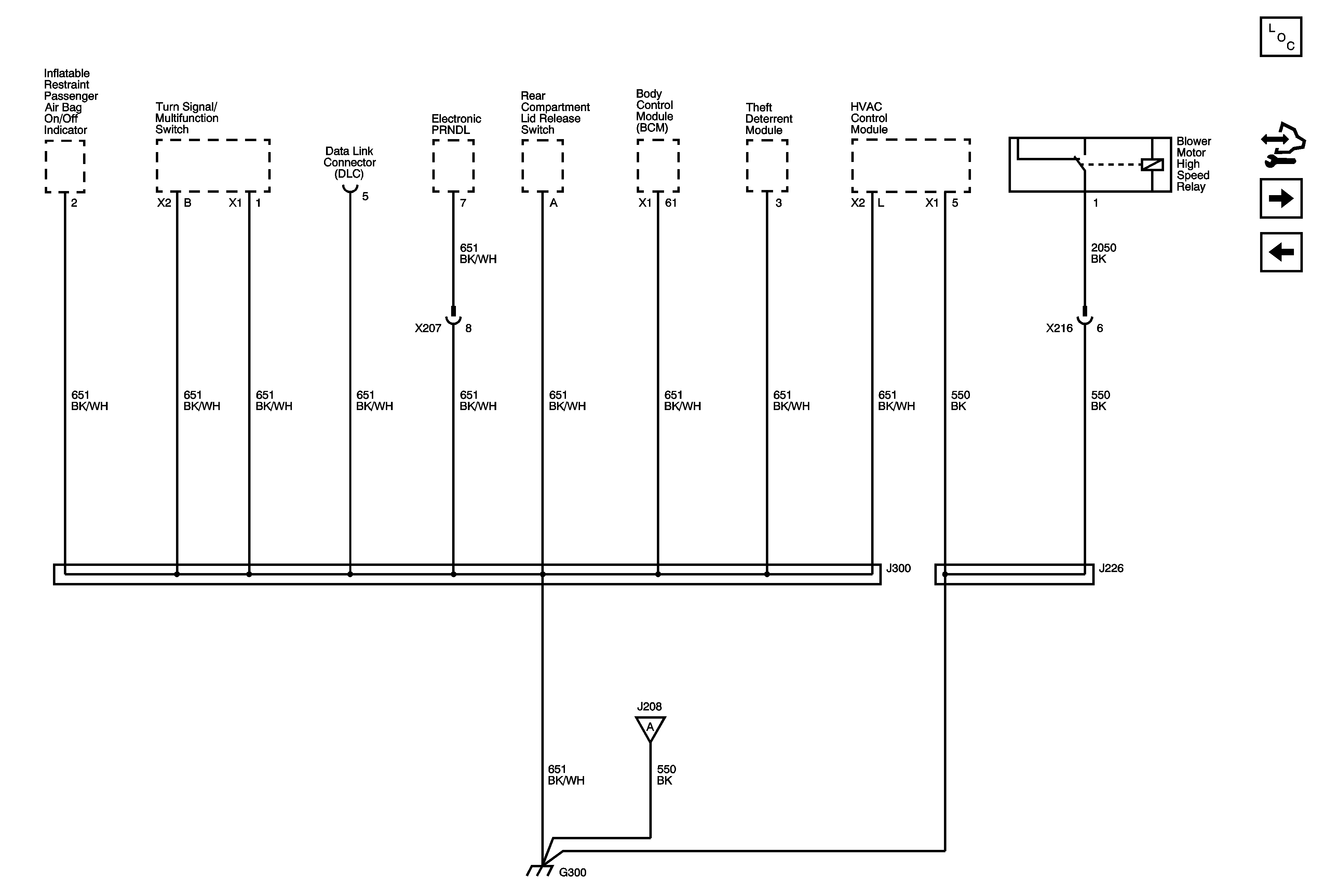

Figure 3:	G300 - 1 of 2 Master Electrical Component List Control Module References G300 - 2 of 2 G103, G304, G105, G104, and G106 G300 - 2 of 2

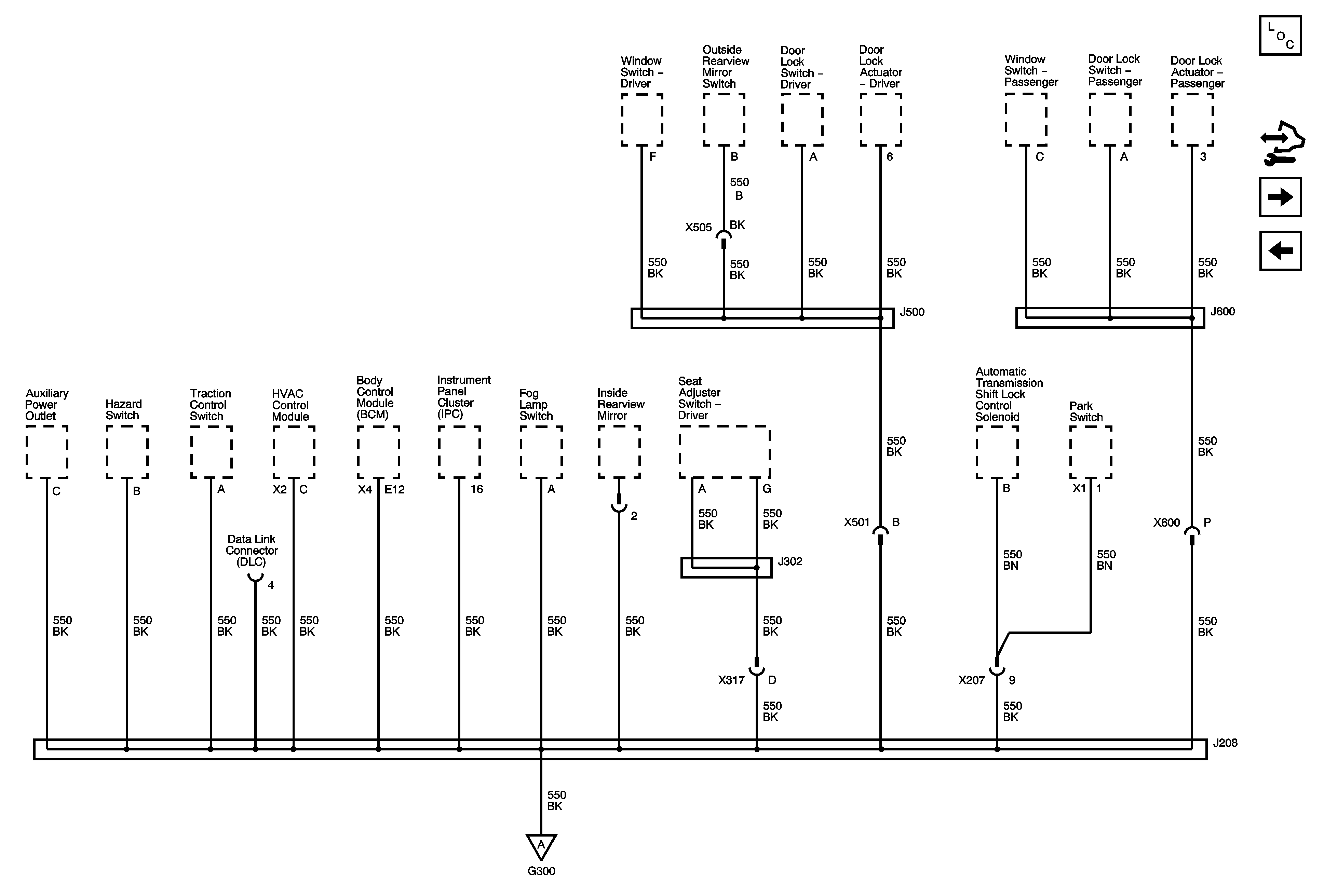

Figure 4:	G300 - 2 of 2 Master Electrical Component List Control Module References G301, G302, G303, G400 and G402 G300 - 1 of 2 G300 - 1 of 2

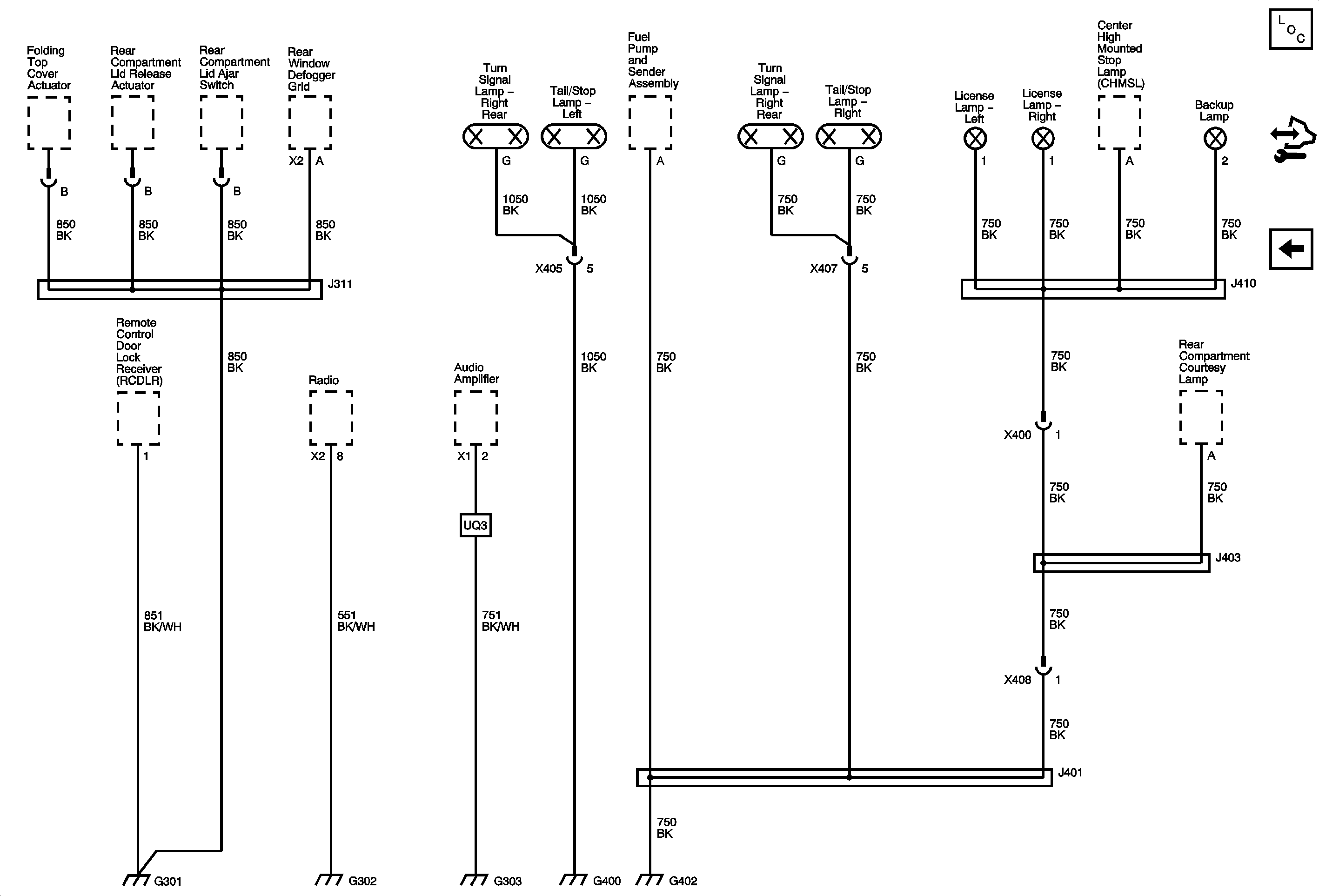

Figure 5:	G301, G302, G303, G400, and G402 Master Electrical Component List Control Module References G300 - 2 of 2

Figure 1:	G101 and G102 Master Electrical Component List Control Module References G103, G304, G105, G104, and G106
Figure 2:	G103, G204, G105, G104, and G106 Master Electrical Component List Control Module References G300 - 1 of 2 G101 and G102 Power and Grounding Schematic Icons Power and Grounding Schematic Icons
Figure 3:	G201 - 1 of 2 Master Electrical Component List Control Module References G300 - 2 of 2 G103, G304, G105, G104, and G106 G300 - 2 of 2
Figure 4:	G201 - 2 of 2 Master Electrical Component List Control Module References G301, G102, G303, and G402 G300 - 1 of 2 G300 - 1 of 2
Figure 5:	G301, G102, G303, and G402 Master Electrical Component List Control Module References G300 - 2 of 2
