Power and Grounding Component Views. Pontiac Solstice 2007

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2007 🢒 Solstice 🢒 Engine 🢒 Engine Electrical 🢒 Power and Grounding Component Views

Figure 1:

Front Engine Compartment - Grounds


(1)	G101
(2)	G105
(3)	G102

Figure 2:

Fuse Block - Underhood Connectors


(1)	Fuse Block - Underhood C3
(2)	Fuse Block - Underhood C4
(3)	Fuse Block - Underhood Cable End Connector
(4)	Fuse Block - Underhood C1
(5)	Fuse Block - Underhood C2
(6)	G106
(7)	Wheel Well - RH
(8)	Battery
(9)	Battery Cable - Positive
(10)	Battery Cable - Negative

Figure 3:

Engine Electrical Components


(1)	G103
(2)	G104
(3)	Battery Cable - Positive
(4)	Battery Cable - Negative
(5)	Engine Harness
(6)	Fuse Block - Underhood
(7)	G106
(8)	Battery
(9)	Starter Motor
(10)	Generator
(11)	Fuse Block - Underhood

Figure 4:

Engine Compartment


(1)	Engine Harness
(2)	G103
(3)	G104 (LE5)
(4)	G104 (LNF)
(5)	Battery Cable - Negative
(6)	G106
(7)	Wheel Well - Right
(8)	Underhood Fuse Block Bracket

Figure 5:

Steering Column Components


(1)	Theft Deterrent Module
(2)	Steering Angle Sensor (JL4)
(3)	Ignition Switch Assembly
(4)	Ignition Lock Cylinder Control Actuator (M82)

Figure 6:

Behind Driver and Passenger Seats


(1)	G300
(2)	G302
(3)	G304
(4)	G303
(5)	G301

Figure 7:

Rear Chassis Harness


(1)	S405
(2)	Tail/Stop and Turn Signal Lamp - Left
(3)	Fuel Tank
(4)	Fuel Pump and Sender Assembly
(5)	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
(6)	S402
(7)	S401
(8)	G400
(9)	G402
(10)	C407
(11)	C408
(12)	Tail/Stop and Turn Signal Lamp - Right

Figure 1:

Forward Lamp Harness Routing


(1)	X103
(2)	X110
(3)	J145
(4)	J103
(5)	G105
(6)	G101
(7)	J128
(8)	J129
(9)	J146
(10)	J115
(11)	G102
(12)	X111
(13)	X102
(14)	J105
(15)	J147
(16)	J101
(17)	J109
(18)	J131
(19)	J100

Figure 2:

Fuse Block - Underhood Connectors


(1)	Fuse Block - Underhood X3
(2)	Fuse Block - Underhood X4
(3)	Fuse Block - Underhood Cable End Connector
(4)	Fuse Block - Underhood X1
(5)	Fuse Block - Underhood X2
(6)	G106
(7)	Wheel Well - Right Side
(8)	Battery Cable - Negative
(9)	Battery
(10)	Battery Cable - Positive

Figure 3:

Engine Harness Splices (LNF)


(1)	J116
(2)	J117
(3)	J106
(4)	J123
(5)	J107
(6)	J140
(7)	J108
(8)	J110
(9)	J102
(10)	J137
(11)	J141
(12)	J104
(13)	J126
(14)	J121

Figure 4:

Engine Harness Routing 1 of 2


(1)	Fuse Block - Underhood
(2)	X162
(3)	Engine Control Module (ECM)
(4)	Engine Control Module (ECM) Bracket
(5)	Splice J137
(6)	Splice J142
(7)	Electronic Brake Control Module (EBCM)
(8)	Splice J104
(9)	Engine Harness

Figure 5:

Engine Harness Routing 2 of 2 (LNF)


(1)	Splice J123
(2)	Splice J124
(3)	Engine Harness
(4)	Splice J121
(5)	X100
(6)	Fuse Block - Underhood
(7)	G103
(8)	Splice J140
(9)	Splice J107

Figure 6:

Instrument Panel Body Harness Splices - Engine Compartment and Instrument Panel


(1)	J135
(2)	X120
(3)	X122
(4)	J134
(5)	J221
(6)	J222
(7)	J210
(8)	Upper Windshield Frame
(9)	J203
(10)	J209
(11)	J207
(12)	J204
(13)	J208
(14)	J211
(15)	J212
(16)	J214
(17)	J240
(18)	Data Link Connector (DLC)
(19)	J219
(20)	J220
(21)	J216

Figure 7:

Instrument Panel Body Harness Splices - Rear Compartment Area


(1)	J415
(2)	J403
(3)	J300
(4)	J311
(5)	J318
(6)	X316
(7)	J303
(8)	J304

Figure 8:

Driver Door


(1)	Outside Rearview Mirror - Driver (D48)
(2)	Outside Rearview Mirror Connector (D48)
(3)	X501
(4)	X500
(5)	J500
(6)	J501
(7)	Window Motor - Driver
(8)	X505
(9)	Door Lock Actuator - Driver

Figure 9:

Passenger Door


(1)	Outside Rearview Mirror - Passenger (D48)
(2)	Door Lock Actuator - Passenger
(3)	Door Lock Switch - Passenger (AU3)
(4)	Window Motor - Passenger
(5)	J600
(6)	Outside Rearview Mirror Connector (D48)
(7)	X600

Figure 10:

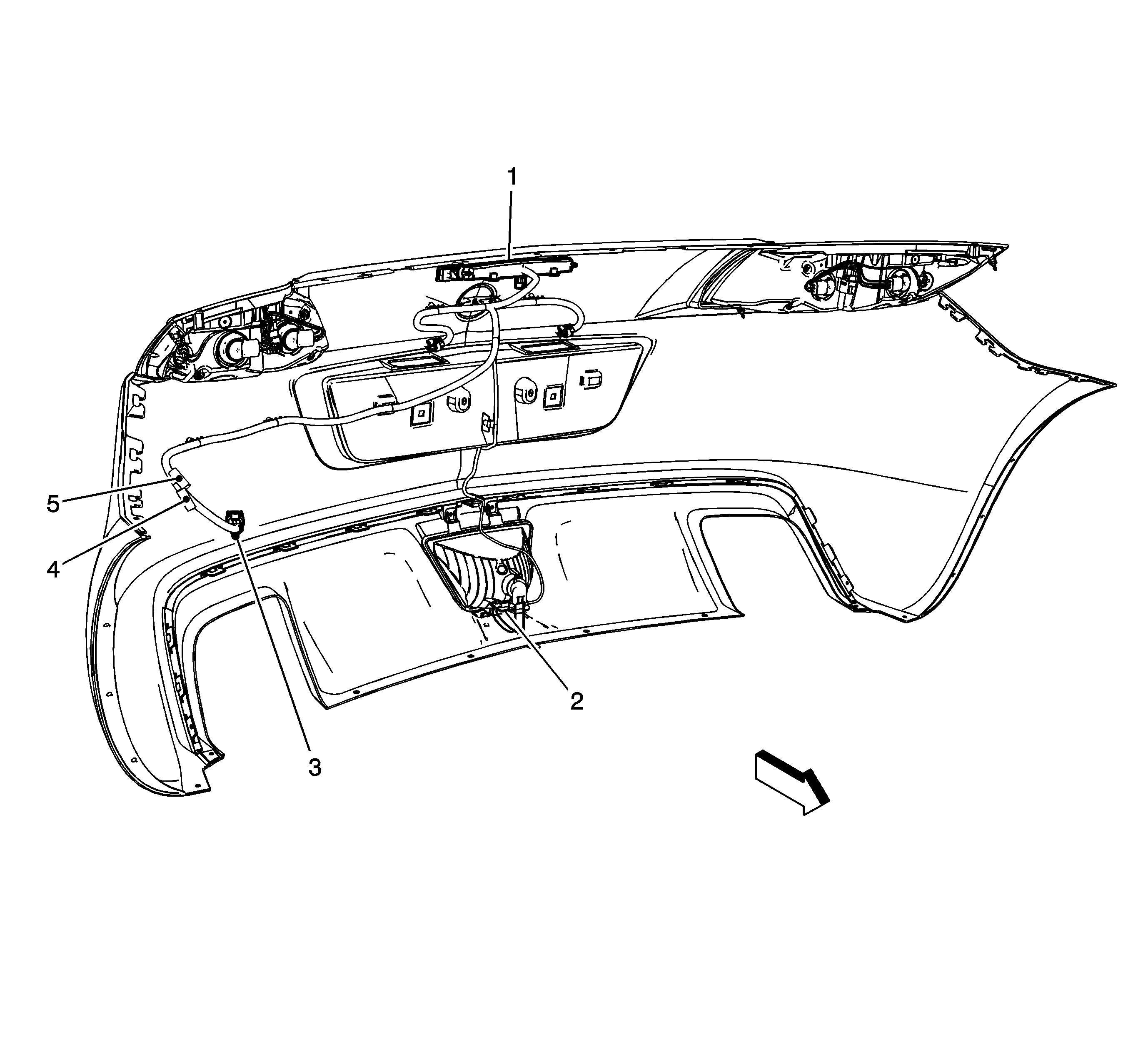

Rear Fascia Harness Routing


(1)	Center High Mounted Stop Lamp (CHMSL)
(2)	Backup Lamp
(3)	X400
(4)	J421
(5)	J410
