Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
2. Remove the air cleaner duct. Refer to Air Cleaner Outlet Resonator Replacement .
3. Disconnect the cooling fan motor electrical connector.

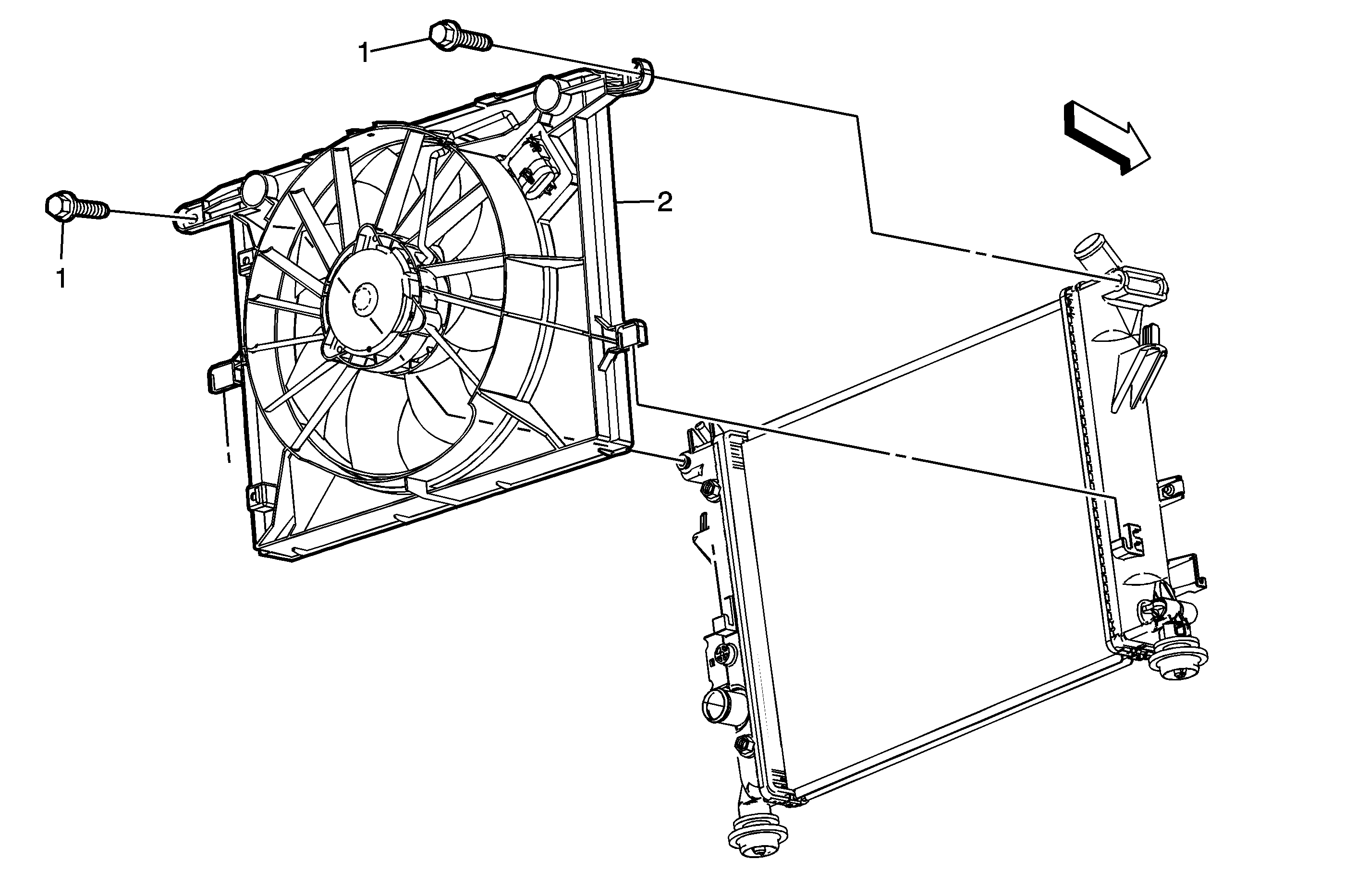

1

Bolt, Radiator Assembly

Tighten
25 N·m (18 lb ft).

2

Shroud Assembly, Cooling Fan and Motor
