Makes 🢒 Pontiac 🢒 2008 🢒 Solstice 🢒 Engine 🢒 Engine Mechanical - 2.4L 🢒 Drive Belt Replacement

Drive Belt Replacement With A/C


Object Number: 1589838 Size: MF

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Remove the power steering pump drive belt. Refer to Power Steering Pump Belt Replacement .
  3. Lower the vehicle.
  4. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .

1

Belt, Accessory Drive

Drive Belt Replacement Without A/C

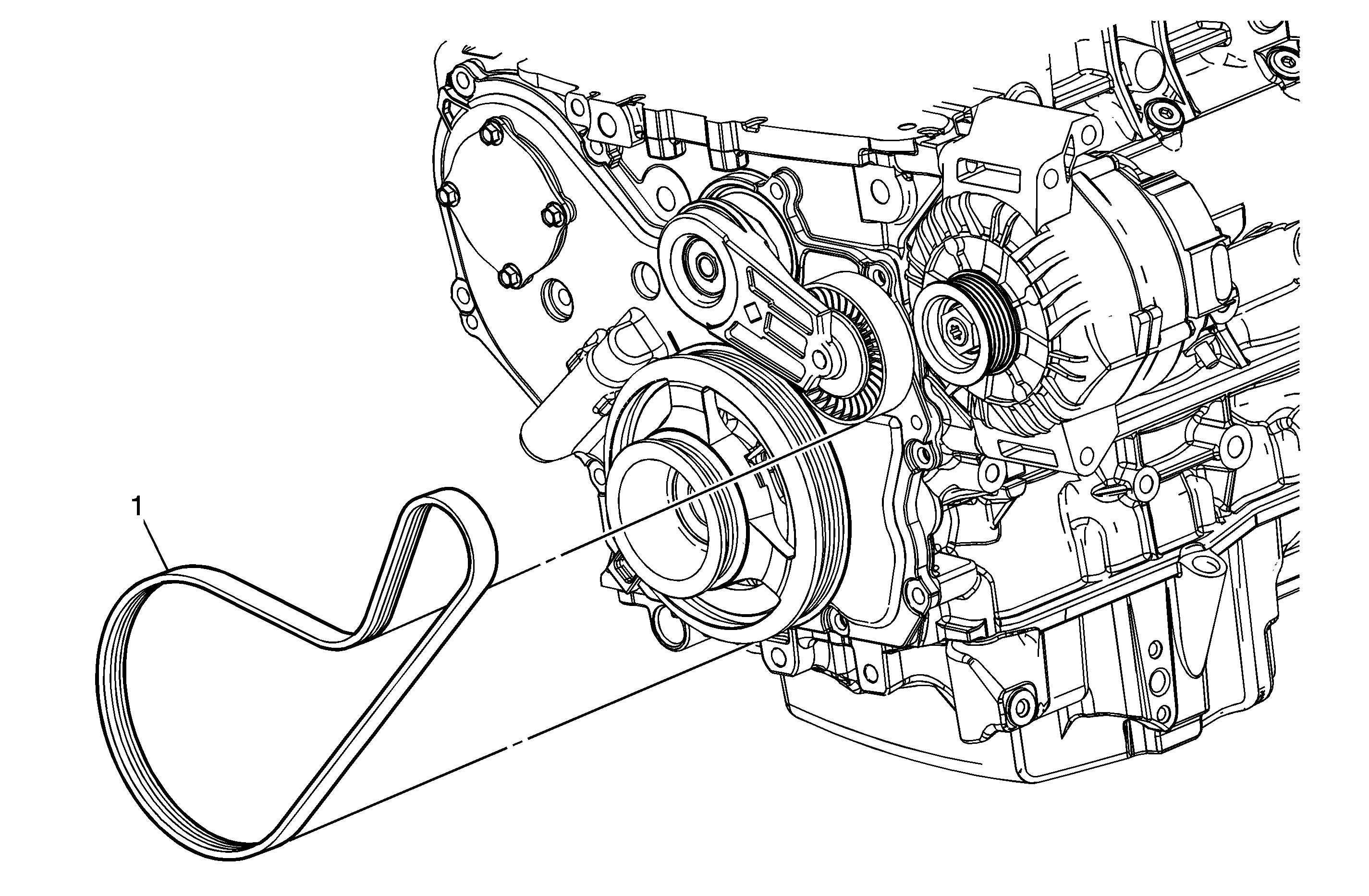

Object Number: 1715525 Size: MF

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Remove the power steering pump drive belt. Refer to Power Steering Pump Belt Replacement .
  3. Lower the vehicle.
  4. Remove the air cleaner. Refer to Air Cleaner Assembly Replacement .

1

Belt, Accessory Drive
