Component Connector End Views. Pontiac Solstice 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 Solstice 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Component Connector End Views

Connector 1:	1-2 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
Connector 2:	2-3 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
Connector 3:	4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)
Connector 4:	A/C Compressor Clutch (C60)
Connector 5:	A/C Refrigerant Pressure Sensor (C60)
Connector 6:	Accelerator Pedal Position (APP) Sensor
Connector 7:	Accessory Power Outlet
Connector 8:	Air Temperature Actuator - Left
Connector 9:	Air Temperature Actuator - Right
Connector 10:	Ambient Light Sensor
Connector 11:	Audio Amplifier - X1 (UQ3)
Connector 12:	Audio Amplifier - X2 (UQ3)
Connector 13:	Audio Amplifier - X3 (UQ3)
Connector 14:	Automatic Transmission Shift Lock Control Solenoid (M82)
Connector 15:	Backup Lamp - Left (Solstice)
Connector 16:	Backup Lamp - Right (Solstice)
Connector 17:	Backup Lamp (SKY)
Connector 18:	Backup Lamp Switch (MA5)
Connector 19:	Blower Motor
Connector 20:	Blower Motor High Speed Relay
Connector 21:	Blower Motor Resistor
Connector 22:	Body Control Module (BCM) X1
Connector 23:	Body Control Module (BCM) X2
Connector 24:	Body Control Module (BCM) X3
Connector 25:	Body Control Module (BCM) X4
Connector 26:	Brake Booster Pump Motor (Late Production LNF)
Connector 27:	Brake Booster Vacuum Sensor (LNF)
Connector 28:	Brake Fluid Level Switch
Connector 29:	Brake Pedal Position (BPP) Sensor
Connector 30:	Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust
Connector 31:	Camshaft Position (CMP) Actuator Solenoid Valve - Intake
Connector 32:	Camshaft Position (CMP) Sensor - Exhaust
Connector 33:	Camshaft Position (CMP) Sensor - Intake
Connector 34:	Cellular Telephone Microphone (UE1)
Connector 35:	Center High Mounted Stop Lamp (CHMSL)
Connector 36:	Clutch Pedal Position (CPP) Sensor (MA5)
Connector 37:	Crankshaft Position (CKP) Sensor
Connector 38:	Data Link Connector (DLC)
Connector 39:	Data Link Resistor
Connector 40:	Digital Radio Receiver (U2K)
Connector 41:	Door Lock Actuator - Driver (AU3)
Connector 42:	Door Lock Actuator - Passenger (AU3)
Connector 43:	Door Lock Switch - Driver (AU3)
Connector 44:	Door Lock Switch - Passenger (AU3)
Connector 45:	Electronic Brake Control Module (EBCM) (JL9)
Connector 46:	Engine Control Module (ECM) - X1 (LE5)
Connector 47:	Engine Control Module (ECM) - X2 (LE5)
Connector 48:	Engine Control Module (ECM) X1 (LNF)
Connector 49:	Engine Control Module (ECM) X2 (LNF)
Connector 50:	Engine Coolant Level Switch
Connector 51:	Engine Coolant Temperature (ECT) Sensor (LE5)
Connector 52:	Engine Coolant Temperature (ECT) Sensor (LNF)
Connector 53:	Engine Cooling Fan (LE5)
Connector 54:	Engine Cooling Fan (LNF)
Connector 55:	Engine Oil Pressure (EOP) Switch
Connector 56:	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
Connector 57:	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
Connector 58:	Evaporator Temperature Sensor (C60)
Connector 59:	Fog Lamp - Left Front (T96)
Connector 60:	Fog Lamp - Right Front (T96)
Connector 61:	Fog Lamp Switch (T96)
Connector 62:	Folding Top Cover Actuator
Connector 63:	Fuel Injector 1 (LE5)
Connector 64:	Fuel Injector 1 (LNF)
Connector 65:	Fuel Injector 2 (LE5)
Connector 66:	Fuel Injector 2 (LNF)
Connector 67:	Fuel Injector 3 (LE5)
Connector 68:	Fuel Injector 3 (LNF)
Connector 69:	Fuel Injector 4 (LE5)
Connector 70:	Fuel Injector 4 (LNF)
Connector 71:	Fuel Pump and Sender Assembly
Connector 72:	Fuel Rail Pressure (FRP) Sensor (LNF)
Connector 73:	Fuel Tank Pressure (FTP) Sensor
Connector 74:	Generator X1
Connector 75:	Generator X2
Connector 76:	Hazard Warning Switch (SKY)
Connector 77:	Hazard Warning Switch (Solstice)
Connector 78:	Headlamp - Left High Beam (SKY)
Connector 79:	Headlamp - Left Low Beam (SKY)
Connector 80:	Headlamp - Left (Solstice)
Connector 81:	Headlamp - Right High Beam (SKY)
Connector 82:	Headlamp - Right Low Beam (SKY)
Connector 83:	Headlamp - Right (Solstice)
Connector 84:	Heated Oxygen Sensor (HO2S) 1 (LE5)
Connector 85:	Heated Oxygen Sensor (HO2S) 1 (LNF)
Connector 86:	Heated Oxygen Sensor (HO2S) 2 (LE5)
Connector 87:	Heated Oxygen Sensor (HO2S) 2 (LNF)
Connector 88:	High Pressure Fuel Pump (LNF)
Connector 89:	Horn
Connector 90:	Horn Switch
Connector 91:	HVAC Control Module X1
Connector 92:	HVAC Control Module X2
Connector 93:	HVAC Control Module X3
Connector 94:	I/P Dimmer Switch (SKY)
Connector 95:	I/P Dimmer Switch (Solstice)
Connector 96:	Ignition Coil 1
Connector 97:	Ignition Coil 2
Connector 98:	Ignition Coil 3
Connector 99:	Ignition Coil 4
Connector 100:	Ignition Switch
Connector 101:	Inflatable Restraint Front End Sensor - Left
Connector 102:	Inflatable Restraint Front End Sensor - Right
Connector 103:	Inflatable Restraint I/P Module X1
Connector 104:	Inflatable Restraint I/P Module X2
Connector 105:	Inflatable Restraint I/P Module Indicator
Connector 106:	Inflatable Restraint Passenger Presence System (PPS) Module
Connector 107:	Inflatable Restraint Sensing and Diagnostic Module (SDM)
Connector 108:	Inflatable Restraint Steering Wheel Module X1
Connector 109:	Inflatable Restraint Steering Wheel Module X2
Connector 110:	Inflatable Restraint Steering Wheel Module Coil X1
Connector 111:	Inflatable Restraint Steering Wheel Module Coil X2
Connector 112:	Inflatable Restraint Steering Wheel Module Coil X3
Connector 113:	Input Speed Sensor (ISS), Wiring Harness Side (M82)
Connector 114:	Inside Rearview Mirror (ISRVM) (UE1)
Connector 115:	Inside Rearview Mirror (ISRVM) (without UE1)
Connector 116:	Instrument Panel Cluster (IPC)
Connector 117:	Intake Air Pressure and Temperature Sensor (LNF)
Connector 118:	Knock Sensor (LE5)
Connector 119:	Knock Sensor (KS) - 1 (LNF)
Connector 120:	Knock Sensor (KS) - 2 (LNF)
Connector 121:	License Lamp
Connector 122:	Manifold Absolute Pressure (MAP) Sensor (LE5)
Connector 123:	Manifold Absolute Pressure (MAP) Sensor (LNF)
Connector 124:	Marker Lamp - Left Front
Connector 125:	Marker Lamp - Left Rear (SKY)
Connector 126:	Marker Lamp - Right Front
Connector 127:	Marker Lamp - Right Rear (SKY)
Connector 128:	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Connector 129:	Mode Actuator
Connector 130:	Output Speed Sensor (OSS), Wiring Harness Side (M82)
Connector 131:	Outside Air Temperature Sensor (SKY)
Connector 132:	Outside Rearview Mirror - Driver (D48)
Connector 133:	Outside Rearview Mirror - Passenger (D48)
Connector 134:	Outside Rearview Mirror Switch (D48)
Connector 135:	Park Brake Switch
Connector 136:	Park Lamp - Left Front (SKY)
Connector 137:	Park Lamp - Right Front (SKY)
Connector 138:	Park/Turn Signal Lamp - Left (Solstice)
Connector 139:	Park/Turn Signal Lamp - Right (Solstice)
Connector 140:	Pressure Control (PC) Solenoid Valve, Wiring Harness Side (M82)
Connector 141:	Radio - X1
Connector 142:	Radio - X2
Connector 143:	Rear Compartment Courtesy Lamp
Connector 144:	Rear Compartment Lid Ajar Switch
Connector 145:	Rear Compartment Lid Latch Release Actuator
Connector 146:	Rear Compartment Lid Release Switch
Connector 147:	Rear Window Defogger Grid X1
Connector 148:	Rear Window Defogger Grid X2
Connector 149:	Recirculation Actuator
Connector 150:	Remote Control Door Lock Receiver (RCDLR) (AU3/AU0)
Connector 151:	Seat Adjuster Switch - Driver (AF2)
Connector 152:	Seat Belt Pretensioner - Driver (Solstice)
Connector 153:	Seat Belt Pretensioner - Driver (SKY)
Connector 154:	Seat Belt Pretensioner - Passenger
Connector 155:	Seat Belt Switch - Driver
Connector 156:	Seat Belt Switch - Passenger
Connector 157:	Seat Front Vertical Motor - Driver (AF2)
Connector 158:	Speaker - Left Front (UQ3)
Connector 159:	Speaker - Left Front (UW5)
Connector 160:	Speaker - Left Rear (UQ3)
Connector 161:	Speaker - Left Rear (UW5)
Connector 162:	Speaker - Left Tweeter
Connector 163:	Speaker - Right Front (UQ3)
Connector 164:	Speaker - Right Front (UW5)
Connector 165:	Speaker - Right Rear (UQ3)
Connector 166:	Speaker - Right Rear (UW5)
Connector 167:	Speaker - Right Tweeter
Connector 168:	Speaker - Subwoofer (UQ3)
Connector 169:	Starter Motor X1
Connector 170:	Starter Motor X2 (LE5)
Connector 171:	Starter Motor X2 (LNF)
Connector 172:	Steering Angle Sensor (JL9)
Connector 173:	Steering Wheel Control Switch - Left (K34)
Connector 174:	Steering Wheel Control Switch - Right (UK3)
Connector 175:	Tail/Stop and Turn Signal Lamp - Left (SKY)
Connector 176:	Tail/Stop and Turn Signal Lamp - Left (Solstice)
Connector 177:	Tail/Stop and Turn Signal Lamp - Right (SKY)
Connector 178:	Tail/Stop and Turn Signal Lamp - Right (Solstice)
Connector 179:	Theft Deterrent Module (TDM)
Connector 180:	Throttle Body
Connector 181:	Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve, Wiring Harness Side (M82)
Connector 182:	Traction Control Switch (TCS) (JL9)
Connector 183:	Transmission Control Module (TCM) (M82)
Connector 184:	Transmission Manual Shift Shaft Switch, Wiring Harness Side (M82)
Connector 185:	Turbocharger Bypass Valve Solenoid (LNF)
Connector 186:	Turbocharger Wastegate Solenoid (LNF)
Connector 187:	Turn Signal Lamp - Left Front (SKY)
Connector 188:	Turn Signal Lamp - Right Front (SKY)
Connector 189:	Turn Signal/Multifunction Switch X1
Connector 190:	Turn Signal/Multifunction Switch X2
Connector 191:	Vehicle Communication Interface Module (VCIM) X1 (UE1)
Connector 192:	Vehicle Communication Interface Module (VCIM) X2 (UE1)
Connector 193:	Vehicle Communication Interface Module (VCIM) X4 (UE1)
Connector 194:	Vehicle Speed Sensor (VSS) (MA5)
Connector 195:	Wheel Speed Sensor (WSS) - Left Front
Connector 196:	Wheel Speed Sensor (WSS) - Left Rear
Connector 197:	Wheel Speed Sensor (WSS) - Right Front
Connector 198:	Wheel Speed Sensor (WSS) - Right Rear
Connector 199:	Window Motor - Driver (A31)
Connector 200:	Window Motor - Passenger (A31)
Connector 201:	Window Switch - Driver (A31)
Connector 202:	Window Switch - Passenger (A31)
Connector 203:	Windshield Washer Fluid Pump
Connector 204:	Windshield Wiper Motor
Connector 205:	Windshield Wiper/Washer Switch
Connector 206:	Yaw and Lateral Accelerometer Sensor (JL9)

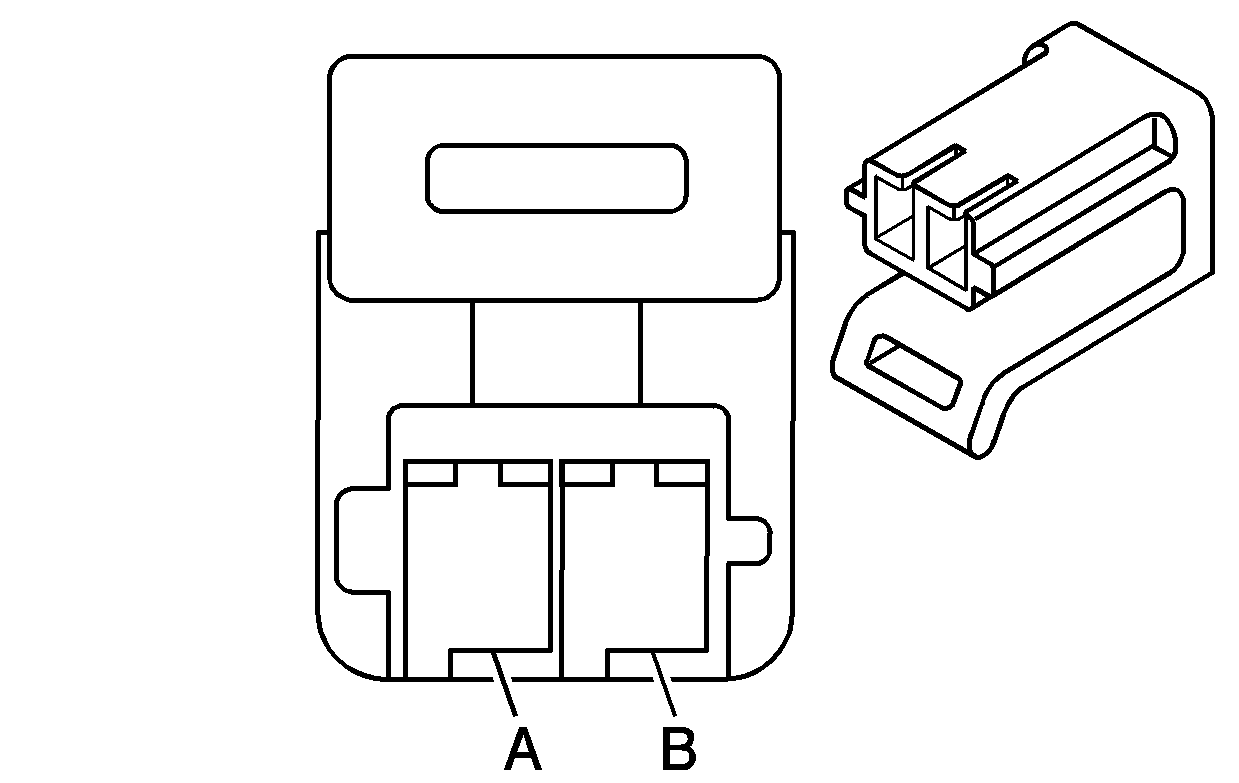

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Connector Part Information

OEM: 12146094
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (GY)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	BK	1222	1-2 Shift Solenoid Valve Control
B	WH	1525	Clutch Pressure Control Solenoid Valve 1 High Control

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Connector Part Information

OEM: 12146094
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (GY)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	BU	1223	2-3 Shift Solenoid Valve Control
B	WH	1525	Clutch Pressure Control Solenoid Valve 1 High Control

4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Connector Part Information

OEM: 12146094
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (GY)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

4-5 Shift Solenoid (SS) Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	GY	898	4-5 Shift Solenoid Valve Control
B	WH	1525	Clutch Pressure Control Solenoid Valve 1 High Control

A/C Compressor Clutch (C60)

Connector Part Information

OEM: 12052644
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

A/C Compressor Clutch (C60)

Pin	Wire	Circuit	Function
A	0.5 BK	250	Ground
B	0.5 D-GN	59	A/C Compressor Clutch Supply Voltage

A/C Refrigerant Pressure Sensor (C60)

Connector Part Information

OEM: 13532244
Service: See Catalog
Description: 3-Way F GT 150 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

A/C Refrigerant Pressure Sensor (C60)

Pin	Wire	Circuit	Function
1	0.35 TN	5514	Low Reference
2	0.35 GY	2700	5-Volt Reference 3
3	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal

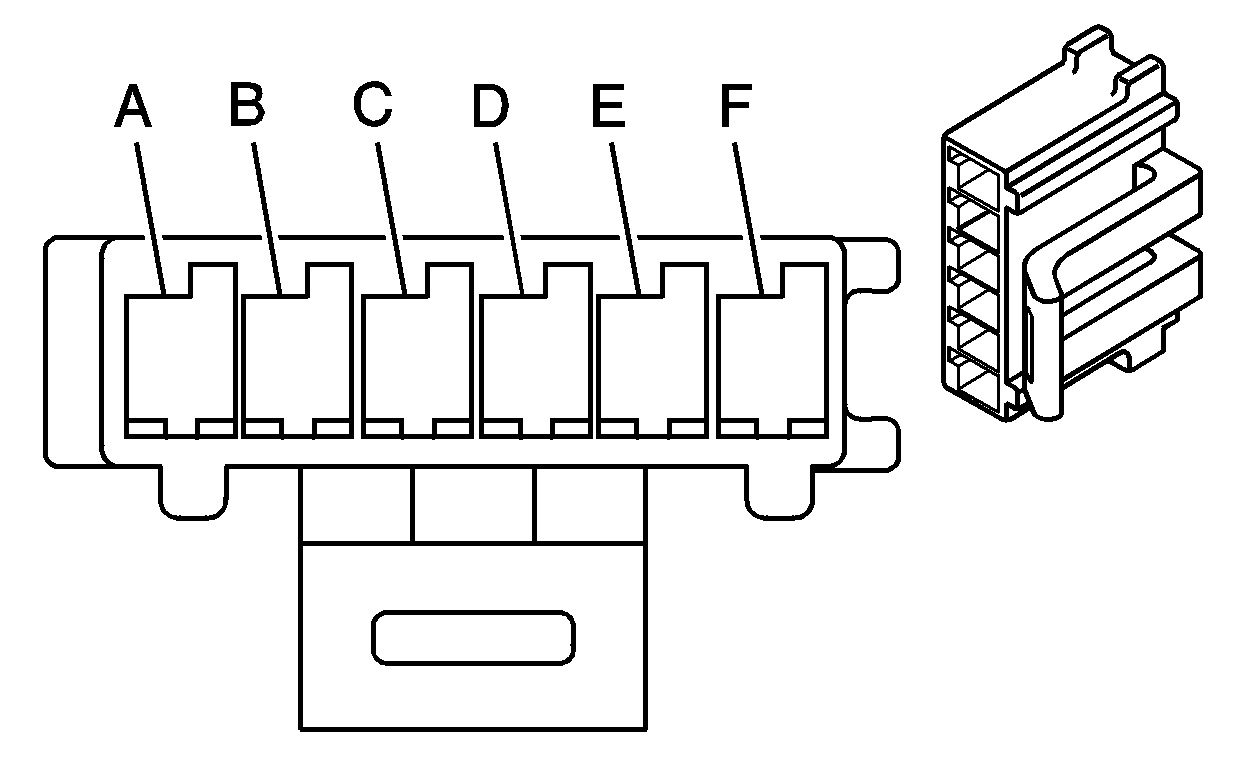

Accelerator Pedal Position (APP) Sensor

Connector Part Information

OEM: 15397577
Service: See Catalog
Description: 6-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191818/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Accelerator Pedal Position (APP) Sensor

Pin	Wire	Circuit	Function
A	0.35 PU	1272	Low Reference
B	0.35 L-BU	1162	Adjustable Accelerator Pedal Position Sensor 2 Signal
C	0.35 TN	1274	5-Volt Reference 3
D	0.35 BN	1271	Low Reference
E	0.35 D-BU	1161	Adjustable Accelerator Pedal Position Sensor 1 Signal
F	0.35 WH/BK	1164	5-Volt Reference 2

Accessory Power Outlet

Connector Part Information

OEM: 12176836
Service: 15305923
Description: 3-Way F Metri-Pack 280 Series (GY)

Terminal Part Information

Pins: A, C
Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Accessory Power Outlet

Pin	Wire	Circuit	Function
A	1.0 RD/WH	240	Battery Positive Voltage
B	--	--	Not Used
C	1.0 BK	550	Ground

Air Temperature Actuator - Left

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Air Temperature Actuator - Left

Pin	Wire	Circuit	Function
1	0.35 YE	1791	Low Reference
2	0.35 L-BU	733	Air Temperature Door Position Signal
3	0.35 L-BU/BK	1688	5-Volt Reference
4	0.35 D-BU	1199	Air Temperature Door Control
5	0.35 L-GN/BK	1647	Recirculation Door Control B

Air Temperature Actuator - Right

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Air Temperature Actuator - Right

Pin	Wire	Circuit	Function
1	0.35 YE	1791	Low Reference
2	0.35 D-BU	1646	Passenger Air Temperature Door Position Signal
3	0.35 L-BU/BK	1688	5-Volt Reference
4	0.35 L-GN/BK	1647	Open Recirculation Door Control
5	0.35 TN	2273	Mode Door Control

Ambient Light Sensor

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Ambient Light Sensor

Pin	Wire	Circuit	Function
A	0.35 L-GN/BK	1137	Daylight Running Lights Ambient Light Sensor Signal
B	0.35 YE/BK	1138	Low Reference

Audio Amplifier - X1 (UQ3)

Connector Part Information

OEM: 6098-4713
Service: 88988652
Description: 8-Way F (BK)

Terminal Part Information

Pins: 1, 2
Terminal/Tray: 8100-4445/22
Core/Insulation Crimp: 4/4
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Pins: 3, 4, 7, 8
Terminal/Tray: 8100-4444/22
Core/Insulation Crimp: 2/A
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Audio Amplifier - X1 (UQ3)

Pin	Wire	Circuit	Function
1	2.0 RD/WH	640	Battery Positive Voltage
2	2.0 BK/WH	751	Ground
3	0.8 D-BU/WH	346	Left Subwoofer Speaker Output (+)
4	0.8 L-GN/BK	1794	Left Subwoofer Speaker Output (-)
5-6	--	--	Not Used
7	0.8 L-BU/BK	315	Right Subwoofer Speaker Output (-)
8	0.8 D-GN	1795	Right Subwoofer Speaker Output (+)

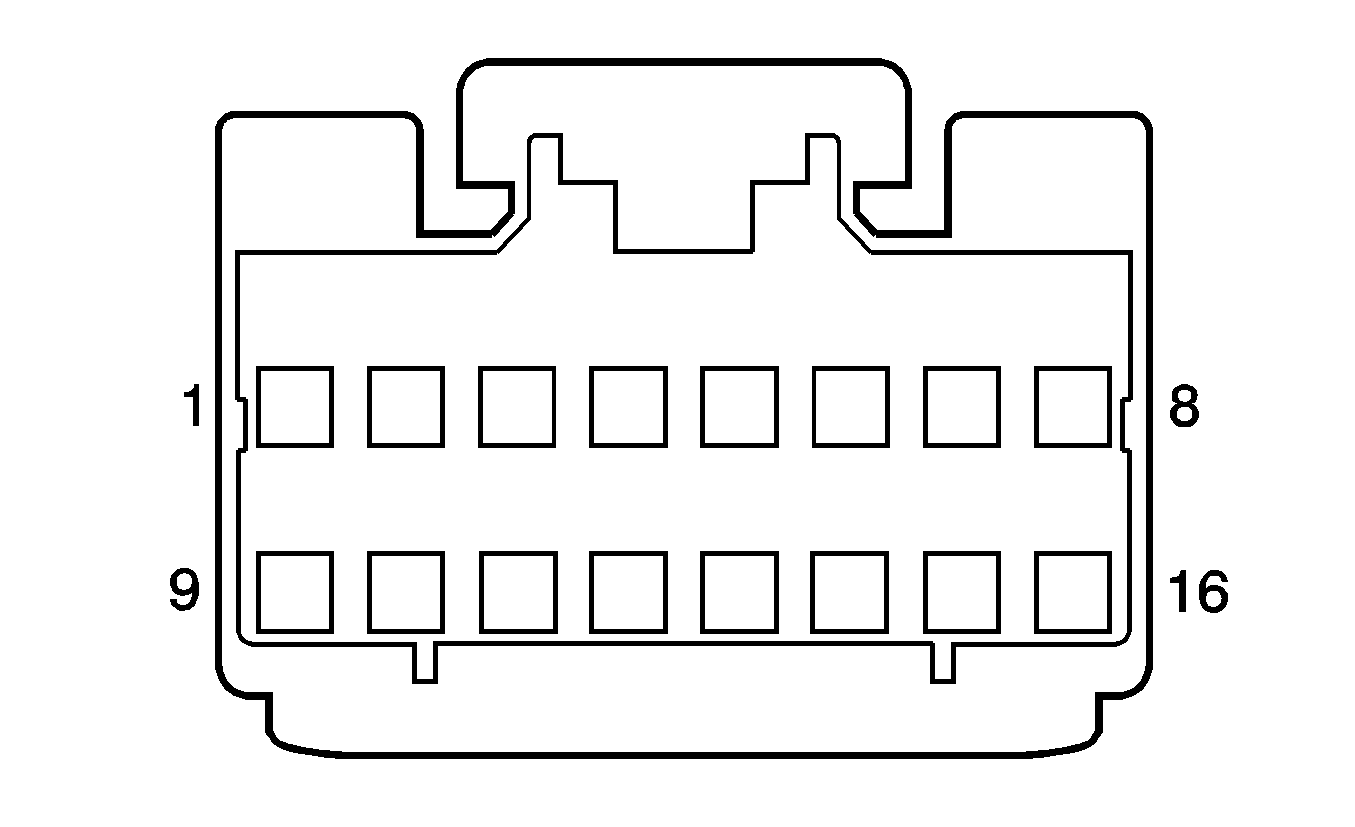

Audio Amplifier - X2 (UQ3)

Connector Part Information

OEM: 6098-4611
Service: 15134091
Description: 16-Way F (BK)

Terminal Part Information

Pins: 1-8, 13-16
Terminal/Tray: 8240-0128/22
Core/Insulation Crimp: Pins 1-8 - C/A
Core/Insulation Crimp: Pins 13-16 - See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Audio Amplifier - X2 (UQ3)

Pin	Wire	Circuit	Function
1	0.8 YE	1956	Left Tweeter Speaker Output (-)
2	0.8 TN	1856	Left Tweeter Speaker Output (+)
3	0.8 PU	1952	Right Tweeter Speaker Output (-)
4	0.8 L-GN	1852	Right Tweeter Speaker Output (+)
5	0.8 YE	116	Left Rear Speaker Signal Output (-)
6	0.8 BN	199	Left Rear Speaker Output (+)
7	0.8 L-BU	115	Right Rear Speaker Signal Output (-)
8	0.8 D-BU	46	Right Rear Speaker Output (+)
9-12	--	--	Not Used
13	1.0 L-GN	200	Right Front Speaker Output (+)
14	1.0 D-GN	117	Right Front Speaker Signal Output (-)
15	1.0 TN	201	Left Front Speaker Output (+)
16	1.0 GY	118	Left Front Speaker Signal Output (-)

Audio Amplifier - X3 (UQ3)

Connector Part Information

OEM: 7283-9076-30
Service: 15394150
Description: 16-Way F (BK)

Terminal Part Information

Pins: 1-4, 6, 9-12, 16
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Audio Amplifier - X3 (UQ3)

Pin	Wire	Circuit	Function
1	0.5 TN	511	Left Front Low Level Audio Signal (+)
2	0.5 D-GN	1947	Left Front Low Level Audio Signal (-)
3	0.5 BN	1999	Left Rear Low Level Audio Signal (-)
4	0.5 BN/WH	599	Left Rear Low Level Audio Signal
5	--	--	Not Used
6	0.35 PK	314	Radio On Signal
7-8	--	--	Not Used
9	0.5 L-GN	1948	Right Front Low Level Audio Signal (-)
10	0.5 L-GN/WH	512	Right Front Low Level Audio Signal (+)
11	0.5 D-BU	546	Right Rear Low Level Audio Signal (+)
12	0.5 TN	1946	Right Rear Low Level Audio Signal (-)
13-15	--	--	Not Used
16	0.35 L-GN	1011	Remote Radio Control Signal

Automatic Transmission Shift Lock Control Solenoid (M82)

Connector Part Information

OEM: 12052832
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Automatic Transmission Shift Lock Control Solenoid (M82)

Pin	Wire	Circuit	Function
A	0.5 D-GN/WH	1932	Ignition Lock Cylinder Control Actuator Signal
B	0.35 BN	4	Accessory Voltage

Backup Lamp - Left (Solstice)

Connector Part Information

OEM: 15435155
Service: See Catalog
Description: 3-Way F (NA)

Terminal Part Information

Pins: A
Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: 0.35 E/1
Release Tool/Test Probe:12094430/J-35616-3 (GY)

Pins: G
Terminal/Tray: Service w/Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Backup Lamp - Left (Solstice)

Pin	Wire	Circuit	Function
A	0.5 L-GN	24	Backup Lamp Supply Voltage
B	--	--	Not Used
G	0.5 BK	750	Ground

Backup Lamp - Right (Solstice)

Connector Part Information

OEM: 15435155
Service: See Catalog
Description: 3-Way F (NA)

Terminal Part Information

Pins: A
Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: 0.35 E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

Pins: G
Terminal/Tray: Service w/Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Backup Lamp - Right (Solstice)

Pin	Wire	Circuit	Function
A	0.5 L-GN	24	Backup Lamp Supply Voltage
B	--	--	Not Used
G	0.5 BK	750	Ground

Backup Lamp (SKY)

Connector Part Information

OEM: 15326801
Service: See Catalog
Description: 2-Way F GTISO Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Backup Lamp (SKY)

Pin	Wire	Circuit	Function
A	0.5 L-GN	24	Backup Lamp Supply Voltage
B	0.5 BK	750	Ground

Backup Lamp Switch (MA5)

Connector Part Information

OEM: 12103584
Service: 12085485
Description: 2-Way M Weather Pack (BK)

Terminal Part Information

Terminal/Tray: 12089040/3
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12014012-1/J-35616-9 (OG)

Backup Lamp Switch (MA5)

Pin	Wire	Circuit	Function
A	0.8 PK	539	Ignition 1 Voltage
B	0.8 L-GN	24	Backup Lamp Supply Voltage

Blower Motor

Connector Part Information

OEM: 7283-5590-40
Service: 88988702
Description: 2-Way F YESC/USCAR Class III Series (BK)

Terminal Part Information

Terminal/Tray: 7116-7122-02/10
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Blower Motor

Pin	Wire	Circuit	Function
1	3.0 OG	52	Blower Motor High Control
2	3.0 BN	141	Ignition 3 Voltage

Blower Motor High Speed Relay

Connector Part Information

OEM: 12034003
Service: 88987189
Description: 5-Way F Special Metri-Pack 630 Conn (BK)

Terminal Part Information

Pins: 1, 2, 4
Terminal/Tray: 12084590/3
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 5
Terminal/Tray: 12015869/3
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Blower Motor High Speed Relay

Pin	Wire	Circuit	Function
1	3.0 BK	2050	Ground
2	3.0 BN	141	Ignition 3 Voltage
3	--	--	Not Used
4	3.0 OG	52	Blower Motor High Control
5	3.0 OG	52	Blower Motor High Control

Blower Motor Resistor

Connector Part Information

OEM: 12059296
Service: 12059296
Description: 5-Way F Metri-Pack 480 Series (RD)

Terminal Part Information

Pins: A, E
Terminal/Tray: 12084595/2
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Pins: B, C, D
Terminal/Tray: 12124304/2
Core/Insulation Crimp: A/B
Release Tool/Test Probe: 12094430/J-35616-40 (BU)

Blower Motor Resistor

Pin	Wire	Circuit	Function
A	3.0 OG	52	Blower Motor High Control
B	2.0 YE	60	Blower Motor Low Control
C	2.0 TN	63	Blower Motor Medium 1 Control
D	2.0 L-BU	72	Medium 2 Blower Motor Control
E	3.0 OG	52	Blower Motor High Control

Body Control Module (BCM) X1

Connector Part Information

OEM: 15393122
Service: 88987847
Description: 72-Way F Micro-64 Unsealed (BU with GY case)

Terminal Part Information

Pins: 8, 13-17, 19, 22, 26, 31, 35, 44, 47, 51, 53-57, 60-61
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Pins: 33, 58
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Body Control Module (BCM) X1

Pin	Wire	Circuit	Function
1-5	--	--	Not Used
6	0.35 WH	682	Door Lock/Unlock Signal (AU3)
7	0.35 WH	682	Door Lock/Unlock Signal (AU3)
8	0.35 WH	1080	Park Lamp Relay Control
9-12	--	--	Not Used
13	0.35 PK	849	Brake Fluid Level Sensor Signal
14	0.5 L-BU	1134	Park Brake Switch Signal
15	0.35 YE	5199	Run/Crank Relay Coil Control
16	0.35 WH	193	Rear Defog Relay Control
17	0.5 D-BU	15	Right Turn Signal Lamps Supply Voltage
18	--	--	Not Used
19	0.35 PK/WH	746	Right Front Door Ajar Switch Signal
20-21	--	--	Not Used
22	0.35 GY/BK	745	Left Front Door Ajar Switch Signal
23-25	--	--	Not Used
26	0.5 L-GN	1478	Coolant Level Switch Signal
27-30	--	--	Not Used
31	0.35 L-BU	20	Stop Lamp Supply Voltage
32	--	--	Not Used
33	0.35 D-GN/WH	1135	A/T Shift Lock Control Solenoid Supply Voltage (M82)
34	--	--	Not Used
35	0.5 L-BU	14	Left Turn Signal Lamps Supply Voltage
36-39	--	--	Not Used
40	0.35 L-BU	1788	Traction Control Switch Signal (JL9)
41-43	--	--	Not Used
44	0.35 TN/WH	1969	Headlamp High Beam Relay Control
45-46	--	--	Not Used
47	0.35 YE	196	Windshield Wiper Motor Park Switch Signal
48-50	--	--	Not Used
51	0.35 D-GN	113	Windshield Wiper Motor Relay Coil Supply Voltage
52	--	--	Not Used
53	0.5 L-BU	20	Stop Lamp Supply Voltage
54	0.35 YE	317	Fog Lamp Relay Control (T96)
55	0.35 OG/BK	744	Rear Compartment Lid Ajar Switch Signal
56	0.5 OG/BK	737	Rear Compartment Lamp Control
57	0.35 BN	253	Trunk Release Relay Control
58	0.35 D-BU	38	Backup Lamp Relay Control (M82)
59	--	--	Not Used
60	0.35 TN	28	Horn Relay Control
61	0.5 BK/WH	651	Ground
62-66	--	--	Not Used
67	0.5 YE	61	Low Reference (SKY)
68-69	--	--	Not Used
70	0.5 D-GN/WH	636	Ambient Air Temperature Sensor Signal (SKY)
71	0.35 L-GN/BK	592	Daytime Running Lights Relay Control
72	--	--	Not Used

Body Control Module (BCM) X2

Connector Part Information

OEM: 15393121
Service: 88987848
Description: 72-Way F Micro-64 Unsealed (GY)

Terminal Part Information

Pins: 1-5, 9-11, 14-20, 26, 31, 33, 38, 44, 47, 51, 56-59, 61-62, 66-69, 71-72
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Body Control Module (BCM) X2

Pin	Wire	Circuit	Function
1	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
2	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
3	0.35 YE	10	Headlamp Relay Control (Solstice)
3	0.35 PK/WH	1970	Headlamp Relay Control (SKY)
4	0.35 PU	524	Headlamp Dimmer Switch High Beam Signal
5	0.35 BN/WH	301	Park Lamp Switch On Signal
6-8	--	--	Not Used
9	0.35 WH	111	Hazard Warning Switch Signal
10	0.35 TN	1576	Rear Compartment Lock Actuator Unlock
11	0.35 D-GN	264	Security Indicator Supply Voltage
12-13	--	--	Not Used
14	0.35 TN	28	Horn Relay Control
15	0.35 WH	103	Headlamp Switch Headlamps On Signal
16	0.35 OG	192	Front Fog Lamp Switch Signal (T96)
17	0.35 PU/WH	549	Headlamp Switch Headlamps Off Signal
18	0.35 GY	5359	5-Volt Reference
19	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
20	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
21-25	--	--	Not Used
26	0.35 D-GN	44	I/P Dimmer Switch Lamp Signal
27-30	--	--	Not Used
31	0.35 YE	5361	Brake Pedal Position Sensor Signal
32	--	--	Not Used
33	0.35 YE	317	Fog Lamp Relay Control (T96)
34-37	--	--	Not Used
38	0.35 L-GN/BK	5060	Low Speed GMLAN Serial Data
39-43	--	--	Not Used
44	0.35 L-GN/BK	1137	Daytime Running Lamps Ambient Light Sensor Signal
45-46	--	--	Not Used
47	0.35 YE/BK	1138	Low Reference
48-50	--	--	Not Used
51	0.35 BN	1356	Flash To Pass Switch Signal
52-55	--	--	Not Used
56	0.35 WH	1390	Off/Run/Crank Voltage
57	0.35 GY	112	Windshield Wiper Switch Low/Pulse Signal
58	0.35 PU	719	Low Reference
59	0.35 BN	5360	Low Reference
60	--	--	Not Used
61	0.35 GY	1884	Cruise Control Switch Signal (K34)
62	0.35 WH/BK	1073	Ignition Key Resistor Signal
63-65	--	--	Not Used
66	0.35 YE/BK	1418	Left Rear Turn Signal Switch Signal
67	0.35 D-GN/WH	1419	Right Rear Turn Signal Switch Signal
68	0.35 L-BU	292	Rear Window Defogger Grid Switch Signal
69	0.35 D-GN/WH	762	A/C Request Signal (C60)
70	--	--	Not Used
71	0.35 PU	5234	Passenger Seat Belt Indicator
72	0.35 WH	193	Rear Window Defogger Grid Relay Control

Body Control Module (BCM) X3

Connector Part Information

OEM: 15492675
Service: See Catalog
Description: 41-Way F Metri-Pack 280 800 Series (RD)

Terminal Part Information

Pins: A1, A3, A4, A5, A7, A8, A9, A10, A12, B1, D4, B3, B5, C12, D7
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins A1, A3, A4, A5, A7, A9, A10, A12, B1, B12, D4 - E/A
Core/Insulation Crimp: Pins B3, B5, C12, D7 - E/C
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: C5, D1, D5, D6, D10, D12, D11
Terminal/Tray: 12110842/4
Core/Insulation Crimp: Pins C5, D1, D5, D6, D10, D12 - F/G
Core/Insulation Crimp: Pins D11 - A/B
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Body Control Module (BCM) X3

Pin	Wire	Circuit	Function
A1	0.5 TN	294	Door Lock Actuator Unlock Control (AU3)
A2	--	--	Not Used
A3	0.5 D-BU/WH	149	Courtesy Lamp Supply Voltage
A4	0.5 GY	295	Door Lock Actuator Lock Control (AU3)
A5	0.5 GY	295	Door Lock Actuator Lock Control (AU3)
A6	--	--	Not Used
A7	0.5 BN	9	Park Lamp Supply Voltage
A8	0.5 PK	339	Ignition 1 Voltage
A9	0.8 YE	18	Left Rear Stop/Turn Lamp Supply Voltage
A10	0.5 GY	157	Courtesy Lamp Control
A11	--	--	Not Used
A12	0.8 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
B1	0.5 TN	694	Driver Door Lock Actuator Unlock Control (AU3)
B2	--	--	Not Used
B3	0.35 RD/WH	1240	Battery Positive Voltage
B4	--	--	Not Used
B5	0.35 BN	4	Accessory Voltage
B6-B7	--	--	Not Available
B8-B11	--	--	Not Used
B12	0.35 GY	8	Instrument Panel Lamp Supply Voltage
C1-C2	--	--	Not Available
C3-C4	--	--	Not Used
C5	3.0 D-GN	801	Retained Accessory Power Fuse Supply Voltage
C6-C7	--	--	Not Available
C8-C11	--	--	Not Used
C12	0.35 OG	228	Windshield Washer Pump Control
D1	5.0 RD/BK	142	Battery Positive Voltage
D2-D3	--	--	Not Used
D4	0.5 RD/WH	840	Battery Positive Voltage
D5	3.0 D-GN	801	Retained Accessory Power Fuse Supply Voltage (AU3)
D6	3.0 PK	739	Ignition 1 Voltage
D7	0.35 PK	1339	Ignition 1 Voltage
D8-D9	--	--	Not Used
D10	3.0 RD/BK	442	Battery Positive Voltage
D11	2.0 RD/WH	640	Battery Positive Voltage (UQ3)
D12	3.0 RD/BK	242	Battery Positive Voltage

Body Control Module (BCM) X4

Connector Part Information

OEM: 15492668
Service: 88988776
Description: 68-Way F Metri-Pack 280 Series, Flexlock (L-GY)

Terminal Part Information

Pins: F2, F4, F5, F6, F6
Terminal/Tray: 12110844/4
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: B1, C1, C8, C11, C12, D1, D3, E6, F1, F9, D10, D10
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins B1, C1, C8, C11, C12, D1, D3, E6, F1, F9 - E/C
Core/Insulation Crimp: Pins D10 - See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: D4, E12
Terminal/Tray: 12110842/4
Core/Insulation Crimp: Pins D4 - F/G
Core/Insulation Crimp: Pins E12 - A/B
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Body Control Module (BCM) X4

Pin	Wire	Circuit	Function
A1-A12	--	--	Not Used
B1	0.35 OG	228	Windshield Washer Pump Control
B2-B12	--	--	Not Used
C1	0.35 RD/WH	1440	Battery Positive Voltage
C2-C5	--	--	Not Used
C6-C7	--	--	Not Available
C8	0.35 BN	4	Accessory Voltage
C9-C10	--	--	Not Used
C11	0.35 GY	8	Instrument Panel Lamp Supply Voltage
C12	0.35 GY/BK	1458	Instrument Panel Lamp Supply Voltage (4)
D1	0.35 RD/WH	1040	Battery Positive Voltage
D2	--	--	Not Used
D3	0.35 YE	5199	Run/Crank Relay Coil Control
D4	3.0 BN	141	Ignition 3 Voltage
D5	--	--	Not Used
D6-D7	--	--	Not Available
D8-D9	--	--	Not Used
D10	0.8 RD/WH	1140	Battery Positive Voltage
D11-D12	--	--	Not Used
E1-E5	--	--	Not Used
E6	0.35 PK	439	Ignition 1 Voltage
E7-E11	--	--	Not Used
E12	2.0 BK	550	Ground
F1	0.35 RD/WH	1540	Battery Positive Voltage
F2	0.5 GY	8	Instrument Panel Lamp Supply Voltage
F3	--	--	Not Used
F4	0.5 PK	339	Ignition 1 Voltage
F5	0.35 PK	339	Ignition 1 Voltage
F6	0.5 PK	339	Ignition 1 Voltage
F7-F8	--	--	Not Used
F9	0.35 PK	1539	Ignition 1 Voltage
F10-F12	--	--	Not Used

Brake Booster Pump Motor (Late Production LNF)

Connector Part Information

OEM: 7282-5575-10
Service: See Catalog
Description: 2-Way M 2.8 Series (D-GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Brake Booster Pump Motor (Late Production LNF)

Pin	Wire Color	Circuit No.	Function
1	0.5OG	1470	Brake Booster Pump Motor Supply Voltage
2	0.5 BK/WH	1250	Ground

Brake Booster Vacuum Sensor (LNF)

Connector Part Information

OEM: 1 928 403 966
Service: See Catalog
Description: 3-Way F Kompakt 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Brake Booster Vacuum Sensor (LNF)

Pin	Wire	Circuit	Function
1	0.5 L-GN	6257	Brake Booster Vacuum Sensor Supply Voltage (Early Production)
1	0.5 L-GN	6031	5-Volt Reference (Late Production)
2	0.5 L-GN/BK	6258	Brake Booster Vacuum Sensor Ground (Early Production)
2	0.5 YE/BK	6032	Low Reference (Late Production)
3	0.5 D-BU	1809	Brake Booster Vacuum Sensor Signal (Early Production)
3	0.5 OG	6030	Brake Booster Vacuum Sensor Signal (Late Production)

Brake Fluid Level Switch

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Brake Fluid Level Switch

Pin	Wire	Circuit	Function
A	0.5 PK	849	Brake Fluid Level Sensor Signal
B	0.5 BK/WH	451	Ground

Brake Pedal Position (BPP) Sensor

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Brake Pedal Position (BPP) Sensor

Pin	Wire	Circuit	Function
A	0.35 WH	5359	5-Volt Reference
B	0.35 YE	5361	Brake Pedal Position Sensor Signal
C	0.35 BN	5360	Low Reference

Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust

Connector Part Information

OEM: 15336004
Service: 15306187
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Exhaust

Pin	Wire	Circuit	Function
A	0.5 L-GN	5282	Low Reference (LE5)
A	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (LNF)
B	0.5 BN/WH	6754	Camshaft Phaser Exhaust Solenoid Control (LE5)
B	0.5 L-GN	5282	Camshaft Phaser Exhaust Solenoid Control (LNF)

Camshaft Position (CMP) Actuator Solenoid Valve - Intake

Connector Part Information

OEM: 15335987
Service: 15306430
Description: 2-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Actuator Solenoid Valve - Intake

Pin	Wire	Circuit	Function
A	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (LNF)
A	0.5 PU	5284	Camshaft Phaser Intake Solenoid Control (LE5)
B	0.5 BN	6753	Low Reference (LE5)
B	0.5 PU	5284	Camshaft Phaser Intake Solenoid Control (LNF)

Camshaft Position (CMP) Sensor - Exhaust

Connector Part Information

OEM: 13519047
Service: See Catalog
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Exhaust

Pin	Wire	Circuit	Function
A	0.5 GY	705	5-Volt Reference 2 (LNF)
A	0.35 YE/BK	5297	Camshaft Position Exhaust Sensor Supply Voltage (LE5)
B	0.5 TN	552	Low Reference (LNF)
B	035 GY	5296	Low Reference (LE5)
C	0.35 D-GN	5273	Camshaft Position Exhaust Sensor Signal 1

Camshaft Position (CMP) Sensor - Intake

Connector Part Information

OEM: 13519047
Service: See Catalog
Description: 3-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Camshaft Position (CMP) Sensor - Intake

Pin	Wire	Circuit	Function
A	0.5 GY	705	5-Volt Reference 2 (LNF)
A	0.35 D-BU	5300	Camshaft Position Intake Sensor Supply Voltage (LE5)
B	0.5 TN	552	Low Reference (LNF)
B	0.35 TN	5301	Low Reference (LE5)
C	0.5 OG	5275	Camshaft Position Intake Sensor Signal

Cellular Telephone Microphone (UE1)

Connector Part Information

OEM: 15496024
Service: 12085481
Description: 2-Way M Metri-Pack 150 (BK)

Terminal Part Information

Terminal/Tray: 12047581/2
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Cellular Telephone Microphone (UE1)

Pin	Wire	Circuit	Function
A	0.35	1489	Drain Wire
B	0.35	655	Cellular Telephone Microphone Signal

Center High Mounted Stop Lamp (CHMSL)

Connector Part Information

OEM: 15449029
Service: 88987993
Description: 2-Way F GT 150 Series, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Center High Mounted Stop Lamp (CHMSL)

Pin	Wire	Circuit	Function
A	0.5 L-BU	20	Stop Lamp Supply Voltage
B	0.5 BK	750	Ground

Clutch Pedal Position (CPP) Sensor (MA5)

Connector Part Information

OEM: 15332132
Service: See Catalog
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Clutch Pedal Position (CPP) Sensor (MA5)

Pin	Wire	Circuit	Function
A	0.35 D-BU/WH	7361	Manual Transmission Clutch Position Sensor Supply
B	0.35 L-GN	6338	Manual Transmission Clutch Position Sensor Signal Position
C	0.35 OG/D-GN	7360	Manual Transmission Clutch Position Sensor Return

Crankshaft Position (CKP) Sensor

Connector Part Information

OEM: 31403-3710
Service: See Catalog
Description: 3-Way F MX64 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Crankshaft Position (CKP) Sensor

Pin	Wire	Circuit	Function
1	03.5 GY	605	5-Volt Reference
2	0.35 TN	452	Low Reference
3	0.35 YE	573	Crankshaft Position Sensor Signal 1

Data Link Connector (DLC)

Connector Part Information

OEM: 12110250
Service: Not Serviced
Description: 16-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: 1, 4-6, 14, 16
Terminal/Tray: 12129484/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Data Link Connector (DLC)

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2-3	--	--	Not Used
4	0.5 BK	550	Ground
5	0.5 BK/WH	651	Ground
6	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
7-13	--	--	Not Used
14	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
15	--	--	Not Used
16	0.5 RD/WH	40	Battery Positive Voltage

Data Link Resistor

Connector Part Information

OEM: 13510085
Service: 15306156
Description: 2-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Data Link Resistor

Pin	Wire	Circuit	Function
A	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
B	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)

Digital Radio Receiver (U2K)

Connector Part Information

OEM: 7283-9076-30
Service: 15136073
Description: 16-Way F Kaizen 0.64 Series (BK)

Terminal Part Information

Pins: 2, 3, 5, 9-11, 16
Terminal/Tray: 7116-4618-02/14
Core/Insulation Crimp: P/P
Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)

Digital Radio Receiver (U2K)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.5 BN/WH	367	Left Audio Signal (+)
3	0.5 D-GN/WH	368	Right Audio Signal (+)
4	--	--	Not Used
5	0.35 D-GN	5060	Low Speed GMLAN Serial Data
6-8	--	--	Not Used
9	0.5 BK/WH	551	Ground
10	0.5 TN/WH	372	Audio Common
11	0.35 BK	814	Drain
12-15	--	--	Not Used
16	0.5 RD/WH	1340	Battery Positive Voltage

Door Lock Actuator - Driver (AU3)

Connector Part Information

OEM: 6-1355683-1
Service: See Catalog
Description: 6-Way F Series Sealed (BK)

Terminal Part Information

Pins: 2-4, 6
Terminal/Tray: 4-969005-1/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Lock Actuator - Driver (AU3)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.5 TN	694	Driver Door Lock Actuator Unlock Control
3	0.5 GY	295	Door Lock Actuator Lock Control
4	0.35 GY/BK	745	Left Front Door Ajar Switch Signal
5	--	--	Not Used
6	0.35 BK	550	Ground

Door Lock Actuator - Passenger (AU3)

Connector Part Information

OEM: 6-1355683-1
Service: See Catalog
Description: 6-Way F Series Sealed (BK)

Terminal Part Information

Pins: 1, 3, 5, 6
Terminal/Tray: 964274-2/16
Core/Insulation Crimp: E/1
Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)

Door Lock Actuator - Passenger (AU3)

Pin	Wire	Circuit	Function
1	0.35 TN/WH	746	Right Front Door Ajar Switch Signal
2	--	--	Not Used
3	0.35 BK	550	Ground
4	--	--	Not Used
5	0.5 TN	294	Door Lock Actuator Unlock Control
6	0.5 GY	295	Door Lock Actuator Lock Control

Door Lock Switch - Driver (AU3)

Connector Part Information

OEM: 15417063
Service: 88987857
Description: 3-Way F Micro-Pack 064 Series, (BK)

Terminal Part Information

Pins: A, B
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins: E/C
Core/Insulation Crimp: Pins: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Door Lock Switch - Driver (AU3)

Pin	Wire	Circuit	Function
A	0.5 BK	550	Ground
B	0.35 GY	8	Instrument Lamp Supply Voltage
C	0.5 WH	682	Door Lock/Unlock Signal

Door Lock Switch - Passenger (AU3)

Connector Part Information

OEM: 15417063
Service: 88987857
Description: 3-Way F Micro-Pack 064 Series, (BK)

Terminal Part Information

Pins: A, B
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins: E/C
Core/Insulation Crimp: Pins: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Door Lock Switch - Passenger (AU3)

Pin	Wire	Circuit	Function
A	0.5 BK	550	Ground
B	0.35 GY	8	Instrument Lamp Supply Voltage
C	0.5 WH	682	Door Lock/Unlock Signal

Electronic Brake Control Module (EBCM) (JL9)

Connector Part Information

OEM: 1355628
Service: 19115598
Description: 47-Way F MK25/60 Series (BK)

Terminal Part Information

Pins: 1, 16
Terminal/Tray: 7114-4142-02/10
Core/Insulation Crimp: A/3
Release Tool/Test Probe: 12094430/J-35616-43 (RD)

Pins: 2-15, 17-31, 33-47
Terminal/Tray: 638551-3
Core/Insulation Crimp: See Terminal Repair
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 32
Terminal/Tray: 7114-4141-02
Core/Insulation Crimp: See Terminal Repair
Release Tool/Test Probe: See Terminal Repair Kit

Electronic Brake Control Module (EBCM) (JL9)

Pin	Wire	Circuit	Function
1	2.0 RD/BK	542	Low Reference
2-7	--	--	Not Used
8	0.5 PK	1439	Ignition 1 Voltage
9-10	--	--	Not Used
11	0.5 TN/BK	2500	High Speed Serial Data Bus (+)
12	0.5 TN/BK	2500	High Speed Serial Data Bus (+)
13	0.5 TN	2501	High Speed Serial Data Bus (-)
14	0.5 TN	2501	High Speed Serial Data Bus (-)
15	--	--	Not Used
16	3.0 BK	350	Ground
17	--	--	Not Used
18	0.5 PK/BK	6434	Can Bus High Serial Data
19	0.5 GY/BK	6435	Can Bus Low Serial Data
20-21	--	--	Not Used
22	0.5 D-GN	2087	12-Volt Reference
23-25	--	--	Not Used
26	0.5 L-GN	6257	Brake Booster Vacuum Sensor Supply Voltage (Early Production LNF)
27	0.5 L-GN/BK	6258	Brake Booster Vacuum Sensor Ground (Early Production LNF)
28	--	--	Not Used
29	0.5 L-BU	2088	Low Reference
30-31	--	--	Not Used
32	2.0 RD/WH	540	Battery Positive Voltage
33	0.5 TN	833	Low Reference
34	0.5 D-GN	872	Right Front Wheel Speed Sensor Signal
35	--	--	Not Used
36	0.5 TN	884	Left Rear Wheel Speed Sensor Signal
37	0.5 OG	885	Low Reference
38-40	--	--	Not Used
41	0.5 D-BU	1809	Brake Booster Vacuum Sensor Signal (Early Production LNF)
42	0.5 WH	883	Low Reference
43	0.5 BN	882	Right Rear Wheel Speed Sensor Signal
44	--	--	Not Used
45	0.5 L-BU	830	Left Front Wheel Speed Sensor Signal
46	0.5 YE	873	Low Reference
47	--	--	Not Used

Engine Control Module (ECM) - X1 (LE5)

Connector Part Information

OEM: 34566-0103
Service: See Catalog
Description: 73-Way F MX123 34566 Series (BK)

Terminal Part Information

Pins: 6, 9, 15, 19, 20, 34, 39, 42, 44, 54, 66, 70
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J38125-213/J-35616-64B (L-BU)

Pins: 1, 3, 5, 8,11, 13, 18, 21, 25, 27, 30, 32, 37, 41, 45, 47, 49, 55, 57, 58, 61, 65, 67
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J38125-213/J-35616-64B (L-BU)

Pins: 73
Terminal/Tray: 7116-4152-02/9
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-35 (VT)

Engine Control Module (ECM) - X1 (LE5)

Pin	Wire	Circuit	Function
1	0.35 D-BU	1161	Adjustable Accelerator Pedal Position Sensor 1 Signal
2	--	--	Not Used
3	0.35 BN	4	Accessory Voltage
4	--	--	Not Used
5	0.35 D-GN	335	Low Speed Cooling Fan Relay Control
6	0.5 D-GN/WH	465	Fuel Pump Relay Control
7	--	--	Not Used
8	0.35 TN	5514	Low Reference (C60)
9	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal - Sensor 2
10	--	--	Not Used
11	0.35 OG/D-GN	7360	Manual Transmission Clutch Position Sensor Return (MA5)
12	--	--	Not Used
13	0.35 YE	5991	Powertrain Relay Coil Control
14	--	--	Not Used
15	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control - Sensor 2
16	--	--	Not Used
17	0.5 PU	3120	Heated Oxygen Sensor High Signal Sensor 2
18	0.35 L-BU	1162	Adjustable Accelerator Pedal Position Sensor 2 Signal
19	0.5 PK	1039	Ignition 1 Voltage
20	0.5 RD/WH	840	Battery Positive Voltage
21	0.35 PU	1272	Low Reference
22-23	--	--	Not Used
24	0.5 TN	2759	Low Reference
25	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal (C60)
26	--	--	Not Used
27	0.35 BR/WH	419	MIL Control
28-29	--	--	Not Used
30	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control (C60)
31	--	--	Not Used
32	0.35 PU/WH	6386	Starter Enable Relay Control
33	--	--	Not Used
34	0.5 PU	401	Low Reference (MA5)
35-36	--	--	Not Used
37	0.35 YE	492	Mass Air Flow Sensor Signal
38	--	--	Not Used
39	0.5 PU	1589	Fuel Level Sensor Signal
40	--	--	Not Used
41	0.35 BN	1271	Low Reference
42	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
43	0.5 TN/BK	2500	High Speed GMLAN Serial Data (+)
44	0.5 TN	2501	High Speed GMLAN Serial Data (-)
45	0.35 D-BU/WH	7361	Manual Transmission Clutch Position Sensor Supply (MA5)
46	--	--	Not Used
47	0.35 WH/BK	1164	5-Volt Reference 2
48	--	--	Not Used
49	0.35 D-BU	473	High Speed Cooling Fan Control
50-53	--	--	Not Used
54	0.5 YE	400	Vehicle Speed Sensor High Signal (MA5)
55	0.35 L-BU	20	Stop Lamp Supply Voltage
56	--	--	Not Used
57	0.35 OG/BK	1786	Transmission Park/Neutral Signal (M82)
58	0.35 L-BU	6289	Induction Air Temperature Sensor Signal
59-60	--	--	Not Used
61	0.35 L-GN	6338	Manual Transmission Clutch Position Sensor Signal Position (MA5)
62-64	--	--	Not Used
65	0.35 GY	2700	5-Volt Reference 1 (C60)
66	0.5 GY	2709	5-Volt Reference 1
67	0.35 TN	1274	5-Volt Reference 1
68-69	--	--	Not Used
70	0.5 WH	1310	Evaporative Emission Canister Vent Solenoid Control
71-72	--	--	Not Used
73	0.8 PK/BK	5290	Ignition 1 Voltage

Engine Control Module (ECM) - X2 (LE5)

Connector Part Information

OEM: 34566-0203
Service: See Catalog
Description: 73-Way F MX123 34566 Series (BK)

Terminal Part Information

Pins: 9,13, 20-24, 26, 30, 31, 33, 34, 39, 42, 43, 47, 49
Terminal/Tray: 33467-0003/23
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 4-8, 10, 14-16, 32, 37, 40, 45-46, 48, 50, 51, 53-54, 57-61, 65, 67
Terminal/Tray: 33467-0005/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Pins: 73
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Engine Control Module (ECM) - X2 (LE5)

Pin	Wire	Circuit	Function
1-3	--	--	Not Used
4	0.5 TN	2761	Low Reference
5	0.5 PU	574	Low Reference
6	0.5 TN	1744	Fuel Injector 1 Control
7	0.5 PK/BK	1746	Fuel Injector 3 Control
8	0.5 L-BU/BK	844	Fuel Injector 4 Control
9	0.35 BN	2129	Low Reference
10	0.5 L-GN/BK	1745	Fuel Injector 2 Control
11-12	--	--	Not Used
13	0.35 GY	2704	5-Volt Reference 1
14	0.5 L-GN	5282	Low Reference
15	0.5 PU	5284	Camshaft Phaser Intake Solenoid Control
16	0.5 YE	581	Throttle Actuator Control Motor Control - 1
17-19	--	--	Not Used
20	0.35 TN	5301	Low Reference
21	0.35 GY	5296	Low Reference
22	0.35 PU	2121	IC 1 Control
23	0.35 L-BU	2123	IC 3 Control
24	0.35 D-GN/WH	2124	IC 4 Control
25	--	--	Not Used
26	0.35 OG/WH	2122	IC 2 Control
27-29	--	--	Not Used
30	0.35 D-GN/WH	428	Evaporative Emission Canister Purge Solenoid Control
31	0.35 OG	225	Generator Turn On Signal
32	0.5 BN	582	Throttle Actuator Control Motor Control - 2
33	0.35 D-BU	5300	5-Volt Reference 1
34	0.35 YE/BK	5297	5-Volt Reference 1
35-36	--	--	Not Used
37	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal Sensor 1
38	--	--	Not Used
39	0.35 L-GN	432	Manifold Absolute Pressure Sensor Signal
40	0.5 TN	2752	Low Reference
41	--	--	Not Used
42	0.35 YN	2760	Low Reference
43	0.35 GY	23	Generator Field Duty Signal
44	--	--	Not Used
45	0.5 YE	573	Crankshaft Position Sensor Signal
46	0.5 OG	5275	Camshaft Position Intake Sensor Signal
47	0.35 D-GN	5273	Camshaft Position Exhaust Sensor Signal
48	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal Sensor 1
49	0.35 OG/BK	469	Low Reference
50	0.5 GY	1716	Knock Sensor 1 Signal
51	0.5 D-BU	496	Knock Sensor 1 Signal
52	--	--	Not Used
53	0.5 GY	2701	5-Volt Reference 1
54	0.5 L-GN	2867	5-Volt Reference 2
55-56	--	--	Not Used
57	0.5 D-GN	485	Throttle Position Sensor 1 Signal
58	0.5 YE	410	Engine Coolant Temperature Sensor Signal
59	0.5 PU	486	Throttle Position Sensor 2 Signal
60	0.5 BN	6753	Low Reference
61	0.5 BN/WH	6754	Camshaft Phaser Exhaust Solenoid Control
62-64	--	--	Not Used
65	0.5 GY/WH	3113	Heated Oxygen Sensor Heater Low Control Sensor 1
66	--	--	Not Used
67	0.5 TN/BK	231	Oil Pressure Switch Signal
68-72	--	--	Not Used
73	2.0 BK/WH	451	Ground

Engine Control Module (ECM) X1 (LNF)

Connector Part Information

OEM: 1-928-404-781
Service: 19149311
Description: 96-Way F 120 MAT, 280 BDK Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 1928498135/19
Core/Insulation Crimp: Pins: 1-2,6-7,15-18,24,34,36-39,41-42,44,48,59-60,64,66-68,82-84,86,88,89-92,95-96 - J/J
Core/Insulation Crimp: Pins: 5,26-29, 51-53,73,75 - K/K
Core/Insulation Crimp: Pins: 10,13,30,35,45-46,54-56,78-80 - P/P
Release Tool/Test Probe: J-38125-213/J-35616-16 (L-GN)

Engine Control Module (ECM) X1 (LNF)

Pin	Wire	Circuit	Function
1	0.5 L-GN	5282	Camshaft Phaser Exhaust Solenoid Control
2	0.5 PU	5284	Camshaft Phaser Intake Solenoid Control
3-4	--	--	Not Used
5	1.0 YE	7301	High Pressure Fuel Pump Actuator High Control
6	0.5 D-GN/WH	428	Evaporative Emission Canister Purge Solenoid Control
7	0.5 OG	5275	Camshaft Position Intake Sensor Signal
8-9	--	--	Not Used
10	0.35 OG	225	Generator Turn On Signal
11-12	--	--	Not Used
13	0.35 BN/WH	2130	Low Reference
14	--	--	Not Used
15	0.5 GY	705	5-Volt Reference 2
16	0.5 D-GN	6391	Turbocharger Bypass Valve Control
17	0.5 TN/BK	231	Oil Pressure Switch Signal
18	0.5 YE	258	Turbocharger Wastegate Solenoid Control
19-23	--	--	Not Used
24	0.8 YE	581	Throttle Actuator Control Open
25	--	--	Not Used
26	1.0 L-BU	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
27	1.0 L-BU/WH	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4
28	1.0 D-BU	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2
29	1.0 D-BU/WH	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2
30	0.35 GY	23	Generator Field Duty Cycle Signal
31-33	--	--	Not Used
34	0.5 D-GN	5273	Camshaft Position Exhaust Sensor Signal 1
35	0.35 YE	573	Crankshaft Position Sensor Signal 1
36	0.5 YE	2918	Fuel Rail Pressure Sensor Signal
37	0.5 L-GN	432	Manifold Absolute Pressure Sensor Signal
38	0.5 GY	598	5-Volt Reference 1
39	0.5 GY	2701	5-Volt Reference 3
40	0.5 GY	6031	5-Volt Reference (Late Production)
41	0.5 TN	552	Low Reference
42	0.5 TN	808	Low Reference
43	0.5 YE/BK	6032	Low Reference (Late Production)
44	0.5 TN	2761	Low Reference
45	0.35 GY	605	5-Volt Reference 3
46	0.35 TN	452	Low Reference
47	--	--	Not Used
48	0.8 BN	582	Throttle Actuator Control Closed
49-50	--	--	Not Used
51	1.0 BN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1
52	1.0 D-GN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3
53	1.0 D-GN/WH	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3
54	0.35 BN/WH	419	MIL Control
55	0.35 PU	2121	IC 1 Control
56	0.35 D-GN/WH	2124	IC 4 Control
57-58	--	--	Not Used
59	0.5 D-BU	496	Knock Sensor 1 Signal
60	0.5 GY	2303	Knock Sensor 2 Signal
61-63	--	--	Not Used
64	0.5 TN	407	Low Reference
65	--	--	Not Used
66	0.5 PU	7330	Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal
67	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal Sensor 1
68	0.5 WH	5279	Heated Oxygen Sensor Pump Current Sensor 1
69-72	--	--	Not Used
73	1.0 PU	7300	High Pressure Fuel Pump Actuator Low Control
74	--	--	Not Used
75	1.0 BN/WH	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1
76-77	--	--	Not Used
78	0.35 BN	2129	Low Reference
79	0.35 L-BU	2123	IC 3 Control
80	0.35 OG/WH	2122	IC 2 Control
81	--	--	Not Used
82	0.5 YE	410	Engine Coolant Temperature Sensor Signal
83	0.5 GY	1716	Knock Sensor 1 Signal
84	0.5 L-BU	1876	Knock Sensor 2 Signal
85	--	--	Not Used
86	0.5 L-BU	7329	Pre-Throttle Air Temp and Press (TMAP) Temperature Signal
87	--	--	Not Used
88	0.5 TN	2752	Low Reference
89	0.5 PU	486	Throttle Position Sensor 2 Signal
90	0.5 D-GN	485	Throttle Position Sensor 1 Signal
91	0.5 L-GN	5278	Heated Oxygen Sensor Input Pump Current Sensor 1
92	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal Sensor 1
93-94	--	--	Not Used
95	0.5 GY	597	5-Volt Reference 1
96	0.5 GY/WH	3113	Heated Oxygen Sensor Heater Low Control Sensor 1

Engine Control Module (ECM) X2 (LNF)

Connector Part Information

OEM: 1-928-404-916
Service: 19115599
Description: 58-Way F 280 Series, Sealed (BK)

Terminal Part Information

Pins: 1-2,4
Terminal/Tray: 1928498059/24
Pins: 3, 5-6
Terminal/Tray: 1928498058/8
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: J-38125-561/J-35616-35 (VT)

Pins:7,9-11,12-19,22-23,25,27,31, 34-36,38-39,41-42,44,46-50,52,54-56,58
Terminal/Tray: 1928498135/19
Core/Insulation Crimp: Pins: 7,9-10,12-14,16, 18-19,22,27,31, 36,38,42,50,54-56 - J/J
Core/Insulation Crimp: Pins: 11,15,17,23,25,34-35,39,41,44,46-49,52,58 - P/P
Release Tool/Test Probe: J-38125-213/J-35616-16 (L-GN)

Engine Control Module (ECM) X2 (LNF)

Pin	Wire	Circuit	Function
1	2.0 BK/WH	451	Ground
2	2.0 BK/WH	451	Ground
3	0.8 PK/BK	5290	Ignition 1 Voltage
4	2.0 BK/WH	451	Ground
5	0.8 PK/BK	5290	Ignition 1 Voltage
6	0.8 PK/BK	5290	Ignition 1 Voltage
7	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control Sensor 2
8	--	--	Not Used
9	0.5 TN	2759	Low Reference
10	0.5 D-GN/WH	465	Fuel Pump Relay Control
11	0.35 TN	5514	Low Reference (C60)
12	--	--	Not Used
13	0.35 YE	492	Mass Air Flow Sensor Signal
14	0.5 GY	2709	5-Volt Reference 1
15	0.35 D-BU	1161	Adjustable Accelerator Position Sensor 1 Signal
16	--	--	Not Used
17	0.35 OG/BK	1786	Transmission Park/Neutral Signal 1 (M82)
18	0.5 L-GN	24	Backup Lamp Supply Voltage
19	0.5 WH	1310	Evaporative Emission Canister Vent Solenoid Control
20	0.5 BN	7448	Vacuum Assist Pump Relay Coil Control (Late Production)
21	--	--	Not Used
22	0.35 TN	2760	Low Reference
23	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal Sensor 2
24	--	--	Not Used
25	0.35 L-BU	1162	Adjustable Accelerator Position Sensor 2 Signal
26	--	--	Not Used
27	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
28	--	--	Not Used
29	0.5 OG	6030	Brake Booster Vacuum Sensor Signal (Late Production)
30-33	--	--	Not Used
34	0.35 BN	1271	Low Reference
35	0.35 GY	2700	5-Volt Reference 3
36	0.5 PU	1589	Fuel Level Sensor Signal
37	0.35 L-GN	6338	Manual Transmission Clutch Position Sensor Signal Position (MA5)
38	0.5 PU	3120	Heated Oxygen Sensor High Signal Sensor 2
39	0.35 OG/BK	380	A/C Refrigerant Pressure Sensor Signal (C60)
40	0.5 PU	401	Vehicle Speed Sensor Low Signal (MA5)
41	0.35 BN	4	Accessory Voltage
42	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
43	--	--	Not Used
44	0.35 D-GN/WH	459	A/C Compressor Clutch Relay Control (C60)
45	--	--	Not Used
46	0.35 WH	2368	Cooling Fan Signal Control
47	0.35 PU	1272	Low Reference
48	0.35 TN	1274	5-Volt Reference 3
49	0.35 WH/BK	1164	5-Volt Reference 2
50	0.35 L-BU	6289	Induction Air Temperature Sensor Signal
51	--	--	Not Used
52	0.35 L-BU	20	Stop Lamp Supply Voltage (MA5)
53	0.5 YE	400	Vehicle Speed Sensor High Signal (MA5)
54	0.5 PK	1039	Ignition 1 Voltage
55	0.5 TN	2501	High Speed GMLAN Serial Data BUS (-)
56	0.5 RD/WH	840	Battery Positive Voltage
57	0.35 PU/WH	6386	Starter Enable Relay Control
58	0.35 YE	5991	Powertrain Relay Coil Control

Engine Coolant Level Switch

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Engine Coolant Level Switch

Pin	Wire	Circuit	Function
A	0.5 L-GN	1478	Coolant Level Switch Signal
B	0.5 BK/WH	451	Ground

Engine Coolant Temperature (ECT) Sensor (LE5)

Connector Part Information

OEM: 15449028
Service: 88987978
Description: 2-Way F GT 150 Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Coolant Temperature (ECT) Sensor (LE5)

Pin	Wire	Circuit	Function
A	0.5 TN	2761	Low Reference
B	0.5 YE	410	Engine Cooling Temperature Sensor Signal

Engine Coolant Temperature (ECT) Sensor (LNF)

Connector Part Information

OEM: 13584122
Service: 88987993
Description: 2-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: 15326267/19
Core/Insulation Crimp: E/4
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Engine Coolant Temperature (ECT) Sensor (LNF)

Pin	Wire	Circuit	Function
A	0.5 TN	2761	Low Reference
B	0.5 YE	410	Engine Cooling Temperature Sensor Signal

Engine Cooling Fan (LE5)

Connector Part Information

OEM: 12124685
Service: 12116243
Description: 3-Way F Metri-Pack 630 Series, Sealed (BK)

Terminal Part Information

Terminal: 15305232/23
Core/Insulation Crimp: F/3
Release Tool/Test Probe: J-38125-11A/J-35616-42 (RD)

Engine Cooling Fan (LE5)

Pin	Wire	Circuit	Function
A	3.0 BK	250	Ground
B	3.0 L-BU	409	Cooling Fan Motor Supply Voltage
C	3.0 GY	532	Cooling Fan Motor Supply Voltage

Engine Cooling Fan (LNF)

Connector Part Information

OEM: 7283-8496-30
Service: 19115593
Description: 4-Way F Mixed Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: Pins 1, 2 - 7116-3250/10
Core/Insulation Crimp: Pins 1, 2 - See Terminal Repair Kit
Release Tool/Test Probe: Pins: 1, 2 12094430/J-35616-22 (RD)

Terminal/Tray: Pin: 4 - 7116-4110-02/9
Core/Insulation Crimp: Pin: 4 - E/C
Release Tool/Test Probe: Pin: 4 - 12094430/J-35616-4A (PU)

Engine Cooling Fan (LNF)

Pin	Wire	Circuit	Function
1	8.0 RD/BK	342	Battery Positive Voltage
2	8.0 BK	650	Ground
3	--	--	Not Available
4	0.35 WH	2368	Cooling Fan Speed Control

Engine Oil Pressure (EOP) Switch

Connector Part Information

OEM: 15474881
Service: 88988620
Description: 4-Way F Metri-Pack 150 Series Sealed (GY)

Terminal Part Information

Pins: A
Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Engine Oil Pressure (EOP) Switch

Pin	Wire	Circuit	Function
A	0.5 TN/BK	231	Oil Pressure Switch Signal
B-D	--	--	Not Used

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Pin	Wire	Circuit	Function
A	0.5 PK/BK	5291	Ignition 1 Voltage
B	0.5 D-GN/WH	428	Evaporative Emission Canister Purge Solenoid Control (LNF)
B	0.35 D-GN/WH	428	Evaporative Emission Canister Purge Solenoid Control (LE5)

Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Connector Part Information

OEM: 12052643
Service: 12101858
Description: 2-Way F Metri-Pack 150 Series Sealed (RD)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporative Emission (EVAP) Canister Vent Solenoid Valve

Pin	Wire	Circuit	Function
A	0.5 RD/WH	140	Battery Positive Voltage
B	0.5 WH	1310	Evaporative Emission Canister Vent Solenoid Control

Evaporator Temperature Sensor (C60)

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Evaporator Temperature Sensor (C60)

Pin	Wire	Circuit	Function
A	0.35 YE	1791	Low Reference
B	0.35 GY	6137	Evaporator Core Temperature Sensor Signal

Fog Lamp - Left Front (T96)

Connector Part Information

OEM: 12124819
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Left Front (T96)

Pin	Wire	Circuit	Function
A	0.5 PK	2234	Front Fog Lamp Supply Voltage
B	0.5 BK	150	Ground

Fog Lamp - Right Front (T96)

Connector Part Information

OEM: 12124819
Service: 12085498
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fog Lamp - Right Front (T96)

Pin	Wire	Circuit	Function
A	0.5 PK	2234	Front Fog Lamp Supply Voltage
B	0.5 BK	250	Ground

Fog Lamp Switch (T96)

Connector Part Information

OEM: 15419483
Service: 89046742
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Fog Lamp Switch (T96)

Pin	Wire	Circuit	Function
A	0.35 BK	550	Ground
B	0.35 YE	317	Fog Lamp Relay Control
C	0.35 OG	192	Front Fog Lamp Switch Signal
D	0.35 GY	8	Instrument Panel Lamp Supply Voltage

Folding Top Cover Actuator

Connector Part Information

OEM: 15326870
Service: 88953160
Description: 2-Way FGT 280 (BK)

Terminal Part Information

Terminal/Tray: 15304711/8
Core/Insulation Crimp: 2/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Folding Top Cover Actuator

Pin	Wire	Circuit	Function
A	1.0 TN/WH	56	Trunk Release Motor Supply Voltage
B	1.0 BK	850	Ground

Fuel Injector 1 (LE5)

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F Micro-Pack 064 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Fuel Injector 1 (LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 BK	1744	Fuel Injector 1 Control

Fuel Injector 1 (LNF)

Connector Part Information

OEM: 1-928-403-874
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Fuel Injector 1 (LNF)

Pin	Wire	Circuit	Function
1	1.0 TN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1
2	1.0 TN	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1

Fuel Injector 2 (LE5)

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F Micro-Pack 064 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Fuel Injector 2 (LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Ignition 1 Voltage
2	0.5 GN/BK	1745	Fuel Injector 2 Control

Fuel Injector 2 (LNF)

Connector Part Information

OEM: 1-928-403-874
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Fuel Injector 2 (LNF)

Pin	Wire	Circuit	Function
1	1.0 TN	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2
2	1.0 TN	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2

Fuel Injector 3 (LE5)

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F Micro-Pack 064 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Fuel Injector 3 (LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Injector 1 Voltage
2	0.5 PK/BK	1746	Fuel Injector 3 Control

Fuel Injector 3 (LNF)

Connector Part Information

OEM: 1-928-403-874
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Fuel Injector 3 (LNF)

Pin	Wire	Circuit	Function
1	1.0 TN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3
2	1.0 TN	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3

Fuel Injector 4 (LE5)

Connector Part Information

OEM: 7283-8596-30
Service: 15306160
Description: 2-Way F Micro-Pack 064 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Fuel Injector 4 (LE5)

Pin	Wire	Circuit	Function
1	0.5 PK	139	Injector 1 Voltage
2	0.5 BU/BK	844	Fuel Injector 4 Control

Fuel Injector 4 (LNF)

Connector Part Information

OEM: 1-928-403-874
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Fuel Injector 4 (LNF)

Pin	Wire	Circuit	Function
1	1.0 TN	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
2	1.0 TN	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4

Fuel Pump and Sender Assembly

Connector Part Information

OEM: 15326631
Service: 15306360
Description: 4-Way F GT 280 Series Sealed (BK)

Terminal Part Information

Pins: A, D, B, C
Terminal/Tray: 15304719/19
Core/Insulation Crimp: Pins A, D - 2/5
Core/Insulation Crimp: Pins B, C - E/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Fuel Pump and Sender Assembly

Pin	Wire	Circuit	Function
A	1.0 BK	750	Ground
B	0.5 PU	1589	Fuel Level Sensor Signal
C	0.5 TN	2759	Low Reference
D	1.0 GY	120	Fuel Pump Supply Voltage

Fuel Rail Pressure (FRP) Sensor (LNF)

Connector Part Information

OEM: 1-928-403-966
Description: 3-Way F 2.8 Series Sealed (BK)

Fuel Rail Pressure (FRP) Sensor (LNF)

Pin	Wire	Circuit	Function
1	0.5 GY	808	Low Reference
2	0.5 GY	2918	Fuel Rail Pressure Sensor Signal
3	0.5 GY	598	5-Volt Reference 1

Fuel Tank Pressure (FTP) Sensor

Connector Part Information

OEM: 13511996
Service: See Catalog
Description: 3-Way F 150 Series Sealed (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Fuel Tank Pressure (FTP) Sensor

Pin	Wire	Circuit	Function
1	0.5 D-GN	890	Fuel Tank Pressure Sensor Signal
2	0.5 TN	2759	Low Reference
3	0.5 GY	2709	5-Volt Reference 1

Generator X1

Connector Part Information

OEM: 12186568
Service: See Catalog
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: B, C
Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Generator X1

Pin	Wire Color	Circuit No.	Function
A	--	--	Not Used
B	0.35 OG	225	Generator Turn On Signal
C	0.35 GY	23	Generator Field Duty Cycle Signal
D	--	--	Not Used

Generator X2

Terminal Part Information

Terminal: 12146365
Description: Ring Terminal

Generator X2

Pin	Wire	Circuit	Function
A	13 RD	2	Battery Positive Voltage (LE5)
A	19 RD	2	Battery Positive Voltage (LNF)

Hazard Warning Switch (SKY)

Connector Part Information

OEM: 12047781
Service: 12101864
Description: 3-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Hazard Warning Switch (SKY)

Pin	Wire	Circuit	Function
A	0.35 GY	8	Instrument Panel Lamp Supply Voltage
B	0.35 BK	550	Ground
C	0.35 WH	111	Hazard Warning Switch Signal

Hazard Warning Switch (Solstice)

Connector Part Information

OEM: 12089248
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Hazard Warning Switch (Solstice)

Pin	Wire	Circuit	Function
A	0.35 BK	550	Ground
B	0.35 GY	8	Instrument Panel Lamp Supply Voltage
C	--	--	Not Used
D	0.35 WH	111	Hazard Warning Switch Signal

Headlamp - Left High Beam (SKY)

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Left High Beam (SKY)

Pin	Wire	Circuit	Function
A	0.8 BK	--	Left Headlamp High Beam Supply Voltage
B	0.8 BK	--	Ground

Headlamp - Left Low Beam (SKY)

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (GY)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Left Low Beam (SKY)

Pin	Wire	Circuit	Function
A	0.8 RD	--	Left Headlamp Low Beam Supply Voltage
B	0.8 RD	--	Ground

Headlamp - Left (Solstice)

Connector Part Information

OEM: 7900-1486-003
Service: See Catalog
Description: 3-Way F (WH)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Headlamp - Left (Solstice)

Pin	Wire	Circuit	Function
1	0.8 YE	712	Right Headlamp Low Beam Supply Voltage
2	0.8 BK	150	Ground
3	0.8 D-GN/WH	711	Right Headlamp High Beam Supply Voltage

Headlamp - Right High Beam (SKY)

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Right High Beam (SKY)

Pin	Wire	Circuit	Function
A	0.8 BK	--	Right Headlamp High Beam Supply Voltage
B	0.8 BK	--	Ground

Headlamp - Right Low Beam (SKY)

Connector Part Information

OEM: 15393199
Service: 88987187
Description: 2-Way F Metri-Pack 280 Series, Sealed (GY)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Headlamp - Right Low Beam (SKY)

Pin	Wire	Circuit	Function
A	0.8 RD	--	Right Headlamp Low Beam Supply Voltage
B	0.8 RD	--	Ground

Headlamp - Right (Solstice)

Connector Part Information

OEM: 7900-1486-003
Service: See Catalog
Description: 3-Way F (WH)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Headlamp - Right (Solstice)

Pin	Wire	Circuit	Function
1	0.8 TN/WH	312	Right Headlamp Low Beam Supply Voltage
2	0.8 BK	250	Ground
3	0.8 L-GN/BK	311	Right Headlamp High Beam Supply Voltage

Heated Oxygen Sensor (HO2S) 1 (LE5)

Connector Part Information

OEM: 12160482
Service: See Catalog
Description: 4-Way F Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) 1 (LE5)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal - Sensor 1
B	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal - Sensor 1
C	0.5 GY/WH	3113	Heated Oxygen Sensor Heater - Sensor 1
D	0.5 PK/BK	5291	Ignition 1 Voltage

Heated Oxygen Sensor (HO2S) 1 (LNF)

Connector Part Information

OEM: 1-928-404-900
Description: 6-Way F Sealed (BK)

Heated Oxygen Sensor (HO2S) 1 (LNF)

Pin	Wire	Circuit	Function
1	0.5 WH	5279	Heated Oxygen Sensor Pump Current - Sensor 1
2	0.5 TN/WH	3111	Heated Oxygen Sensor Low Signal - Sensor 1
3	0.5 GY/WH	3113	Heated Oxygen Sensor Heater Low Control - Sensor 1
4	0.5 PK/BK	5291	Ignition 1 Voltage
5	0.5 L-GN	5278	Heated Oxygen Sensor Input Pump Current - Sensor 1
6	0.5 PU/WH	3110	Heated Oxygen Sensor High Signal - Sensor 1

Heated Oxygen Sensor (HO2S) 2 (LE5)

Connector Part Information

OEM: 12092840
Service: See Catalog
Description: 4-Way M Metri-Pack 150 Series, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12045773/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-3 (GY)

Heated Oxygen Sensor (HO2S) 2 (LE5)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal - Sensor 2
B	0.5 PU	3120	Heated Oxygen Sensor High Signal - Sensor 2
C	--	--	Not Available
D	0.5 PK/BK	5291	Ignition 1 Voltage
E	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control - Sensor 2

Heated Oxygen Sensor (HO2S) 2 (LNF)

Connector Part Information

OEM: 15326423
Service: See Catalog
Description: 4-Way M Metri-Pack 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Heated Oxygen Sensor (HO2S) 2 (LNF)

Pin	Wire	Circuit	Function
A	0.5 TN/WH	3121	Heated Oxygen Sensor Low Signal - Sensor 2
B	0.5 PU	3120	Heated Oxygen Sensor High Signal - Sensor 2
C	0.5 GY/WH	3122	Heated Oxygen Sensor Heater Low Control - Sensor 2
D	0.5 PK/BK	5291	Ignition 1 Voltage

High Pressure Fuel Pump (LNF)

Connector Part Information

OEM: 1-928-403-874
OEM: See Catalog
Description: 2-Way F Kompakt 2.8 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

High Pressure Fuel Pump (LNF)

Pin	Wire	Circuit	Function
1	1.0 PU	7300	High Pressure Fuel Pump Actuator Low Control
2	1.0 YE	7301	High Pressure Fuel Pump Actuator High Control

Horn

Connector Part Information

OEM: E-2157-000
OEM: See Catalog
Description: 2-Way F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Horn

Pin	Wire	Circuit	Function
1	0.8 BK	250	Ground
2	0.8 D-GN	29	Horn Control

Horn Switch

Connector Part Information

OEM: 1209251
Service: See Catalog
Description: 2-Way F (RD)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Horn Switch

Pin	Wire	Circuit	Function
A	0.35 BN	28	Horn Relay Control
B	0.35 BK/WH	1150	Ground
B	0.35 BK/WH	1150	Ground

HVAC Control Module X1

Connector Part Information

OEM: 15118642
Service: 88988350
Description: 5-Way F (BK)

Terminal Part Information

Pins: 1, 5
Terminal/Tray: 964328-1/25
Core/Insulation Crimp: 4/B
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

Pins: 2, 3, 4
Terminal/Tray: 927837-1/25
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 12093647/J-35616-40 (BU)

HVAC Control Module X1

Pin	Wire	Circuit	Function
1	3.0 OG	52	Blower Motor High Control
2	2.0 L-BU	72	Medium 2 Blower Motor Control
3	2.0 TN	63	Blower Motor Medium Control (1)
4	2.0 YE	60	Blower Motor Low Control
5	3.0 BK	550	Ground

HVAC Control Module X2

Connector Part Information

OEM: 15336594
Service: 15336594
Description: 12-Way F Micro-Pack 100 Series (GY)

Terminal Part Information

Pins: B, C, D, F, G, J, K, L
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

HVAC Control Module X2

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 RD/WH	1540	Battery Positive Voltage
C	0.35 BK	550	Ground
D	0.35 GY	8	Instrument Panel Lamp Supply Voltage
E	--	--	Not Used
F	0.35 WH	193	Rear Defog Relay Control
G	0.35 D-GN/WH	762	A/C Request Signal (C60)
H	--	--	Not Used
J	0.35 L-BU	292	Rear Defog Switch Signal
K	0.5 PK	339	Ignition 1 Voltage
L	0.35 BK/WH	651	Ground
M	--	--	Not Used

HVAC Control Module X3

Connector Part Information

OEM: 12064799
Service: 15305996
Description: 12-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

HVAC Control Module X3

Pin	Wire	Circuit	Function
A	0.35 YE	1791	Low Reference
B	0.35 L-GN/BK	2276	Defrost Door Position Signal
C	0.35 GY	6137	Evaporator Core Temperature Sensor Signal (C60)
D	0.35 D-BU	1646	Auxiliary Air Temperature Door Position Signal
E	0.35 L-BU	733	Air Temperature Door Position Signal
F	0.35 L-BU/BK	1688	5-Volt Reference
G	0.35 D-GN	1614	Recirculation Door Control
H	0.35 TN/BK	2274	Recirculation Door Control Circuit
J	0.35 L-GN	2275	Mode Door Position Signal
K	0.35 TN	2273	Mode Door Control
L	0.35 L-GN/BK	1647	Recirculation Door Control B
M	0.35 D-BU	1199	Air Temperature Door Control

I/P Dimmer Switch (SKY)

Connector Part Information

OEM: 12020299
Service: See Catalog
Description: 5-Way F P/C Edgeboard-Standard (NA)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

I/P Dimmer Switch (SKY)

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 PU	719	Low Reference
C	0.35 D-GN	44	Instrument Panel Lamp Dimmer Switch Signal
D-E	--	--	Not Used

I/P Dimmer Switch (Solstice)

Connector Part Information

OEM: 15332135
Service: 15306414
Description: 4-Way F GT 150 (BK)

Terminal Part Information

Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

I/P Dimmer Switch (Solstice)

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PU	719	Low Reference
D	0.35 D-GN	44	Instrument Panel Lamp Dimmer Switch Signal

Ignition Coil 1

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 1

Pin	Wire	Circuit	Function
1	0.5 BK	450	Ground
2	0.35 BN	2129	Low Reference
3	0.35 PU	2121	IC 1 Control
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil 2

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 2

Pin	Wire	Circuit	Function
1	0.5 BK	450	Ground
2	0.35 BN/WH	2130	Low Reference (LE5)
2	0.35 BN	2129	Low Reference (LNF)
3	0.35 OG/WH	2122	IC 2 Control
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil 3

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 3

Pin	Wire	Circuit	Function
1	0.5 BK	450	Ground
2	0.35 BN	2129	Low Reference
3	0.35 L-BU	2123	IC 3 Control
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Coil 4

Connector Part Information

OEM: 7283-3392-30
Service: 88988338
Description: 4-Way F GT 150 Series (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Ignition Coil 4

Pin	Wire	Circuit	Function
1	0.5 BK	450	Ground
2	0.35 BN/WH	2130	Low Reference (LNF)
2	0.35 BN	2129	Low Reference (LE5)
3	0.35 D-GN/WH	2124	IC 4 Control
4	0.5 PK/BK	5292	Ignition 1 Voltage

Ignition Switch

Connector Part Information

OEM: 1L-AG5-6S-S3C1
Service: See Catalog
Description: 6-Way F 1L - AG5 Series (GN)

Terminal Part Information

Pins: 2, 3, 4, 5, 6
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Ignition Switch

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 RD/WH	1040	Battery Positive Voltage
3	0.35 YE	5199	Run/Crank Relay Coil Control
4	0.35 BN	4	Accessory Voltage
5	0.35 WH	1390	Off/Run/Crank Voltage
6	0.35 WH/BK	1073	Ignition Key Resistor Signal

Inflatable Restraint Front End Sensor - Left

Connector Part Information

OEM: 15356727
Service: See Catalog
Description: 2-Way F GT 150 Series Sealed 4.0 (YE)

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Front End Sensor - Left

Pin	Wire	Circuit	Function
A	0.5 TN/OG	5045	Low Reference
B	0.5 YE	1834	Forward Discriminating Sensor Signal

Inflatable Restraint Front End Sensor - Right

Connector Part Information

OEM: 15356727
Service: See Catalog
Description: 2-Way F GT 150 Series Sealed 4.0 (YE)

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Inflatable Restraint Front End Sensor - Right

Pin	Wire	Circuit	Function
A	0.5 GY	5600	Low Reference
B	0.5 YE/BK	2160	Front End Discriminating Sensor Signal

Inflatable Restraint I/P Module X1

Connector Part Information

OEM: 54550268
Service: Service By Complete Passenger Air Bag Jumper Harness
Description: 2-Way F (GY) With (YE) Case

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Inflatable Restraint I/P Module X1

Pin	Wire	Circuit	Function
1	0.5 PK/BK	3024	Instrument Panel Module - Stage 1 - Low Control
2	0.5 L-BU/RD	3025	Instrument Panel Module - Stage 1 - High Control

Inflatable Restraint I/P Module X2

Connector Part Information

OEM: 54550266
Service: Service By Complete Passenger Air Bag Jumper
Description: 2-Way F (BK) With (YE) Case

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Inflatable Restraint I/P Module X2

Pin	Wire	Circuit	Function
1	0.5 L-GN/RD	3026	Instrument Panel Module - Stage 2 - Low Control
2	0.5 RD/WH	3027	Instrument Panel Module - Stage 2 - High Control

Inflatable Restraint I/P Module Indicator

Connector Part Information

OEM: 15398877
Service: Not Serviced
Description: 5-Way F HCM (WH)

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Inflatable Restraint I/P Module Indicator

Pin	Wire	Circuit	Function
1	0.35 TN/BK	723	Instrument Panel Module Disable Switch Signal
2	0.35 BK/WH	651	Ground
3	0.35 PK	353	Instrument Panel Module Suppression Indicator Control
4	0.5 PK	339	Ignition 1 Voltage
5	0.35 PU	5234	Passenger Seat Belt Indicator

Inflatable Restraint Passenger Presence System (PPS) Module

Connector Part Information

OEM: 15332142
Service: 89046638
Description: 6-Way M GT 150 Series (BK)

Terminal Part Information

Pins: A, B, C, D, E
Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Passenger Presence System (PPS) Module

Pin	Wire	Circuit	Function
A	0.35 PK	1339	Ignition 1 Voltage
B	0.35 PK	5018	Occupant Sensor Serial Data
C	0.35 TN/BK	723	Instrument Panel Module Disable Switch Signal
D	0.35 BK/WH	351	Ground
E	0.35 PK	353	Instrument Panel Module Suppression Indicator Control
F	--	--	Not Used

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Connector Part Information

OEM: 6-638595-2
Service: 88988363
Description: 60-Way F (YE)

Terminal Part Information

Terminal/Tray: Serviced with Terminated Lead
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit

Inflatable Restraint Sensing and Diagnostic Module (SDM)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1240	Battery Positive Voltage
2	0.35 D-GN/YE	5060	Low Speed GMLAN Serial Data
3	0.35 PK	5057	Low Reference
4	0.35 TN/WH	238	Seat Belt Switch - Left
5	--	--	Not Used
6	0.35 OG	1362	Seat Belt Switch - Right - Signal
7	--	--	Not Used
8-11	--	--	Not Available
12	0.5 PU	3026	Instrument Panel Module Stage 2 Low Control
13	0.5 GY	3027	Instrument Panel Module Stage 2 High Control
14	0.5 TN	3021	Steering Wheel Module - Stage 1 High Control
15	0.5 BN	3020	Steering Wheel Module - Stage 1 Low Control
16	0.5 PK	3022	Steering Wheel Module - Stage 2 Low Control
17	0.5 WH	3023	Steering Wheel Module - Stage 2 High Control
18	0.5 YE	3025	Instrument Panel Module - Stage 1 High Control
19	0.5 OG	3024	Instrument Panel Module - Stage 1 Low Control
20-30	--	--	Not Available
31	0.5 BK/WH	351	Ground
32	--	--	Not Available
33	0.35 PK	1339	Ignition 1 Voltage
34-35	--	--	Not Available
36	0.5 GY	5600	Front End Sensor - Voltage - Right
37	0.5 YE/BK	2160	Front End Sensor - Signal - Right
38	0.5 YE	1834	Front End Sensor - Voltage - Left
39	0.5 TN/OG	5045	Front End Sensor - Signal - Left
40-51	--	--	Not Available
52	0.5 L-GN	2116	Seat Belt Pretensioner - Right - High Control
53	0.5 OG	2117	Seat Belt Pretensioner - Right - Low Control
54-55	--	--	Not Available
56	0.5 TN/WH	2118	Seat Belt Pretensioner - Left - High Control
57	0.5 OG/BK	2119	Seat Belt Pretensioner - Left - Low Control
58-59	--	--	Not Available
60	0.35 PK	5018	Occupant Sensor Serial Data

Inflatable Restraint Steering Wheel Module X1

Connector Part Information

OEM: 15359118
Service: See Catalog
Description: 2-Way F Micro-Pack 100 Series (GY) With (WH) Case

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Inflatable Restraint Steering Wheel Module X1

Pin	Wire	Circuit	Function
A	0.5 TN	3021	Steering Wheel Module - Stage 1 - High Control
B	0.5 BN	3020	Steering Wheel Module - Stage 1 - Low Control

Inflatable Restraint Steering Wheel Module X2

Connector Part Information

OEM: 15359118
Service: See Catalog
Description: 2-Way F Micro-Pack 100 Series (GY) With (PK) Case

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Inflatable Restraint Steering Wheel Module X2

Pin	Wire	Circuit	Function
A	0.5 WH	3023	Steering Wheel Module - Stage 2 - High Control
B	0.5 PK	3022	Steering Wheel Module - Stage 2 - Low Control

Inflatable Restraint Steering Wheel Module Coil X1

Connector Part Information

OEM: 15393433
Description: 10-Way F Micro-Pack 064 Series, Unsealed (BK)

Terminal Part Information

Pins: C, D, E, F, G, H, J, K
Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Inflatable Restraint Steering Wheel Module Coil X1

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PK	1539	Ignition 1 Voltage
D	0.35 GY	1884	Cruise Control Switch Signal (K34)
E	0.35 D-BU	1796	Steering Wheel Controls Signal (UK3)
F	0.35 WH/BK	644	10-Volt Reference
G	0.35 GY	1458	Instrument Panel Lamp Supply Voltage (UK3)
H	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
J	0.35 BN	28	Horn Relay Control
K	0.35 BK	1150	Ground

Inflatable Restraint Steering Wheel Module Coil X2

Connector Part Information

OEM: 15393433
Description: 10-Way F Micro-Pack 064 Series, Unsealed (BK)

Terminal Part Information

Pins: C, D, E, F, G, H, J, K
Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Inflatable Restraint Steering Wheel Module Coil X2

Pin	Wire	Circuit	Function
A-B	--	--	Not Used
C	0.35 PK	1539	Ignition 1 Voltage
D	0.35 GY	1884	Cruise Control Switch Signal (K34)
E	0.35 D-BU	1796	Steering Wheel Controls Signal (UK3)
F	0.35 WH/BK	644	10-Volt Reference (UK3)
G	0.35 GY/BK	1458	Instrument Panel Lamp Supply Voltage - 4
H	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
J	0.35 TN	28	Horn Relay Control
K	0.5 BK	1150	Ground

Inflatable Restraint Steering Wheel Module Coil X3

Connector Part Information

OEM: 15393421
Description: 4-Way F Micro-Pack 064 (YE)

Terminal Part Information

Terminal/Tray: Serviced with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: N/A

Inflatable Restraint Steering Wheel Module Coil X3

Pin	Wire	Circuit	Function
1	0.5 BN	3020	Steering Wheel Module - Stage 1 - Low Control
2	0.5 TN	3021	Steering Wheel Module - Stage 1 - High Control
3	0.5 PK	3022	Steering Wheel Module - Stage 2 - Low Control
4	0.5 WH	3023	Steering Wheel Module - Stage 2 High Control

Input Speed Sensor (ISS), Wiring Harness Side (M82)

Connector Part Information

OEM: 12162201
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Input Speed Sensor (ISS), Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	YE	1230	Automatic Transmission Input Speed Sensor High Signal
B	WH	1231	Automatic Transmission Input Speed Sensor Low Signal

Inside Rearview Mirror (ISRVM) (UE1)

Connector Part Information

OEM: 917981-2 (Solstice) 15324871 (SKY)
Service: See Catalog
Description: 16-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 175266-5/15
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 15317247/J-35616-16 (L-GY)

Inside Rearview Mirror (ISRVM) (UE1)

Pin	Wire	Circuit	Function
1	0.5 GY	157	Courtesy Lamp Control
2-5	--	--	Not Used
6	0.5 D-BU/WH	149	Courtesy Lamp Supply
7	--	--	Not Used
8	0.5 BK	550	Ground
9-10	--	--	Not Used
11	0.35 D-GN/WH	2514	Key Pad Signal
12	0.35 L-GN/BK	2515	Key Pad Supply Voltage
13	--	--	Not Used
14	0.35 YE/BK	2516	Key Pad Green LED Signal
15	0.35 BN/WH	2517	Key Pad Red LED Signal
16	--	--	Not Used

Inside Rearview Mirror (ISRVM) (without UE1)

Connector Part Information

OEM: 12124782
Service: 15306078
Description: 7-Way F VH Series (BK)

Terminal Part Information

Terminal/Tray: SVH-21T-P1.1/20
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12094429/J-35616-18 (BK)

Inside Rearview Mirror (ISRVM) (without UE1)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.5 BK	550	Ground
3-5	--	--	Not Used
6	0.5 GY	157	Courtesy Lamp Control
7	0.5 D-BU/WH	149	Courtesy Lamp Supply Voltage

Instrument Panel Cluster (IPC)

Connector Part Information

OEM: 15429805
Service: 89047195
Description: 16-Way F (NA)

Terminal Part Information

Pins: 1-3, 10-12
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: 5, 6, 8, 9, 13, 14, 15, 16
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Instrument Panel Cluster (IPC)

Pin	Wire	Circuit	Function
1	0.35 L-GN/WH	5060	Low Speed GMLAN Serial Data
2	0.35 PK/BK	5982	PRNDL Lamp B Signal (M82)
3	0.35 PU/WH	5981	PRNDL Lamp A Signal (M82)
4	--	--	Not Used
5	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
6	0.35 BN/WH	419	MIL Control
7	--	--	Not Used
8	0.35 GY	8	Instrument Panel Lamp Supply Voltage
9	0.35 D-GN/BK	5060	Low Speed GMLAN Serial Data
10	0.35 L-GN/WH	5984	PRNDL Lamp D Signal (M82)
11	0.35 PK	339	Ignition 1 Voltage
12	0.35 OG/BK	5983	PRNDL Lamp C Signal (M82)
13	0.35 RD/WH	1440	Battery Positive Voltage
14	0.35 D-GN	264	Security Indicator Supply Voltage
15	0.5 BK	1150	Ground
16	0.35 BK	550	Ground

Intake Air Pressure and Temperature Sensor (LNF)

Connector Part Information

OEM: 12162187
Service: See Catalog
Description: 4-Way F Metri-Pack 150.2 Series Sealed, Pull to Seat (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Intake Air Pressure and Temperature Sensor (LNF)

Pin	Wire	Circuit	Function
A	0.5 TN	407	Low Reference
B	0.5 L-BU	7329	Pre-Throttle Air Temp and Press (TMAP) Temperature Signal
C	0.5 GY	597	5-Volt Reference 1
D	0.5 PU	7330	Pre-Throttle Air Temp and Press (TMAP) Air Pressure Signal

Knock Sensor (LE5)

Connector Part Information

OEM: 12077900
Service: 12116247
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12077411/2
Core/Insulation Crimp: 2/5
Release Tool/Test Probe: 12094430/J-35616-4A (PU)

Knock Sensor (LE5)

Pin	Wire	Circuit	Function
A	0.5 D-BU	496	Knock Sensor Signal
B	0.5 GY	1716	Knock Sensor Signal

Knock Sensor (KS) - 1 (LNF)

Connector Part Information

OEM: 12077900
Service: See Catalog
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) - 1 (LNF)

Pin	Wire	Circuit	Function
A	0.5 D-BU	496	Knock Sensor 1 Signal
B	0.5 GY	1716	Knock Sensor 1 Signal

Knock Sensor (KS) - 2 (LNF)

Connector Part Information

OEM: 12077900
Service: See Catalog
Description: 2-Way F Metri-Pack 280 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Knock Sensor (KS) - 2 (LNF)

Pin	Wire	Circuit	Function
A	0.5 L-BU	1876	Knock Sensor 2 Signal
B	0.5 GY	2303	Knock Sensor 2 Signal

License Lamp

Connector Part Information

OEM: 12162000
Service: 12167120
Description: 2-Way M Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

License Lamp

Pin	Wire	Circuit	Function
A	0.5 BN	9	Tail/License Lamps Supply Voltage
B	0.5 BK	750	Ground

Manifold Absolute Pressure (MAP) Sensor (LE5)

Connector Part Information

OEM: 15365614
Service: See Catalog
Description: 3-Way F Kompakt 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Manifold Absolute Pressure (MAP) Sensor (LE5)

Pin	Wire	Circuit	Function
1	0.5 GY	2704	5-Volt Reverence 2
2	0.5 OG/BK	469	Low Reference
3	0.5 L-GN	432	Manifold Absolute Pressure Sensor Signal

Manifold Absolute Pressure (MAP) Sensor (LNF)

Connector Part Information

OEM: 184032-1
Service: See Catalog
Description: 3-Way F SSC Sealed Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Manifold Absolute Pressure (MAP) Sensor (LNF)

Pin	Wire	Circuit	Function
1	0.5 GY	597	5-Volt Reference 1
2	0.5 TN	407	Low Reference
3	0.5 L-GN	432	Manifold Absolute Pressure Sensor Signal

Marker Lamp - Left Front

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Left Front

Pin	Wire	Circuit	Function
1	0.5 BN	9	Tail/License Lamps Supply Voltage
2	0.5 BK	150	Ground

Marker Lamp - Left Rear (SKY)

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Left Rear (SKY)

Pin	Wire	Circuit	Function
1	0.5 BN	9	Tail/License Lamps Supply Voltage
2	0.5 BK	1050	Ground

Marker Lamp - Right Front

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Right Front

Pin	Wire	Circuit	Function
1	0.5 BN	9	Tail/License Lamps Supply Voltage
2	0.5 BK	250	Ground

Marker Lamp - Right Rear (SKY)

Connector Part Information

OEM: 7223-1324-60
Service: 88988460
Description: 2-Way F 090 Series (GN)

Terminal Part Information

Terminal/Tray: 7116-1420/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Marker Lamp - Right Rear (SKY)

Pin	Wire	Circuit	Function
1	0.5 BN	9	Tail/License Lamps Supply Voltage
2	0.5 BK	750	Ground

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Connector Part Information

OEM: 13519051
Service: 88987186
Description: 5-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Pin	Wire	Circuit	Function
A	0.35 YE	492	Mass Air Flow Sensor Signal
B	0.35 BK/WH	451	Ground
C	0.35 PK/BK	5291	Ignition 1 Voltage
D	0.35 TN	2760	Low Reference
E	0.35 L-BU	6289	Induction Air Temperature Sensor Signal

Mode Actuator

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Mode Actuator

Pin	Wire	Circuit	Function
1	0.35 YE	1791	Low Reference
2	0.35 L-GN/BK	2276	Defrost Door Position Signal
3	0.35 L-BU/BK	1688	5-Volt Reference
4	0.35 TN	2273	Mode Door Control
5	0.35 L-GN	2275	Mode Door Position Signal

Output Speed Sensor (OSS), Wiring Harness Side (M82)

Connector Part Information

OEM: 12162201
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Output Speed Sensor (OSS), Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	OG	400	Vehicle Speed Sensor High Signal
B	WH	401	Vehicle Speed Sensor Low Signal

Outside Air Temperature Sensor (SKY)

Connector Part Information

OEM: 12052642
Service: See Catalog
Description: 2-Way F Metri-Pack 150 Series, Sealed (L-GN)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Outside Air Temperature Sensor (SKY)

Pin	Wire	Circuit	Function
A	0.5 D-GN/WH	636	Ambient Air Temperature Signal
B	0.5 YE	61	Low Reference

Outside Rearview Mirror - Driver (D48)

Connector Part Information

OEM: E-5965-003
Service: 88988356
Description: 3-Way M 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

Outside Rearview Mirror - Driver (D48)

Pin	Wire	Circuit	Function
1	0.35 WH	81	Driver Mirror Motor Left Control (SKY)
1	0.35 L-BU	82	Driver Mirror Motor Left Control (Solstice)
2	0.35 TN	329	Driver Mirror Motor Supply Voltage
3	0.35 L-GN	89	Driver Mirror Motor Up Control (SKY)
3	0.35 YE	88	Driver Mirror Motor Up Control (Solstice)

Outside Rearview Mirror - Passenger (D48)

Connector Part Information

OEM: E-5965-003
Service: 88988356
Description: 3-Way M 1.5 Series, Sealed (BK)

Terminal Part Information

Pins: 1
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Pins: 2, 3
Terminal/Tray: 7114-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-3 (GY)

Outside Rearview Mirror - Passenger (D48)

Pin	Wire	Circuit	Function
1	0.35 OG/WH	881	Passenger Mirror Motor Left Control (SKY)
1	0.35 GY	090	Passenger Mirror Motor Left Control (Solstice)
2	0.35 TN/WH	330	Passenger Mirror Motor Supply Voltage
3	0.35 PU/WH	889	Passenger Mirror Motor Up Control (SKY)
3	0.35 BN/WH	1498	Passenger Mirror Motor Left/Down Control (Solstice)

Outside Rearview Mirror Switch (D48)

Connector Part Information

OEM: 12064769
Service: 12101762
Description: 10-Way F Metri-Pack 150 Series (NA)

Terminal Part Information

Pins: B, C, D, E, F, G, H, J, K
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Outside Rearview Mirror Switch (D48)

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 BK	550	Ground
C	0.35 TN/WH	330	Passenger Mirror Motor Supply Voltage (SKY)
C	0.35 TN	329	Driver Mirror Motor Supply Voltage (Solstice)
D	0.35WH	81	Driver Mirror Motor Right Control (SKY)
D	0.35 GY	90	Passenger Mirror Motor Left Control (Solstice)
E	0.35 GY	8	Instrument Panel Lamp Supply Voltage
F	0.35 L-GN	89	Driver Mirror Motor Down Control (SKY)
F	0.35 BR/WH	1498	Passenger Mirror Motor Left/Down Control (Solstice)
G	0.35 RD/WH	440	Battery Positive Voltage
H	0.35 TN	329	Driver Mirror Motor Supply Voltage (SKY)
H	0.35 TN/WH	330	Passenger Mirror Motor Supply Voltage (Solstice)
J	0.35 OG/WH	881	Passenger Mirror Motor Right Control (SKY)
J	0.35 L-BU	82	Driver Mirror Motor Left Control (Solstice)
K	0.35 PU/WH	889	Passenger Mirror Motor Down Control (SKY)
K	0.35 YE	88	Driver Mirror Motor Up Control (Solstice)

Park Brake Switch

Connector Part Information

OEM: 12047682
Service: 12101850
Description: 1-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Park Brake Switch

Pin	Wire	Circuit	Function
A	0.5 L-BU	1134	Park Brake Switch Signal

Park Lamp - Left Front (SKY)

Connector Part Information

OEM: E-3550-000
Service: 89046838
Description: 2-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal: Pin 1: 7116-4102-08/9Pin 2: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park Lamp - Left Front (SKY)

Pin	Wire	Circuit	Function
1	0.5 BN	9	Park Lamp Supply Voltage
2	0.8 BK	150	Ground

Park Lamp - Right Front (SKY)

Connector Part Information

OEM: E-3550-000
Service: 89046838
Description: 2-Way F 1.5 Series, Sealed (BK)

Terminal Part Information

Terminal: Pin 1: 7116-4102-08/9Pin 2: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Park Lamp - Right Front (SKY)

Pin	Wire	Circuit	Function
1	0.5 BN	9	Park Lamp Supply Voltage
2	0.8 BK	250	Ground

Park/Turn Signal Lamp - Left (Solstice)

Connector Part Information

OEM: 16530673
Service: See Catalog
Description: 3-Way F W3 Socket (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Turn Signal Lamp - Left (Solstice)

Pin	Wire	Circuit	Function
A	0.5 L-BU	14	Left Turn Signal Lamps Supply Voltage
B	0.5 BN	9	Tail/License Lamps Supply Voltage
G	0.5 BK	150	Ground (T96)
G	0.5 BK	150	Ground

Park/Turn Signal Lamp - Right (Solstice)

Connector Part Information

OEM: 16530673
Service: See Catalog
Description: 3-Way F W3 Socket (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Park/Turn Signal Lamp - Right (Solstice)

Pin	Wire	Circuit	Function
A	0.5 D-BU	15	Right Turn Signal Lamps Supply Voltage
B	0.5 BN	9	Tail/License Lamps Supply Voltage
G	0.5 BK	250	Ground (T96)
G	0.5 BK	250	Ground

Pressure Control (PC) Solenoid Valve, Wiring Harness Side (M82)

Connector Part Information

OEM: 12146094
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (GY)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Pressure Control (PC) Solenoid Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	GN	1228	Pressure Control Solenoid Valve High Control
B	WH	1229	Pressure Control Solenoid Valve Low Control

Radio - X1

Connector Part Information

OEM: 7283-9076-30
Service: See Catalog
Description: 16-Way F Kaizen 0.64 Series (BK)

Terminal Part Information

Pins: 1, 2, 3, 4, 4, 5, 5, 6, 6, 7, 7, 8, 9, 14, 15, 16
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio - X1

Pin	Wire	Circuit	Function
1	0.5 BN/WH	367	Left Audio Signal (+) (U2K with UQ3)
2	0.5 D-GN/WH	368	Right Audio Signal (+) (1) (U2K with UQ3)
3	0.35 PK	314	Radio On Signal (UQ3)
4	0.5 L-BU	115	Right Rear Speaker Output (-) (UW5)
4	0.5 TN	1946	Right Rear Low Level Audio Signal (-) (UQ3)
5	0.5 D-BU	46	Right Rear Speaker Output (+) (UW5)
5	0.5 D-BU	546	Right Rear Low Level Audio Signal (+) (UQ3)
6	0.5 YE	116	Left Rear Speaker Output (-) (UW5)
6	0.5 BN	1999	Left Rear Low Level Audio Signal (-) (UQ3)
7	0.5 BN	199	Left Rear Speaker Output (+) (UW5)
7	0.5 BN/WH	599	Left Rear Low Level Audio Signal (+) (UQ3)
8	0.5 PK/BK	2062	Navigation Mono Audio Signal (+)
9	0.5 TN/WH	372	Audio Common (U2K with UQ3)
10-13	--	--	Not Used
14	0.35 WH/BK	644	10-Volt Reference (UK3)
15	0.35 L-GN	1011	Remote Radio Control Signal (UQ3)
16	0.5 OG/BK	2061	Navigation Mono Audio Signal (-)

Radio - X2

Connector Part Information

OEM: 7283-4490-30
Service: See Catalog
Description: 14-Way F (BK)

Terminal Part Information

Pins: 1, 1, 8
Terminal/Tray: 12191812/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: 4, 4, 5, 5, 6, 6, 7, 7, 9, 11
Terminal/Tray: 15359541/4
Core/Insulation Crimp: M/M
Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)

Radio - X2

Pin	Wire	Circuit	Function
1	0.8 RD/WH	1140	Battery Positive Voltage
2-3	--	--	Not Used
4	0.5 D-GN	117	Right Front Speaker Output (-) (UW5)
4	0.5 L-GN	1948	Right Front Low Level Audio Signal (-) (UQ3)
5	0.5 L-GN	200	Right Front Speaker Output (+) (UW5)
5	0.5 L-GN/WH	512	Right Front Low Level Audio Signal (+) (UQ3)
6	0.5 GY	118	Left Front Speaker Output (-) (UW5)
6	0.5 D-GN	1947	Left Front Low Level Audio Signal (-) (UQ3)
7	0.5 TN	201	Left Front Speaker Output (+) (UW5)
7	0.5 TN	511	Left Front Low Level Audio Signal (+) (UQ3)
8	0.8 BK/WH	551	Ground
9	0.35 D-GN/WH	5060	Low Speed GMLAN Serial Data
10	--	--	Not Used
11	0.35 D-BU	1796	Steering Column Controls Signal
12-14	--	--	Not Used

Rear Compartment Courtesy Lamp

Connector Part Information

OEM: 12047662
Service: 12085535
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Rear Compartment Courtesy Lamp

Pin	Wire	Circuit	Function
A	0.5 BK	750	Ground
B	0.5 OG/BK	737	Rear Compartment Lamp Control

Rear Compartment Lid Ajar Switch

Connector Part Information

OEM: 12129082
Service: 15305896
Description: 2-Way F Metri-Pack 280 Series, Flexlock (GY)

Terminal Part Information

Pins: A, B
Terminal/Tray: 12110844/4
Core/Insulation Crimp: Pins: E/C
Core/Insulation Crimp: Pins: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Rear Compartment Lid Ajar Switch

Pin	Wire	Circuit	Function
A	0.35 OG/BK	744	Rear Compartment Lid Ajar Switch Signal
B	0.5 BK	850	Ground

Rear Compartment Lid Latch Release Actuator

Connector Part Information

OEM: 12129081
Service: 12129081
Description: 2-Way F Metri-Pack 280 Series, Flexlock (BK)

Terminal Part Information

Terminal/Tray: 12110844/4
Core/Insulation Crimp: C/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Rear Compartment Lid Latch Release Actuator

Pin	Wire	Circuit	Function
A	1.0 TN/WH	56	Rear Compartment Lid Release Motor Supply Voltage
B	1.0 BK	850	Ground

Rear Compartment Lid Release Switch

Connector Part Information

OEM: 12044785
Service: 12102900
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: A, C
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A

Rear Compartment Lid Release Switch

Pin	Wire	Circuit	Function
A	0.35 BK/WH	651	Ground
B	--	--	Not Used
C	0.35 TN	1576	Rear Compartment Lid Release Actuator
D	--	--	Not Used

Rear Window Defogger Grid X1

Connector Part Information

OEM: 12004267
Service: 08911256
Description: 1-Way F 56 Series Lock Type (BK)

Terminal Part Information

Terminal/Tray: 12124515/1
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X1

Pin	Wire	Circuit	Function
A	1.0 PU	293	Rear Defog Element Supply Voltage

Rear Window Defogger Grid X2

Connector Part Information

OEM: 12004267
Service: 08911256
Description: 1-Way F 56 Series Lock Type (BK)

Terminal Part Information

Terminal/Tray: 12124515/1
Core/Insulation Crimp: C/D
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Rear Window Defogger Grid X2

Pin	Wire	Circuit	Function
A	1.0 BK	850	Ground

Recirculation Actuator

Connector Part Information

OEM: 12064982
Service: 12102633
Description: 5-Way F Micro-Pack 100 Series (BK)

Terminal Part Information

Pins: 4, 5
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J35616-6 (BN)

Recirculation Actuator

Pin	Wire	Circuit	Function
1-3	--	--	Not Used
4	0.35 L-BU	1614	Recirculation Door Control
5	0.35 L-GN	2274	Recirculation Door Control Circuit

Remote Control Door Lock Receiver (RCDLR) (AU3/AU0)

Connector Part Information

OEM: HCMPB-04-K
Service: See Catalog
Description: 4-Way F HCM Series (BK)

Terminal Part Information

Pins: 1, 2, 4
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Remote Control Door Lock Receiver (RCDLR) (AU3/AU0)

Pin	Wire	Circuit	Function
1	0.5 BK/WH	851	Ground
2	0.35 D-GN/RD	5060	Low Speed GMLAN Serial Data
3	--	--	Not Used
4	0.35 RD/WH	1340	Battery Positive Voltage

Seat Adjuster Switch - Driver (AF2)

Connector Part Information

OEM: 12052854
Service: 88953358
Description: 7-Way F Metri-Pack 280 Series (BK)

Terminal Part Information

Terminal/Tray: 12015858/4
Core/Insulation Crimp: F/G
Release Tool/Test Probe: 12094430/35616-4A (PU)

Seat Adjuster Switch - Driver (AF2)

Pin	Wire	Circuit	Function
A	2.0 BK	550	Ground
B	2.0 D-BU	287	Driver Seat Front Vertical Motor Down Control
C	2.0 D-GN	286	Driver Seat Front Vertical Motor Up Control
D-E	--	--	Not Used
F	2.0 RD/BK	642	Battery Positive Voltage
G	2.0 BK	550	Ground

Seat Belt Pretensioner - Driver (Solstice)

Connector Part Information

OEM: 1376030-1
Service: See Catalog
Description: 2-Way F Squib Unsealed (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Driver (Solstice)

Pin	Wire	Circuit	Function
1	0.5 OG/BK	2119	Seat Belt Pretensioner - Driver - Low Control
2	0.5 TN/WH	2118	Seat Belt Pretensioner - Driver - High Control

Seat Belt Pretensioner - Driver (SKY)

Connector Part Information

OEM: 15380395
Service: See Catalog
Description: 2-Way F (GY)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Driver (SKY)

Pin	Wire	Circuit	Function
1	0.5 OG/BK	2119	Seat Belt Pretensioner - Driver - Low Control
2	0.5 TN/WH	2118	Seat Belt Pretensioner - Driver - High Control

Seat Belt Pretensioner - Passenger

Connector Part Information

OEM: 1376030-1
Service: See Catalog
Description: 2-Way F Squib Unsealed (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Seat Belt Pretensioner - Passenger

Pin	Wire	Circuit	Function
1	0.5 OG	2117	Seat Belt Pretensioner - Passenger - Low Control
2	0.5 L-GN	2116	Seat Belt Pretensioner - Passenger - High Control

Seat Belt Switch - Driver

Connector Part Information

OEM: 15332132
Service: 88953364
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Pins: A, C
Terminal/Tray: 12191812/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Seat Belt Switch - Driver

Pin	Wire	Circuit	Function
A	0.35 TN/WH	238	Seat Belt Switch - Left
B	--	--	Not Used
C	0.35 PK	5057	Low Reference

Seat Belt Switch - Passenger

Connector Part Information

OEM: 15332133
Service: 88987881
Description: 3-Way F GT 150 Series (BK)

Terminal Part Information

Pins: A, C
Terminal/Tray: 15304702/19
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-3 (GY)

Seat Belt Switch - Passenger

Pin	Wire	Circuit	Function
A	0.35 OG	1362	Seat Belt Switch - Right - Signal
B	--	--	Not Used
C	0.35 PK	5057	Low Reference

Seat Front Vertical Motor - Driver (AF2)

Connector Part Information

OEM: 1379217-3
Service: Not Serviced
Description: 5-Way F MQS/MPQ Mixed Series (BK)

Terminal Part Information

Terminal/Tray: 968075-5/17
Core/Insulation Crimp: 2/4
Release Tool/Test Probe: 12031876-1/J-35616-4A (PU)

Seat Front Vertical Motor - Driver (AF2)

Pin	Wire	Circuit	Function
1	2.0 D-GN	286	Driver Seat Front Vertical Motor Up Control
2-4	--	--	Not Used
5	2.0 D-BU	287	Driver Seat Front Vertical Motor Down Control

Speaker - Left Front (UQ3)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front (UQ3)

Pin	Wire	Circuit	Function
A	0.8 GY	118	Left Front Speaker Output (-)
B	0.8 TN	201	Left Front Speaker Output (+)

Speaker - Left Front (UW5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Front (UW5)

Pin	Wire	Circuit	Function
A	0.8 GY	118	Left Front Speaker Output (-)
B	0.8 TN	201	Left Front Speaker Output (+)

Speaker - Left Rear (UQ3)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear (UQ3)

Pin	Wire	Circuit	Function
A	0.8 YE	116	Left Rear Speaker Output (-)
B	0.8 BN	199	Left Rear Speaker Output (+)

Speaker - Left Rear (UW5)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Rear (UW5)

Pin	Wire	Circuit	Function
A	0.5 YE	116	Left Rear Speaker Output (-)
B	0.5 BN	199	Left Rear Speaker Output (+)

Speaker - Left Tweeter

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Left Tweeter

Pin	Wire	Circuit	Function
A	0.8 TN	1856	Left Tweeter Output (+) (UQ3)
A	0.8 GY	118	Left Front Speaker Output (-) (UW5)
B	0.8 YE	1956	Left Tweeter Output (-) (UQ3)
B	0.8 TN	201	Left Front Speaker Output (+) (UW5)

Speaker - Right Front (UQ3)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front (UQ3)

Pin	Wire	Circuit	Function
A	0.8 D-GN	117	Right Front Speaker Output (-)
B	0.8 L-GN	200	Right Front Speaker Output (+)

Speaker - Right Front (UW5)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Front (UW5)

Pin	Wire	Circuit	Function
A	0.8 D-GN	117	Right Front Speaker Output (-)
B	0.8 L-GN	200	Right Front Speaker Output (+)

Speaker - Right Rear (UQ3)

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Rear (UQ3)

Pin	Wire	Circuit	Function
A	0.8 L-BU	115	Right Rear Speaker Output (-)
B	0.8 D-BU	46	Right Rear Speaker Output (+)

Speaker - Right Rear (UW5)

Connector Part Information

OEM: 12064869
Service: 12117323
Description: 2-Way F Metri-Pack 150 Series (BU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Speaker - Right Rear (UW5)

Pin	Wire	Circuit	Function
A	0.5 L-BU	115	Right Rear Speaker Output (-)
B	0.5 D-BU	46	Right Rear Speaker Output (+)

Speaker - Right Tweeter

Connector Part Information

OEM: 12052832
Service: 12101825
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Right Tweeter

Pin	Wire	Circuit	Function
A	0.8 L-GN	1852	Right Tweeter Output (+) (UQ3)
A	0.8 D-GN	117	Right Front Speaker Output (-) (UW5)
B	0.8 PU	1952	Right Tweeter Output (-) (UQ3)
B	0.8 L-GN	200	Right Front Speaker Output (+) (UW5)

Speaker - Subwoofer (UQ3)

Connector Part Information

OEM: 12064760
Service: 12085208
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12047767/2
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Speaker - Subwoofer (UQ3)

Pin	Wire	Circuit	Function
A	0.8 L-BU/BK	315	Right Subwoofer Speaker Output (-)
B	0.8 D-GN	1795	Right Subwoofer Speaker Output (+)
C	0.8 L-GN/BK	1794	Left Subwoofer Speaker Output (-)
D	0.8 D-BU/WH	346	Left Subwoofer Speaker Output (+)

Starter Motor X1

Connector Part Information

OEM: 12089916
Service: See Catalog
Description: 1-Way F Metri-Pack 280 Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Starter Motor X1

Pin	Wire	Circuit	Function
A	2.0 PU	6	Starter Solenoid Crank Voltage

Starter Motor X2 (LE5)

Terminal Part Information

Terminal: 12103503
Description: Ring Terminal

Starter Motor X2 (LE5)

Pin	Wire	Circuit	Function
1	5 RD	2	Starter Solenoid Crank Voltage

Starter Motor X2 (LNF)

Terminal Part Information

Terminal: 12103502
Description: Ring Terminal

Starter Motor X2 (LNF)

Pin	Wire	Circuit	Function
1	8 RD	2	Starter Solenoid Crank Voltage

Steering Angle Sensor (JL9)

Connector Part Information

OEM: 1488752-1
Service: See Catalog
Description: 6-Way F 064 GET Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Angle Sensor (JL9)

Pin	Wire	Circuit	Function
1	0.5 D-GN	2087	12-Volt Reference
2	0.5 PK/BK	6434	Can Bus High Serial Data
3	0.5 PK/BK	6434	Can Bus High Serial Data
4	0.5 GY/BK	6435	Can Bus Low Serial Data
5	0.5 GY/BK	6435	Can Bus Low Serial Data
6	0.5 L-BU	2088	Low Reference

Steering Wheel Control Switch - Left (K34)

Connector Part Information

OEM: 50-57-9407
Service: 88988695
Description: 7-Way F SL Series Unsealed (BK)

Terminal Part Information

Pins: 3, 4, 5, 6, 7
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Control Switch - Left (K34)

Pin	Wire	Circuit	Function
1	0.35 D-GN/WH	1358	Driver Information Center Switch Signal
2	--	--	Not Used
3	0.35 GY	8	Instrument Panel Lamp Supply Voltage
4	0.35 PK	1539	Ignition 1 Voltage
5	0.35 GY	1884	Cruise Control Switch Signal
6	--	--	Not Used
7	0.35 BK/WH	1150	Ground

Steering Wheel Control Switch - Right (UK3)

Connector Part Information

OEM: 50-57-9404
Service: 88987918
Description: 4-Way F SL Series, Unsealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Steering Wheel Control Switch - Right (UK3)

Pin	Wire	Circuit	Function
1	0.35 BK/WH	1150	Ground
2	0.35 WH/BK	644	10-Volt Reference
3	0.35 GY	8	Instrument Panel Lamp Supply Voltage
4	0.35 D-BU	1796	Steering Column Control Signal

Tail/Stop and Turn Signal Lamp - Left (SKY)

Connector Part Information

OEM: 6189-0319
Service: See Catalog
Description: 6-Way F TS 090 Series, Sealed (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail/Stop and Turn Signal Lamp - Left (SKY)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.8 BN	9	Tail/License Lamps Supply Voltage
4	--	--	Not Used
5	0.8 BK	1050	Ground
6	0.8 YE	18	Left Rear Stop/Turn Lamp Supply Voltage

Tail/Stop and Turn Signal Lamp - Left (Solstice)

Connector Part Information

OEM: 7900-1493-000
Service: See Catalog
Description: 3-Way F (BK)

Terminal Part Information

Terminal/Tray: 7116-4103-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Tail/Stop and Turn Signal Lamp - Left (Solstice)

Pin	Wire	Circuit	Function
1	0.8 YE	18	Left Rear Stop/Turn Lamp Supply Voltage
2	0.8 BN	9	Tail/License Lamps Supply Voltage
3	0.8 BK	1050	Ground

Tail/Stop and Turn Signal Lamp - Right (SKY)

Connector Part Information

OEM: 6189-0319
Service: See Catalog
Description: 6-Way F TS 090 Series, Sealed (NA)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Tail/Stop and Turn Signal Lamp - Right (SKY)

Pin	Wire	Circuit	Function
1-2	--	--	Not Used
3	0.8 BN	9	Tail/License Lamps Supply Voltage
4	--	--	Not Used
5	0.8 BK	750	Ground
6	0.8 YE	18	Right Rear Stop/Turn Lamp Supply Voltage

Tail/Stop and Turn Signal Lamp - Right (Solstice)

Connector Part Information

OEM: 7900-1493-000
Service: See Catalog
Description: 3-Way F (BK)

Terminal Part Information

Terminal/Tray: 7116-4102-08/9
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094430/J-35616-2A (GY)

Tail/Stop and Turn Signal Lamp - Right (Solstice)

Pin	Wire	Circuit	Function
1	0.8 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
2	0.8 BN	9	Tail/License Lamps Supply Voltage
3	0.5 BK	750	Ground

Theft Deterrent Module (TDM)

Connector Part Information

OEM: 50-5797-05
Service: See Catalog
Description: 5-Way F Sl Series Unsealed (BK)

Terminal Part Information

Pins: 1-4
Terminal/Tray: 16-02-1110/20
Core/Insulation Crimp: H/H
Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)

Theft Deterrent Module (TDM)

Pin	Wire	Circuit	Function
1	0.35 RD/WH	1540	Battery Positive Voltage
2	0.35 BN	4	Accessory Voltage
3	0.35 BK/WH	651	Ground
4	0.35 L-GN	5060	Low Speed GMLAN Serial Data
5	--	--	Not Used

Throttle Body

Connector Part Information

OEM: 15355297
Service: See Catalog
Description: 6-Way F GT 150 Series Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Throttle Body

Pin	Wire	Circuit	Function
A	0.8 BN	582	Throttle Actuator Control Motor Control - 2 (LNF)
A	0.5 BN	582	Throttle Actuator Control Motor Control - 2 (LE5)
B	0.8 YE	581	Throttle Actuator Control Motor Control - 1 (LNF)
B	0.5 YE	581	Throttle Actuator Control Motor Control - 1 (LE5)
C	0.5 TN	2752	Low Reference
D	0.5 D-GN	485	Throttle Position Sensor 1 Signal
E	0.5 GY	2701	5-Volt Reference 3
F	0.5 PU	486	Throttle Position Sensor 2 Signal

Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve, Wiring Harness Side (M82)

Connector Part Information

OEM: 12162202
Service: See Catalog
Description: 2-Way F Metri-Pack 150.2 Series P2S (BU)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	YE	418	Torque Converter Clutch Pulse width Modulated Solenoid Valve Control
B	WH	1525	Clutch Pressure Control Solenoid Valve 1 High Control

Traction Control Switch (TCS) (JL9)

Connector Part Information

OEM: 12047785
Service: See Catalog
Description: 4-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Traction Control Switch (TCS) (JL9)

Pin	Wire	Circuit	Function
A	0.35 BK	550	Ground
B	--	--	Not Used
C	0.35 L-BU	1788	Traction Control Switch Signal
D	0.35 GY	8	Instrument Panel Lamp Supply

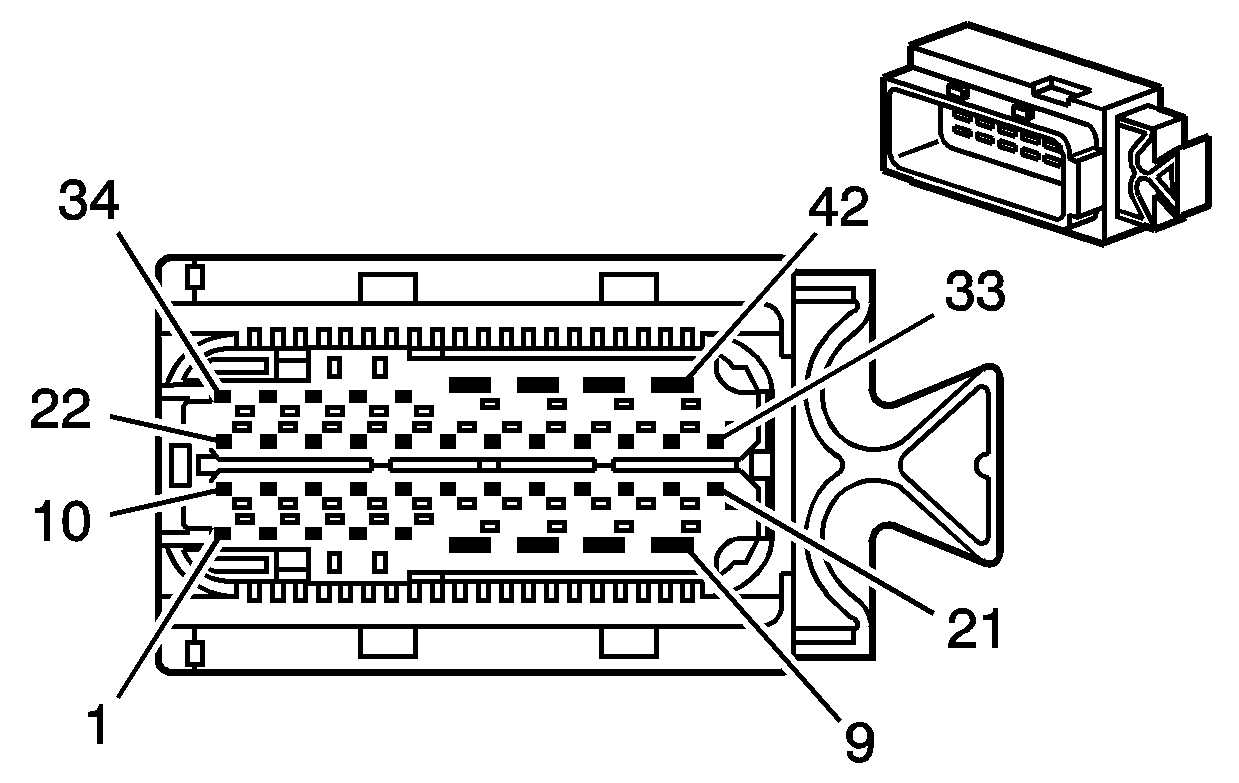

Transmission Control Module (TCM) (M82)

Connector Part Information

OEM: 1-1393455-2
Service: 15434189
Description: 42-Way F Sealed Module 1 Socket Housing (BK)

Terminal Part Information

Terminal/Tray: 2-1411578-2 /Yazaki 15
Core/Insulation Crimp: 7/7
Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)

Transmission Control Module (TCM) (M82)

Pin	Wire	Circuit	Function
F1	0.35 YE	400	Vehicle Speed Sensor Signal
F2	0.35 PU	401	Low Reference
F3	0.35 OG/BK	1228	Pressure Control Solenoid Valve High Control
F4	0.35 BN	418	Torque Converter Clutch Pulse Width Modulated Solenoid Valve Control
F5	0.35 BN	4	Accessory Voltage
F6	1.0 BK/WH	451	Ground
F7	--	--	Not Used
F8	0.8 OG	1525	Clutch Pressure Control Solenoid Valve 1 High Control
F9	0.8 PK	1039	Ignition 1 Voltage
F10	0.35 OG/BK	1230	Automatic Transmission Input Speed Sensor High Signal
F11	0.35 D-BU/WH	1231	Automatic Transmission Input Speed Sensor Low Signal
F12-F14	--	--	Not Used
F15	0.35 YE/BK	1227	Transmission Fluid Temperature Sensor Signal
F16-F17	--	--	Not Used
F18	0.35 YE/BK	1223	2-3 Shift Solenoid Valve Control
F19	0.35 PU	898	4-5 Shift Solenoid Valve Control
F20	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
F21	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
F22-F23	--	--	Not Used
F24	0.35 YE	772	Transmission Range Switch Signal B
F25	0.35 GY	773	Transmission Range Switch Signal C
F26	0.35 TN	2762	Low Reference
F27	0.5 RD/WH	840	Battery Positive Voltage
F28	--	--	Not Used
F29	0.35 L-BU/WH	1229	Pressure Control Solenoid Valve Low Control
F30	0.35 L-GN	1222	1-2 Shift Solenoid Valve Control
F31	--	--	Not Used
F32	0.5 TN/BK	2500	High Speed GMLAN Serial Data Bus (+)
F33	0.5 TN	2501	High Speed GMLAN Serial Data Bus (-)
F34-F35	--	--	Not Used
F36	0.35 TN/WH	771	Transmission Range Switch Signal A
F37	0.35 WH	776	Transmission Range Switch Signal P
F38	0.35 L-BU	20	Stop Lamp Supply Voltage
F39-F42	--	--	Not Used

Transmission Manual Shift Shaft Switch, Wiring Harness Side (M82)

Connector Part Information

OEM: 12146095
Service: See Catalog
Description: 6-Way F Metri-Pack 150.2 Series P2S (NA)

Terminal Part Information

Terminal/Tray: Non-Serviceable
Core/Insulation Crimp: Non-Serviceable
Release Tool/Test Probe: Non-Serviceable

Transmission Manual Shift Shaft Switch, Wiring Harness Side (M82)

Pin	Wire	Circuit	Function
A	BN	1786	Park/Neutral Signal
B	GY	776	Transmission Range Signal P
C	BK	772	Transmission Range Signal B
D	RD	771	Transmission Range Signal A
E	BU	773	Transmission Range Signal C
F	GN	451	Ground

Turbocharger Bypass Valve Solenoid (LNF)

Connector Part Information

OEM: 1 928 402 571
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turbocharger Bypass Valve Solenoid (LNF)

Pin	Wire	Circuit	Function
1	0.5 D-GN	6391	Turbocharger Bypass Valve Control
2	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (4)

Turbocharger Wastegate Solenoid (LNF)

Connector Part Information

OEM: 1 928 402 571
Service: See Catalog
Description: 2-Way F Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turbocharger Wastegate Solenoid (LNF)

Pin	Wire	Circuit	Function
1	0.5 YE	258	Turbocharger Wastegate Solenoid Control
2	0.5 PK/BK	5293	Powertrain Main Relay Fused Supply (4)

Turn Signal Lamp - Left Front (SKY)

Connector Part Information

OEM: 15324084
Service: See Catalog
Description: 3-Way F Bulb Type W3, Right Angle (BN)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - Left Front (SKY)

Pin	Wire	Circuit	Function
A	0.5 L-BU	14	Left Turn Signal Lamps Supply Voltage
B	0.5 BN	9	Tail/License Lamps Supply Voltage
G	0.5 BK	150	Ground (T96)

Turn Signal Lamp - Right Front (SKY)

Connector Part Information

OEM: 15324084
Service: See Catalog
Description: 3-Way F Bulb Type W3, Right Angle (BN)

Terminal Part Information

Terminal: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Turn Signal Lamp - Right Front (SKY)

Pin	Wire	Circuit	Function
A	0.5 D-BU	15	Right Turn Signal Lamps Supply Voltage
B	0.5 BN	9	Tail/License Lamps Supply Voltage
G	0.5 BK	250	Ground (T96)

Turn Signal/Multifunction Switch X1

Connector Part Information

OEM: NACP-08-S
Service: See Catalog
Description: 8-Way F Misc (NA)

Terminal Part Information

Terminal/Tray: SNAC-A03T-M040/20
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12094429/J-35616-12 (BU)

Turn Signal/Multifunction Switch X1

Pin	Wire	Circuit	Function
1	0.35 BK/WH	651	Ground
2	0.35 WH	103	Headlamp Switch Headlamps On Signal
3	0.35 BN/WH	301	Park Lamp Switch On Signal
4	0.35 PU/WH	549	Headlamp Switch Headlamps Off Signal
5-8	--	--	Not Used

Turn Signal/Multifunction Switch X2

Connector Part Information

OEM: 15393435
Service: 88986438
Description: 10-Way F Micro (BK)

Terminal Part Information

Terminal/Tray: 12177007/19
Core/Insulation Crimp: E/2
Release Tool/Test Probe: 12180559-1/J-35616-64B (L-BU)

Turn Signal/Multifunction Switch X2

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 BK/WH	651	Ground
C	0.35 BN	1356	Flash To Pass Switch Signal
D	0.35 PU	524	Headlamp Dimmer Switch High Beam Signal
E	0.35 PK/WH	1970	Headlamp Low Beam Relay Control (Solstice)
E	--	--	Not Used (SKY)
F	0.35 YE	10	Headlamp Switch Signal (Solstice)
F	0.35 PK/WH	1970	Headlamp Low Beam Relay Control (SKY)
G	0.35 YE/BK	1418	Left Rear Turn Signal Switch Signal
H	0.35 D-GN/WH	1419	Right Rear Turn Signal Switch Signal
J-K	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Connector Part Information

OEM: 15431362
Service: 15306351
Description: 16-Way F Micro HVT 100 Series (NA)

Terminal Part Information

Pins: 2, 3, 6, 8, 11, 15
Terminal/Tray: 15445905/23
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X1 (UE1)

Pin	Wire	Circuit	Function
1	--	--	Not Used
2	0.35 BN/WH	2517	Keypad Red LED Signal
3	0.35 YE/BK	2516	Keypad Green LED Signal
4-5	--	--	Not Used
6	0.35 L-GN/BK	2515	Keypad Supply Voltage
7	--	--	Not Used
8	0.5 BK/WH	851	Ground
9-10	--	--	Not Used
11	0.35 D-GN/WH	2514	Keypad Signal
12-14	--	--	Not Used
15	0.5 RD/WH	1340	Battery Positive Voltage
16	--	--	Not Used

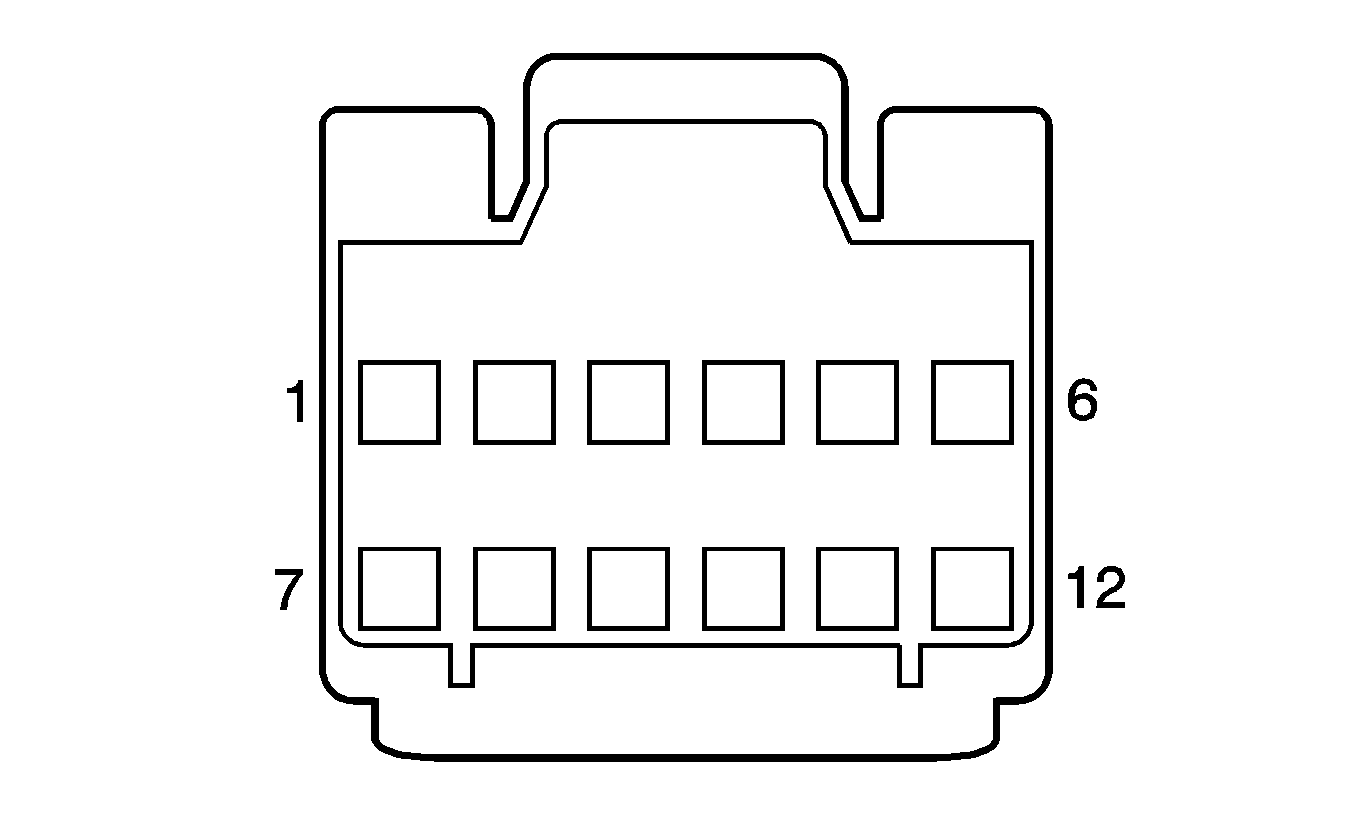

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Connector Part Information

OEM: 15431365
Service: 15431366
Description: 12-Way F Micro HVT 100 Series (NA) (Delphi)

Terminal Part Information

Pins: 1, 2, 8, 9, 10
Terminal/Tray: 15445905/23
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X2 (UE1)

Pin	Wire	Circuit	Function
1	0.5 PK/BK	2062	Navigation Mono Audio Signal (+)
2	0.5 OG/BK	2061	Navigation Mono Audio Signal (-)
3-7	--	--	Not Used
8	0.35 BK	813	Drain Wire
9	0.35 GY	655	Cellular Telephone Microphone Signal
10	0.35 BK	1489	Drain Wire
11-12	--	--	Not Used

Vehicle Communication Interface Module (VCIM) X4 (UE1)

Connector Part Information

OEM: 15431368
Service: See Catalog
Description: 12-Way F Micro HVT 100 Series (BK)

Terminal Part Information

Pins: 1, 2, 3, 8, 9
Terminal/Tray: 15445905/23
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-12 (BU)

Vehicle Communication Interface Module (VCIM) X4 (UE1)

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.5 TN/BK	2500	High Speed GMLAN Serial Data (+)
3	0.5 TN	2501	High Speed GMLAN Serial Data (-)
4-7	--	--	Not Used
8	0.5 TN/BK	2500	High Speed GMLAN Serial Data (+)
9	0.5 TN	2501	High Speed GMLAN Serial Data (-)
10-12	--	--	Not Used

Vehicle Speed Sensor (VSS) (MA5)

Connector Part Information

OEM: 15336004
Service: See Catalog
Description: 2-Way F GT 150 Sealed 3.2 X 4.0 (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Vehicle Speed Sensor (VSS) (MA5)

Pin	Wire	Circuit	Function
A	0.5 PU	401	Vehicle Speed Sensor Low Signal
B	0.5 YE	400	Vehicle Speed Sensor High Signal

Wheel Speed Sensor (WSS) - Left Front

Connector Part Information

OEM: 1-928-403-698
Service: See Catalog
Description: 2-Way Sealed F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Wheel Speed Sensor (WSS) - Left Front

Pin	Wire	Circuit	Function
1	0.8 L-BU	830	Left Front Wheel Speed Sensor Signal
2	0.8 YE	873	Low Reference

Wheel Speed Sensor (WSS) - Left Rear

Connector Part Information

OEM: 1-928-403-698
Service: See Catalog
Description: 2-Way Sealed F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Wheel Speed Sensor (WSS) - Left Rear

Pin	Wire	Circuit	Function
1	0.8 TN	884	Left Rear Wheel Speed Sensor Signal
2	0.8 OG	885	Low Reference

Wheel Speed Sensor (WSS) - Right Front

Connector Part Information

OEM: 1-928-403-698
Service: See Catalog
Description: 2-Way Sealed F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Wheel Speed Sensor (WSS) - Right Front

Pin	Wire	Circuit	Function
1	0.8 D-GN	872	Right Front Wheel Speed Sensor Signal
2	0.8 TN	833	Low Reference

Wheel Speed Sensor (WSS) - Right Rear

Connector Part Information

OEM: 1-928-403-698
Service: See Catalog
Description: 2-Way Sealed F (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Wheel Speed Sensor (WSS) - Right Rear

Pin	Wire	Circuit	Function
1	0.8 BN	882	Right Rear Wheel Speed Sensor Signal
2	0.8 WH	883	Low Reference

Window Motor - Driver (A31)

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack Series, Flexlock, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Driver (A31)

Pin	Wire	Circuit	Function
A	3.0 BN	165	Power Window Motor Left Front Down Control
B	3.0 D-BU	164	Power Window Motor Left Front Up Control

Window Motor - Passenger (A31)

Connector Part Information

OEM: 12129487
Service: 88988609
Description: 2-Way F Metri-Pack 280 Series, FlexLock, Sealed (GY)

Terminal Part Information

Terminal/Tray: 12110845/4
Core/Insulation Crimp: F/5
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Motor - Passenger (A31)

Pin	Wire	Circuit	Function
A	3.0 BN	667	Power Window Motor Right Front Down Control
B	3.0 D-BU	666	Power Window Motor Right Front Up Control

Window Switch - Driver (A31)

Connector Part Information

OEM: 15449340
Service: 15306174
Description: 8-Way F GT 280 (BK)

Terminal Part Information

Pins: B
Terminal/Tray: 15304711/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pins: A, C, D, F, G, H
Terminal/Tray: 15304713/19
Core/Insulation Crimp: Pins A, C, D, G, H F/D
Core/Insulation Crimp: Pins F 4/4
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Switch - Driver (A31)

Pin	Wire	Circuit	Function
A	3.0 L-BU	166	Power Window Master Switch Right Front Up Signal
B	0.35 GY	8	Instrument Panel Lamp Supply
C	3.0 D-GN	801	Retained Accessory Power Fuse Supply Voltage
D	3.0 TN	167	Power Window Master Switch Right Front Down Signal
E	--	--	Not Used
F	2.0 BK	550	Ground
G	3.0 D-BU	164	Power Window Motor Left Front Up Control
H	3.0 BN	165	Power Window Motor Left Front Down Control

Window Switch - Passenger (A31)

Connector Part Information

OEM: 12192825
Service: 15306048
Description: 8-Way F Metri-Pack 280 Series (BN)

Terminal Part Information

Pins: H
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
Pins: A, D, F, G
Terminal/Tray: 15304713/19
Core/Insulation Crimp: F/D
Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pins: B, C
Terminal/Tray: 15304711/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Window Switch - Passenger (A31)

Pin	Wire	Circuit	Function
A	3.0 D-GN	801	Retained Accessory Power Fuse Supply Voltage
B	0.35 GY	8	Instrument Panel Lamp Supply Voltage
C	0.35 BK	550	Ground
D	3.0 TN	167	Power Window Master Switch Right Front Down Signal
E	--	--	Not Used
F	3.0 BN	667	Power Window Motor Right Front Down Control
G	3.0 D-BU	666	Power Window Motor Right Front Up Control
H	3.0 L-BU	166	Power Window Master Switch Right Front Up Signal

Windshield Washer Fluid Pump

Connector Part Information

OEM: 12052641
Service: 12102747
Description: 2-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Terminal/Tray: 12048074/2
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Windshield Washer Fluid Pump

Pin	Wire	Circuit	Function
A	0.5 OG	228	Windshield Washer Pump Control
B	0.5 BK	250	Ground

Windshield Wiper Motor

Connector Part Information

OEM: 15393432
Service: 89046627
Description: 5-Way F 090 II Class III Series, Sealed (BK)

Terminal Part Information

Pins: 1, 4, 5
Terminal/Tray: 7116-4026/11
Core/Insulation Crimp: E/1
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Pins: 2
Terminal/Tray: 7116-4025/11
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15313892/J-35616-18 (BK)

Windshield Wiper Motor

Pin	Wire	Circuit	Function
1	1.0 BK	250	Ground
2	0.35 YE	196	Windshield Wiper Motor Park Switch Signal
3	--	--	Not Used
4	1.0 PU	92	Windshield Wiper Motor High Speed Control
5	1.0 D-GN	95	Windshield Washer Switch Signal

Windshield Wiper/Washer Switch

Connector Part Information

OEM: 12059800
Service: 15306169
Description: 5-Way F Metri-Pack 150 Series (BK)

Terminal Part Information

Pins: B, C, D, E
Terminal/Tray: 12064971/5
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12094429/J-35616-2A (GY)

Windshield Wiper/Washer Switch

Pin	Wire	Circuit	Function
A	--	--	Not Used
B	0.35 OG	228	Windshield Washer Pump Control
C	0.35 L-GN	1715	Windshield Wiper Switch High Signal
D	0.35 PK	439	Ignition 1 Voltage
E	0.35 GY	112	Windshield Wiper Switch Signal

Yaw and Lateral Accelerometer Sensor (JL9)

Connector Part Information

OEM: 2-967616-1
Service: See Catalog
Description: 6-Way F MQS Socket Series, Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Yaw and Lateral Accelerometer Sensor (JL9)

Pin	Wire	Circuit	Function
1	0.5 GY/BK	6435	Can Bus Low Serial Data
2	0.5 PK/BK	6434	Can Bus High Serial Data
3	0.5 D-GN	2087	12-Volt Reference
4	--	--	Not Used
5	0.5 L-BU	2088	Low Reference
6	--	--	Not Used
