Removal Procedure

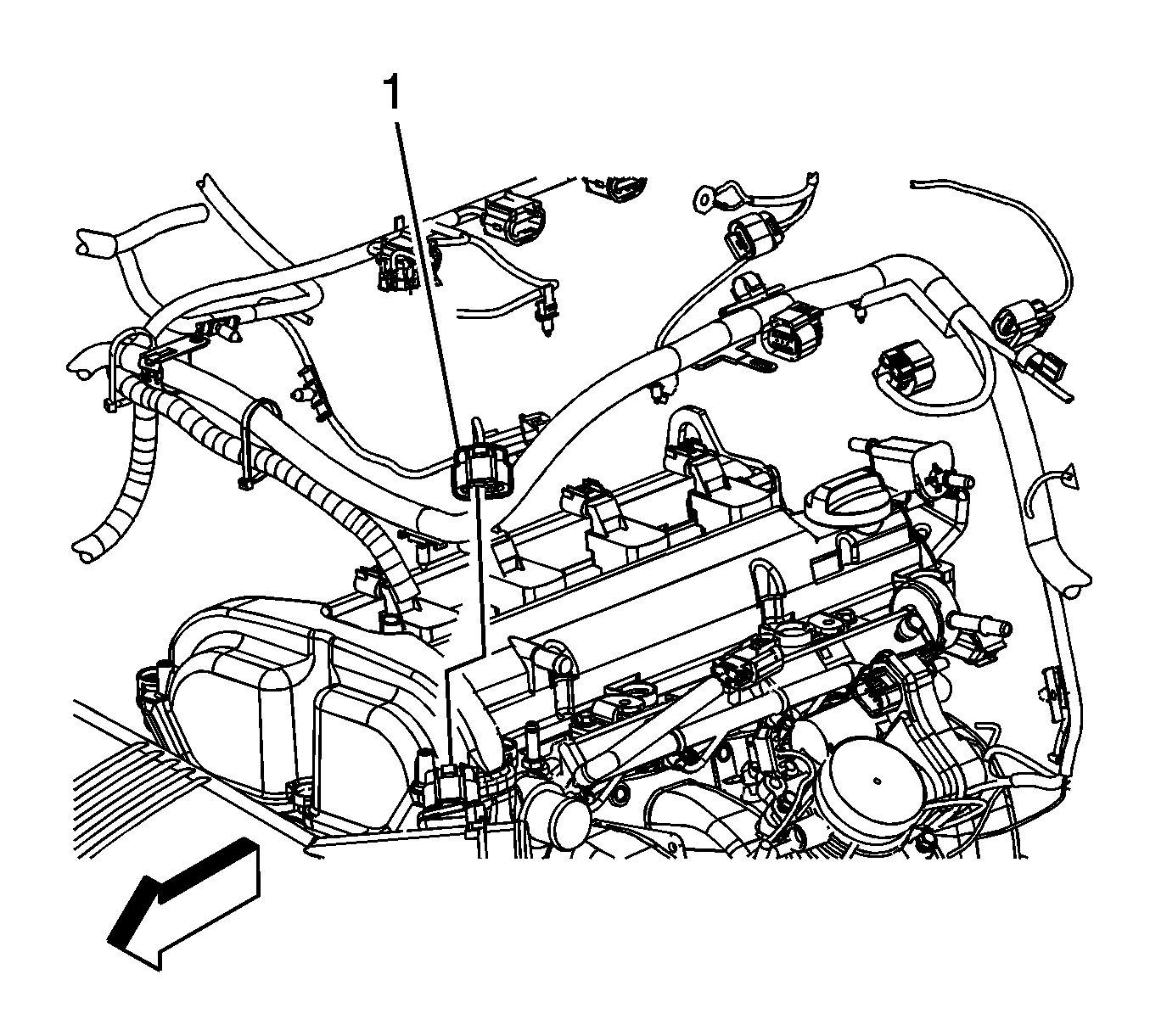

    Object Number: 1592530 Size: SH
  1. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector (1).

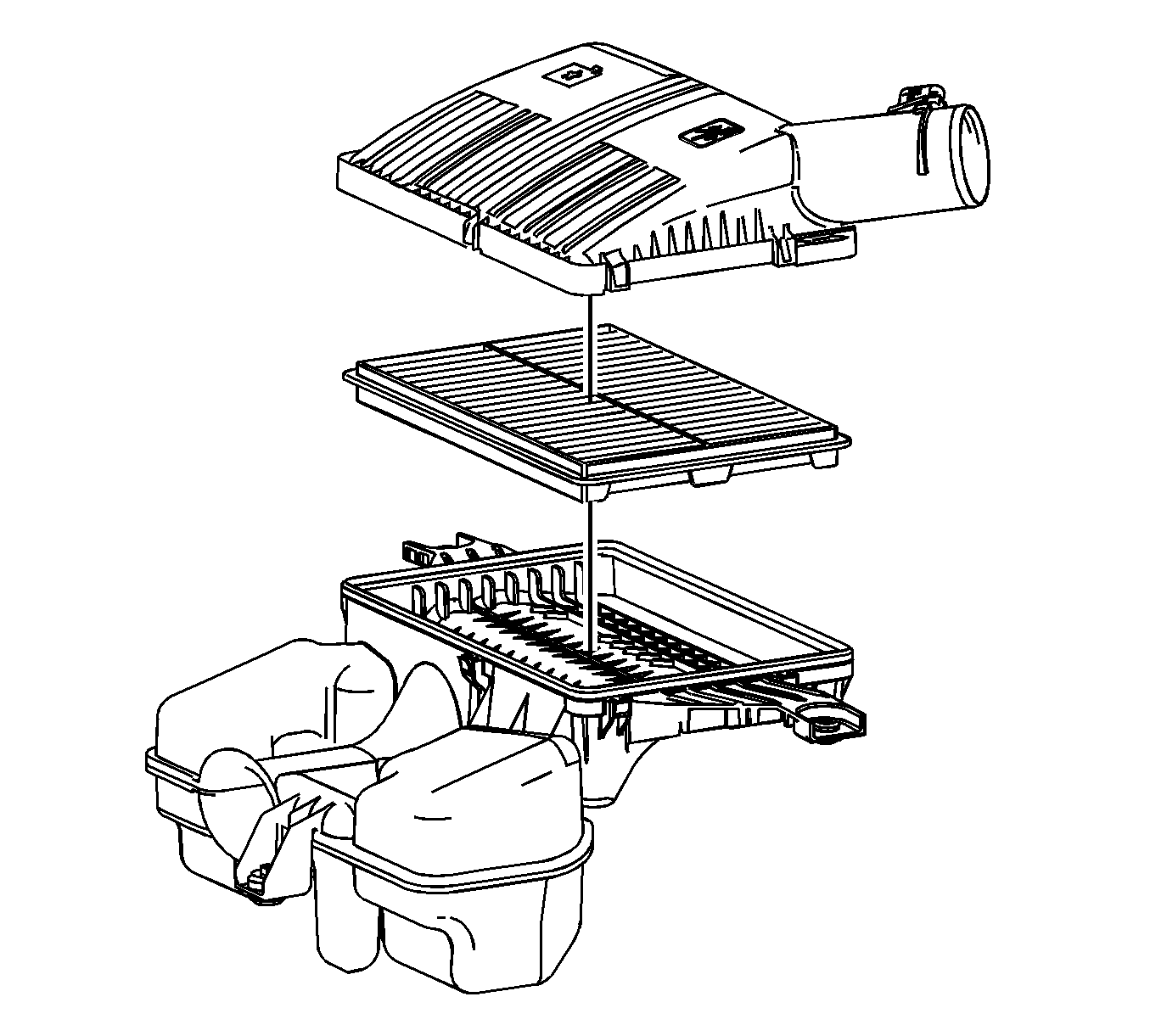

    2. Object Number: 1594070 Size: SH
  2. Unlatch the upper air cleaner cover retainer clips.
  3. Remove the upper air cleaner cover.
  4. Remove the air cleaner filter from the lower air cleaner housing.
  5. Inspect the air cleaner filter for dust, dirt and water contamination.
  6. Replace as necessary. Refer to Maintenance Schedule .

Installation Procedure

    Object Number: 1594070 Size: SH
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
  3. Latch the upper air cleaner cover retainer clips.

    4. Object Number: 1592530 Size: SH
  4. Connect the MAF/IAT sensor electrical connector (1).
