Power Distribution Schematics. Pontiac Solstice 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 Solstice 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Power Distribution Schematics

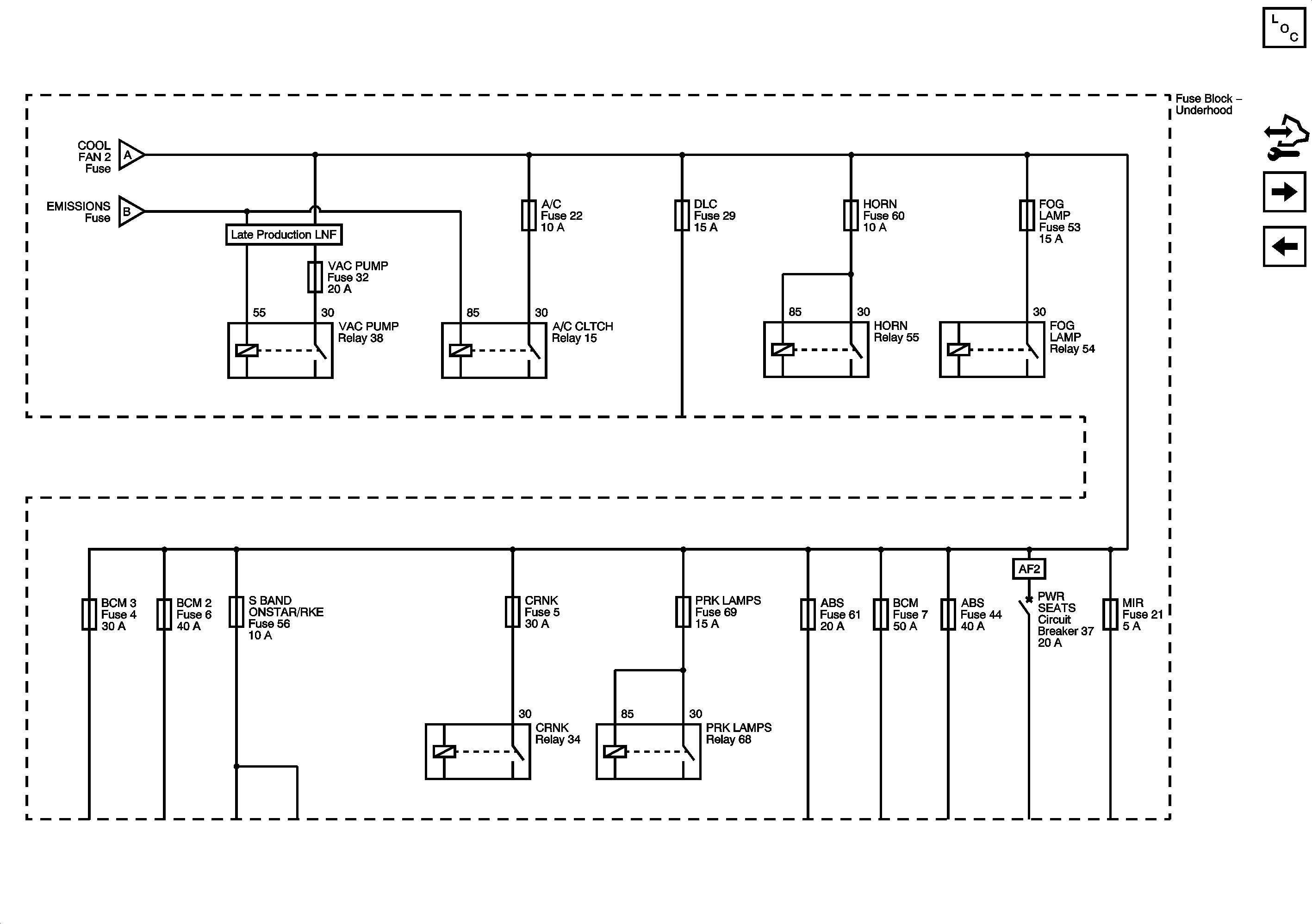

Figure 1:	B+ Bus - 1 of 2 Master Electrical Component List Control Module References B+ Bar - 2 of 2

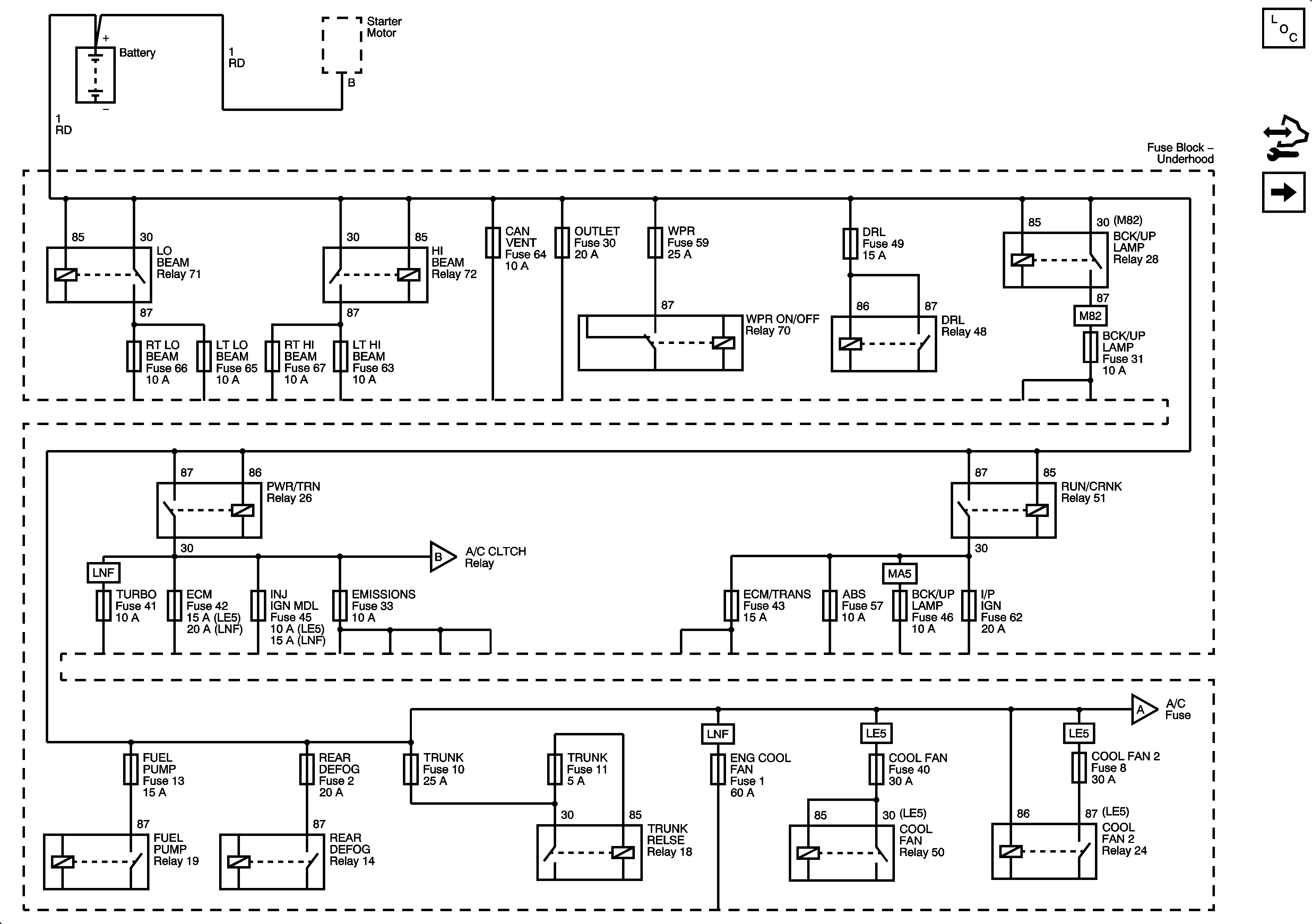

Figure 2:	B+ Bus - 2 of 2 Master Electrical Component List Control Module References DRL, LT LO BEAM, RT LO BEAM, LT HI BEAM, RT HI BEAM, BCK/UP LAMP, and Park Lamps Fuses (SKY) B+ Bar - 1 of 2

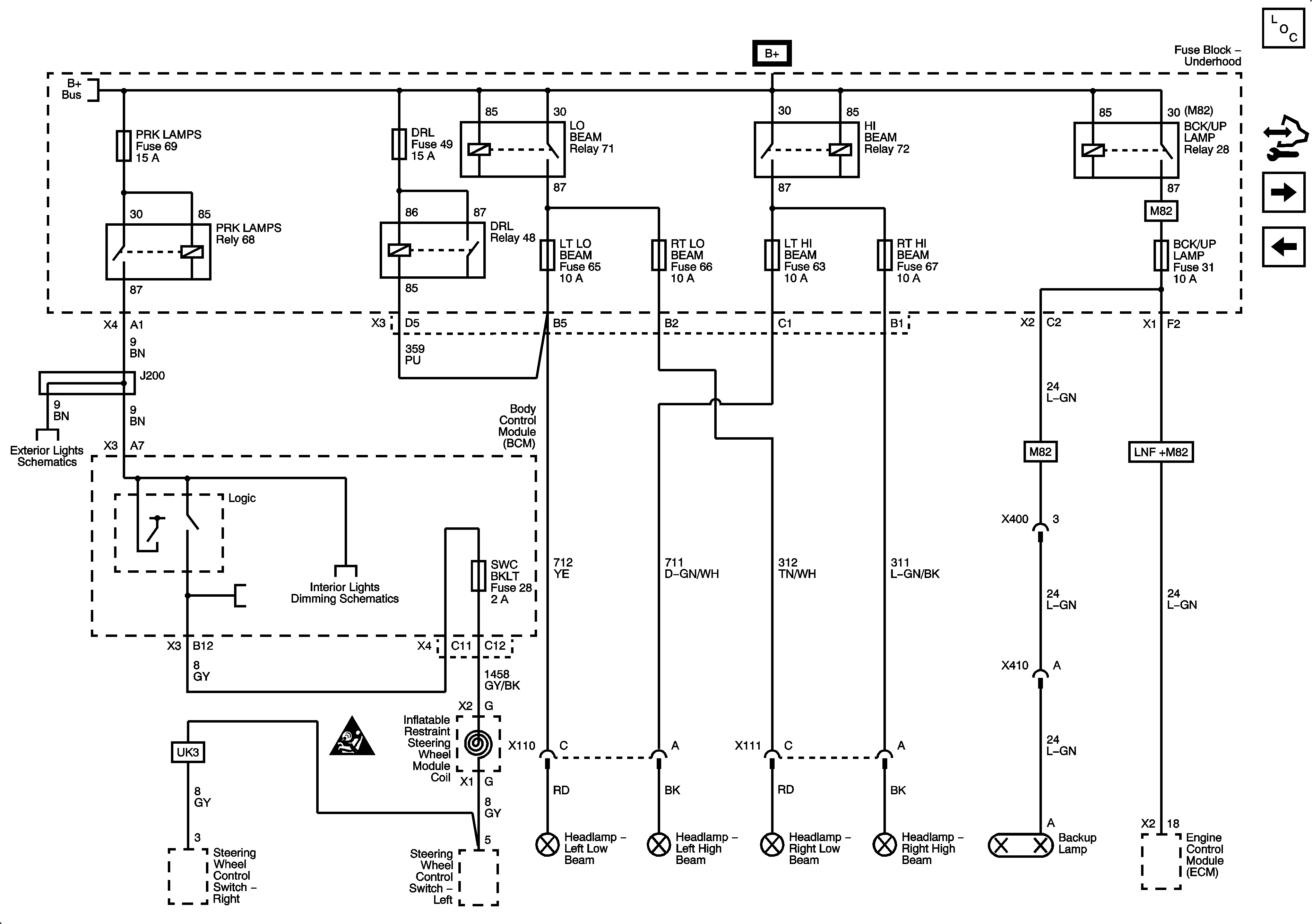

Figure 3:	DRL, LT LO BEAM, RT LO BEAM, LT HI BEAM, RT HI BEAM, BCK/UP LAMP, and Park Lamps Fuses Master Electrical Component List Control Module References LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM and DRL Fuses (Solstice) B+ Bar - 2 of 2

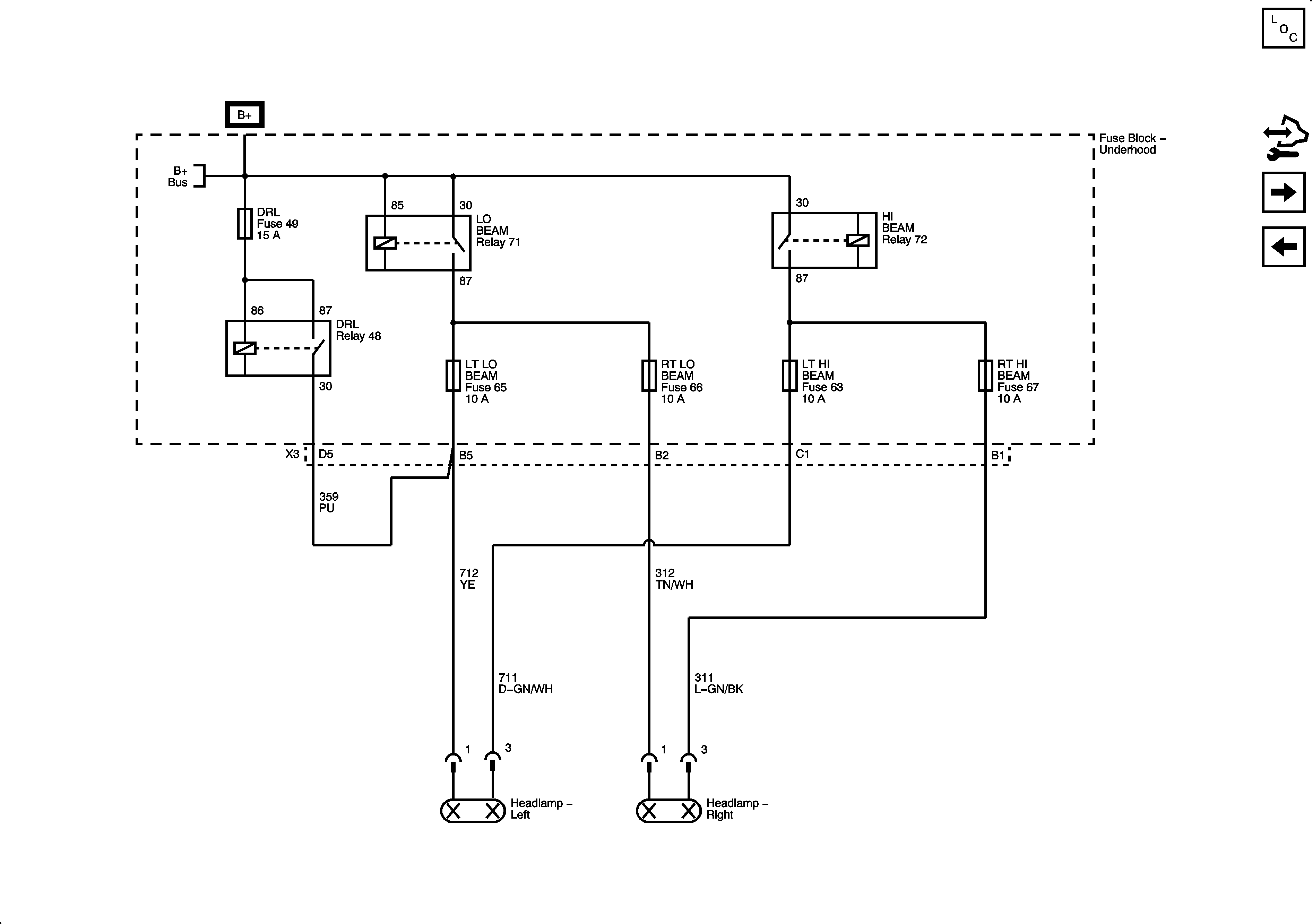

Figure 4:	LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM and DRL Fuses Master Electrical Component List Control Module References ABS, BCK/UP LAMP, CAN VENT, ECM/TRANS, I/P IGN, AIR BAG, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR and OUTLET Fuses DRL, LT LO BEAM, RT LO BEAM, LT HI BEAM, RT HI BEAM, BCK/UP LAMP, and Park Lamps Fuses (SKY)

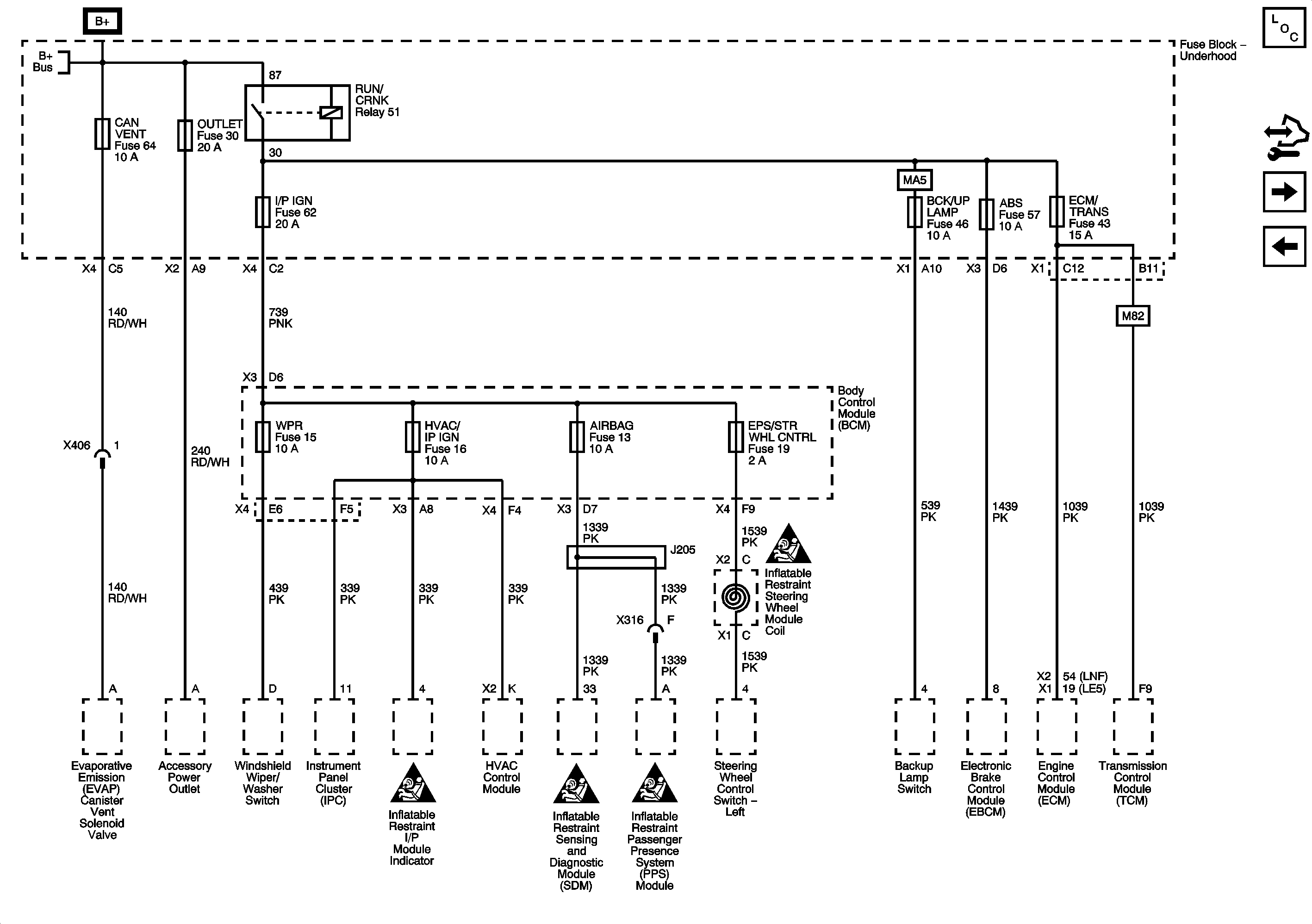

Figure 5:	ABS, BCK/UP LAMP, CAN VENT, ECM/TRANS, I/P IGN, AIR BAG, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR and OUTLET Fuses Master Electrical Component List Control Module References DLC, ECM, EXH, INJ IGN MDL, and Turbo Fuses LT HI BEAM, LT LO BEAM, RT HI BEAM, RT LO BEAM and DRL Fuses (Solstice)

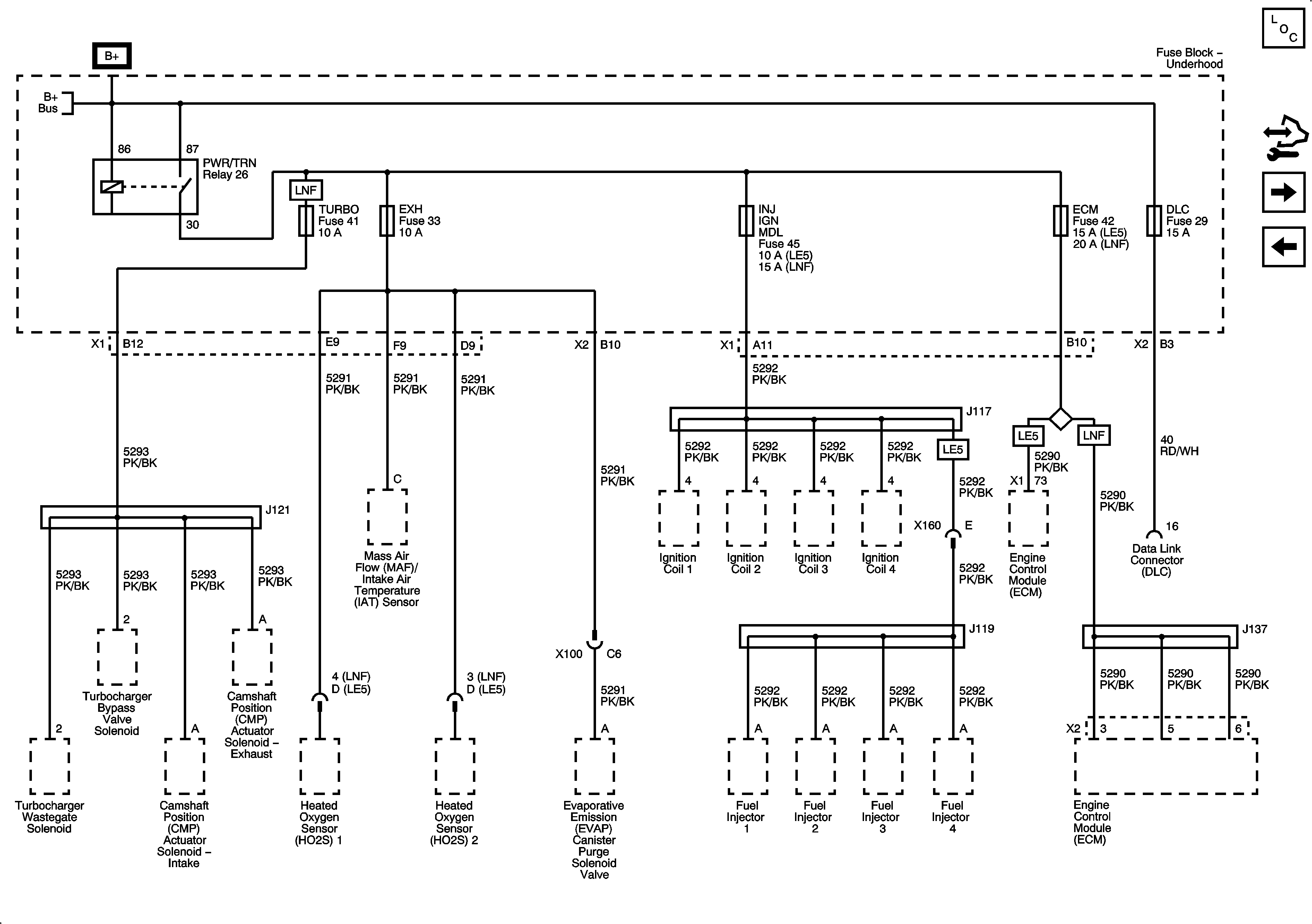

Figure 6:	DLC, ECM, Emissions, INJ IGN MDL, and Turbo Fuses Master Electrical Component List Control Module References ABS, ABS/BCM, MIR, S-BAND ONSTAR/RKE ENG COOL FAN Fuses and PWR SEATS Circuit Breaker ABS, BCK/UP LAMP, CAN VENT, ECM/TRANS, I/P IGN, AIR BAG, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR and OUTLET Fuses

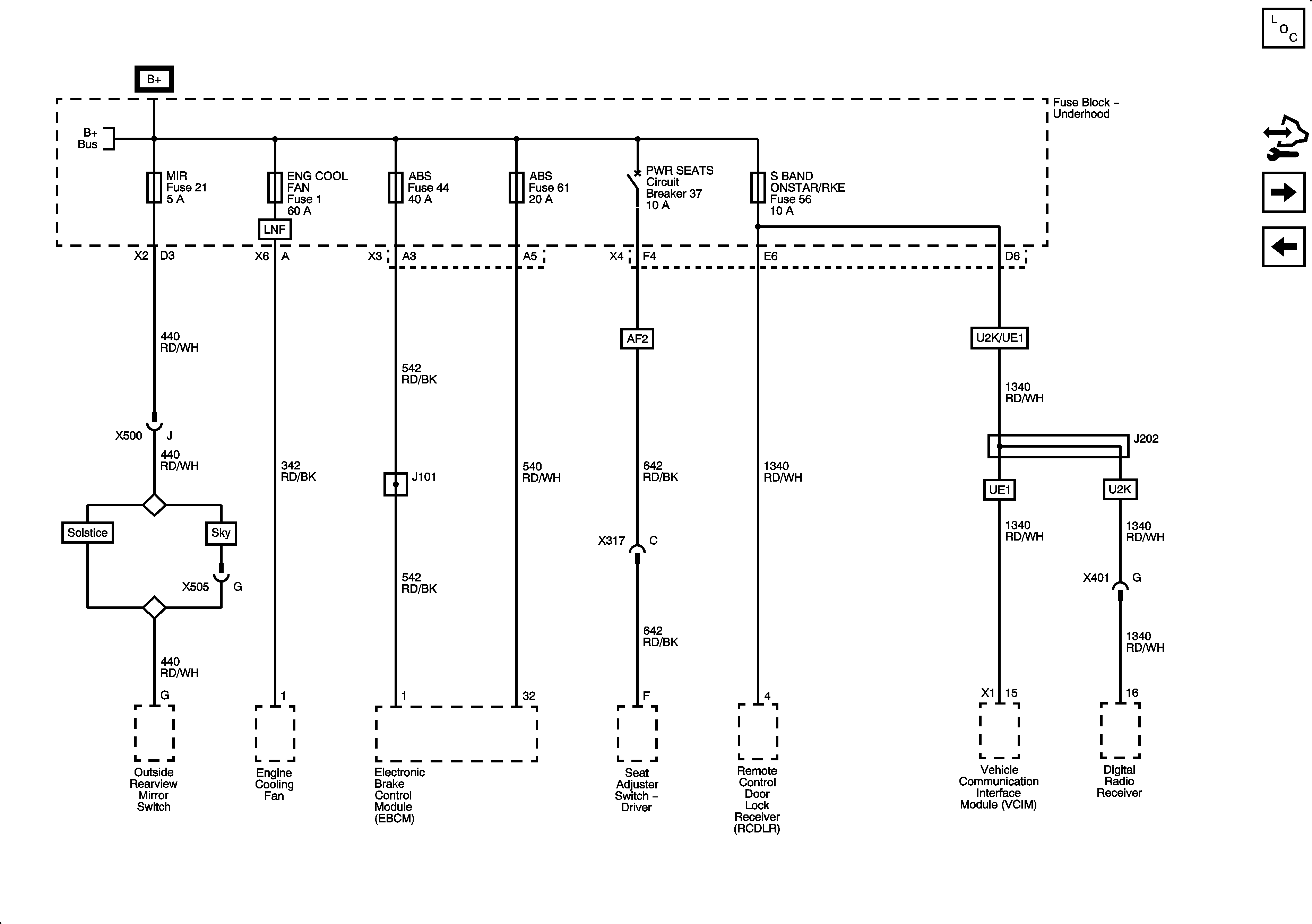

Figure 7:	ABS, ABS/BCM, MIR, S-BAND ONSTAR/RKE, COOL FAN Fuses and PWR SEATS Circuit Breaker Master Electrical Component List Control Module References BCM, DR LCK, ECM/TCM, INT/LIGHT, PWR WNDW, RDO, and SDM Fuses DLC, ECM, EXH, INJ IGN MDL, and Turbo Fuses

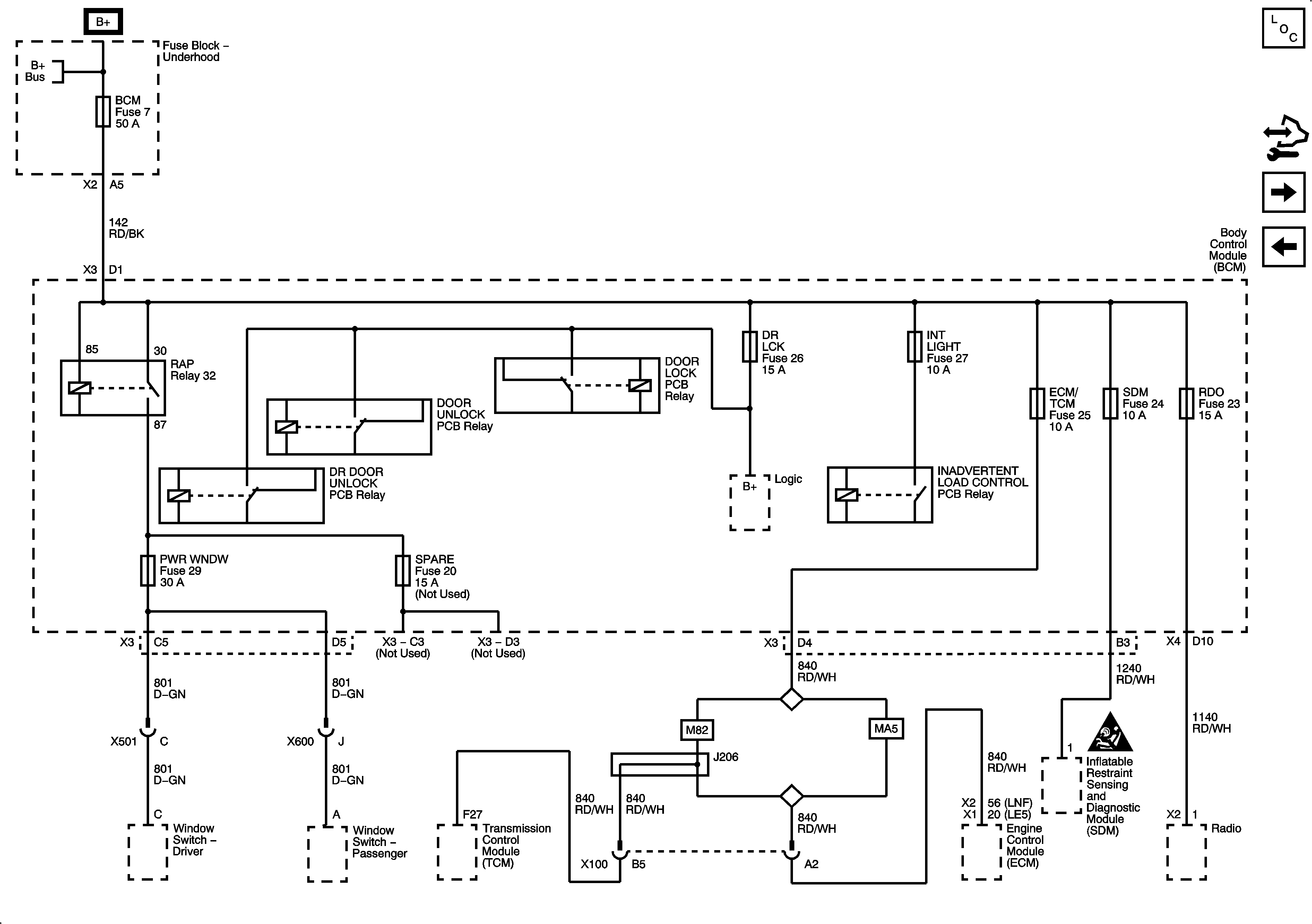

Figure 8:	BCM, DR LCK, ECM/TCM, INT/LIGHT, PWR WNDW, RDO, and SDM Fuses Master Electrical Component List Control Module References BCM2, BCM3, AMP, CLSTR, HVAC/PK3+, and IGN SW/PK3+ Fuses ABS, ABS/BCM, MIR, S-BAND ONSTAR/RKE ENG COOL FAN Fuses and PWR SEATS Circuit Breaker

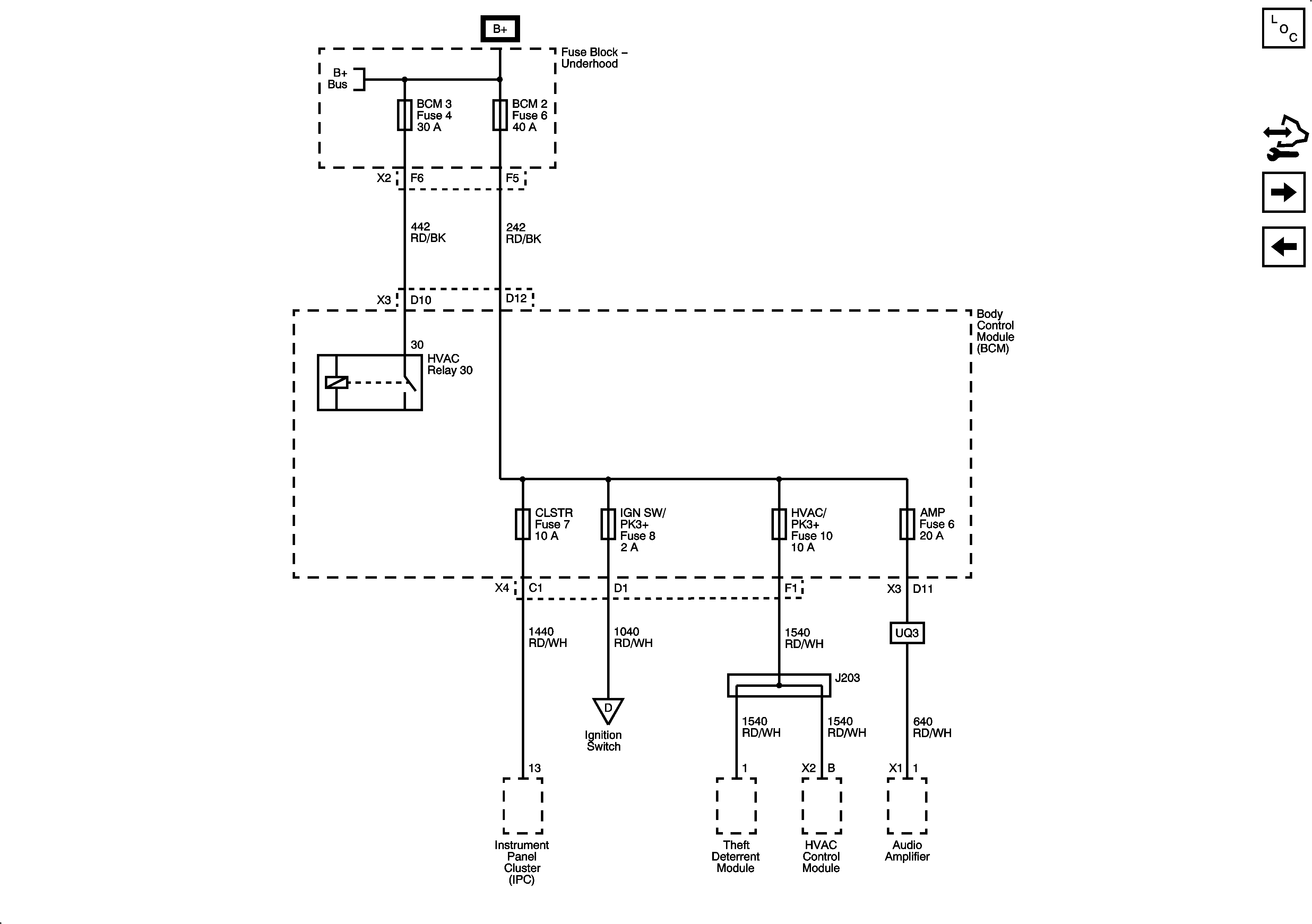

Figure 9:	BCM2 , BCM3, AMP, CLSTR, HVAC/PK3+, and IGN SW/PK3+ Fuses Master Electrical Component List Control Module References Ignition Switch Modes BCM, DR LCK, ECM/TCM, INT/LIGHT, PWR WNDW, RDO, and SDM Fuses

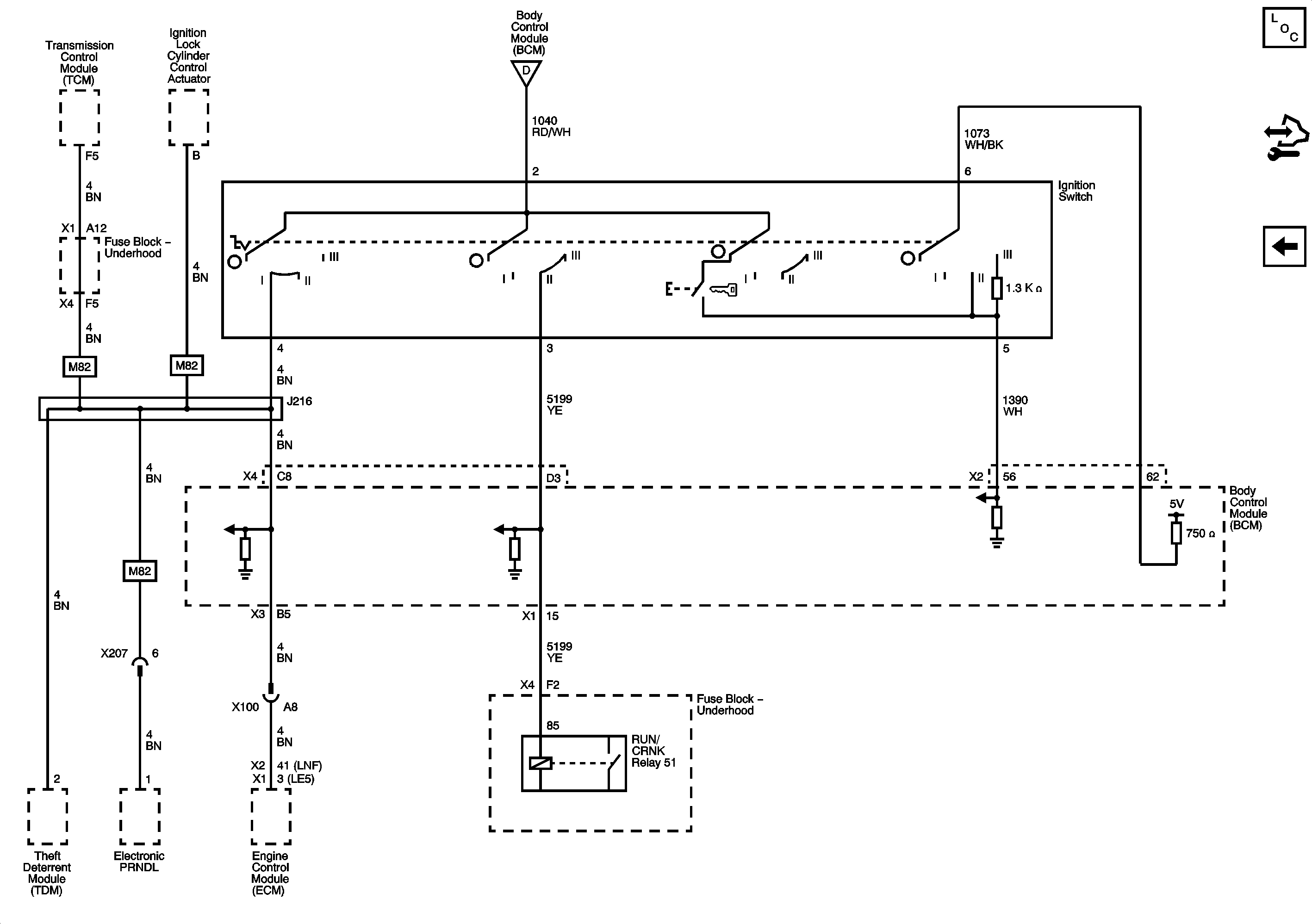

Figure 10:	Ignition Switch Modes Master Electrical Component List Control Module References BCM2, BCM3, AMP, CLSTR, HVAC/PK3+, and IGN SW/PK3+ Fuses
