Heater and Air Conditioning Control Replacement. Pontiac Solstice 2008

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2008 🢒 Solstice 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Heater and Air Conditioning Control Replacement

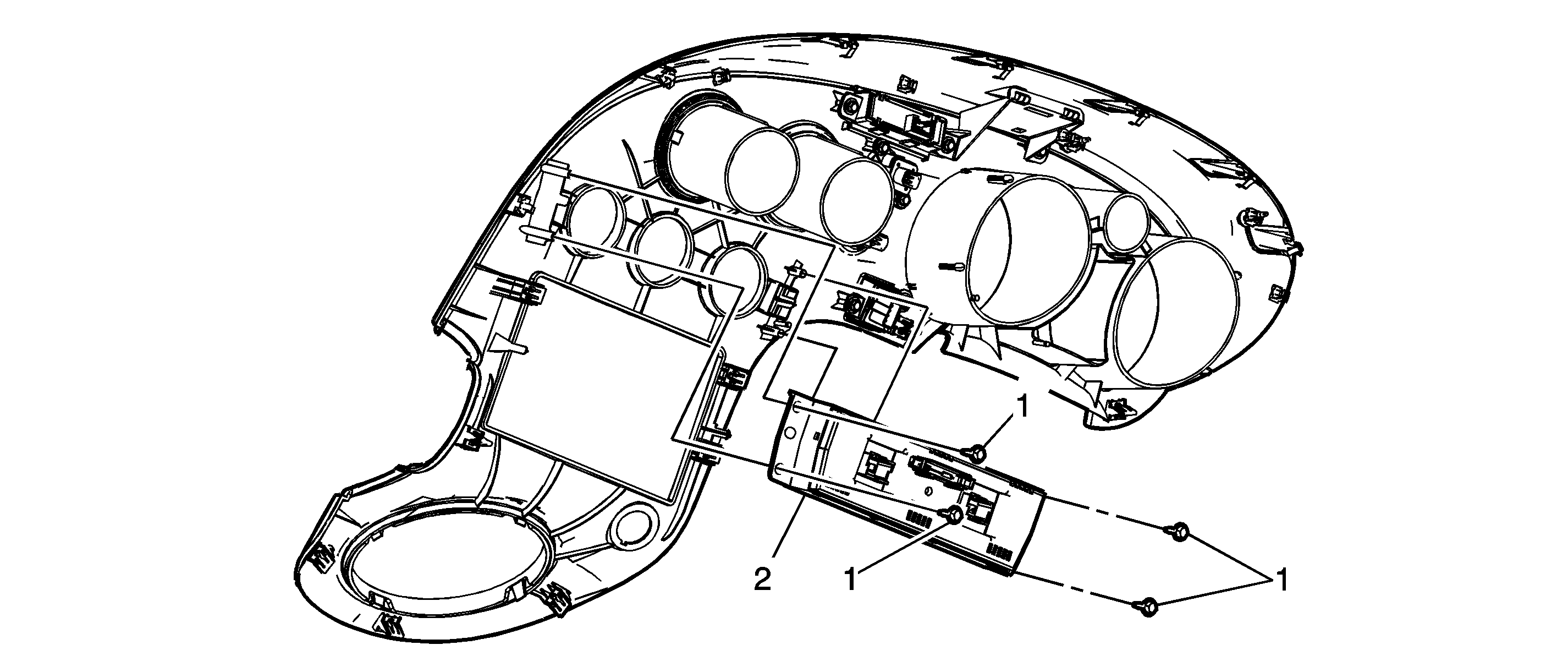

Callout	Component Name
Notice: Refer to Fastener Notice in the Preface section. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the instrument panel (I/P) cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement . Disconnect the electrical connectors.
1	Screw, Control Assembly - Heater and Air Conditioning (Qty: 4) Tighten 1.5 N·m (13 lb in)
2	Control Assembly, Heater and Air Conditioning

Callout

Component Name

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Remove the instrument panel (I/P) cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement .
Disconnect the electrical connectors.

Screw, Control Assembly - Heater and Air Conditioning (Qty: 4)

Tighten
1.5 N·m (13 lb in)

Control Assembly, Heater and Air Conditioning
