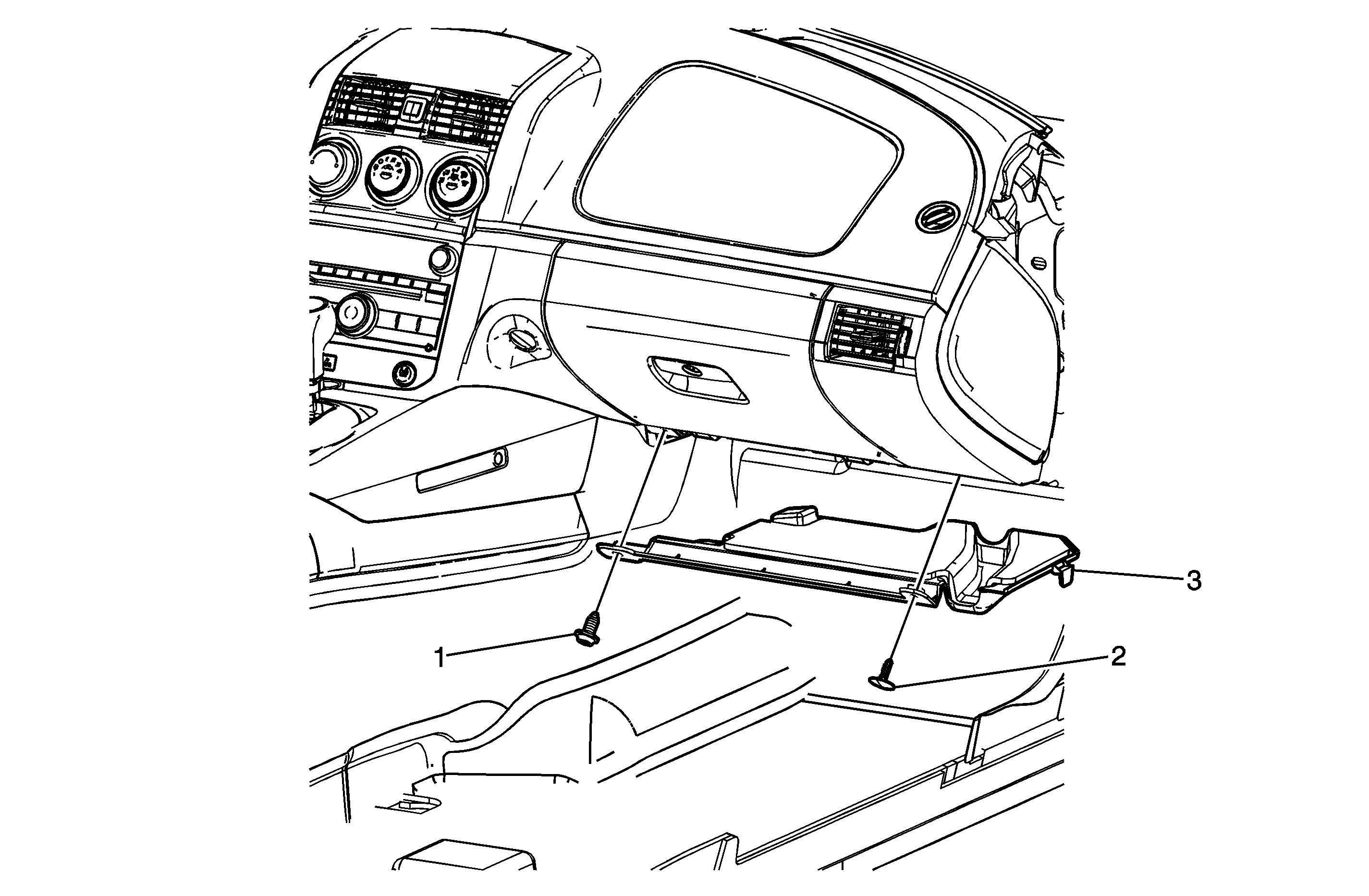

Instrument Panel Insulator Panel Replacement - Right Side SKY

Callout	Component Name
1	Closeout Insulator Screw Notice: Refer to Fastener Notice in the Preface section. Tighten 2.5 N·m (22 lb in)
2	Closeout Insulator Push-in Fastener
3	Closeout Insulator Assembly Tip Ensure the tab on the far right side of the insulator panel locks in behind the right hinge pillar trim panel.

Callout

Component Name

Closeout Insulator Screw

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2.5 N·m (22 lb in)

Closeout Insulator Push-in Fastener

Closeout Insulator Assembly

Tip
Ensure the tab on the far right side of the insulator panel locks in behind the right hinge pillar trim panel.

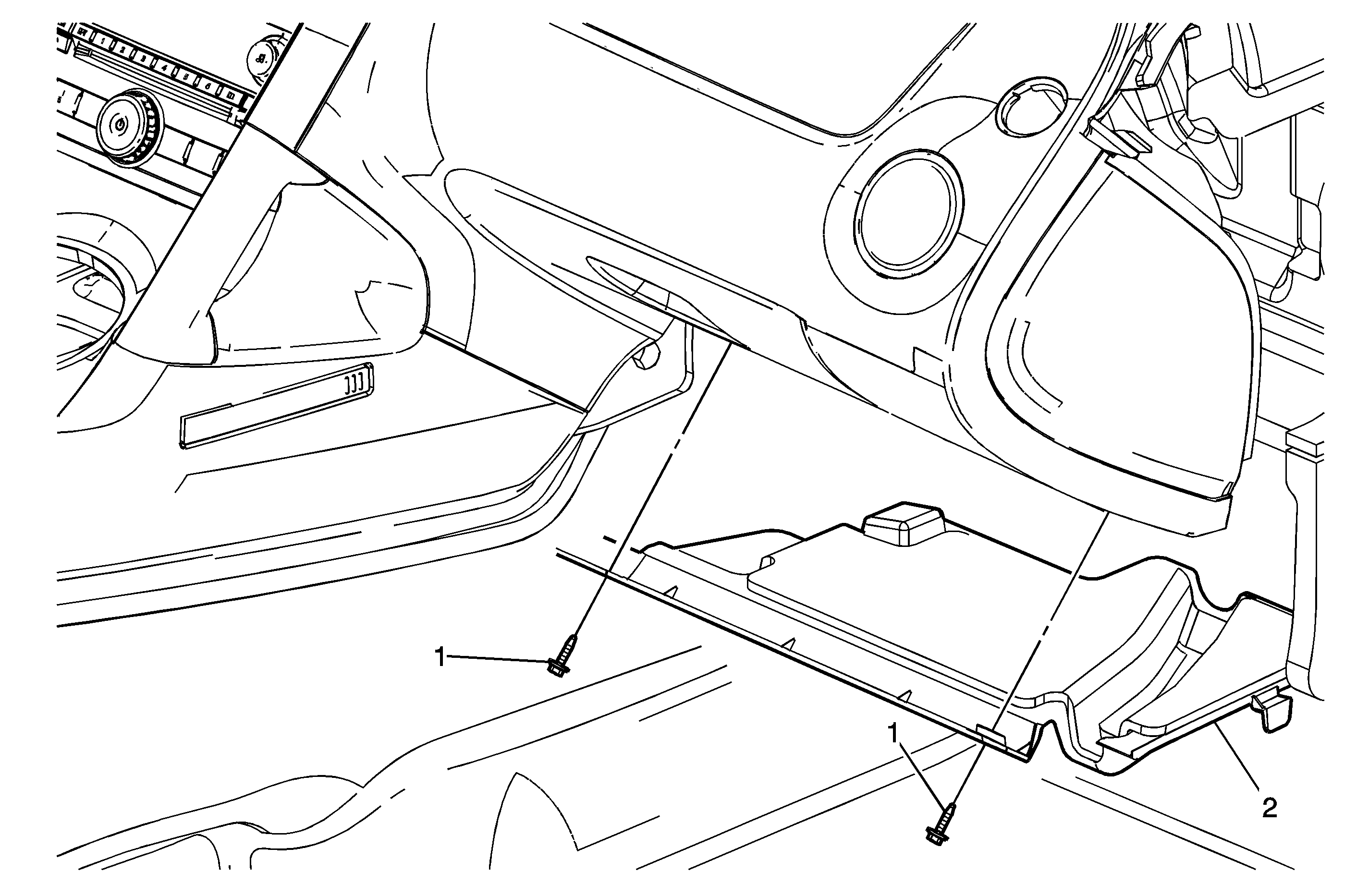

Instrument Panel Insulator Panel Replacement - Right Side Solstice

Callout	Component Name
1	Instrument Panel Insulator Push Pin (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 2 N·m (18 lb ft)
2	Instrument Panel Insulator Assembly Tip Ensure the tab on the far right side of the trim panel locks behind the right hinge pillar garnish molding.

Callout

Component Name

Instrument Panel Insulator Push Pin (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb ft)

Instrument Panel Insulator Assembly

Tip
Ensure the tab on the far right side of the trim panel locks behind the right hinge pillar garnish molding.
