Preliminary Procedures

1. Remove the left instrument panel closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
2. Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

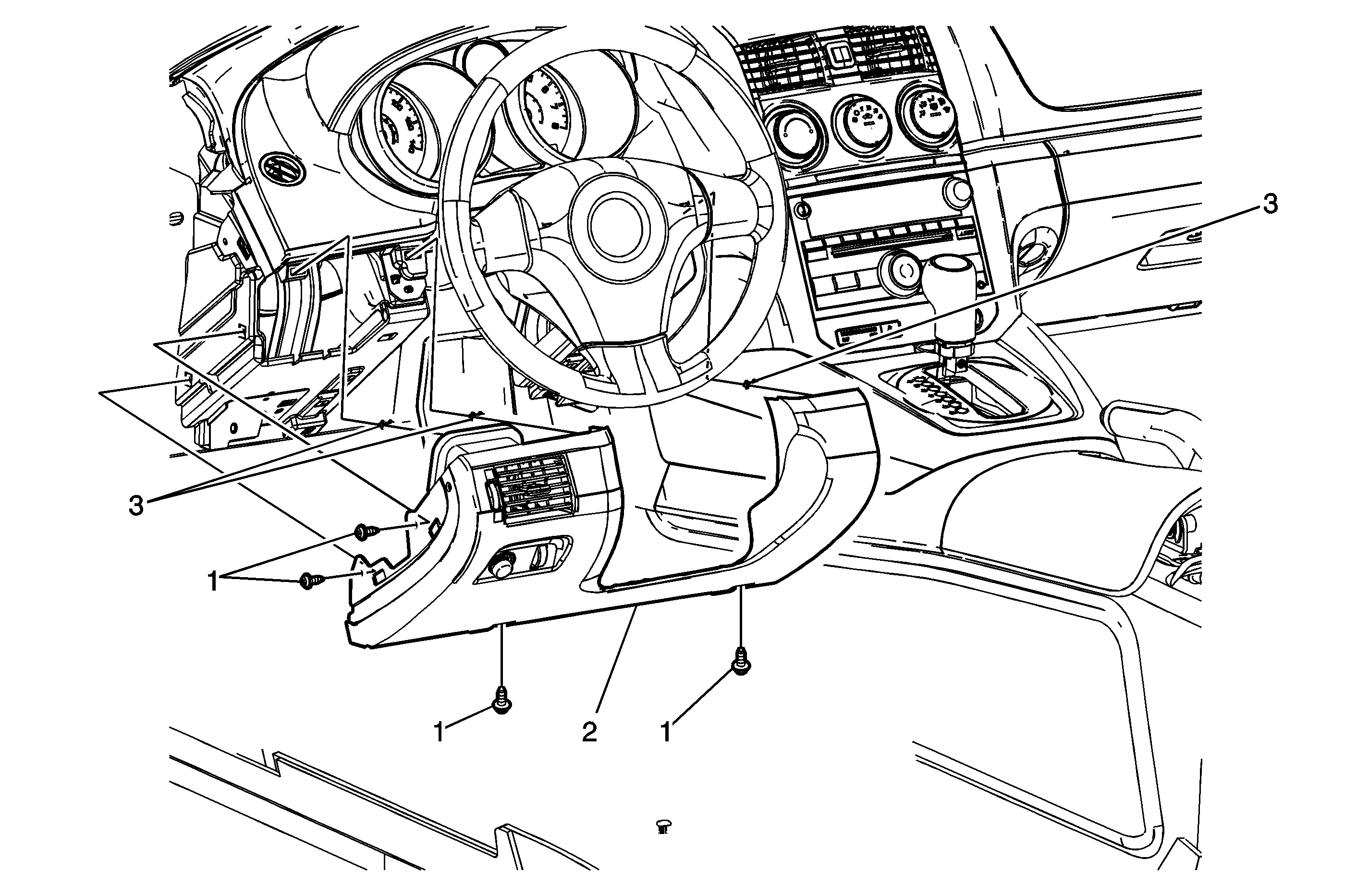

1

Knee Bolster Screw (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2.5 N·m (22 lb in)

2

Knee Bolster Assembly

Procedures

1. Disconnect the electrical connectors.
2. When replacing the knee bolster assembly, transfer all necessary components.

3

Retainer Clips (Qty: 3)

Preliminary Procedure

Remove the left instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

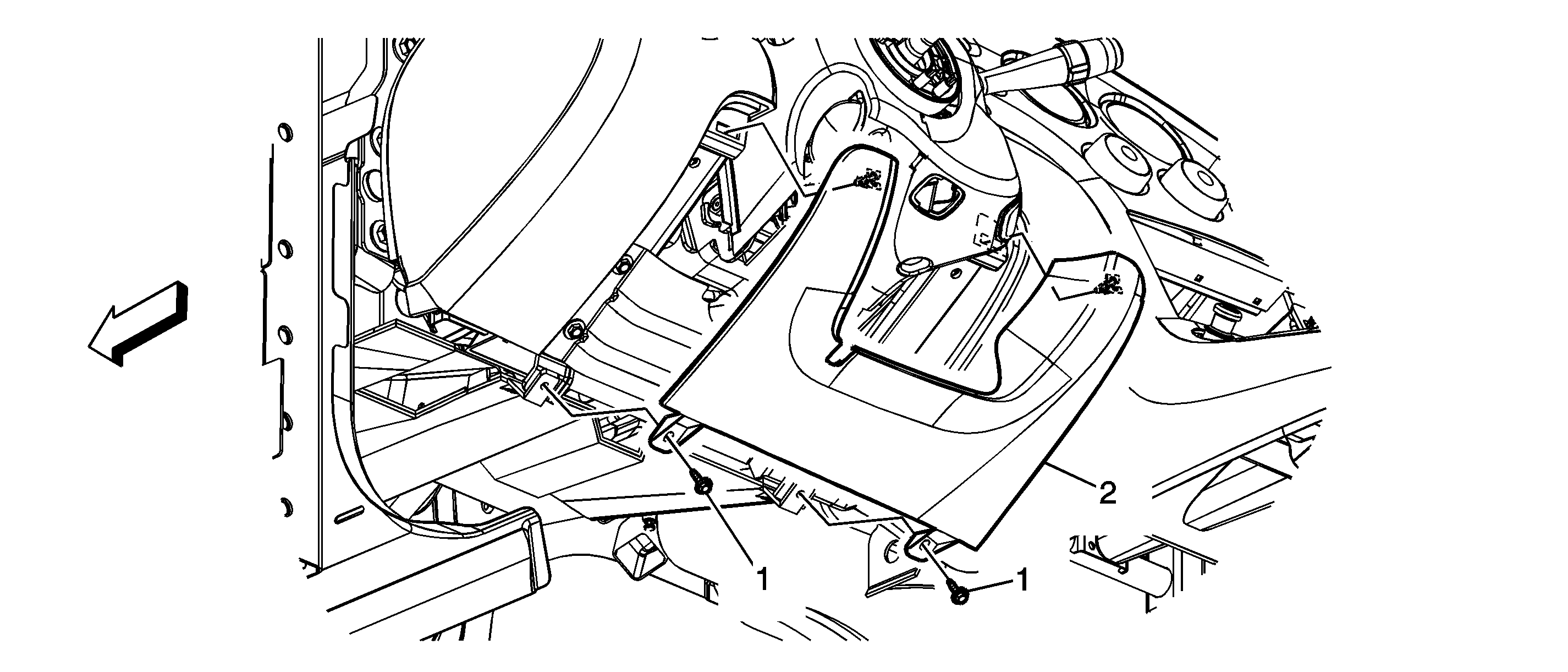

1

I/P Driver Knee Bolster Screw (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
2 N·m (18 lb in)

2

I/P Driver Knee Bolster Panel Assembly
