Figure 1:

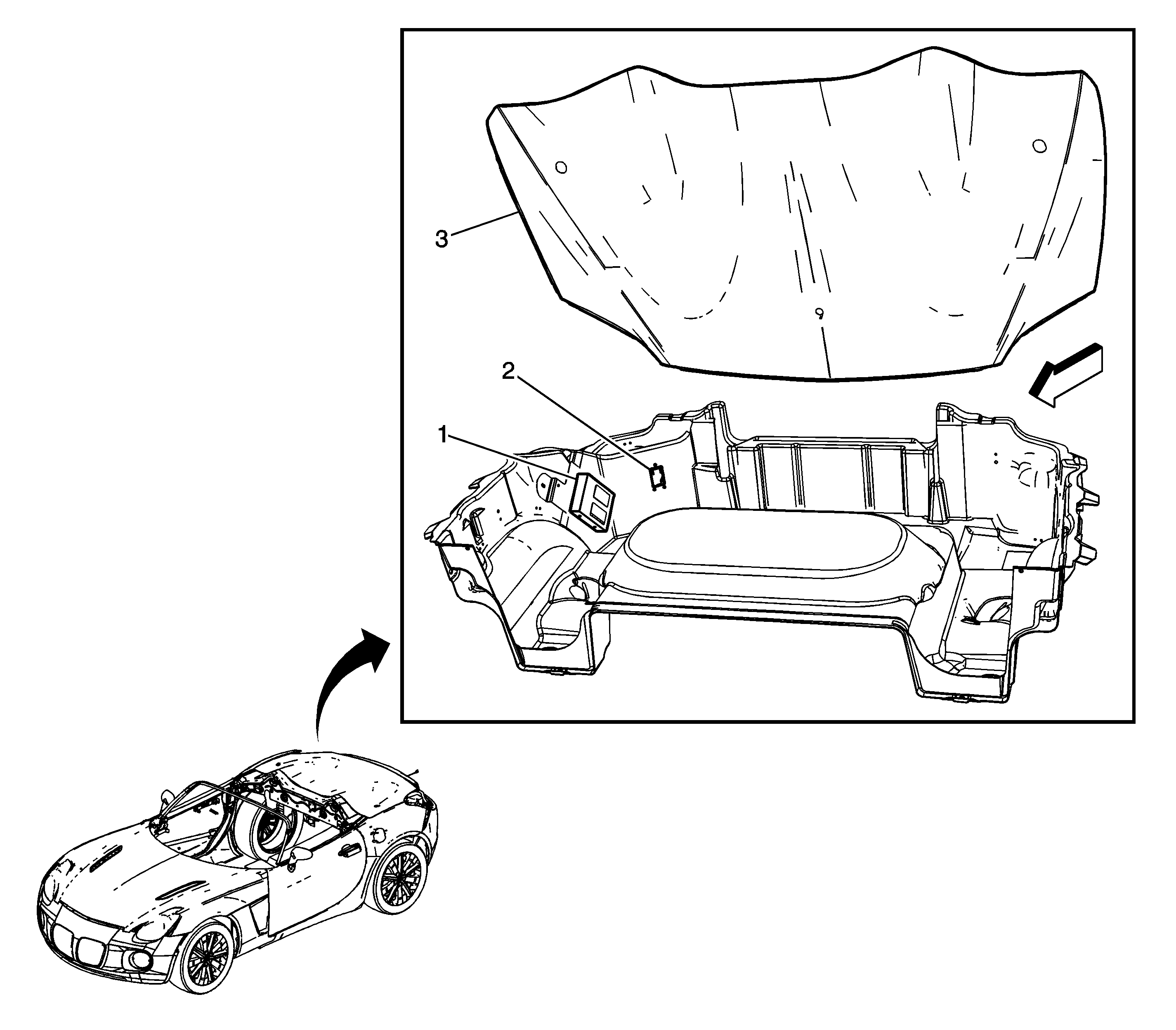

Rear Cargo Area
Object Number: 1631583 Size: LF
(1)Digital Radio Receiver (U2K)
(2)Rear Compartment Courtesy Lamp
(3)Rear Compartment Lid
Figure 2:

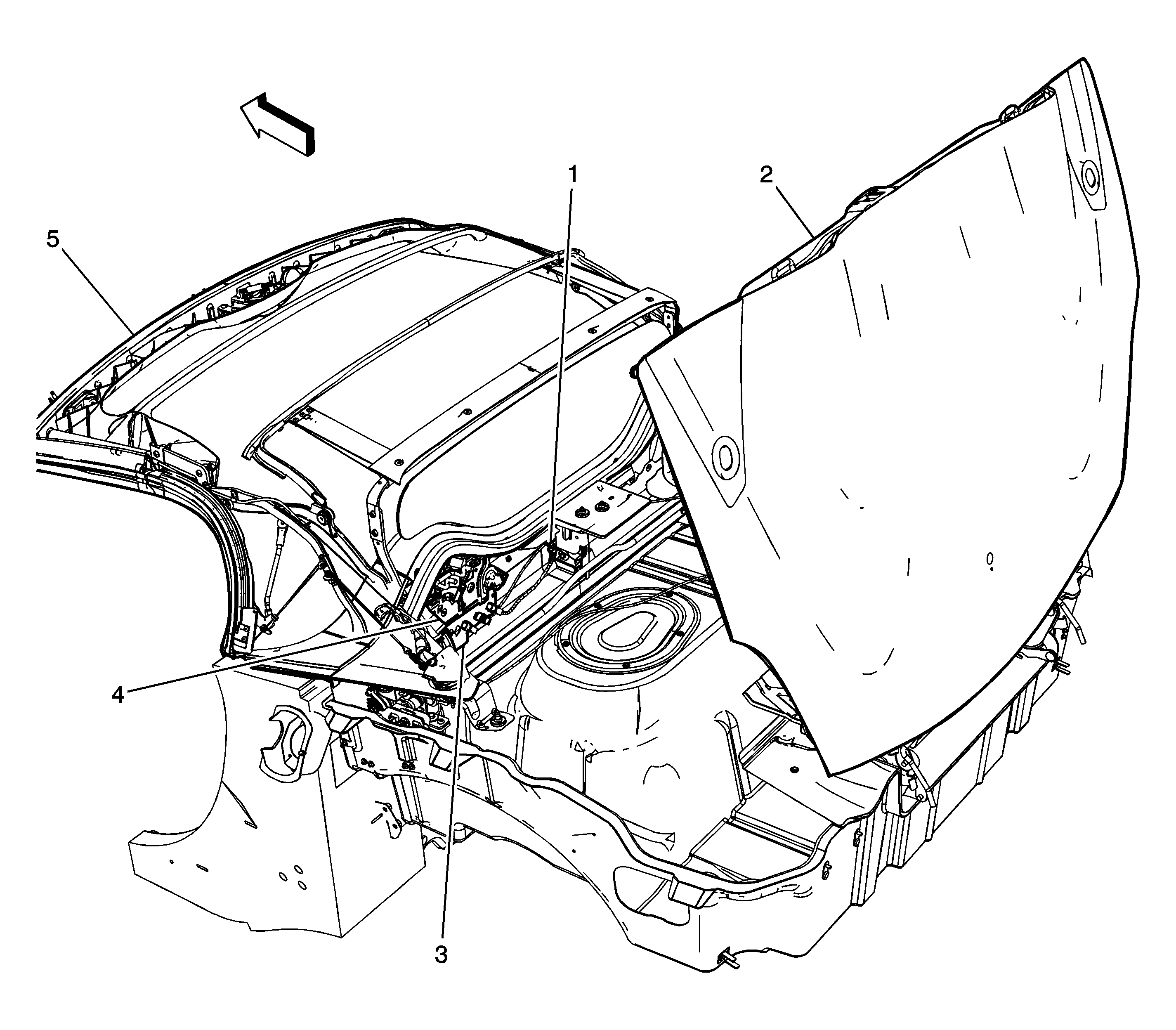

Rear Cargo Area (Convertible)
Object Number: 1631584 Size: LF
(1)Rear Comparment Lid Ajar Switch
(2)Rear Compartment Lid
(3)Folding Top Cover Actuator
(4)Rear Comparment Lid Latch Release Actuator
(5)Folding Top Stowage Compartment Lid Latch Pulldown Actuator
Figure 3:

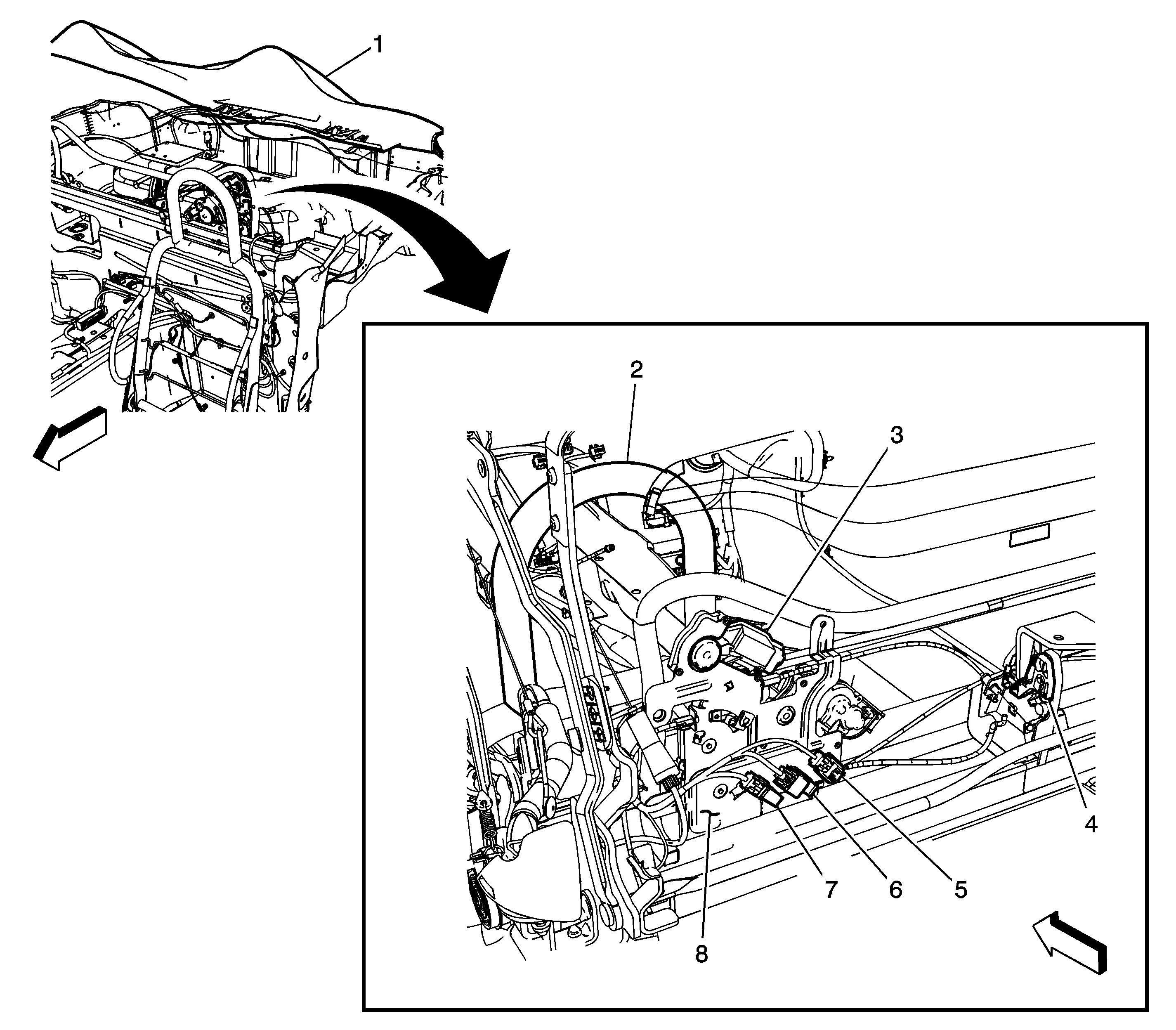

Rear Compartment Components
Object Number: 1631588 Size: LF
(1)Rear Compartment Lid
(2)Driver Seat Frame
(3)Rear Compartment Lid Latch Release Actuator
(4)Rear Compartment Lid Ajar Switch
(5)Rear Compartment Lid Ajar Switch Connector
(6)Folding Top Cover Actuator Connector
(7)Rear Compartment Lid Latch Release Actuator Connector
(8)Folding Top Cover Actuator
Figure 4:

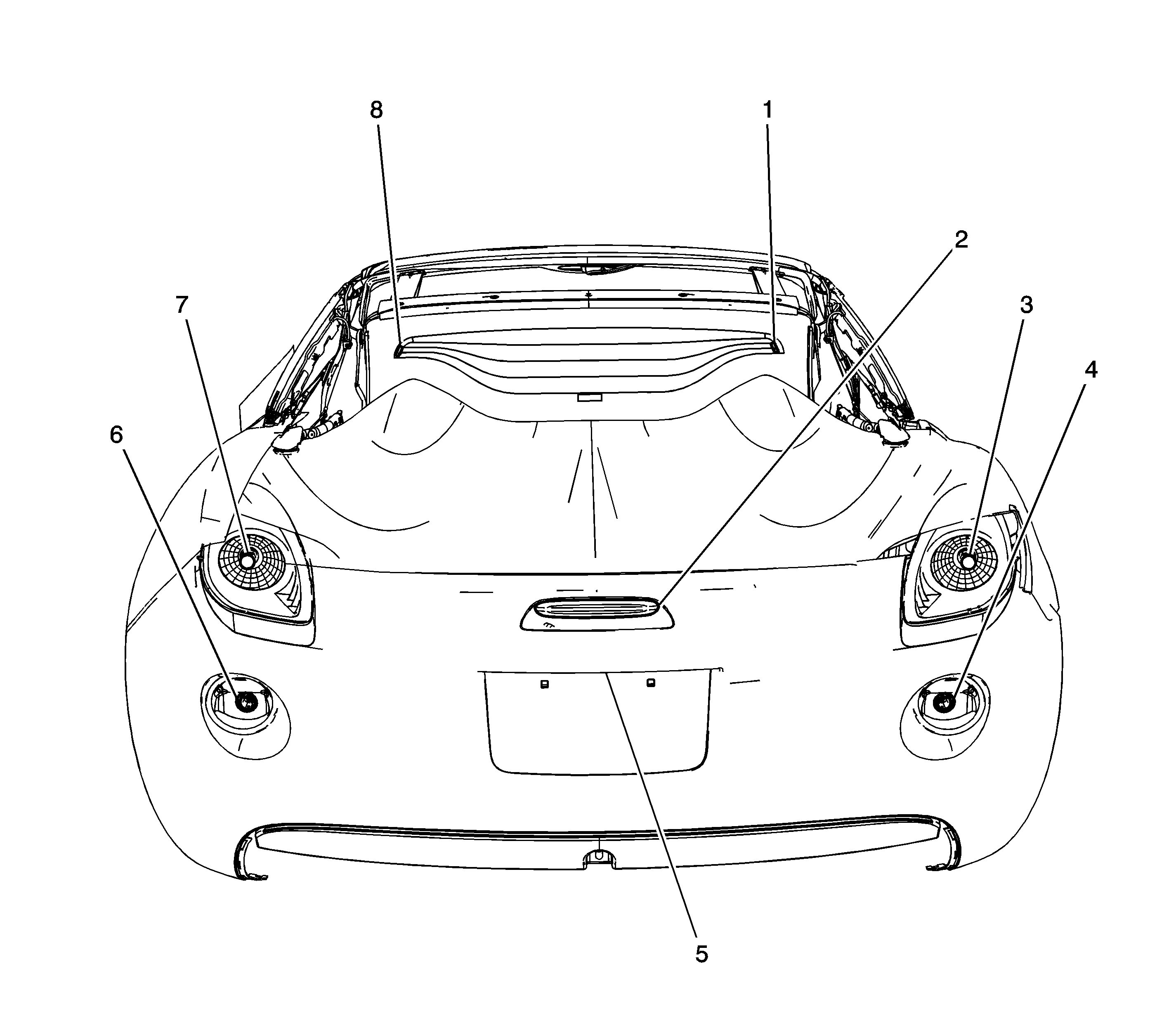

Rear Fascia Lighting (Solstice)
Object Number: 1631748 Size: LF
(1)Rear Window Defogger Grid X2
(2)Center High Mounted Stop Lamp (CHMSL)
(3)Tail/Stop and Turn Signal Lamp - Right
(4)Backup Lamp - Right
(5)License Lamp
(6)Backup Lamp - Left
(7)Tail/Stop and Turn Signal Lamp - Left
(8)Rear Window Defogger Grid X1
Figure 5:

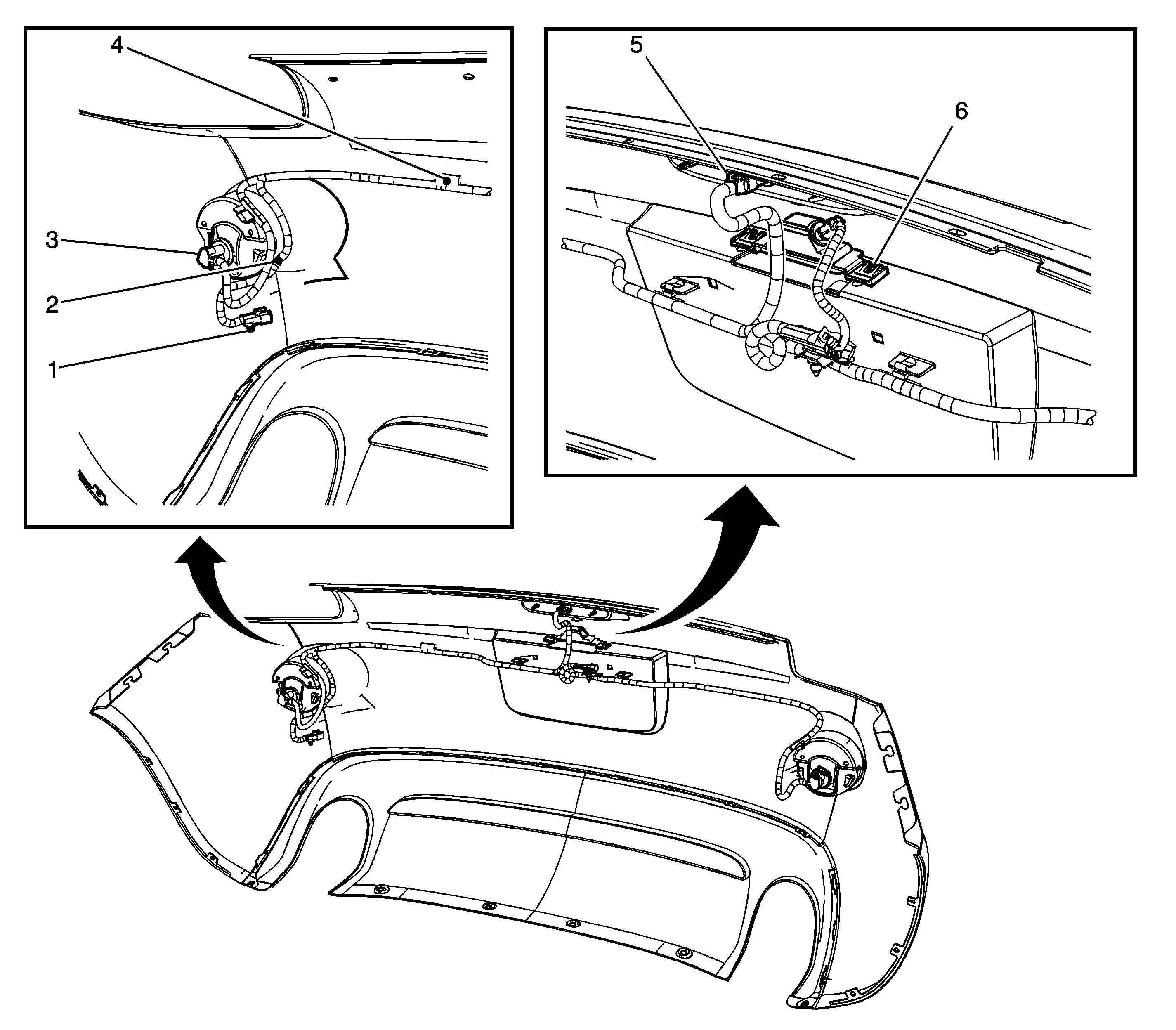

Rear Fascia Harness (Solstice)
Object Number: 1583560 Size: LF
(1)X400
(2)J401
(3)Backup Lamp - Right
(4)J402
(5)Center High Mounted Stop Lamp (CHMSL)
(6)License Lamp
Figure 6:

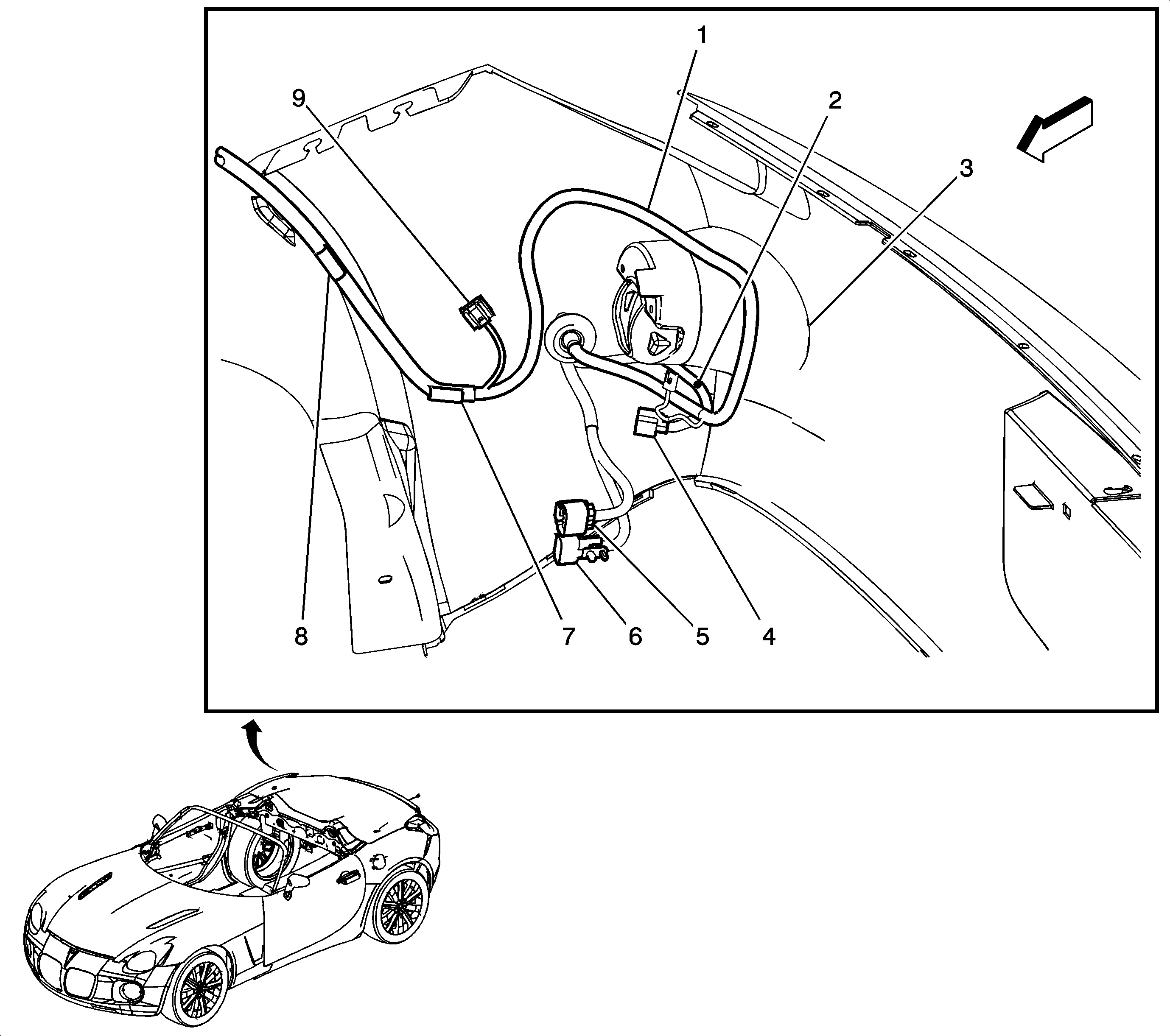

Instrument Panel Harness - Right Rear Quarter Panel (Solstice)
Object Number: 1583497 Size: LF
(1) Instrument Panel Harness
(2)J403
(3)Backup Lamp - Right
(4)X400
(5)X406
(6)X408
(7)Drain (U2K)
(8)J402
(9)Backup Lamp - Right Connector
Figure 7:

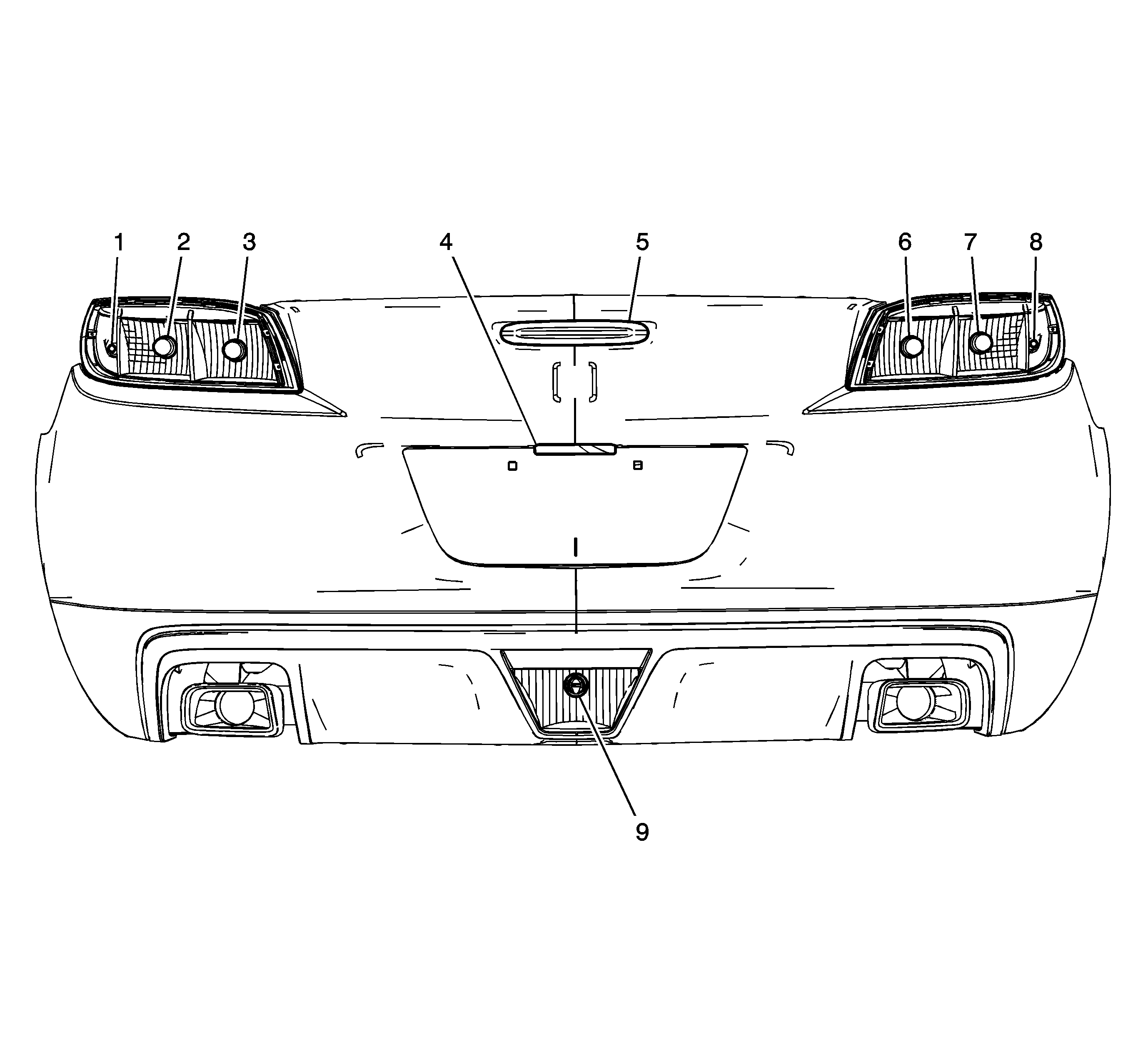

Rear Fascia (SKY)
Object Number: 1824200 Size: LF
(1)Marker Lamp - Left Rear
(2)Tail/Stop and Turn Signal Lamp - Left Outer
(3)Tail/Stop and Turn Signal Lamp - Inner Left
(4)License Lamp
(5)Center High Mounted Stop Lamp (CHMSL)
(6)Tail/Stop and Turn Signal Lamp - Inner Right
(7)Tail/Stop and Turn Signal Lamp - Right Outer
(8)Marker Lamp - Right Rear
(9)Backup Lamp
Figure 8:

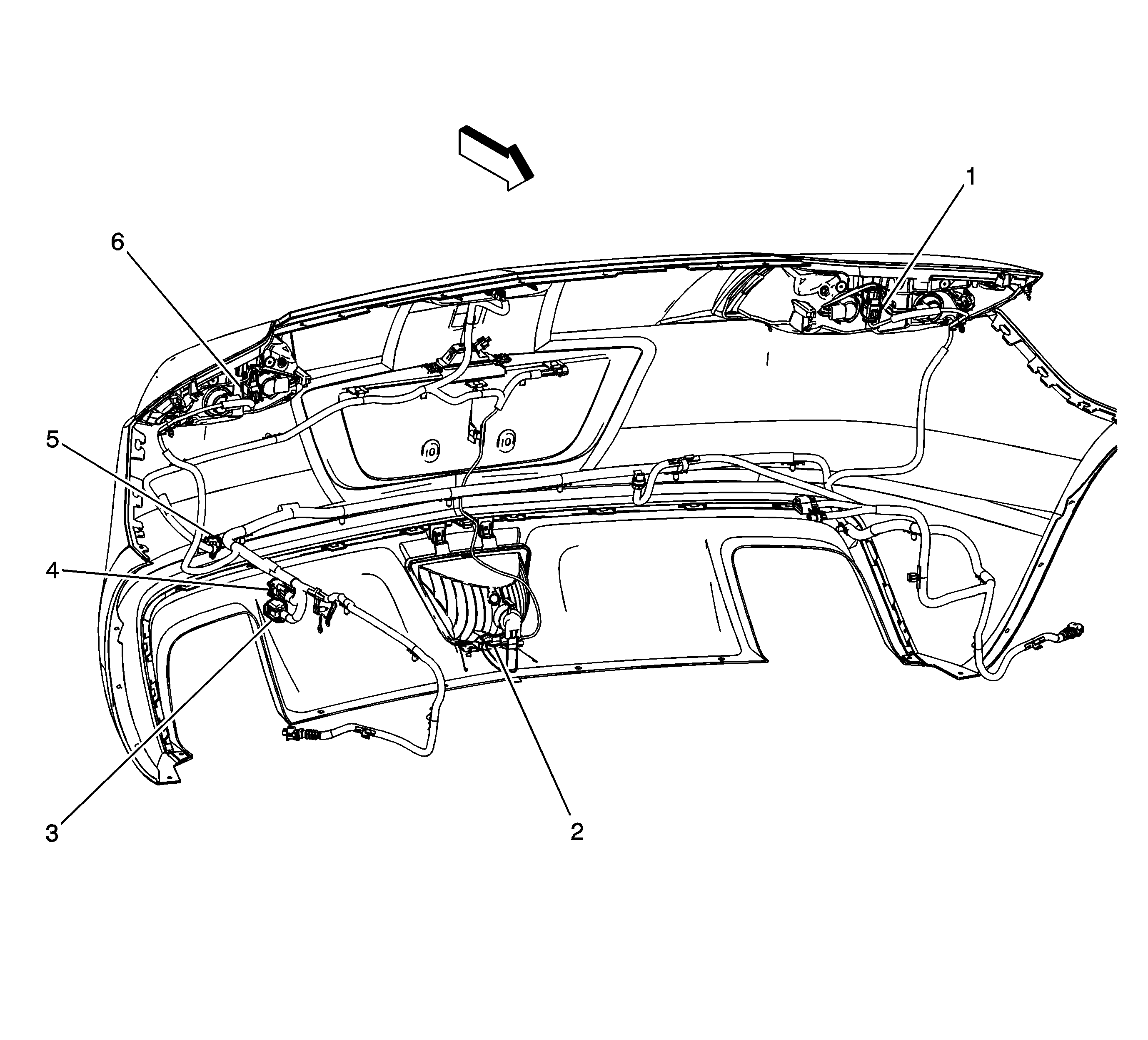

Rear Fascia Harness Routing (SKY)
Object Number: 1845378 Size: LF
(1)X405
(2)X410
(3)X408
(4)X406
(5)X400
(6)X407
