Figure 1:

Rear Chassis Harness
Object Number: 1583567 Size: LF
(1)J410
(2)Marker Lamp - Left Rear
(3)X405 (Sky), Tail/Stop and Turn Signal Lamp - Left (Solstice)
(4)Fuel Tank Pressure Sensor
(5)Fuel Pump and Sender Assembly
(6)Evaporative Emission (EVAP) Canister Vent Solenoid Valve
(7)J402
(8)J401
(9)G400
(10)G402
(11)X409 (Sky), X406 (Solstice)
(12)X408
(13)J420
(14)Marker Lamp - Right Rear
(15)X407 (Sky), Tail/Stop and Turn Signal Lamp - Right (Solstice)

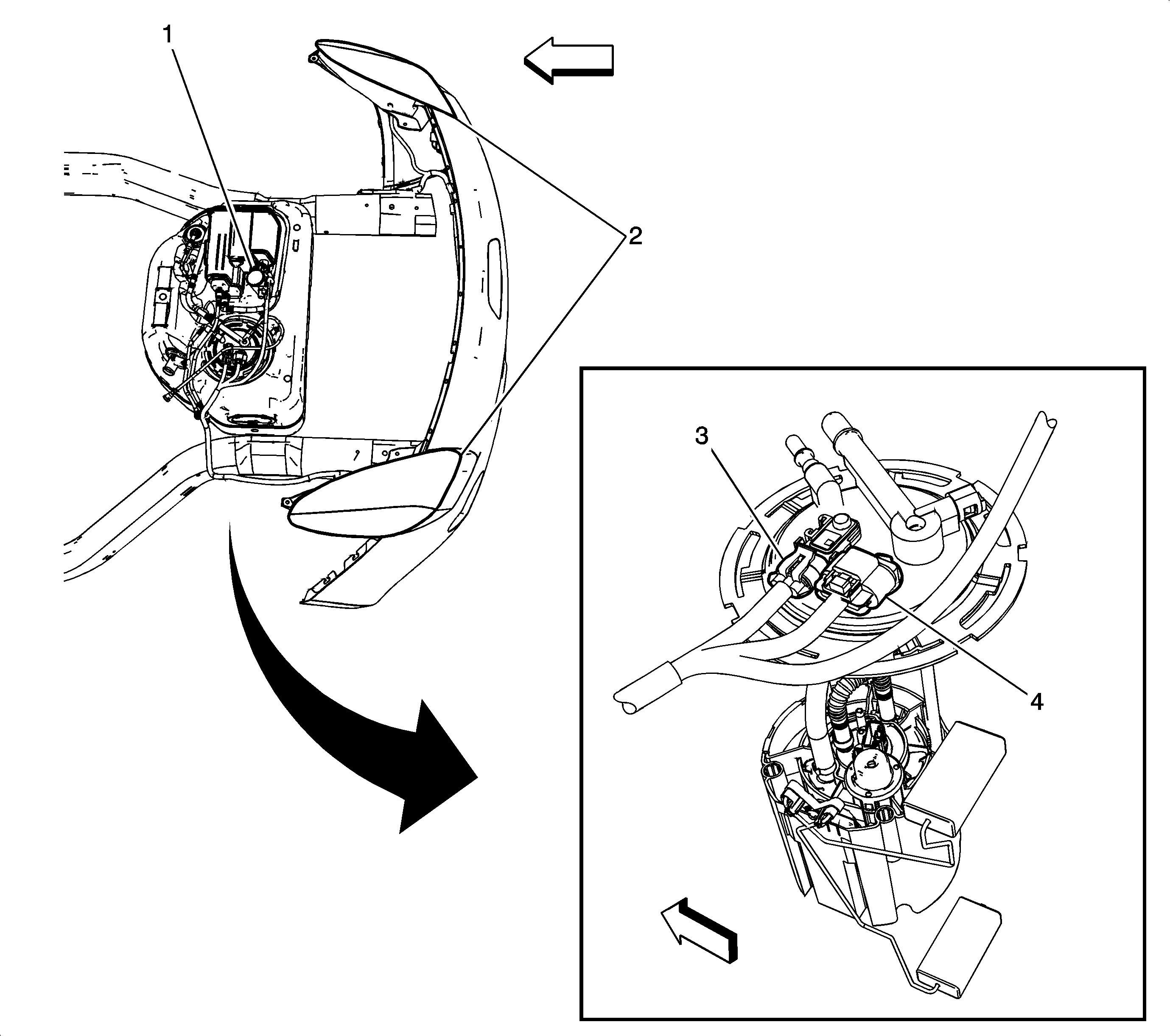

Figure 2:

Fuel Tank Components
Object Number: 1631580 Size: LF
(1)Evaporative Emission (EVAP) Canister Vent Solenoid Valve
(2)Rear Tail Lamps
(3)Fuel Tank Pressure (FTP) Sensor Connector
(4)Fuel Pump and Sender Assembly Connector
Figure 3:

Wheel Speed Sensors
Object Number: 1631750 Size: LF
(1)Wheel Speed Sensor (WSS) - Right Rear
(2)Wheel Speed Sensor (WSS) - Left Rear
(3)Wheel Speed Sensor (WSS) - Left Front
(4)Wheel Speed Sensor (WSS) - Right Front
