Fuse Block Schematics. Pontiac Sunfire 1998

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 1998 🢒 Sunfire 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Fuse Block Schematics

Figure 1:	Cell 11: Cooling Fan, PCM, BLO, A/C, and ABS Fuses Cell 11: CIG, Cluster, EXT Lamp, and INT Lamp Fuses OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

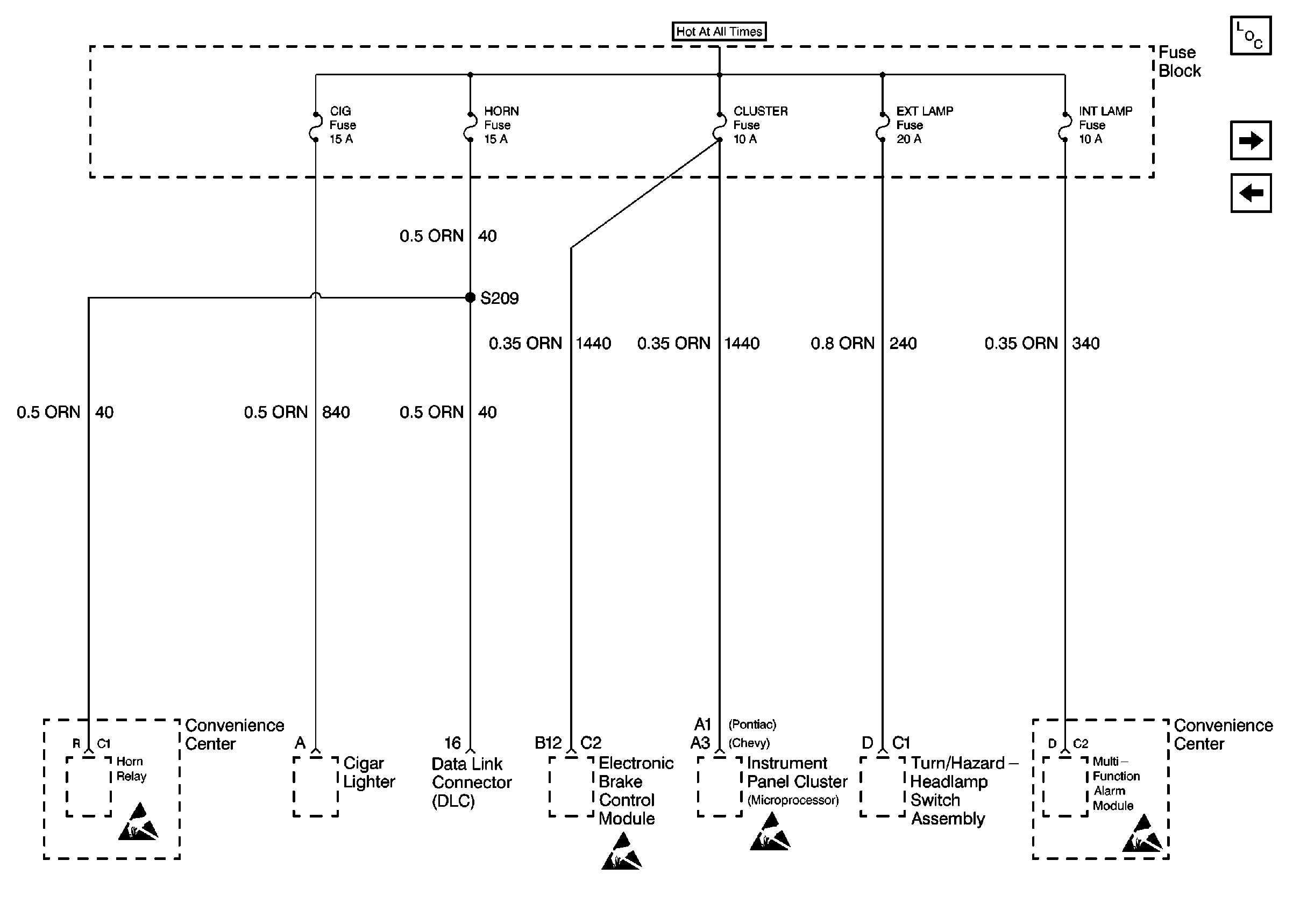

Figure 2:	Cell 11: CIG, Cluster, EXT Lamp, and INT Lamp Fuses Cell 11: Left Headlamp and Right Headlamp Fuses Cell 11: Cooling Fan, PCM, BLO, A/C, and ABS Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

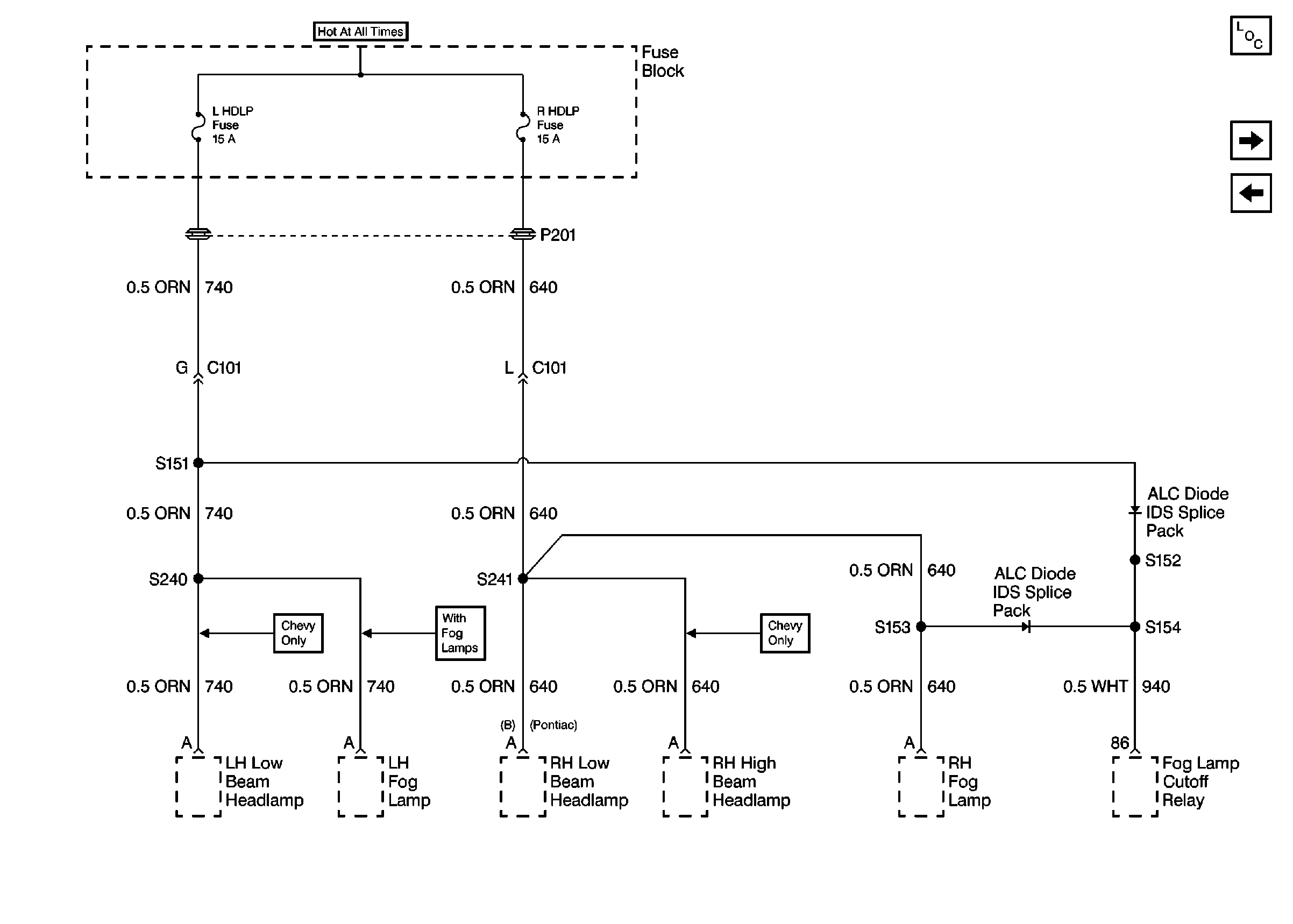

Figure 3:	Cell 11: Left Headlamp and Right Headlamp Fuses Cell 11: Rear Defog, PWR ACC, and Stop Hazard Fuses Cell 11: CIG, Cluster, EXT Lamp, and INT Lamp Fuses

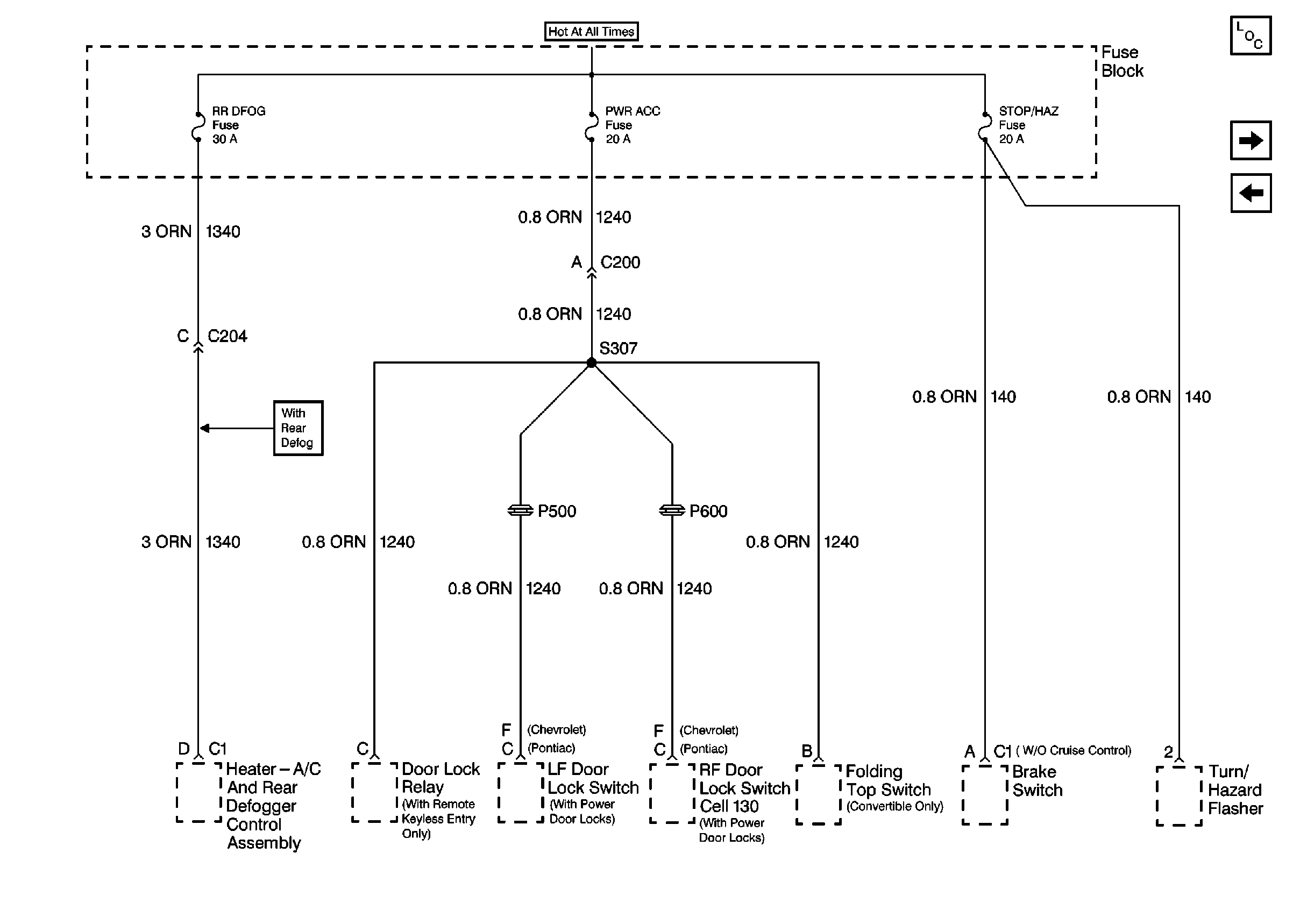

Figure 4:	Cell 11: Rear Defog, PWR ACC, and Stop Hazard Fuses Cell 11: CLS/PCM, F/P-BU, Air Bag, and Cruise Fuses Cell 11: Left Headlamp and Right Headlamp Fuses

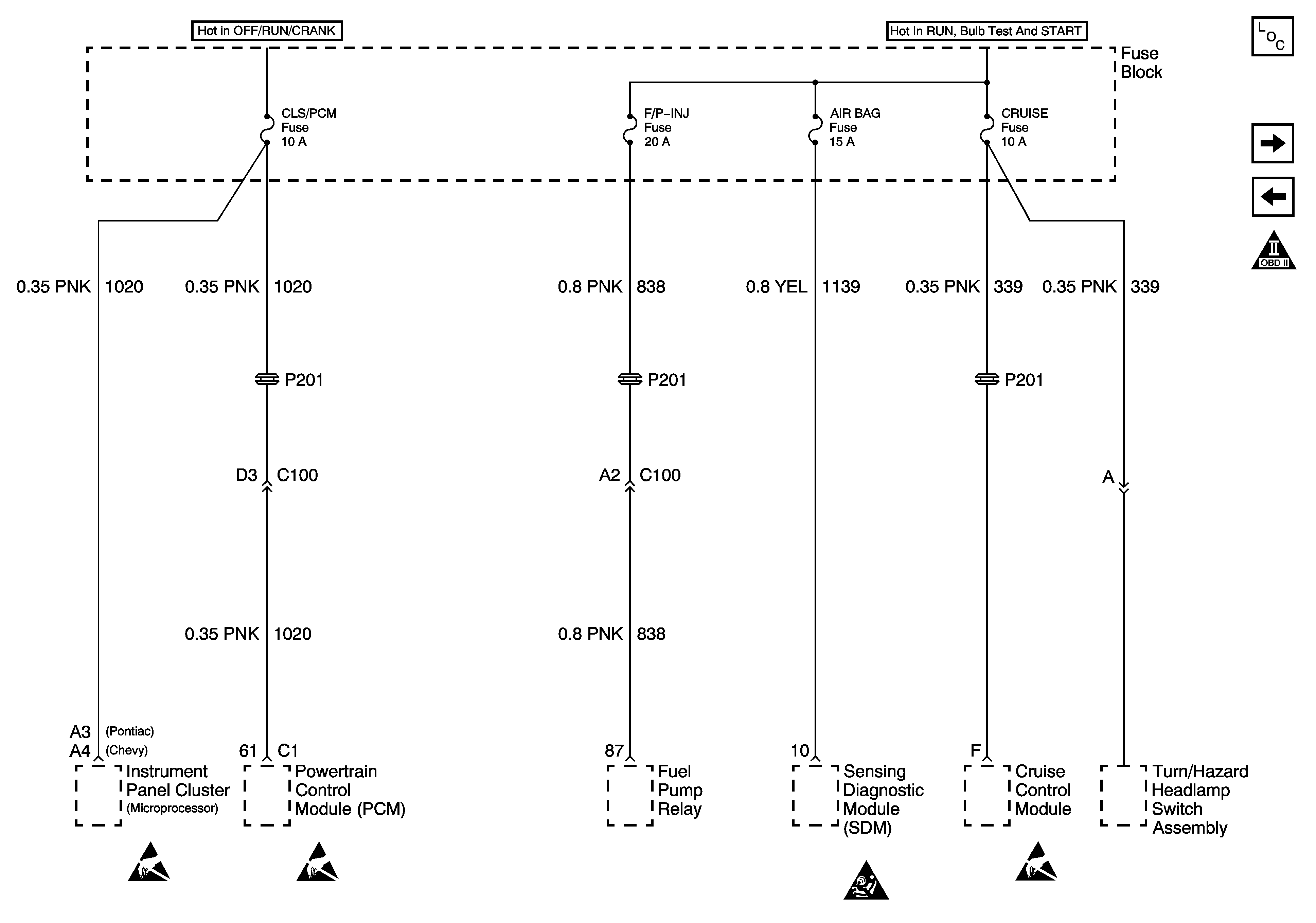

Figure 5:	Cell 11: CLS/PCM, F/P-BU, Air Bag, and Cruise Fuses Cell 11: Wiper, Radio, and Inline Fuse A Fuses Cell 11: Rear Defog, PWR ACC, and Stop Hazard Fuses OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice SIR Handling Caution Handling ESD Sensitive Parts Notice

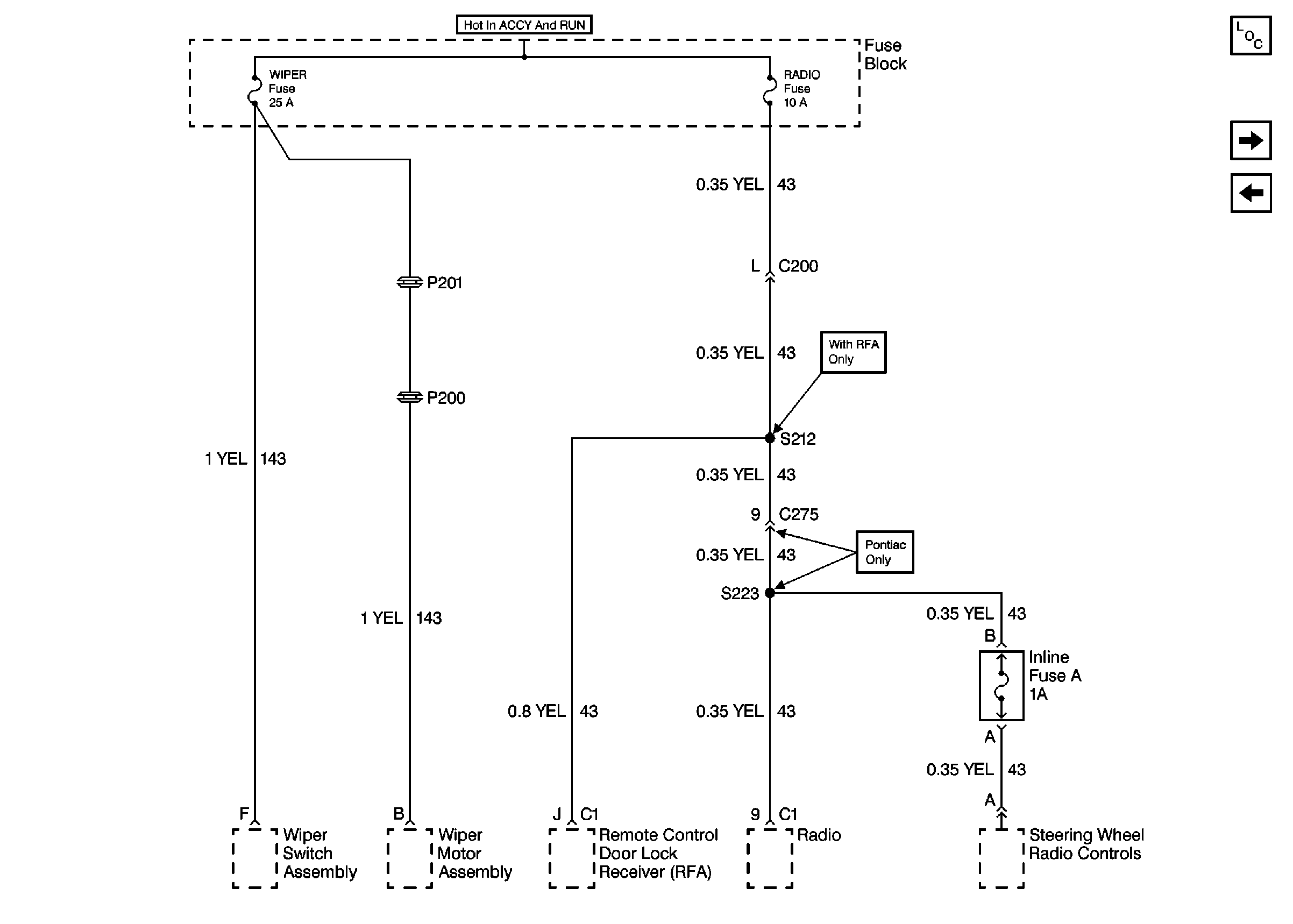

Figure 6:	Cell 11: Wiper, Radio, and Inline Fuse A Fuses Cell 11: Turn-B/U, IGN, PCM/IGN, and Alarm Fuses Cell 11: CLS/PCM, F/P-BU, Air Bag, and Cruise Fuses

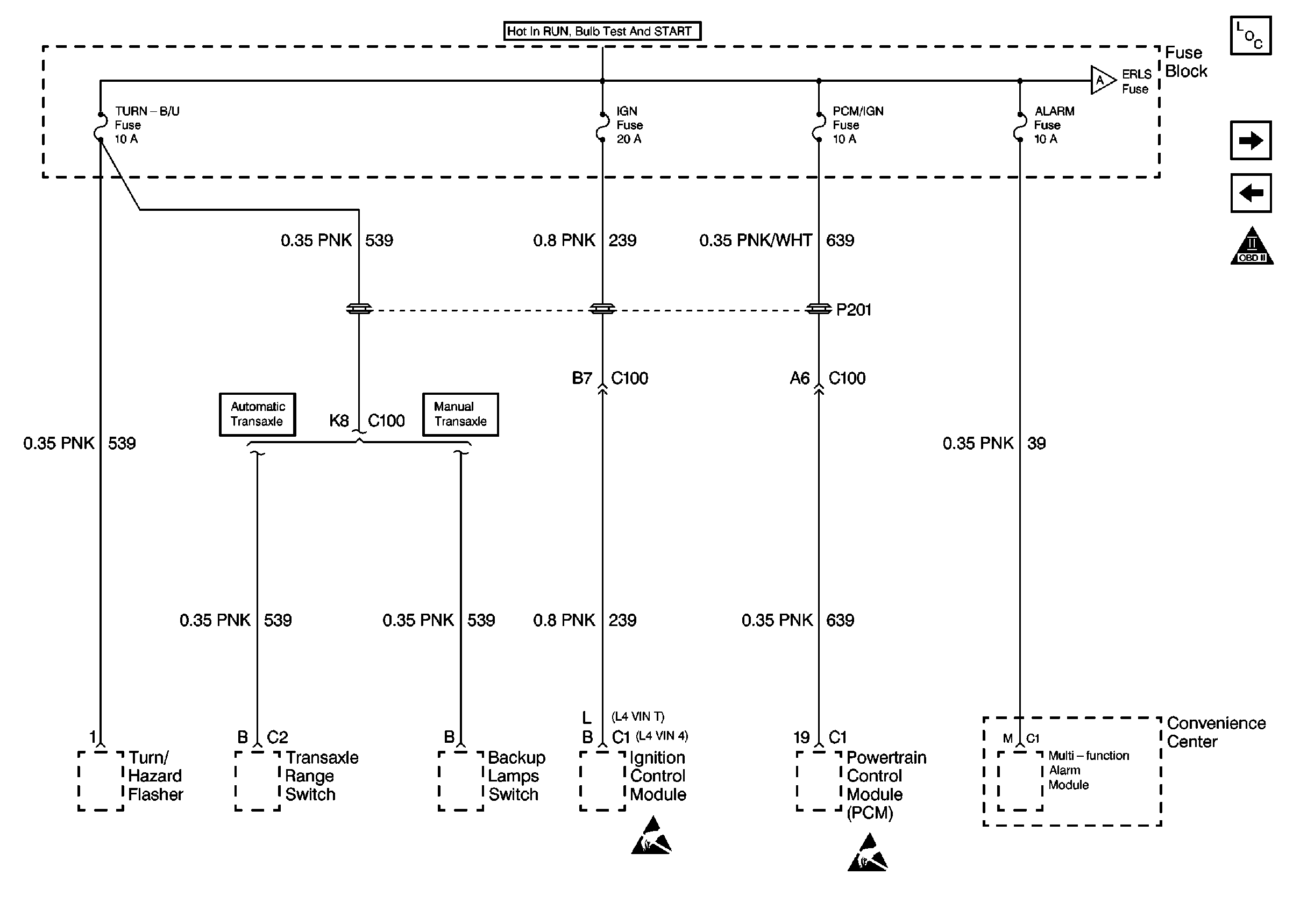

Figure 7:	Cell 11: Turn-B/U, IGN, PCM/IGN, and Alarm Fuses Cell 11: ERLS Fuse Cell 11: Wiper, Radio, and Inline Fuse A Fuses OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 11: ERLS Fuse

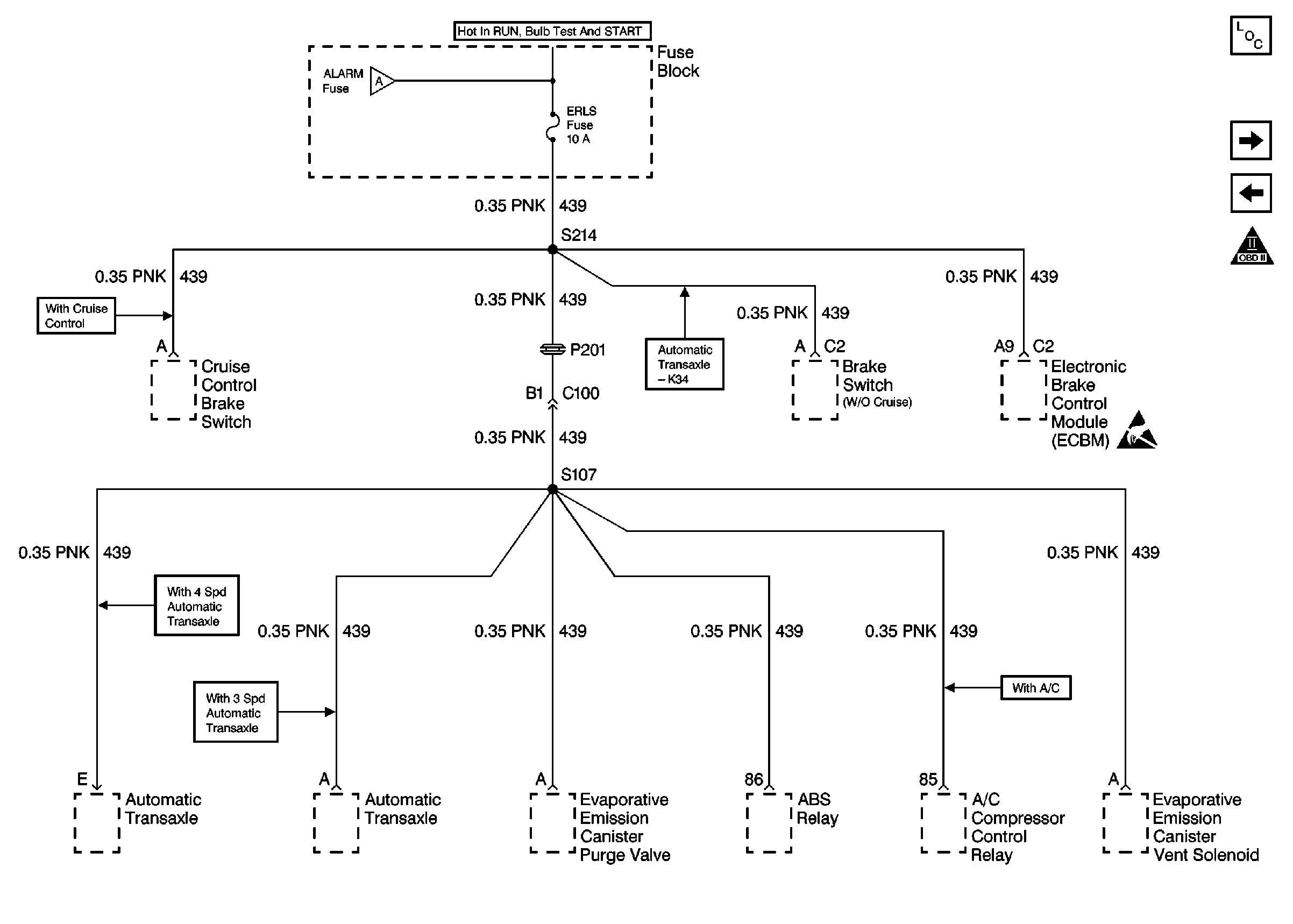

Figure 8:	Cell 11: ERLS Fuse Cell 11: HVAC and O2 HTR Fuses Cell 11: Turn-B/U, IGN, PCM/IGN, and Alarm Fuses OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Cell 11: Turn-B/U, IGN, PCM/IGN, and Alarm Fuses

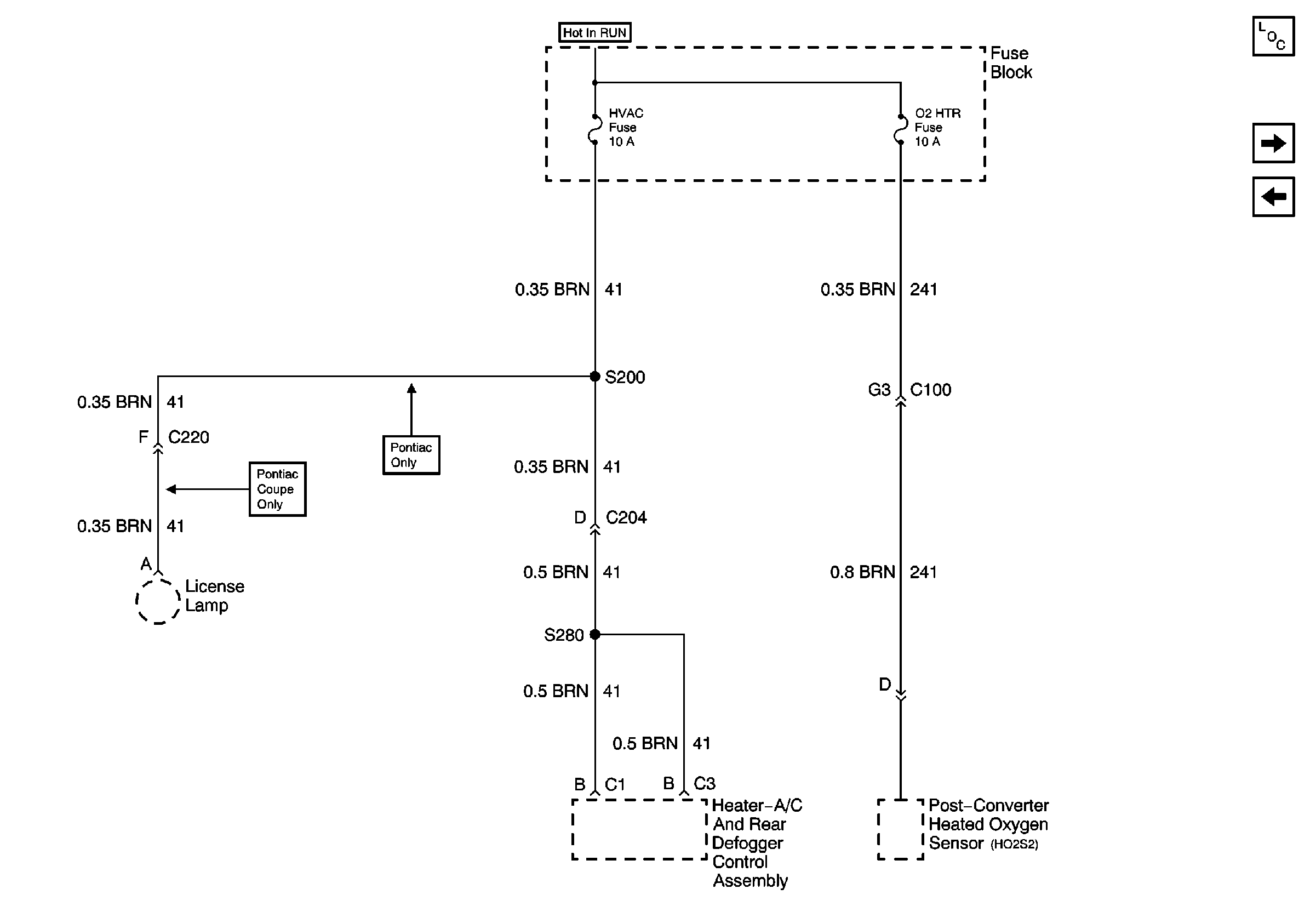

Figure 9:	Cell 11: HVAC and O2 HTR Fuses Cell 11: Power Window Circuit Breaker Cell 11: ERLS Fuse

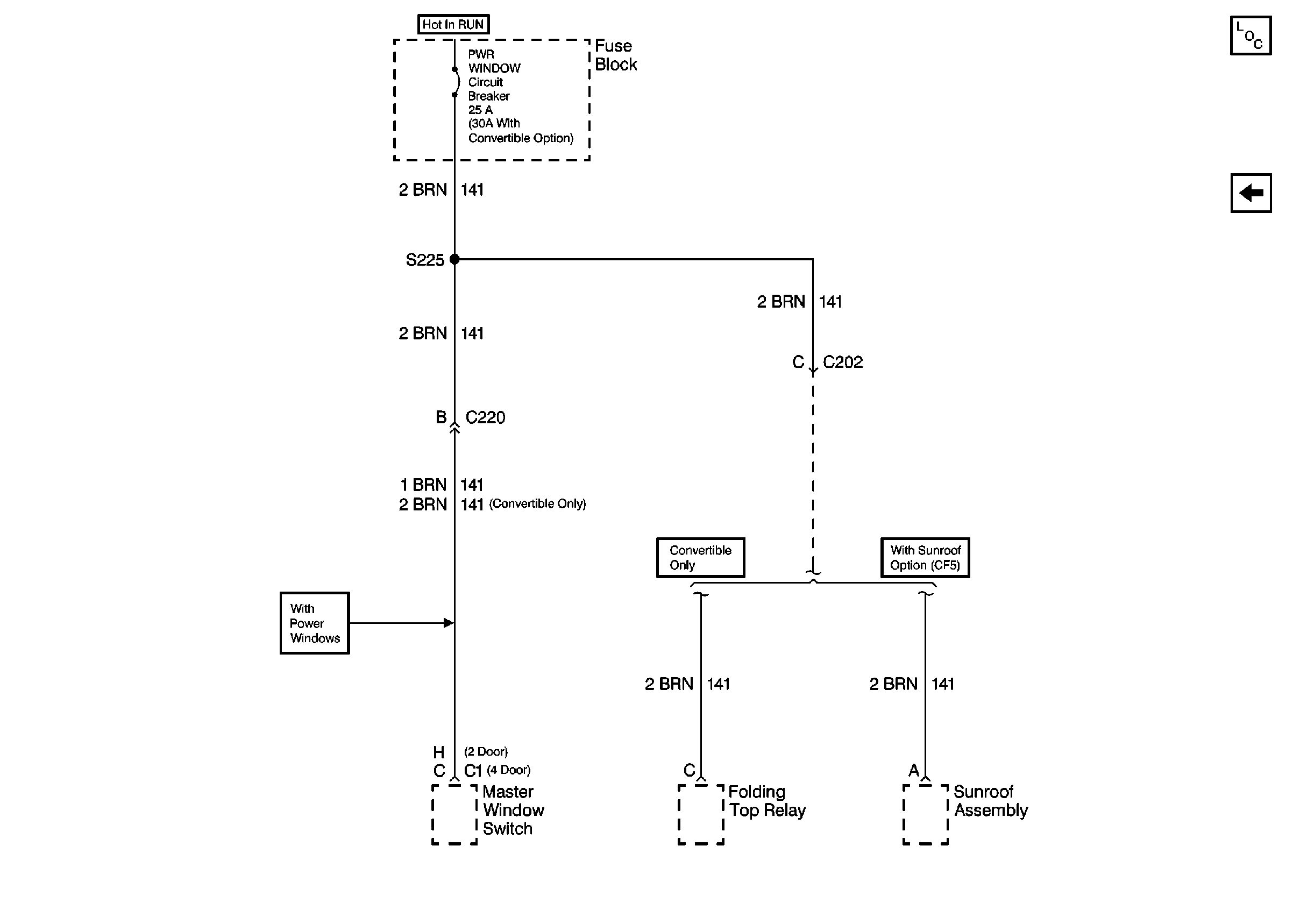

Figure 10:	Cell 11: Power Window Circuit Breaker Cell 11: HVAC and O2 HTR Fuses
