Fuel Tank Pressure Sensor Replacement FWD

1. Remove the two fasteners and swing the rear seat bottom cushion up and out of the way. Refer to Rear Seat Cushion Replacement in Seats.
2. Remove the sill plate from the left side door opening.
3. Fold back the carpet in order to maintain metal-to-metal contact while servicing the fuel sender assembly.
4. Remove the access panel for the fuel sender assembly from the rear seat floor. The panel is held in place by a butyl caulk seal.

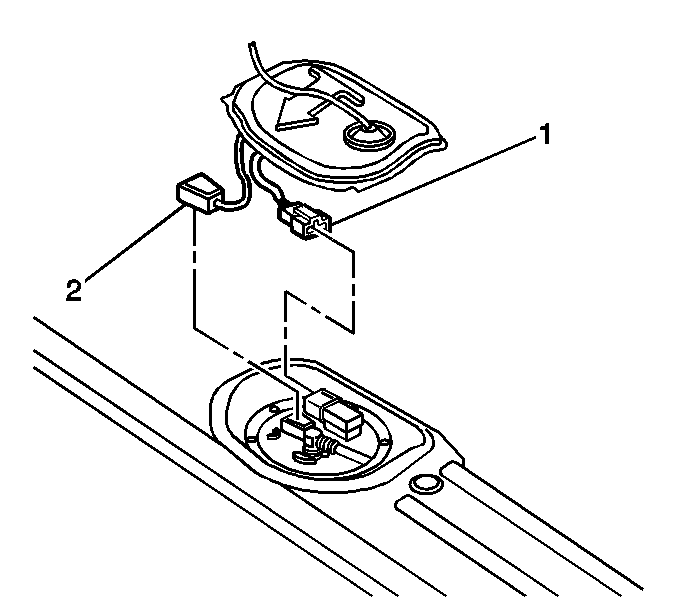

5. Disconnect the fuel sender electrical connector (1) from the fuel sender assembly.
6. Disconnect the electrical connector of the fuel tank pressure (FTP) sensor (2) from the fuel sender assembly.

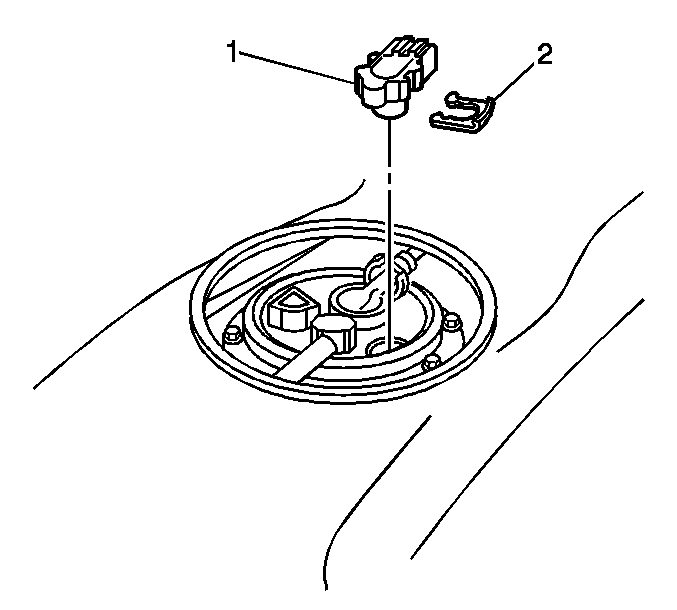

7. Remove the retaining clip (2) from the FTP sensor.
8. Remove the FTP sensor (1) from the fuel sender assembly.

1. Install the FTP sensor (1) to the fuel sender assembly.
2. Install the retaining clip (2) to the FTP sensor.



3. Connect the fuel sender electrical connector (1).
4. Connect the FTP sensor electrical connector (2).
5. Inspect the butyl caulk seal for the fuel sender access panel (1) . Replace any missing butyl caulk as necessary.
6. Install the access panel to the rear seat floor.
7. Relocate the carpet under the seat and the left sill plate area.
8. Install the sill plate to the left side door opening .
9. Install the rear seat bottom cushion.
10. Secure the seat cushion with the two fasteners. Refer to Rear Seat Cushion Replacement in Seats.

Fuel Tank Pressure Sensor Replacement AWD

1. Remove the two fasteners and swing the rear seat bottom cushion up and out of the way. Refer to Rear Seat Cushion Replacement in Seats.
2. Remove the sill plate from the left side door opening.
3. Fold back the carpet in order to maintain metal-to-metal contact while servicing the fuel sender assembly.
4. Remove the access panel for the fuel sender assembly from the rear seat floor. The panel is held in place by a butyl caulk seal.

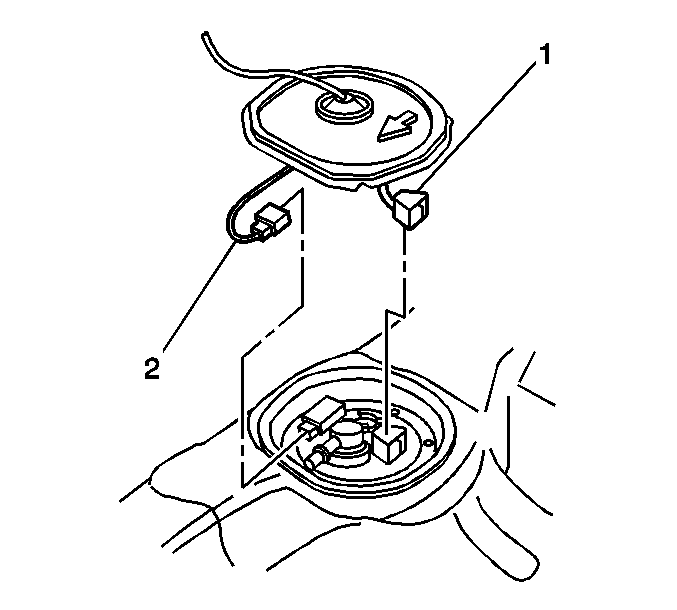

5. Disconnect the fuel sender electrical connector (2) from the fuel sender assembly.
6. Disconnect the electrical connector of the fuel tank pressure (FTP) sensor (1) from the fuel sender assembly.



7. Remove the retaining clip (2) from the FTP sensor.
8. Remove the FTP sensor (1) from the fuel sender assembly.

1. Install the FTP sensor (1) to the fuel sender assembly.
2. Install the retaining clip (2) to the FTP sensor.



3. Connect the fuel sender electrical connector (2).
4. Connect the FTP sensor electrical connector (1).
5. Inspect the butyl caulk seal for the fuel sender access panel (1) . Replace any missing butyl caulk as necessary.
6. Install the access panel to the rear seat floor.
7. Relocate the carpet under the seat and the left sill plate area.
8. Install the sill plate to the left side door opening .
9. Install the rear seat bottom cushion.
10. Secure the seat cushion with the two fasteners. Refer to Rear Seat Cushion Replacement in Seats.
