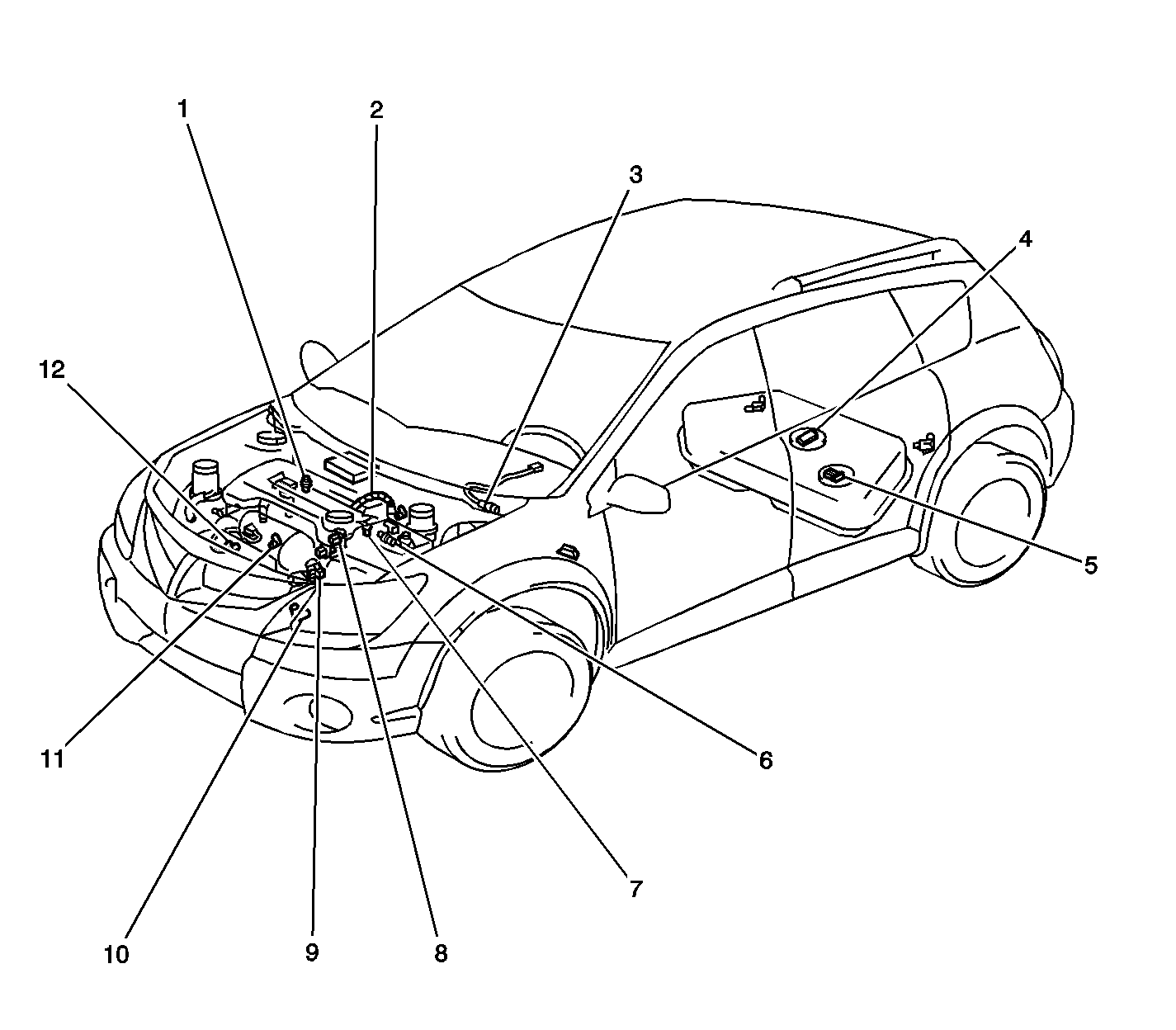

Information Sensors/Input Devices
Object Number: 830859 Size: LF
(1)Power Steering Pressure Switch
(2)Heated Oxygen Sensor 1 - HO2S 1
(3)Heated Oxygen Sensor 2- HO2S 2
(4)Fuel Tank Pressure (FTP) Sensor - FWD
(5)Fuel Tank Pressure (FTP) Sensor - AWD
(6)Engine Coolant Temperature (ECT) Sensor
(7)Mass Air Flow (MAF) Sensor
(8)Camshaft Position (CMP) Sensor
(9)Throttle Position (TP) Sensor
(10)PNP Switch, Automatic Transmission only
(11)Knock (KS) Sensor
(12)Crankshaft Position (CKP) Sensor

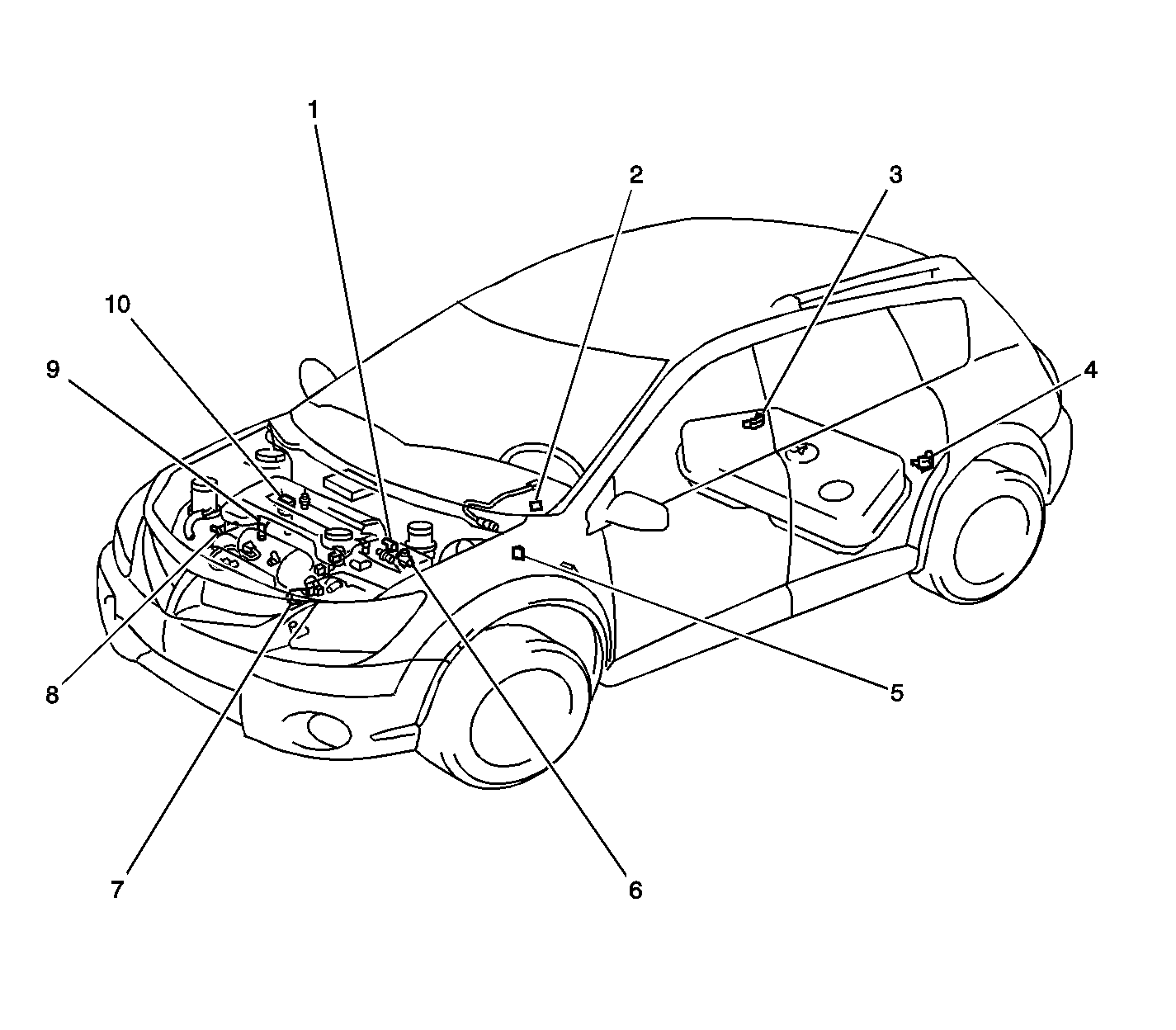

PCM Controlled Devices
Object Number: 830855 Size: LF
(1)EVAP Purge Solenoid
(2)Malfunction Indicator Lamp (MIL)
(3)EVAP Pressure Switching Solenoid - AWD
(4)EVAP Pressure Switching Solenoid - FWD
(5)Circuit Opening Relay - Fuel Pump Relay
(6)EVAP Vent Solenoid
(7)Idle Air Control (IAC) Valve
(8)Camshaft Position (CMP) Actuator Solenoid
(9)Fuel Injector
(10)Ignition Coil

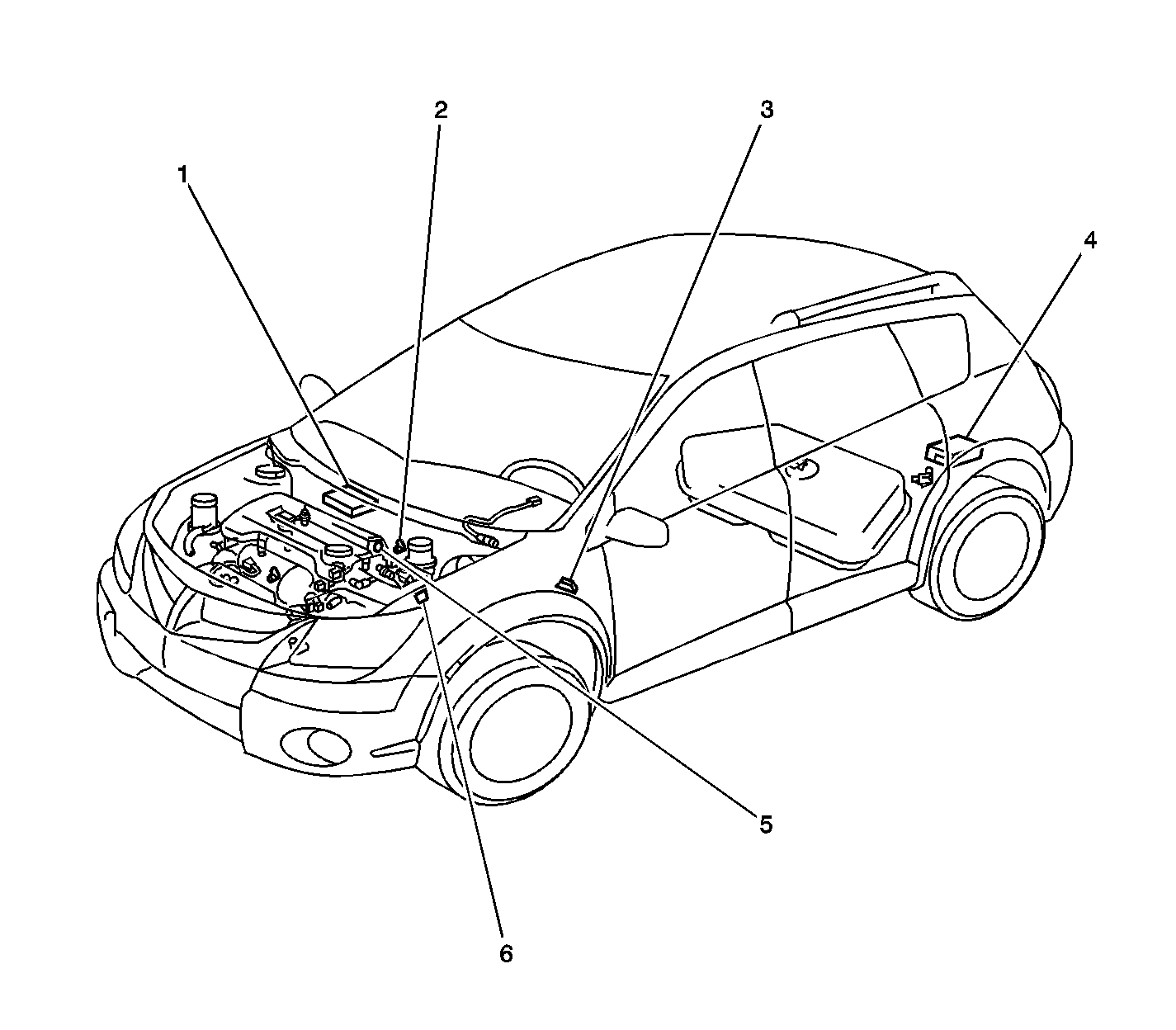

Other Components - FWD
Object Number: 848127 Size: LF
(1)Powertrain Control Module (PCM)
(2)EVAP Service Port
(3)Data Link Connector (DLC)
(4)EVAP Canister
(5)Noise Filter, for ignition system
(6)EFI Relay

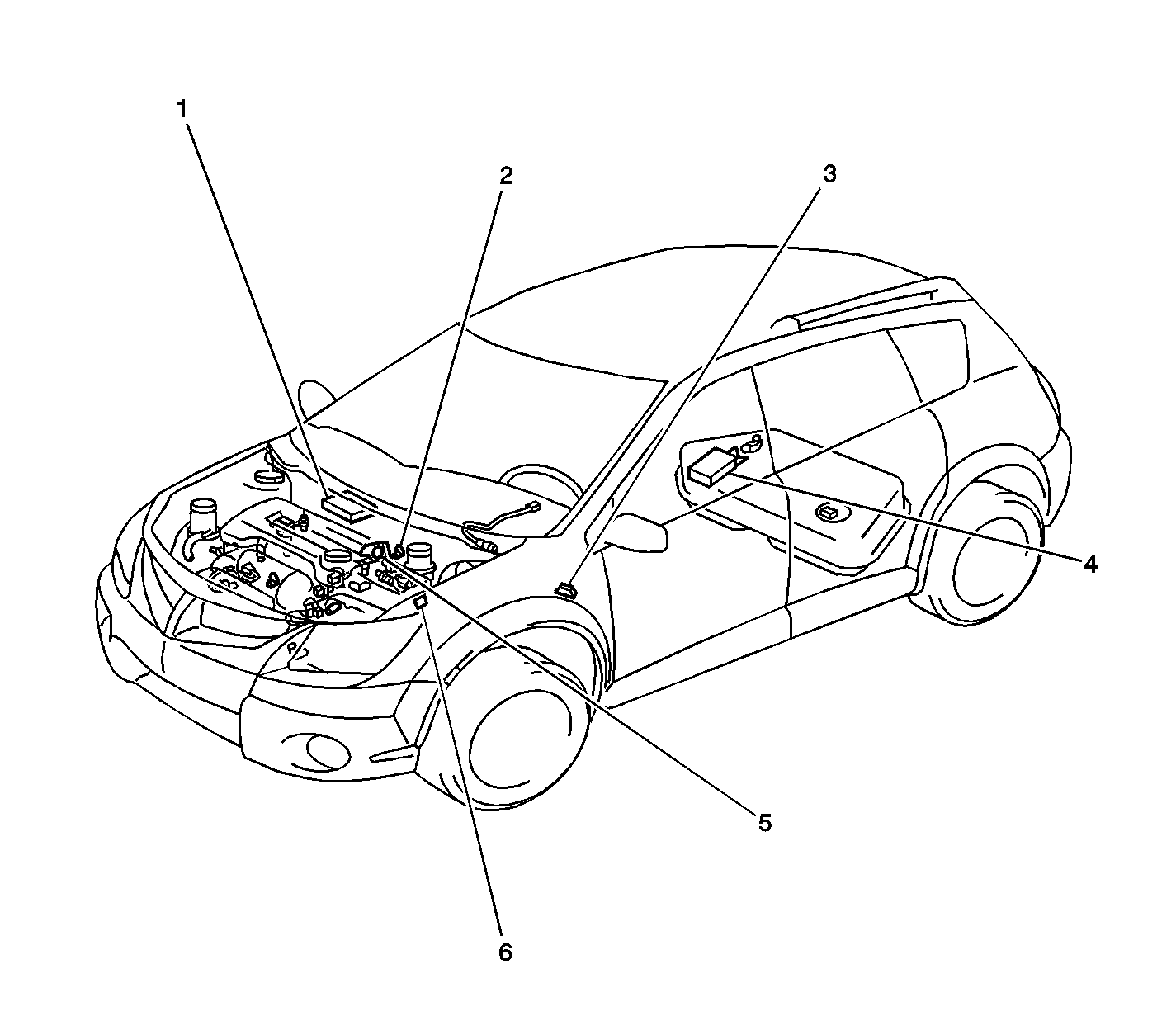

Other Components - AWD
Object Number: 830842 Size: LF
(1)Powertrain Control Module (PCM)
(2)EVAP Service Port
(3)Data Link Connector (DLC)
(4)EVAP Canister
(5)Noise Filter, for ignition system
(6)EFI Relay

Crankshaft Position (CKP) Sensor and Power Steering Pressure (PSP) Switch
Object Number: 392655 Size: MF
(1)Generator
(2)Crankshaft Position (CKP) Sensor
(3)Power Steering Pump
(4)Power Steering Pressure (PSP) Switch

ECT Sensor and Noise Filter
Object Number: 851358 Size: SH
(1)Engine Coolant Temperature (ECT) Sensor
(2)Noise Filter, for ignition system
(3)Upper Radiator Hose
(4)Engine Ground G104 and G105

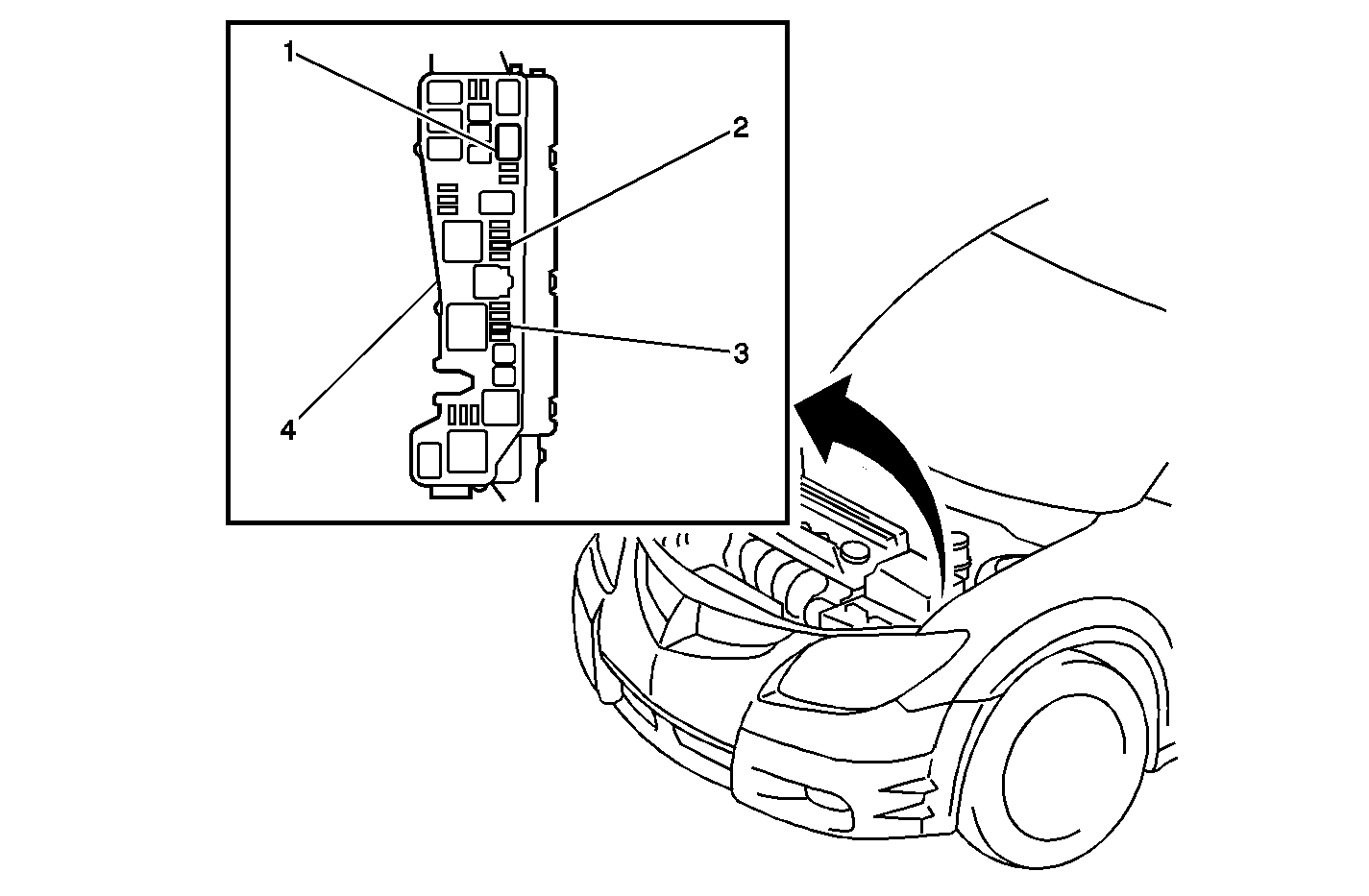

Fuse Block-Underhood
Object Number: 831521 Size: MF
(1)EFI Relay
(2)Main Fuse
(3)EFI Fuse
(4)Fuse Block-Underhood

Instrument Panel (I/P) Components
Object Number: 848018 Size: MF
(1)Malfunction Indicator Lamp (MIL), Check Engine Lamp
(2)Powertrain Control Module (PCM)
(3)Fuse Block - Instrument Panel (I/P)
(4)Data Link Connector (DLC)

Top View of Fuse Block - Instrument Panel (I/P)
Object Number: 847988 Size: SH
(1)Circuit Opening Relay, Fuel Pump Relay
(2)Fuse Block - Instrument Panel (I/P)

Camshaft Position (CMP) Actuator Solenoid Valve and Filter
Object Number: 622392 Size: SH
(1)Camshaft Position (CMP) Actuator Solenoid Valve
(2)Camshaft Position (CMP) Actuator Solenoid Oil Filter

Ignition Coils
Object Number: 621682 Size: SH
(1)Ignition Coil 1
(2)Ignition Coil 2
(3)Ignition Coil 3
(4)Ignition Coil 4
