Disassembled Views. Pontiac Vibe

For 1990-2009 cars only

Makes 🢒 Pontiac 🢒 2004 🢒 Vibe - AWD 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4 Speed-MU5 🢒 Disassembled Views

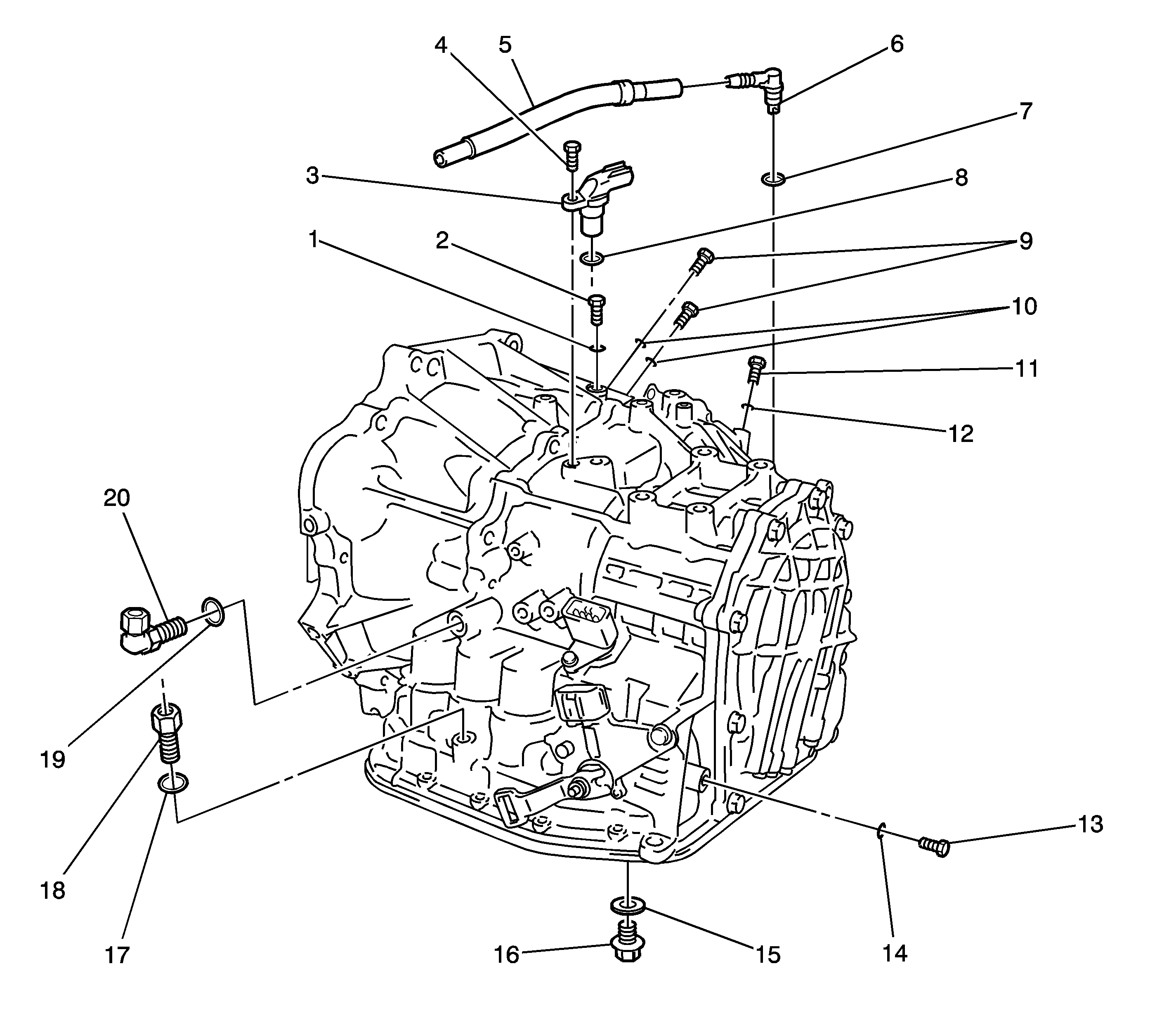

Figure 1:

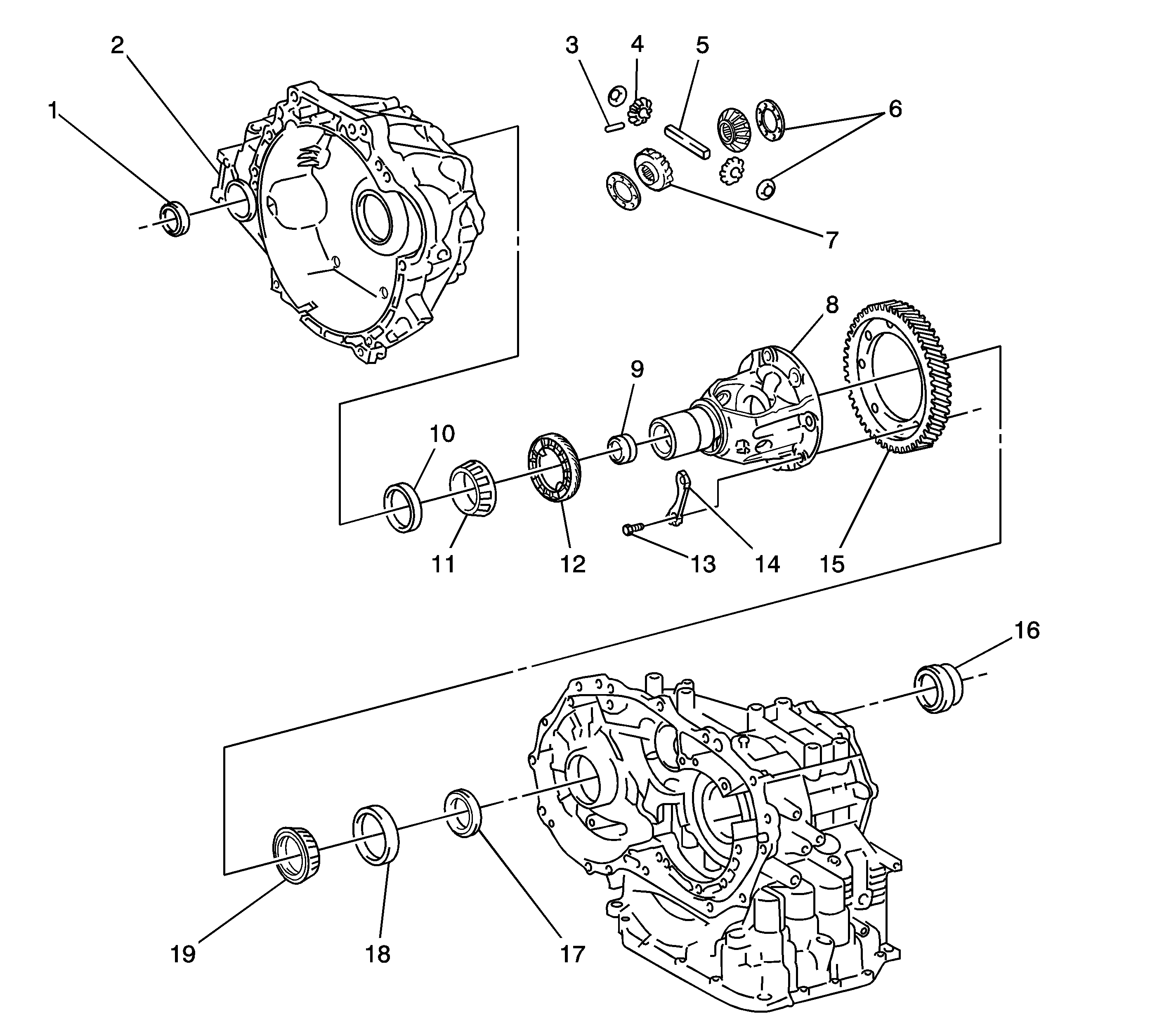

Figure 2:

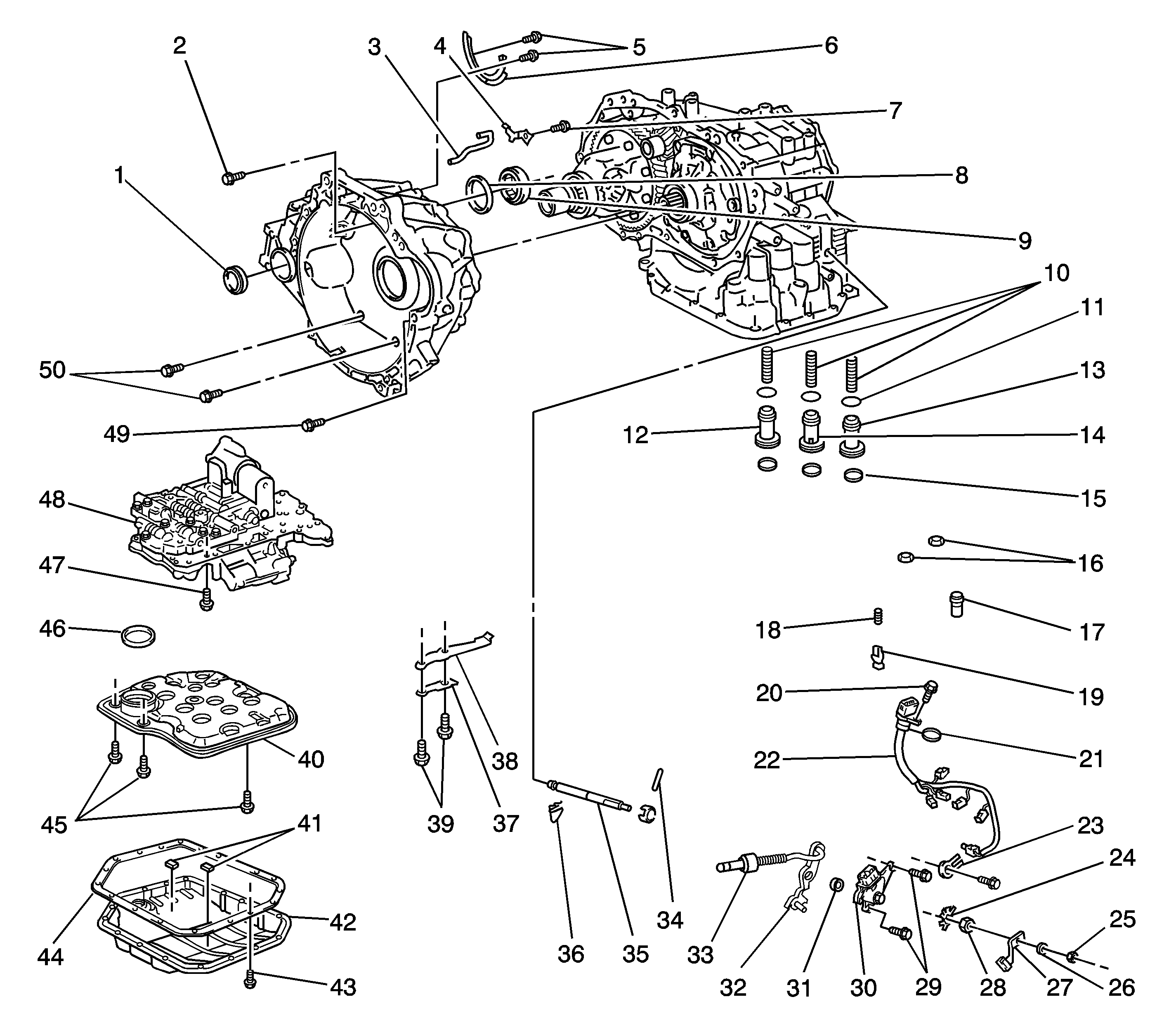

Figure 3:


(1)	Oil Seal
(2)	Bolt
(3)	Differnential Gear Lube Apply Tube
(4)	Bearing Lock Plate
(5)	Bolt
(6)	Transaxle Housing Oil Separator
(7)	Bolt
(8)	Thrust Roller Bearing
(9)	Front Drive Pinion Front Tapered Roller Bearing
(10)	Springs
(11)	O-ring
(12)	B2 Accumulator Piston
(13)	C2 Accumulator Piston
(14)	C3 Accumulator Piston
(15)	O-ring
(16)	Apply Gasket
(17)	Brake Drum Gasket
(18)	Spring
(19)	Check Ball Body
(20)	Bolt
(21)	O-ring
(22)	Transaxle Wiring Harness
(23)	Lock Plate
(24)	Lock Washer
(25)	Nut
(26)	Washer
(27)	Control Lever
(28)	Nut
(29)	Bolt
(30)	PNP Switch
(31)	Washer
(32)	Manual Valve Lever
(33)	Parking Lock Rod Sub-Assembly
(34)	Pin
(35)	Manual Valve Lever Shaft
(36)	Manal Valve Lever Shaft Retainer
(37)	Detent Spring
(38)	Detent Spring Cover
(39)	Bolt
(40)	Oil Filter
(41)	Magnet
(42)	Oil Pan
(43)	Bolt
(44)	Oil Pan Gasket
(45)	Oil Filter Bolt
(46)	Oil Filter O-ring
(47)	Bolt
(48)	Valve Body
(49)	Bolt
(50)	Transaxle Housing Bolt

Figure 4:


(1)	O - ring
(2)	1st & Reverse Brake Return Spring Sub - assembly
(3)	Rear Cover Plugs
(4)	Apply Plate
(5)	Radial Roller Bearing
(6)	Planetary Gear Assembly
(7)	Flange
(8)	Snap Ring
(9)	Front Planetary Sun Gear
(10)	Thrust Needle Roller Bearing
(11)	Snap Ring
(12)	Disc
(13)	Disc
(14)	Flange
(15)	Snap Ring
(16)	Snap Ring
(17)	1 Way Clutch No.2
(18)	Rear Planetary Gear
(19)	1st & Reverse Brake Piston No.2
(20)	Bearing Race
(21)	Planetary Gear Rear Thrust Needle Roller Bearing
(22)	2nd Brake Cylinder
(23)	Retainer
(24)	2nd Brake Piston Sleeve
(25)	Disc
(26)	Disc
(27)	Direct Clutch Hub
(28)	Bearing Race
(29)	Rear Planetary Sun Gear, No.2 Thurst Needle Bearing
(30)	Flange
(31)	Snap Ring
(32)	Bolt
(33)	Transaxle Rear Cover Assembly
(34)	Rear Clutch Drum Thrust Needle Roller Bearing
(35)	Intermediate Shaft Assembly
(36)	Thrust Needle Roller Bearing
(37)	Bearing Race
(38)	Rear Planetary Sun Gear Assembly
(39)	Planetary Carrier Thruat Washer No.2
(40)	1 Way Clutch Assembly
(41)	Thrust washer No.1
(42)	Rear Planetary Sun Gear Thrust Needle Roller Bearing

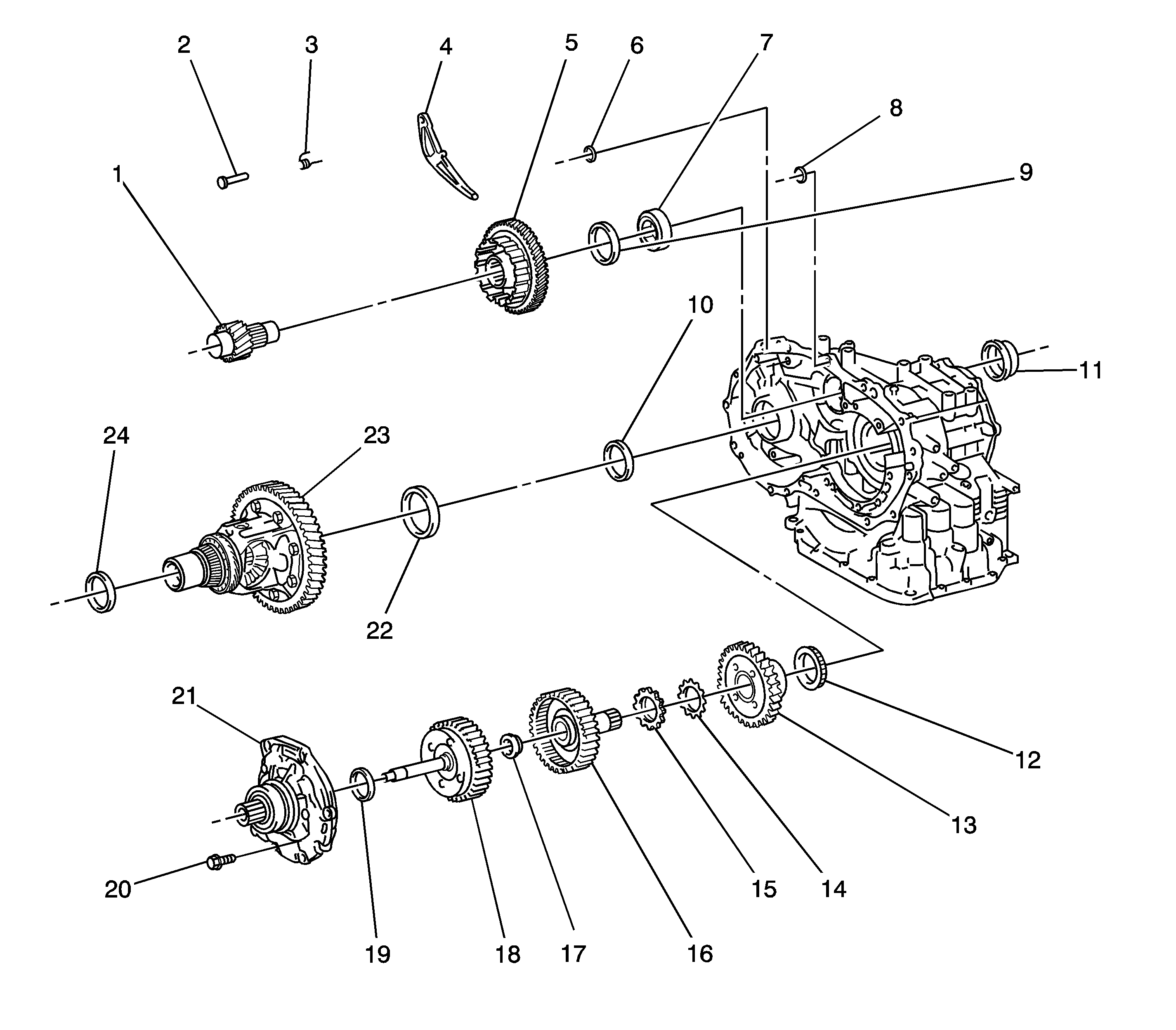

Figure 5:


(1)	Differential Drive Pinion
(2)	Shaft
(3)	Torsion Spring
(4)	Parking Lock Pawl
(5)	Counter Drive Gear
(6)	Apply Gasket
(7)	Roller Bearing
(8)	Apply Gasket
(9)	Thrust Roller Bearing
(10)	Shim
(11)	Oil Seal
(12)	Tapered Roller Bearing
(13)	Counter Drive Gear
(14)	Lock Washer
(15)	Nut
(16)	Forward Clutch Hub Sub-Assembly
(17)	Forward Clutch Hub Thrust Roller Bearing
(18)	Input Shaft Assembly
(19)	Stator Shaft Thrust Roller Bearing
(20)	Bolt
(21)	Oil Pump Assembly
(22)	Outer Race
(23)	Differential Case
(24)	Outer Bearing Race

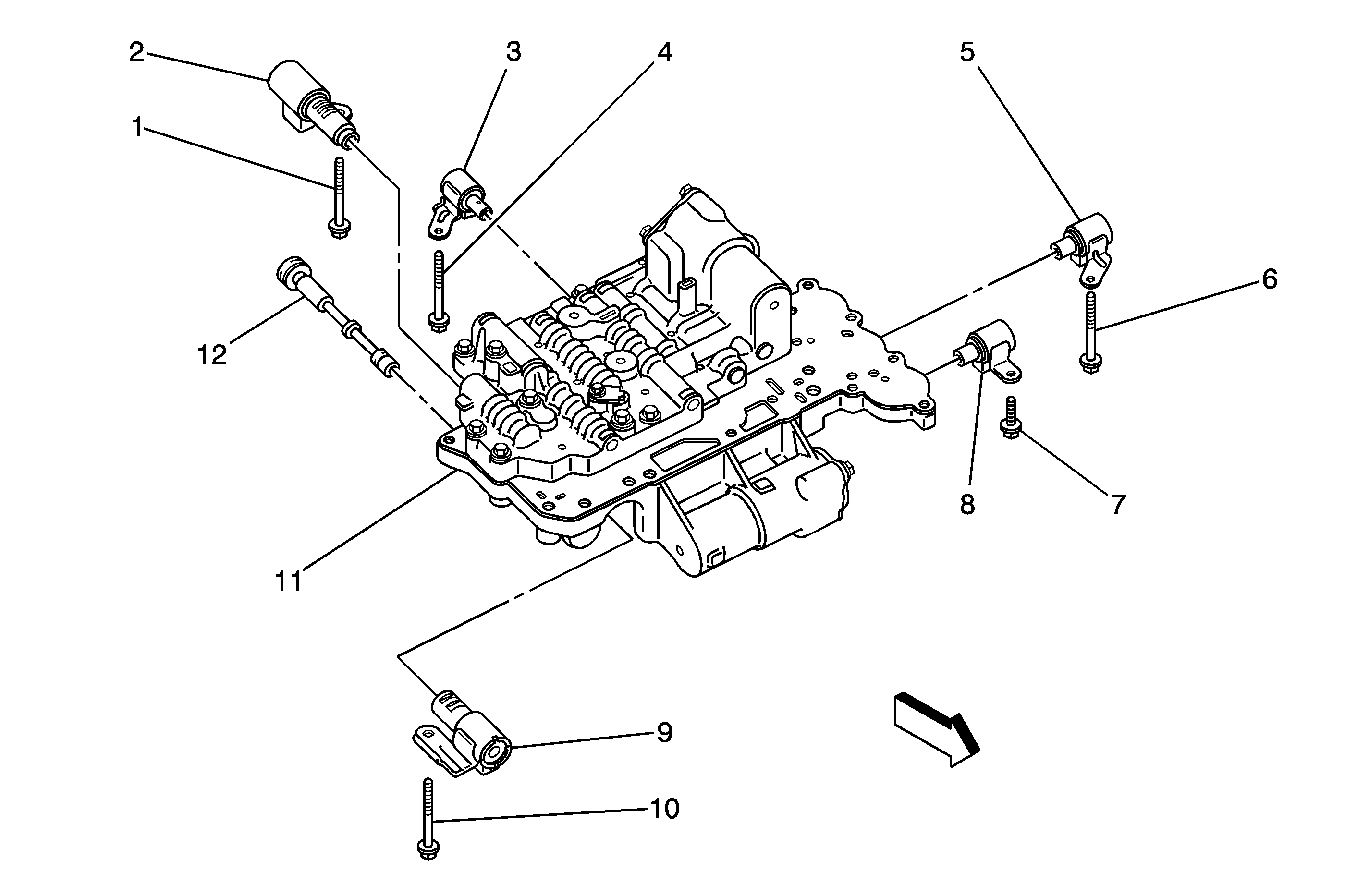

Figure 6:


(1)	Bolt
(2)	Line Pressure Control Solenoid Assembly
(3)	2nd Brake Control Solenoid Assembly
(4)	Bolt
(5)	Shift Solenoid No.1
(6)	Bolt
(7)	Bolt
(8)	Shift Solenoid No.2
(9)	Torque Converter Clutch Solenoid Assembly
(10)	Bolt
(11)	Valve Body Assembly
(12)	Manual Valve

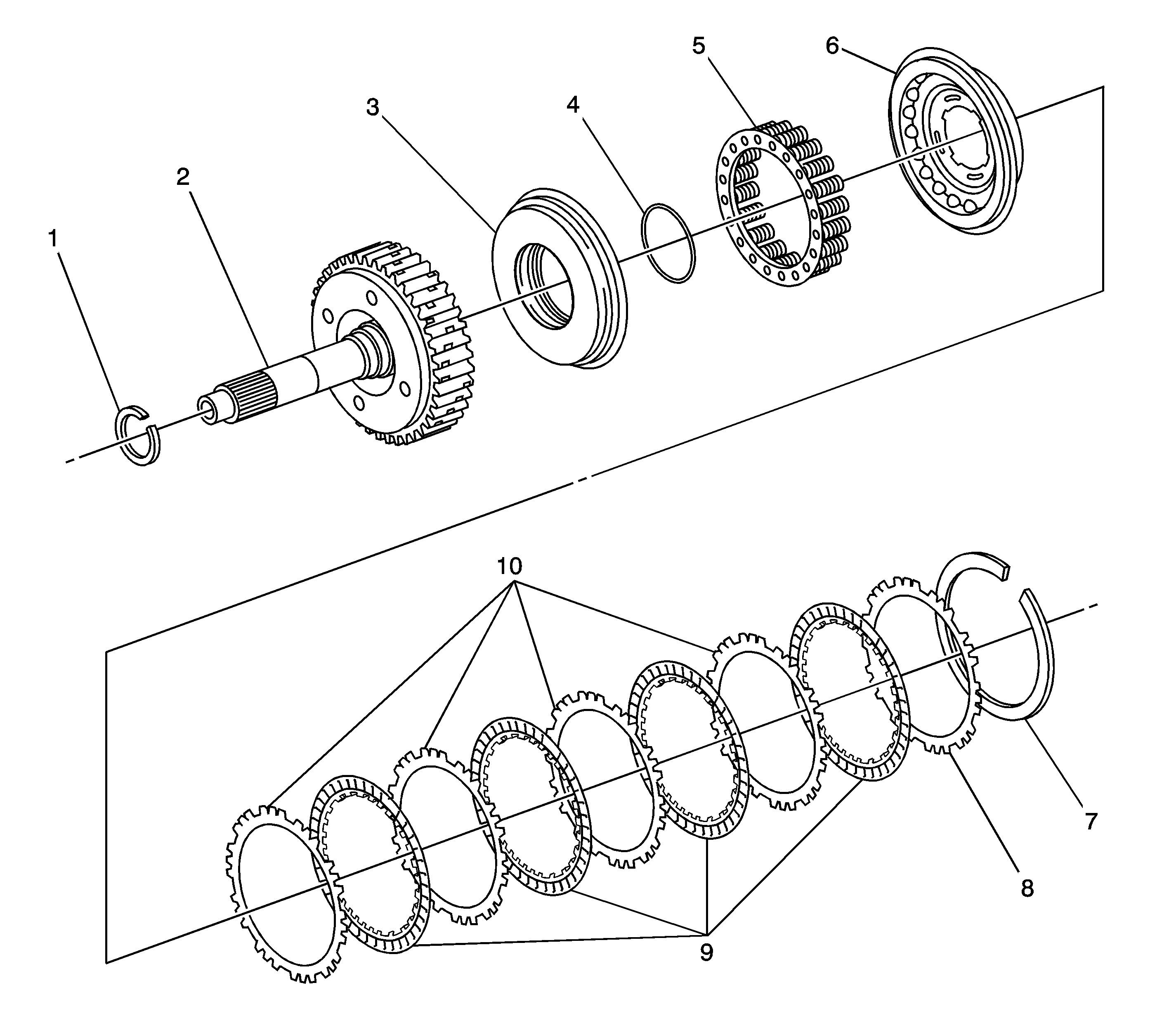

Figure 7:


(1)	Snap Ring
(2)	Input Shaft
(3)	Forward Clutch Piston
(4)	Forward Clutch Piston O - ring
(5)	Forward Clutch Piston Return Spring
(6)	Clutch Balancer
(7)	Snap Ring
(8)	Flange
(9)	Discs
(10)	Plates

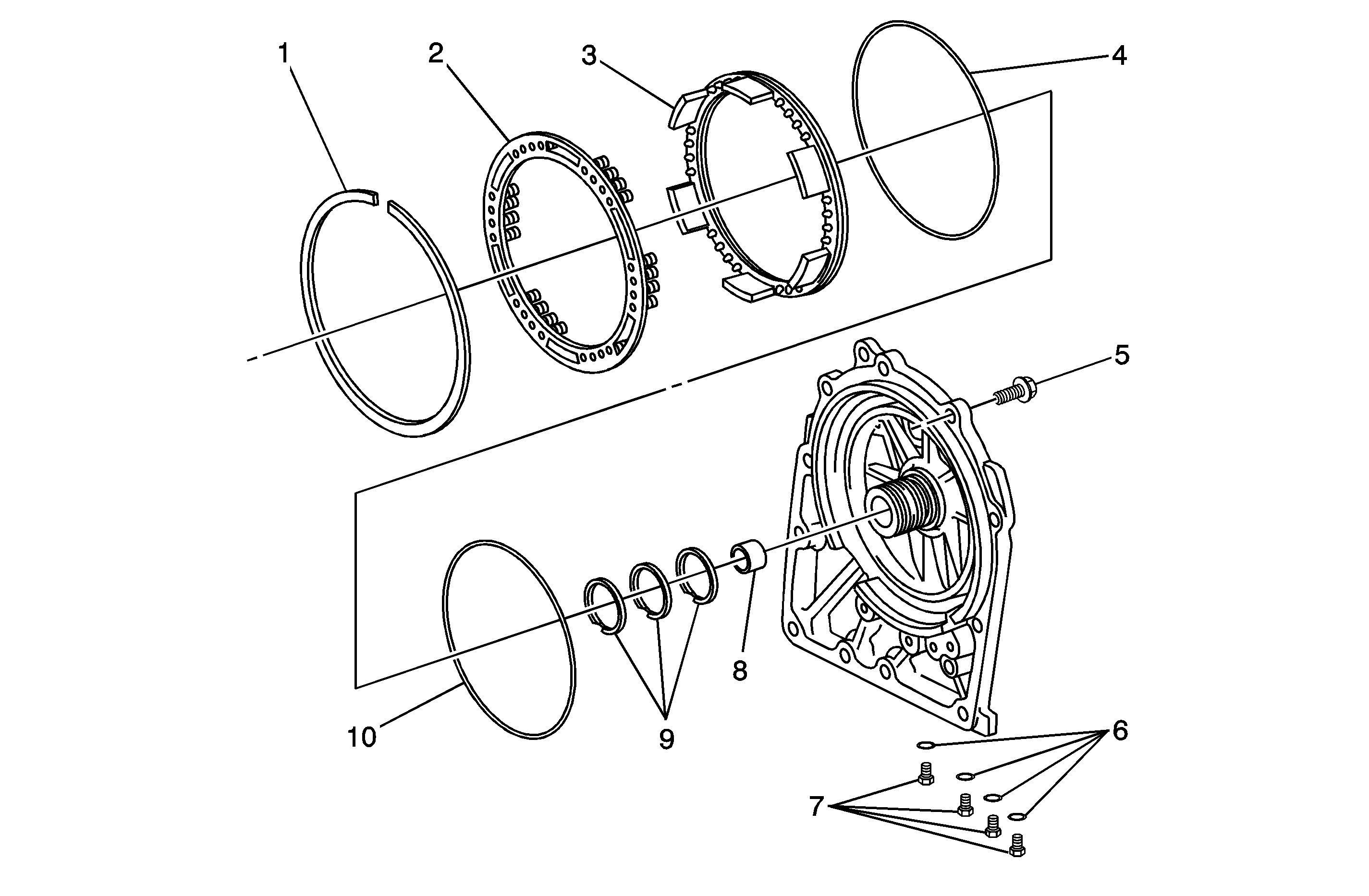

Figure 8:


(1)	Snap Ring
(2)	Overdrive Brake Return Spring
(3)	2nd Coast and O/D Brake Piston
(4)	O-ring
(5)	Bolt
(6)	O-ring
(7)	Transaxle Rear Cover Plug
(8)	Transaxle Rear Cover Roller Bearing
(9)	Clutch Drum Oil Seal Riing
(10)	O-ring

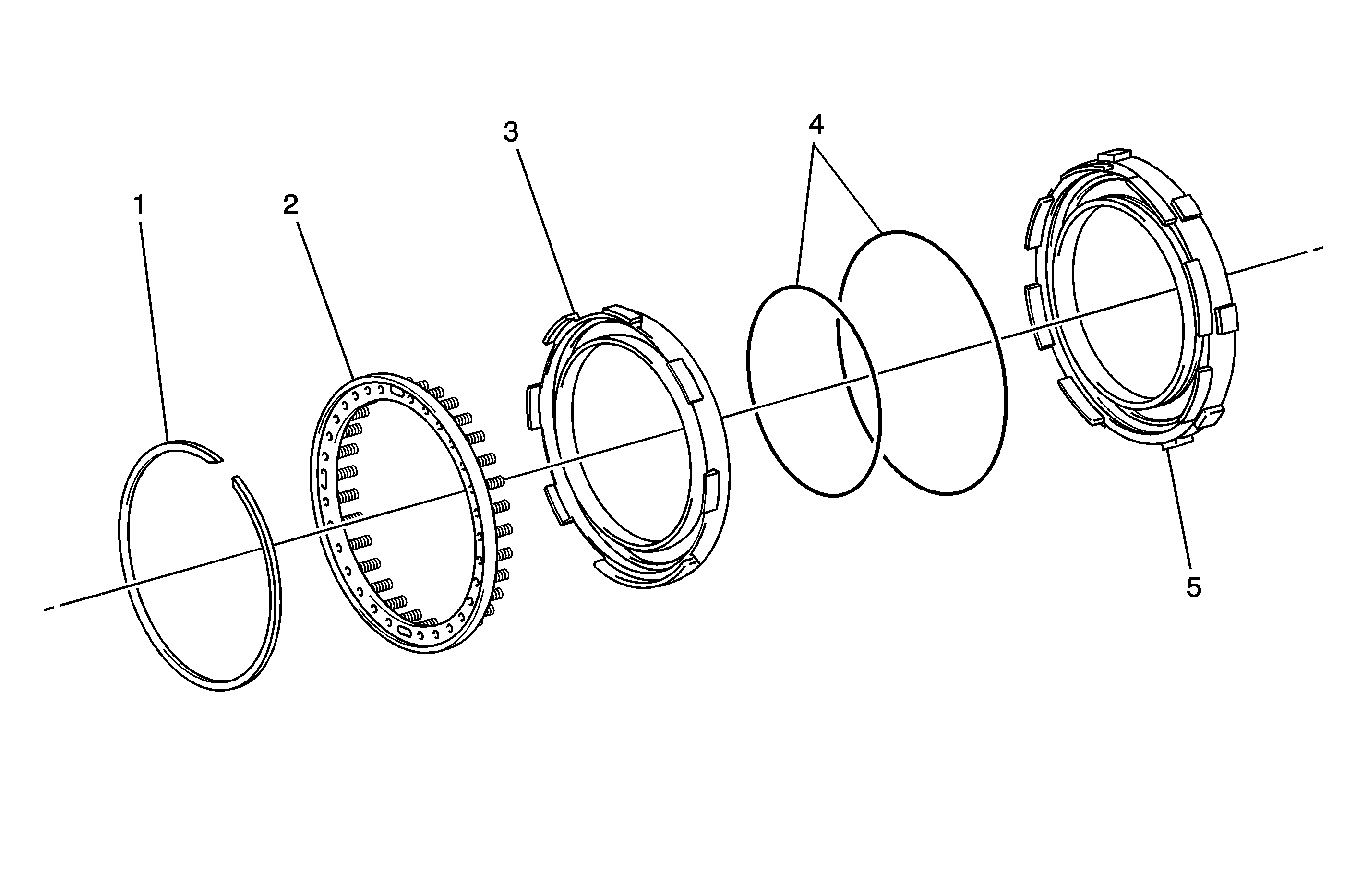

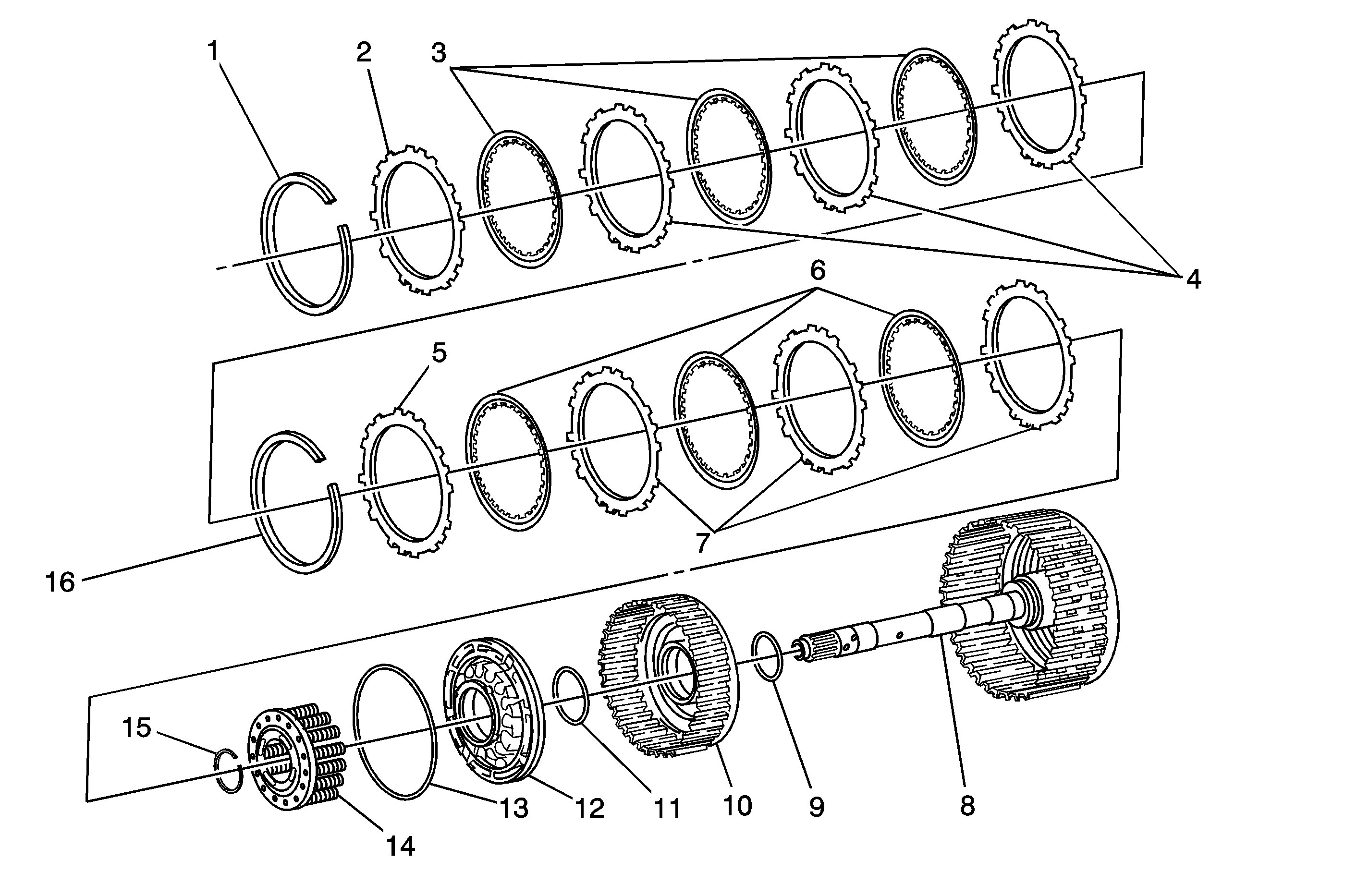

Figure 9:

Figure 10:


(1)	Snap Ring
(2)	2nd Brake Piston Return Spring
(3)	2nd Brake Piston
(4)	O - rings
(5)	2nd Brake Cylinder

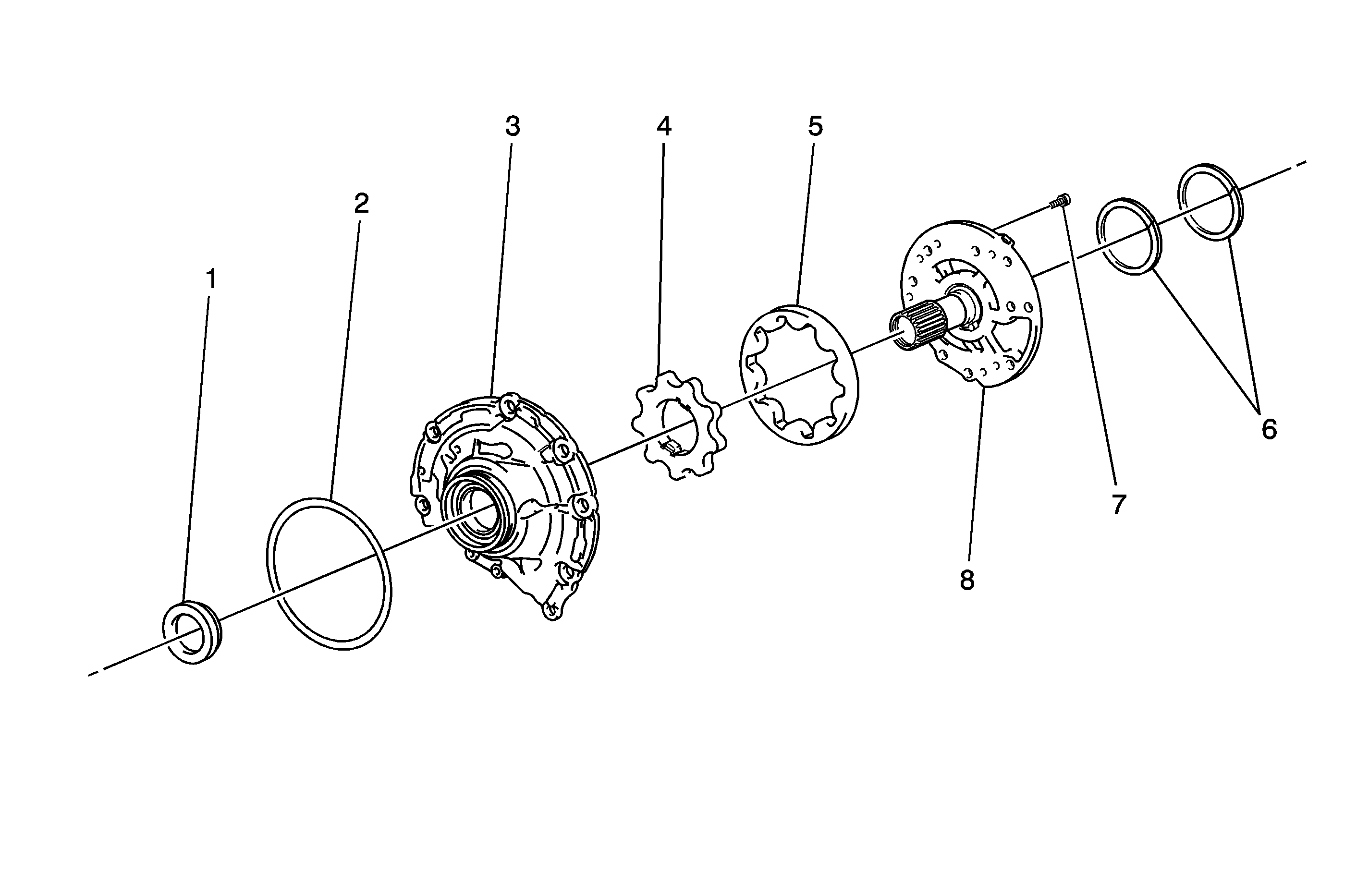

Figure 11:
