Special Tools
J-43178 Fuel Line Disconnect Tool

Removal Procedure
- Discharge the fuel system pressure. Refer to
Fuel Pressure Relief.

Warning: Refer to Battery Disconnect Warning in the Preface section.
- Disconnect the cable from the negative battery terminal. Refer to
Battery Negative Cable Disconnection and Connection

- Remove the engine cover. Refer to
Engine Cover Replacement.

- Remove the air cleaner assembly. Refer to
Air Cleaner Element Replacement.

- Remove the fuel tube from the fuel hose clamp.

- Remove the fuel pipe clamp.

- Wipe off any dirt on the fuel tube connector.

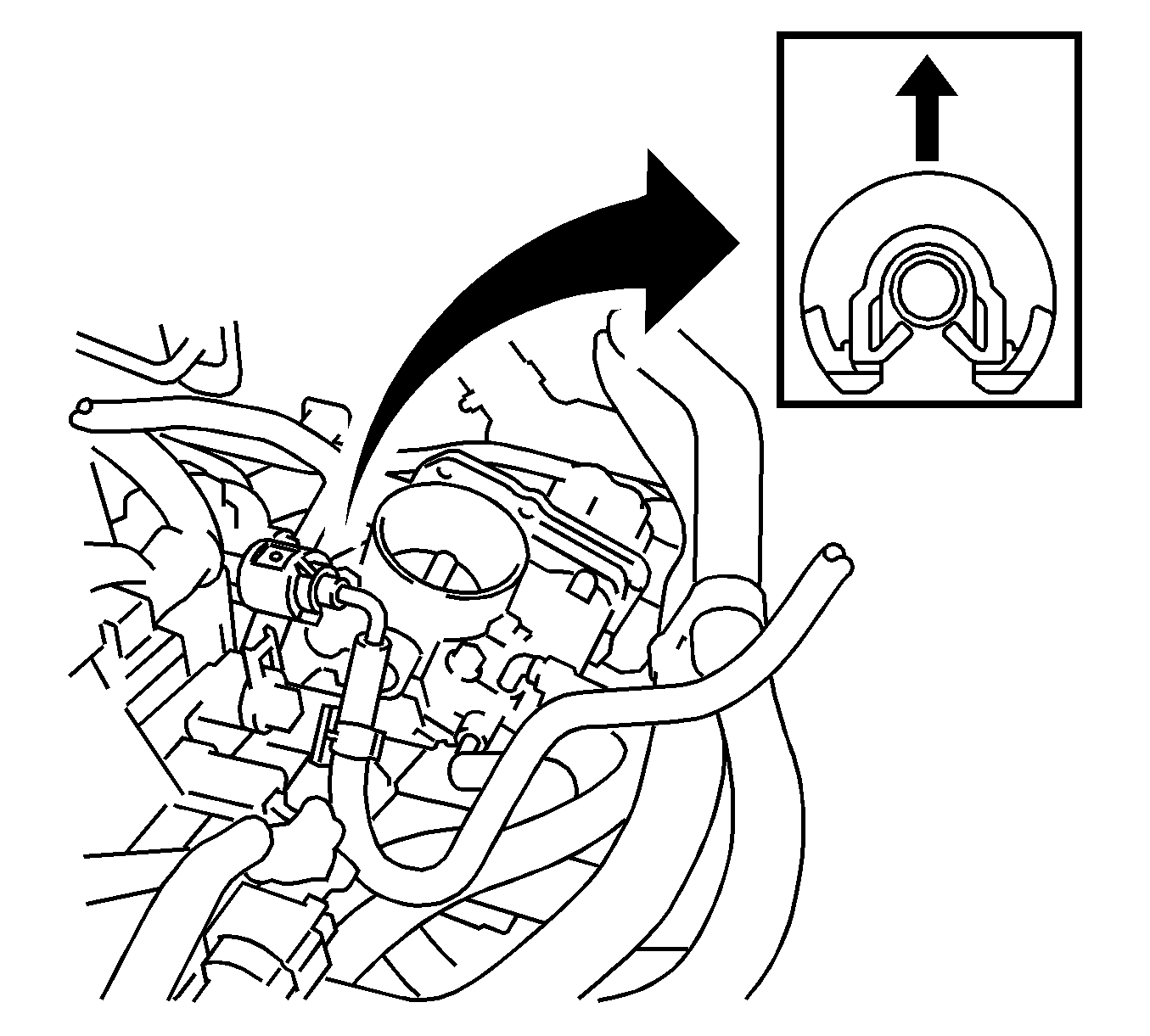

- Hold the fuel tube connector, and then install the
J-43178 disconnect tool
.

- Turn the
J-43178 disconnect tool
 to align the retainer inside the fuel tube connector with the chamfered part of the
J-43178 disconnect
tool
.

- Insert the
J-43178 disconnect tool
 into the fuel tube and hold it. Then push the fuel tube connector toward the
J-43178 disconnect tool
.

- Mount the retainer of the fuel tube connector onto the chamfered part of the
J-43178 disconnect tool
.

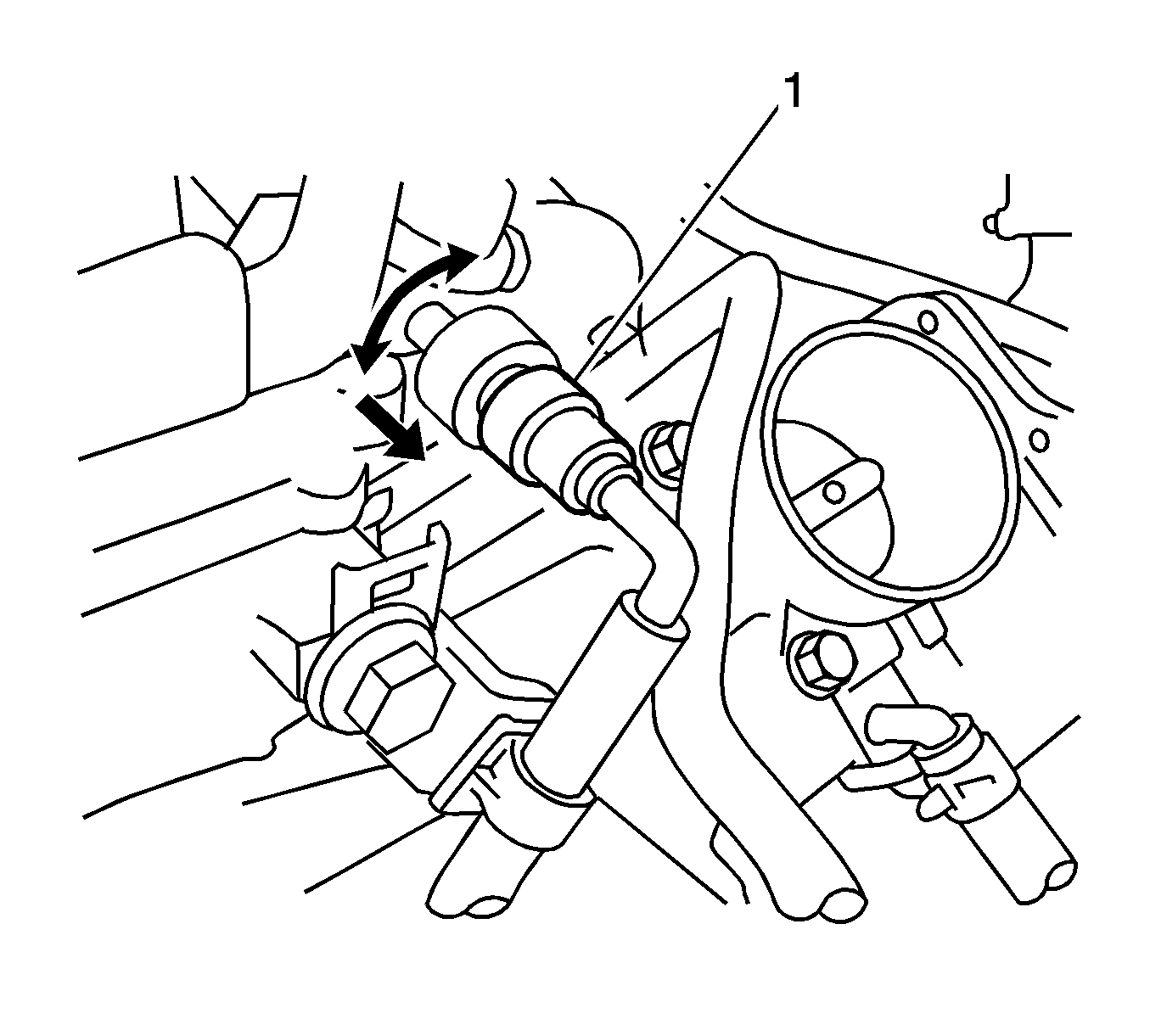

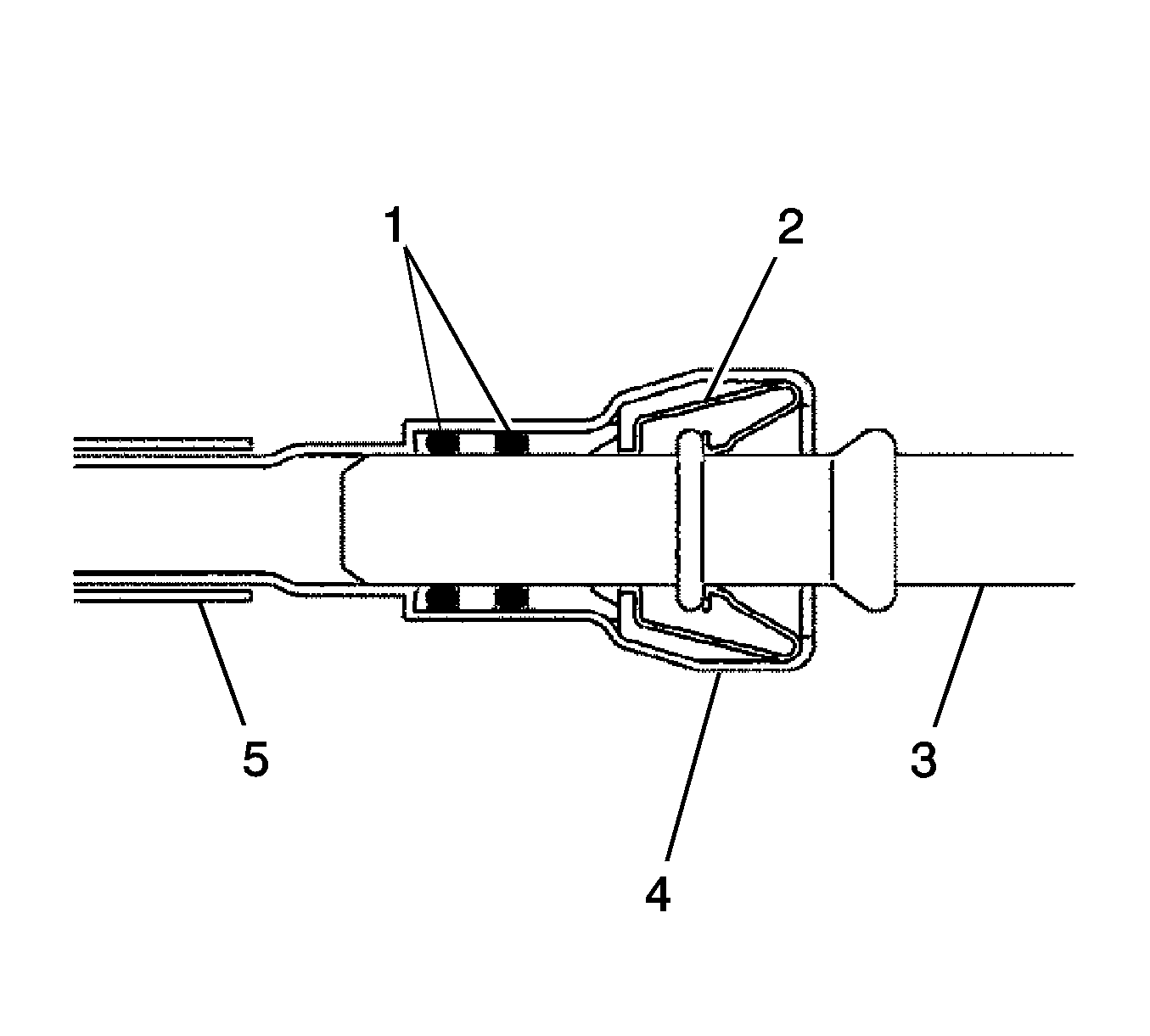

- Slide the
J-43178 disconnect tool
 and fuel tube connector (2)
together towards the fuel tube (3) until they make a "click" sound, and then disconnect the fuel tube.

- Drain the fuel remaining inside the fuel tube.

- Cover the fuel tube and fuel pipe with a plastic bag to protect the disconnected part.

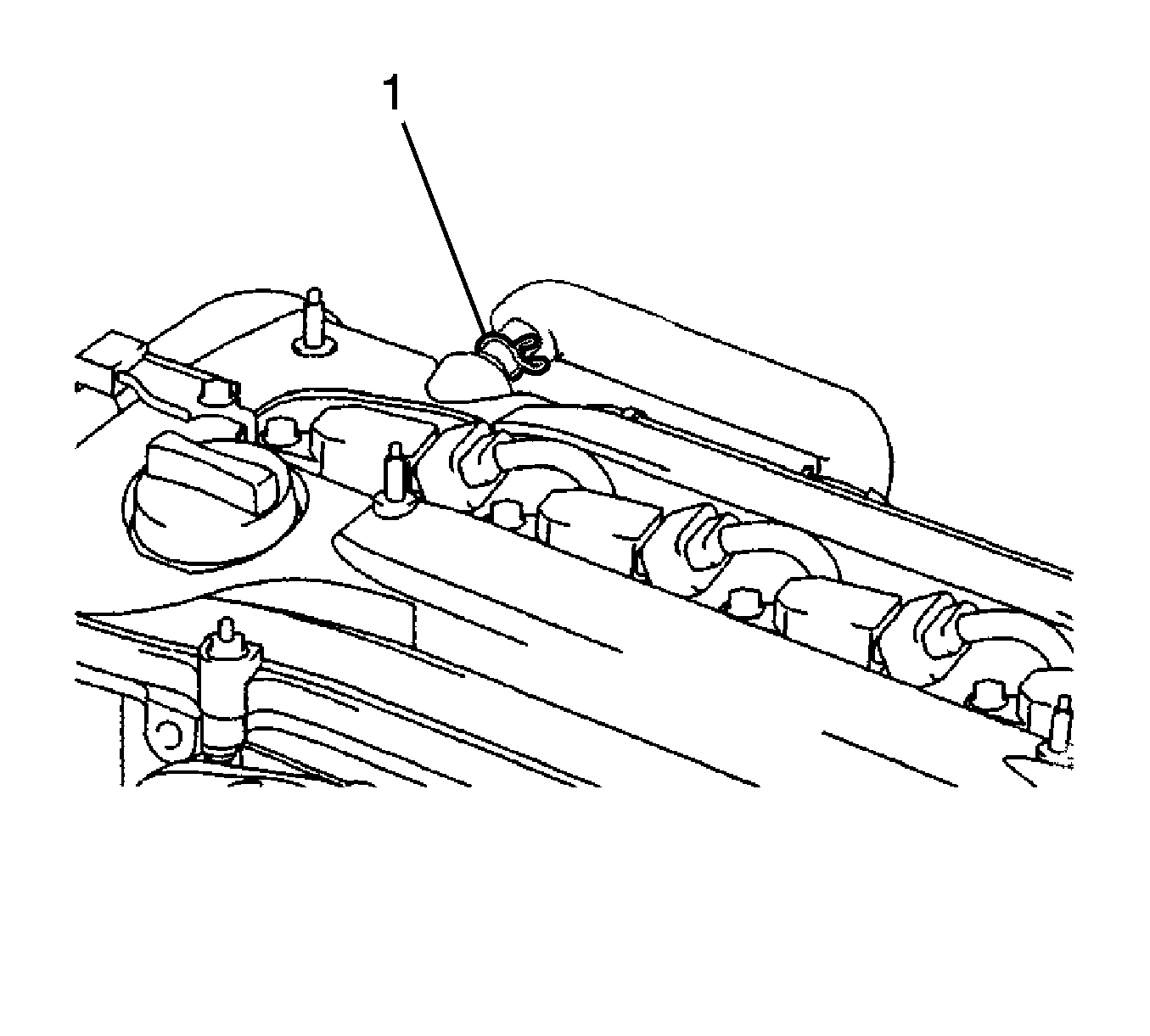

- Disconnect the ventilation hose (1) from the ventilation valve.

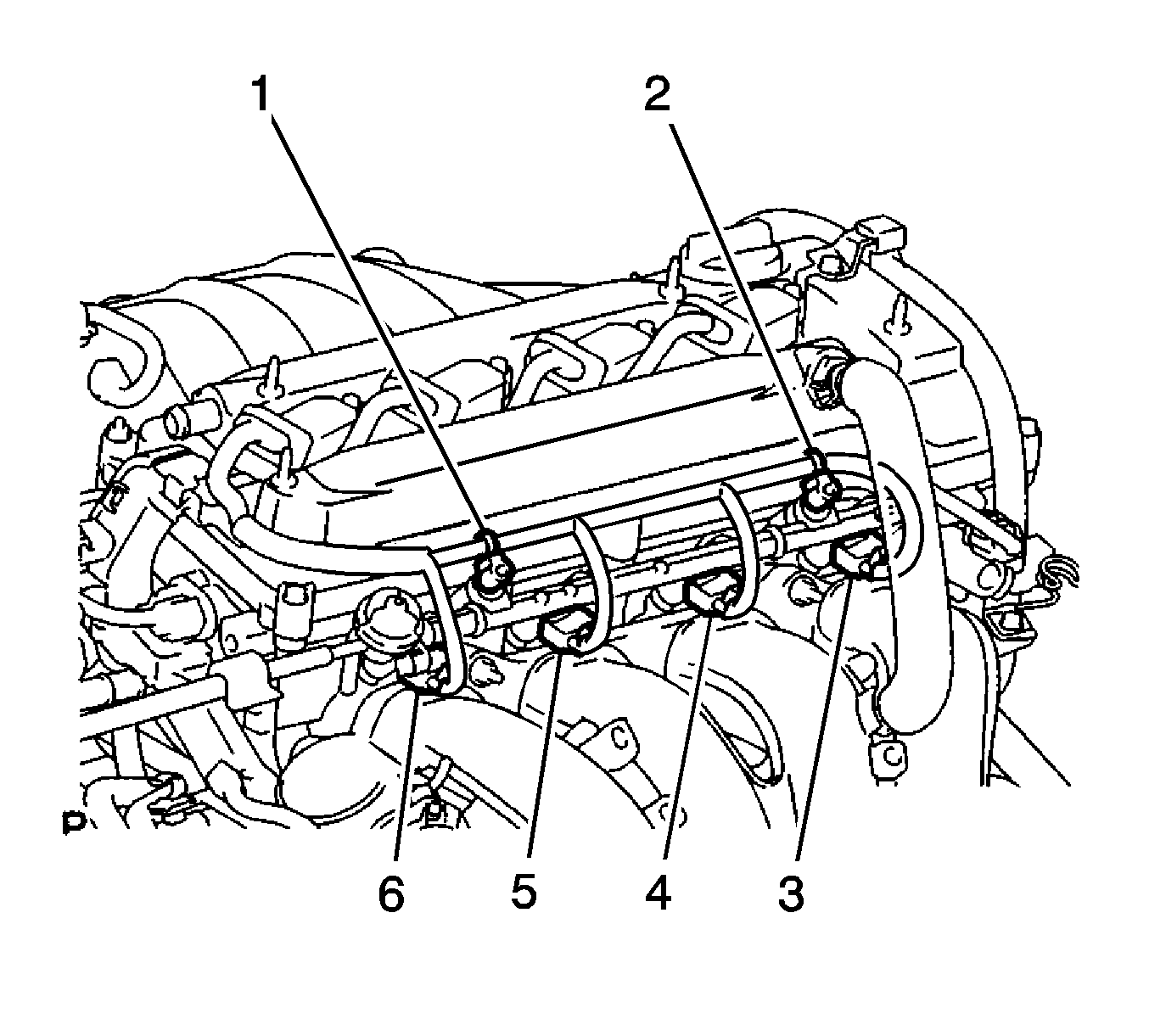

- Remove the 2 wire harness clamps (1, 2).

- Disconnect the 4 fuel injector connectors (3, 4, 5, 6).

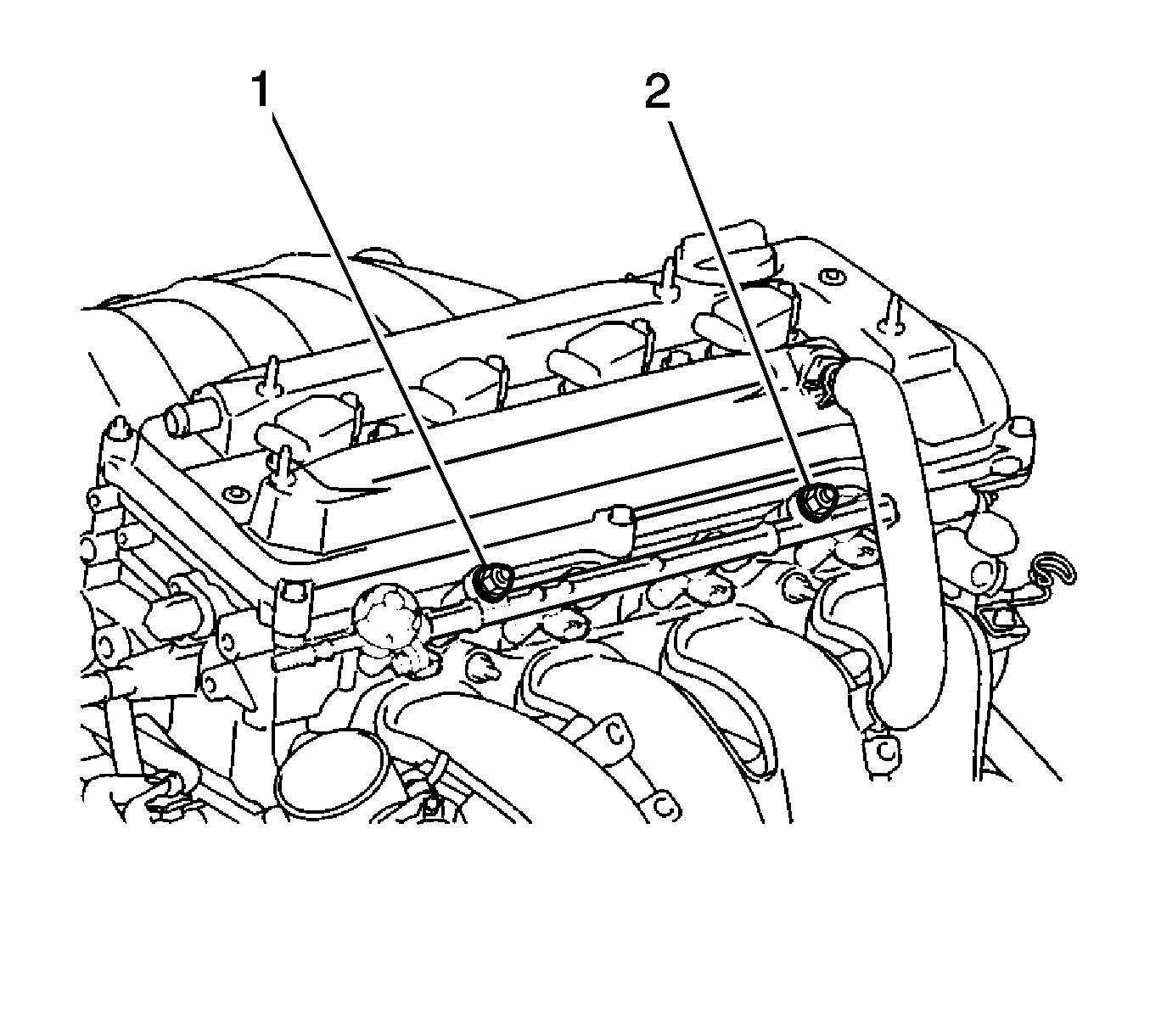

- Remove the 2 bolts (1, 2), then remove the fuel delivery pipe together with the 4 fuel injectors.

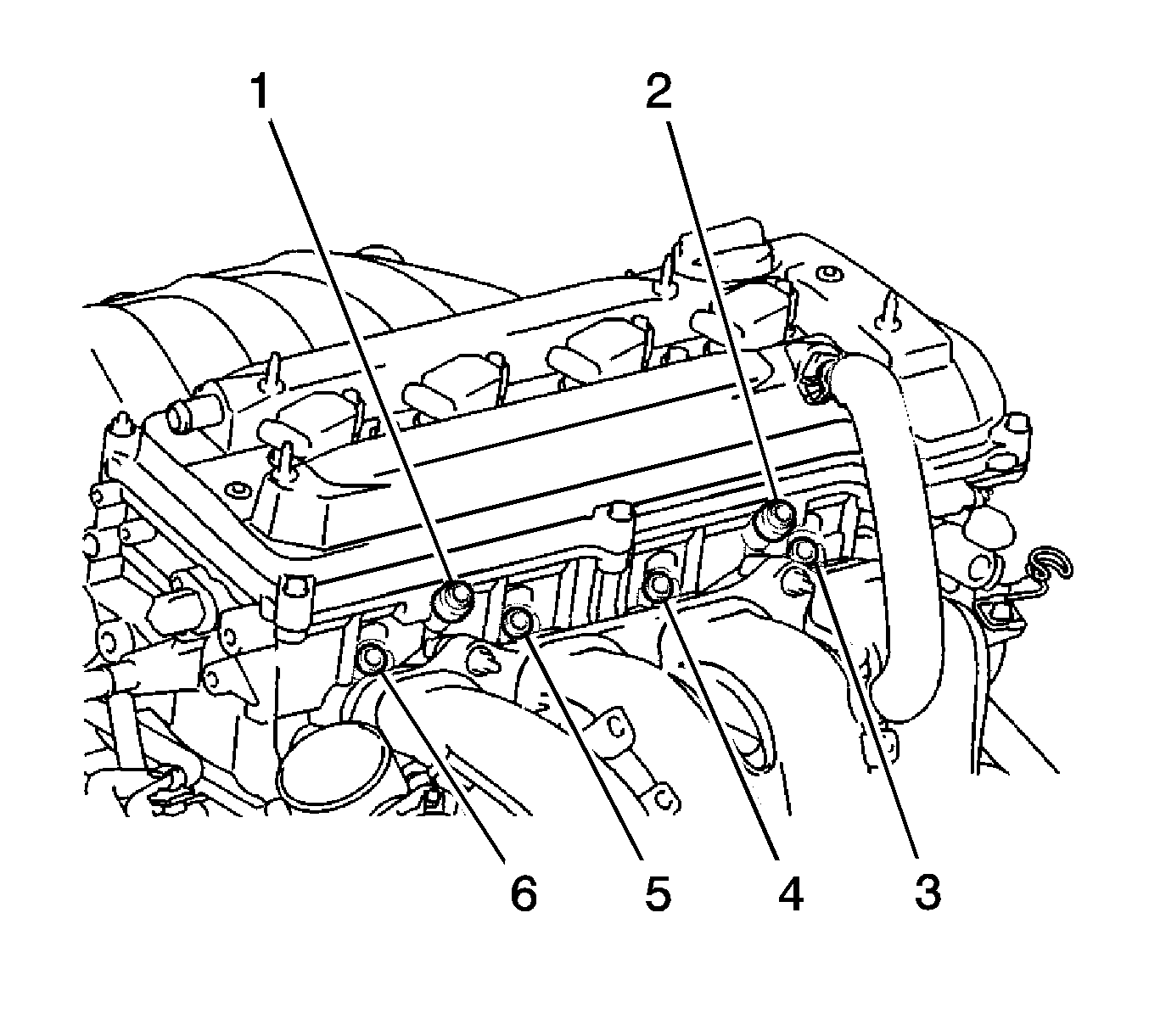

- Remove the 2 delivery pipe spacers (1, 2) from the cylinder head.

- Remove the 4 insulators (3, 4, 5, 6) from the cylinder head.

- Remove fuel injector assembly.

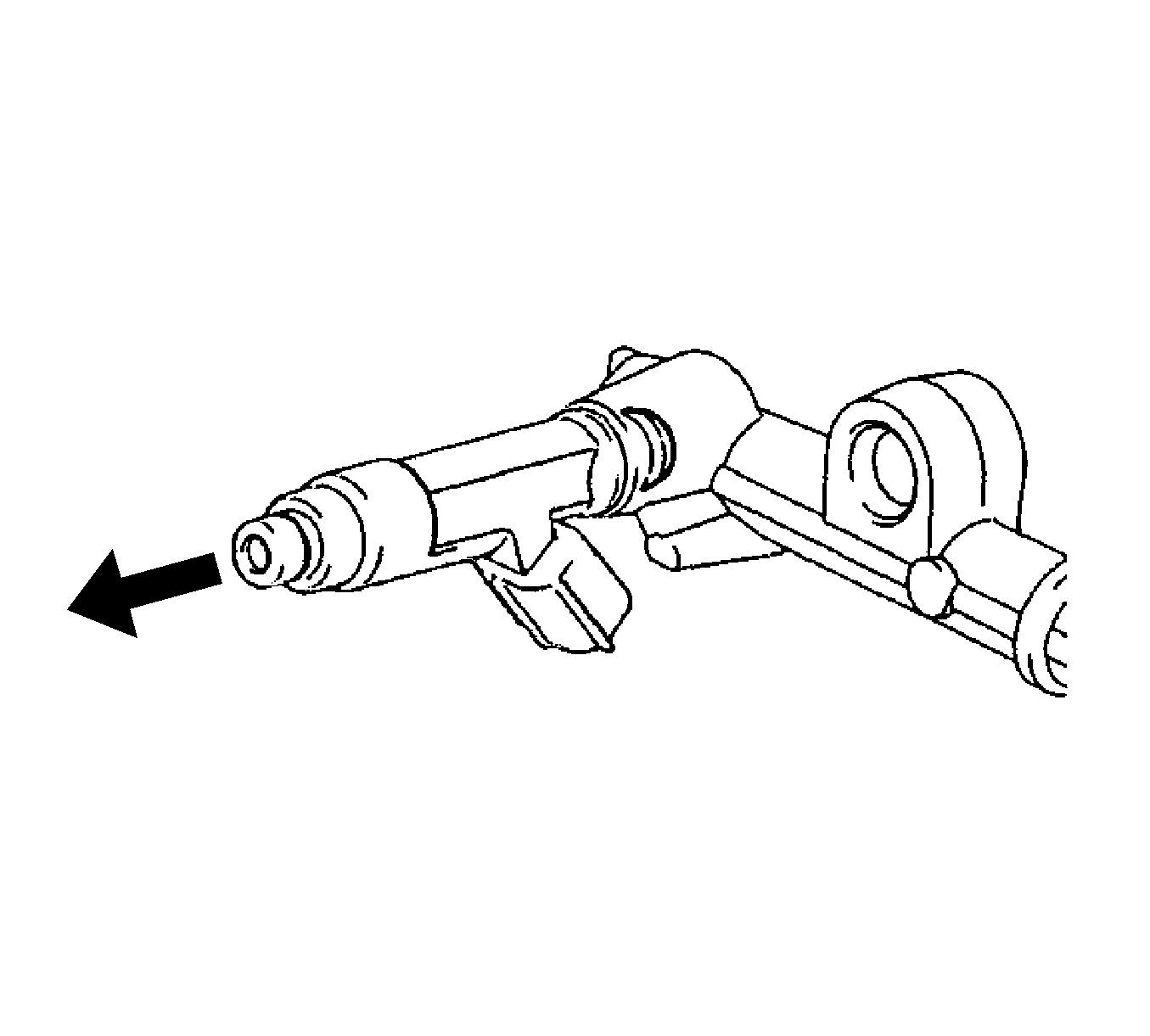

- Pull the 4 fuel injectors out of the fuel delivery pipe.

Installation Procedure

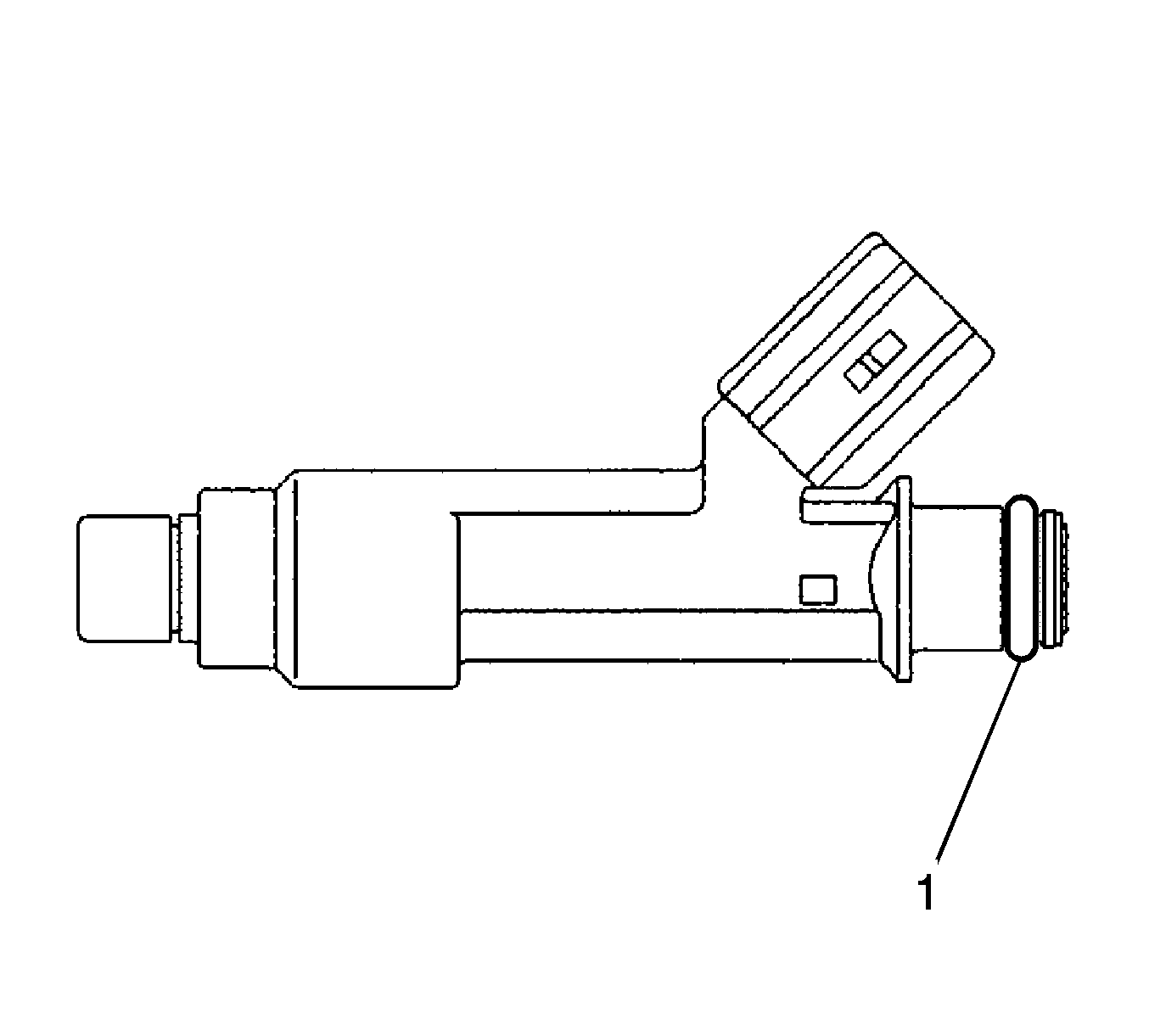

- Apply a light coat of oil to new O-rings (1), then install one onto each fuel injector.

- Apply a light coat of oil to the part of the fuel delivery pipe which comes into contact with the O-ring of the fuel injector.

- Apply a light coat of oil to the O-ring again, then install the right and left fuel injectors onto the fuel delivery pipe.

- Check that the fuel injector rotates smoothly. If the fuel injector does not rotate, replace the O-ring.

- Install 4 new insulators (3, 4, 5, 6) to the cylinder head.

- Install the 2 delivery pipe spacers (1, 2) onto the cylinder head.

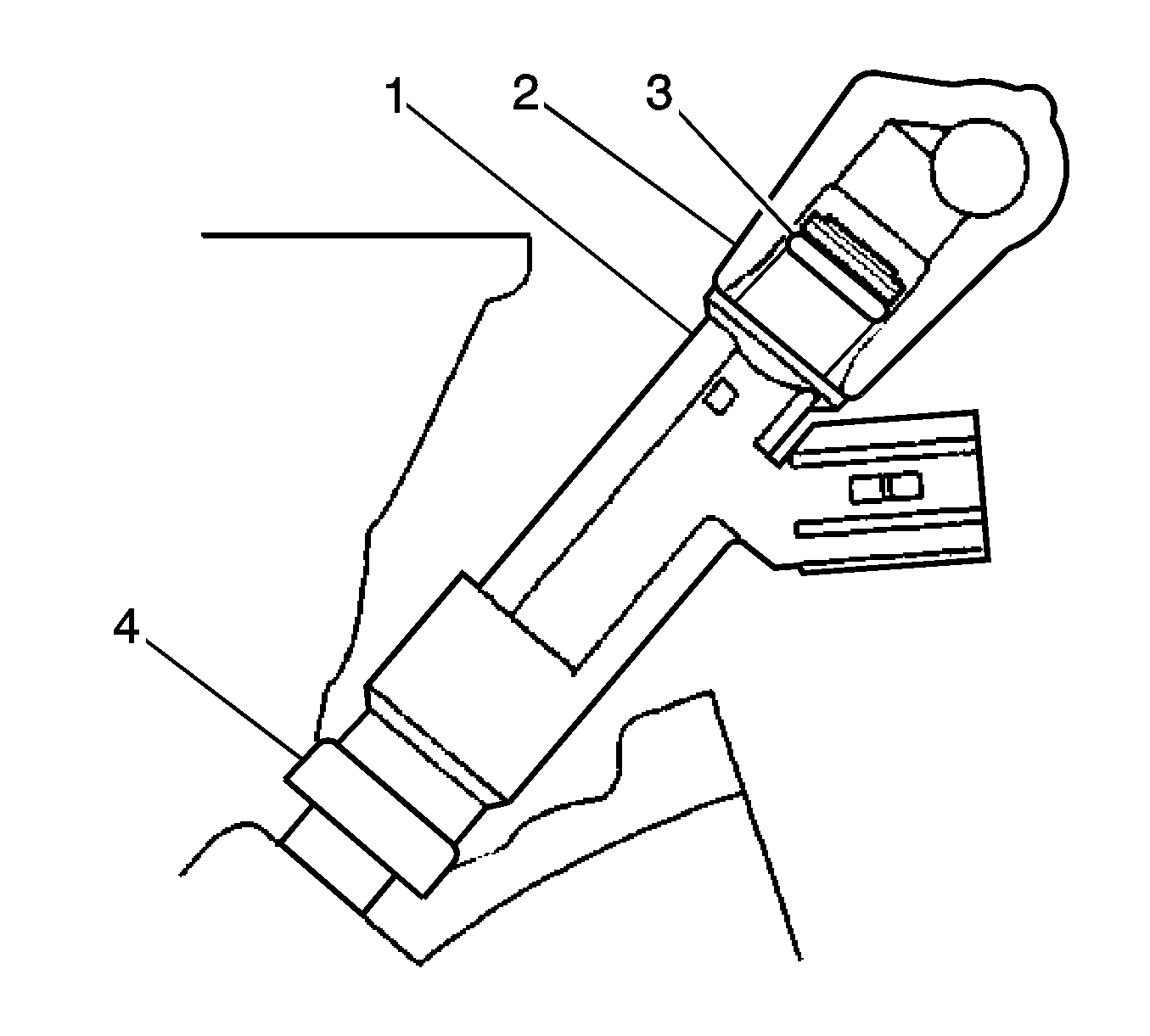

- Install the fuel delivery pipe (2) together with the 4 fuel injectors (1), then hand tighten the 2 bolts.

- Check that the fuel injector rotates smoothly. If the fuel injector does not rotate, replace the O-ring (3).

Caution: Refer to Fastener Caution in the Preface section.
- Install the 2 bolts (1, 2) and tighten to
20 N·m (15 lb ft).

- Connect the 4 fuel injector connectors (3, 4, 5, 6).

- Install the 2 wire harness clamps (1, 2).

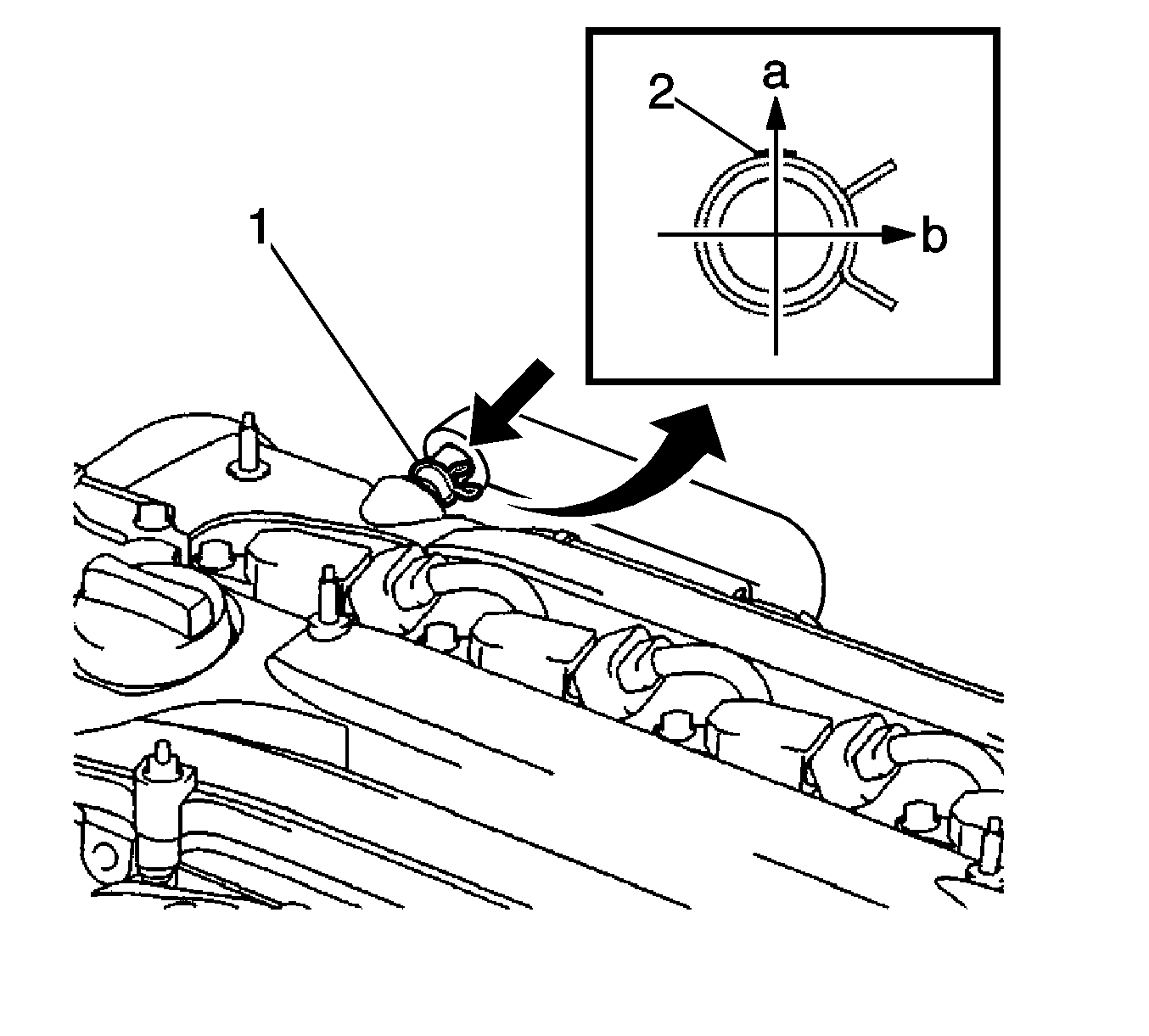

Note: Make sure that the paint mark and hose clamp are at the correct angle when installing the hose.
- Connect the ventilation hose (1) to the ventilation valve.

- Connect the fuel main tube.

- Push the fuel tube connector until it makes a "click" sound.

- Install the fuel pipe clamp.

- Install the fuel tube to the fuel hose clamp.

- Install the air cleaner assembly. Refer to
Air Cleaner Element Replacement.

- Install the engine cover sub-assembly. Refer to
Engine Cover Replacement.

Warning: Refer to Battery Disconnect Warning in the Preface section.
- Connect the cable to the negative battery terminal.

- Inspect for a fuel leak.
