Makes 🢒 Pontiac 🢒 2009 🢒 Vibe - AWD 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Engine Controls Schematics
Figure 1:

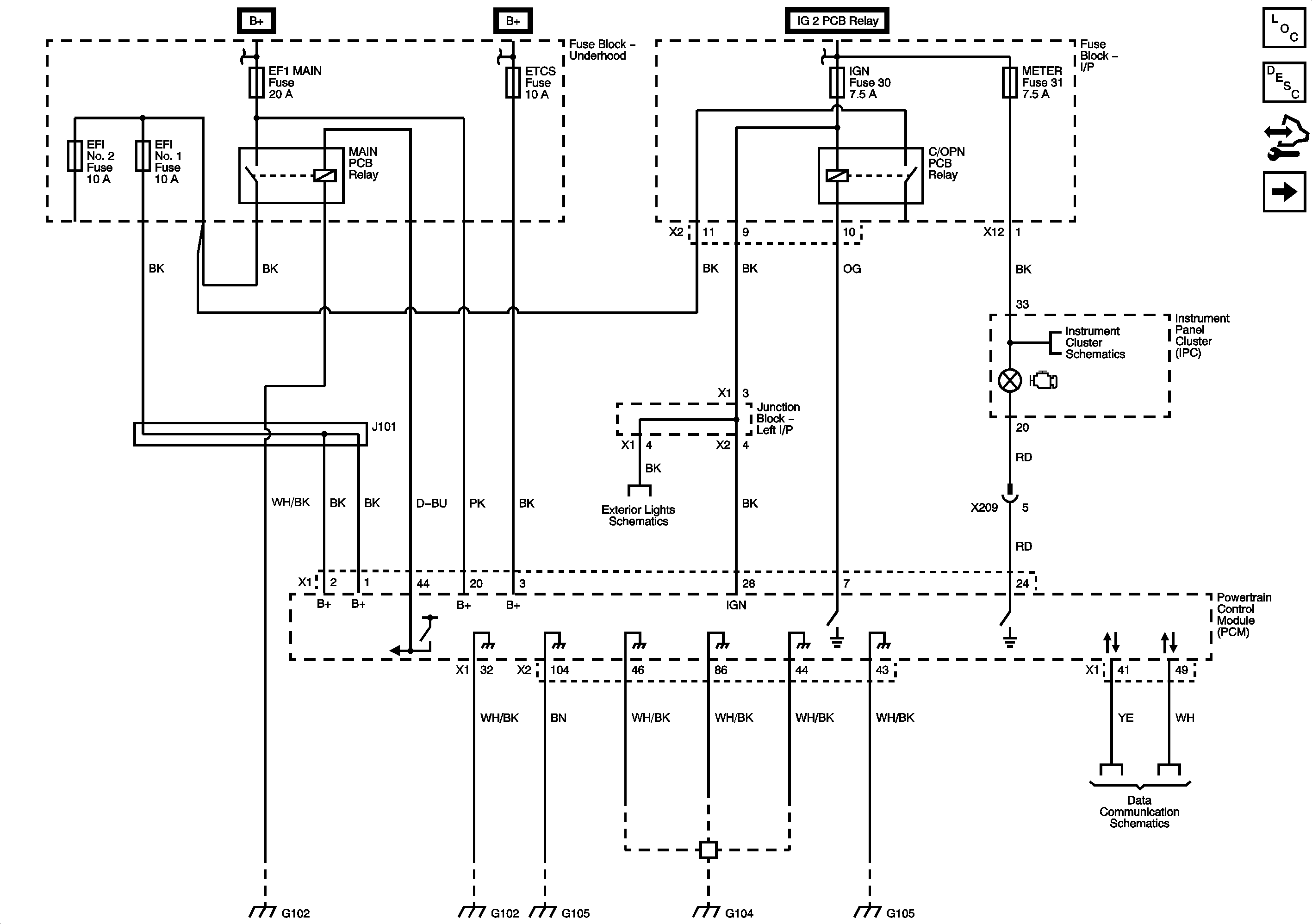

Power, Ground, Serial Data and MIL
Object Number: 2032782 Size: FS
Figure 2:

Engine Data Sensors - MAF and ECT
Object Number: 2032787 Size: FS
Figure 3:

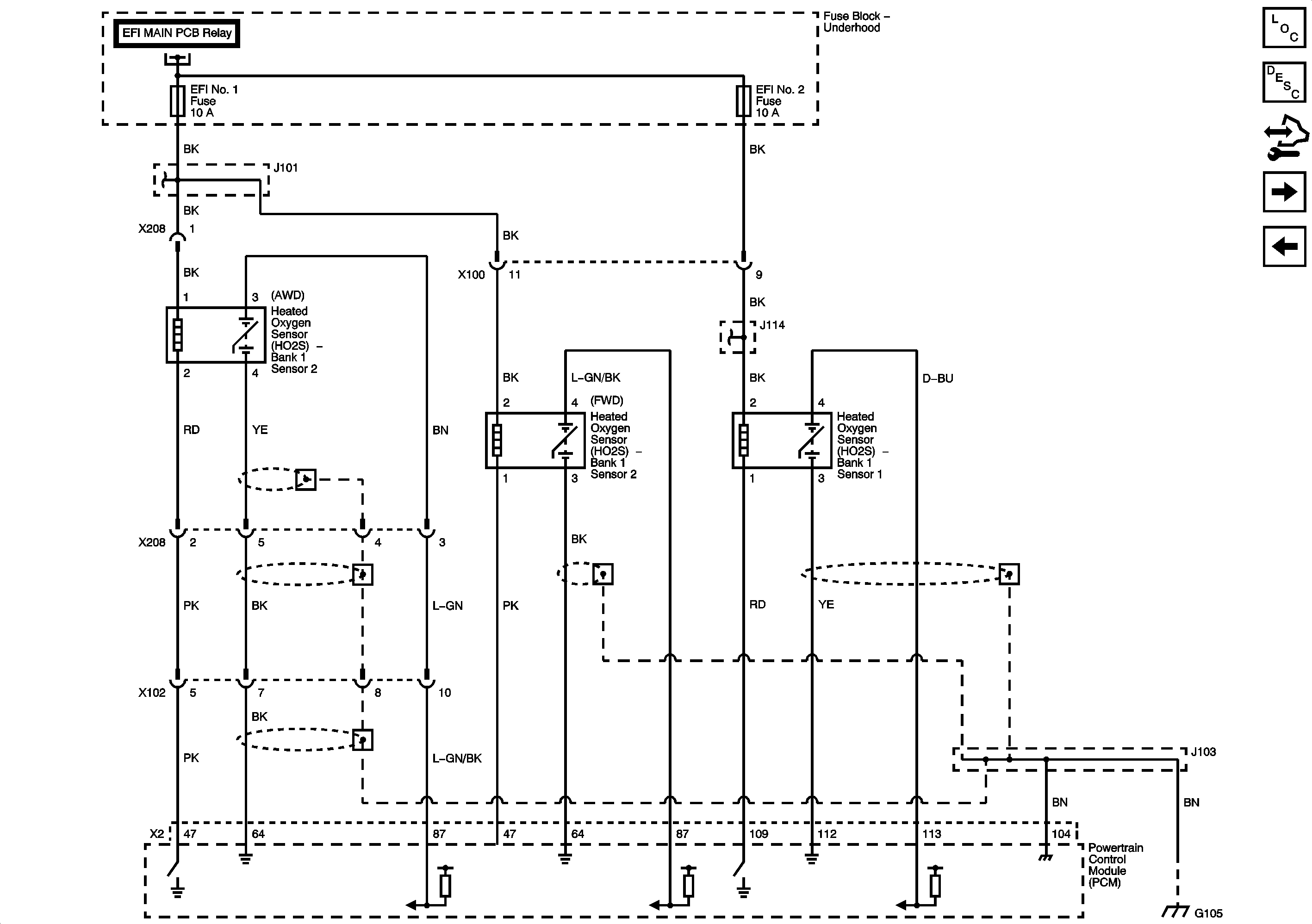

Engine Data Sensors - Oxygen Sensors
Object Number: 2032789 Size: FS
Figure 4:

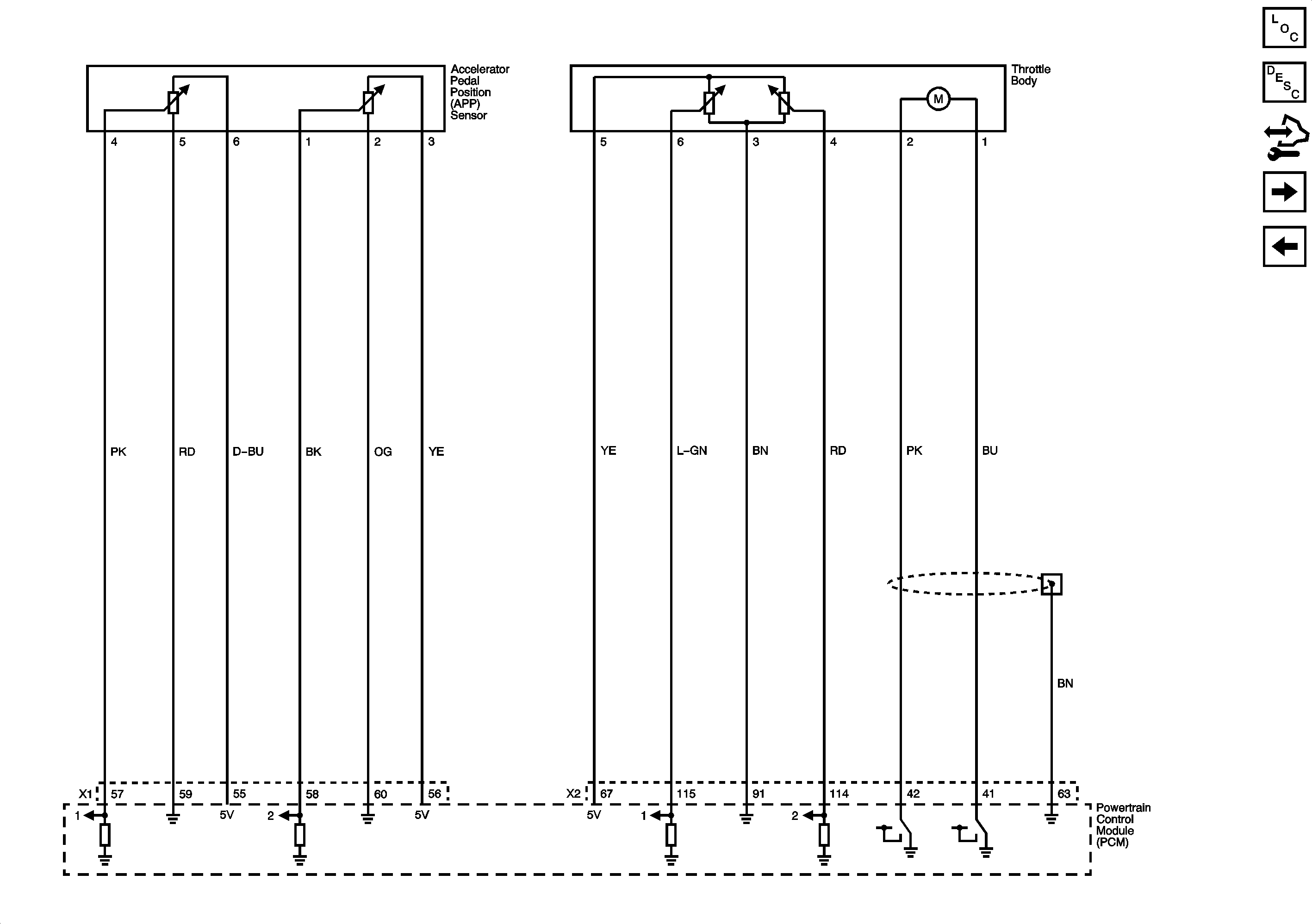

Electronic Throttle Controls
Object Number: 2032795 Size: FS
Figure 5:

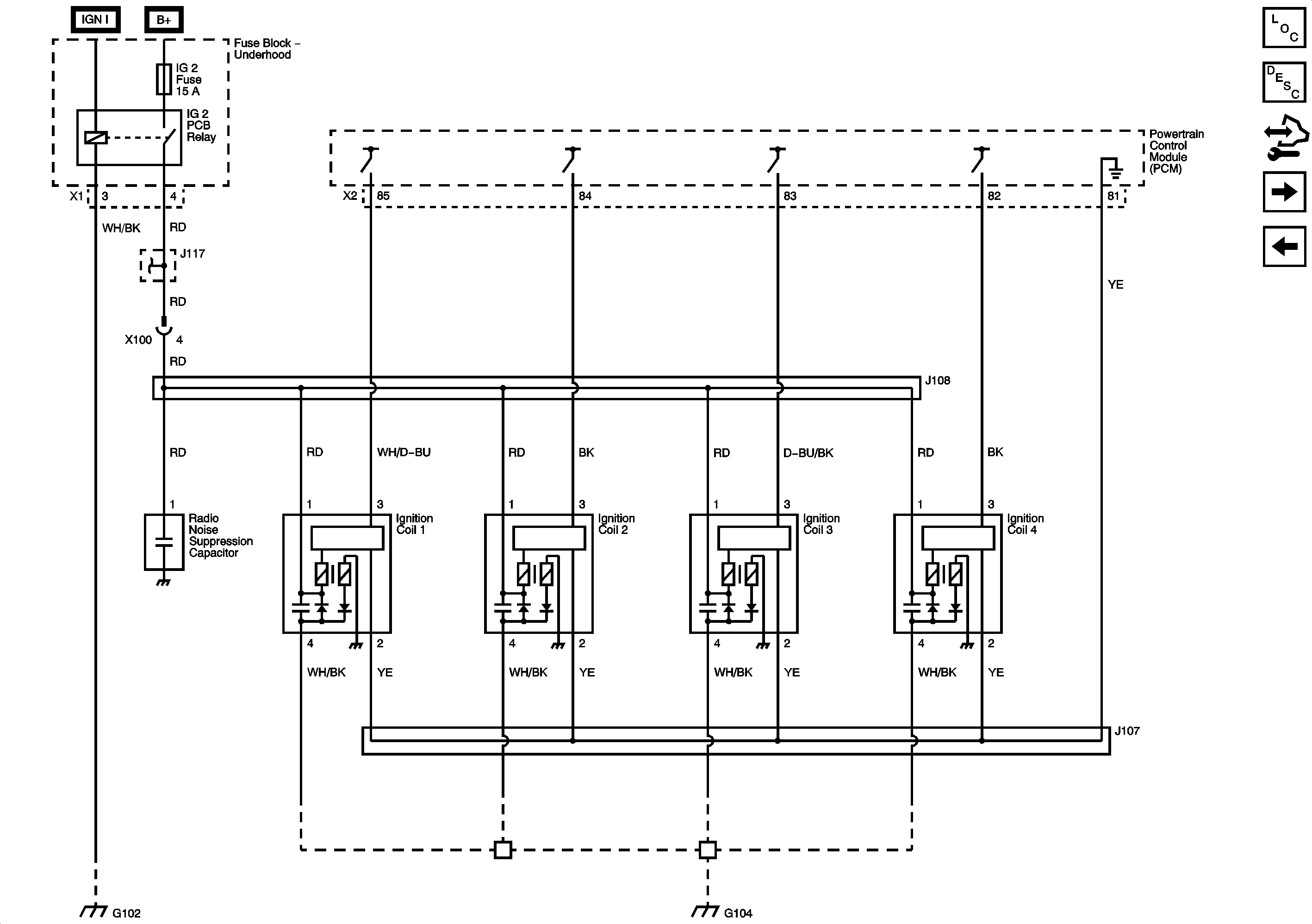

Ignition System
Object Number: 2032798 Size: FS
Figure 6:

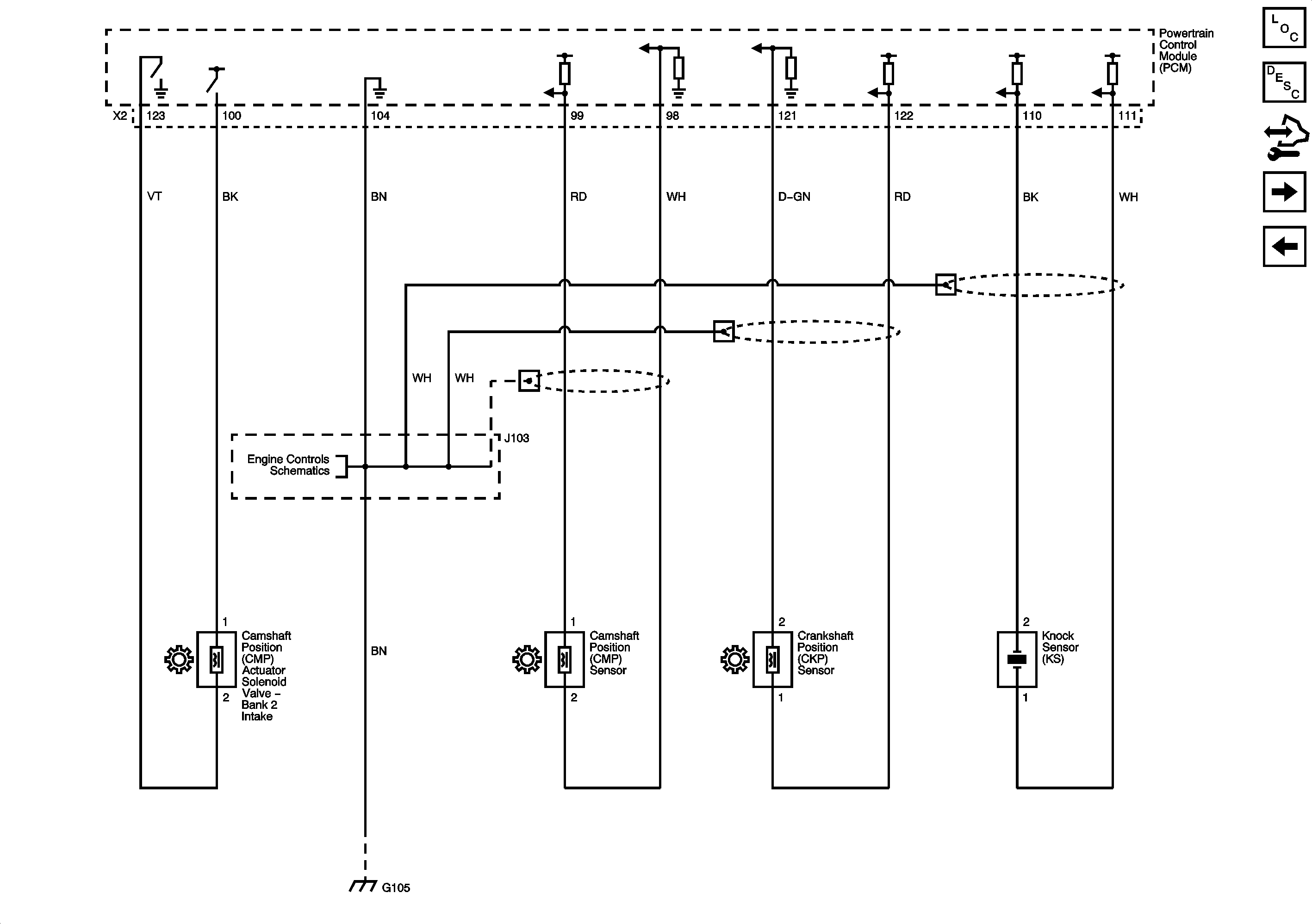

Ignition Controls - Sensors
Object Number: 2032800 Size: FS
Figure 7:

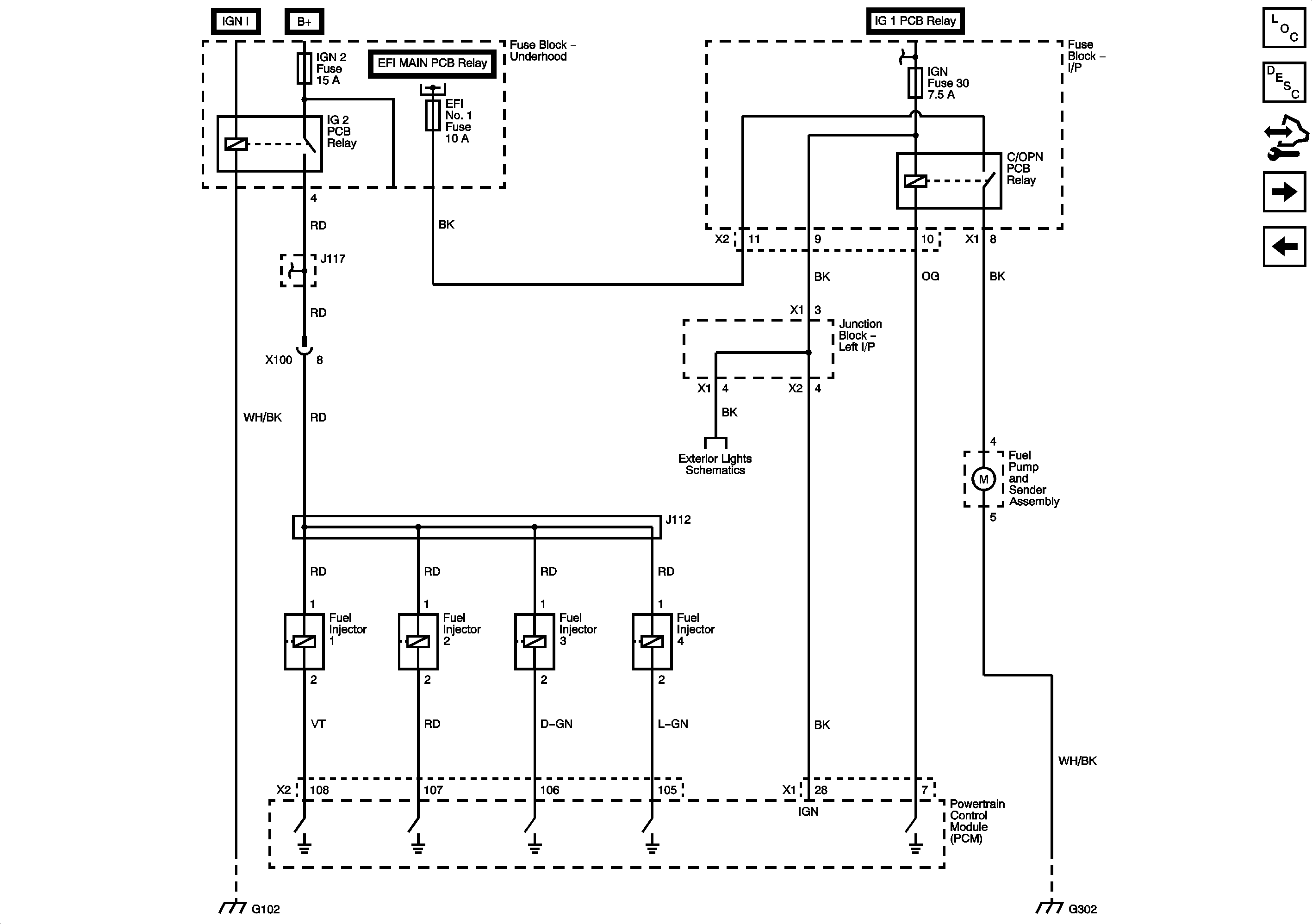

Fuel Injectors and Fuel Pump
Object Number: 2032803 Size: FS
Figure 8:

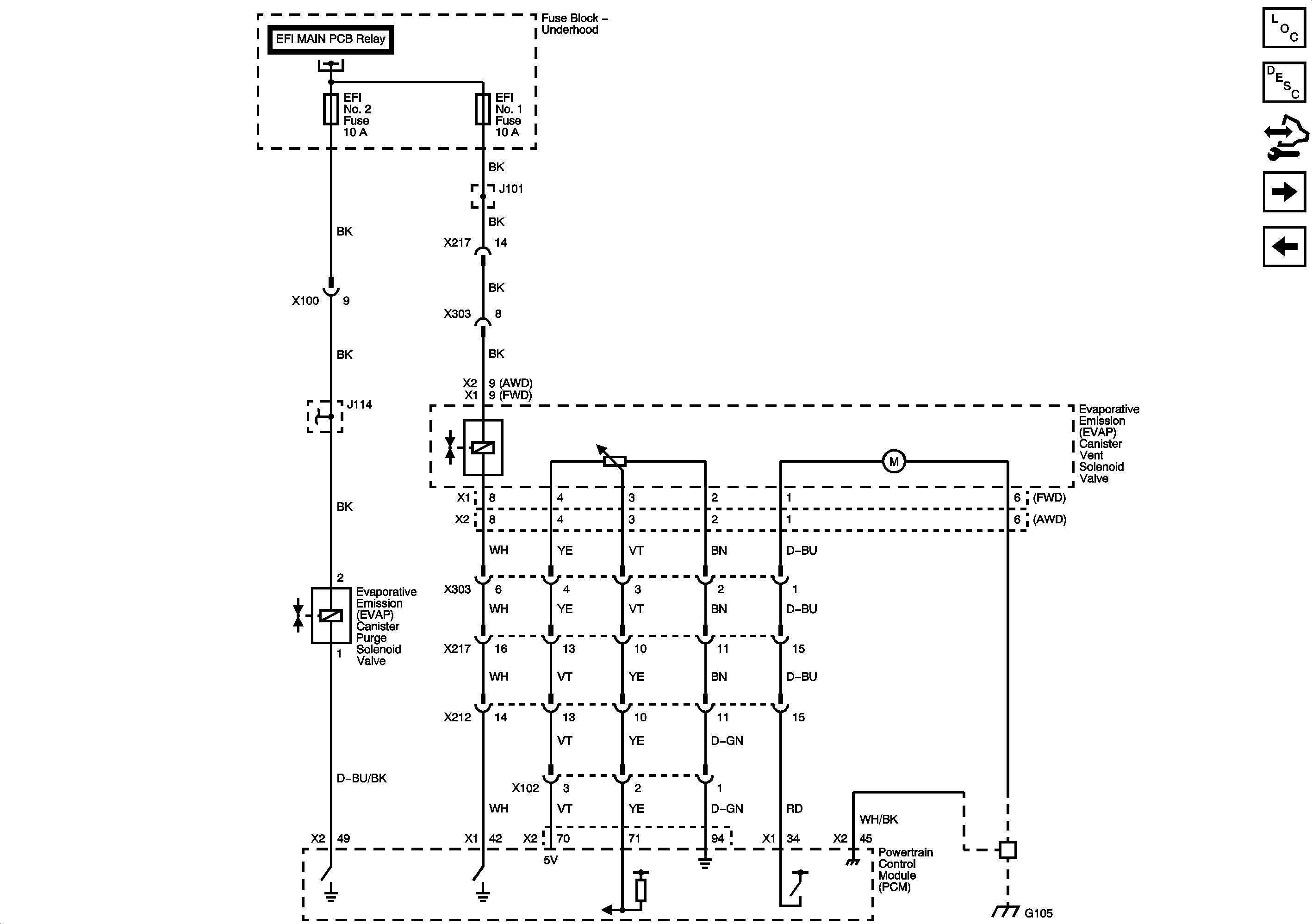

EVAP Controls
Object Number: 2032807 Size: FS
Figure 9:

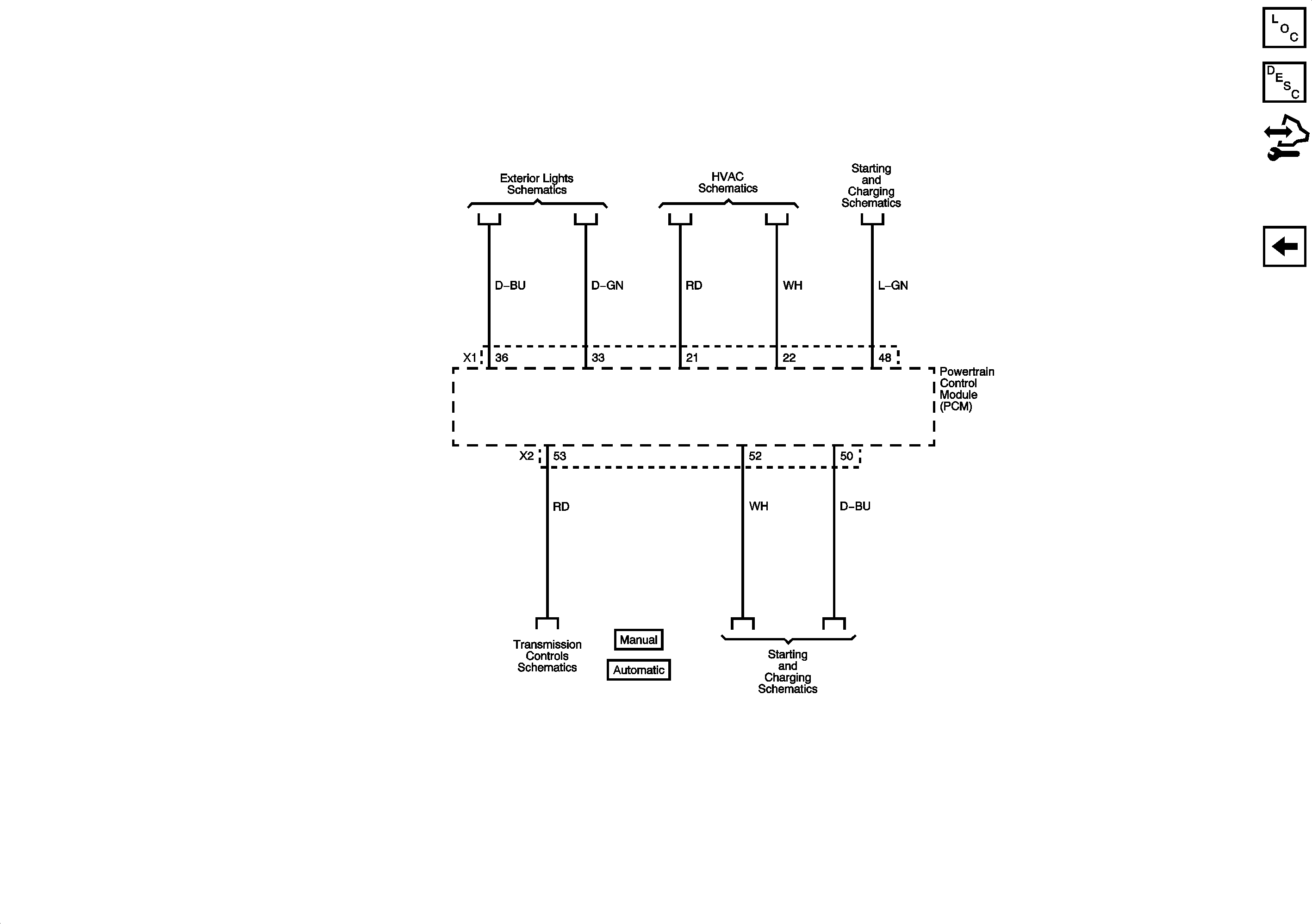

Controlled/Monitored Subsystems
Object Number: 2032835 Size: FS
