Makes 🢒 Pontiac 🢒 2009 🢒 Vibe - AWD 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Mass Airflow Sensor Replacement

Removal Procedure

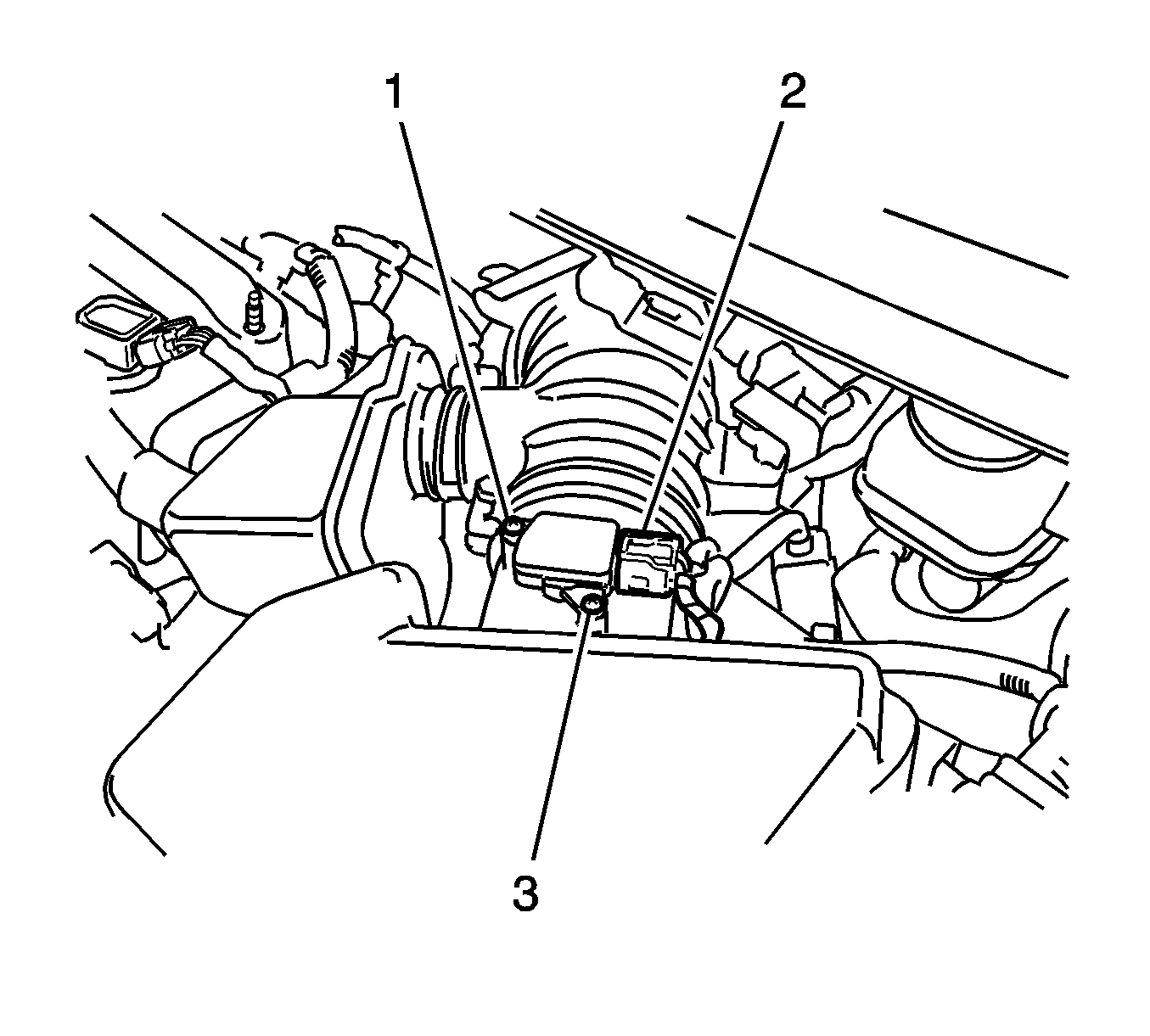

    Object Number: 2016533 Size: SH
  1. Disconnect the mass air flow meter connector (2).
  2. Remove the 2 screws (1, 3) and mass air flow meter.

Installation Procedure

    Caution: Refer to Fastener Caution in the Preface section.


    Object Number: 2016533 Size: SH
  1. Install the mass air flow meter with the 2 screws (1, 3) and tighten to 1.0 N·m (9 lb in).
  2. Connect the mass air flow meter connector (2).
