Removal Procedure
  1. Remove engine cover. Refer to Engine Cover Replacement

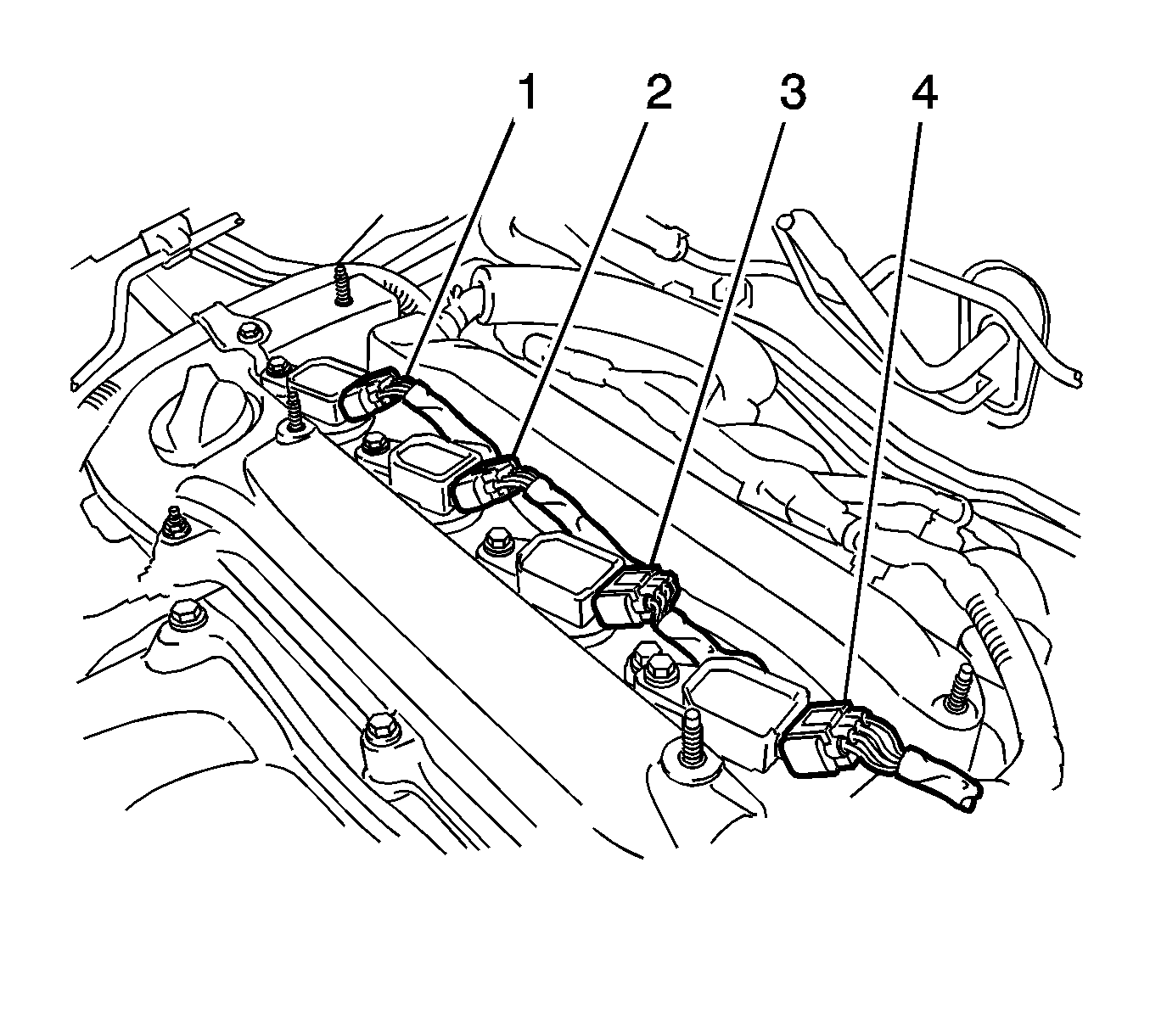

    2. Object Number: 2016546 Size: SH
  2. Disconnect the 4 ignition coil connectors (1, 2, 3, 4).

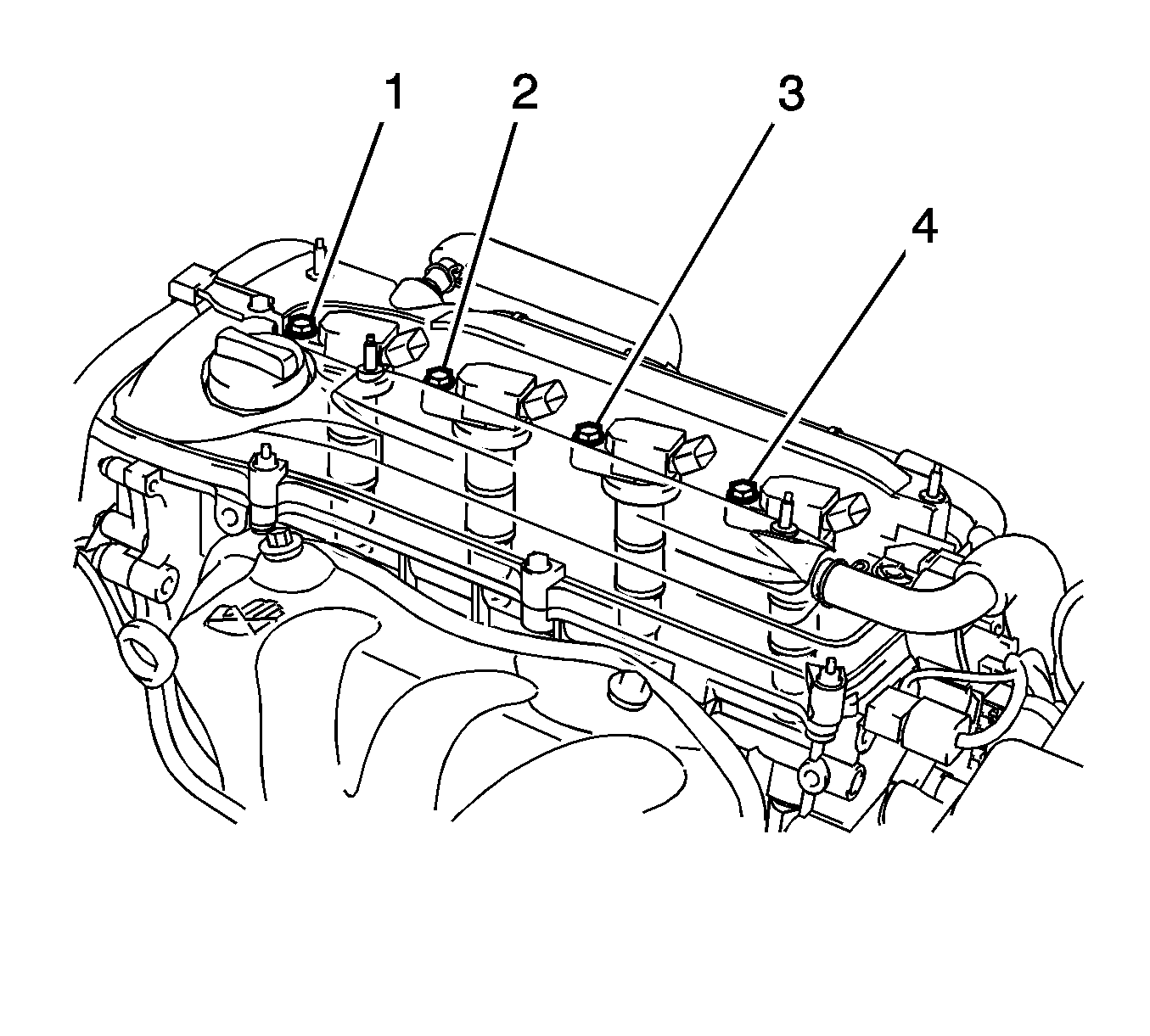

    3. Object Number: 2016547 Size: SH
  3. Remove the 4 bolts (1, 2, 3, 4) and 4 ignition coils.

Installation Procedure

    Caution: Refer to Fastener Caution in the Preface section.


    Object Number: 2016547 Size: SH
  1. Install the 4 ignition coils with the 4 bolts (1, 2, 3, 4) and tighten to 9.0 N·m (80 lb in).

    2. Object Number: 2016546 Size: SH
  2. Connect the 4 ignition coil connectors (1, 2, 3, 4).
  3. Install the engine cover.
